FRONT TWEETER

AV-463

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000005259631

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille.

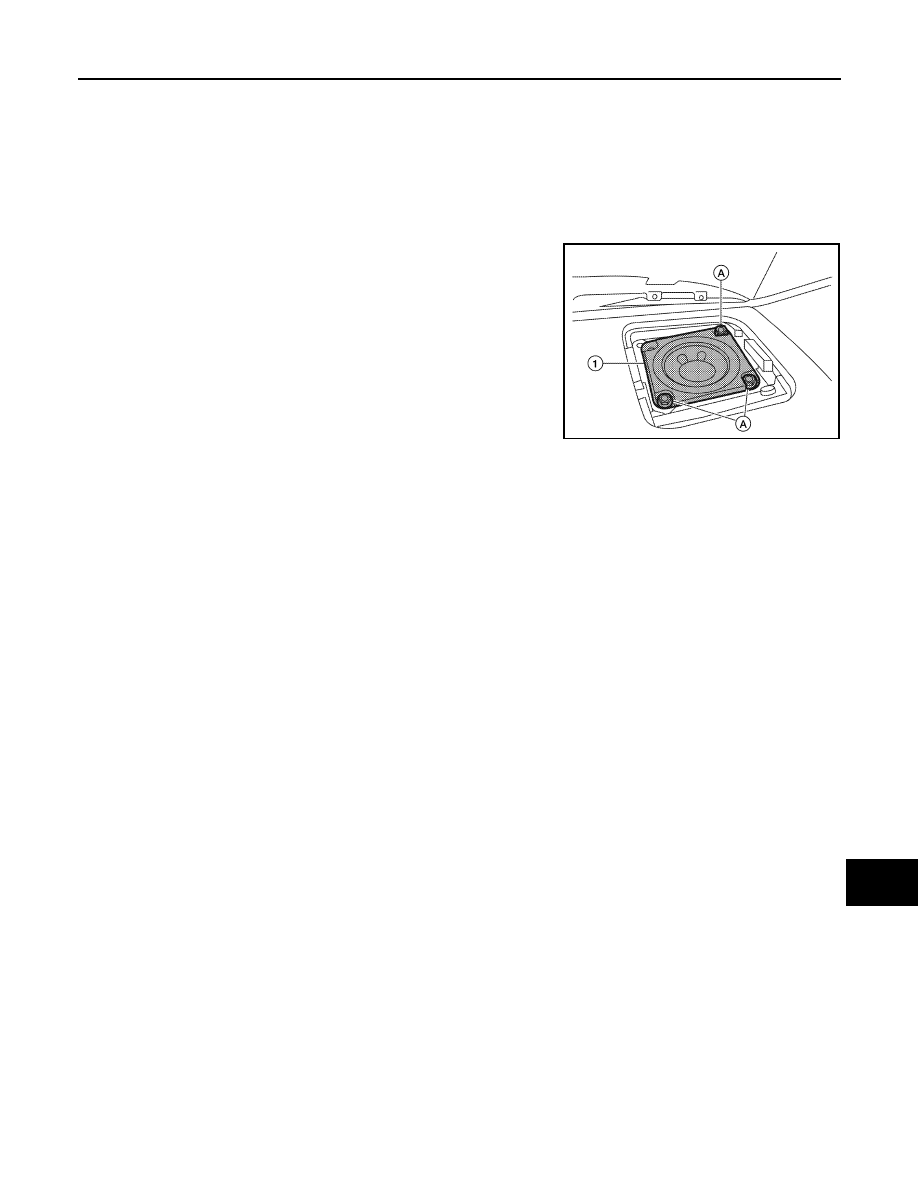

2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

2010 Pathfinder

2010 Pathfinder

AV-464

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005259632

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

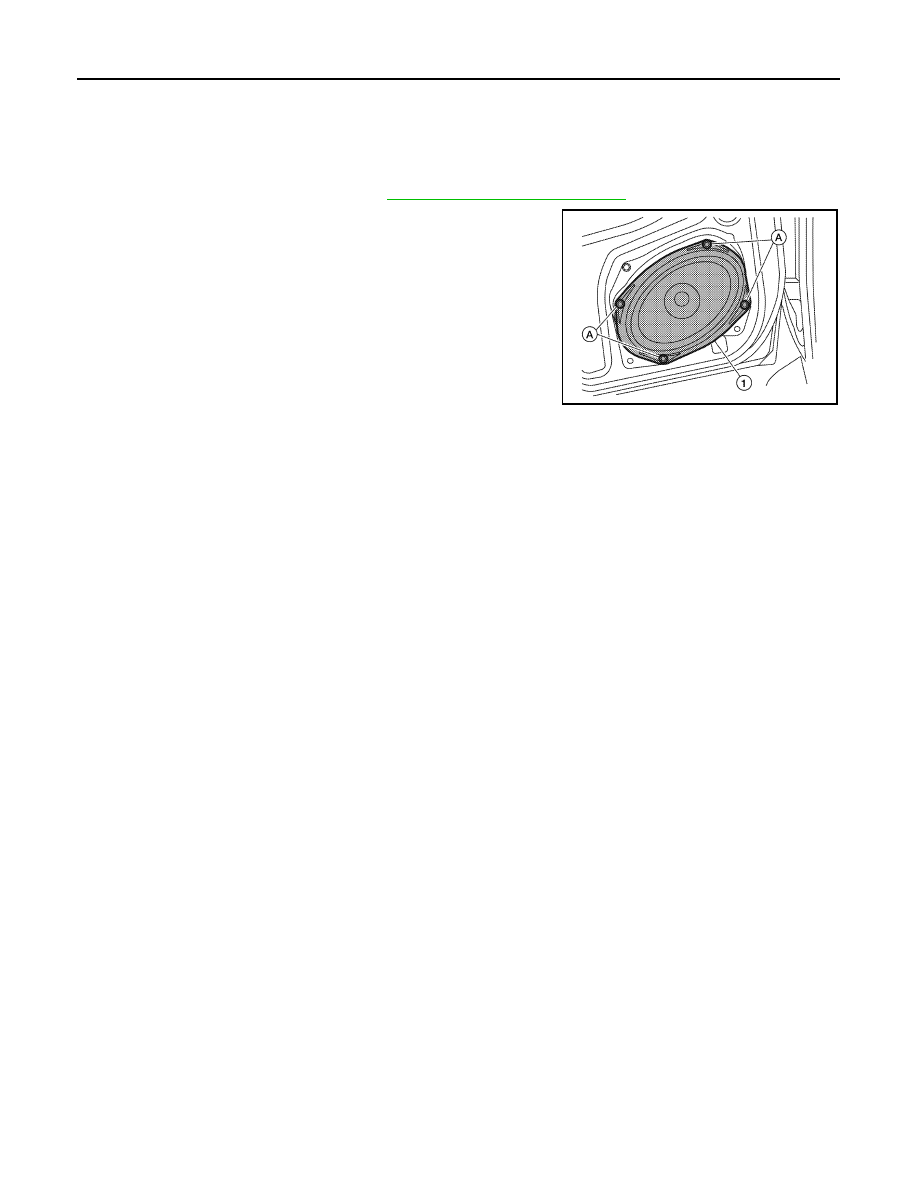

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

2010 Pathfinder

2010 Pathfinder

AV

REAR DOOR SPEAKER

AV-465

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005259633

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

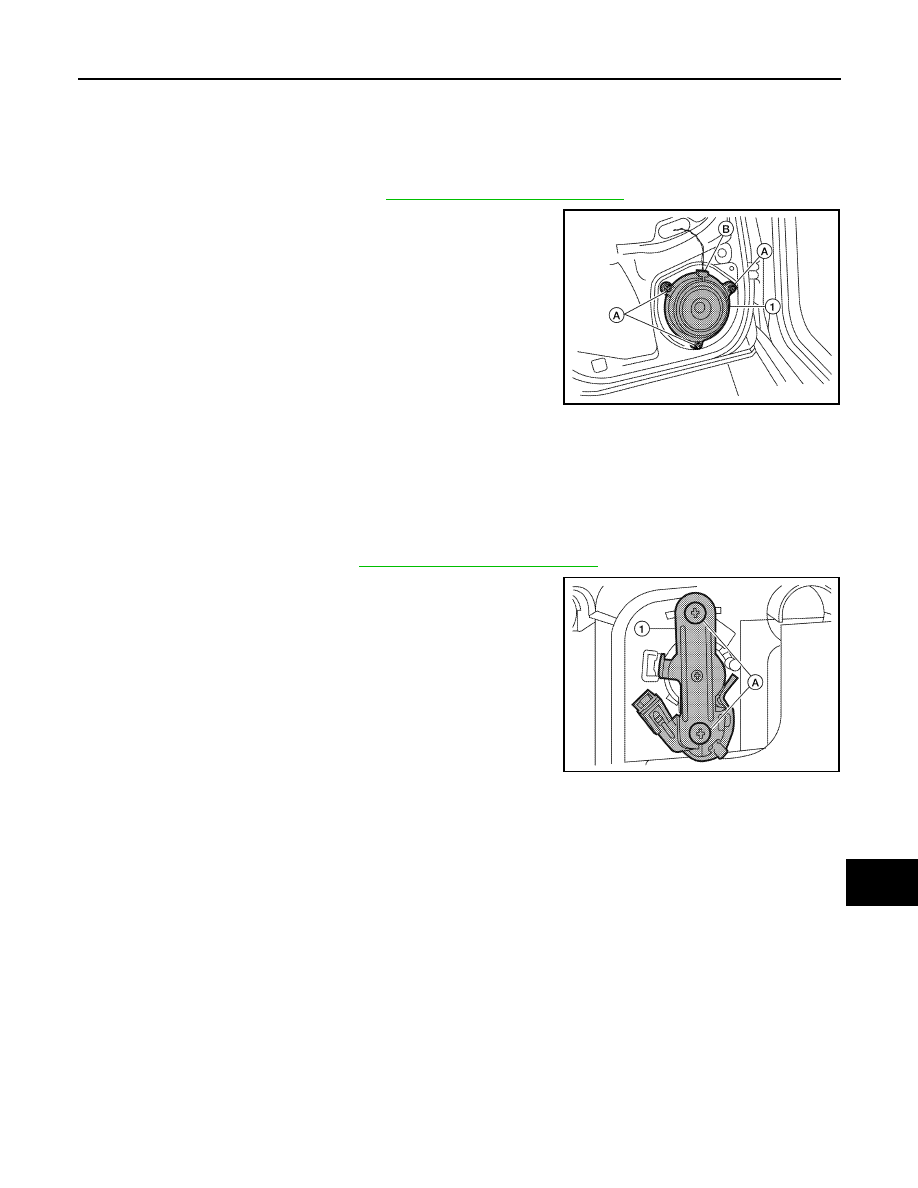

2. Remove the rear door speaker screws (A).
3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005259634

REAR TWEETER

Removal

1. Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear tweeter screws (A) and remove the rear

tweeter (1).

Installation

Installation is in the reverse order of removal.

ALNIA0348ZZ

ALNIA0351ZZ

2010 Pathfinder

2010 Pathfinder

AV-466

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000005259635

BOSE SPEAKER AMP.

Removal

NOTE:

Do not remove the LH front seat from the vehicle.
1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to

SE-

30, "Removal and Installation"

.

2. Tilt the LH front seat back to access the BOSE speaker amp.

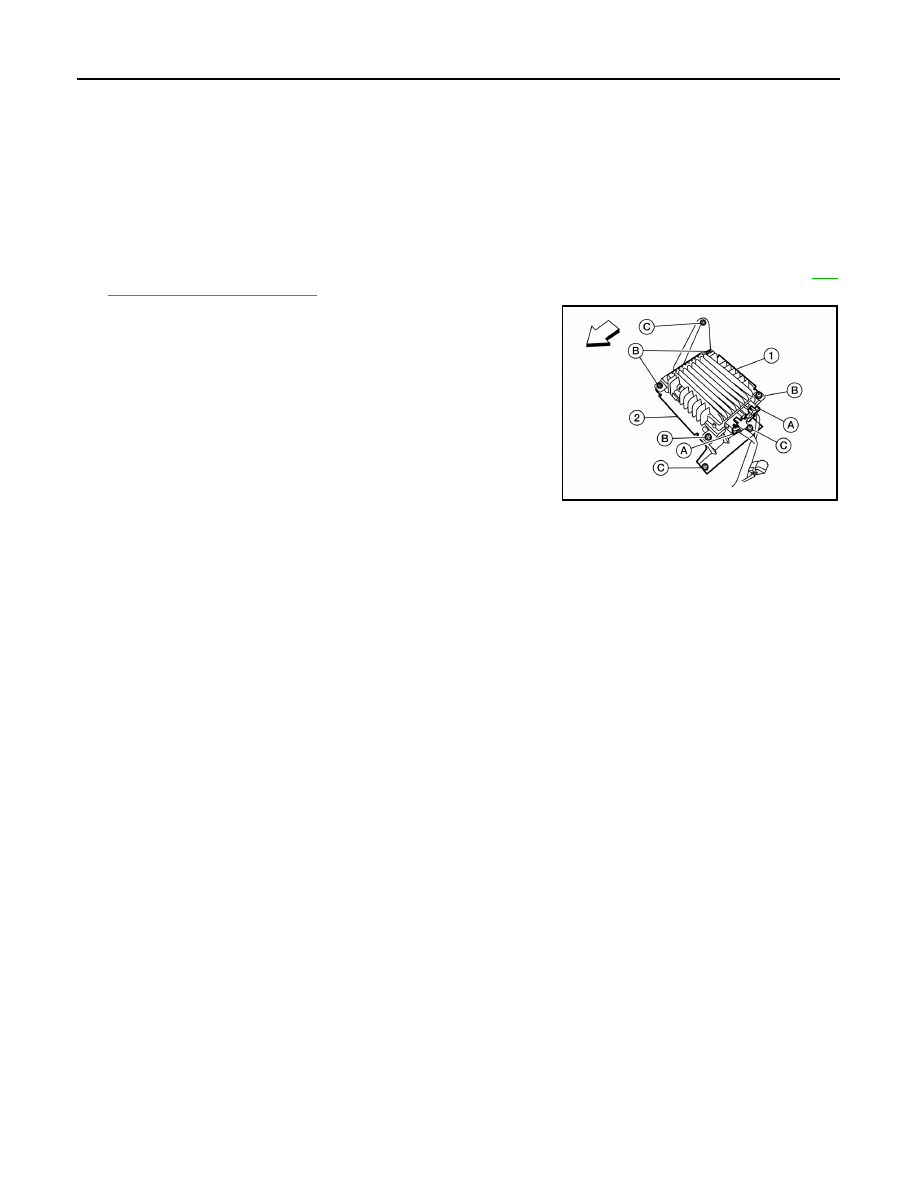

(1), then remove the BOSE speaker amp. screws (B).

•

⇒

: Vehicle front

3. Disconnect the Bose speaker amp. connectors (A) and remove

Bose speaker amp. (1) from the bracket (2).

4. Then remove the BOSE speaker amp. bracket screws (C) and

remove bracket (2).

Installation

Installation is in the reverse order of removal.

ALNIA1249ZZ

2010 Pathfinder

AV

SUBWOOFER

AV-467

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000005259636

SUBWOOFER (BOSE)

Removal

1. Remove the luggage side lower finisher LH. Refer to

INT-22, "Removal and Installation"

.

2. Remove subwoofer bolts and nuts.
3. Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.

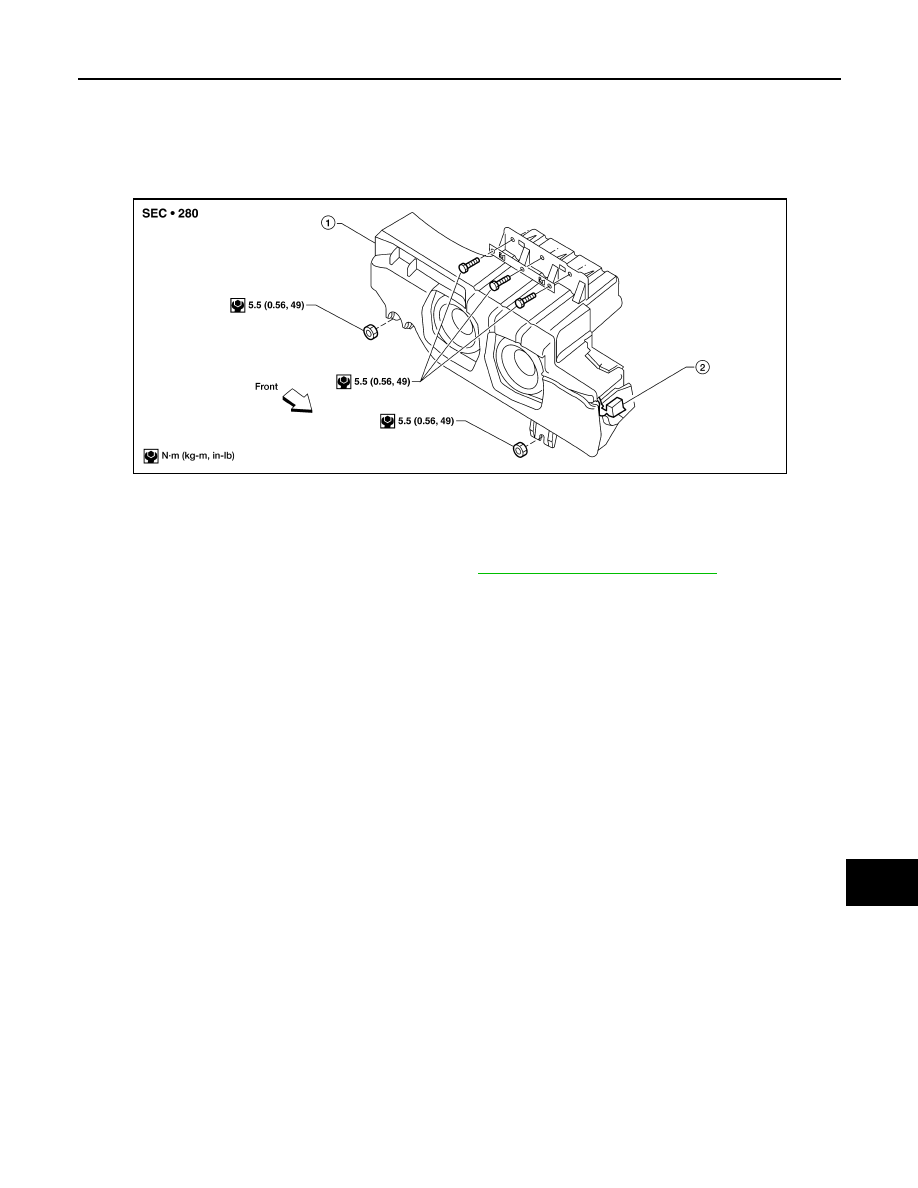

1.

Subwoofer (BOSE system)

2.

Subwoofer (BOSE system) connec-
tor

WKIA3712E

2010 Pathfinder

2010 Pathfinder

AV-468

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

DVD ENTERTAINMENT SYSTEM

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000005259637

REMOVAL

1. Remove the center console assembly. Refer to

IP-12, "Removal and Installation"

.

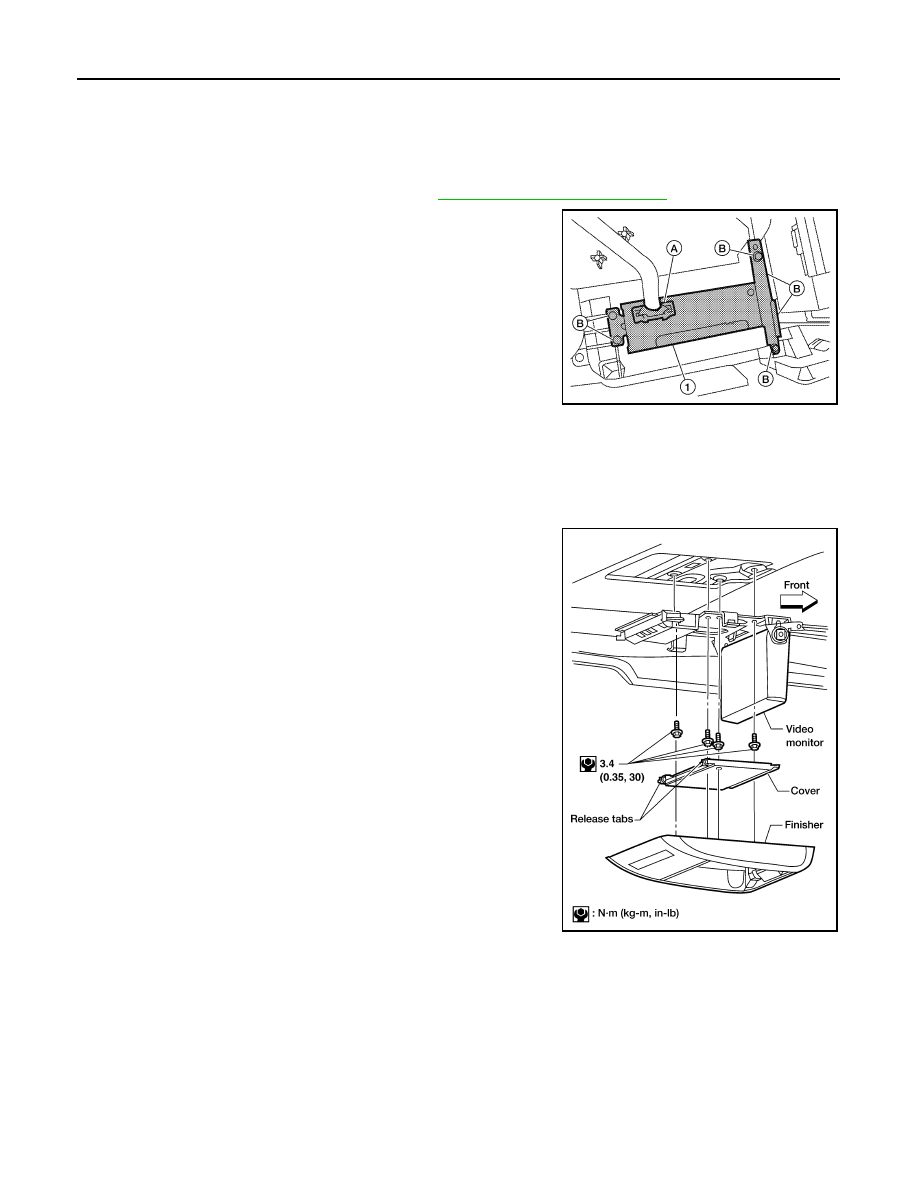

2. Disconnect the DVD player connector (A).
3. Remove the DVD player screws (B), then remove the DVD

player (1).

4. Remove the DVD player bracket screws and then remove DVD

player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of Video Monitor

INFOID:0000000005259638

REMOVAL

1. Release the clips and remove the video monitor finisher from

headlining.

2. Press the release tabs and remove the cover.
3. Remove the video monitor screws.
4. Gently lower the assembly and disconnect the connector, then

remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

2010 Pathfinder

2010 Pathfinder

AV

AUDIO ANTENNA

AV-469

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

Location of Antenna

INFOID:0000000005259639

Window Antenna Repair

INFOID:0000000005259640

ELEMENT CHECK

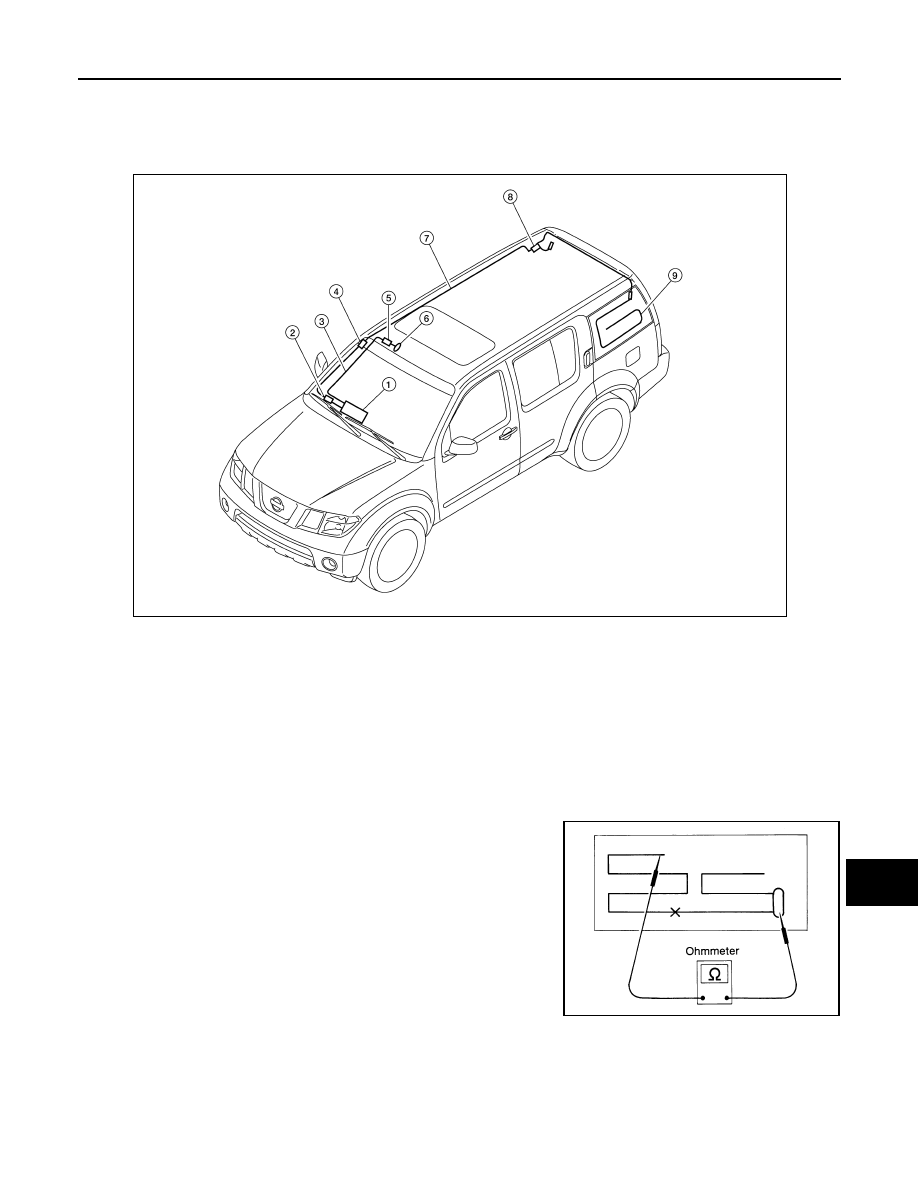

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

AV control unit M44, M71

2.

Harness connector
M78, M501

3.

Satellite antenna feeder

4.

Harness connector
M502, M601

5.

Harness connector
M73, M350

6.

Satellite antenna
M351

7.

Antenna feeder

8.

Antenna amp.
M602

9.

Window antenna grid

AWNIA1796ZZ

SEL250I

2010 Pathfinder

2010 Pathfinder

AV-470

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AUDIO ANTENNA

•

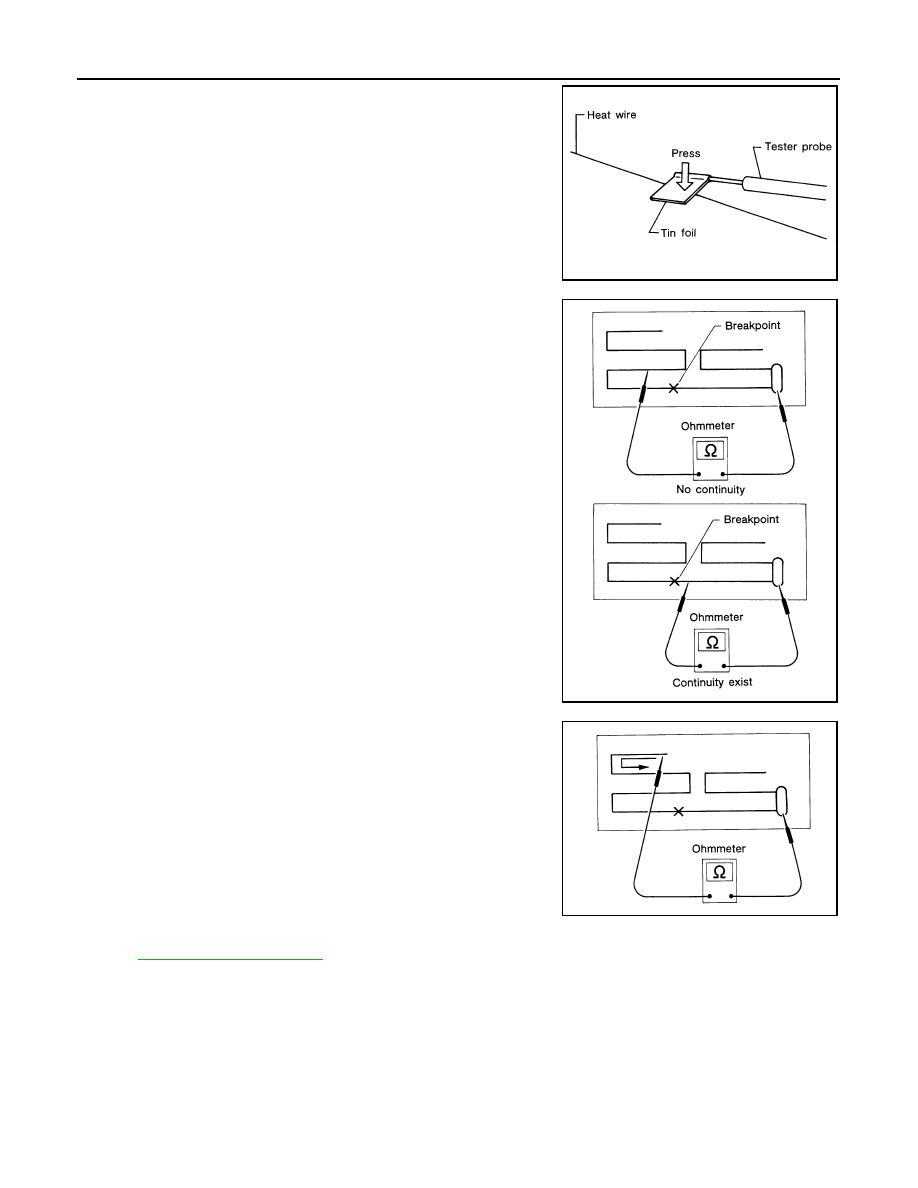

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-43, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

2010 Pathfinder

2010 Pathfinder
