AV

MICROPHONE SIGNAL CIRCUIT

AV-407

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Check signal between AV control unit harness connector M48 termi-

nals 74 and 75 with CONSULT-III or oscilliscope.

Are voltage readings as specified?

YES

>> Replace AV control unit. Refer to

AV-460, "Removal and Installation"

.

NO

>> Replace microphone. Refer to

AV-476, "Removal and Installation"

.

Connector

(+)

(-)

Reference signal

Terminal

Terminal

M48

75

74

While speaking into MIC

ALNIA0553GB

PKIB5037J

2010 Pathfinder

2010 Pathfinder

AV-408

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

ECU DIAGNOSIS

AV CONTROL UNIT

Reference Value

INFOID:0000000005259615

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III data monitor item

TERMINAL LAYOUT

PHYSICAL VALUES

Display Item

Dis-
play

Vehicle status

Remarks

VHCL SPD SIG

ON

Vehicle speed >0 km/h (0 MPH)

Changes in indication may be delayed. This is
normal.

OFF

Vehicle speed =0 km/h (0 MPH)

PKB SIG

ON

Parking brake is applied.

Changes in indication may be delayed. This is
normal.

OFF

Parking brake is released.

ILLUM SIG

ON

Block the light beam from the auto
light optical sensor when the light
SW is ON.

—

OFF

Expose the auto light optical sensor
to light when the light SW is OFF or
ON.

IGN SIG

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

REV SIG

ON

Selector lever in R position

Changes in indication may be delayed. This is
normal.

OFF

Selector lever in any position other
than R

AWNIA0148ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(SB)

Ground Amp. ON signal

Output

Ignition

switch

ON

—

Battery voltage

2

(BR)

3

(B)

Pre-amp. audio signal front
LH

Output

Ignition

switch

ON

Audio output

SKIB3609E

2010 Pathfinder

2010 Pathfinder

AV

AV CONTROL UNIT

AV-409

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4

(BR/W)

5

(BR/Y)

Pre-amp. audio signal rear
LH

Output

Ignition

switch

ON

Audio output

6

(Y)

15

(L)

Steering switch signal A

Input

Ignition

switch

ON

Pressing

switch

 0V

Pressing

switch

0.75V

Pressing VOL up switch

2V

Except for above

5V

7

(G/Y)

Ground ACC power supply

Input

Ignition

switch

ACC

−

Battery voltage

9

(V)

Ground Illumination signal

Input

Ignition

switch

OFF

Lighting switch is OFF.

0V

Lighting switch is ON.

Battery voltage

11

(G/Y)

12

(G/O)

Pre-amp. audio signal front
RH

Output

Ignition

switch

ON

Audio output

13

(G/R)

14

(B)

Audio signal rear RH

Output

Ignition

switch

ON

Audio output

15

(L)

Ground

Steering switch signal
ground

—

Ignition

switch

ON

—

0V

16

(G)

15

(L)

Steering switch signal B

Input

Ignition

switch

ON

Pressing

switch

0V

Pressing

switch

0.75V

Pressing VOL down switch

2V

Except for above

5V

19

(Y)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

20

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

2010 Pathfinder

2010 Pathfinder

AV-410

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

21

(L)

Ground RGB signal (R: red)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

22

(G)

Ground RGB signal (G: green)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

23

(Y)

Ground RGB signal (B: blue)

Output

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

25

(R)

Ground RGB synchronizing signal

Output

Ignition

switch

ON

—

27

(G)

Ground RGB area (YS) signal

Output

Ignition

switch

ON

At RGB image displayed

5V

At rear view camera image
displayed

28

(B)

Ground

Horizontal synchronizing
(HP) signal

Input

Ignition

switch

ON

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2238J

SKIB2236J

SKIB2237J

SKIB3603E

PKIB4948J

SKIB3601E

2010 Pathfinder

2010 Pathfinder

AV

AV CONTROL UNIT

AV-411

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

29

(W)

Ground

Vertical synchronizing (VP)
signal

Input

Ignition

switch

On

—

30

(V)

Ground

Communication signal
(CONT

→

DISP)

Output

Ignition

switch

ON

When adjusting display-
brightness

31

(LG)

Ground

Communication signal
(DISP

→

CONT)

Input

Ignition

switch

ON

When adjusting display-
brightness

34

—

Antenna main

—

—

—

—

35

—

Antenna B+

—

—

—

—

42

(W)

58

(B)

DVD audio signal LH

Input

Ignition

switch

ON

When DVD player is oper-
ating

43

(R)

59

(G)

DVD audio signal RH

Input

Ignition

switch

ON

When DVD player is oper-
ating

48

(SB)

Ground CD/DVD eject signal

Input

—

Pressing the eject switch

0V

Except for above

3.3V

50

(W)

51

(R)

AUX jack audio signal LH

Input

Ignition

switch

ON

When AUX mode is select-
ed

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3598E

PKIB5039J

PKIB5039J

SKIB3609E

SKIB3609E

SKIB3609E

2010 Pathfinder

2010 Pathfinder

AV-412

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

61

(G)

45

(W)

Headphone LH audio sig-
nal

Output

Ignition

switch

ON

When DVD player is oper-
ating

62

(R)

46

(B)

Headphone RH audio sig-
nal

Output

Ignition

switch

ON

When DVD player is oper-
ating

65

(GR)

Ground

A/C and AV switch assem-
bly ground

—

Ignition

switch

ON

—

0V

66

(B)

51

(R)

AUX jack audio signal RH

Input

Ignition

switch

ON

When AUX mode is select-
ed

68

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

69

(R/B)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

70

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

71

(R/B)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

72

(G/Y)

Ground ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

73

(W)

Ground MIC power

Output

Ignition

switch

ON

—

5V

74

—

Shield

—

—

—

—

75

(R)

—

MIC signal

Input

Ignition

switch

ON

—

—

76

—

Shield

—

—

—

—

82

(W/G)

Ground

IGN ON or START power
supply

Input

Ignition

switch

ON or

START

—

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

2010 Pathfinder

2010 Pathfinder

AV

AV CONTROL UNIT

AV-413

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

83

(G)

Ground Parking brake signal

Input

Ignition

switch

ON

Parking brake ON

0V

Parking brake OFF

Battery voltage

84

(W)

Ground Reverse signal

Input

Ignition

switch

ON

R position

Battery voltage

Other than R position

0V

85

(LG)

Ground

Vehicle speed signal (8-
pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25MPH)

89

(B)

—

Ground

Input

—

—

0V

90

(B)

—

Ground

Input

—

—

0V

95

(L)

—

AV communication signal 2
(H)

Input/

Output

—

—

—

96

(P)

—

AV communication signal 2
(L)

Input/

Output

—

—

—

97

(L)

—

AV communication signal 1
(H)

Input/

Output

—

—

—

98

(P)

—

AV communication signal 1
(L)

Input/

Output

—

—

—

99

(L)

—

CAN–H

Input/

Output

—

—

—

100

(P)

—

CAN–L

Input/

Output

—

—

—

108

—

Satellite antenna signal

Input

—

—

—

109

—

GPS antenna

Input

—

—

—

110

—

GPS antenna

Input

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA6649J

2010 Pathfinder

2010 Pathfinder

AV-414

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

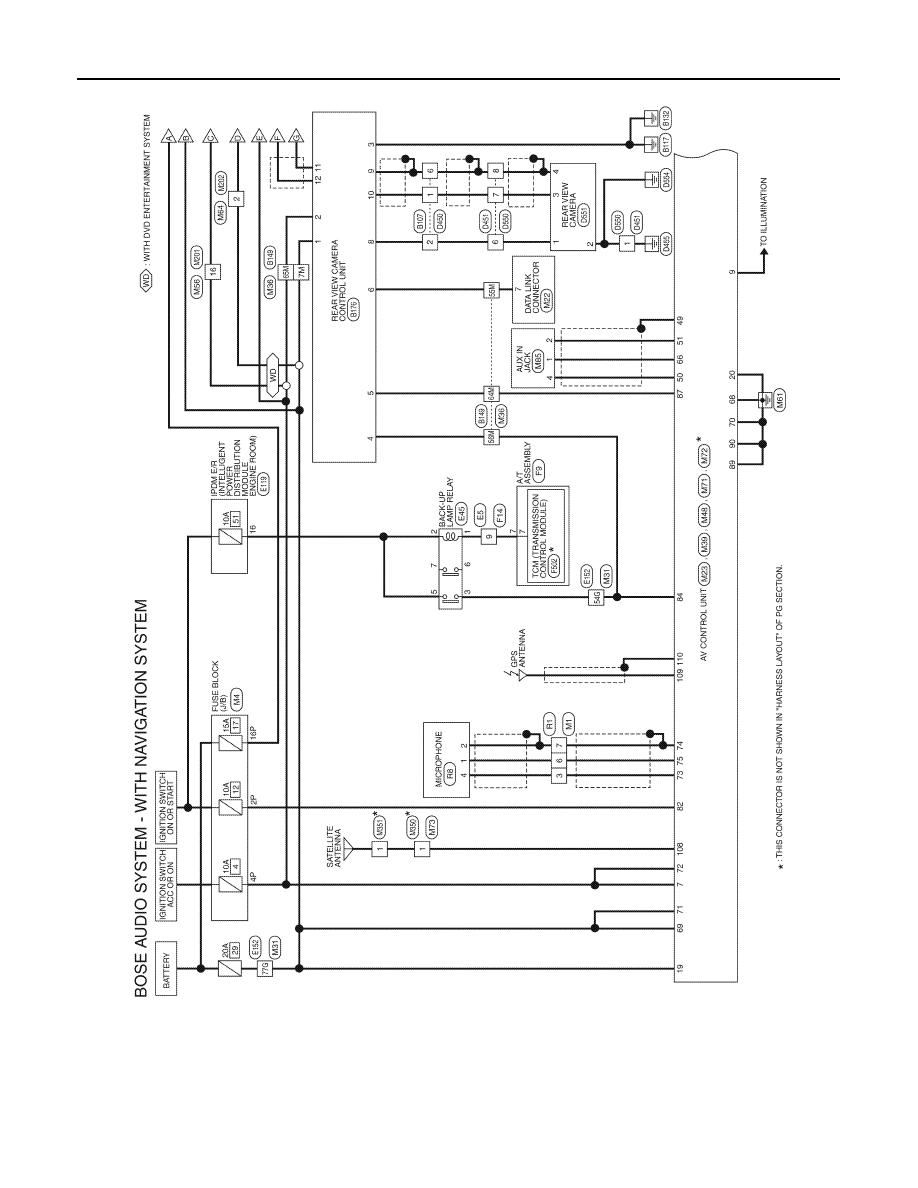

Wiring Diagram

INFOID:0000000005259616

ABNWA0498GB
