Nissan Pathfinder (2010 year). Manual - part 64





AV

NAVIGATION SYSTEM

AV-319

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

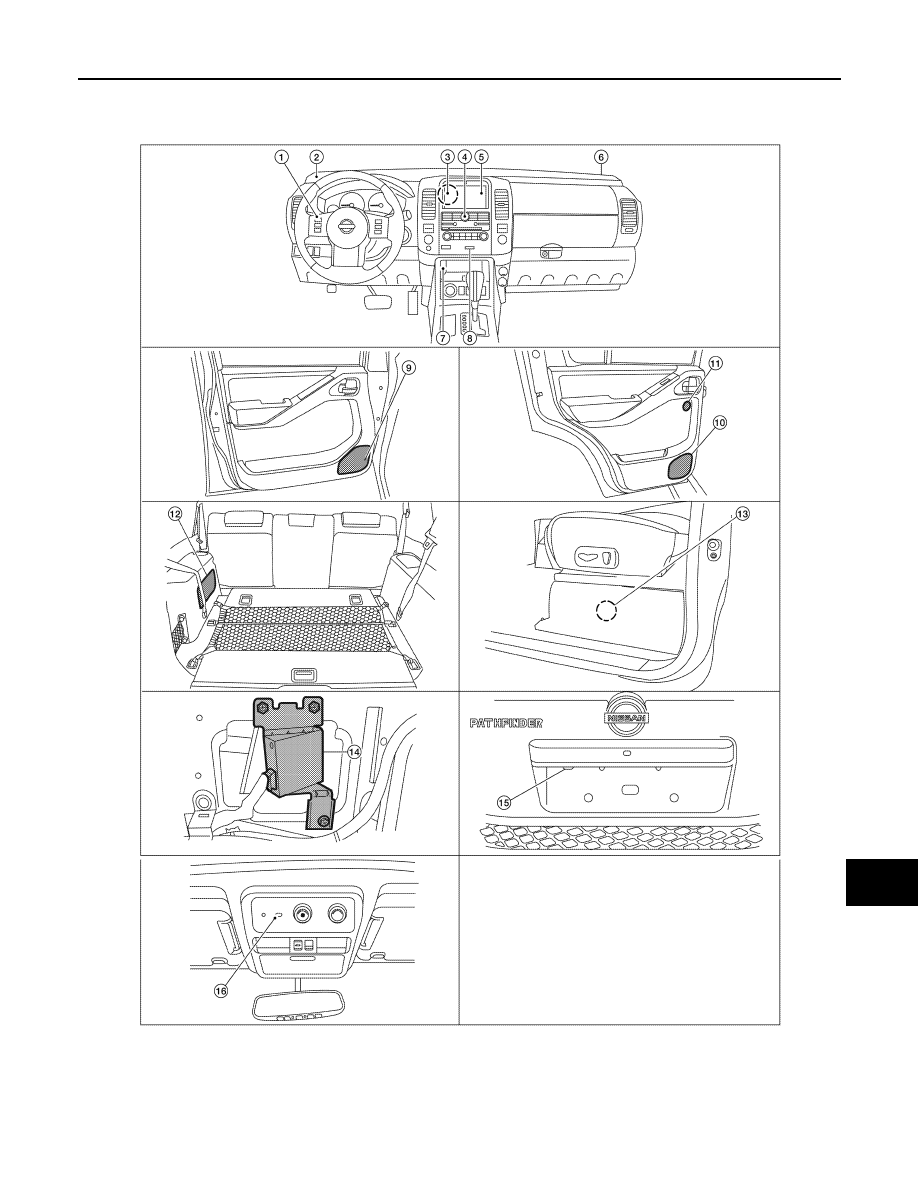

Component Parts Location

INFOID:0000000005259502

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M23, M37, M39, M44,
M48, M71, M72

4.

A/C and AV switch assembly M98

5.

Display unit M92

6.

Front tweeter RH M111

AWNIA1814ZZ

2010 Pathfinder

2010 Pathfinder

AV-320

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

Component Description

INFOID:0000000005259503

7.

Aux. jack M85

8.

Compact Flash insert slot

9.

Front door speaker
LH D12
RH D112

10. Rear door speaker

LH D207
RH D307

11. Rear tweeter

LH D208
RH D308

12. Subwoofer B72

13. BOSE speaker amp B74, B75 (locat-

ed under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage finisher RHl)

15. Rear view camera  D551

16. Microphone R8

Part name

Description

AV control unit

• Controls each operation of the navigation system
• DVD-ROM drive is built in
• Voice guidance signal is output to BOSE speaker amp.

BOSE speaker amp.

Voice guidance signal is input from AV control unit, and it is output to speakers.

Tweeter

Voice guidance signal from BOSE speaker amp. is output.

Steering wheel audio control switches

• Each operation of navigation system can be performed
• Switch operating signal is output to AV control unit

Microphone

Sends voice signals to AV control unit

GPS antenna

GPS signal is received and is output to AV control unit.

2010 Pathfinder

2010 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-321

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW MONITOR SYSTEM

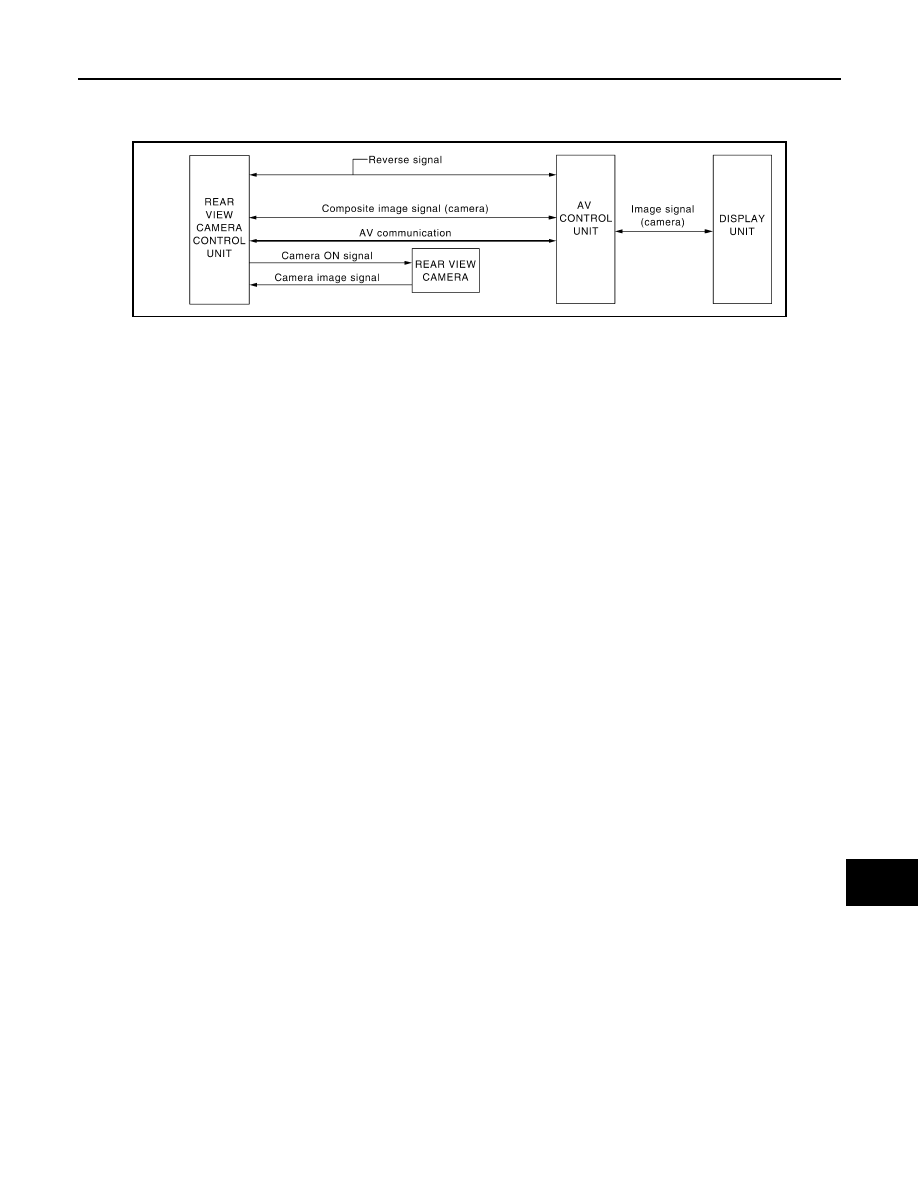

System Diagram

INFOID:0000000005259504

System Description

INFOID:0000000005259505

When the selector is in the R position, the display shows a view to the rear of the vehicle. Lines which indicate

the vehicle clearance and distances are also displayed.

AV COMMUNICATION LINE

The rear view camera control unit is connected to the audio control unit using an AV communication line. This

line is used to transmit and receive data.

AWNIA0387GB

2010 Pathfinder

2010 Pathfinder

AV-322

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

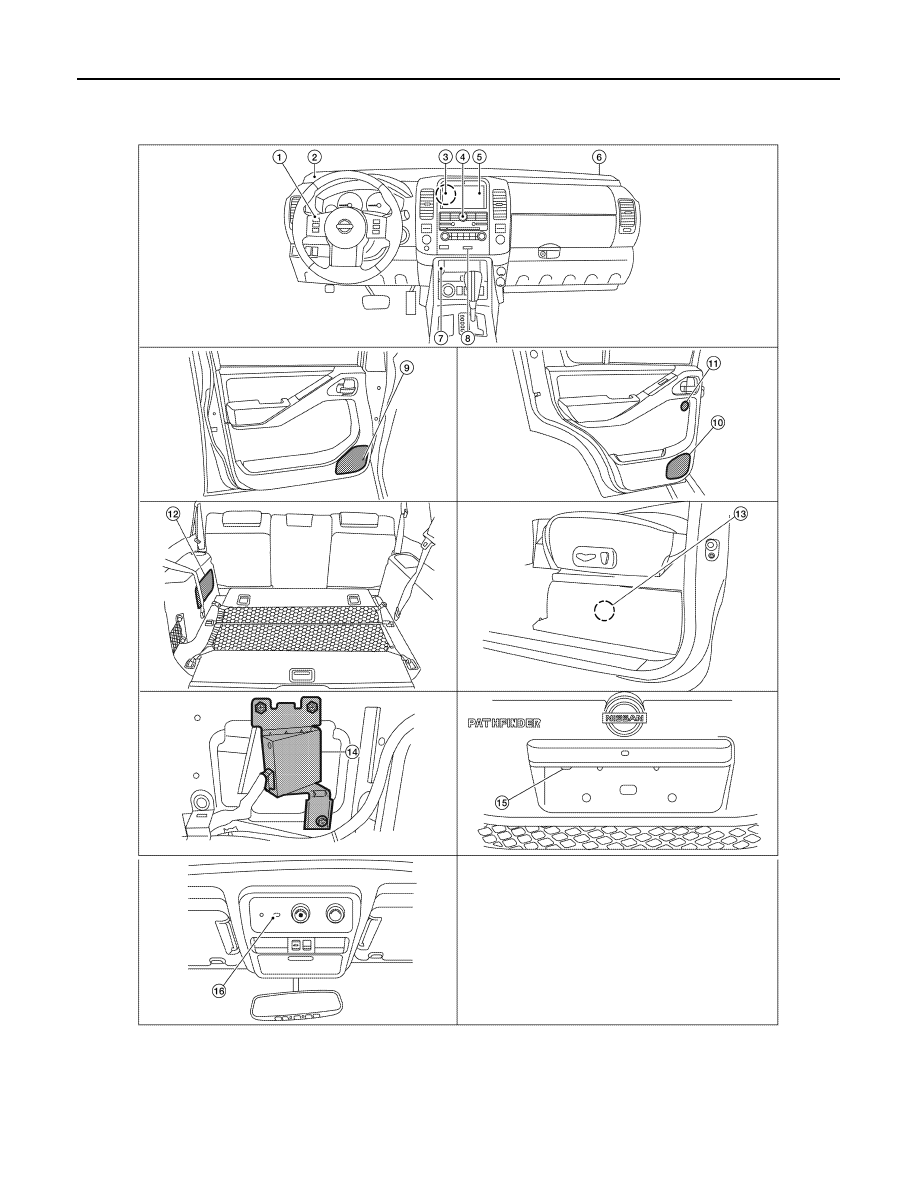

Component Parts Location

INFOID:0000000005259506

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M23, M37, M39, M44,
M48, M71, M72

4.

A/C and AV switch assembly M98

5.

Display unit M92

6.

Front tweeter RH M111

AWNIA1814ZZ

2010 Pathfinder

2010 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-323

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005259507

7.

Aux. jack M85

8.

Compact Flash insert slot

9.

Front door speaker
LH D12
RH D112

10. Rear door speaker

LH D207
RH D307

11. Rear tweeter

LH D208
RH D308

12. Subwoofer B72

13. BOSE speaker amp B74, B75 (locat-

ed under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage finisher RHl)

15. Rear view camera  D551

16. Microphone R8

Part name

Description

AV control unit

Camera image signal is sent from rear view camera control unit

Rear view camera control unit

• Receives reverse signal from back-up lamp relay
• Receives rear view camera image signal
• Sends camera ON signal to rear view camera
• Sends image signal to AV control unit

Rear view camera

• Receives camera ON signal from rear view camera control unit
• Sends image signal to rear view camera control unit

2010 Pathfinder

2010 Pathfinder

AV-324

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DVD PLAYER

DVD PLAYER

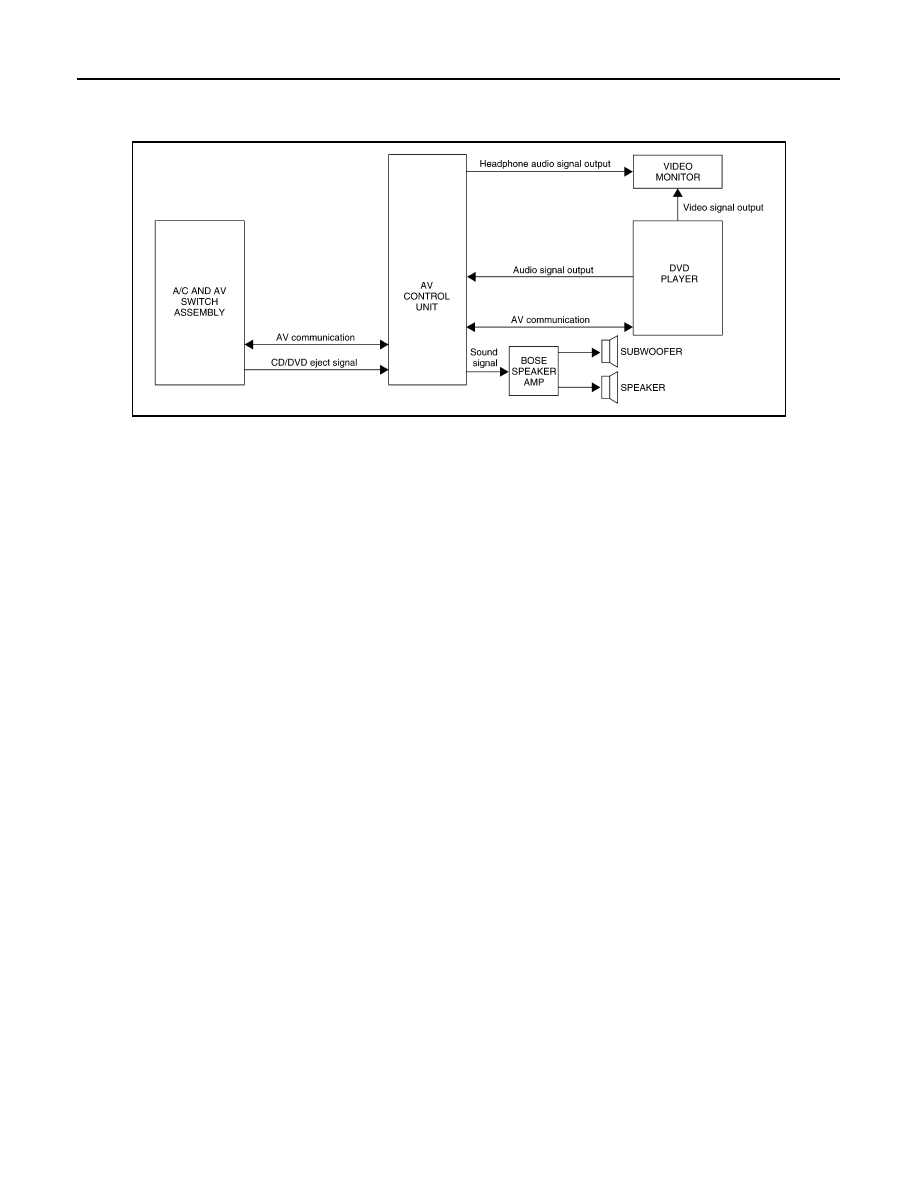

System Diagram

INFOID:0000000005259508

System Description

INFOID:0000000005259509

The DVD entertainment system consists of the following components

• AV control unit

• Display unit

• DVD player

• Video monitor

• A/C and AV switch assembly

• Steering wheel audio control switches

• BOSE speaker amp.

• Front tweeters

• Front door speakers

• Rear tweeters

• Rear door speakers

• Subwoofer

When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.

Audio signals are sent to the AV control unit. Audio signals can be directed through wireless infrared head-

phones or through the BOSE speaker amp. to the vehicle speakers. Refer to the Owner's Manual for complete

DVD entertainment system operating instructions.

ALNIA0561GB

2010 Pathfinder

2010 Pathfinder

AV

DVD PLAYER

AV-325

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

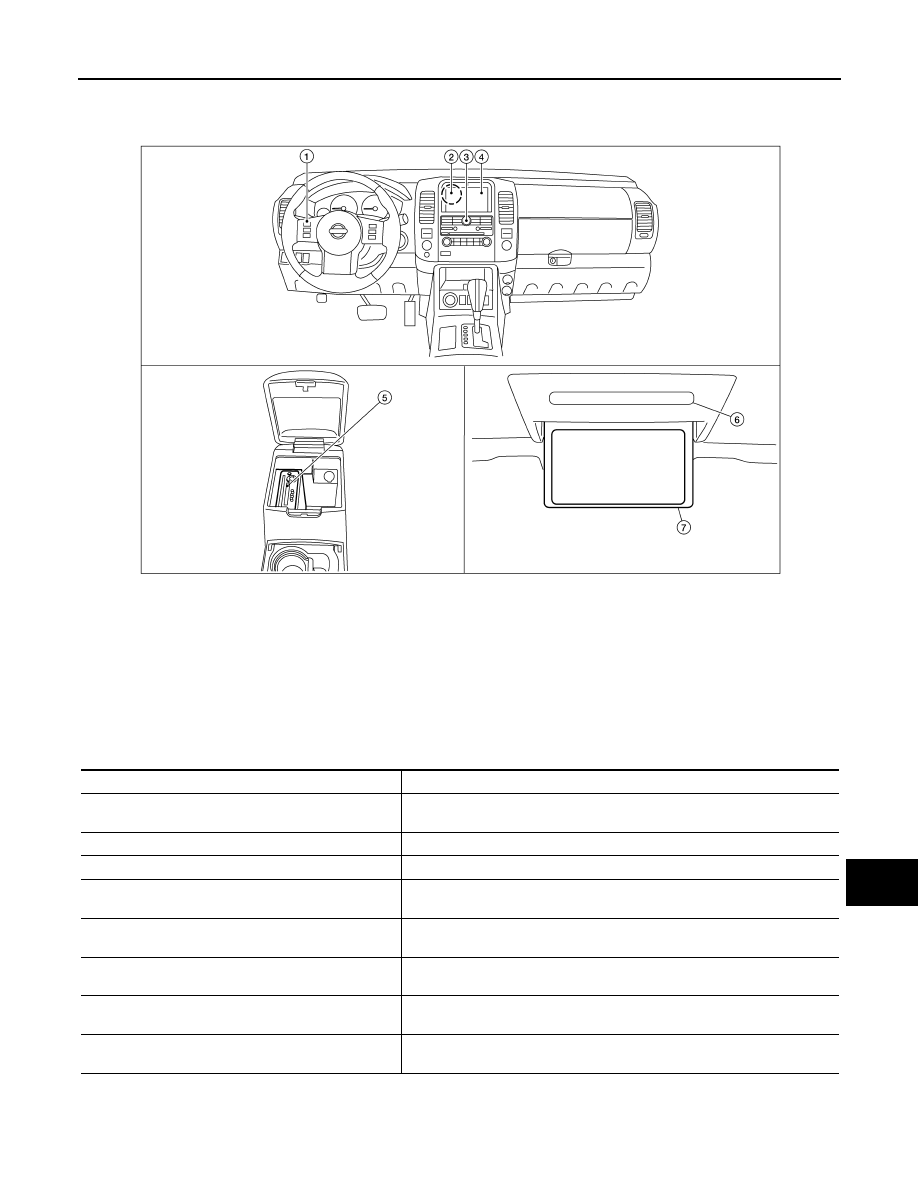

Component Parts Location

INFOID:0000000005259510

Component Description

INFOID:0000000005259511

1.

Steering wheel audio control switches 2.

AV control unit M23, M37, M39, M44,
M48, M71, M72

3.

A/C and AV switch assembly M98

4.

Display unit M92

5.

DVD player M205 (located in center
console)

6.

Infrared headphone and remote re-
ceiver/transmitter (part of video moni-
tor assembly)

7.

Video monitor B76

ALNIA0558GB

Part name

Description

DVD player

• Outputs DVD video to video monitor
• Outputs DVD audio to the AV control unit

Video monitor

• Receives and displays the DVD video signal

AV control unit

• Controls audio system and DVD entertainment system functions

BOSE speaker amp.

• Recieves audio signals from the AV control unit
• Outputs amplified audio signals to the speakers

A/C and AV switch assembly

• All audio and A/C operations can be operated
• Switch signal is output to the AV control unit and A/C auto amp

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal (operation signal) is output to AV control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front and rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

2010 Pathfinder

2010 Pathfinder

AV-326

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DVD PLAYER

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Part name

Description
