AV

HANDS-FREE PHONE SYSTEM

AV-327

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

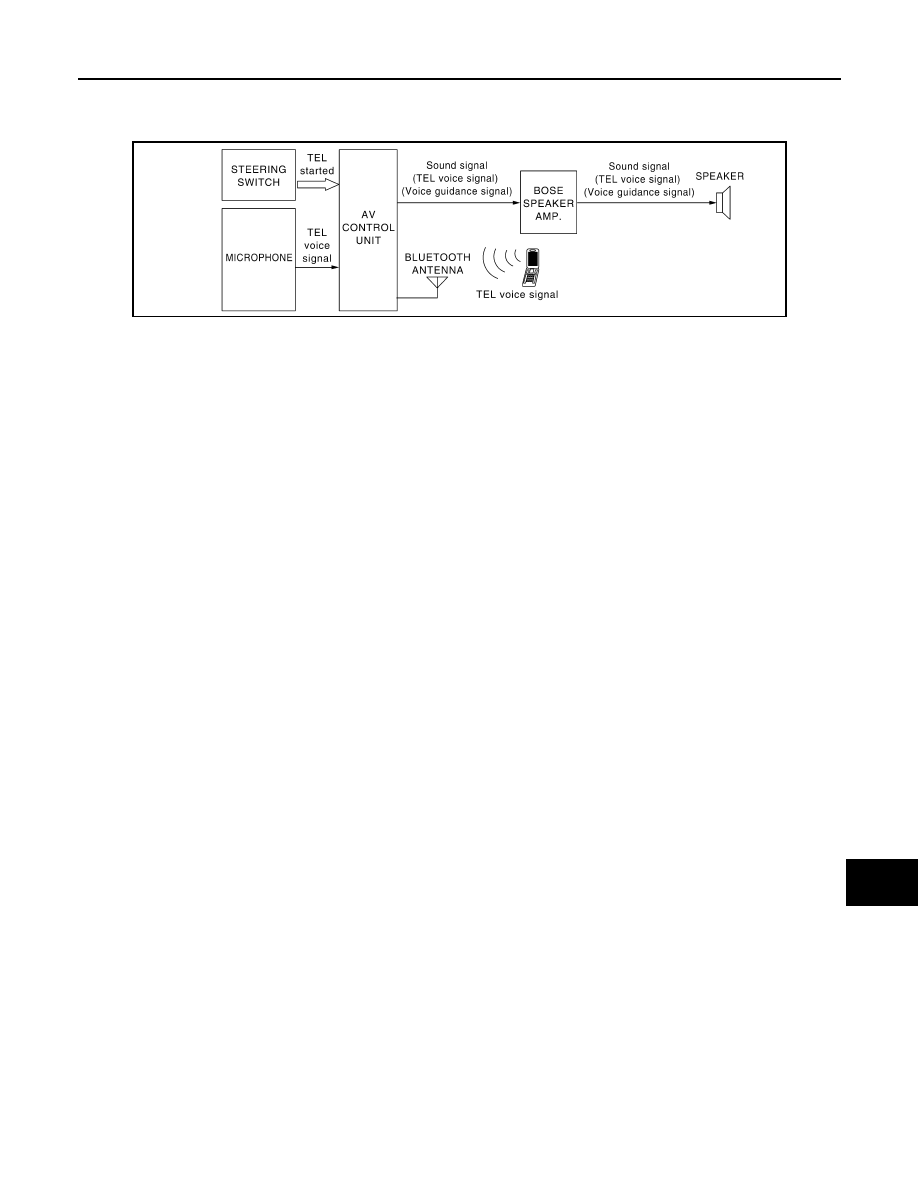

System Diagram

INFOID:0000000005259512

System Description

INFOID:0000000005259513

Refer to the Owner's Manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth equipped cellular telephone to make a wire-

less connection between their cellular telephone and the AV control unit. Hands-free cellular telephone calls

can be sent and received. Personal memos can be created using the Nissan Voice Recognition system. Some

Bluetooth cellular telephones may not be recognized by the AV control unit. When a cellular telephone or the

AV control unit is replaced, the telephone must be paired with the AV control unit. Different cellular telephones

may have different pairing procedures. Refer to the cellular telephone operating manual and the vehicle

Owner's Manual for more information.

AV CONTROL UNIT

When the ignition switch is turned to ACC or ON, the AV control unit will power up. During power up, the Blue-

tooth feature is initialized and performs various self checks.   Initialization may take up to 10 seconds.  If a

phone is present in the vehicle and paired with the AV control unit, Nissan Voice Recognition will then become

active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The AV control unit uses this signal to

perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the AV control unit.

The microphone can be actively tested during self-diagnosis.

AWNIA0131GB

2010 Pathfinder

2010 Pathfinder

AV-328

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

HANDS-FREE PHONE SYSTEM

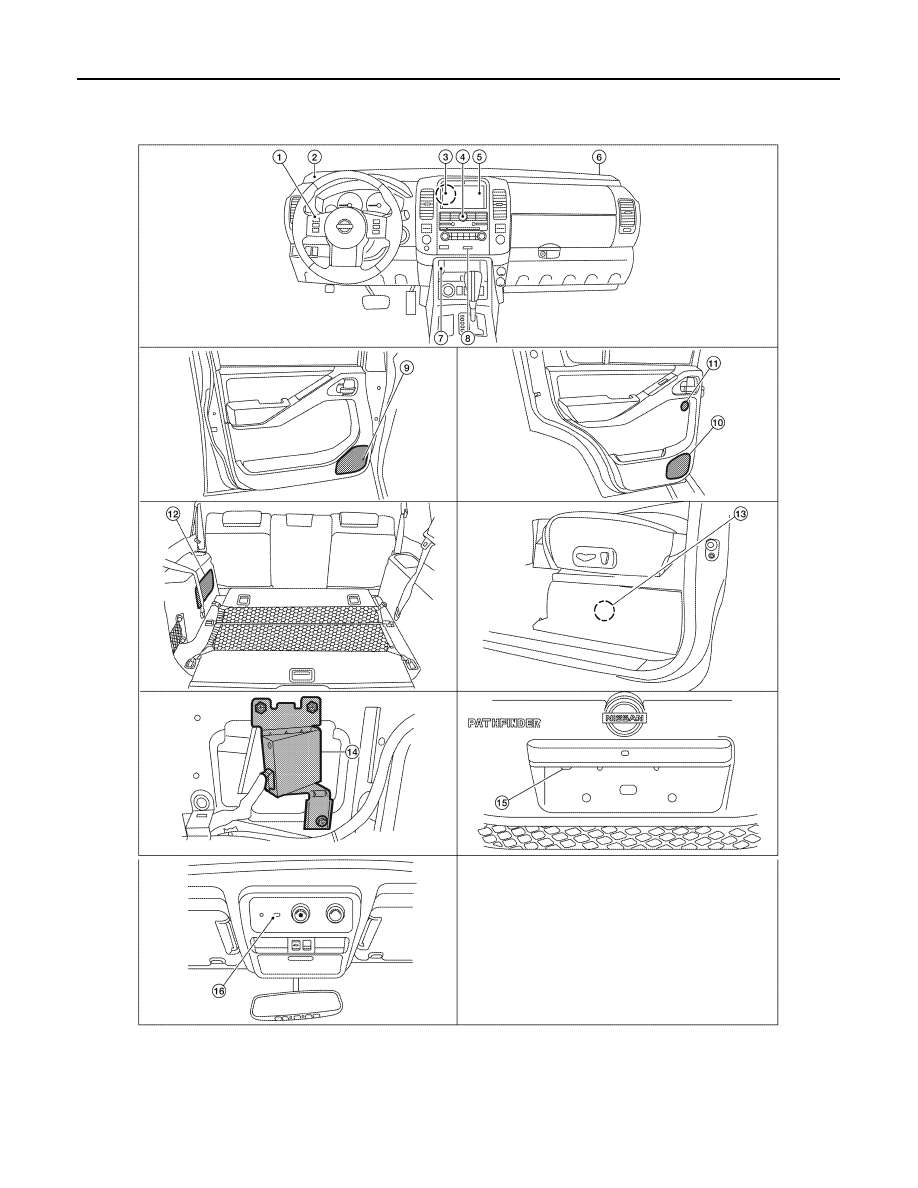

Component Parts Location

INFOID:0000000005259514

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M23, M37, M39, M44,
M48, M71, M72

4.

A/C and AV switch assembly M98

5.

Display unit M92

6.

Front tweeter RH M111

AWNIA1814ZZ

2010 Pathfinder

2010 Pathfinder

AV

HANDS-FREE PHONE SYSTEM

AV-329

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005259515

7.

Aux. jack M85

8.

Compact Flash insert slot

9.

Front door speaker
LH D12
RH D112

10. Rear door speaker

LH D207
RH D307

11. Rear tweeter

LH D208
RH D308

12. Subwoofer B72

13. BOSE speaker amp B74, B75 (locat-

ed under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage finisher RHl)

15. Rear view camera  D551

16. Microphone R8

Part name

Description

AV control unit

• Receives telephone voice signal from Antenna and Microphone
• Sends telephone voice and voice guidance signals to the speakers

BOSE speaker amp.

• Recieves audio signals from the AV control unit
• Outputs amplified audio signals to the speakers.

Front door speaker

Receives telephone voice and voice guidance signals from the AV control unit
through the BOSE speaker amp.

Front tweeter

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth antenna

Sends telephone voice signal to Bluetooth control unit

2010 Pathfinder

2010 Pathfinder

AV-330

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV CONTROL UNIT
AV CONTROL UNIT : Diagnosis Description

INFOID:0000000005259516

DESCRIPTION

• Diagnosis function consists of the "Self-Diagnosis" mode performed automatically and the "Confirmation/

Adjustment" mode operated manually.

• "Self-Diagnosis" mode checks for connections between the units constituting this system, analyzes each

individual unit at the same time, and displays the results on the LCD screen.

• "Confirmation/Adjustment" mode is used to perform trouble diagnosis that requires operation and judgment

by an operator (trouble that cannot be automatically judged by the system), to check/change the set value,

and to display the error history of the AV control unit.

DIAGNOSIS ITEM

Mode

Description

Self-diagnosis

• AV control unit diagnosis
• Analyzes connection between the AV control unit, front display,

switches, DVD deck, GPS antenna, rear view camera control unit and
SAT antenna.

2010 Pathfinder

2010 Pathfinder

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-331

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

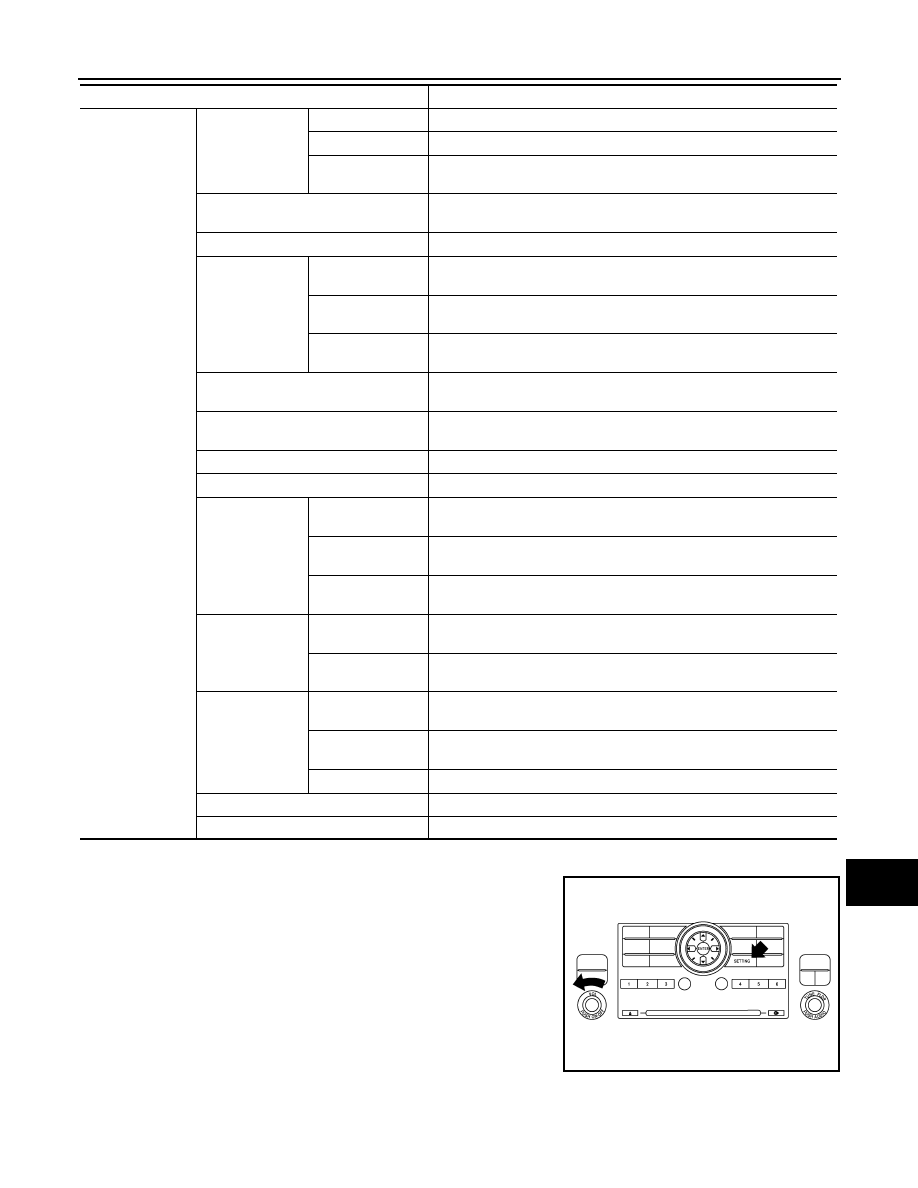

OPERATION PROCEDURE

1. Start the engine.
2. Turn the audio system off.
3. While pressing the “SETTING” button, turn the volume control

dial counterclockwise 30 clicks or more.

CONFIRMATION/
ADJUSTMENT

Display diagnosis

Color spectrum bar Color tone of the screen can be checked by the display of a color bar.

Gradation bar

Shading of the screen can be checked by the display of a gray scale.

Touch panel

• Touch panel calibration
• Touch panel response check

Vehicle signals

The following vehicle signals are analyzed: Vehicle speed signal, park-
ing brake signal, light signal, ignition switch signal, and reverse signal.

Speaker test

Connection can be checked by sending a test tone to each speaker.

Navigation

Steering angle ad-
justment

Confirm/adjust the steering angle when there is a difference between
the displayed vehicle mark turning angle and actual.

Speed calibration

Confirm/adjust the speed calibration when there is a difference between
the displayed vehicle mark location and actual.

XM SAT subscrip-
tion status

Check the subscription status of the XM NAV Traffic subsription.

Error history

Diagnosis results previously stored in the memory are displayed in this
mode.

Synchronize FES clock

Turns FES (Familly Entertainment System) clock synchronization func-
tion ON/OFF.

Vehicle CAN diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM diagnosis

The transmitting/receiving of AV communication can be monitored.

Handsfree phone

Handsfree volume
adjustment

Adjust handsfree volume (low, medium, high).

Voice microphone
test

Test microphone operation.

Delete handsfree
memory

Erase handsfree system memory.

Bluetooth

Confirm/Change
passkey

Confirm and change the Bluetooth passkey

Confirm/Change
device name

Confirm and change a device name stored in Bluetooth.

SAT

Change channel

Any necessary channels required to recieve traffic information from the
satellite radio system can be set.

Change applica-
tion ID

Any application ID's required to recieve traffic information from the sat-
ellite radio system can be set.

Diag

Not used.

Delete connection log

Erase the error history and connection history of the unit.

Initialize settings

All audio settings are reset to default levels.

Mode

Description

ALNIA0446GB

2010 Pathfinder

2010 Pathfinder

AV-332

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

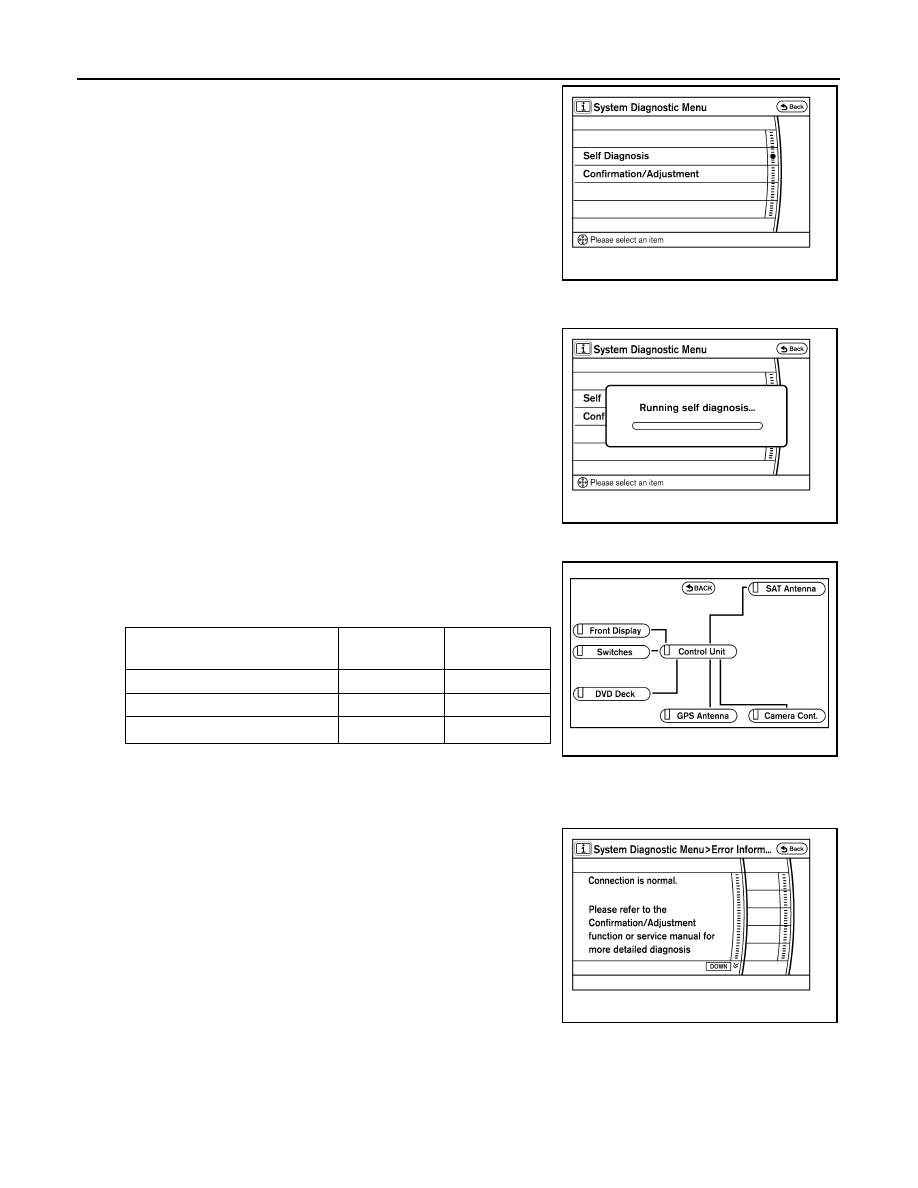

4. The initial trouble diagnosis screen will be displayed, and items

“Self-Diagnosis” and “Confirmation/Adjustment” can be

selected.

SELF-DIAGNOSIS

1. Perform self-diagnosis by selecting “Self-Diagnosis”.

• Self-diagnosis subdivision screen is displayed, and the self-

diagnosis mode starts.

• A bar graph visible on the center of the self-diagnosis subdivi-

sion screen indicates progress of the trouble diagnosis.

NOTE:

Self-diagnosis requires approximately 10 seconds to complete.

2. Diagnosis results are displayed after the self-diagnosis is com-

pleted. The unit names and the connection lines are color-coded

according to the diagnostic results.

Note:
• Only the AV control unit is displayed in red.
• If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the follow-

ing order of priority: red > yellow > gray.

3. Select a component on the “Self-Diagnosis” screen and com-

ments for the diagnosis results will be shown.

Self-Diagnosis Results

ALNIA0211GB

ALNIA0210GB

Diagnosis results

Unit

Connection

line

Normal

Green

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

ALNIA0209GB

ALNIA0208GB

2010 Pathfinder

2010 Pathfinder

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-333

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

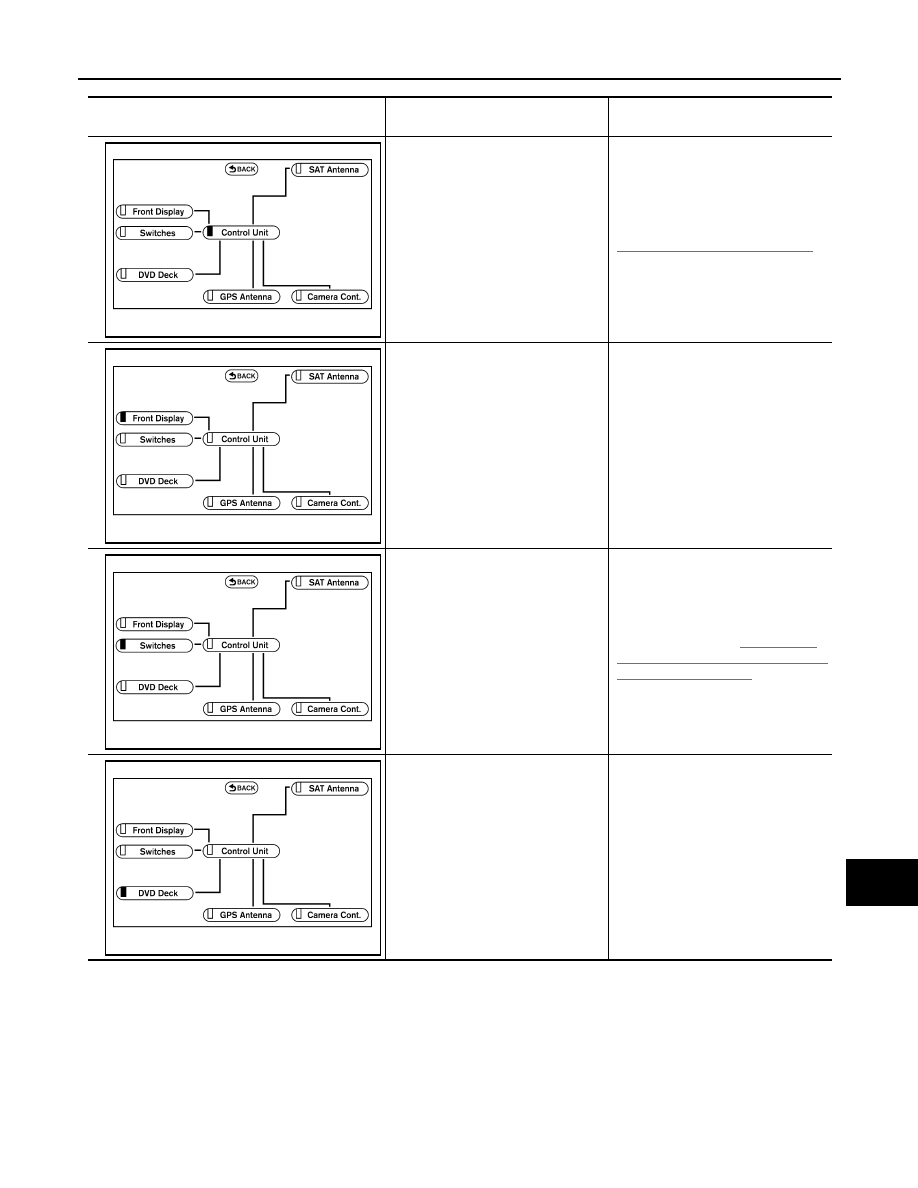

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

AV control unit malfunction is detect-
ed

Replace the AV control unit. Refer to

AV-289, "Removal and Installation"

.

Poor connection is detected for the
display unit

• Harness or connector
• AV control unit
• Display unit

Switch malfunction is dectected

Perform A/C and AV switch assembly
diagnostics.  Refer to

AV-343, "A/C

AND AV SWITCH ASSEMBLY : Com-
ponent Function Check"

Poor connection is detected for the
DVD player.

• Harness or connector
• AV control unit
• DVD player

ALNIA0214GB

ALNIA0207GB

ALNIA0212GB

ALNIA0213GB

2010 Pathfinder

2010 Pathfinder

AV-334

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

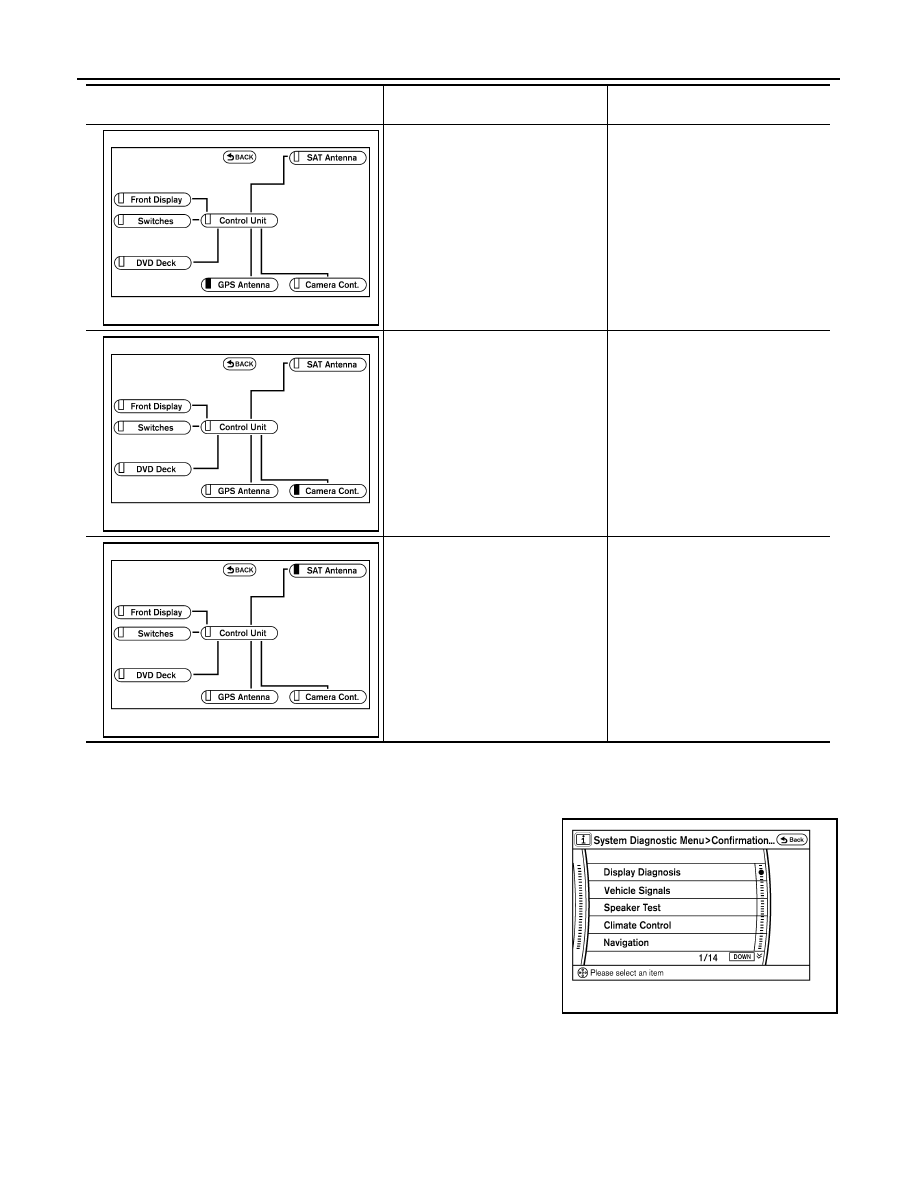

CONFIRMATION/ADJUSTMENT MODE

1. Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode

indicates where each item can be checked or adjusted.

2. Select each item on the “Confirmation/Adjustment” mode screen

to display the relevant trouble diagnosis screen. Touch "BACK"

on the display or press the “BACK” button to return to the initial

Confirmation/Adjustment Mode screen.

Poor connection is dected for the
GPS antenna

• Harness or connector
• AV control unit
• GPS antenna

Poor connection is detected for the
rear camera control unit.

• Harness or connector
• AV control unit
• Rear camera control unit

Poor connection is detected for the
satellite radio antenna.

• Harness or connector
• AV control unit
• Satellite radio antenna

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

ALNIA0215GB

ALNIA0217GB

ALNIA0216GB

ALNIA0218GB
