Nissan Pathfinder (2010 year). Manual - part 44





AV

AUDIO SYSTEM

AV-159

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

AUDIO SYSTEM

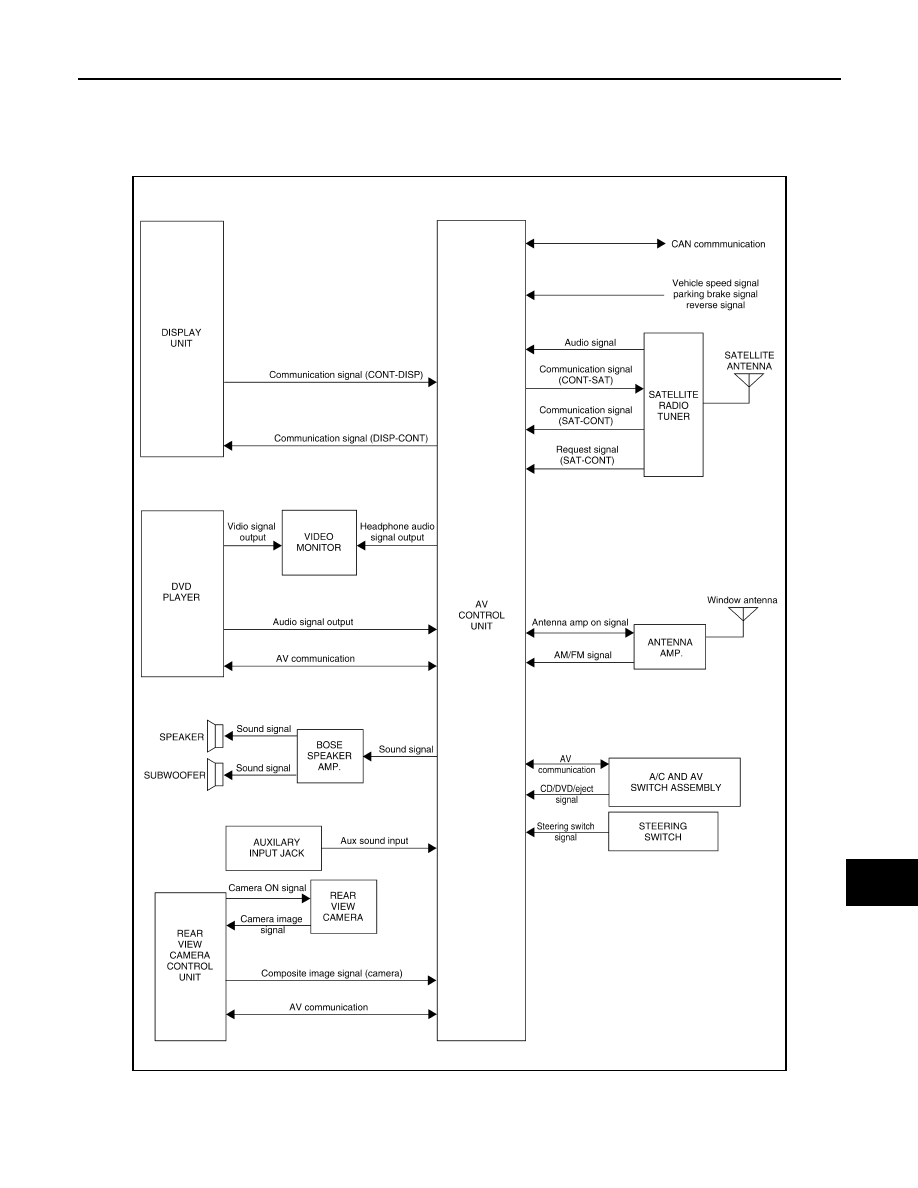

System Diagram

INFOID:0000000005259370

System Description

INFOID:0000000005259371

AUDIO SYSTEM

AWNIA1781GB

2010 Pathfinder

2010 Pathfinder

AV-160

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

The audio system consists of the following components

• AV control unit

• Display unit

• BOSE speaker amp.

• Window antenna

• Steering wheel audio control switches

• A/C and AV switch assembly

• Front door speakers

• Front tweeters

• Rear  door speakers

• Rear tweeters

• Subwoofer

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before

sending them to the front door speakers, front tweeters, rear door speakers, rear tweeters and the subwoofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the AV control unit.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

2010 Pathfinder

2010 Pathfinder

AV

AUDIO SYSTEM

AV-161

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

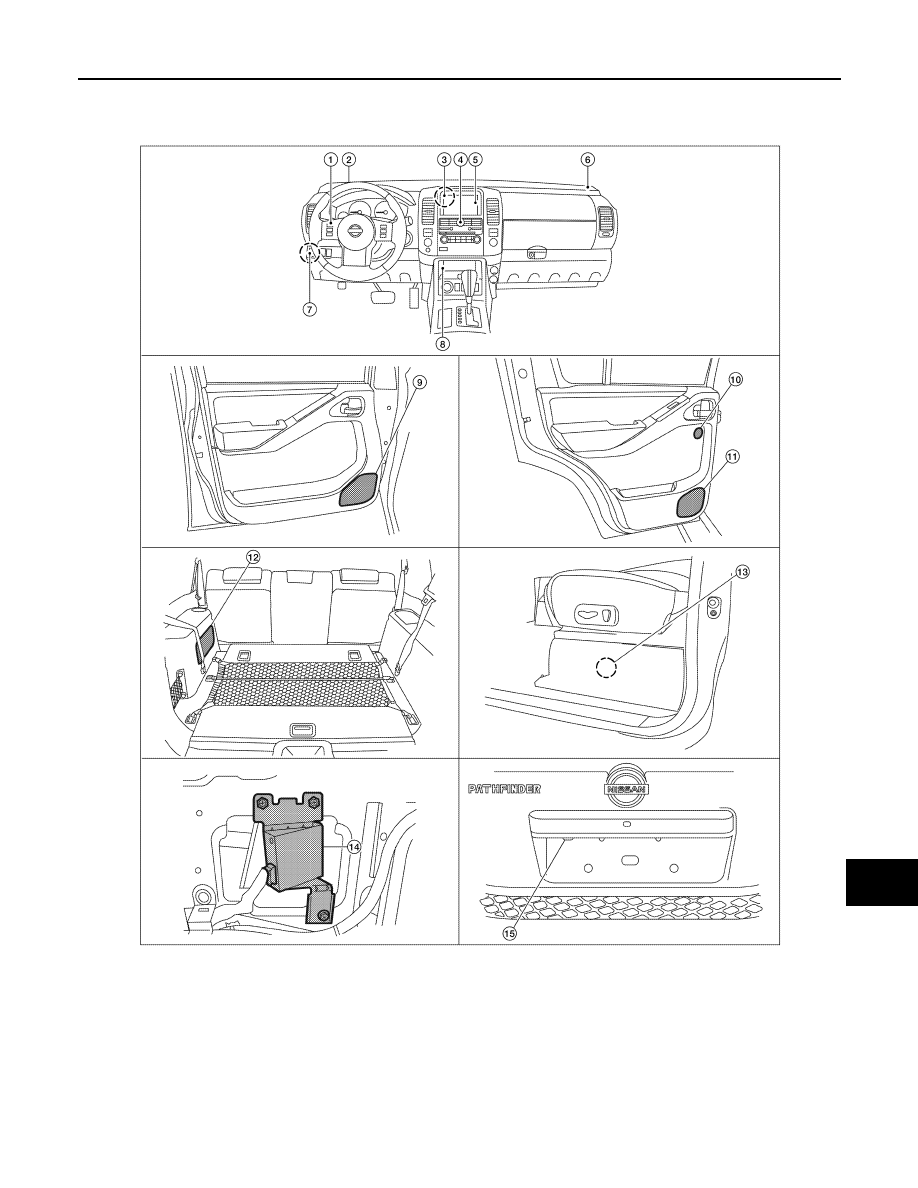

Component Parts Location

INFOID:0000000005259372

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M131, M133, M134,
M135, M136

4.

A/C and AV switch assembly M98

5.

Display unit M93

6.

Front tweeter RH M111

7.

Satellite radio tuner M41, M129

8.

Aux jack M85

9.

Front door speaker
LH D12
RH D112

AWNIA1813ZZ

2010 Pathfinder

2010 Pathfinder

AV-162

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

Component Description

INFOID:0000000005259373

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage side finisher RH)

15. Rear view camera D551

Part name

Description

AV control unit

Controls audio system and satellite radio system functions

Display unit

Displays all audio and climate control related information

BOSE speaker amp.

Receives power (amp ON) and audio signals from audio unit and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Audio operation can be operated
• Steering wheel audio control switch signal is output to audio unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to AV control unit

Satellite antenna

Audio signal (satellite radio) is received and output to AV control unit.

2010 Pathfinder

2010 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-163

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW MONITOR SYSTEM

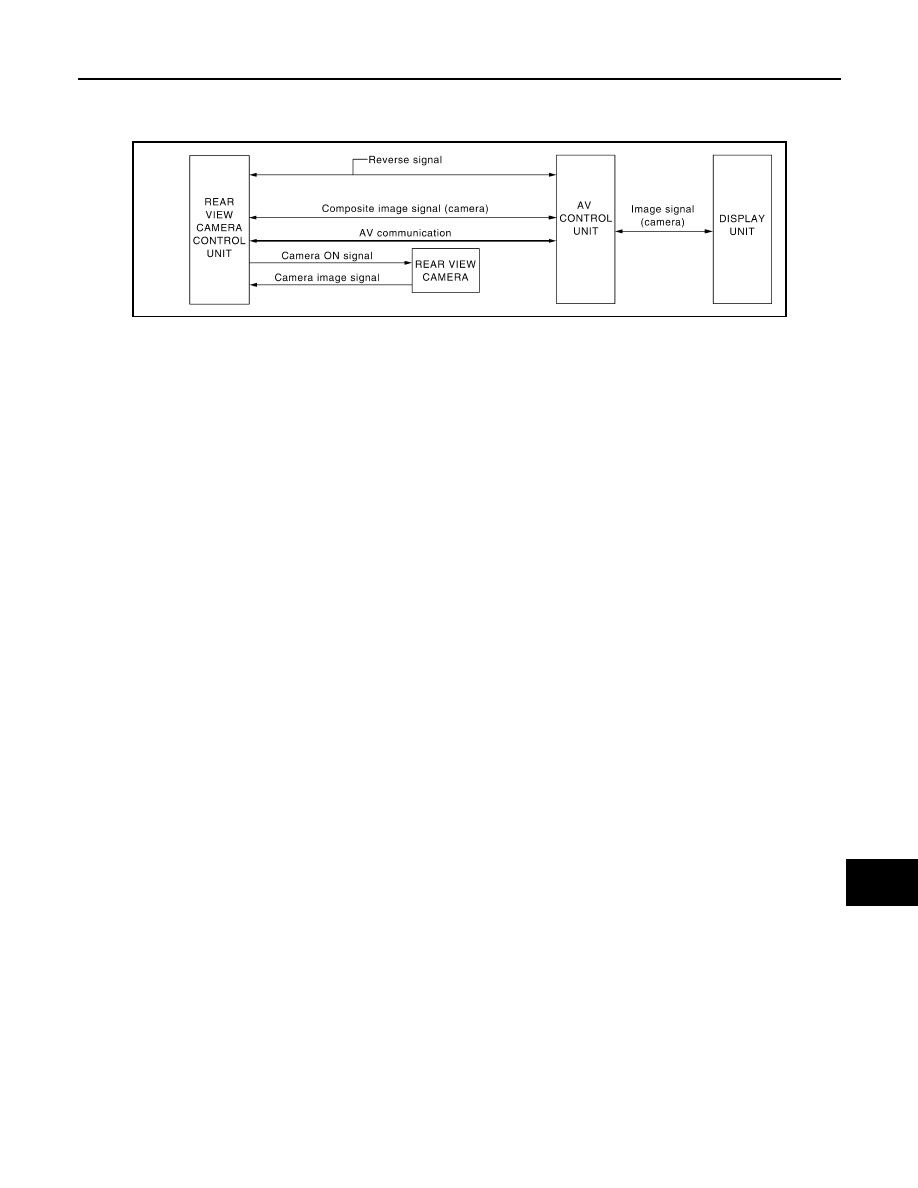

System Diagram

INFOID:0000000005259374

System Description

INFOID:0000000005259375

When the selector is in the R position, the display shows a view to the rear of the vehicle. Lines which indicate

the vehicle clearance and distances are also displayed.

AV COMMUNICATION LINE

The rear view camera control unit is connected to the AV control unit using an AV communication line. This

line is used to transmit and receive data.

AWNIA0387GB

2010 Pathfinder

2010 Pathfinder

AV-164

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW MONITOR SYSTEM

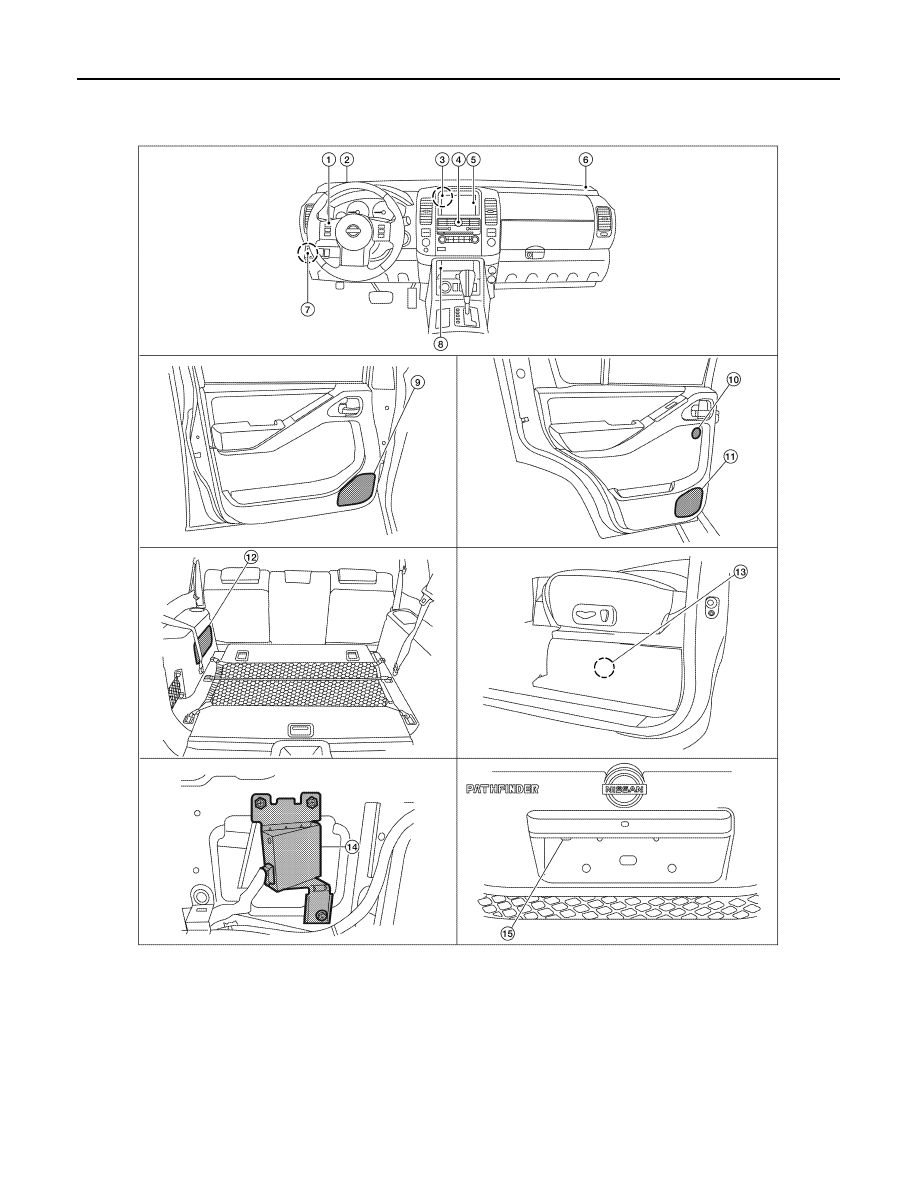

Component Parts Location

INFOID:0000000005259376

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M131, M133, M134,
M135, M136

4.

A/C and AV switch assembly M98

5.

Display unit M93

6.

Front tweeter RH M111

7.

Satellite radio tuner M41, M129

8.

Aux jack M85

9.

Front door speaker
LH D12
RH D112

AWNIA1813ZZ

2010 Pathfinder

2010 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-165

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005259377

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage side finisher RH)

15. Rear view camera D551

Part name

Description

AV control unit

Camera image signal is sent from rear view camera control unit

Rear view camera control unit

• Receives reverse signal from back-up lamp relay
• Receives rear view camera image signal
• Sends camera ON signal to rear view camera
• Sends image signal to AV control unit

Rear view camera

• Receives camera ON signal from rear view camera control unit
• Sends image signal to rear view camera control unit

2010 Pathfinder

2010 Pathfinder

AV-166

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

DVD PLAYER

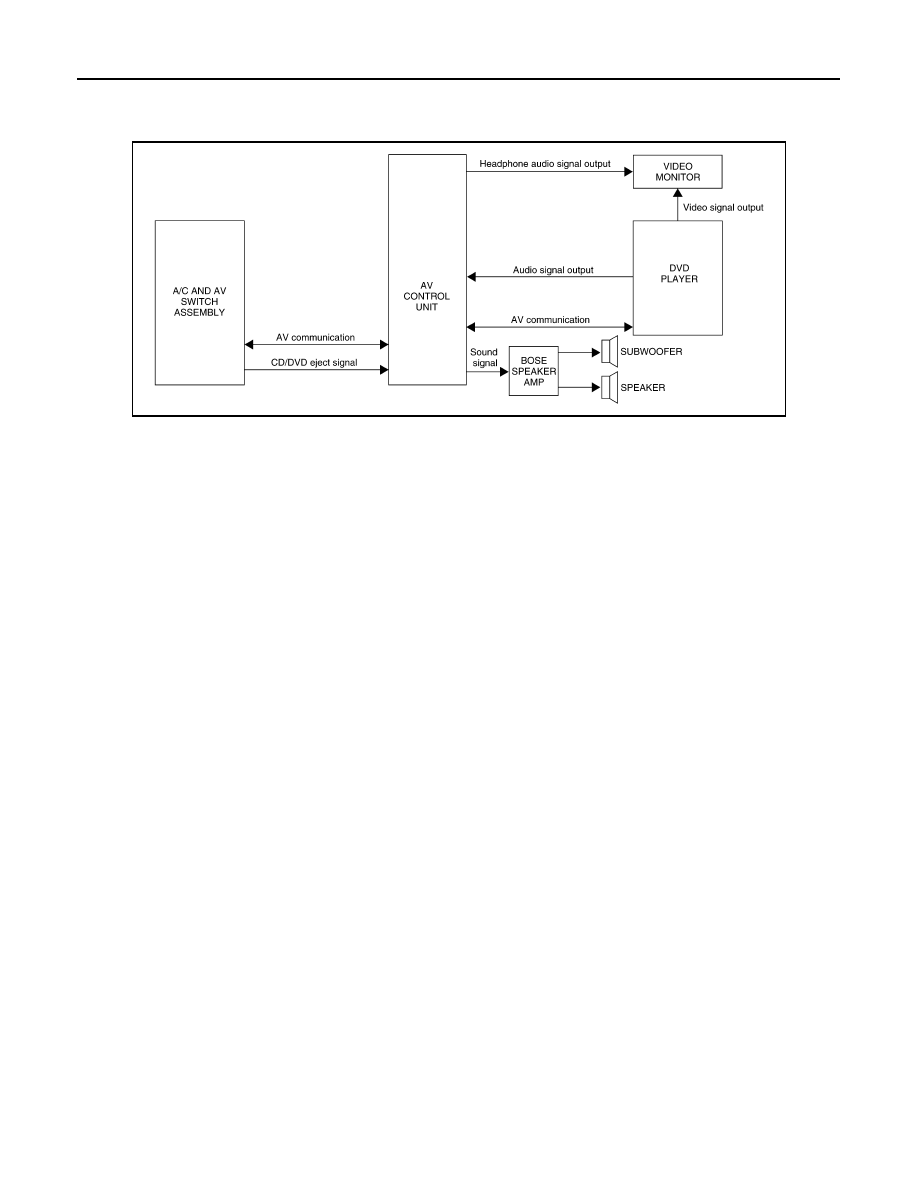

System Diagram

INFOID:0000000005259378

System Description

INFOID:0000000005259379

The DVD entertainment system consists of the following components

• AV control unit

• Display unit

• DVD player

• Video monitor

• A/C and AV switch assembly

• Steering wheel audio control switches

• BOSE speaker amp.

• Front tweeters

• Front door speakers

• Rear tweeters

• Rear door speakers

• Subwoofer

When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.

Audio signals are sent to the AV control unit. Audio signals can be directed through wired or wireless infrared

headphones or through the BOSE speaker amp. to the vehicle speakers. Refer to the Owner's Manual for

complete DVD entertainment system operating instructions.

ALNIA0561GB
