Nissan Pathfinder (2010 year). Manual - part 42

AV

DISPLAY UNIT

AV-143

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

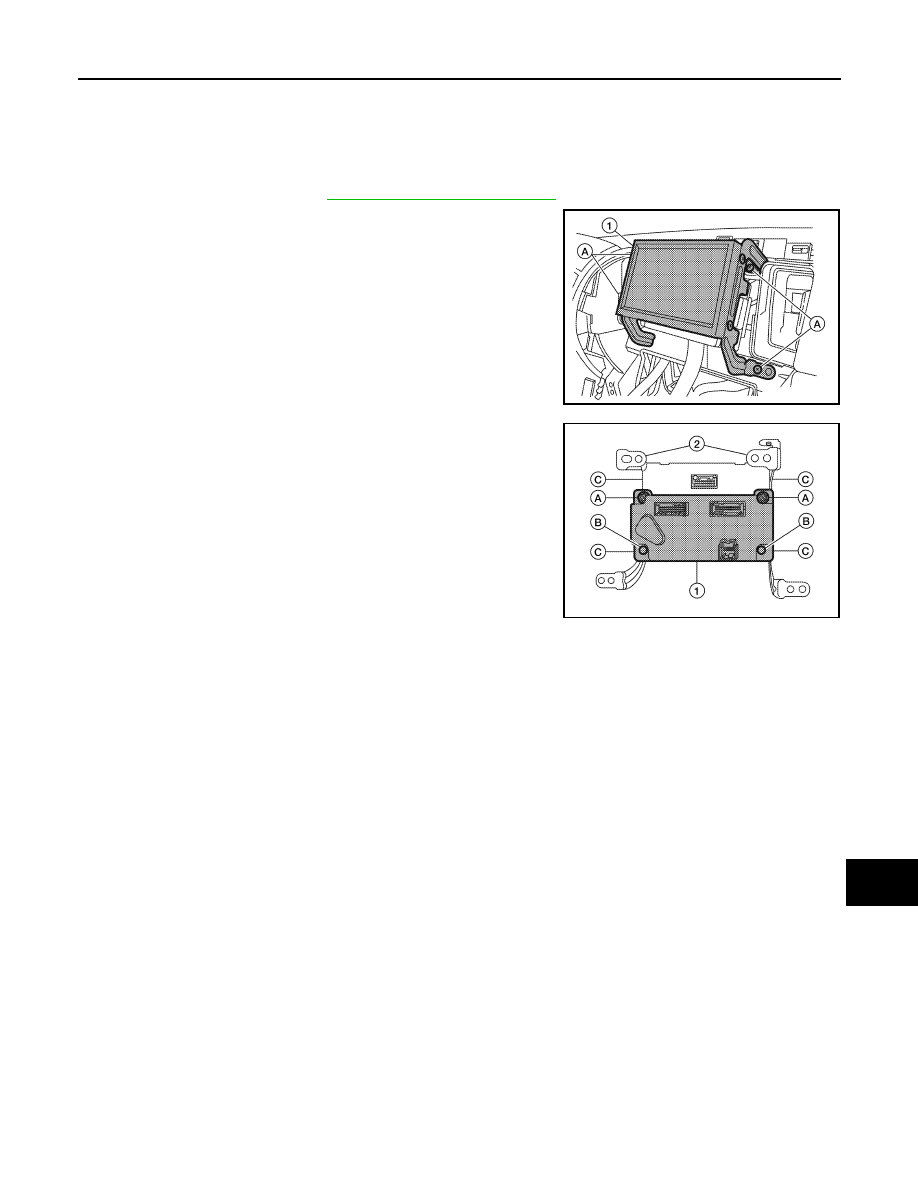

DISPLAY UNIT

Removal and Installation

INFOID:0000000005259356

REMOVAL

1. Remove Cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2. Remove the display unit screws (A).
3. Pull out the display unit (1), then disconnect the display unit con-

nectors and remove the display unit (1).

4. Remove the A/C auto amp.screws (A), remove the (C103) fas-

teners (B) from the display unit assembly brackets and remove

the A/C auto amp. (1).

5. Remove the display unit bracket unit screws (C) and remove the

display unit brackets (2).

INSTALLATION

Installation is in reverse order of removal.

ALNIA0358ZZ

ALNIA0359ZZ

2010 Pathfinder

2010 Pathfinder

AV-144

< ON-VEHICLE REPAIR >

[MID AUDIO]

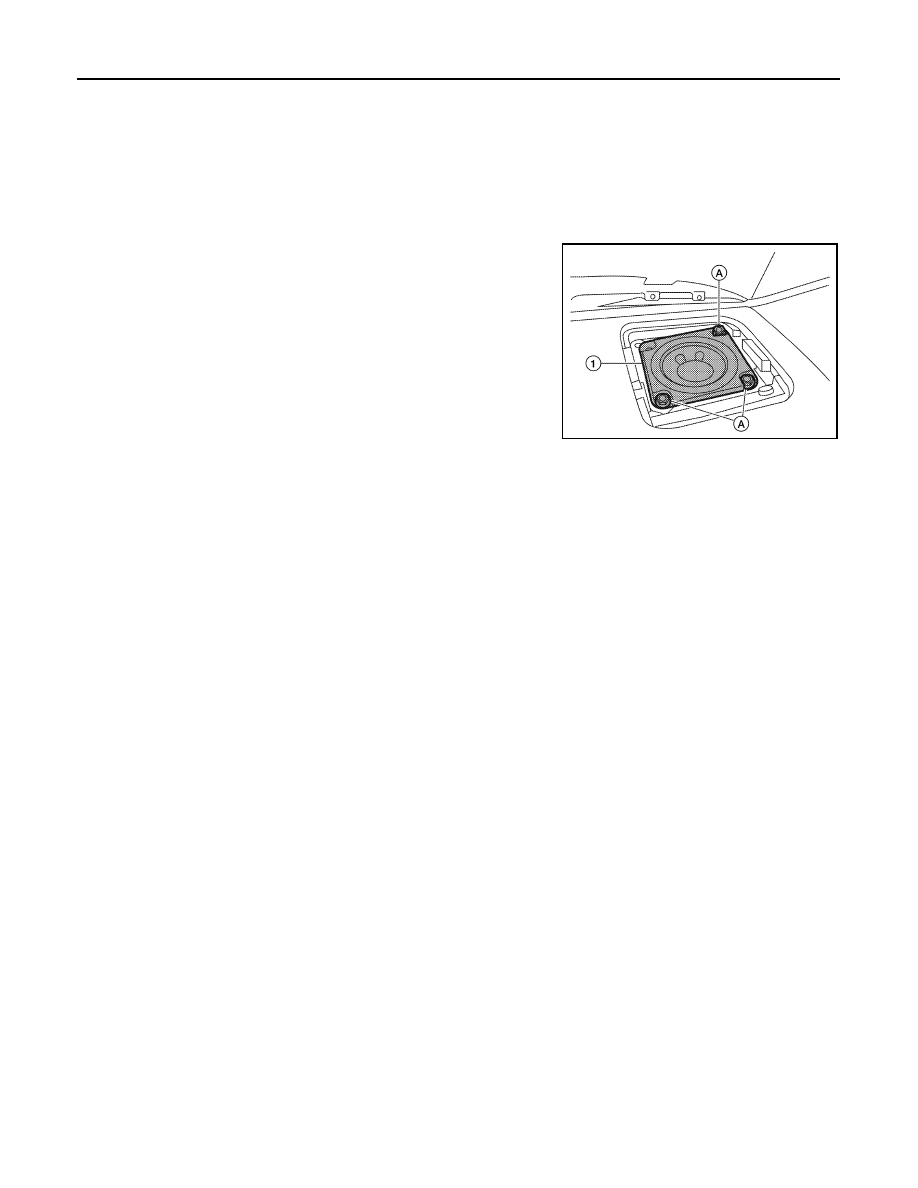

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000005259357

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

2010 Pathfinder

2010 Pathfinder

AV

FRONT DOOR SPEAKER

AV-145

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

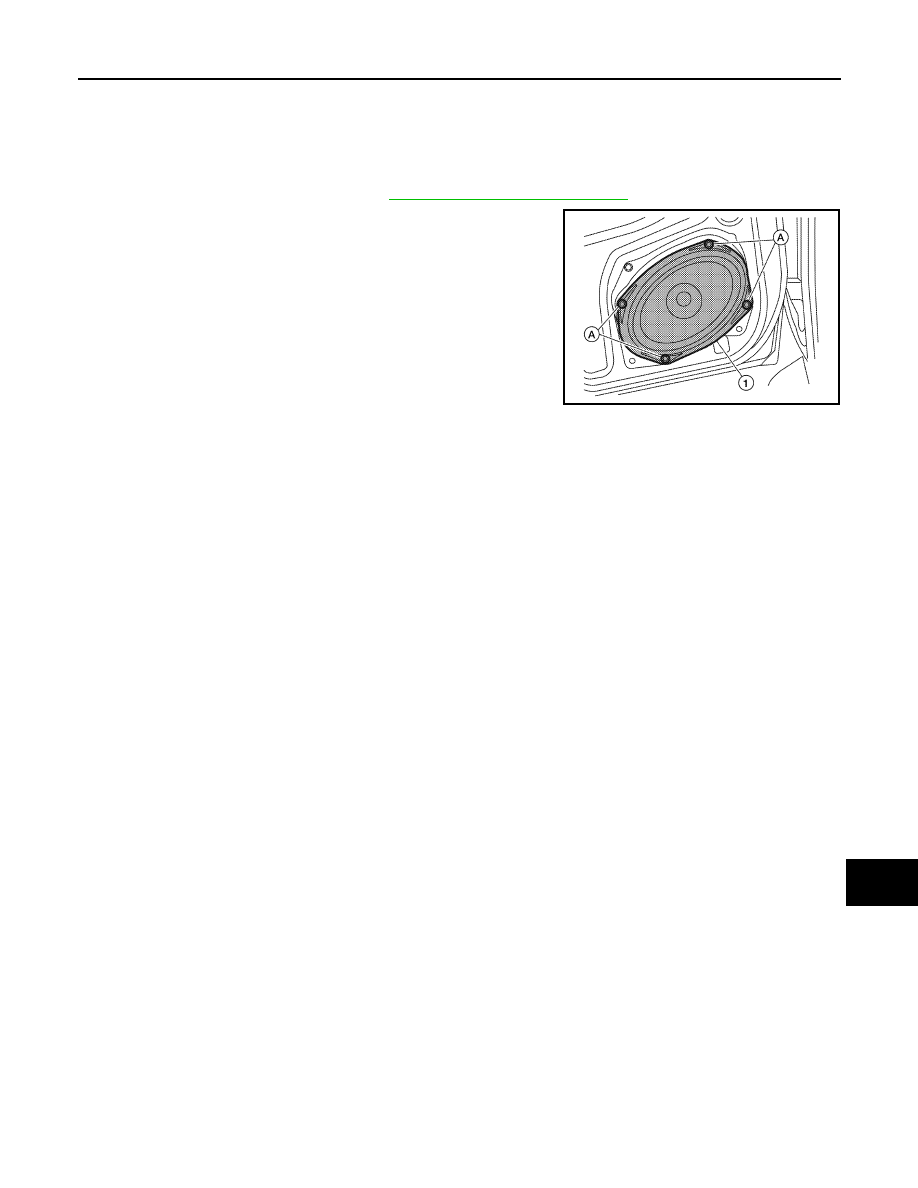

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000005259358

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

2010 Pathfinder

2010 Pathfinder

AV-146

< ON-VEHICLE REPAIR >

[MID AUDIO]

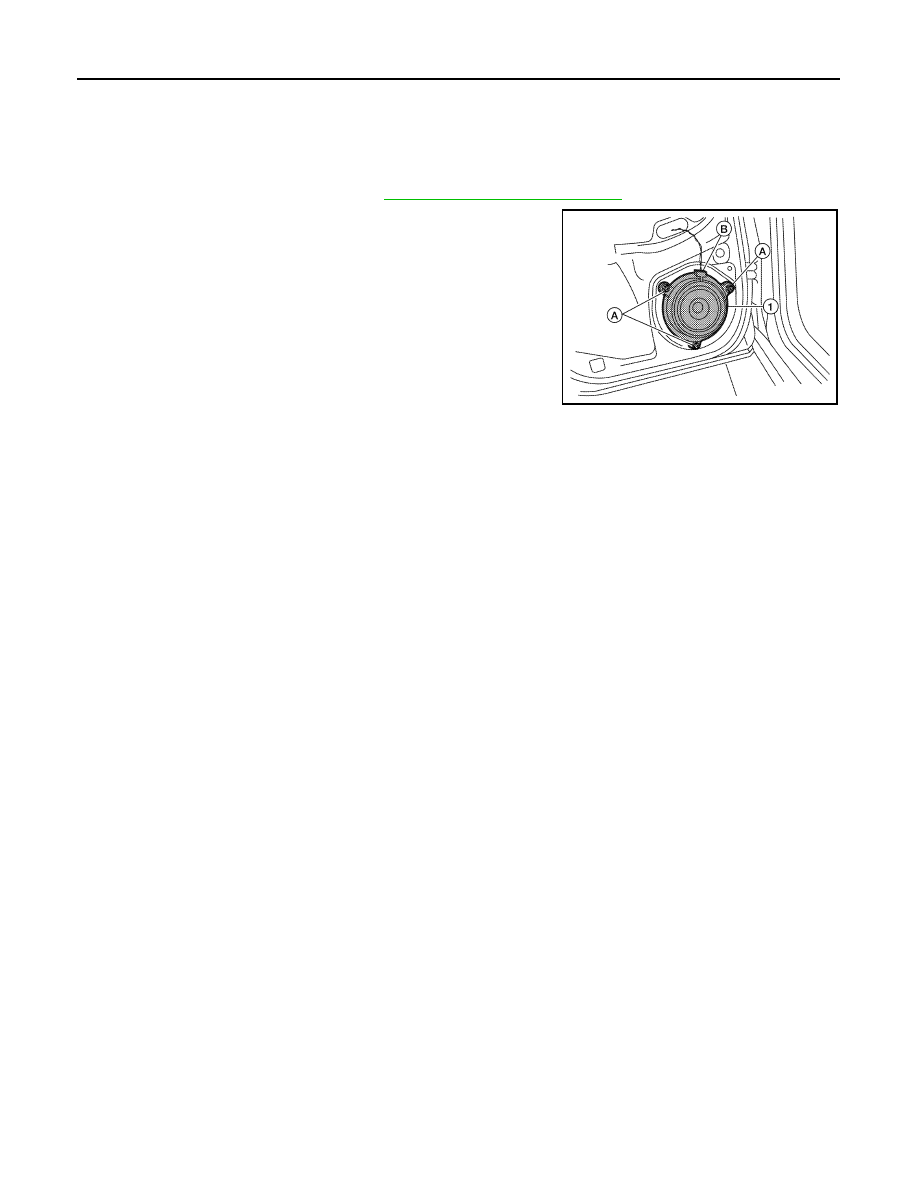

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000005259359

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0348ZZ

2010 Pathfinder

2010 Pathfinder

AV

STEERING SWITCH

AV-147

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

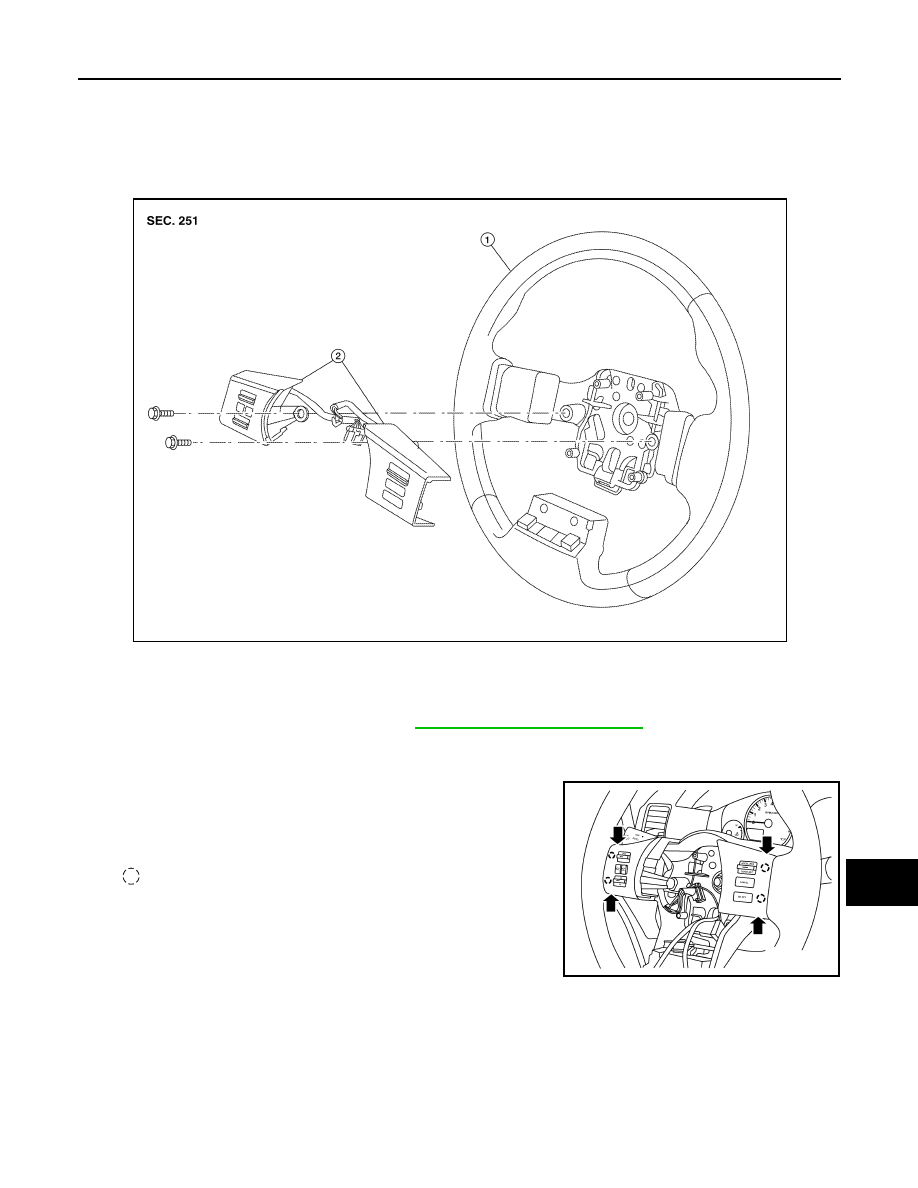

STEERING SWITCH

Removal and Installation

INFOID:0000000005259360

Removal and Installation

REMOVAL

1. Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the steering wheel audio control switches connector.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

•

:Pawl

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

2010 Pathfinder

2010 Pathfinder

AV-148

< ON-VEHICLE REPAIR >

[MID AUDIO]

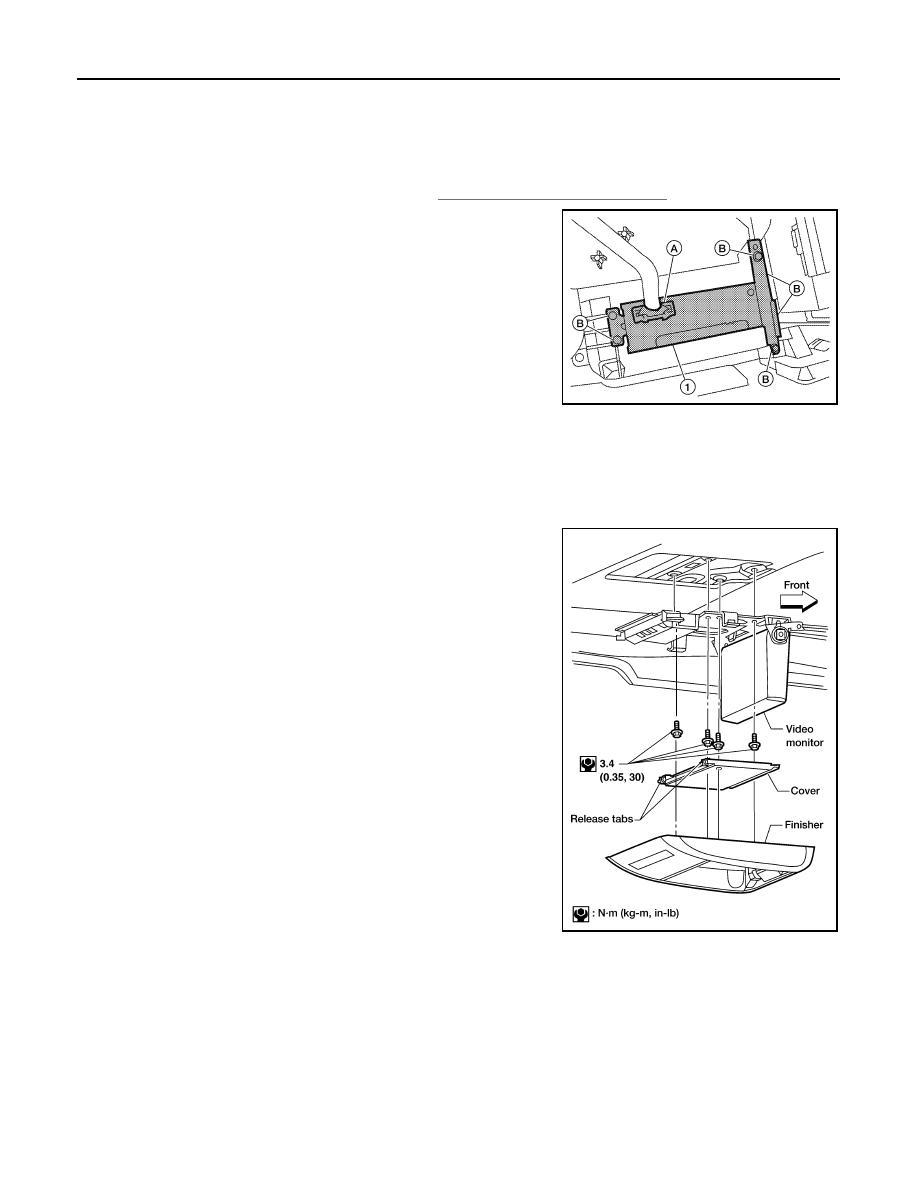

DVD ENTERTAINMENT SYSTEM

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000005259361

REMOVAL

1. Remove the center console assembly. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect the DVD player connector (A).
3. Remove the DVD player screws (B), then remove the DVD

player (1).

4. Remove the DVD player bracket screws and then remove DVD

player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of Video Monitor

INFOID:0000000005259362

REMOVAL

1. Release the clips and remove the video monitor finisher from

headlining.

2. Press the release tabs and remove the cover.
3. Remove the video monitor screws.
4. Gently lower the assembly and disconnect the connector, then

remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

2010 Pathfinder

2010 Pathfinder

AV

AUDIO ANTENNA

AV-149

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

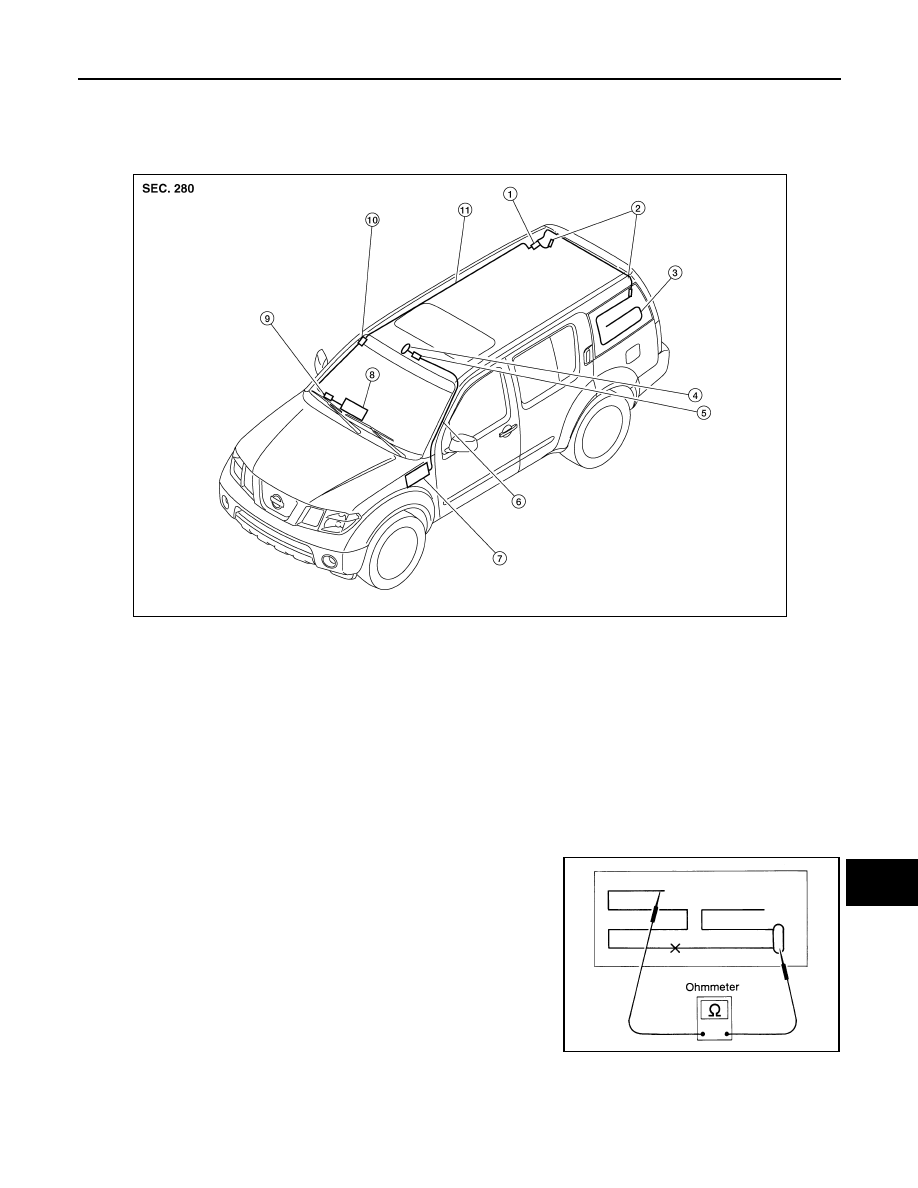

AUDIO ANTENNA

Location of Antenna

INFOID:0000000005259363

Window Antenna Repair

INFOID:0000000005259364

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

AV control unit M132

9.

Harness connector
M78, M501

10. Harness connector

M502, M601

11. Antenna feeder

WKIA4984E

SEL250I

2010 Pathfinder

2010 Pathfinder

AV-150

< ON-VEHICLE REPAIR >

[MID AUDIO]

AUDIO ANTENNA

•

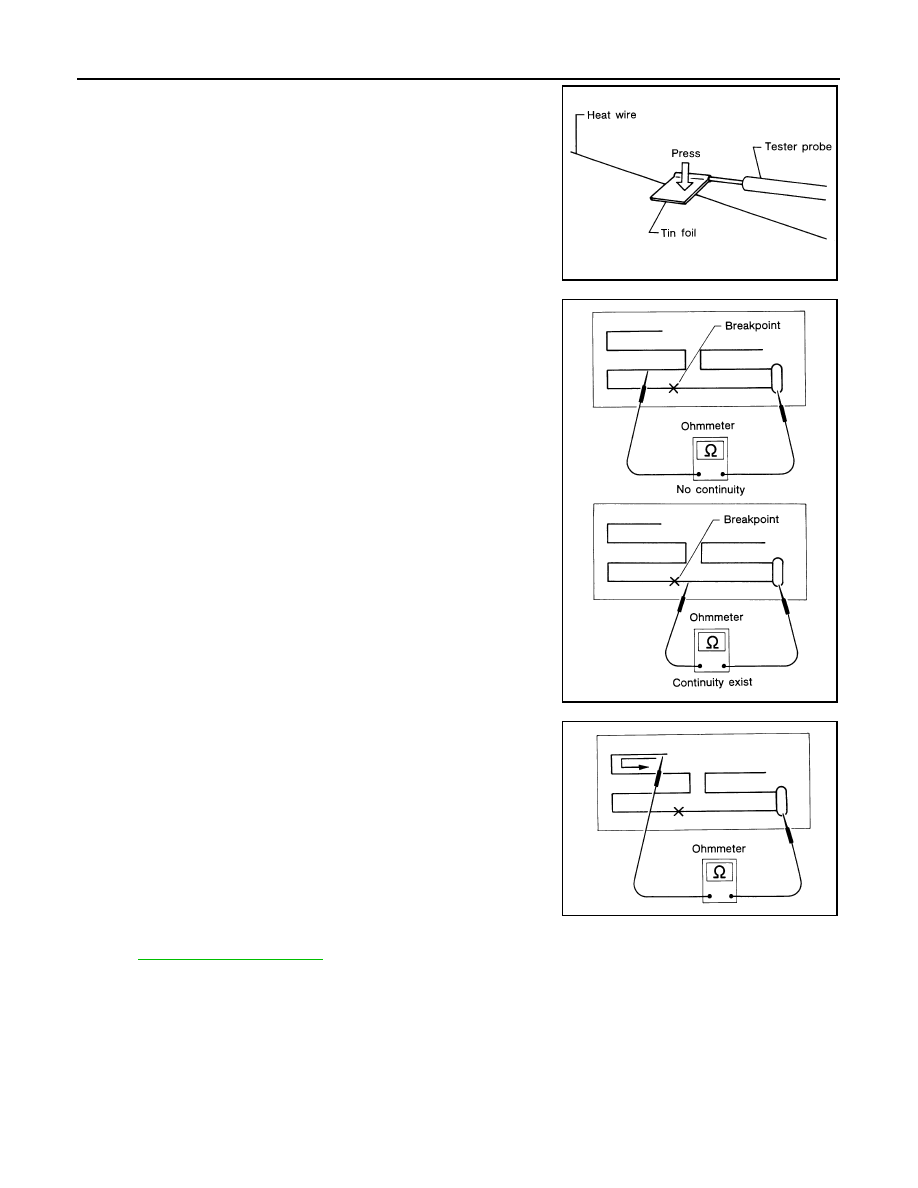

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-43, "Filament Repair"

.

SEL122R

SEL252I

SEL253I
