Nissan Pathfinder (2010 year). Manual - part 45

DVD PLAYER

AV-167

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

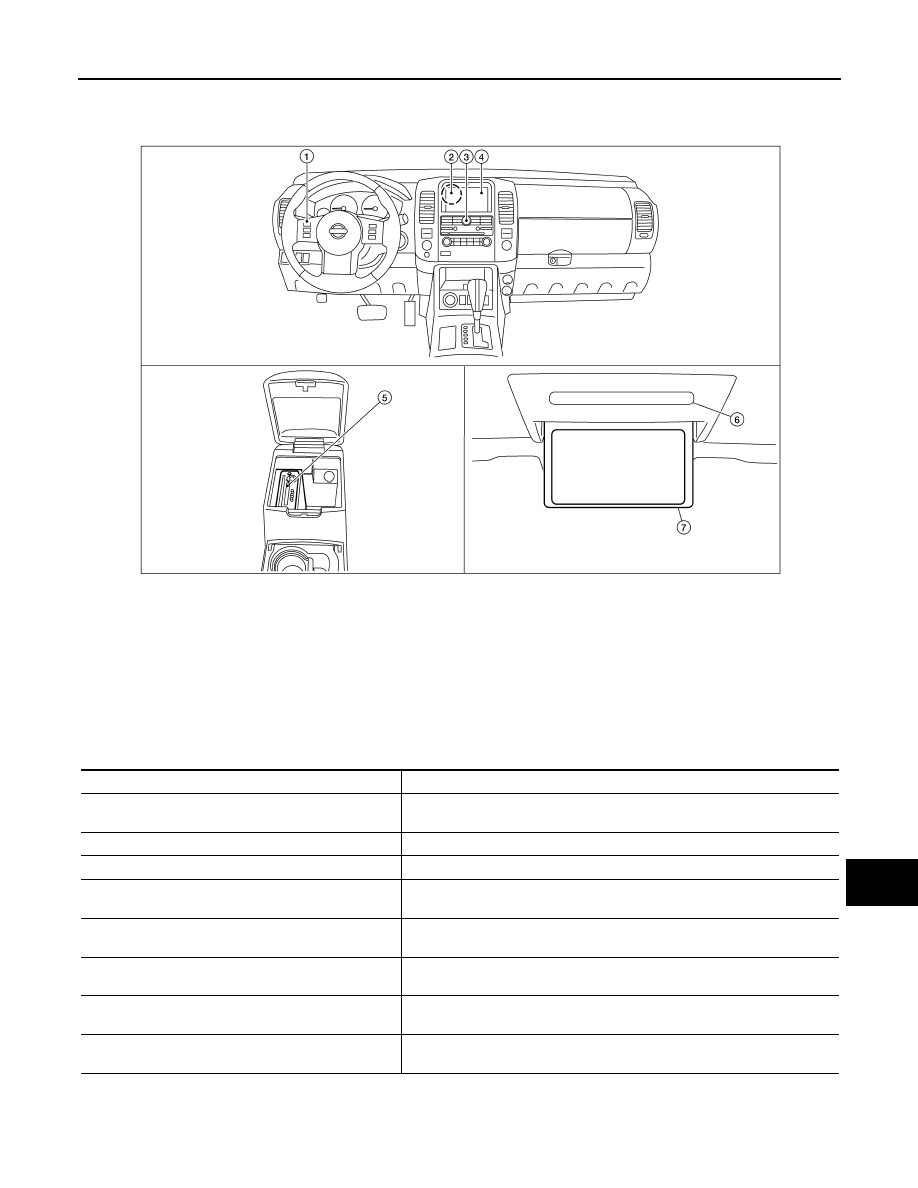

Component Parts Location

INFOID:0000000005259380

Component Description

INFOID:0000000005259381

Steering wheel audio control switches 2.

AV control unit M131, M133, M134,
M135, M136

A/C and AV switch assembly M98

Display unit M93

DVD player M205 (located in center
console)

Infrared headphone and remote re-
ceiver/transmitter (part of video moni-
tor assembly)

Video monitor B76

ALNIA0558GB

Part name

Description

DVD player

• Outputs DVD video to video monitor
• Outputs DVD audio to the AV control unit

Video monitor

• Receives and displays the DVD video signal

AV control unit

• Controls audio system and DVD entertainment system functions

BOSE speaker amp.

• Recieves audio signals from the AV control unit
• Outputs amplified audio signals to the speakers

A/C and AV switch assembly

• All audio and A/C operations can be operated
• Switch signal is output to the AV control unit and A/C auto amp

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal (operation signal) is output to AV control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front and rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

2010 Pathfinder

AV-168

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Part name

Description

2010 Pathfinder

HANDS-FREE PHONE SYSTEM

AV-169

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

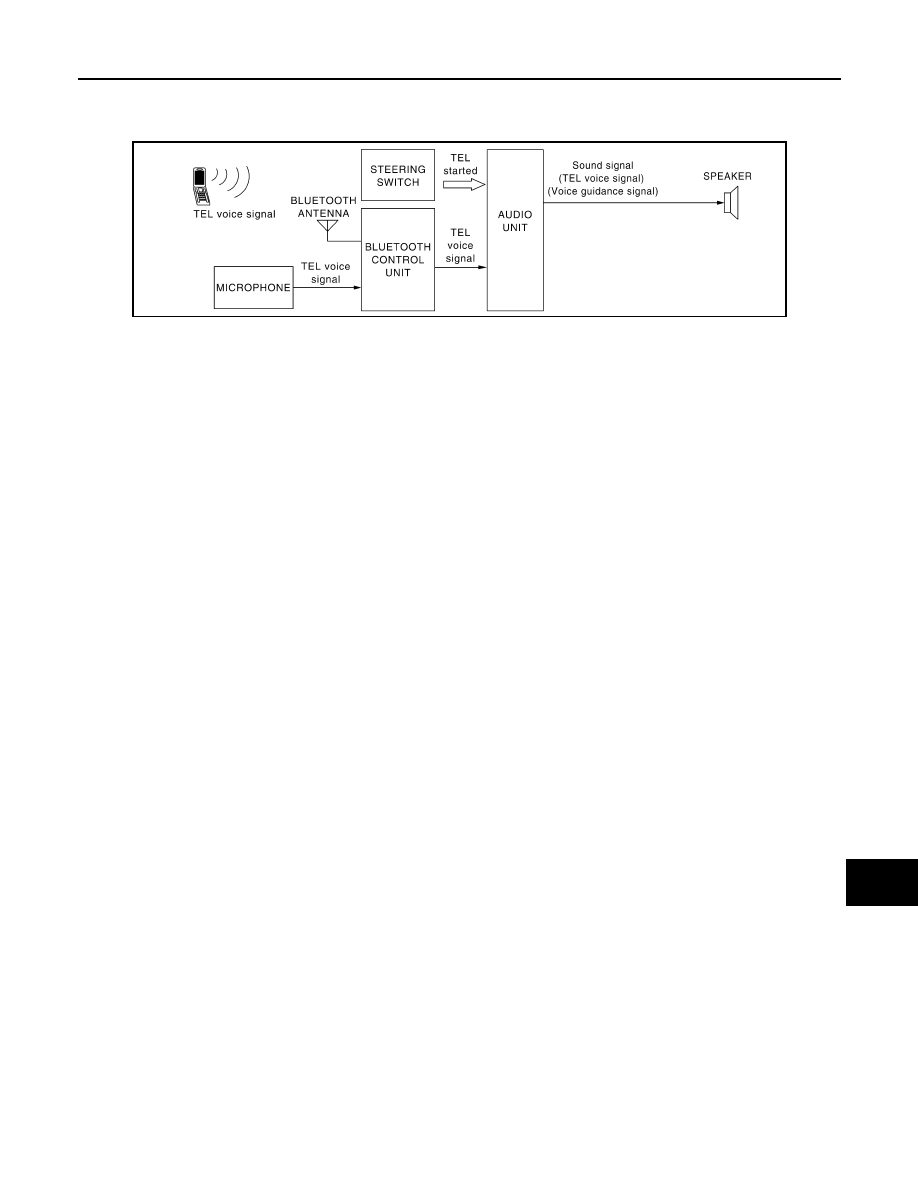

System Diagram

INFOID:0000000005259382

System Description

INFOID:0000000005259383

Refer to the owner's manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth cellular telephone to make a wireless connec-

tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be

sent and received. Personal memos can be created using the Nissan Voice Recognition system. Some Blue-

tooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular telephone or

the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit. Different

cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks. Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AV CONTROL UNIT

The AV control unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.

AWNIA1782GB

2010 Pathfinder

AV-170

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

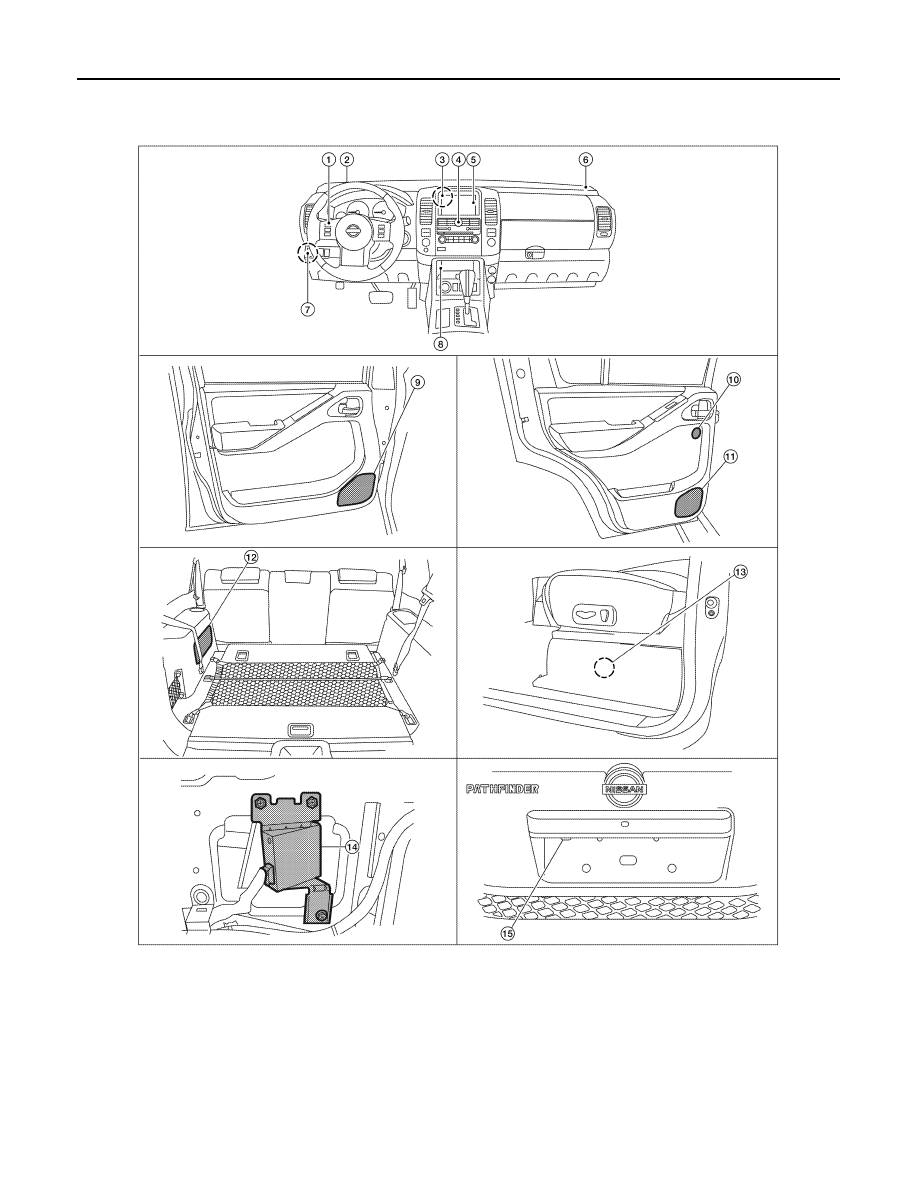

Component Parts Location

INFOID:0000000005259384

Steering wheel audio control switch-
es

Front tweeter LH M109

AV control unit M42, M43, M45, M46,
M69, M70

A/C and AV switch assembly M98

Display unit M93

Front tweeter RH M111

Satellite radio tuner M41, M129

Aux jack M85

Front door speaker
LH D12
RH D112

AWNIA1813ZZ

2010 Pathfinder

HANDS-FREE PHONE SYSTEM

AV-171

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

Component Description

INFOID:0000000005259385

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear camera control unit B176 (locat-

ed behind luggage side finisher RH)

15. Rear view camera D551

Part name

Description

AV control unit

• Receives telephone voice signal from Bluetooth control unit.
• Sends telephone voice and voice guidance signals to the speakers.

Door speaker

Receives telephone voice and voice guidance signals from the AV control unit.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to bluetooth control unit

2010 Pathfinder

AV-172

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

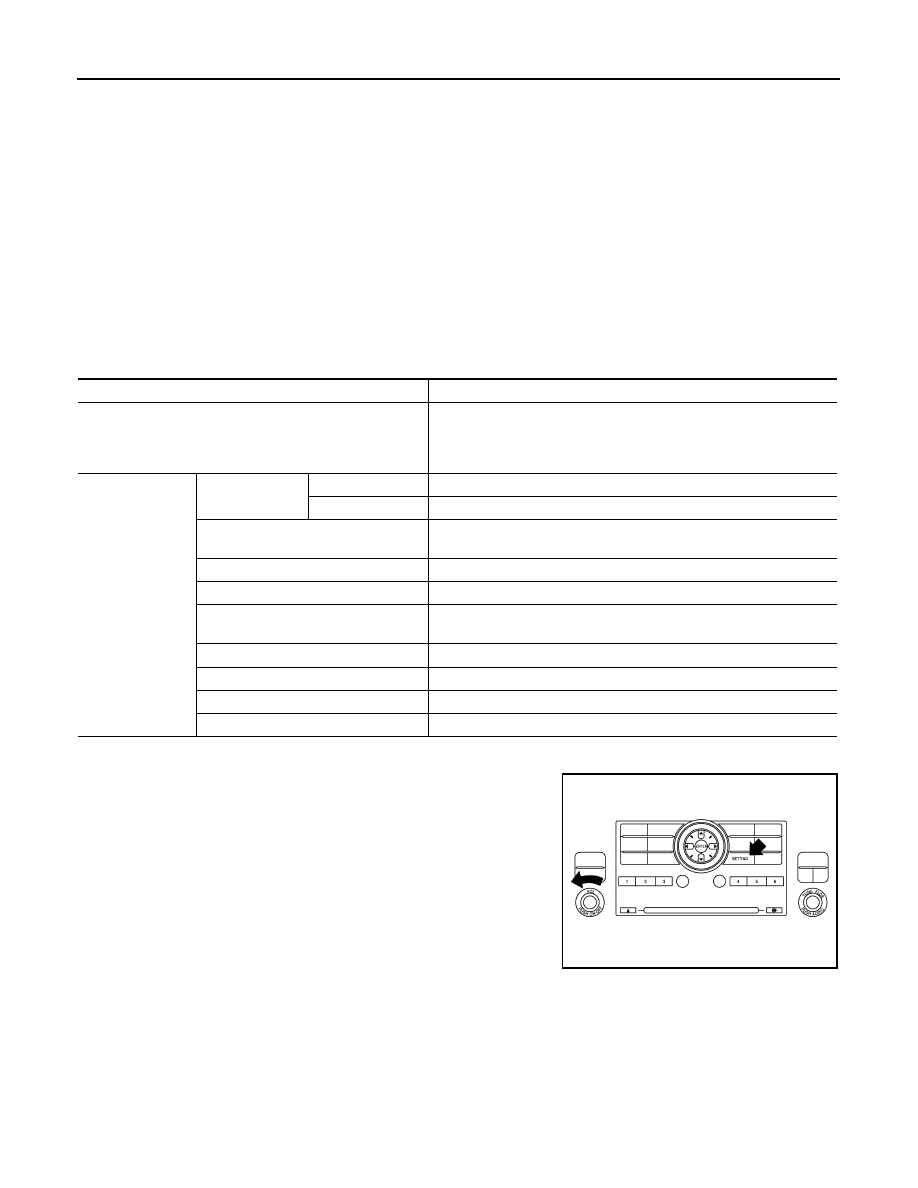

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV CONTROL UNIT
AV CONTROL UNIT : Diagnosis Description

INFOID:0000000005259386

DESCRIPTION

• Diagnosis function consists of the "Self-Diagnosis" mode performed automatically and the "Confirmation/

Adjustment" mode operated manually.

• "Self-Diagnosis" mode checks for connections between the units constituting this system, analyzes each

individual unit at the same time, and displays the results on the LCD screen.

• "Confirmation/Adjustment" mode is used to perform trouble diagnosis that requires operation and judgment

by an operator (trouble that cannot be automatically judged by the system), to check/change the set value,

and to display the error history of the AV control unit.

DIAGNOSIS ITEM

OPERATION PROCEDURE

1. Start the engine.
2. Turn the audio system off.
3. While pressing the “SETTING” button, turn the volume control

dial counterclockwise 30 clicks or more.

Mode

Description

Self-diagnosis

• AV control unit diagnosis
• Analyzes connection between the AV control unit, front display, Blue-

tooth, DVD deck, satellite tuner, switches and rear view camera con-
trol unit.

CONFIRMATION/
ADJUSTMENT

Display diagnosis

Color spectrum bar Color tone of the screen can be checked by the display of a color bar.

Gradation bar

Shading of the screen can be checked by the display of a gray scale.

Vehicle signals

The following vehicle signals are analyzed: Vehicle speed signal, park-
ing brake signal, light signal, ignition switch signal, and reverse signal.

Speaker test

Connection can be checked by sending a test tone to each speaker.

Climate control

Start automatic air conditioner self-diagnosis

Error history

Diagnosis results previously stored in the memory are displayed in this
mode.

Vehicle CAN diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM diagnosis

The transmitting/receiving of AV communication can be monitored.

Delete connection log

Erase the error history and connection history of the unit.

Initialize settings

All audio settings are reset to default levels.

ALNIA0446GB

2010 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-173

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

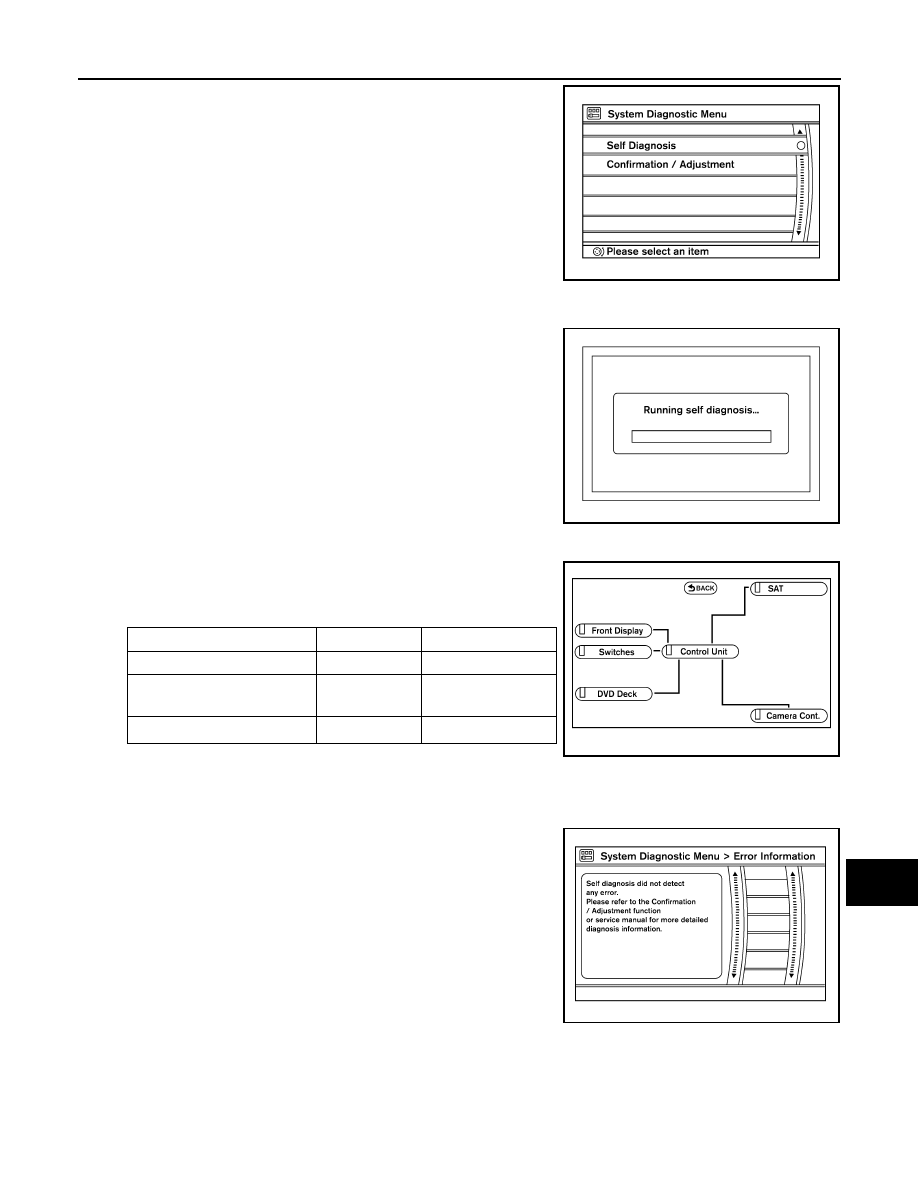

4. The initial trouble diagnosis screen will be displayed, and items

“Self-Diagnosis” and “Confirmation/Adjustment” can be

selected.

SELF-DIAGNOSIS

1. Perform self-diagnosis by selecting “Self-Diagnosis”.

• Self-diagnosis subdivision screen is displayed, and the self-

diagnosis mode starts.

• A bar graph visible on the center of the self-diagnosis subdivi-

sion screen indicates progress of the trouble diagnosis.

NOTE:

Self-diagnosis requires approximately 10 seconds to complete.

2. Diagnosis results are displayed after the self-diagnosis is com-

pleted. The unit names and the connection lines are color-coded

according to the diagnostic results.

Note:
• Only the AV control unit is displayed in red.
• If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the follow-

ing order of priority: red > yellow > gray.

3. Select a component on the “Self Diagnosis” screen and com-

ments for the diagnosis results will be shown.

Self-Diagnosis Results

ALNIA0259GB

ALNIA0258GB

Diagnosis results

Unit

Connection line

Normal

Green

Connection malfunc-
tion

Gray

Yellow

Unit malfunction

Note

Red

Green

ALNIA0519GB

ALNIA0256GB

2010 Pathfinder

AV-174

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

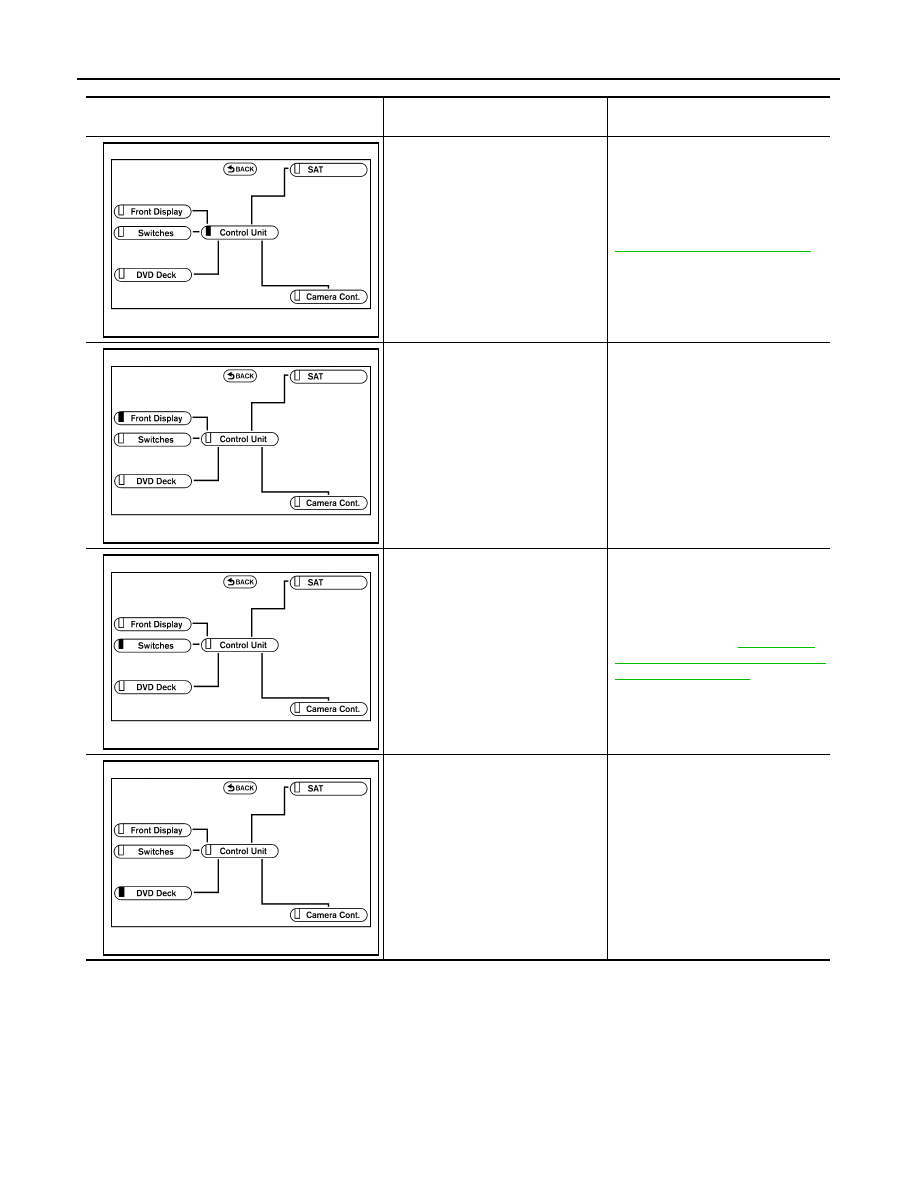

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

AV control unit malfunction is detect-
ed

Replace the AV control unit. Refer to

AV-141, "Removal and Installation"

Poor connection is detected for the
display unit

• Harness or connector
• AV control unit
• Display unit

Switch malfunction is dectected

Perform A/C and AV switch assembly
diagnostics. Refer to

AV-178, "A/C

AND AV SWITCH ASSEMBLY : Com-
ponent Function Check"

Poor connection is detected for the
DVD player.

• Harness or connector
• AV control unit
• DVD player

ALNIA0520GB

ALNIA0521GB

ALNIA0522GB

ALNIA0523GB

2010 Pathfinder
