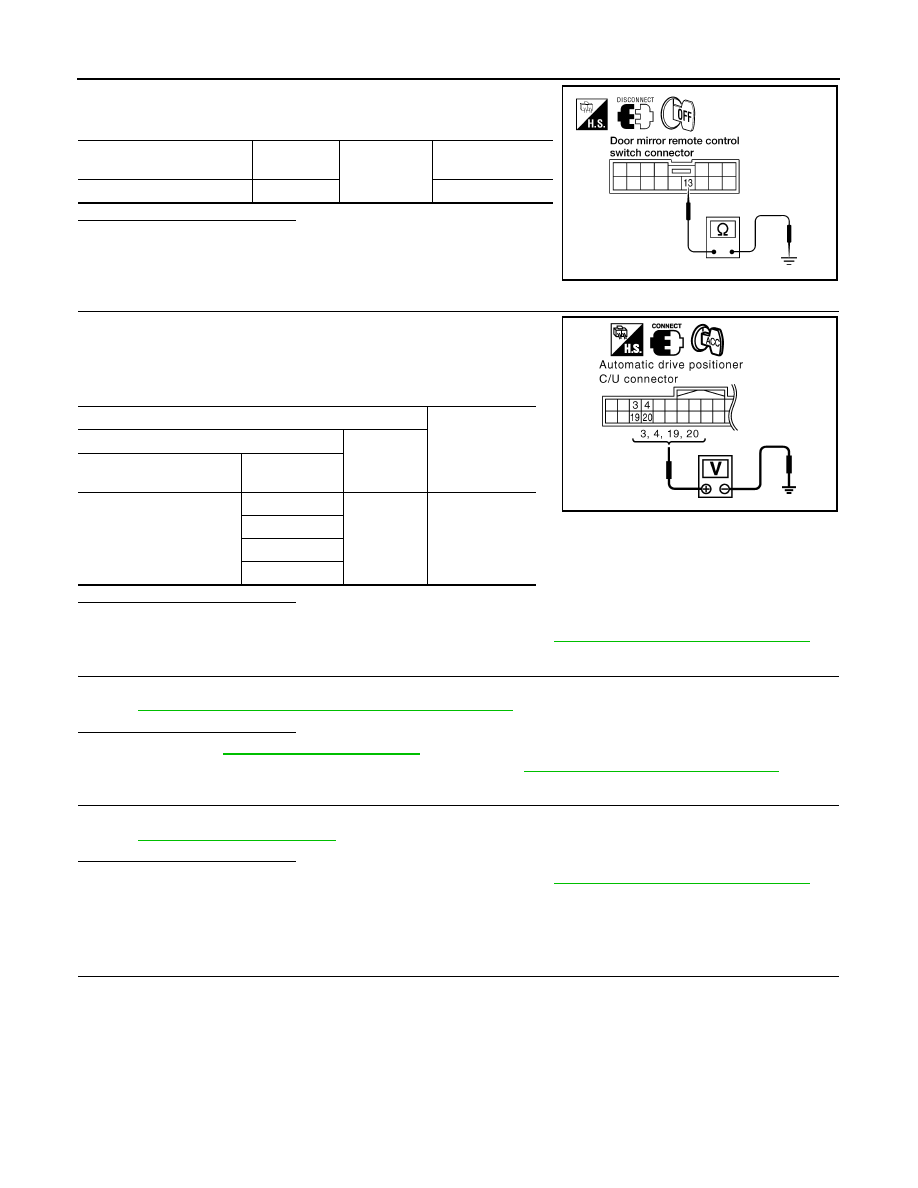

ADP-66

< COMPONENT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

Check continuity between door mirror remote control switch connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL

1. Connect automatic drive positioner control unit.

2. Turn ignition switch ON.

3. Check voltage between automatic drive positioner control unit

and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

5.

 CHECK MIRROR SWITCH

Check mirror switch.

Refer to

ADP-66, "MIRROR SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace door mirror remote control switch. Refer to

ADP-164, "Removal and Installation"

.

6.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

MIRROR SWITCH : Component Inspection

INFOID:0000000005256685

1.

 CHECK MIRROR SWITCH

Door mirror remote control

switch connector

Terminal

Ground

Continuity

M163

13

Yes

LIIA1825E

Terminals

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive positioner

control unit connector

Terminal

M33

3

Ground

5

4

19

20

PIIA4771E

2010 Pathfinder

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-67

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

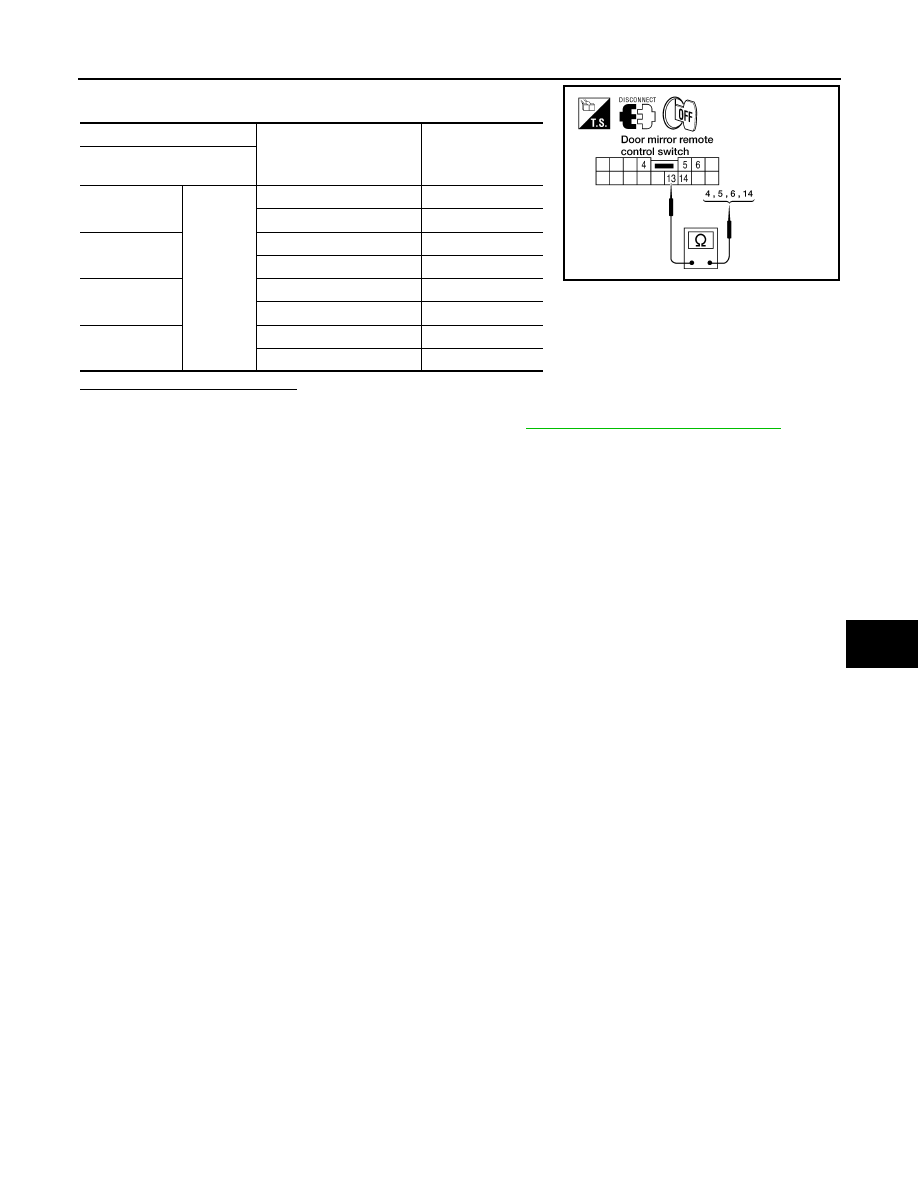

Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

ADP-164, "Removal and Installation"

.

Terminal

Mirror switch condition

Continuity

Door mirror remote

control switch

4

13

RIGHT

Yes

Other than above

No

5

LEFT

Yes

Other than above

No

6

UP

Yes

Other than above

No

14

DOWN

Yes

Other than above

No

LIIA2053E

2010 Pathfinder

ADP-68

< COMPONENT DIAGNOSIS >

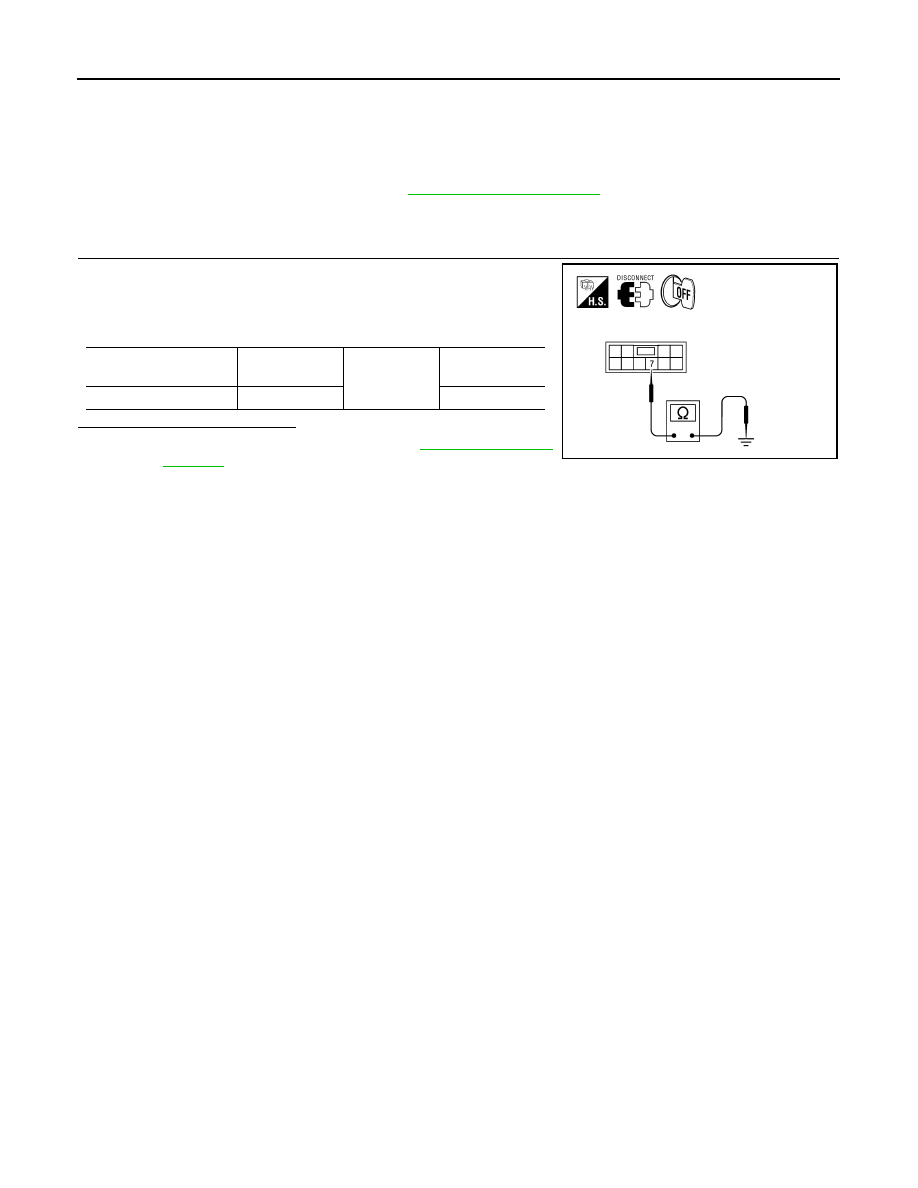

POWER SEAT SWITCH GROUND CIRCUIT

POWER SEAT SWITCH GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005256686

Regarding Wiring Diagram information, refer to

ADP-107, "Wiring Diagram"

.

1.

 CHECK POWER SEAT SWITCH LH GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect power seat switch LH.

3. Check continuity between power seat switch LH connector and

ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent

Incident"

.

NO

>> Repair or replace harness.

Power seat switch LH

connector

Terminal

Ground

Continuity

B208

7

Yes

ALJIA0316ZZ

2010 Pathfinder

PARK POSITION SWITCH

ADP-69

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

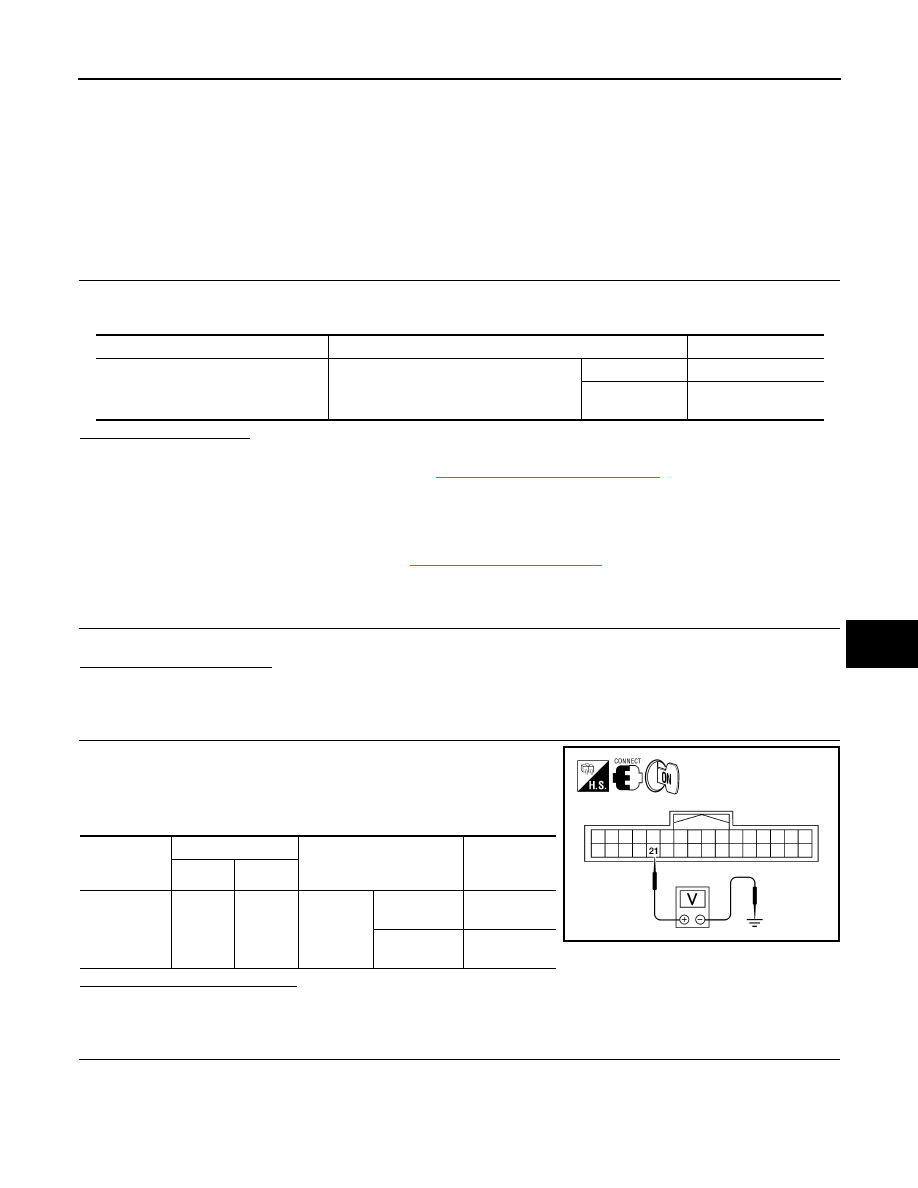

PARK POSITION SWITCH

Description

INFOID:0000000005256687

Park position switch is installed on A/T shift selector. It is turned OFF when the A/T selector lever is in P posi-

tion. The driver seat control unit judges that the A/T selector lever is in P position if continuity does not exist in

this circuit.

Component Function Check

INFOID:0000000005256688

1.

 CHECK FUNCTION

1. Select  “P POSI SW” signal in “Data monitor” mode with CONSULT-III.

2. Check park position switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-69, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256689

Regarding Wiring Diagram information, refer to

ADP-107, "Wiring Diagram"

.

1.

 CHECK DTC WITH “BCM”

Check “Self Diagnostic Result” for BCM with CONSULT-lll.
Is any other DTC detected?

YES

>> Check the DTC.

NO

>> GO TO 2

2.

 CHECK PARK POSITION SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Mechanical key must be removed from the key switch.

3. Check voltage between driver seat control unit harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK PARK POSITION SWITCH CIRCUIT

Monitor item

Condition

Status

P POSI SW

A/T selector lever

P position

OFF

Other than
above

ON

Driver seat
control unit

connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

B202

21

Ground

A/T selec-
tor lever

P position

Battery volt-

age

Other than
above

0V

LIIA2238E

2010 Pathfinder

ADP-70

< COMPONENT DIAGNOSIS >

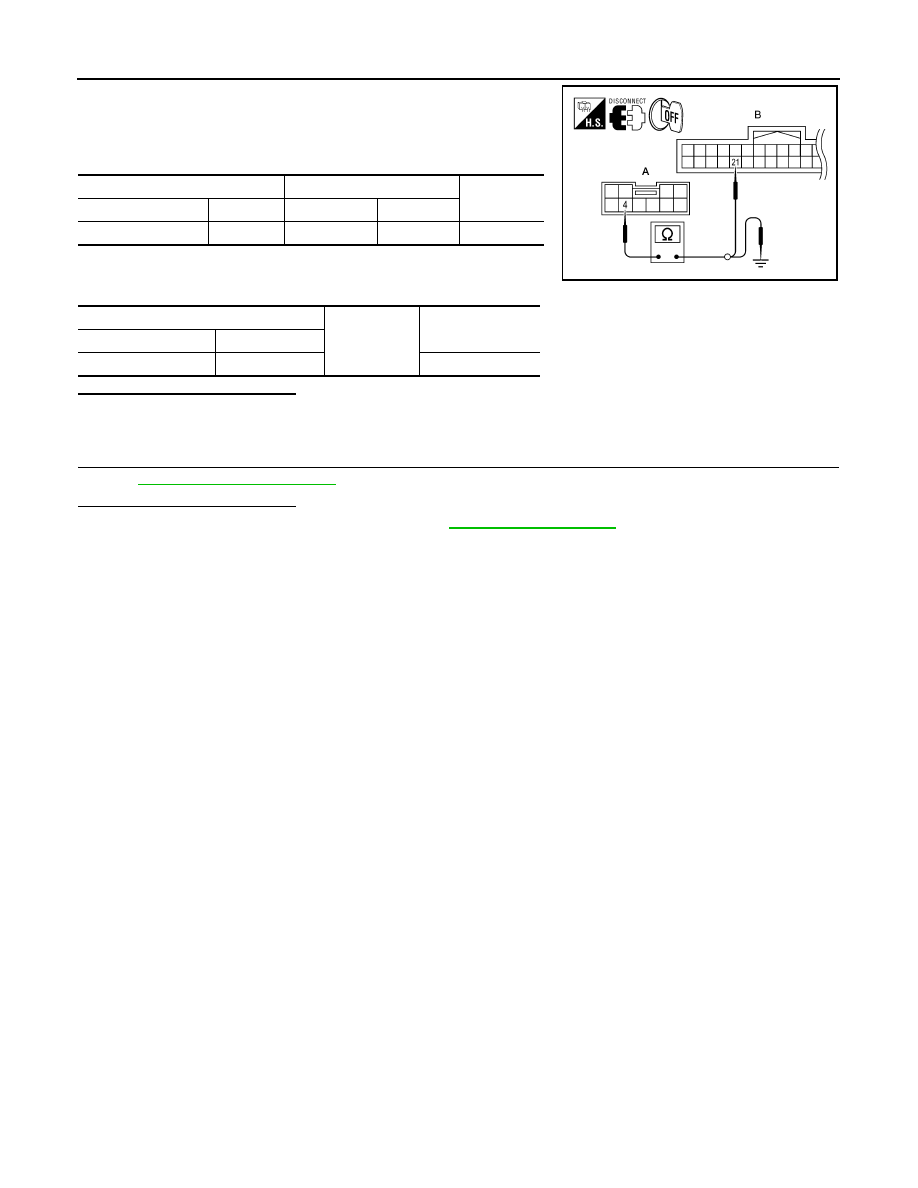

PARK POSITION SWITCH

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit and A/T shift selector.

3. Check continuity between driver seat control unit harness con-

nector and A/T shift selector harness connector.

4. Check continuity between A/T shift selector harness connector

and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

SE-25, "Exploded View"

.

NO

>> Repair or replace the malfunctioning part.

A/T shift selector

Driver seat control unit

Continuity

Connector

Terminal

Connector

Terminal

M158 (A)

4

B202 (B)

21

Yes

A/T shift selector

Ground

Continuity

Connector

Terminal

M158 (A)

4

No

ALJIA0498ZZ

2010 Pathfinder

FRONT DOOR SWITCH (DRIVER SIDE)

ADP-71

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

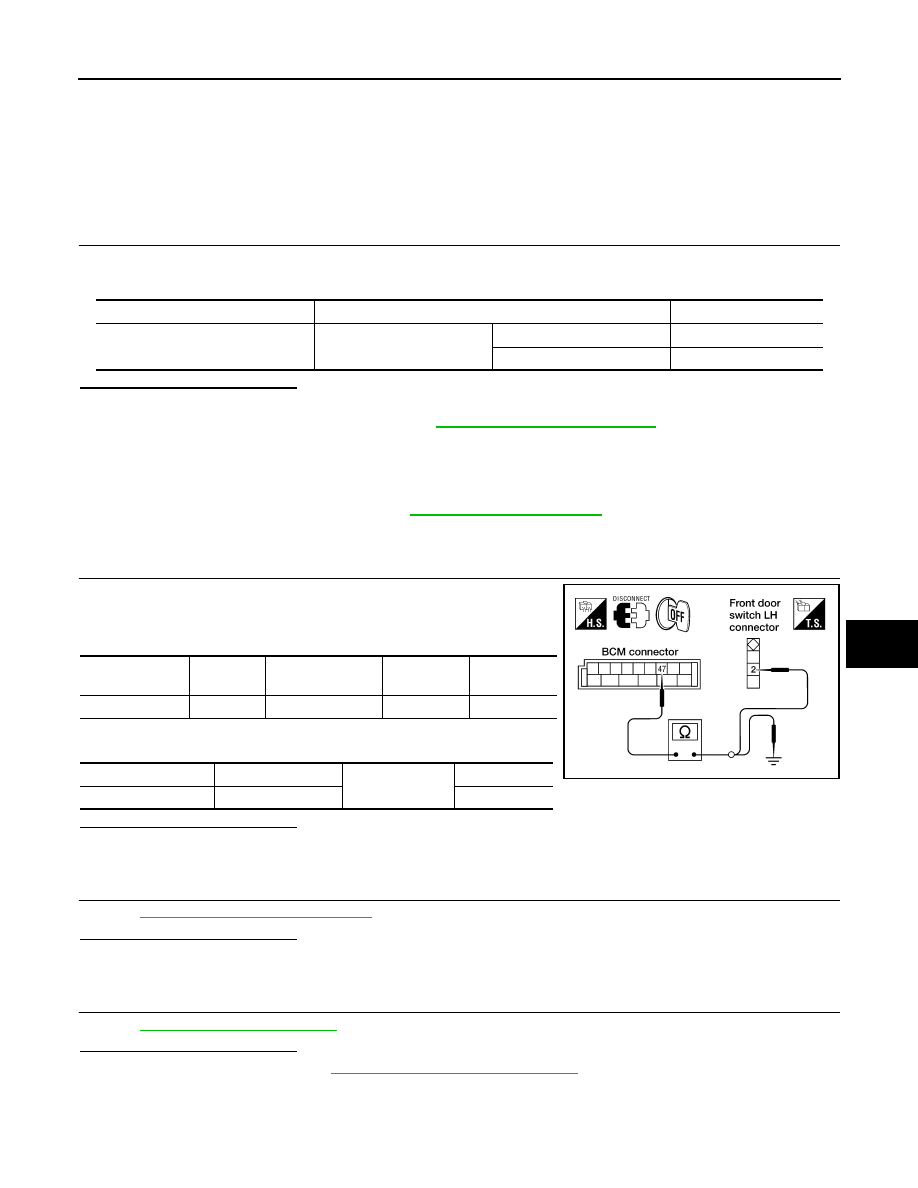

FRONT DOOR SWITCH (DRIVER SIDE)

Description

INFOID:0000000005256690

Detects front door LH open/close condition.

Component Function Check

INFOID:0000000005256691

1.

 CHECK FUNCTION

1. Select “DOOR SW-DR” in “Data monitor” mode with CONSULT-III.

2. Check the front door switch LH signal under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-71, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256692

Regarding Wiring Diagram information, refer to

ADP-107, "Wiring Diagram"

.

1.

 CHECK FRONT DOOR SWITCH LH CIRCUIT

1. Disconnect BCM.

2. Check continuity between BCM connector and front door switch

LH connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK FRONT DOOR SWITCH LH

Refer to

ADP-72, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace front door switch LH.

3.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Status

DOOR SW-DR

Front door switch LH

Open

ON

Close

OFF

BCM connector

Terminal

Front door switch

LH connector

Terminal

Continuity

M19

47

B8

2

Yes

BCM connector

Terminal

Ground

Continuity

M19

47

No

LIIA1027E

2010 Pathfinder

ADP-72

< COMPONENT DIAGNOSIS >

FRONT DOOR SWITCH (DRIVER SIDE)

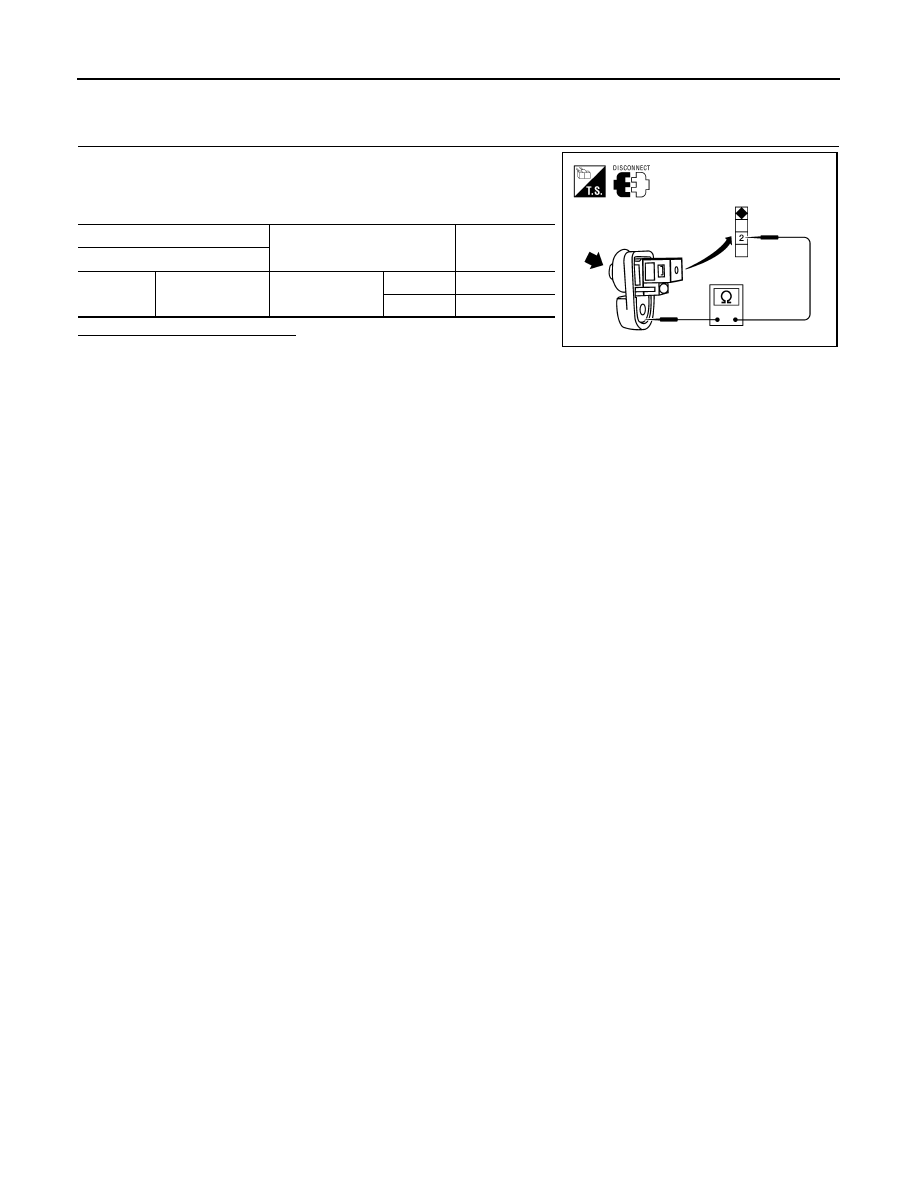

Component Inspection

INFOID:0000000005256693

1.

 CHECK FRONT DOOR SWITCH LH

1. Turn ignition switch OFF.

2. Disconnect front door switch LH.

3. Check continuity between front door switch LH terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace front door switch LH.

Terminal

Condition

Continuity

Front door switch LH

2

Ground part of

door switch

Front door switch
LH

Pushed

No

Released

Yes

LIIA2377E

2010 Pathfinder

SLIDING SENSOR

ADP-73

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

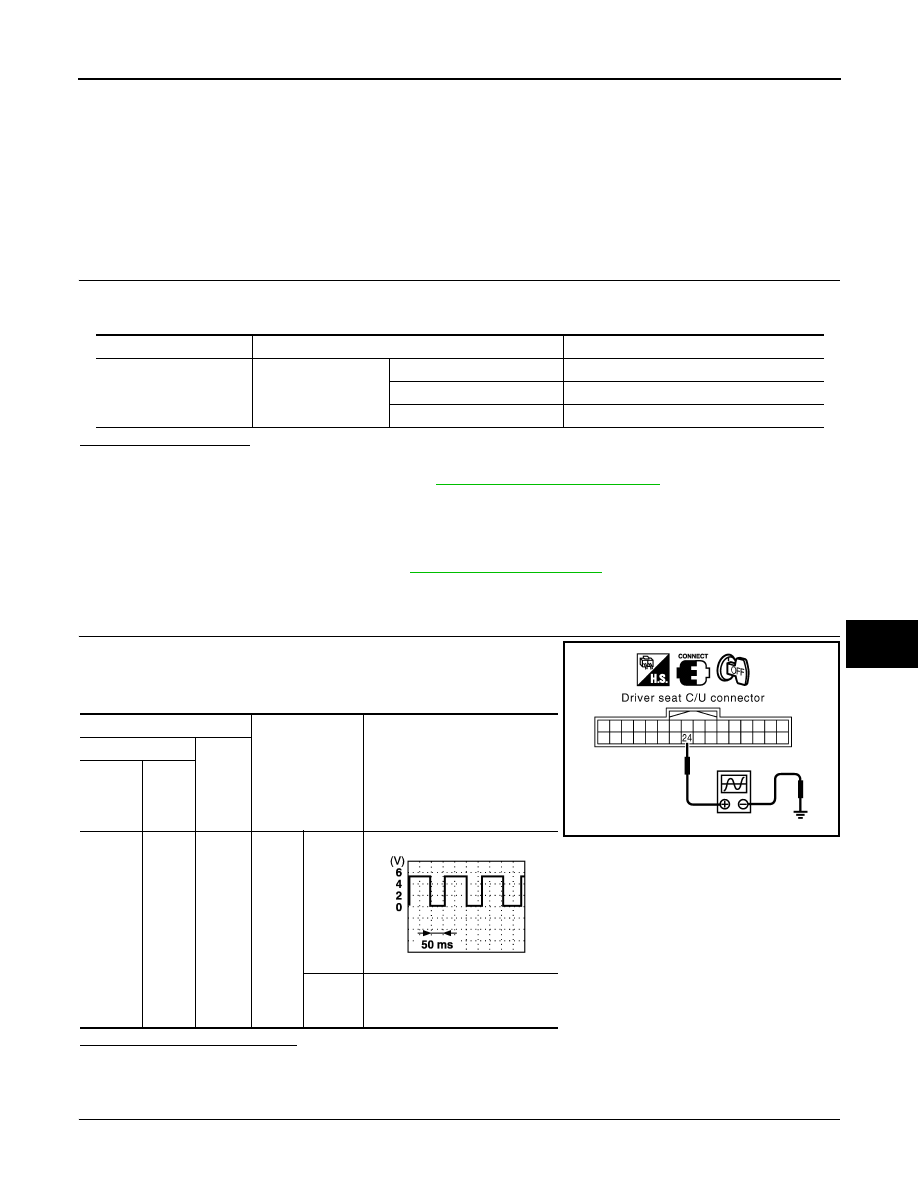

SLIDING SENSOR

Description

INFOID:0000000005256694

• The sliding sensor is installed to the seat frame assembly.

• The pulse signal is input to the driver seat control unit when sliding is performed.

• The driver seat control unit counts the pulse and calculates the sliding amount of the seat.

Component Function Check

INFOID:0000000005256695

1.

 CHECK FUNCTION

1. Select “SLIDE PULSE” in “Data monitor” mode with CONSULT-III.

2. Check sliding sensor signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-73, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256696

Regarding Wiring Diagram information, refer to

ADP-107, "Wiring Diagram"

.

1.

 CHECK SLIDING SENSOR SIGNAL

1. Turn ignition switch ON.

2. Read voltage signal between driver seat control unit harness

connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

 CHECK SLIDING SENSOR CIRCUITS

Monitor item

Condition

Valve

SLIDE PULSE

Seat sliding

Operate (forward)

Change (increase)

Operate (backward)

Change (decrease)

Release

No change

Terminals

Condition

Voltage signal

(+)

(–)

Driver’s

seat

control

unit

Termi-

nal

B202

24

Ground

Seat
sliding

Operate

Other
than
above

0 or 5

PIIA4556E

PIIA3277E
