Nissan Pathfinder (2010 year). Manual - part 9





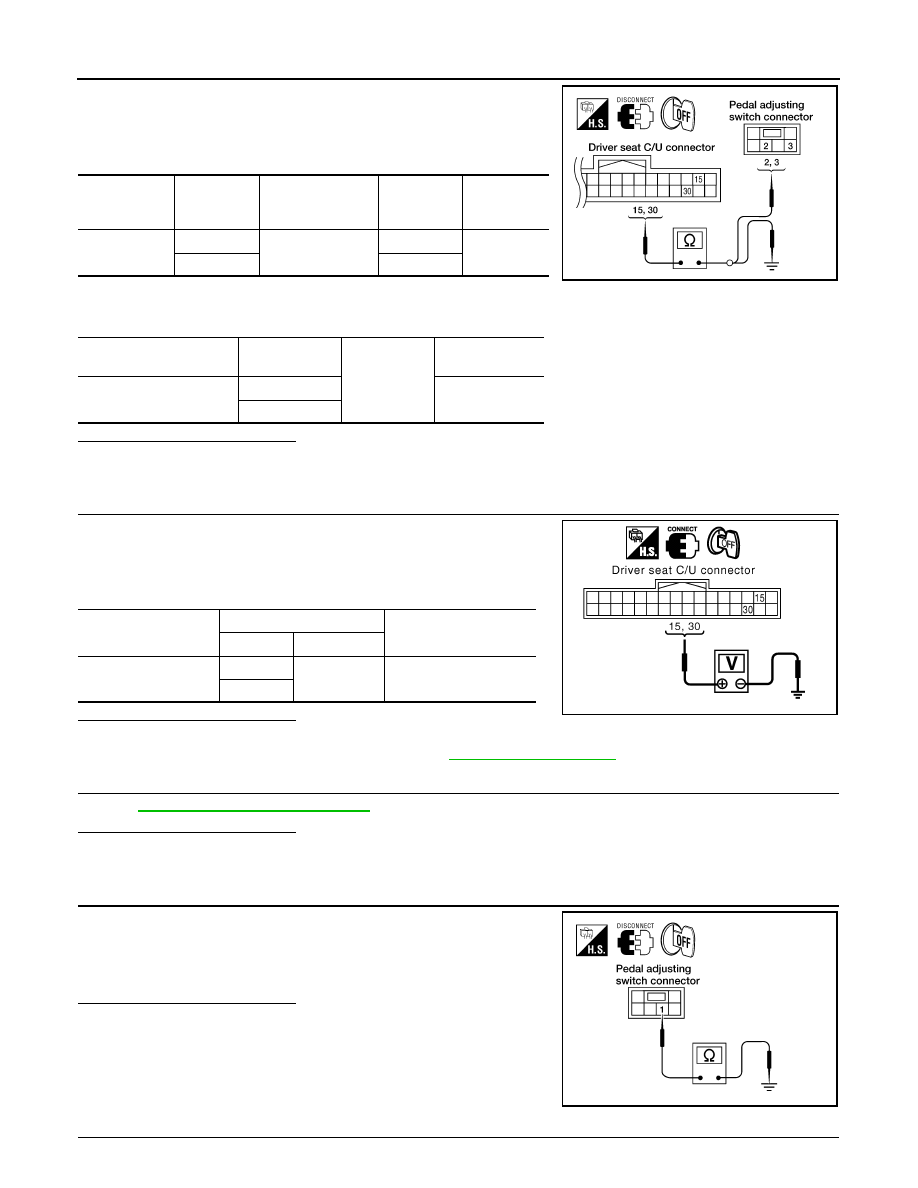

ADP-58

< COMPONENT DIAGNOSIS >

PEDAL ADJUSTING SWITCH

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit and pedal adjusting switch.

3. Check continuity between driver seat control unit harness con-

nector and pedal adjusting switch harness connector.

4. Check continuity between driver seat control unit harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DRIVER SEAT CONTROL UNIT OUTPUT

1. Connect the driver seat control unit.

2. Turn ignition switch ON.

3. Check voltage between driver seat control unit harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace driver seat control unit. Refer to

SE-25, "Exploded View"

.

4.

 CHECK PEDAL ADJUSTING SWITCH

Refer to

ADP-59, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace pedal adjusting switch.

5.

 CHECK PEDAL ADJUSTING SWITCH GROUND CIRCUIT

Check continuity between pedal adjusting switch connector M96 ter-

minal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace or replace harness.

6.

 CHECK INTERMITTENT INCIDENT

Driver seat
control unit

connector

Terminal

Pedal adjusting

switch connector

Terminal

Continuity

B202

15

M96

2

Yes

30

3

Driver seat control unit

connector

Terminal

Ground

Continuity

B202

15

No

30

LIIA0726E

Driver seat control unit

connector

Terminals

Voltage (V)

(Approx.)

(+)

(–)

B202

15

Ground

Battery voltage

30

PIIA4591E

1 - Ground

: Continuity should exist.

LIIA1015E

2010 Pathfinder

PEDAL ADJUSTING SWITCH

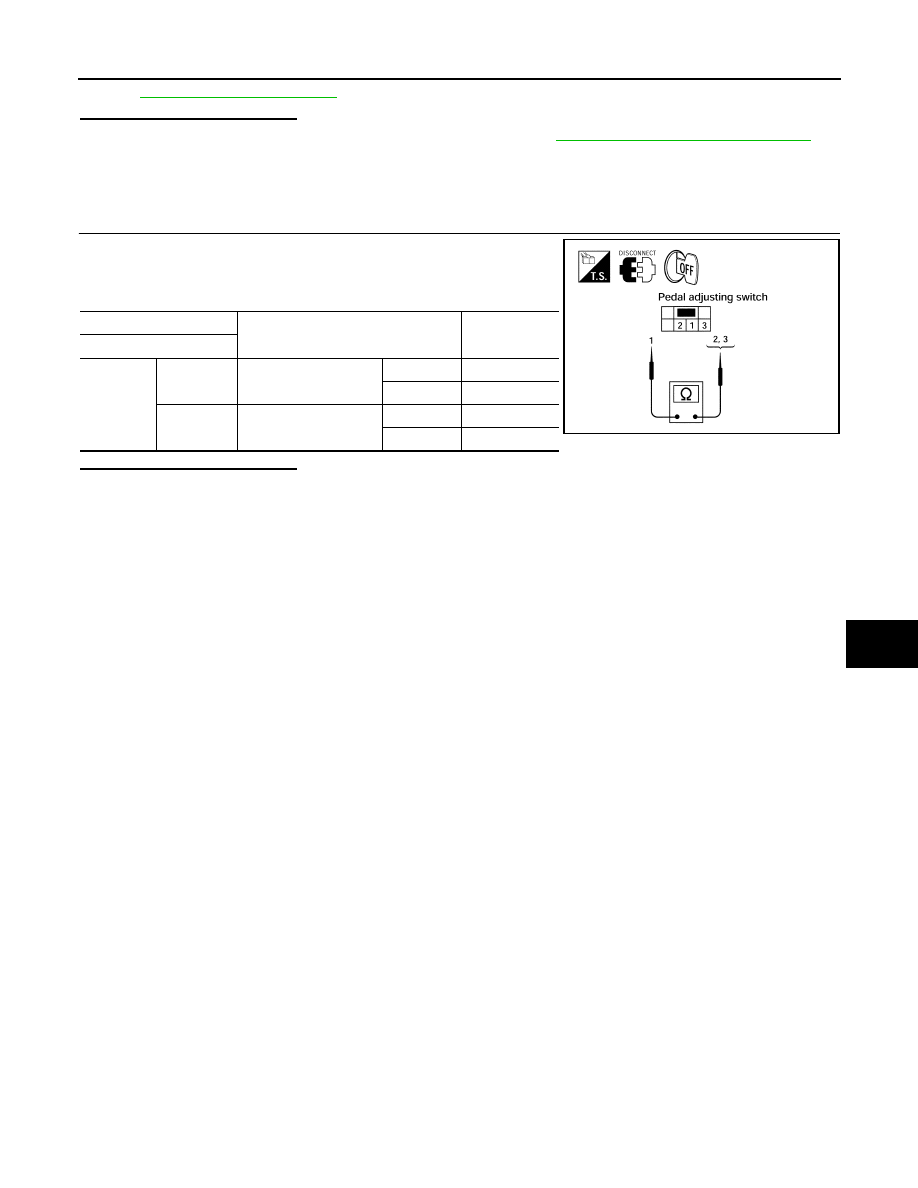

ADP-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000005256673

1.

 CHECK PEDAL ADJUSTING SWITCH

1. Turn ignition switch OFF.

2. Disconnect pedal adjusting switch.

3. Check continuity between pedal adjusting switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace pedal adjusting switch.

Terminal

Condition

Continuity

Pedal adjusting switch

1

2

Pedal adjusting switch
(backward)

Operate

Yes

Release

No

3

Pedal adjusting switch
(forward)

Operate

Yes

Release

No

LIIA1014E

2010 Pathfinder

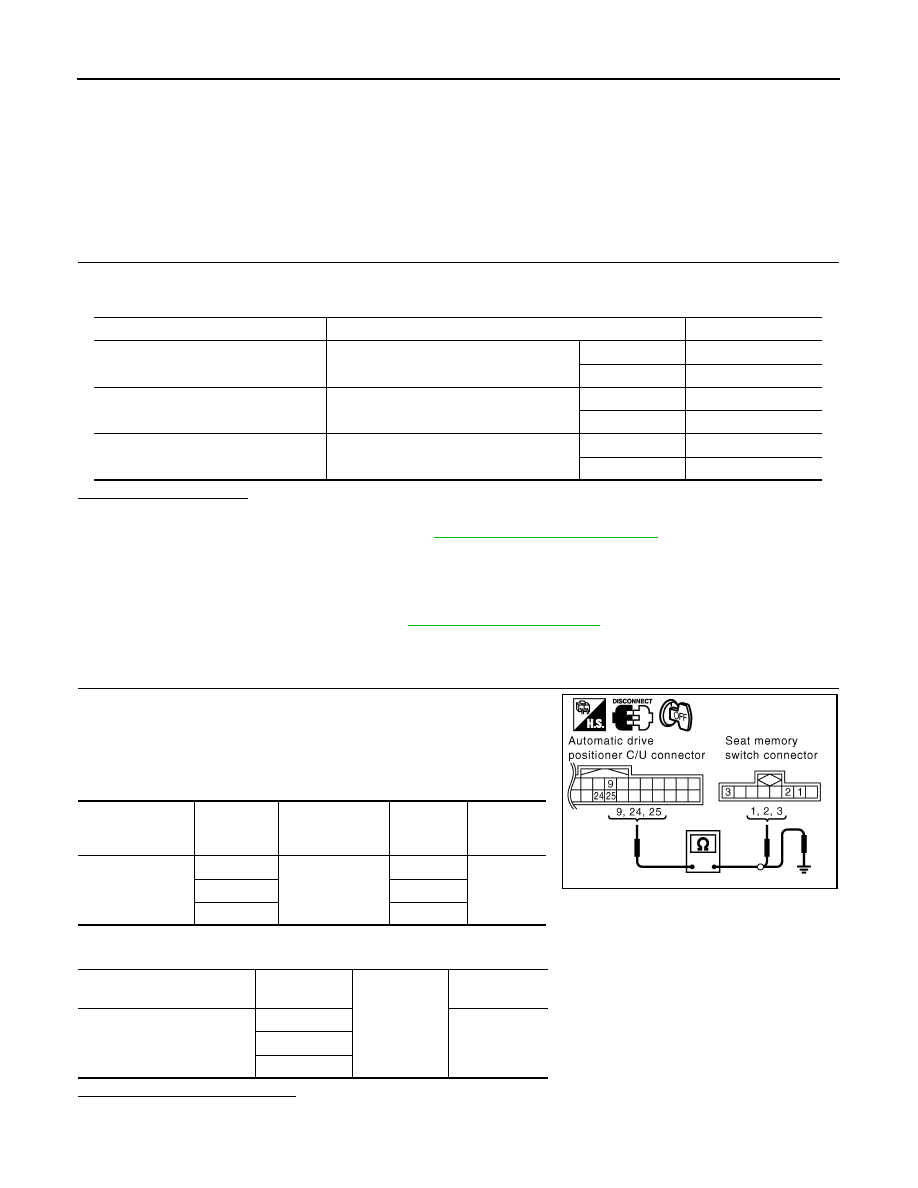

ADP-60

< COMPONENT DIAGNOSIS >

SEAT MEMORY SWITCH

SEAT MEMORY SWITCH

Description

INFOID:0000000005256674

Memory switch is equipped on the seat memory switch installed to the front door LH trim. The operation signal

is input to the automatic drive positioner control unit when the memory switch is operated.

Component Function Check

INFOID:0000000005256675

1.

 CHECK FUNCTION

1. Select “MEMORY SW 1”, “MEMORY SW 2”, "SET SW" in “Data monitor” mode with CONSULT-III.

2. Check seat memory switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-60, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256676

Regarding Wiring Diagram information, refer to

ADP-126, "Wiring Diagram"

.

1.

 CHECK MEMORY SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and seat

memory switch.

3. Check continuity between automatic drive positioner control unit

harness connector and seat memory switch harness connector.

4. Check continuity between automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

Monitor item

Condition

Status

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SET SW

Set switch

Push

ON

Release

OFF

Automatic drive

positioner control

unit connector

Terminal

Seat memory

switch connector

Terminal

Continuity

M33

9

D5

1

Yes

24

3

25

2

Automatic drive positioner

control unit connector

Terminal

Ground

Continuity

M33

9

No

24

25

PIIA4576E

2010 Pathfinder

SEAT MEMORY SWITCH

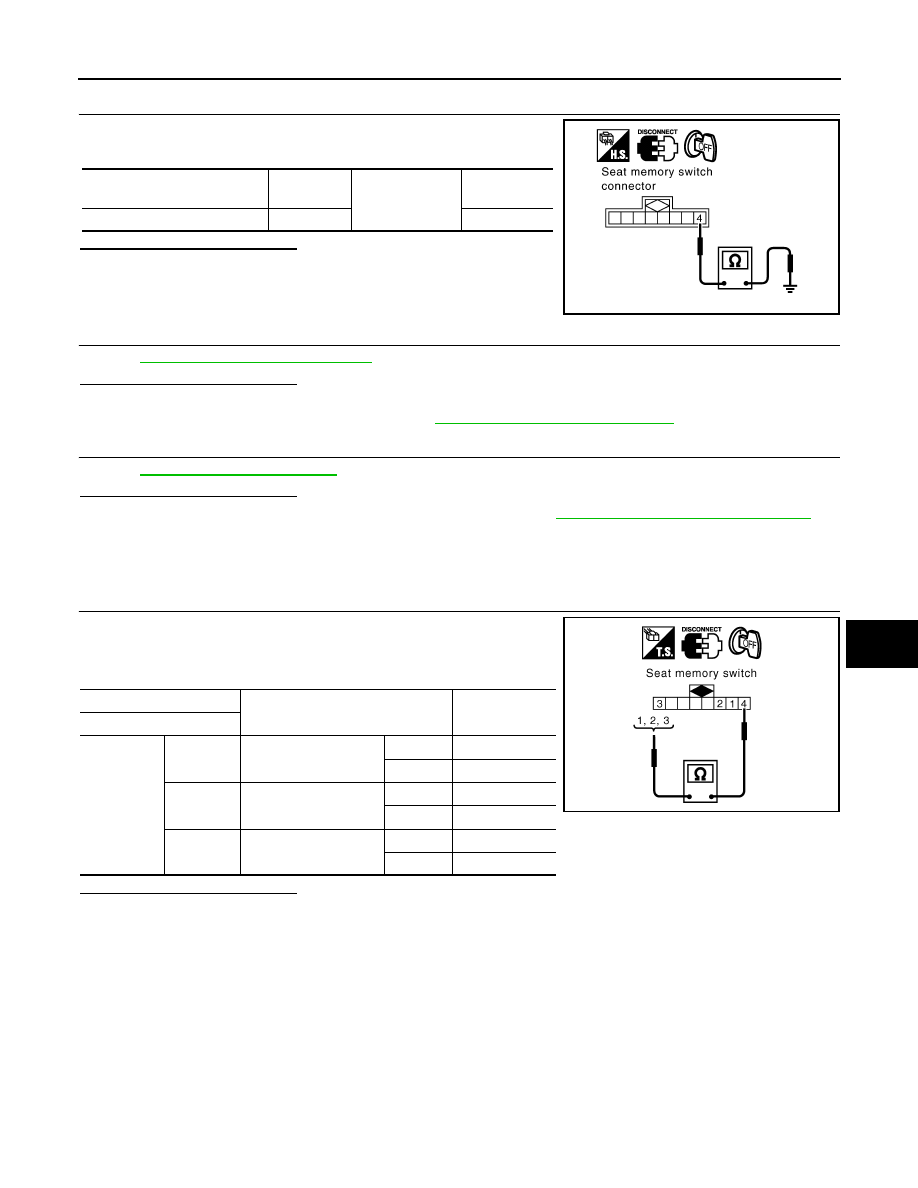

ADP-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

2.

 CHECK MEMORY SWITCH GROUND CIRCUIT

Check continuity between seat memory switch harness connector

and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK SEAT MEMORY SWITCH

Refer to

ADP-61, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace seat memory switch. Refer to

INT-14, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000005256677

1.

 CHECK SEAT MEMORY SWITCH

1. Turn ignition switch OFF.

2. Disconnect seat memory switch.

3. Check continuity between seat memory switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace seat memory switch.

Seat memory switch

connector

Terminal

Ground

Continuity

D5

4

Yes

PIIA4821E

Terminal

Condition

Continuity

Seat memory switch

4

1

Memory switch 1

Push

Yes

Release

No

2

Memory switch 2

Push

Yes

Release

No

3

Set switch

Push

Yes

Release

No

LIIA1020E

2010 Pathfinder

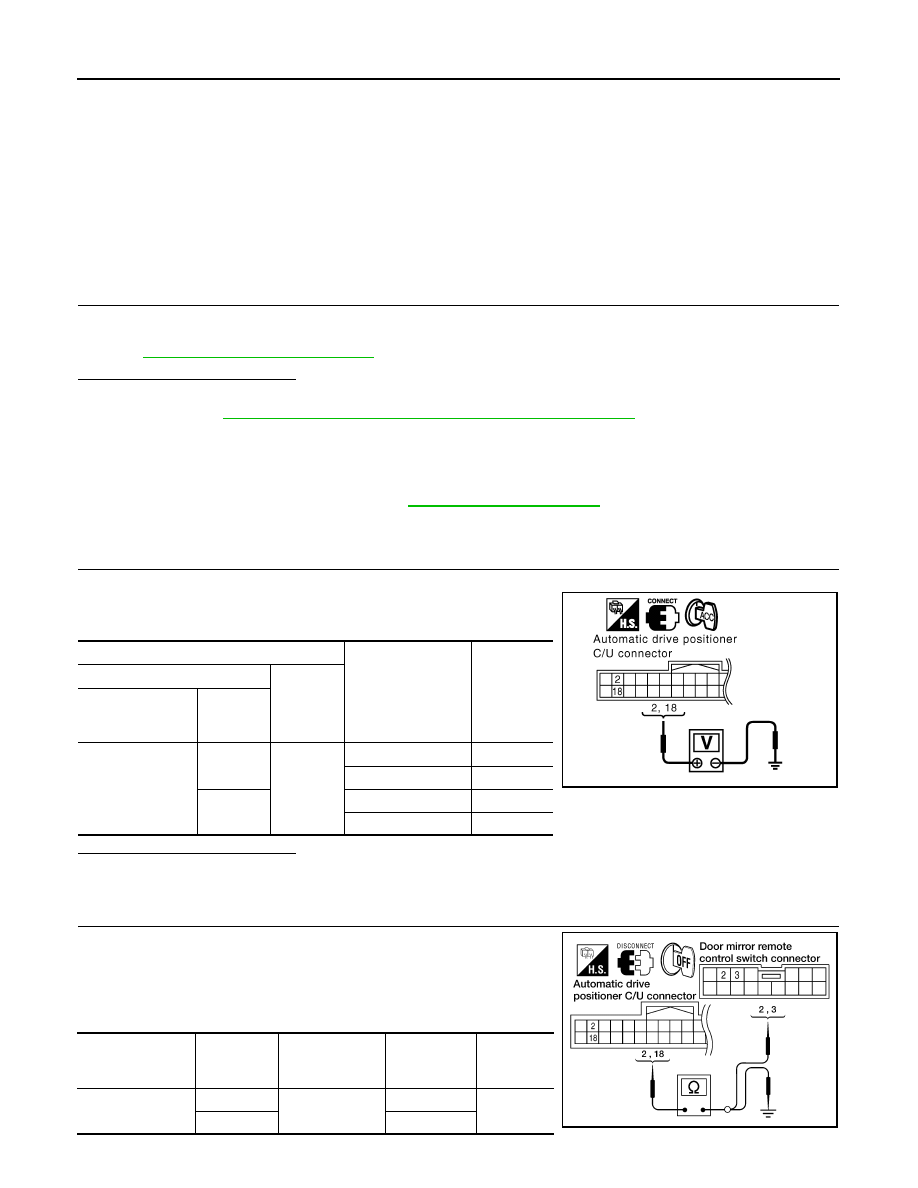

ADP-62

< COMPONENT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGEOVER SWITCH
CHANGEOVER SWITCH : Description

INFOID:0000000005256678

Changeover switch is integrated into door mirror remote control switch.

Changeover switch has three positions (L, N and R).

It changes door mirror motor operation by transmitting control signal to automatic drive positioner control unit.

CHANGEOVER SWITCH : Component Function Check

INFOID:0000000005256679

1.

 CHECK CHANGEOVER SWITCH FUNCTION

Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L” in “DATA MONITOR” mode with CON-

SULT-III.

Refer to

ADP-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Changeover switch function is OK.

NO

>> Refer to

ADP-62, "CHANGEOVER SWITCH : Diagnosis Procedure"

.

CHANGEOVER SWITCH : Diagnosis Procedure

INFOID:0000000005256680

Regarding Wiring Diagram information, refer to

ADP-126, "Wiring Diagram"

.

1.

 CHECK CHANGEOVER SWITCH SIGNAL

1. Turn ignition switch ON.

2. Check voltage between automatic drive positioner control unit

connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and door mir-

ror remote control switch.

3. Check continuity between automatic drive positioner control unit

connector and door mirror remote control switch connector.

Terminals

Change over switch

condition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner control

unit connector

Terminal

M33

2

Ground

RIGHT

0

Other than above

5

18

LEFT

0

Other than above

5

PIIA4767E

Automatic drive

positioner control

unit connector

Terminal

Door mirror re-

mote control

switch connector

Terminal

Continuity

M33

2

M163

3

Yes

18

2

LIIA1821E

2010 Pathfinder

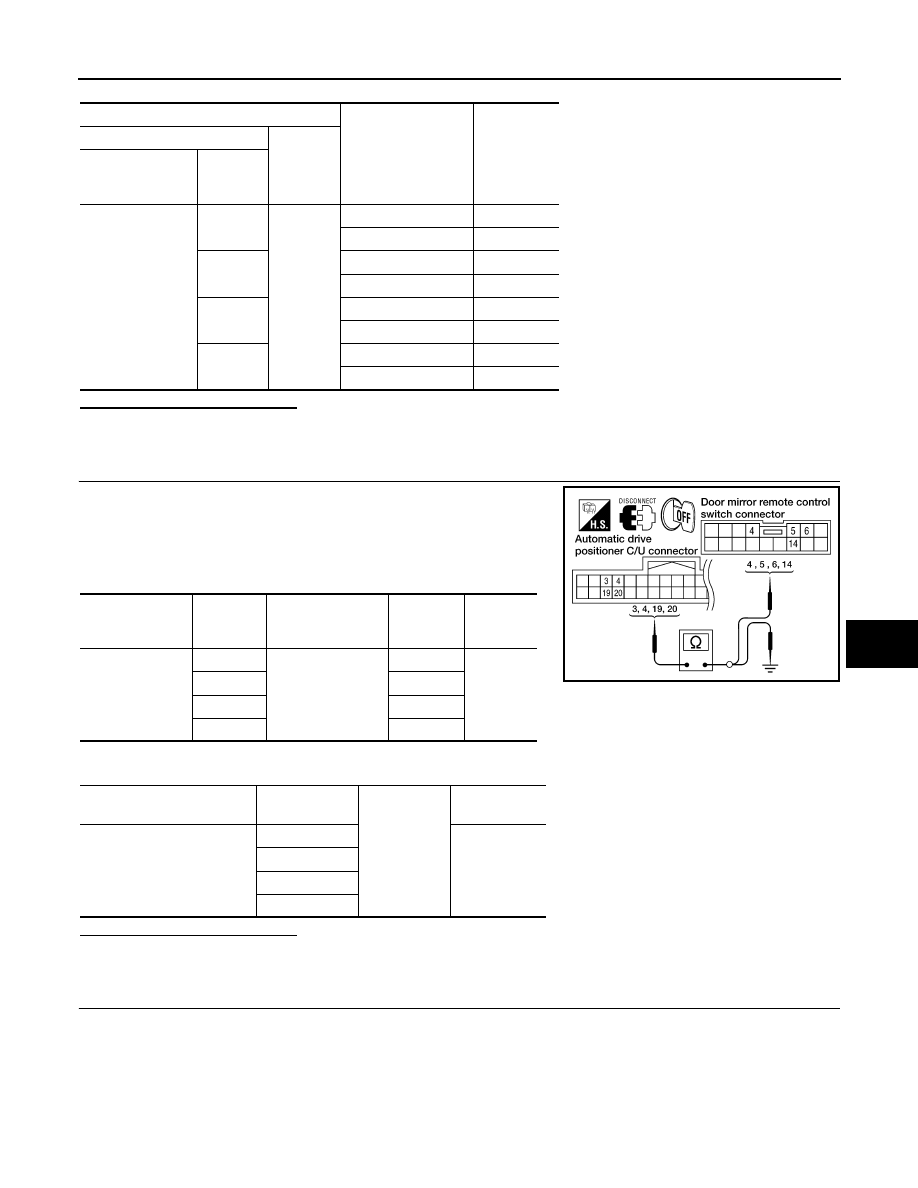

DOOR MIRROR REMOTE CONTROL SWITCH

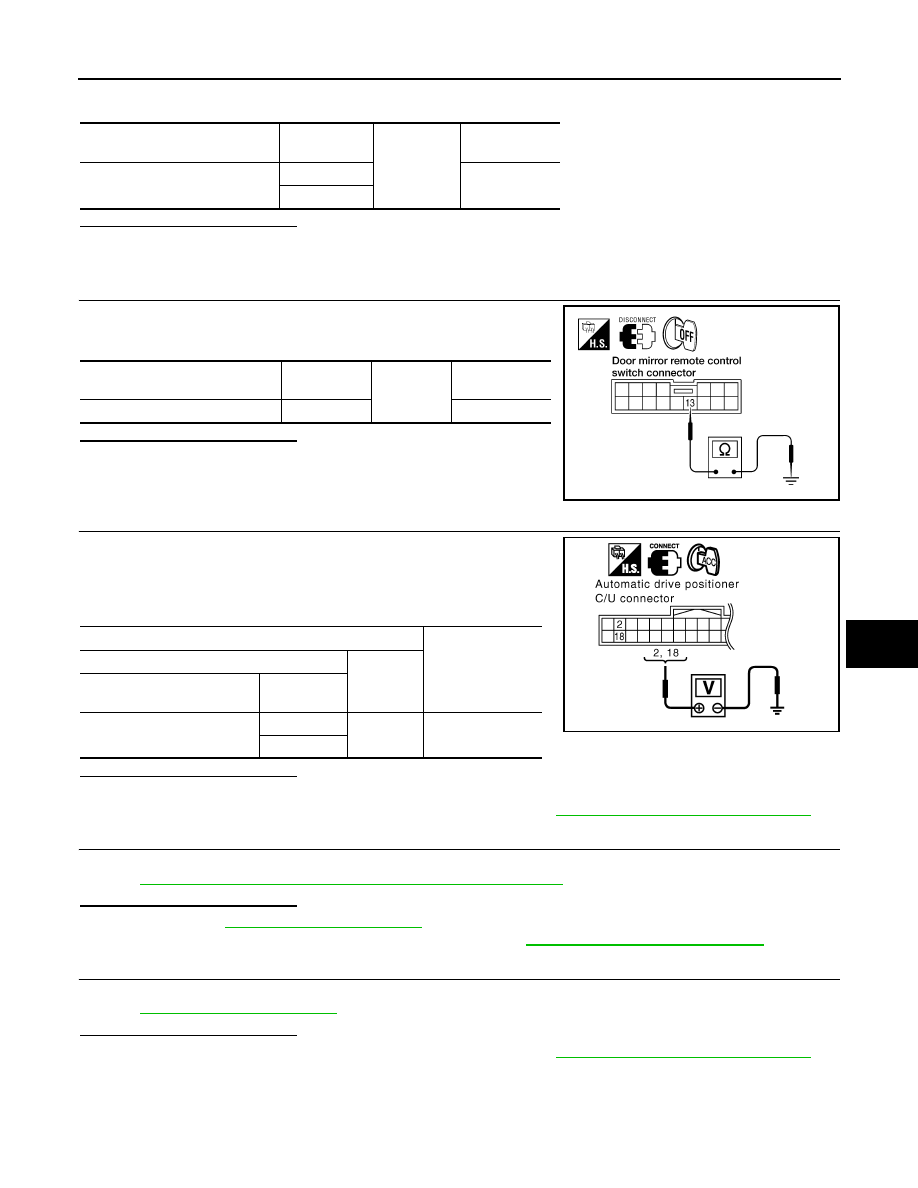

ADP-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

4. Check continuity between automatic drive positioner control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Check continuity between door mirror remote control switch connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL

1. Connect automatic drive positioner control unit.

2. Turn ignition switch ON.

3. Check voltage between automatic drive positioner control unit

connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

5.

 CHECK CHANGEOVER SWITCH

Check changeover switch.

Refer to

ADP-64, "CHANGEOVER SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace door mirror remote control switch. Refer to

INT-14, "Removal and Installation"

.

6.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-37, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-162, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

Automatic drive positioner control

unit connector

Terminal

Ground

Continuity

M33

2

No

18

Door mirror remote control switch

connector

Terminal

Ground

Continuity

M163

13

Yes

LIIA1825E

Terminals

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive positioner

control unit connector

Terminal

M33

2

Ground

5

18

PIIA4767E

2010 Pathfinder

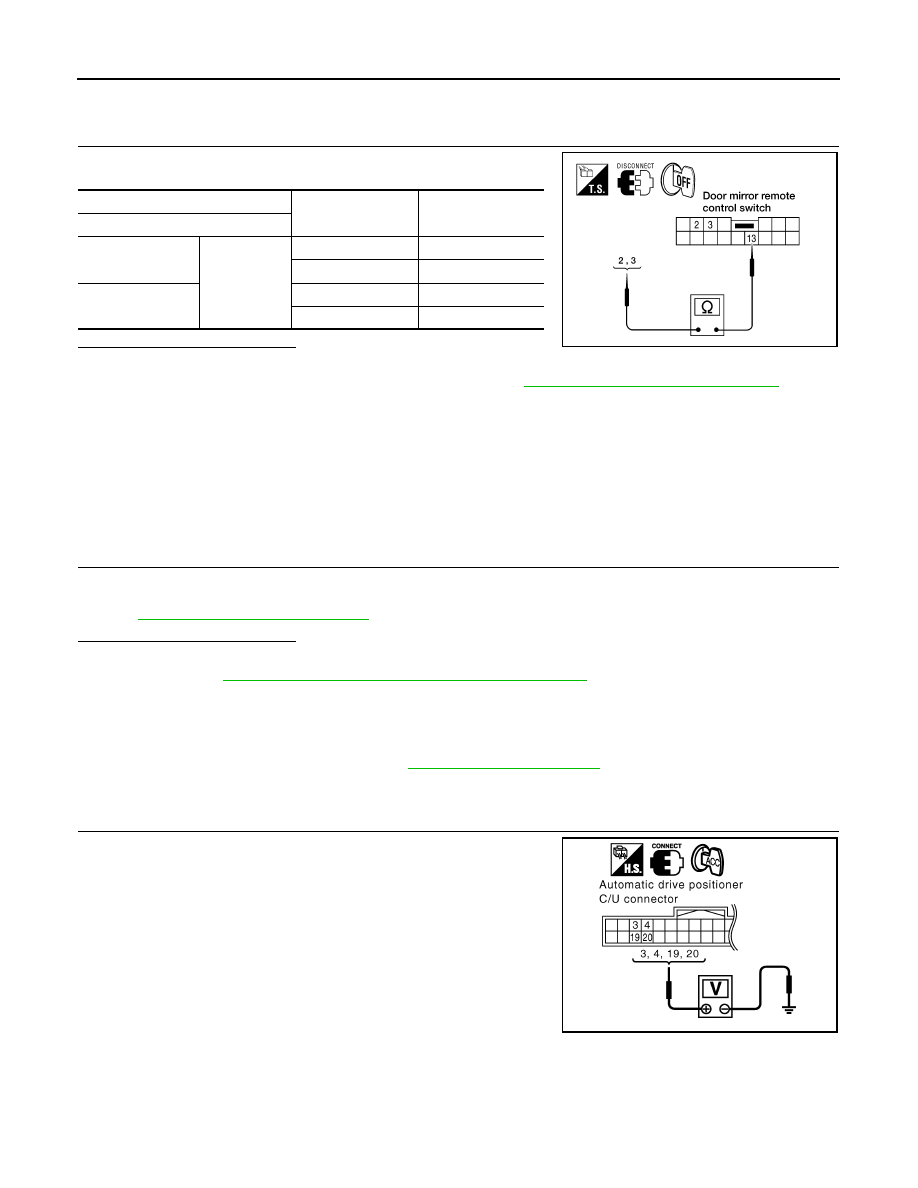

ADP-64

< COMPONENT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGEOVER SWITCH : Component Inspection

INFOID:0000000005256681

1.

 CHECK CHANGEOVER SWITCH

Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

ADP-164, "Removal and Installation"

.

MIRROR SWITCH
MIRROR SWITCH : Description

INFOID:0000000005256682

It operates angle of the door mirror face.

It transmits mirror face adjust operation to automatic drive positioner control unit.

MIRROR SWITCH : Component Function Check

INFOID:0000000005256683

1.

 CHECK MIRROR SWITCH FUNCTION

Check the operation on “MIR CON SW–UP/DN” and “MIR CON SW–RH/LH” in “DATA MONITOR” mode

with CONSULT-III.

Refer to

ADP-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Mirror switch function is OK.

NO

>> Refer to

ADP-64, "MIRROR SWITCH : Diagnosis Procedure"

.

MIRROR SWITCH : Diagnosis Procedure

INFOID:0000000005256684

Regarding Wiring Diagram information, refer to

ADP-126, "Wiring Diagram"

.

1.

 CHECK MIRROR SWITCH FUNCTION

1. Turn ignition switch ON.

2. Check voltage between automatic drive positioner control unit

connector and ground.

Terminal

Change over switch

condition

Continuity

Door mirror remote control switch

2

13

LEFT

Yes

Other than above

No

3

RIGHT

Yes

Other than above

No

LIIA2052E

PIIA4771E

2010 Pathfinder

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-65

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and door mir-

ror remote control switch.

3. Check continuity between automatic drive positioner control unit

connector and door mirror remote control switch connector.

4. Check continuity between automatic drive positioner control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Terminals

Mirror switch

Condition

Voltage (V)

(Approx.)

(+)

(–)

Automatic drive

positioner control

unit connector

Terminal

M33

3

Ground

UP

0

Other than above

5

4

LEFT

0

Other than above

5

19

DOWN

0

Other than above

5

20

RIGHT

0

Other than above

5

Automatic drive

positioner control

unit connector

Terminal

Door mirror remote

control switch con-

nector

Terminal

Continuity

M33

3

M163

6

Yes

4

5

19

14

20

4

Automatic drive positioner

control unit connector

Terminal

Ground

Continuity

M33

3

No

4

19

20

LIIA1823E

2010 Pathfinder















Content      ..     7      8      9      10     ..
