Nissan Pathfinder (2010 year). Manual - part 3





ADP-10

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

FUNCTION DIAGNOSIS

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM
AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000005256599

ALJIA0485GB

2010 Pathfinder

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

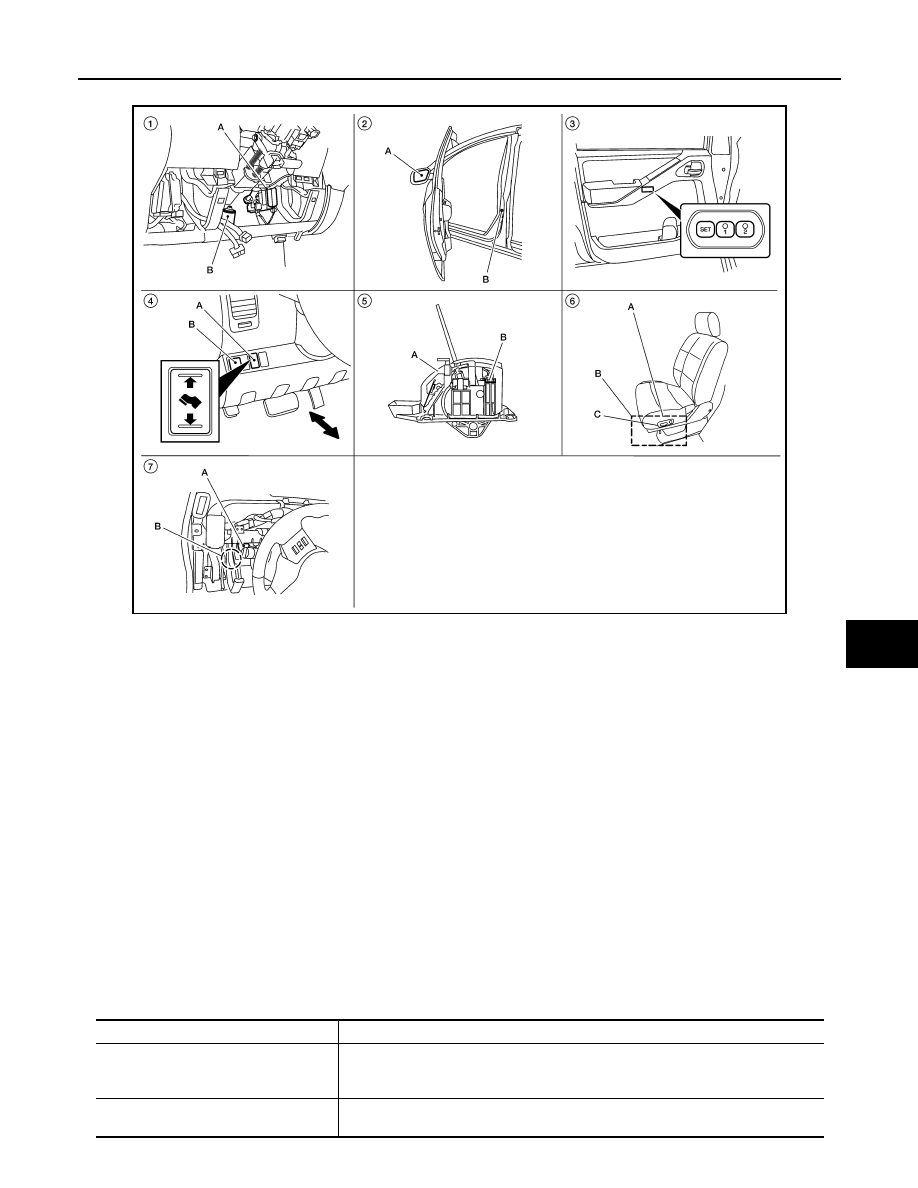

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Parts Location

INFOID:0000000005256600

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000005256601

OUTLINE

The system automatically moves the driver seat, pedal assembly and door mirror position by the driver seat

control unit and the automatic drive positioner control unit. The driver seat control unit corresponds with the

automatic drive positioner control unit by UART communication.

LIIA2405E

1.

A. BCM M18, M19, M20
B. Pedal adjusting motor E109, E110
(view with lower instrument panel LH
removed)

2.

A. Door mirror LH D18, RH D118
B. Front door switch LH B8

3.

Seat memory switch D5

4.

A. Pedal adjusting switch M96
B. Door mirror remote control switch
M163

5.

A. A/T selector lever
B. A/T shift selector (park position
switch) M156

6.

A. Sliding motor LH B204, reclining
motor LH B232, lifting motor (front)
B206, lifting motor (rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208
(front seat LH view)

7.

A. Automatic drive positioner control
unit M33, M34
B. Circuit breaker-2 M82 (view with
instrument panel removed)

Function Description

Manual function

The driving position (seat, pedal assembly and door mirror position) can be adjusted
by using the power seat switch,  pedal adjusting switch or door mirror remote control
switch.

Memory function

The seat, pedal assembly and outside mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

2010 Pathfinder

ADP-12

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Description

INFOID:0000000005256602

CONTROL UNITS

INPUT PARTS

Switches

Entry/Exit assist function

Exit

On exit, the seat moves backward.

Entry

On entry, the seat returns from exiting position to the previous driving position.

Keyfob interlock function

Perform memory operation, exiting operation and entry operation by key unlock oper-
ation.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation .

Function Description

Item

Function

Driver seat control unit

• Main unit of automatic drive positioner system
• It is connected to the CAN.
• It communicates with the automatic drive positioner control unit via UART com-

munication.

Automatic drive positioner control unit

• It communicates with the driver seat control unit via UART communication.
• Perform various controls with the instructions of driver seat control unit.
• Perform the controls of the pedal adjusting, door mirror and the seat memory

switch.

BCM

Transmit the following status to the driver seat control unit via CAN communication.
• Front door LH: OPEN/CLOSE
• Ignition switch position: ACC/ON
• Door lock: UNLOCK (with Intelligent Key or remote keyless entry request switch

operation)

• Key  ID
• Key switch: Insert/Pull out Intelligent Key or ignition key
• Starter: CRANKING/OTHER

Combination meter

Transmit the vehicle speed signal to the driver seat control unit via CAN communi-
cation.

AV control unit

The setting change of auto drive positioner system can be performed on the display.

A/T shift selector (park position switch)

Transmit the shift position signal (P range) to the driver seat control unit.

Item

Function

Key switch and ignition knob switch

The key switch is installed to detect the key inserted/removed status.

Front door switch LH

Detect front door (driver side) open/close status.

A/T shift selector (park position switch)

Detect the P range position of A/T selector lever.

Set switch

The registration and system setting can be performed with its operation.

Seat memory switch 1/2

The registration and operation can be performed with its operation.

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

2010 Pathfinder

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Sensors

OUTPUT PARTS

MANUAL FUNCTION

Pedal adjusting switch

The following switch is installed.
• Pedal forward
• Pedal backward
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor (LH/RH)

Detect the up/down and left/right position of outside mirror face.

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face up/down and left/right.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifting (front) up/down.

Lifting motor (rear)

Move the seat lifting (rear) up/down.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

Seat memory indicator

Illuminates or flashes according to the registration/operation status.

2010 Pathfinder

ADP-14

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

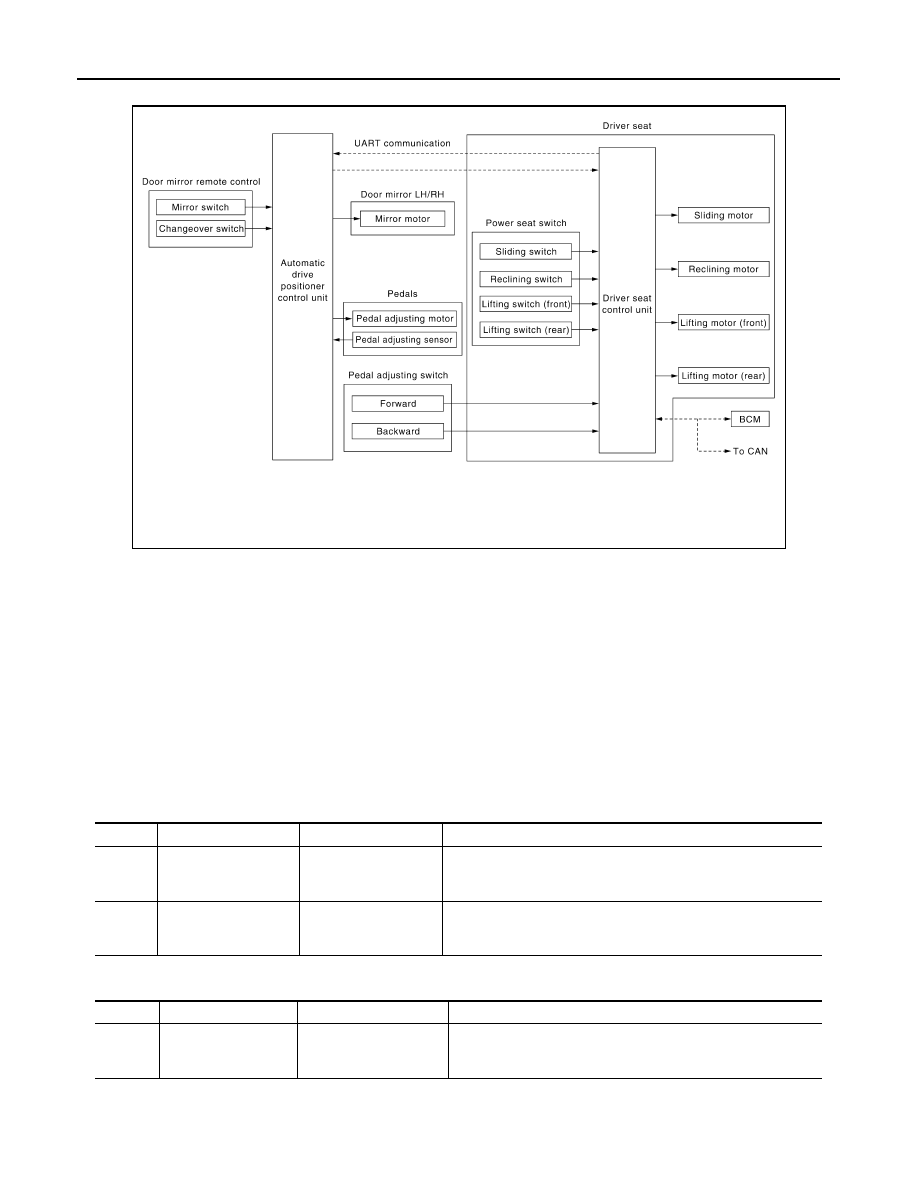

MANUAL FUNCTION : System Diagram

INFOID:0000000005256603

MANUAL FUNCTION : System Description

INFOID:0000000005256604

OUTLINE

The driving position (seat, pedal assembly and door mirror position) can be adjusted manually with power seat

switch, pedal adjusting switch and door mirror remote control switch.

OPERATION PROCEDURE

1. Turn ignition switch ON.

2. Operate power seat switch, pedal adjusting switch or door mirror remote control switch.

3. The driver seat, pedal assembly or door mirror operates according to the operation of each switch.

DETAIL FLOW

Seat

Adjustable pedals

ALJIA0185GB

Order

Input

Output

Control unit condition

1

Power seat switch
(sliding, lifting, reclin-
ing)

—

The power seat switch signal is input to the driver seat control unit
when the power seat switch is operated.

2

—

Motors
(sliding, lifting, reclin-
ing)

The driver seat control unit outputs signals to each motor accord-
ing to the power seat switch input signal.

Order

Input

Output

Control unit condition

1

Pedal adjusting switch

—

The pedal adjusting switch signal is input to the automatic drive
positioner control unit when the pedal adjusting switch is operat-
ed.

2010 Pathfinder

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Door Mirror

NOTE:

The door mirrors can be operated manually when ignition switch is in either ACC or ON position. The ignition

switch signal (ACC/ON) is transmitted from BCM to the driver seat control unit via CAN communication and

from the driver seat control unit to the automatic drive positioner control unit via UART communication.

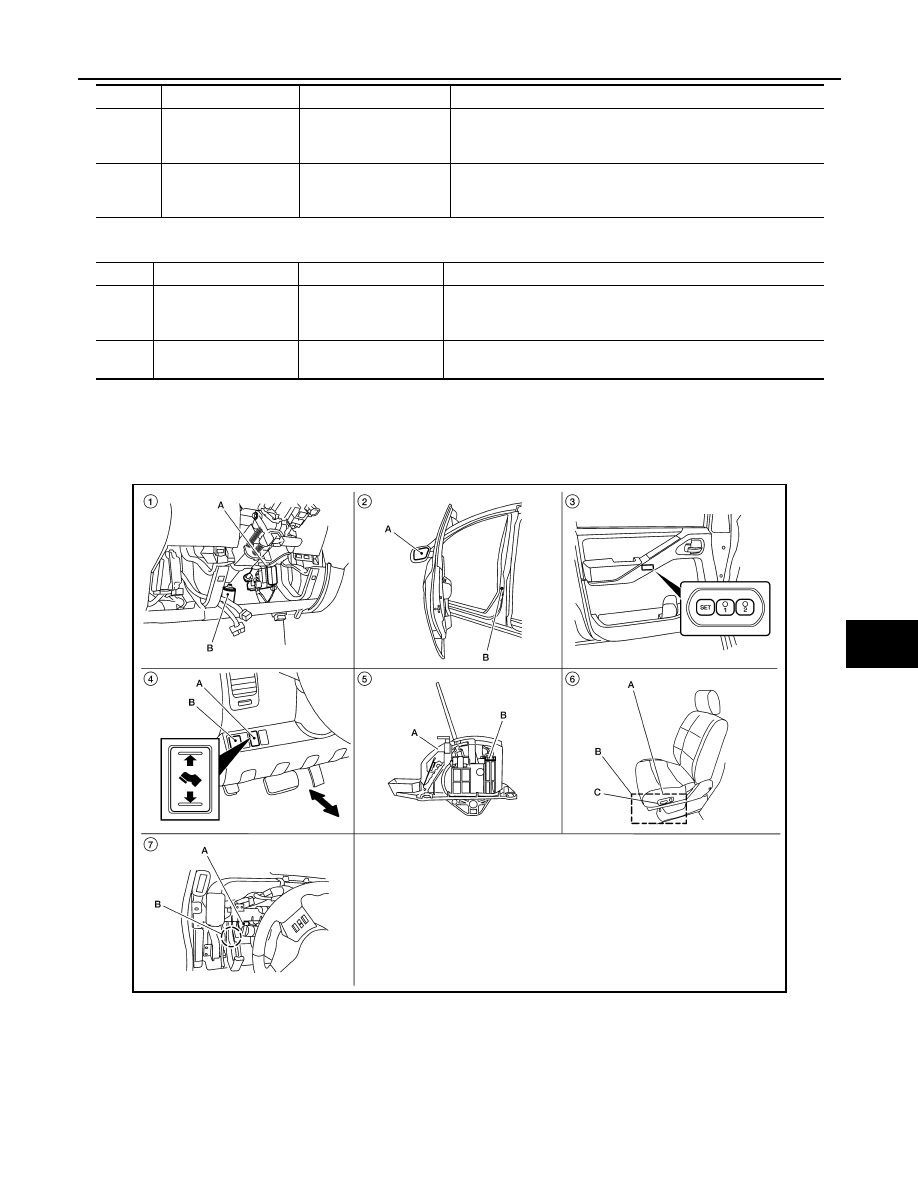

MANUAL FUNCTION : Component Parts Location

INFOID:0000000005488313

2

—

Motor

The automatic drive positioner control unit actuates the motor ac-
cording to the operation of the pedal adjusting switch signal from
the driver seat control unit.

3

Sensors
(forward, backward)

—

The automatic drive positioner control unit recognizes any oper-
ation limit of each actuator via each sensor and will not operate
the actuator anymore at that time.

Order

Input

Output

Control unit condition

Order

Input

Output

Control unit condition

1

Door mirror remote
control switch

—

The door mirror remote control switch signal is input to the auto-
matic drive positioner control unit when the door mirror remote
control switch is operated.

2

—

Motors
(Door mirror motor)

The automatic drive positioner control unit actuates each motor
according to the operation of the door mirror remote control switch.

LIIA2405E

2010 Pathfinder

ADP-16

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

MANUAL FUNCTION : Component Description

INFOID:0000000005256606

CONTROL UNITS

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

1.

A. BCM M18, M19, M20
B. Pedal adjusting motor E109, E110
(view with lower instrument panel LH
removed)

2.

A. Door mirror LH D18, RH D118
B. Front door switch LH B8

3.

Seat memory switch D5

4.

A. Pedal adjusting switch M96
B. Door mirror remote control switch
M163

5.

A. A/T selector lever
B. A/T shift selector (park position
switch) M156

6.

A. Sliding motor LH B204, reclining
motor LH B232, lifting motor (front)
B206, lifting motor (rear) B207
B. Driver seat control unit B202,
B203
C. Power seat switch LH B208
(front seat LH view)

7.

A. Automatic drive positioner control
unit M33, M34
B. Circuit breaker-2 M82 (view with
instrument panel removed)

Item

Function

Driver seat control unit

• Operates the specific seat motor with the signal from the power seat switch.
• Transmits the ignition switch signal (ACC/ON) via UART communication to the

automatic drive positioner control unit.

• Transmits the pedal adjusting switch signal via UART communication to the au-

tomatic drive positioner control unit.

Automatic drive positioner control unit

Operates the specific motor with the signal from driver seat control unit or door mir-
ror remote control switch.

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication.
• Ignition position: ACC/ON

Item

Function

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

Pedal adjusting switch

The following switch is installed.
• Pedal forward
• Pedal backward
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Pedal adjusting sensor

Detect the forward/backward position of pedal assembly.

2010 Pathfinder

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY FUNCTION

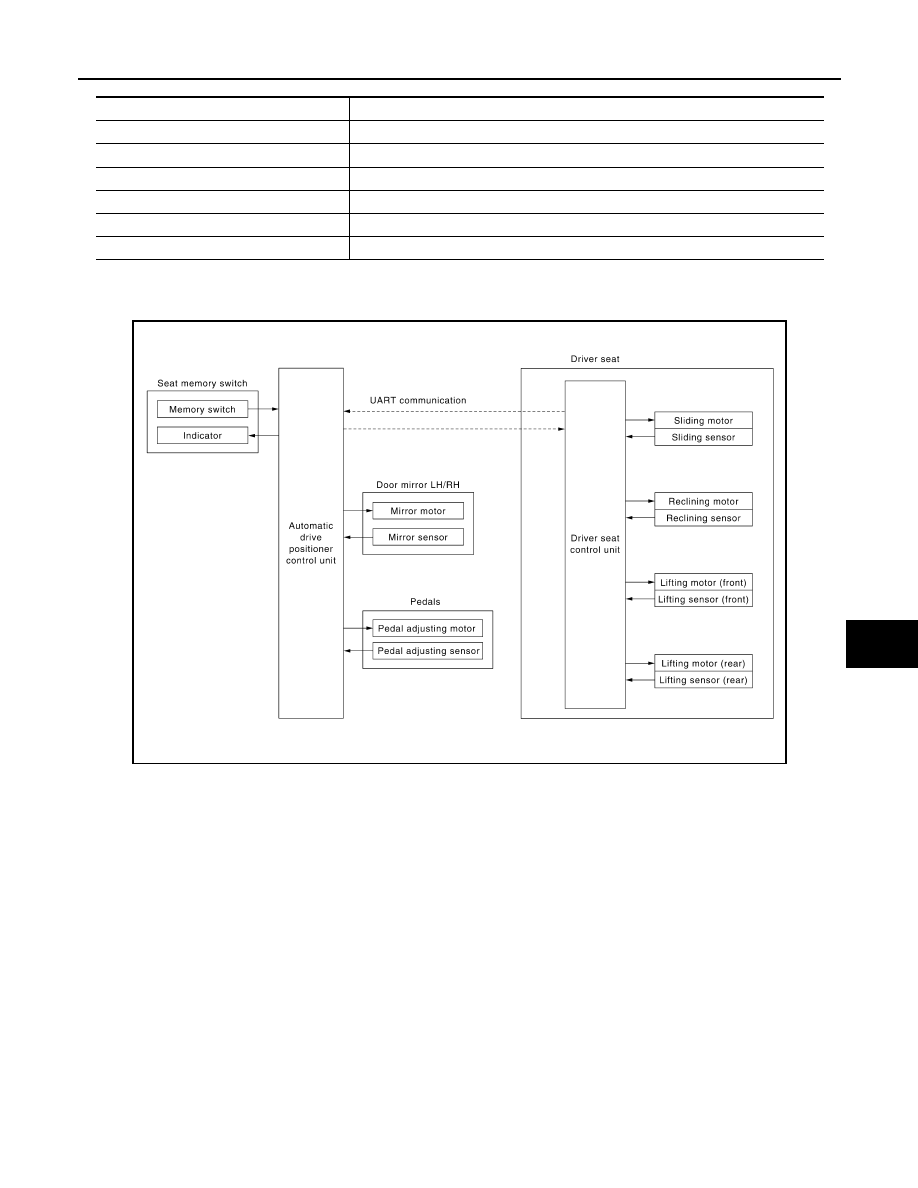

MEMORY FUNCTION : System Diagram

INFOID:0000000005256607

MEMORY FUNCTION : System Description

INFOID:0000000005256608

OUTLINE

The driver seat control unit can store the optimum driving positions (seat, pedal assembly and door mirror

position) for 2 people. If the front seat position is changed, one-touch (pressing desired memory switch for

more than 0.5 second) operation allows changing to the other driving position.

NOTE:

Further information for the memory storage procedure. Refer to Owner’s Manual.

OPERATION PROCEDURE

1. Turn ignition switch ON

2. Press desired memory switch for more than 0.5 second.

3. Front seat LH, pedal assembly and door mirror will move to the memorized position.

OPERATION CONDITION

Satisfy all of the following items. The memory function is not performed if these items are not satisfied.

Item

Function

Door mirror motor (LH/RH)

Move the outside mirror face up/down and left/right.

Pedal adjusting motor

Move the pedal assembly forward/backward.

Lifting motor (front)

Move the seat lifter (front) up/down.

Lifting motor (rear)

Move the seat lifter (rear) up/down.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

ALJIA0187GB

2010 Pathfinder















Content      ..     1      2      3      4      ..
