Nissan Pathfinder (2010 year). Manual - part 2





ADP-2

Description ..............................................................

33

DTC Logic ...............................................................

33

Diagnosis Procedure .............................................

33

B2117 ADJ PEDAL MOTOR  .............................

34

Description ..............................................................

34

DTC Logic ...............................................................

34

Diagnosis Procedure .............................................

34

B2120 ADJ PEDAL SENSOR  ...........................

36

Description ..............................................................

36

DTC Logic ...............................................................

36

Diagnosis Procedure .............................................

36

B2126 DETENT SW ...........................................

38

Description ..............................................................

38

DTC Logic ...............................................................

38

Diagnosis Procedure .............................................

38

B2128 UART COMMUNICATION LINE  ............

40

Description ..............................................................

40

DTC Logic ...............................................................

40

Diagnosis Procedure .............................................

40

POWER SUPPLY AND GROUND CIRCUIT  .....

42

BCM ...........................................................................

42

BCM : Diagnosis Procedure  ...................................

42

DRIVER SEAT CONTROL UNIT  ..............................

43

DRIVER SEAT CONTROL UNIT :
Diagnosis Procedure ............................................
.

43

DRIVER SEAT CONTROL UNIT : Special Repair
Requirement ..........................................................
.

44

AUTOMATIC DRIVE POSITIONER CONTROL
UNIT .........................................................................
.

44

AUTOMATIC DRIVE POSITIONER CONTROL
UNIT : Diagnosis Procedure  .................................
.

44

AUTOMATIC DRIVE POSITIONER CONTROL
UNIT : Special Repair Requirement ......................
.

44

SLIDING SWITCH ..............................................

45

Description ..............................................................

45

Component Function Check .................................

45

Diagnosis Procedure .............................................

45

Component Inspection ............................................

46

RECLINING SWITCH  ........................................

48

Description ..............................................................

48

Component Function Check .................................

48

Diagnosis Procedure .............................................

48

Component Inspection ............................................

49

LIFTING SWITCH (FRONT)  ..............................

51

Description ..............................................................

51

Component Function Check .................................

51

Diagnosis Procedure .............................................

51

Component Inspection ............................................

52

LIFTING SWITCH (REAR) .................................

54

Description ..............................................................

54

Component Function Check ..................................

54

Diagnosis Procedure ..............................................

54

Component Inspection  ............................................

55

PEDAL ADJUSTING SWITCH  ..........................

57

Description ..............................................................

57

Component Function Check ..................................

57

Diagnosis Procedure ..............................................

57

Component Inspection  ............................................

59

SEAT MEMORY SWITCH  .................................

60

Description ..............................................................

60

Component Function Check ..................................

60

Diagnosis Procedure ..............................................

60

Component Inspection  ............................................

61

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

62

CHANGEOVER SWITCH  ..........................................

62

CHANGEOVER SWITCH : Description  ..................

62

CHANGEOVER SWITCH : Component Function
Check ......................................................................

62

CHANGEOVER SWITCH : Diagnosis Procedure ...

62

CHANGEOVER SWITCH : Component Inspec-
tion ..........................................................................

64

MIRROR SWITCH  .....................................................

64

MIRROR SWITCH : Description  .............................

64

MIRROR SWITCH : Component Function Check ...

64

MIRROR SWITCH : Diagnosis Procedure ..............

64

MIRROR SWITCH : Component Inspection  ...........

66

POWER SEAT SWITCH GROUND CIRCUIT ...

68

Diagnosis Procedure ..............................................

68

PARK POSITION SWITCH ................................

69

Description ..............................................................

69

Component Function Check ..................................

69

Diagnosis Procedure ..............................................

69

FRONT DOOR SWITCH (DRIVER SIDE)  .........

71

Description ..............................................................

71

Component Function Check  ...................................

71

Diagnosis Procedure ...............................................

71

Component Inspection  ............................................

72

SLIDING SENSOR  ............................................

73

Description ..............................................................

73

Component Function Check ..................................

73

Diagnosis Procedure ..............................................

73

RECLINING SENSOR  .......................................

75

Description ..............................................................

75

Component Function Check ..................................

75

Diagnosis Procedure ..............................................

75

LIFTING SENSOR (FRONT)  .............................

77

Description ..............................................................

77

Component Function Check ..................................

77

Diagnosis Procedure ..............................................

77

2010 Pathfinder

ADP-3

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

LIFTING SENSOR (REAR)  ................................

79

Description ..............................................................

79

Component Function Check ..................................

79

Diagnosis Procedure ..............................................

79

PEDAL ADJUSTING SENSOR ..........................

81

Description ..............................................................

81

Component Function Check ..................................

81

Diagnosis Procedure ..............................................

81

MIRROR SENSOR  .............................................

83

DRIVER SIDE  ............................................................

83

DRIVER SIDE : Description  ....................................

83

DRIVER SIDE : Component Function Check  ........

83

DRIVER SIDE : Diagnosis Procedure  ....................

83

PASSENGER SIDE  ...................................................

85

PASSENGER SIDE : Description  ...........................

85

PASSENGER SIDE :
Component Function Check ..................................

85

PASSENGER SIDE : Diagnosis Procedure  ...........

85

SLIDING MOTOR  ...............................................

87

Description ..............................................................

87

Component Function Check ..................................

87

Diagnosis Procedure ..............................................

87

RECLINING MOTOR ..........................................

89

Description ..............................................................

89

Component Function Check ..................................

89

Diagnosis Procedure ..............................................

89

LIFTING MOTOR (FRONT) ................................

91

Description ..............................................................

91

Component Function Check ..................................

91

Diagnosis Procedure ..............................................

91

LIFTING MOTOR (REAR)  ..................................

93

Description ..............................................................

93

Component Function Check ..................................

93

Diagnosis Procedure ..............................................

93

PEDAL ADJUSTING MOTOR ............................

95

Description ..............................................................

95

Component Function Check ..................................

95

Diagnosis Procedure ..............................................

95

DOOR MIRROR MOTOR  ...................................

97

Description ..............................................................

97

Component Function Check ....................................

97

Diagnosis Procedure ...............................................

97

Component Inspection  ............................................

99

SEAT MEMORY INDICATOR LAMP  ...............

100

Description ............................................................

100

Component Function Check ................................

100

Diagnosis Procedure ............................................

100

Component Inspection  ..........................................

101

ECU DIAGNOSIS .......................................

102

DRIVER SEAT CONTROL UNIT  ....................

102

Reference Value ....................................................

102

Wiring Diagram ......................................................

107

Fail Safe ................................................................

121

DTC Index .............................................................

122

AUTOMATIC DRIVE POSITIONER CON-
TROL UNIT ......................................................

123

Reference Value ....................................................

123

Wiring Diagram ......................................................

126

BCM (BODY CONTROL MODULE)  ...............

141

Reference Value ....................................................

141

Terminal Layout .....................................................

144

Physical Values  .....................................................

144

Wiring Diagram ......................................................

150

Fail Safe ................................................................

153

DTC Inspection Priority Chart .............................

154

DTC Index .............................................................

154

SYMPTOM DIAGNOSIS  ............................

156

ADP SYSTEM SYMPTOMS ............................

156

Symptom Table  .....................................................

156

NORMAL OPERATING CONDITION  .............

158

Description .............................................................

158

PRECAUTION ............................................

159

PRECAUTIONS ...............................................

159

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

159

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  .................................

159

Precaution for Work ...............................................

160

ON-VEHICLE REPAIR ...............................

161

DRIVER SEAT CONTROL UNIT  ....................

161

Removal and Installation  .......................................

161

AUTOMATIC DRIVE POSITIONER CON-
TROL UNIT ......................................................

162

Removal and Installation  .......................................

162

SEAT MEMORY SWITCH ...............................

163

Removal and Installation  .......................................

163

DOOR MIRROR REMOTE CONTROL
SWITCH ...........................................................

164

Removal and Installation  .......................................

164

PEDAL ADJUSTING MOTOR  ........................

165

Removal and Installation  .......................................

165

2010 Pathfinder

ADP-4

< BASIC INSPECTION >

PRE-INSPECTION FOR DIAGNOSTIC

BASIC INSPECTION

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000005256756

1.

 CHECK POWER SUPPLY AND DROUND CIRCUIT

Check the power supply and ground circuit as shown below.

• Driver seat control unit :Refer to

ADP-43, "DRIVER SEAT CONTROL UNIT : Diagnosis Procedure"

.

• Automatic drive positioner control unit: Refer to

ADP-44, "AUTOMATIC DRIVE POSITIONER CONTROL

UNIT : Diagnosis Procedure"

.

Is the inspection result normally?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

 CHECK MANUAL FUNCTION

Check the manual function operations by operating the relevant switches as shown below.

• Seat (slide, reclining, lifting front, lifting rear)

• Pedal assembly (forward, backward)

• Door mirror
Do all manual functions operate normally?

YES

>> GO TO 3

NO (Seat, pedal, door mirror)>>Go to SYMPTOM 1, refer to

ADP-156, "Symptom Table"

. And, GO TO 4 if

the result of SYMPTOM 1 is OK.

3.

 CHECK MEMORY FUNCTION 1

Register the seat positions (refer to Owner’s Manual) and check that all parts of the seat, pedals, and door mir-

rors move to their memory positions correctly.
Are the operations normal?

YES

>> Check each malfunction according to the instruction of the SYMPTOM 4, refer to

ADP-156,

"Symptom Table"

.

NO (memory indicator operates normally)>> Go to SYMPTOM 2, refer to

ADP-156, "Symptom Table"

.

NO (memory indicator does not operate normally either)>> GO TO 5

4.

 CHECK MEMORY FUNCTION 2

Register the seat positions (refer to Owner’s Manual) and check that all parts of the seat, pedals, and door mir-

rors move to their memory positions correctly.
Are the operations normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> GO TO 7

5.

 CHECK SEAT MEMORY SWITCH/MEMORY INDICATOR

Check the seat memory switch/memory switch indicator of the SYMPTOM 5, refer to

ADP-156, "Symptom

Table"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair or replace the malfunctioning part.

6.

 CHECK OPERATION CONDITION

Check the memory operation conditions (refer to

ADP-11, "AUTOMATIC DRIVE POSITIONER SYSTEM :

System Description"

).

Are all operation conditions fulfilled?

YES

>> Go to SYMPTOM 6, refer to

ADP-156, "Symptom Table"

.

NO

>> Fulfill the operation conditions. Refer to

ADP-11, "AUTOMATIC DRIVE POSITIONER SYSTEM :

System Description"

.

7.

 CHECK MECHANISM

2010 Pathfinder

PRE-INSPECTION FOR DIAGNOSTIC

ADP-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Check for the following.

• Mechanism deformation or pinched foreign materials.

• Interference with other parts because of poor installation.
Is any malfunction present in the relevant parts?

YES

>> Go to SYMPTOM 3, refer to

ADP-156, "Symptom Table"

.

NO

>> Repair or replace the malfunctioning part.

2010 Pathfinder

ADP-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005256596

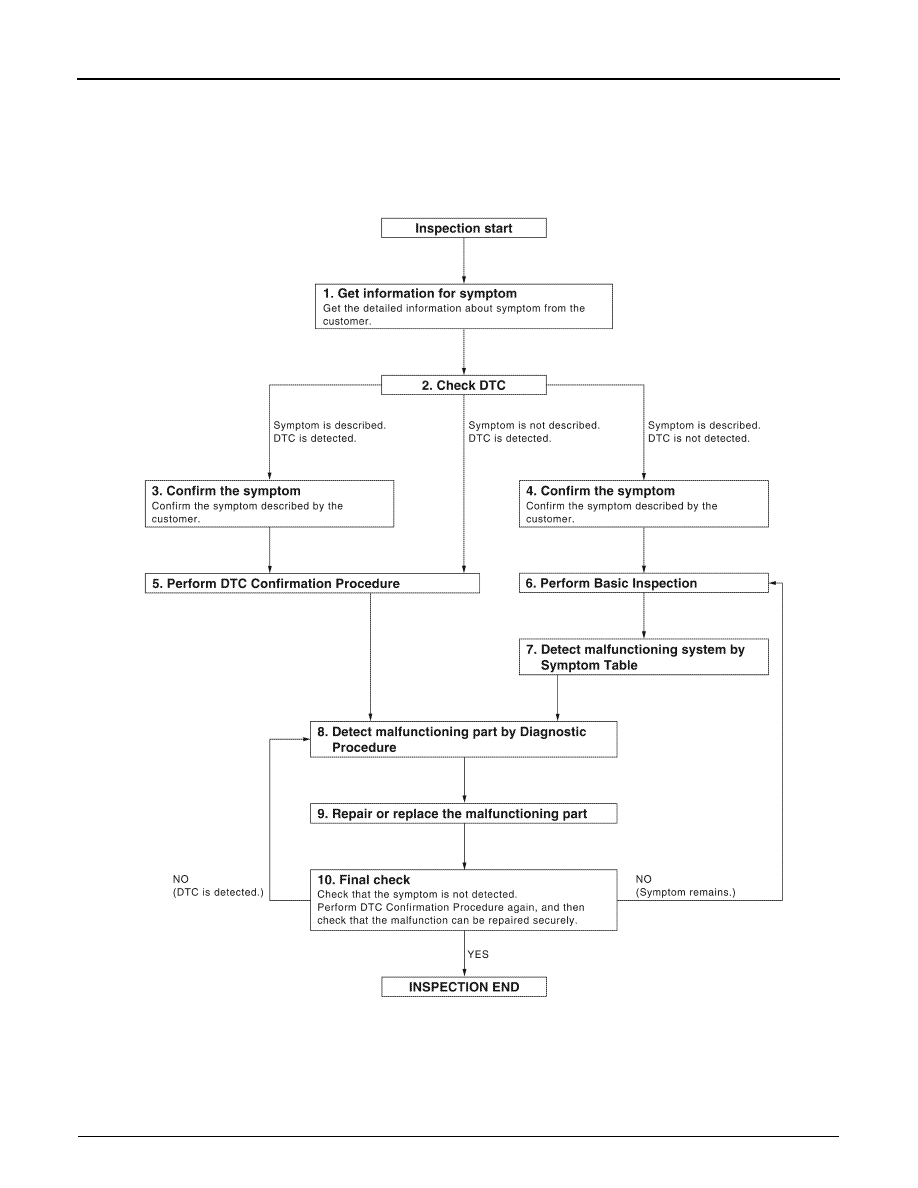

WORK FLOW

DETAILED FLOW

1.

 GET INFORMATION FOR SYMPTOM

ALKIA0538GB

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

ADP-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2

2.

 CHECK DTC WITH AUTOMATIC DRIVE POSITIONER SYSTEM

Check “Self Diagnostic Result” with CONSULT-III.

Refer to

ADP-122, "DTC Index"

.

Is any symptom described and any DTC is displayed?

Symptom is described, DTC is displayed.>>GO TO 3

Symptom is not described, DTC is displayed.>>GO TO 7

Symptom is described, DTC is not displayed.>>GO TO 4

3.

 CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 7

4.

 CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 5

5.

 CHECK NORMAL OPERATING CONDITION

Check normal operating condition. Refer to

ADP-158, "Description"

.

Is the incident normal operation?

YES

>> Inspection End.

NO

>> GO TO 6

6.

 PERFORM BASIC INSPECTION

Isolate the malfunctioning point with the basic inspection. Refer to

ADP-9, "Preliminary Check"

.

>> GO TO 8

7.

 PERFORM DTC CONFIRMATION PROCEDURE

Perform the confirmation procedure for the detected DTC.
Is the DTC displayed?

YES

>> GO TO 9

NO

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

8.

 PERFORM COMPONENT FUNCTION CHECK

Perform the component function check for the isolated malfunctioning point.

>> GO TO 9

9.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Isolate the malfunctioning point by performing the diagnosis procedure relevant to the symptom during the

component diagnosis.

>> GO TO 10

10.

 REPAIR OR REPLACE

Repair or replace the malfunctioning part.

>> GO TO 11

2010 Pathfinder

ADP-8

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

11.

 FINAL CHECK

Perform the DTC confirmation procedure (if DTC is detected) or component function check (if no DTC is

detected) again, and then check that the malfunction can be repaired securely.
Are all malfunctions corrected?

YES

>> Inspection End.

Symptom is detected.>> GO TO 4

DTC is detected.>> GO TO 7

2010 Pathfinder

INSPECTION AND ADJUSTMENT

ADP-9

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000005256597

1.

 FOREIGN OBJECTS

Check the following:

• objects on or behind the seats that could cause binding

• objects under the seats that may be interfering with the seat’s moving parts

• objects under pedals that may interfere with movement
Are there any foreign objects that could be causing interference?

YES

>> Remove objects.

NO

>> GO TO 2

2.

 WIRING CONNECTIONS

1. Disconnect harness connectors.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are any connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 3

3.

 POWER AND GROUND

Check power supply and ground circuits for control unit.  Refer to

ADP-43, "DRIVER SEAT CONTROL UNIT :

Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Refer to

ADP-122, "DTC Index"

.

NO

>> Repair or replace as necessary.

Special Repair Requirement

INFOID:0000000005256598

Refer to Owner’s Manual for Automatic Drive Positioner system operating instructions.

2010 Pathfinder
