Nissan Pathfinder (2009 year). Manual - part 539

PG

HARNESS CONNECTOR

PG-69

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

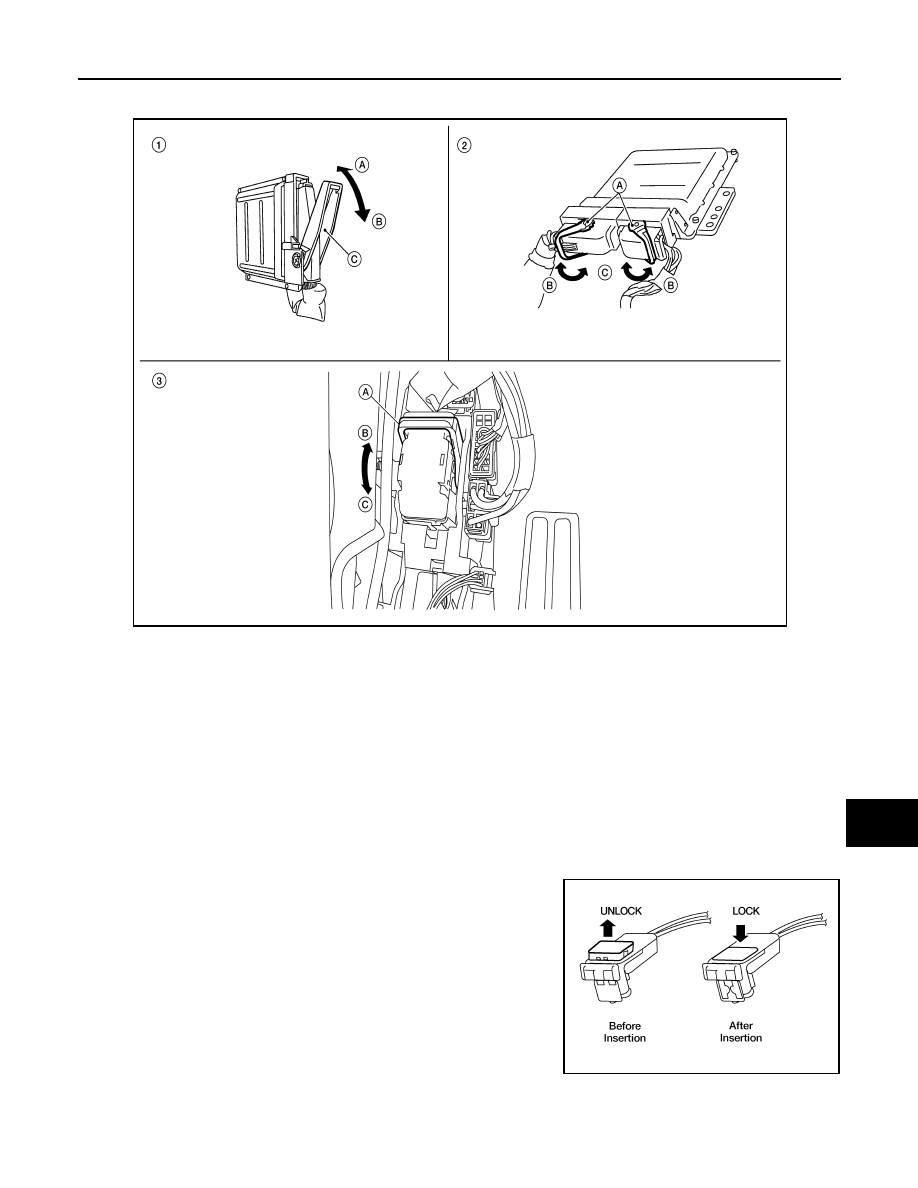

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules

and seat belt pre-tensioners.

• Always pull up to release black locking tab prior to removing connector from SRS component.
• Always push down to lock black locking tab after installing connector to SRS component. When locked, the

black locking tab is level with the connector housing.

CAUTION:

• Do not pull the harness or wires when removing connectors

from SRS components.

LKIA0670E

1.

Control unit with single lever
A. Fasten
B. Loosen
C. Lever

2.

Control unit with dual levers
A. Levers
B. Fasten
C. Loosen

3.

SMJ connector
A. Lever
B. Fasten
C. Loosen

WHIA0103E

2009 Pathfinder

PG-70

< COMPONENT DIAGNOSIS >

STANDARDIZED RELAY

STANDARDIZED RELAY

Description

INFOID:0000000003935683

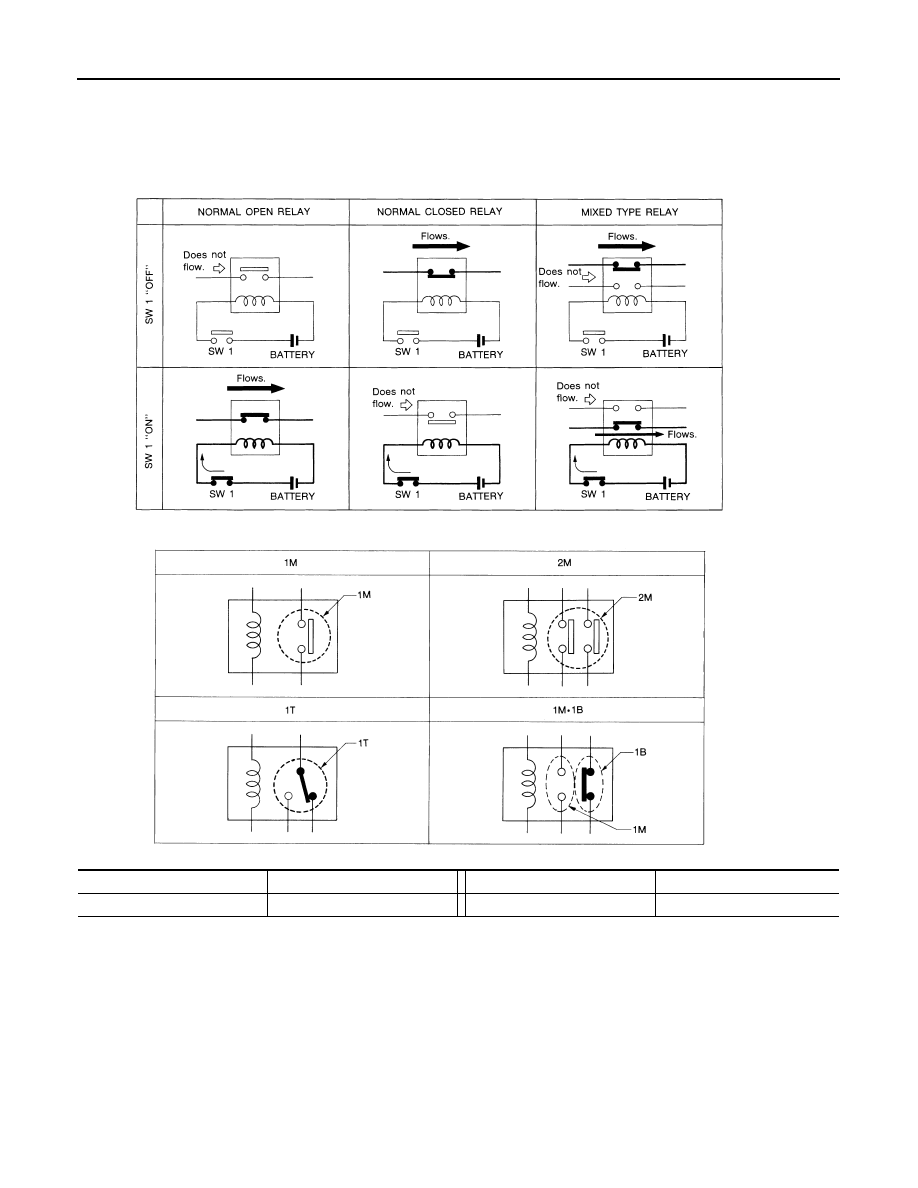

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

SEL882H

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break

2009 Pathfinder

PG

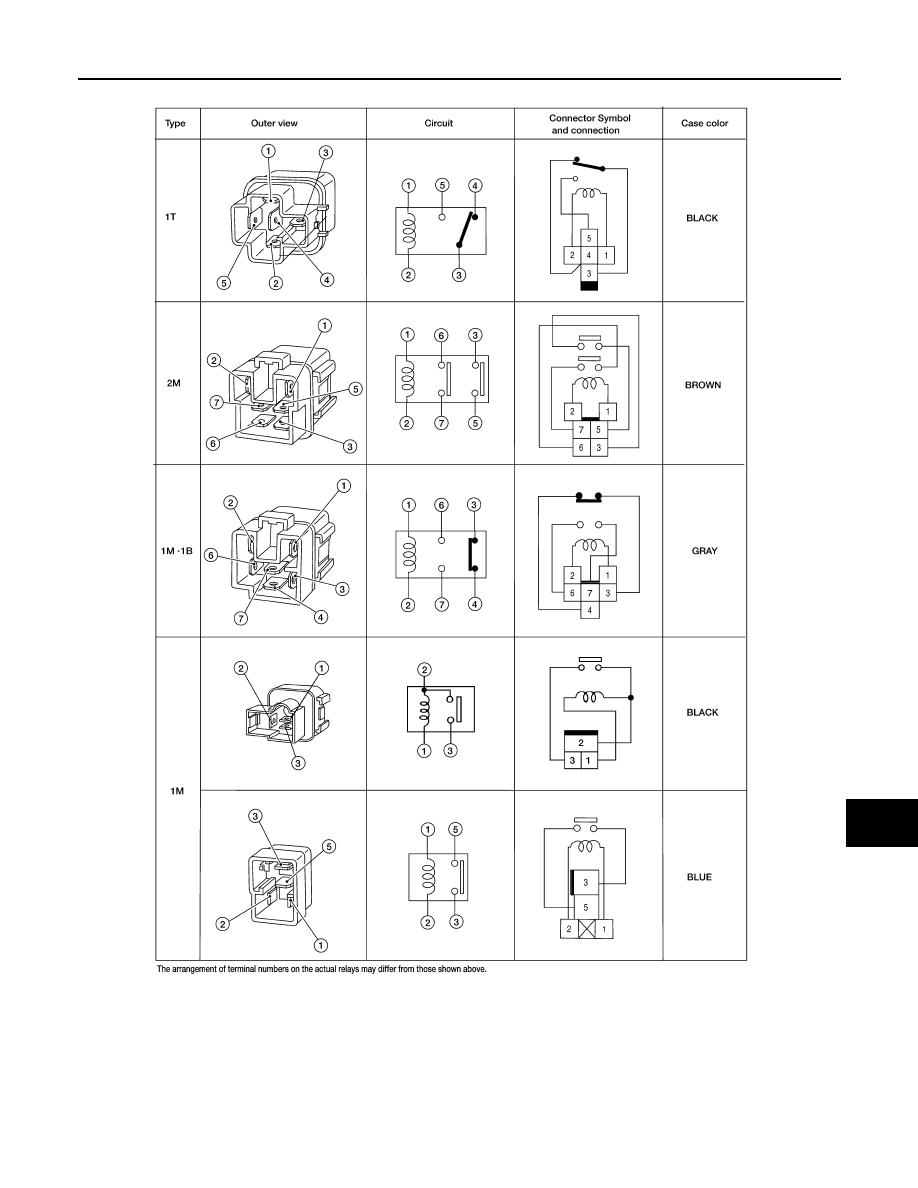

STANDARDIZED RELAY

PG-71

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WKIA0253E

2009 Pathfinder

PG-72

< COMPONENT DIAGNOSIS >

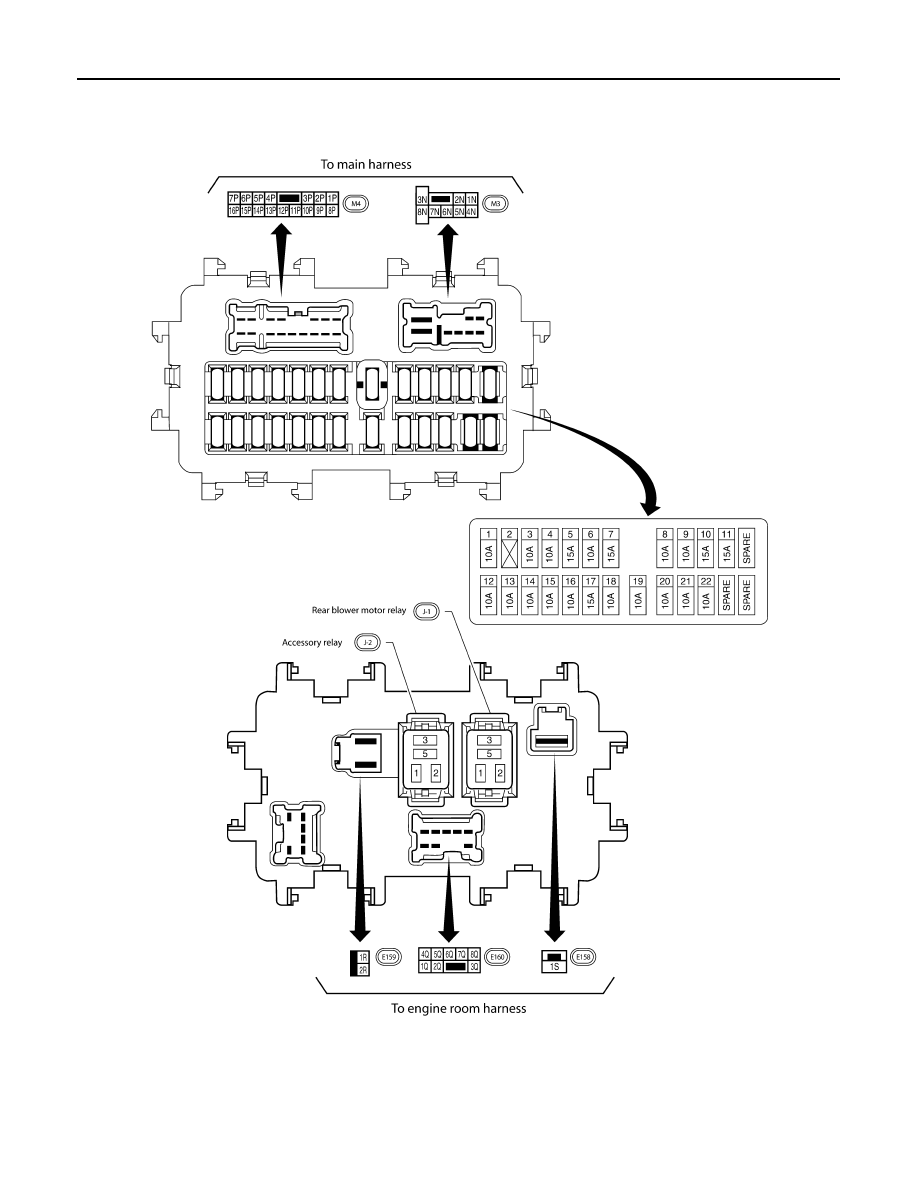

FUSE BLOCK-JUNCTION BOX (J/B)

FUSE BLOCK-JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000003935685

ABMIA0312GB

2009 Pathfinder

PG

FUSE AND FUSIBLE LINK BOX

PG-73

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

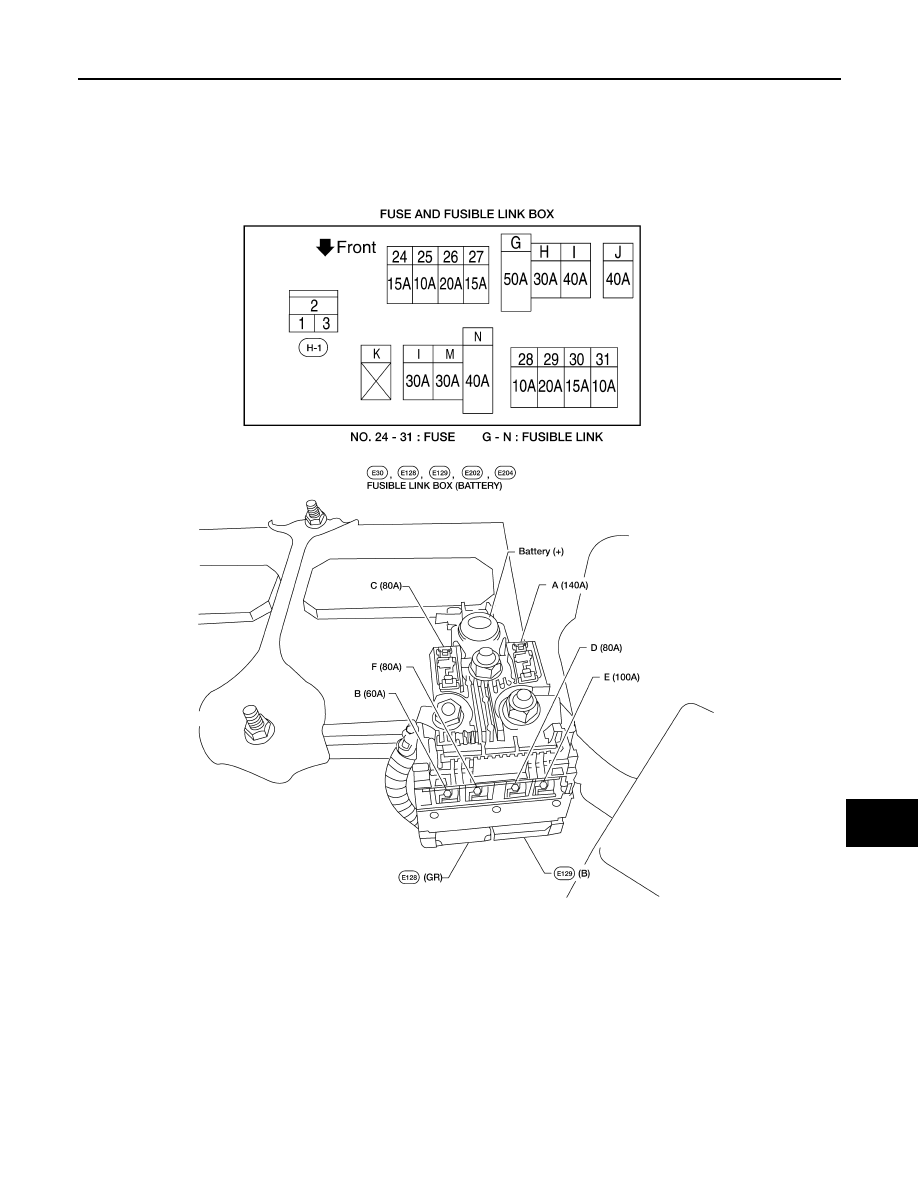

FUSE AND FUSIBLE LINK BOX

Terminal Arrangement

INFOID:0000000003935686

ABMIA0313GB

2009 Pathfinder

PG-74

< COMPONENT DIAGNOSIS >

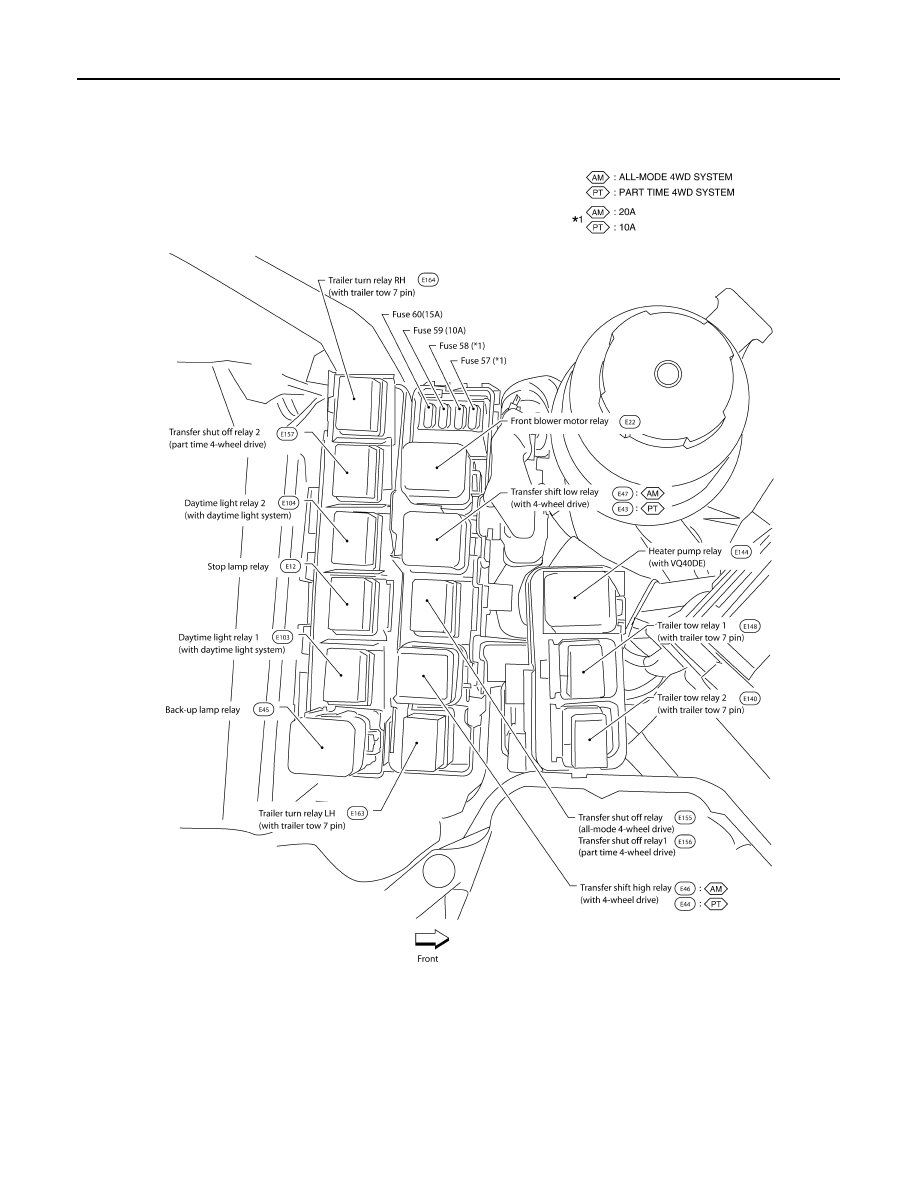

FUSE AND RELAY BOX

FUSE AND RELAY BOX

Terminal Arrangement

INFOID:0000000003935687

ABMIA0314GB

2009 Pathfinder

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-75

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

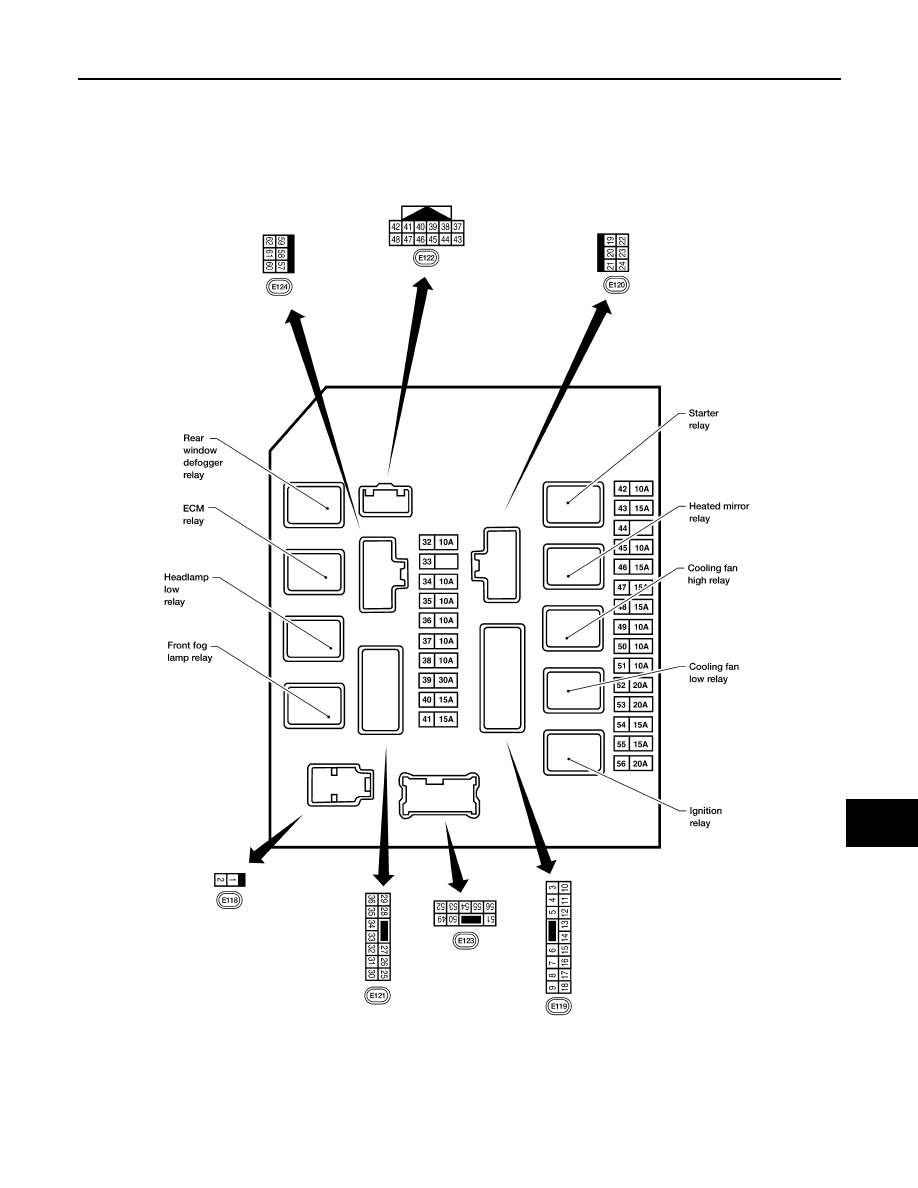

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Fuse, Connector and Terminal Arrangement

INFOID:0000000004336254

WKIA5856E

2009 Pathfinder

PG-76

< ON-VEHICLE REPAIR >

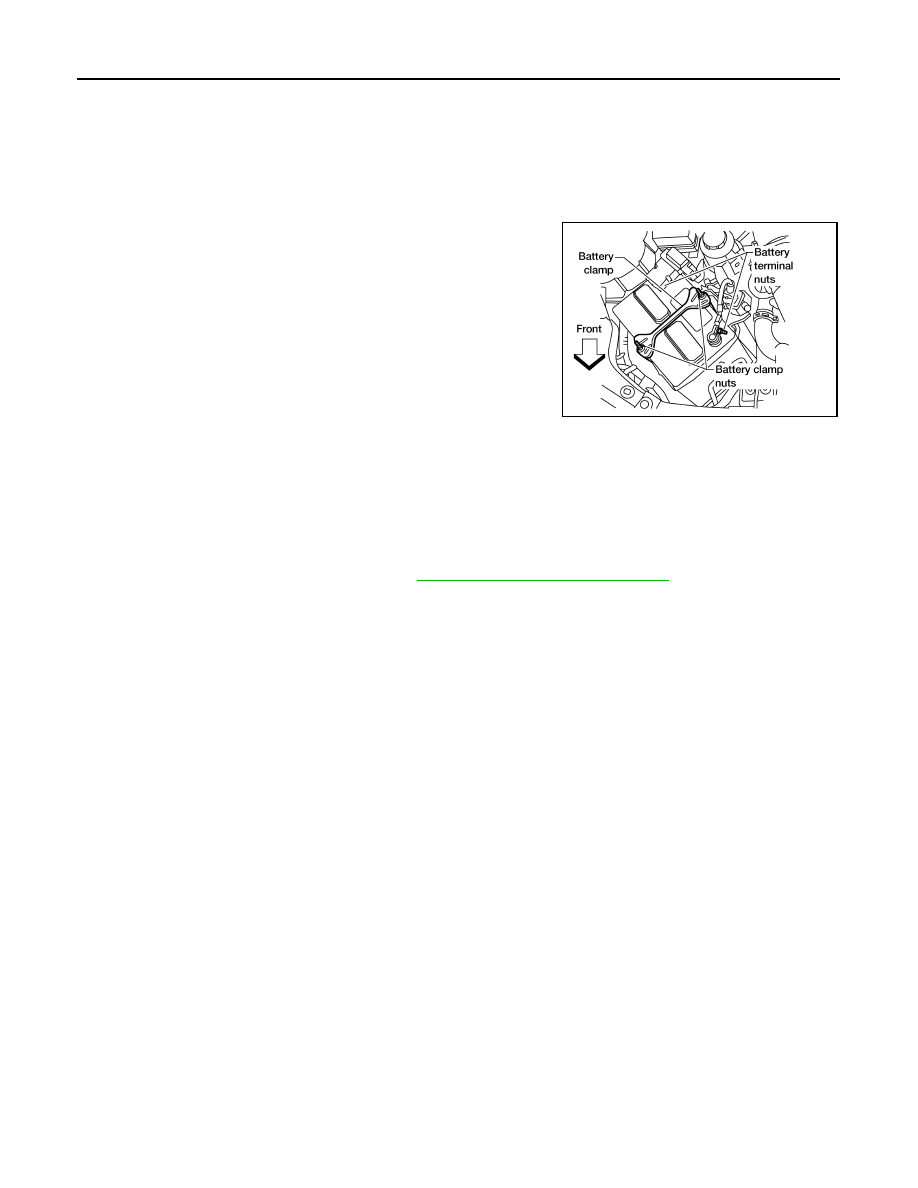

BATTERY

ON-VEHICLE REPAIR

BATTERY

Removal and Installation

INFOID:0000000003935688

REMOVAL

1.

Disconnect both negative and positive battery terminals.

CAUTION:

Disconnect negative battery terminal first.

2.

Remove battery clamp nuts and battery clamp.

3.

Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When connecting battery terminals, connect positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-7, "Special Repair Requirement"

.

WKIA3188E

Battery clamp nuts

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)

2009 Pathfinder
