Nissan Pathfinder (2009 year). Manual - part 538

PG

HARNESS

PG-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

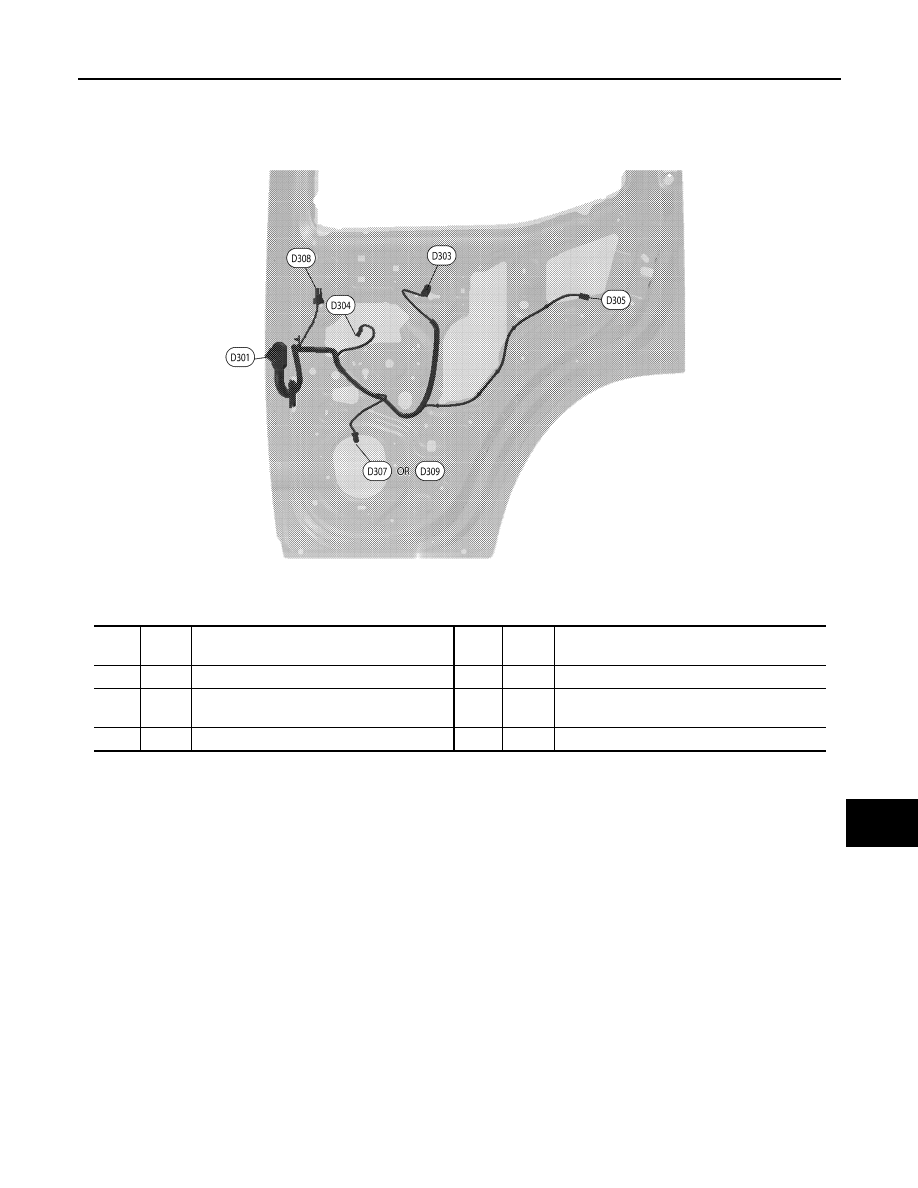

REAR DOOR RH HARNESS

ABMIA0355GB

D301

W/12

: To B106

D307

BR/2

: Rear door speaker RH  (with BOSE audio
  system)

D303

W/8

: Rear power window switch RH

D308

BR/2

: Rear door tweeter RH

D304

B/2

: Rear power window motor RH

D309

W/2

: Rear door speaker RH  (with base and mid
  audio system)

D305

W/2

: Rear door lock actuator RH

2009 Pathfinder

PG-62

< COMPONENT DIAGNOSIS >

HARNESS

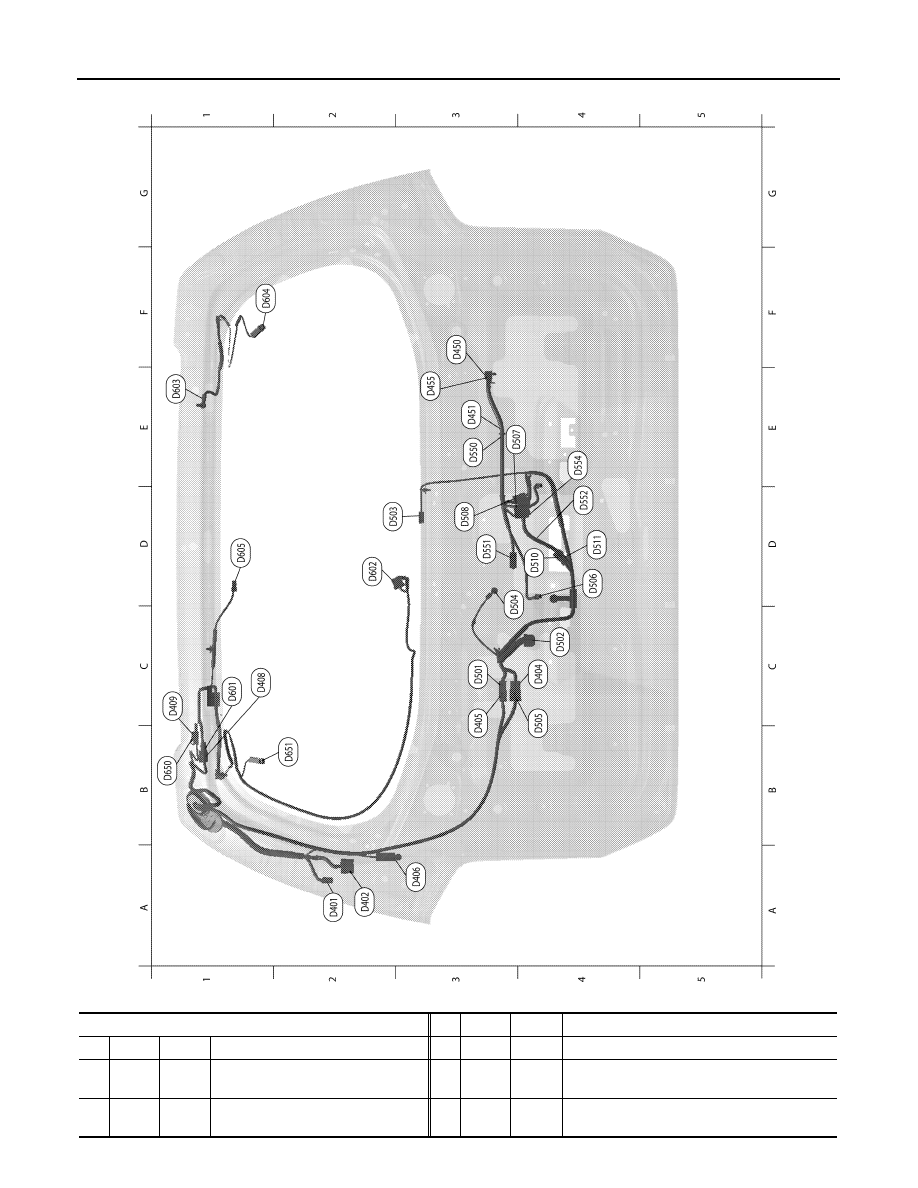

BACK DOOR HARNESS

ABMIA0356GB

Back door No. 2 harness

E4

D507

BR/2

: License plate lamp RH

A2

D401

W/8

: To B43

D3

D508

W/4

: Glass hatch lock actuator

A2

D402

W/6

: To B48

D4

D510

BR/2

: Back door opener switch (without Intelligent
  key system)

C4

D404

W/4

: To D505

D4

D511

BR/2

: Back door opener switch (with Intelligent
  key system)

2009 Pathfinder

PG

HARNESS

PG-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B3

D405

W/8

: To D501

D3

D550

W/8

: To D451

A3

D406

—

: Body ground

D3

D551

W/4

: Rear view camera

C1

D408

W/4

: To D601

E4

D552

GR/2

: Back door request switch

C1

D409

W/1

: To D650

E4

D554

—

: Body ground

F3

D450

W/8

: To B107

Rear window sub-harness

F3

D451

W/8

: To D550

C2

D601

W/4

: To D408

E3

D455

—

: Body ground

D2

D602

W/4

: Rear wiper motor

Back door harness

E1

D603

—

: Body ground

C3

D501

W/8

: To D405

E1

D603

—

: Body ground

C4

D502

W/4

: Back door latch

F2

D604

B/1

: Rear window defogger

D2

D503

B/1

: Glass hatch ajar switch

D1

D605

W/2

: High mounted stop lamp

D4

D504

—

: Body ground

Back door LH harness

C4

D505

W/4

: To D404

B1

D650

W/1

: To D409

D4

D506

BR/2

: License plate lamp LH

B2

D651

B/1

: Rear window defogger

2009 Pathfinder

PG-64

< COMPONENT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000003935680

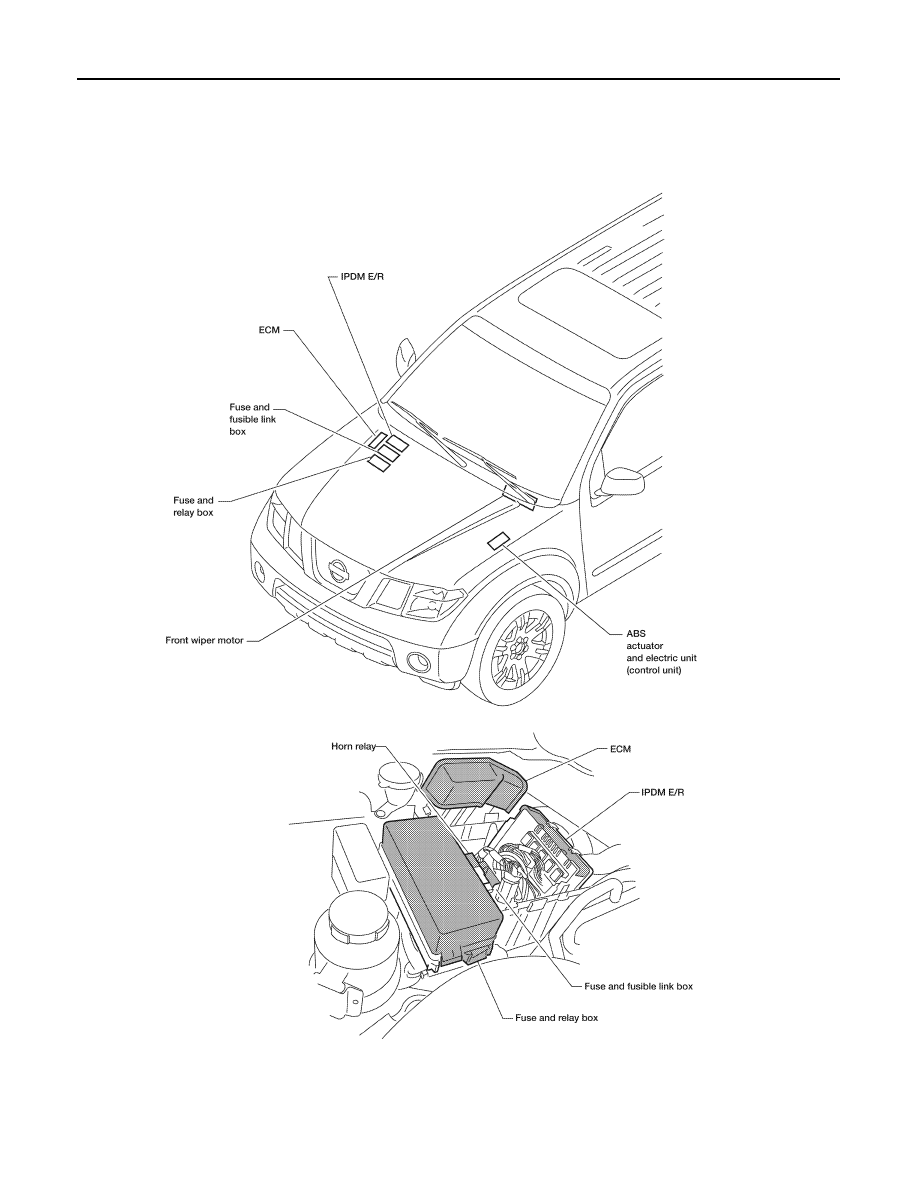

ENGINE COMPARTMENT

ABMIA0309GB

2009 Pathfinder

PG

ELECTRICAL UNITS LOCATION

PG-65

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

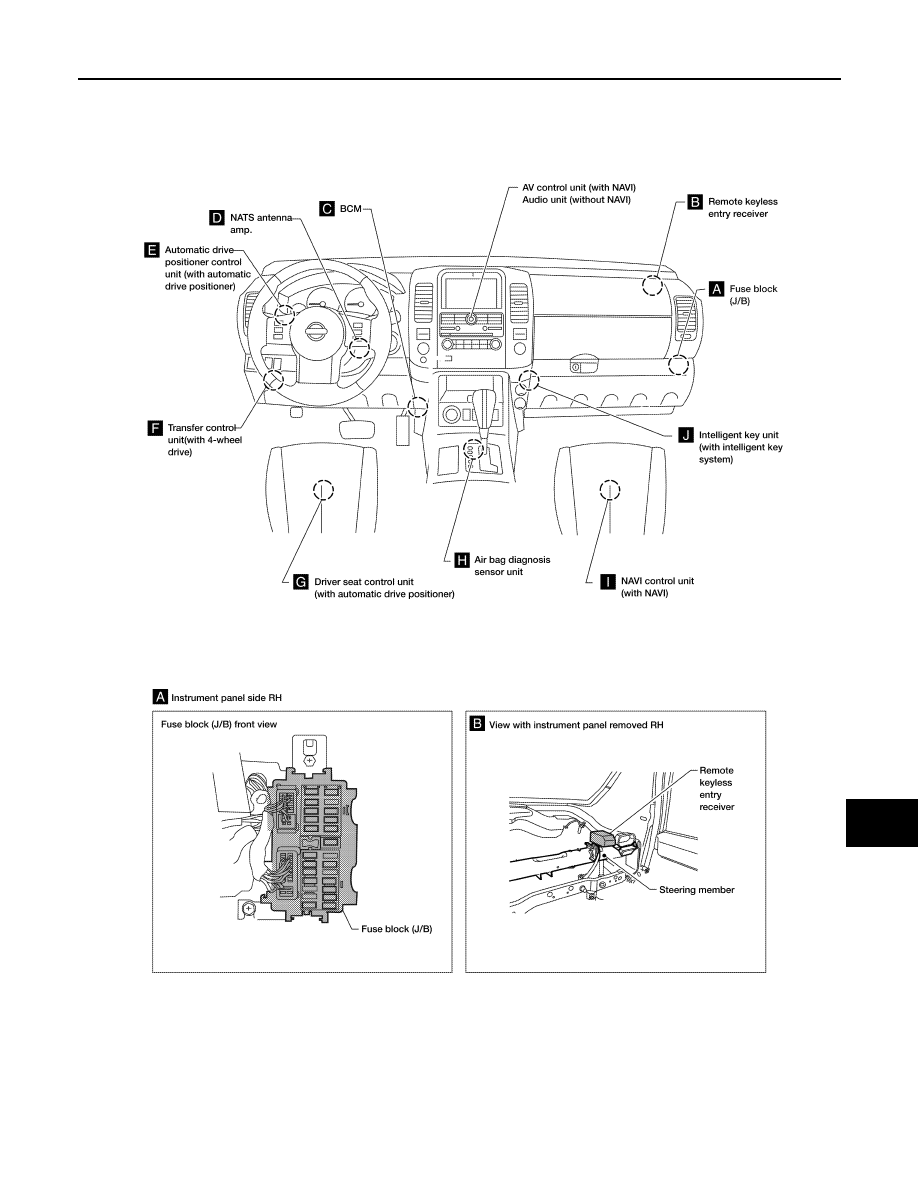

PASSENGER COMPARTMENT

ABMIA0310GB

2009 Pathfinder

PG-66

< COMPONENT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

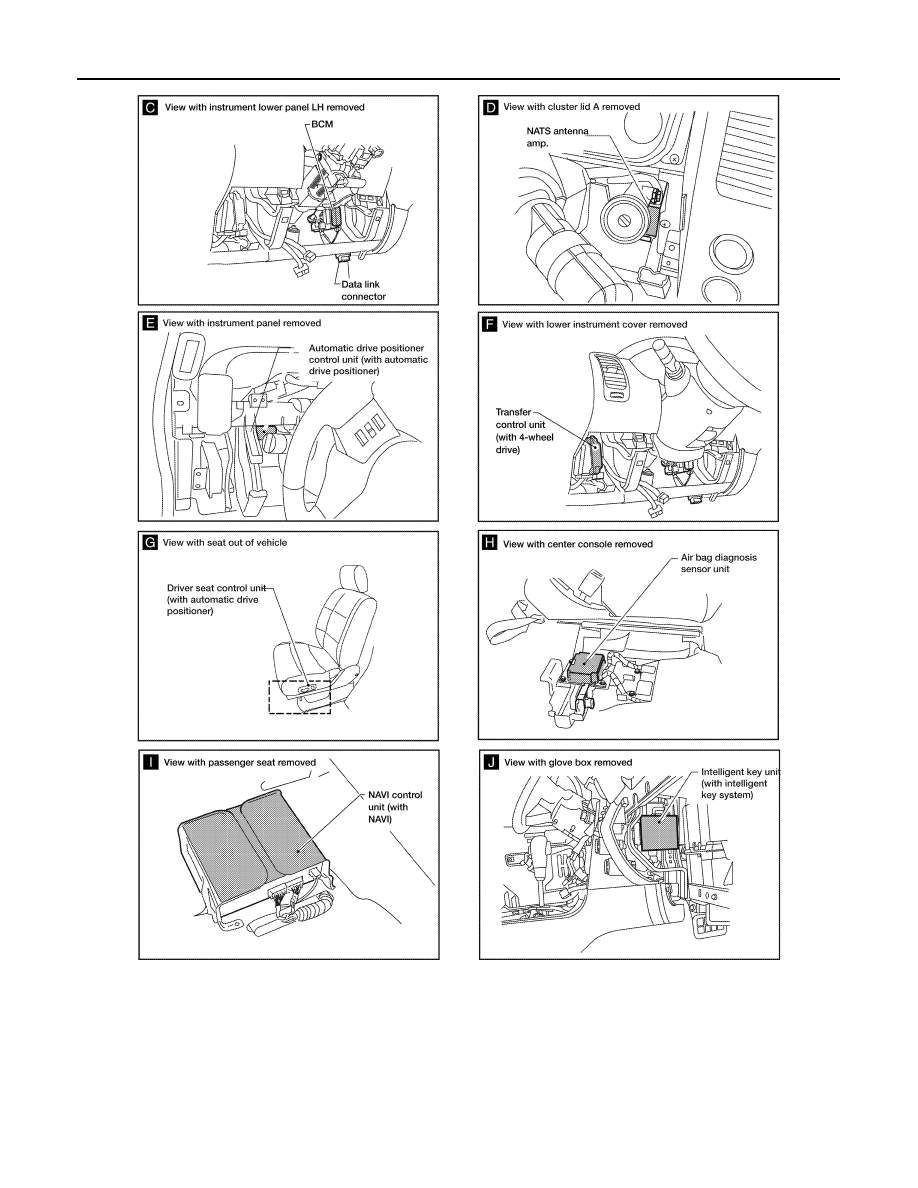

ABMIA0311GB

2009 Pathfinder

PG

HARNESS CONNECTOR

PG-67

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS CONNECTOR

Description

INFOID:0000000003935681

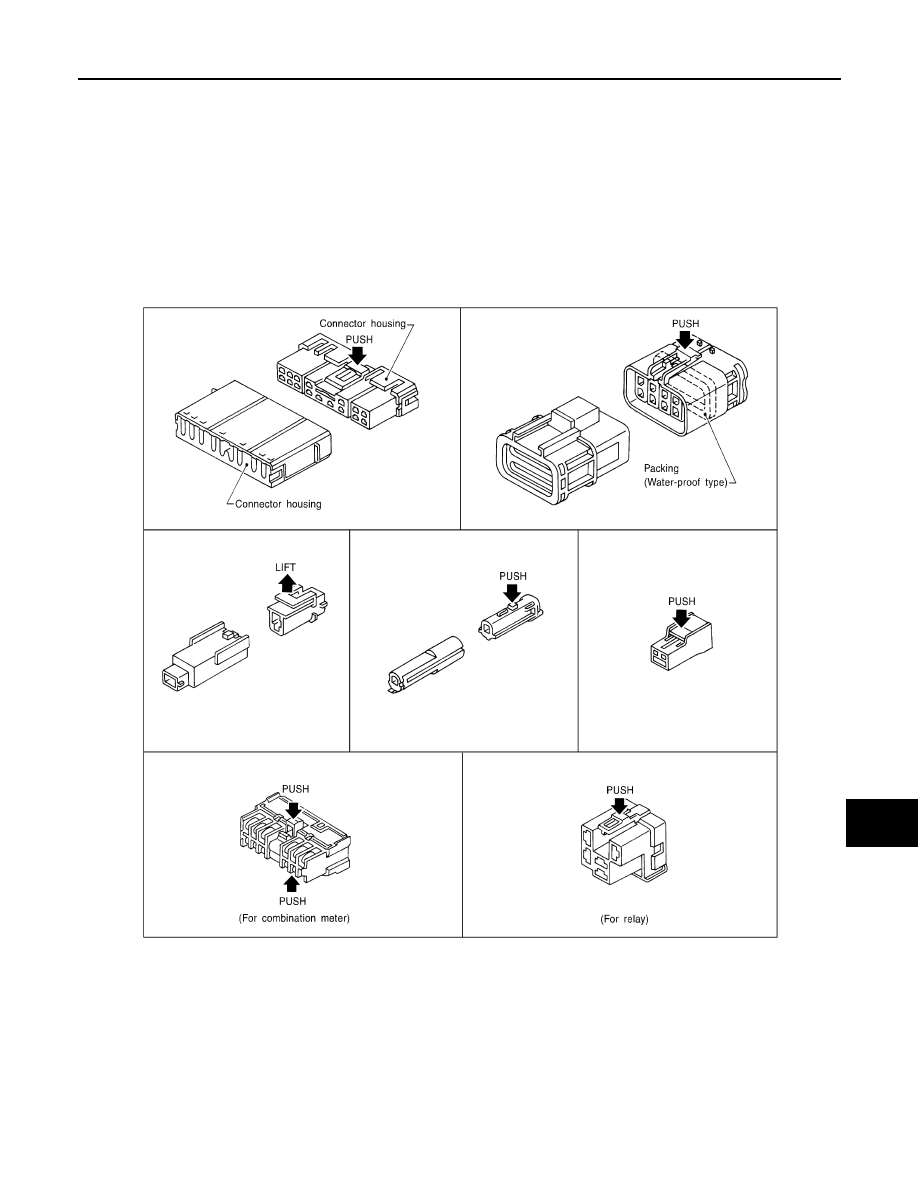

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the illus-

tration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.
[Example]

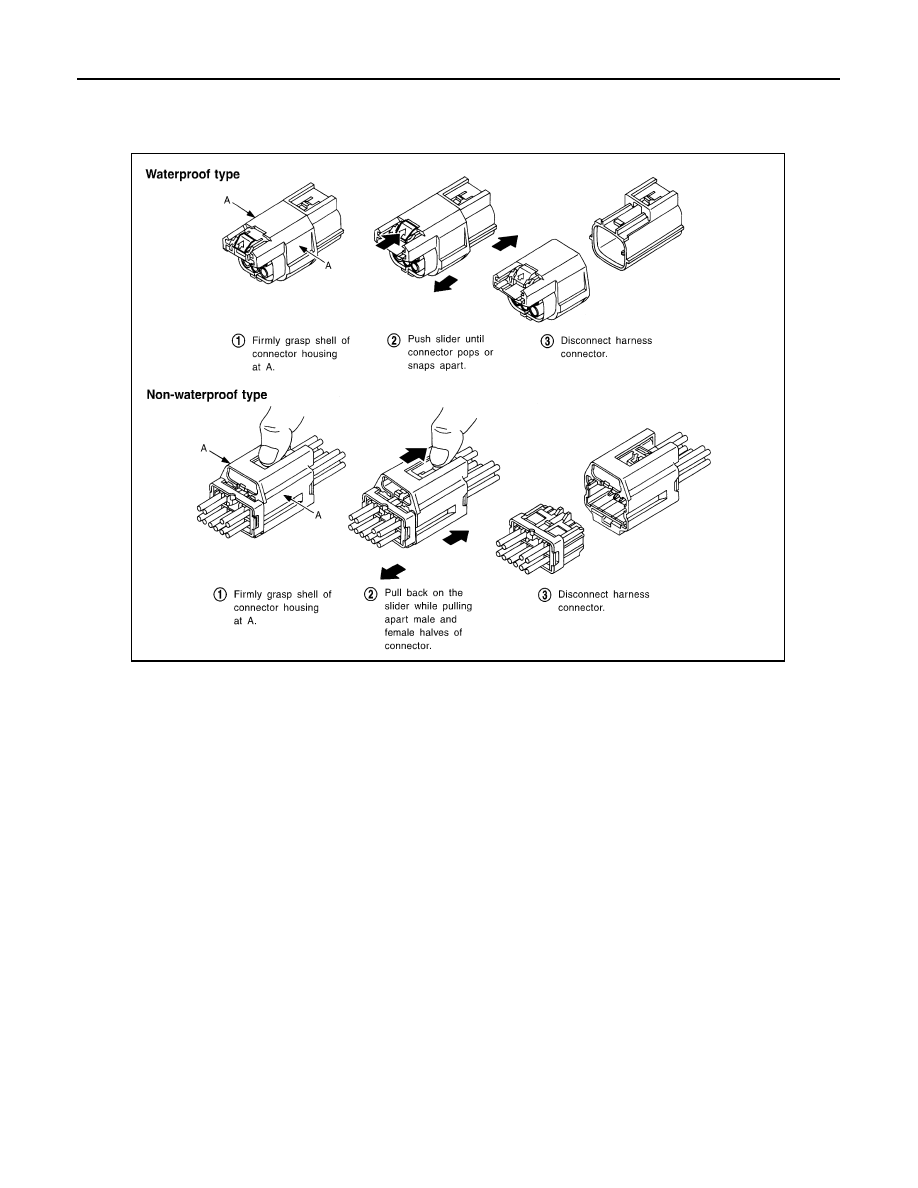

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustration

below.

SEL769DA

2009 Pathfinder

PG-68

< COMPONENT DIAGNOSIS >

HARNESS CONNECTOR

CAUTION:

• Do not pull the harness or wires when disconnecting the connector.
• Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]

HARNESS CONNECTOR (LEVER LOCKING TYPE)

• Lever locking type harness connectors are used on certain control units and control modules such as ECM,

ABS actuator and electric unit (control unit), etc.

• Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.
• Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-

tion.

CAUTION:

AEL299C
