Nissan Pathfinder (2009 year). Manual - part 537

PG

HARNESS

PG-53

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

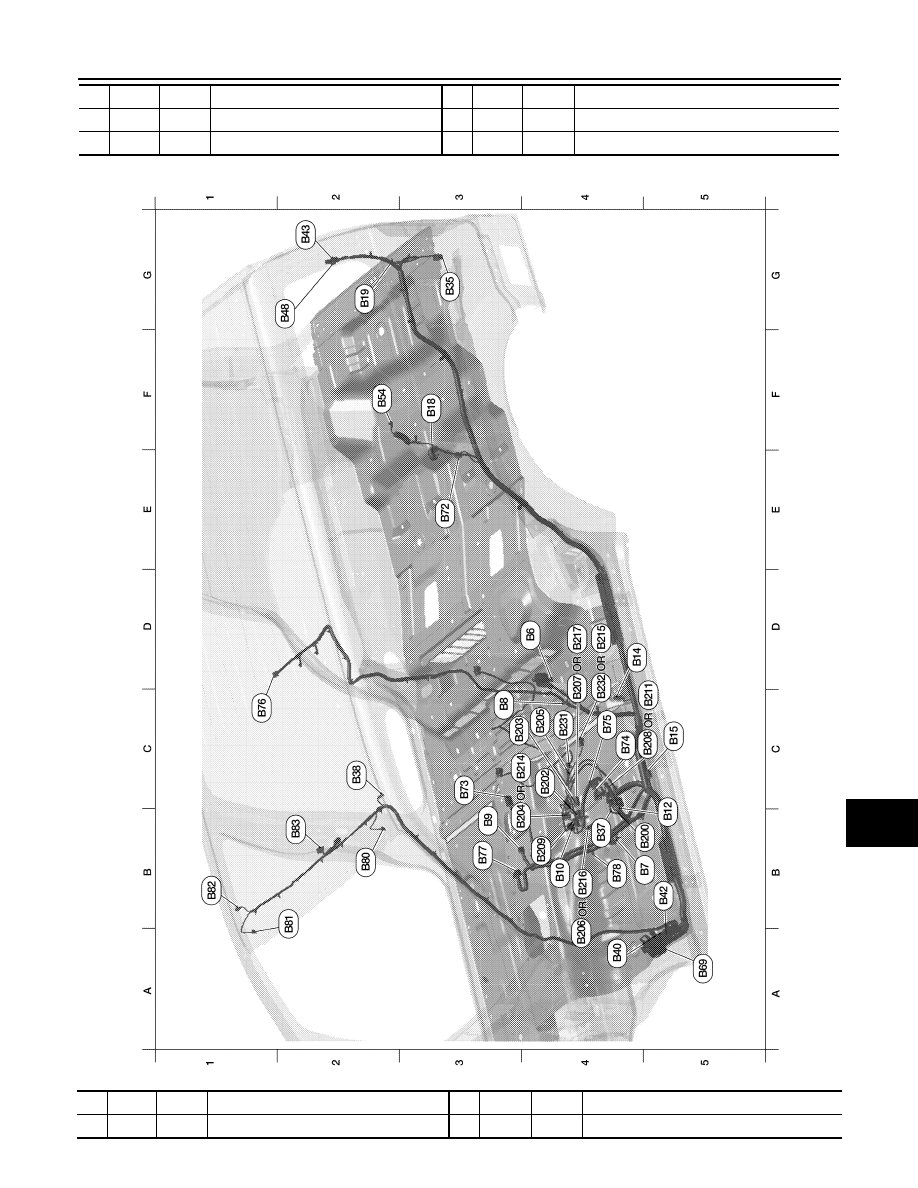

BODY HARNESS

B3

C50

GR/8

: To C124  (trailer tow 4-pin)

B4

C128

B/4

: Trailer (trailer tow 4-pin)

B4

C51

GR/8

: To C125  (trailer tow 7-pin)

C3

C150

B/2

: C52

A4

C52

B/2

: To C150

ABMIA0349GB

D4

B6

W/12

: To D201

B3

B77

W/18

: To M210

B5

B7

—

: Body ground

B4

B78

Y/2

: To B157

2009 Pathfinder

PG-54

< COMPONENT DIAGNOSIS >

HARNESS

C3

B8

W/3

: Front door switch LH

B2

B80

W/2

: Vanity lamp LH

C3

B9

Y/12

: Air bag diagnosis sensor unit

B2

B81

W/2

: Vanity lamp RH

B4

B10

Y/2

: Front LH side air bag module

B1

B82

Y/2

: RH side front curtain air bag module

C5

B12

W/3

: Seat belt buckle switch LH

B2

B83

B/10

: Sunroof motor assembly

D4

B14

Y/2

: Front LH seat belt pre-tensioner

LH front seat harness

C5

B15

Y/2

: LH side air bag (satellite) sensor

B5

B200

W/16

: To B37

F3

B18

W/3

: Rear door switch LH

C4

B202

W/32

: Driver seat control unit

G2

B19

—

: Body ground

C4

B203

W/16

: Driver seat control unit

G3

B35

W/6

: Rear combination lamp LH

C4

B204

GR/5

: Sliding motor LH (with automatic drive
  positioner)

B4

B37

W/16

: To B200

C4

B205

W/4

: To B231

C2

B38

Y/2

: LH side front curtain air bag module

B4

B206

GR/5

: Lifting motor (front)(with automatic drive
  positioner)

A4

B40

W/8

: To E34

C4

B207

GR/5

: Lifting motor (rear)(with automatic drive
  positioner)

B5

B42

W/2

: To E36

C5

B208

W/10

: Power seat switch LH (with automatic drive
  positioner)

G2

B43

W/8

: To D401

B4

B209

W/3

: Front seat heater LH

G2

B48

W/6

: To D402

D5

B211

W/10

: Power seat switch LH (without automatic
  drive positioner)

F2

B54

Y/2

: LH side rear curtain air bag module

C4

B214

GR/2

: Sliding motor LH (without automatic drive
  positioner)

A5

B69

SMJ

: To M40

D4

B215

W/2

: Reclining motor LH (without automatic
  drive positioner)

E3

B72

W/8

: Subwoofer

B4

B216

GR/2

: Lifting motor (front)(without automatic drive
  positioner)

C3

B73

B/6

: Yaw rate/side/decel G sensor

D4

B217

GR/2

: Lifting motor (rear)(without automatic drive
  positioner)

C4

B74

GR/8

: BOSE speaker amp.

C4

B231

W/4

: To B205

C4

B75

B/24

: BOSE speaker amp.

D4

B232

B/4

: Reclining motor LH (with automatic drive
  positioner)

C1

B76

W/16

: Video monitor

2009 Pathfinder

PG

HARNESS

PG-55

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

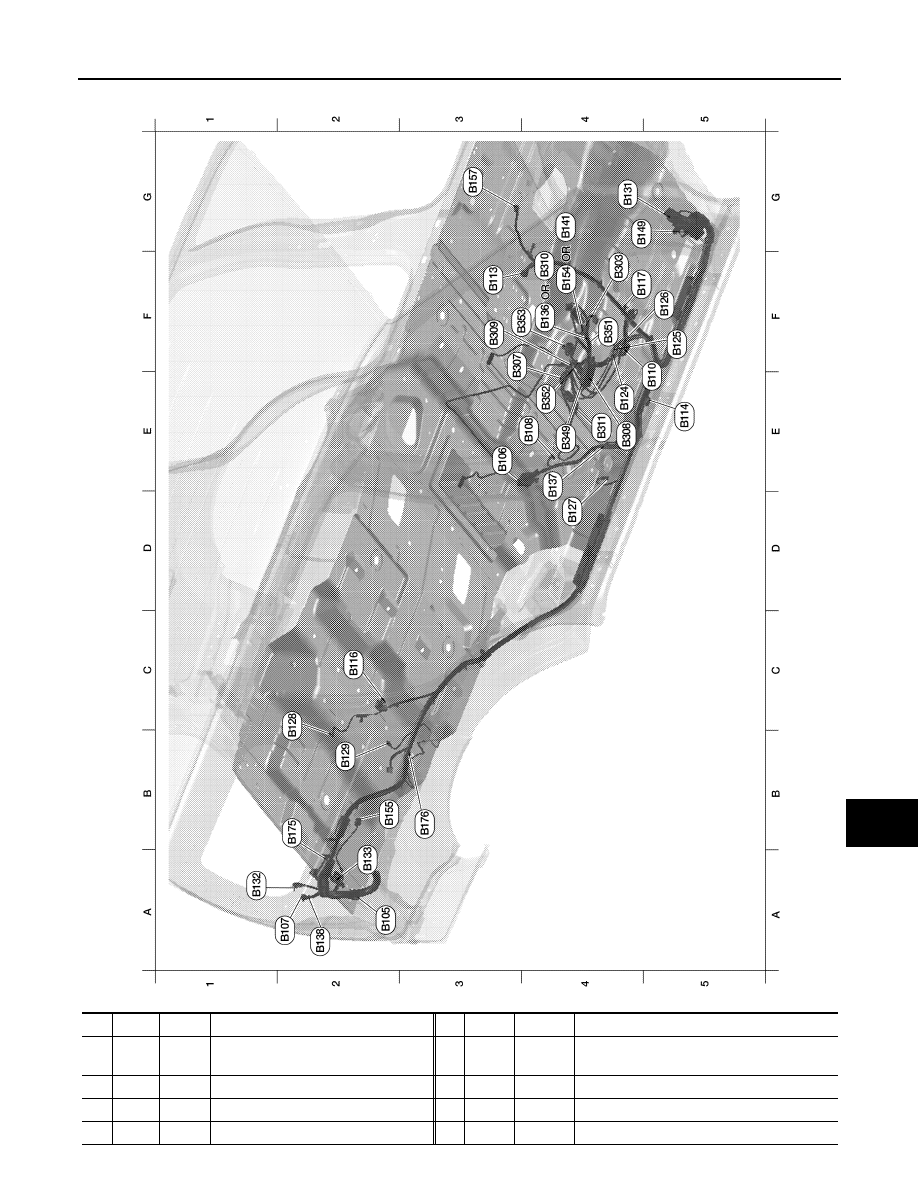

BODY NO. 2 HARNESS

ABMIA0350GB

A2

B105

W/6

: Rear combination lamp RH

A2

B138

B/3

: Rear cargo power socket

E3

B106

W/12

: To D301

G4

B141

W/3

: Front seat heater RH (without
  power seats)

A2

B107

W/8

: To D450

G5

B149

SMJ

: To M36

E4

B108

W/3

: Front door switch RH

F4

B154

W/16

:  To B303 (with power seats)

E5

B110

W/3

: Seat belt buckle switch RH

B2

B155

B/6

: Air mix door motor (rear)

2009 Pathfinder

PG-56

< COMPONENT DIAGNOSIS >

HARNESS

F3

B113

Y/12

: Air bag diagnosis sensor unit

G3

B157

Y/2

: B78

E5

B114

Y/2

: RH side air bag (satellite) sensor

B2

B175

W/2

: To B500

C2

B116

W/3

: Rear door switch RH

B3

B176

W/16

: Rear view camera control unit

F5

B117

—

: Body ground

RH front seat harness

E4

B124

W/32

: Bluetooth control unit

F4

B303

W/16

: To B154 (with power seats)

F5

B125

W/8

: Bluetooth control unit

F3

B307

W/3

: Front seat heater RH (with power seats)

F5

B126

Y/2

: Front RH side air bag module

E4

B308

W/6

: Power seat switch RH

D4

B127

Y/2

: Front RH seat belt pre-tensioner

F3

B309

GR/2

: Sliding motor RH

B2

B128

Y/2

: RH side rear curtain air bag module

F4

B310

W/8

: To B349 (with power seats)

B2

B129

GR/2

: Inside key antenna 3 (3rd row seat)

E4

B311

W/2

: Reclining motor RH

G4

B131

W/2

: To M162

E4

B349

W/8

: To B310 (with power seats)

A1

B132

—

: Body ground

F4

B351

W/8

: To B136 (without power seats)

A2

B133

W/4

: Variable blower control (rear)

E4

B352

B/3

: Occupant classification system sensor

F4

B136

W/8

: To B351 (without power seats)

F4

B353

B/18

: Occupant classification system control unit

E4

B137

W/3

: Belt tension sensor

2009 Pathfinder

PG

HARNESS

PG-57

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

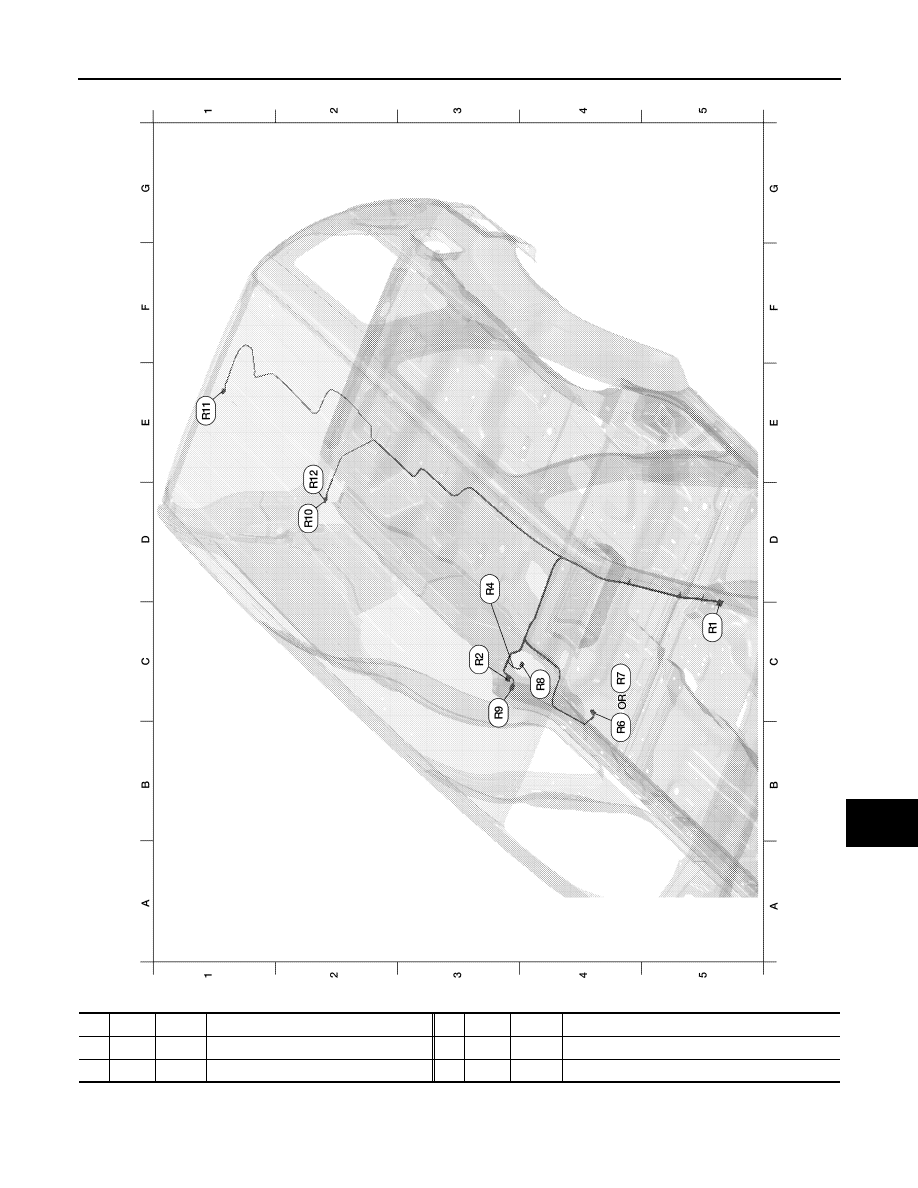

ROOM LAMP HARNESS

ABMIA0351GB

C5

R1

W/24

: To M1

C4

R8

W/4

: Microphone

C3

R2

B/10

: Rear air control (front)

C3

R9

W/3

: Front room/map lamp assembly

D3

R4

W/3

: Sunroof switch

D2

R10

W/3

: Personal lamp 2nd row

2009 Pathfinder

PG-58

< COMPONENT DIAGNOSIS >

HARNESS

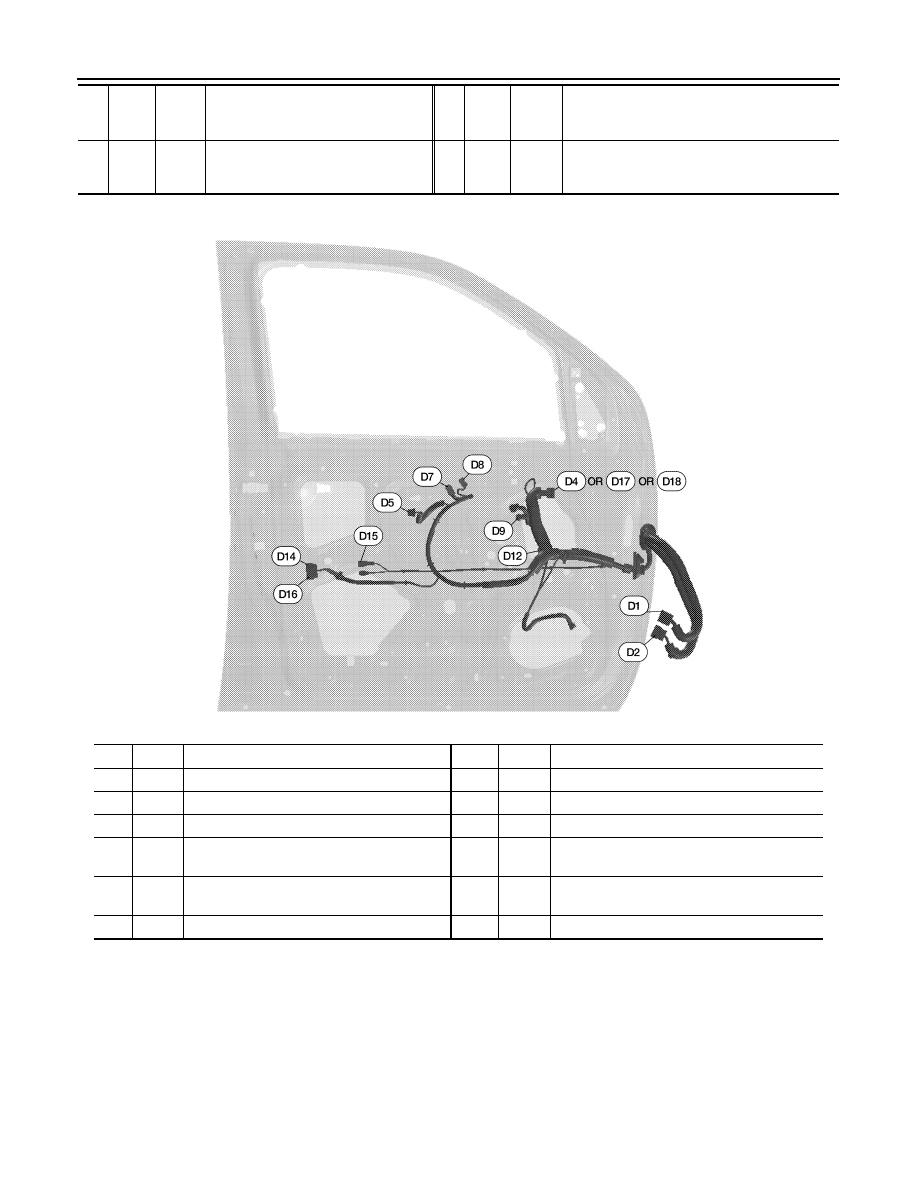

FRONT DOOR LH HARNESS

B4

R6

B/7

: Auto anti-dazzling inside mirror
  (without HOMELINK® universal
  transceiver

E1

R11

W/2

: Cargo lamp

C4

R7

B/10

: Auto anti-dazzling inside mirror
  (without HOMELINK® universal
  transceiver

E2

R12

W/2

: Room lamp 2nd row

ABMIA0352GB

D1

W/24

: To M9

D12

W/2

: Front door speaker LH

D2

BR/12

: To M8

D14

GR/6

: Front door lock assembly LH

D4

B/10

: Door mirror LH (with heated mirrors)

D15

GR/2

: Front outside antenna LH

D5

W/8

: Seat memory switch

D16

GR/2

: Front door request switch LH

D7

W/16

: Main power window and door lock/unlock
  switch

D17

B/3

: Door mirror LH (without heated mirrors)

D8

W/3

: Main power window and door lock/unlock
  switch

D18

B/10

: Door mirror LH (with automatic drive
  positioner)

D9

B/6

: Front power window motor LH

2009 Pathfinder

PG

HARNESS

PG-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

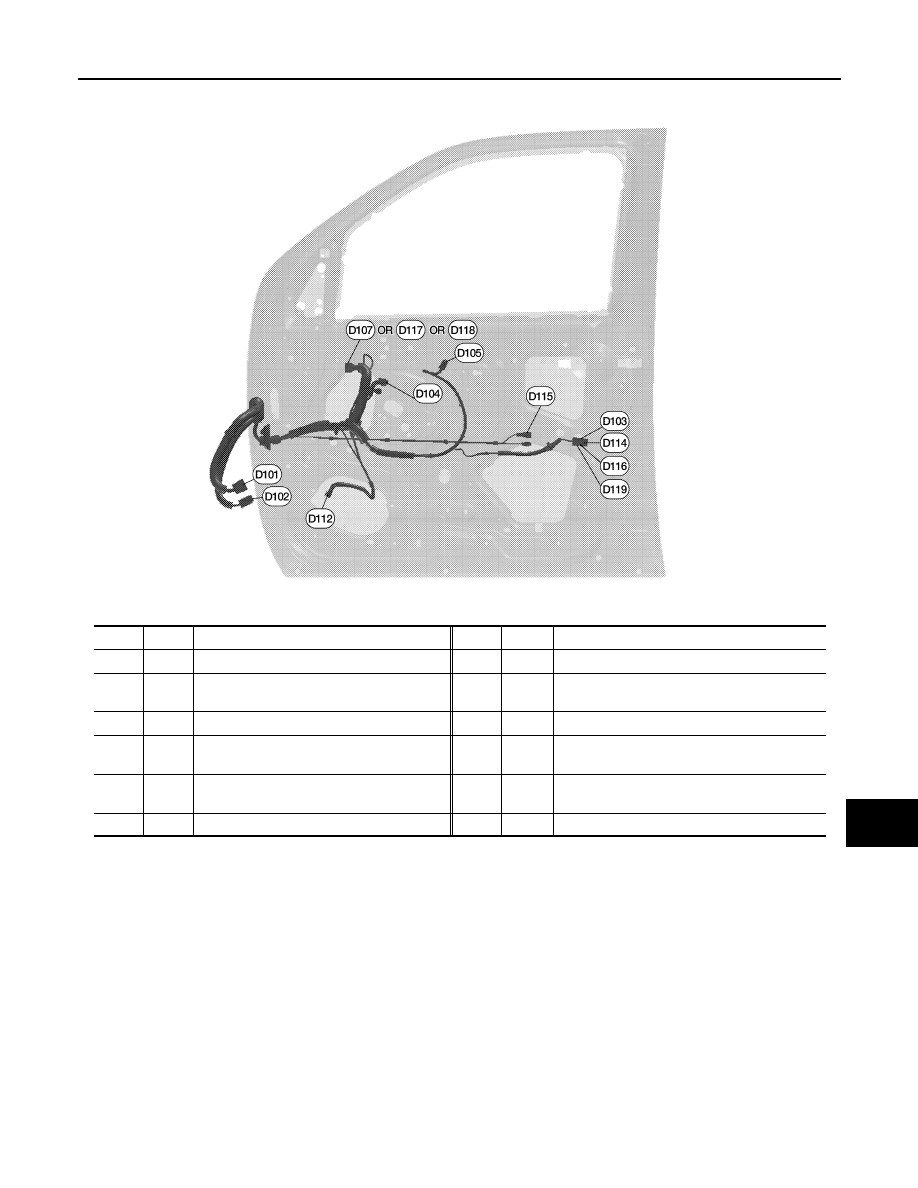

FRONT DOOR RH HARNESS

ABMIA0353GB

D101

W/12

: To M75

D114

W/2

: Front door lock actuator RH

D102

W/16

: To M74

D115

GR/2

: Front outside antenna RH

D103

B/3

: Front door lock assembly RH (door unlock
  sensor)

D116

GR/2

: Front door request switch RH

D104

B/6

: Front power window motor RH

D117

B/3

: Door mirror RH (without heated mirrors)

D105

W/16

: Power window and door lock/unlock
  switch RH

D118

B/10

: Door mirror RH (wit automatic drive
  positioner)

D107

B/10

: Door mirror RH (with heated mirrors)

D119

W/2

: Front door lock assembly RH (door unlock
  actuator)

D112

W/2

: Front door speaker RH

2009 Pathfinder

PG-60

< COMPONENT DIAGNOSIS >

HARNESS

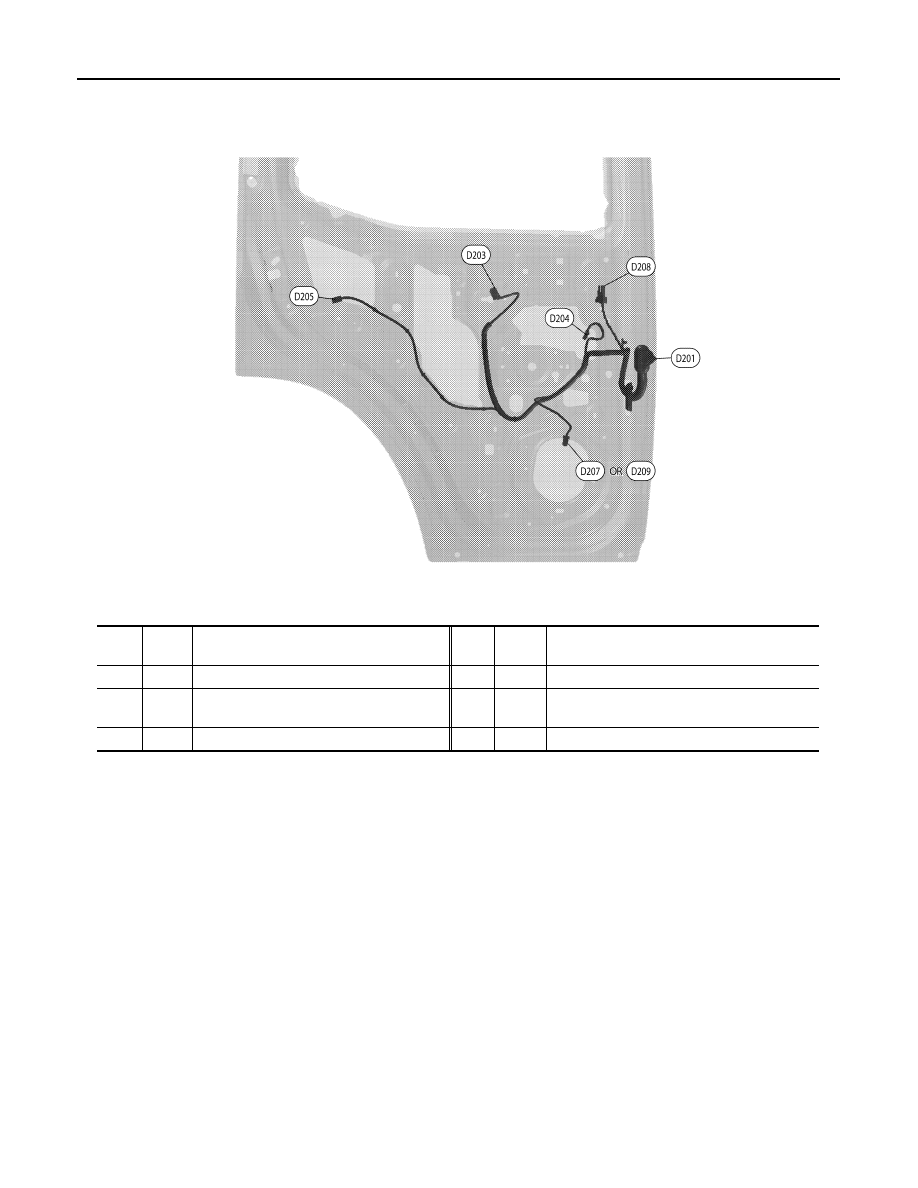

REAR DOOR LH HARNESS

ABMIA0354GB

D201

W/12

: To B6

D207

BR/2

: Rear door speaker LH (with BOSE audio
  system)

D203

W/8

: Rear power window switch LH

D208

BR/2

: Rear door tweeter LH

D204

B/2

: Rear power window motor LH

D209

W/2

: Rear door speaker LH (with base and mid
  audio system)

D205

W/2

: Rear door lock actuator LH

2009 Pathfinder
