Nissan Pathfinder (2009 year). Manual - part 488





IP-8

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

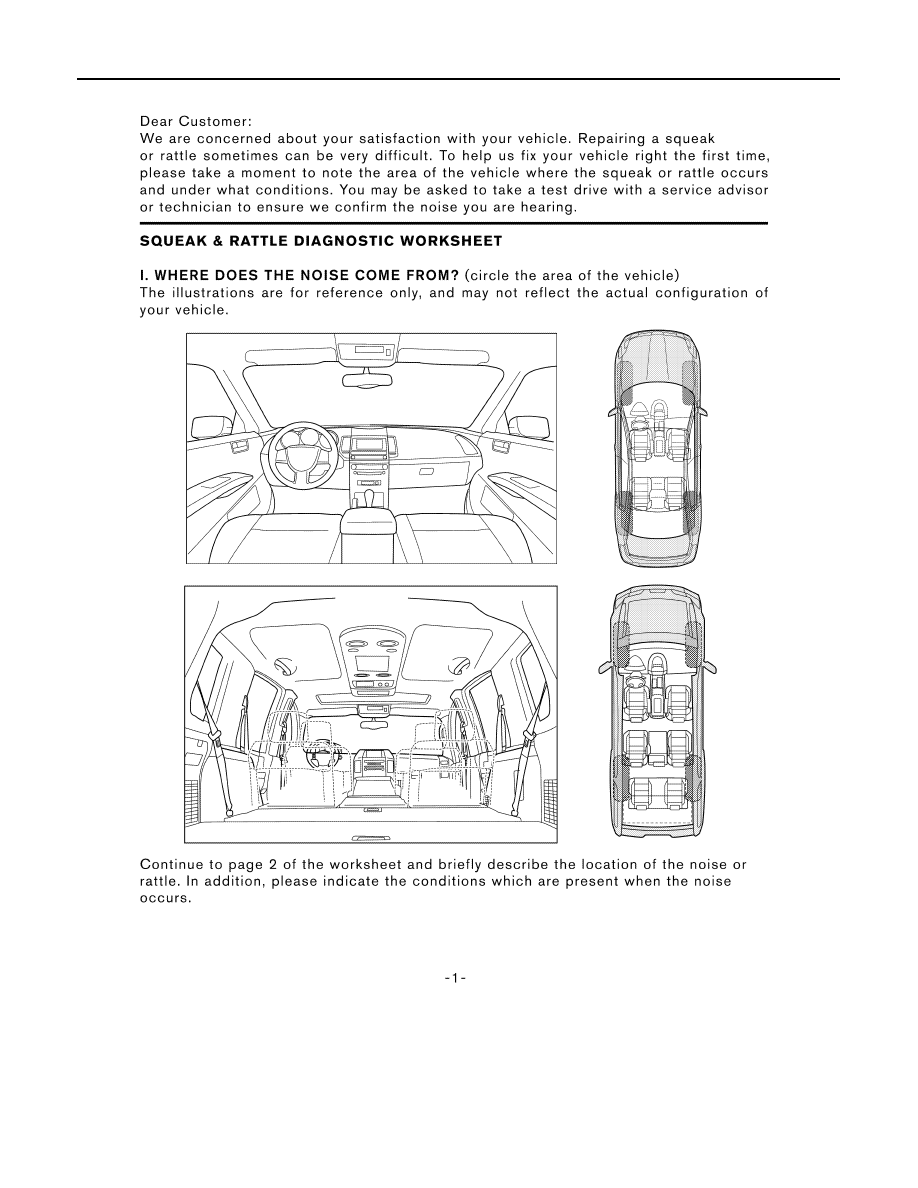

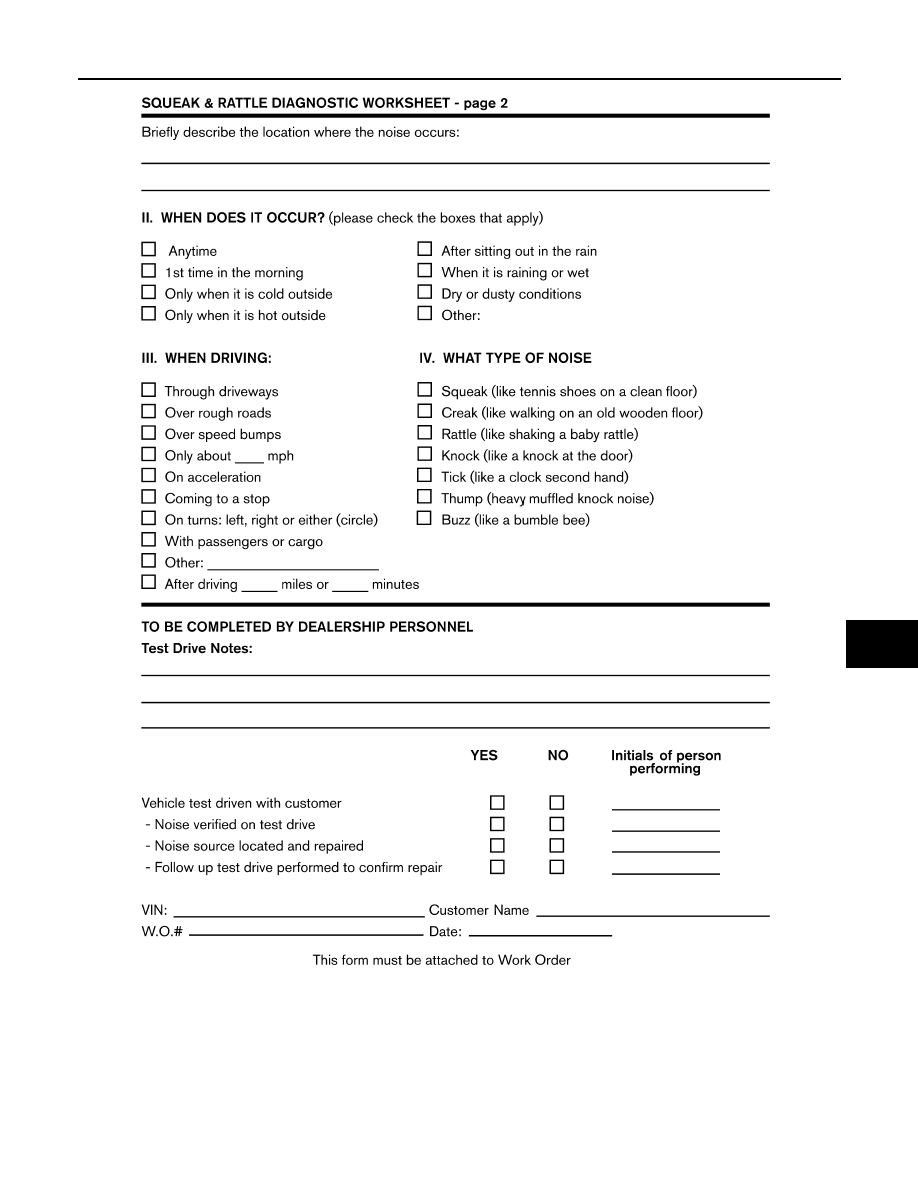

Diagnostic Worksheet

INFOID:0000000003938787

LAIA0072E

2009 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

LAIA0071E

2009 Pathfinder

IP-10

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

ON-VEHICLE REPAIR

INSTRUMENT PANEL ASSEMBLY

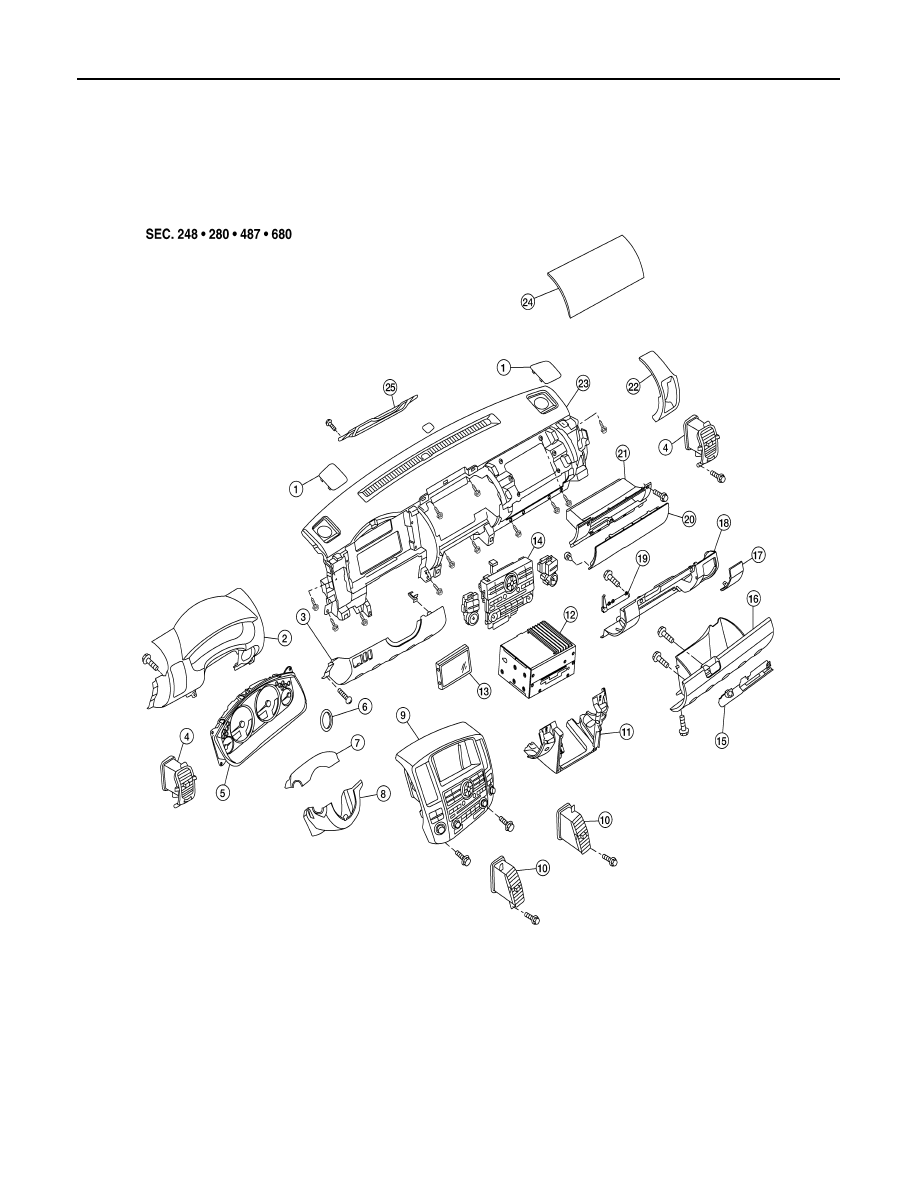

Exploded View

INFOID:0000000003938788

1.

Speaker grille RH/LH

2.

Cluster lid A

3.

Lower instrument panel LH

4.

Side ventilator grille RH/LH

5.

Combination meter

6.

Steering lock escutcheon

7.

Column cover upper

8.

Column cover lower

9.

Cluster lid C

10.

Center ventilator grill RH/LH

11.

Cluster lid D

12.

 AV control unit

13.

Display unit

14.

A/C and AV switch assembly

15.

Lower glove box latch assembly

AWJIA0033ZZ

2009 Pathfinder

INSTRUMENT PANEL ASSEMBLY

IP-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000003938789

INSTRUMENT PANEL

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least
three minutes.
1.

Disconnect both the negative and positive battery terminals, then wait at least three minutes.

2.

Remove the center console. Follow the CENTER CONSOLE Removal procedure.

3.

Remove the combination meter. Refer to

MWI-94, "Removal and Installation"

.

4.

Remove front pillar upper finisher. Refer to

INT-17, "Removal and Installation"

.

5.

Remove optical sensor. Refer to

EXL-145, "Removal and Installation"

.

6.

Remove AV control unit. Refer to

AV-34, "Removal and Installation"

 for BASE AUDIO,

AV-142, "Removal

and Installation"

 for MID AUDIO,

AV-287, "Removal and Installation"

 for BOSE AUDIO WITHOUT NAVI-

GATION, or

AV-455, "Removal and Installation"

 for BOSE AUDIO WITH NAVIGATION.

7.

Remove display unit, if equipped. Refer to

AV-144, "Removal and Installation"

 for BASE AUDIO,

AV-289,

"Removal and Installation"

 for BOSE AUDIO WITHOUT NAVIGATION, or

AV-457, "Removal and Installa-

tion"

 for BOSE AUDIO WITH NAVIGATION.

8.

Remove cluster lid D. Follow the CLUSTER LID D Removal procedure.

9.

Disconnect GPS antenna.

10. Remove the passenger air bag module. Refer to

SR-9, "Removal and Installation"

.

11. Remove the instrument stay RH/LH bolts.

12. Remove instrument panel and pad assembly.

• Disconnect all remaining harnesses.

Installation

Installation is in the reverse order of removal.

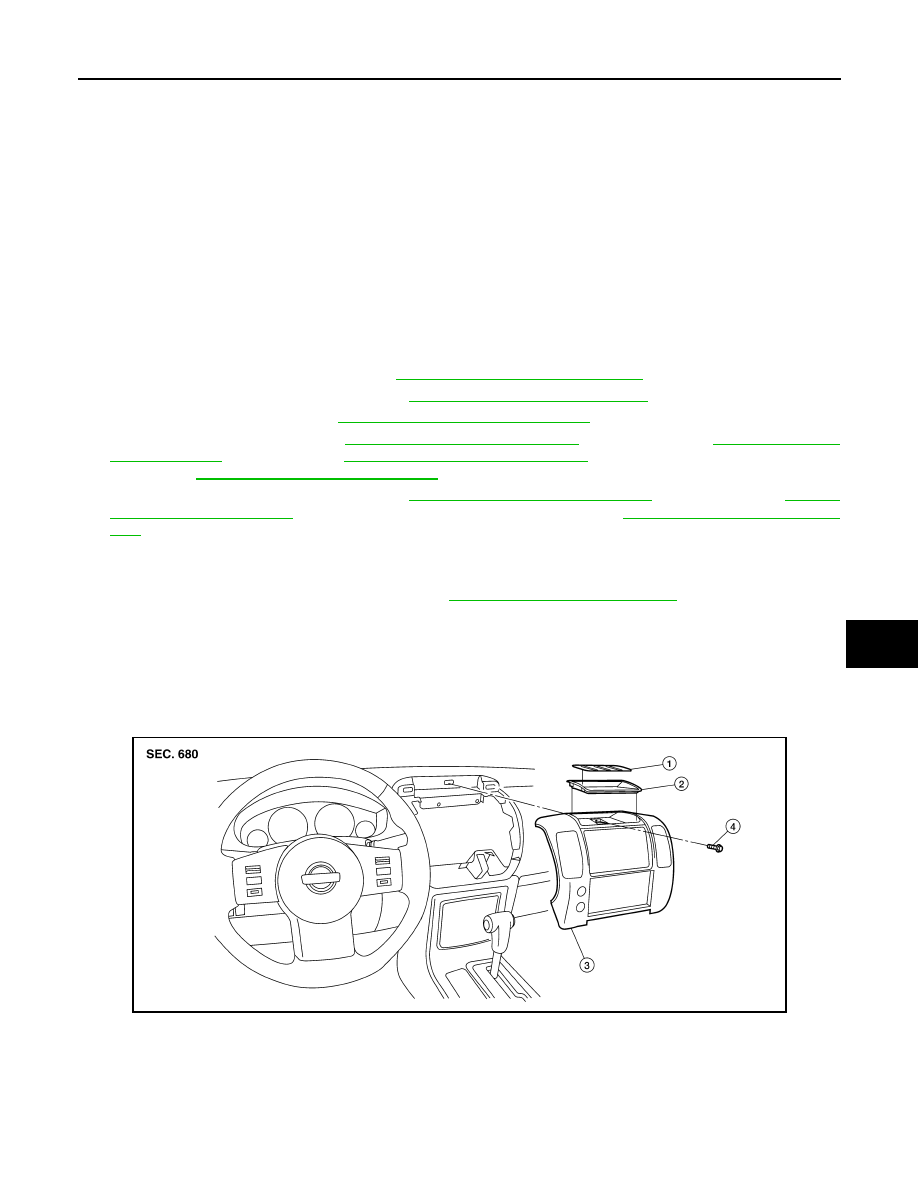

CLUSTER LID C -WITHOUT DISPLAY UNIT

Removal

CAUTION:

16.

Lower glove box

17.

Fuse block cover

18.

Lower instrument panel RH

19.

Lower glove box damper assembly

20.

Upper glove box door

21.

Upper glove box

22.

Instrument side finisher

23.

Instrument panel and pad assembly 24.

Passenger air bag module

25.

Knee protector brace

WIIA1050E

1.

Liner

2.

Storage tray

3.

Cluster lid C

4.

Cluster lid C screw

2009 Pathfinder

IP-12

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at lease three
minutes.
1.

Disconnect both the negative and positive battery terminals, then wait at least three minutes.

2.

Remove A/T finisher. Follow the A/T FINISHER removal procedure.

3.

Remove storage tray and liner, then remove cluster lid C screw.

4.

Pull cluster lid C rearward to release clips.

5.

Disconnect harness connectors, then remove cluster lid C.

Installation

Installation is in the reverse order of removal.

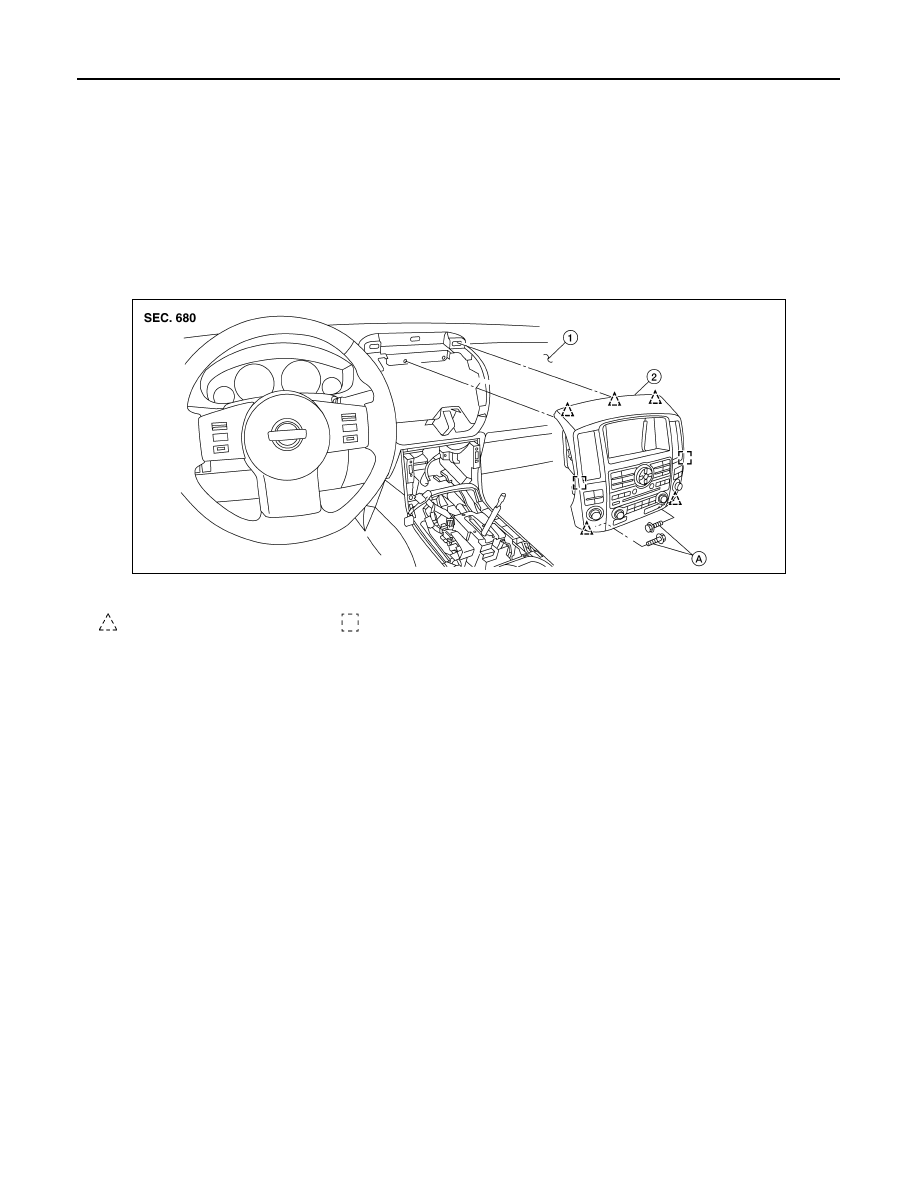

CLUSTER LID C - WITH DISPLAY UNIT

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least
three minutes.
1.

Disconnect both the negative and positive battery terminals, then wait at least three minutes.

2.

Select neutral, then remove shifter handle.

3.

Remove A/T finisher.

4.

Remove the center console bin screws and center console bin.

5.

Remove cluster lid C bolts, then release the clips and remove cluster lid C.

6.

Disconnect electrical connectors and remove cluster lid C.

Installation

Installation is in the reverse order of removal.

AWJIA0055ZZ

1.

Instrument panel

2.

Cluster lid C

A.

Cluster lid C bolt

Clip C103

Metal clip

2009 Pathfinder

INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID D

Removal

1.

Remove A/T finisher.

2.

Remove lower instrument panel LH.

3.

Remove lower instrument panel RH.

4.

Remove cluster lid C.

5.

Disconnect the electrical connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.

LOWER INSTRUMENT PANEL LH

Removal

1.

Remove front pillar lower finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Remove lower instrument panel LH, using power tool.

3.

Pull rearward to release lower instrument panel LH.

4.

Disconnect lower instrument panel LH harness connectors.

Installation

Installation is in the reverse order of removal.

AWJIA0056ZZ

1.

Cluster lid D

A.

Cluster lid D screw

LIIA1744E

2009 Pathfinder

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

COMBINATION METER

Removal

1.

Disconnect the negative battery terminal.

2.

Remove front pillar upper finisher. Refer to

INT-17, "Removal and Installation"

.

3.

Remove lower instrument panel LH.

4.

Remove steering lock escutcheon.

5.

Remove cluster lid A, using power tool.

6.

Remove combination meter, using power tool.

7.

Disconnect combination meter electrical connectors.

Installation

Installation is in the reverse order of removal.

A/T FINISHER

Removal

1.

Remove cup holder finisher.

2.

Release the shifter handle clip, then remove shifter handle.

3.

Pull up to release clips and disconnect the connectors, then remove the A/T finisher.

Installation

Installation is in the reverse order of removal.

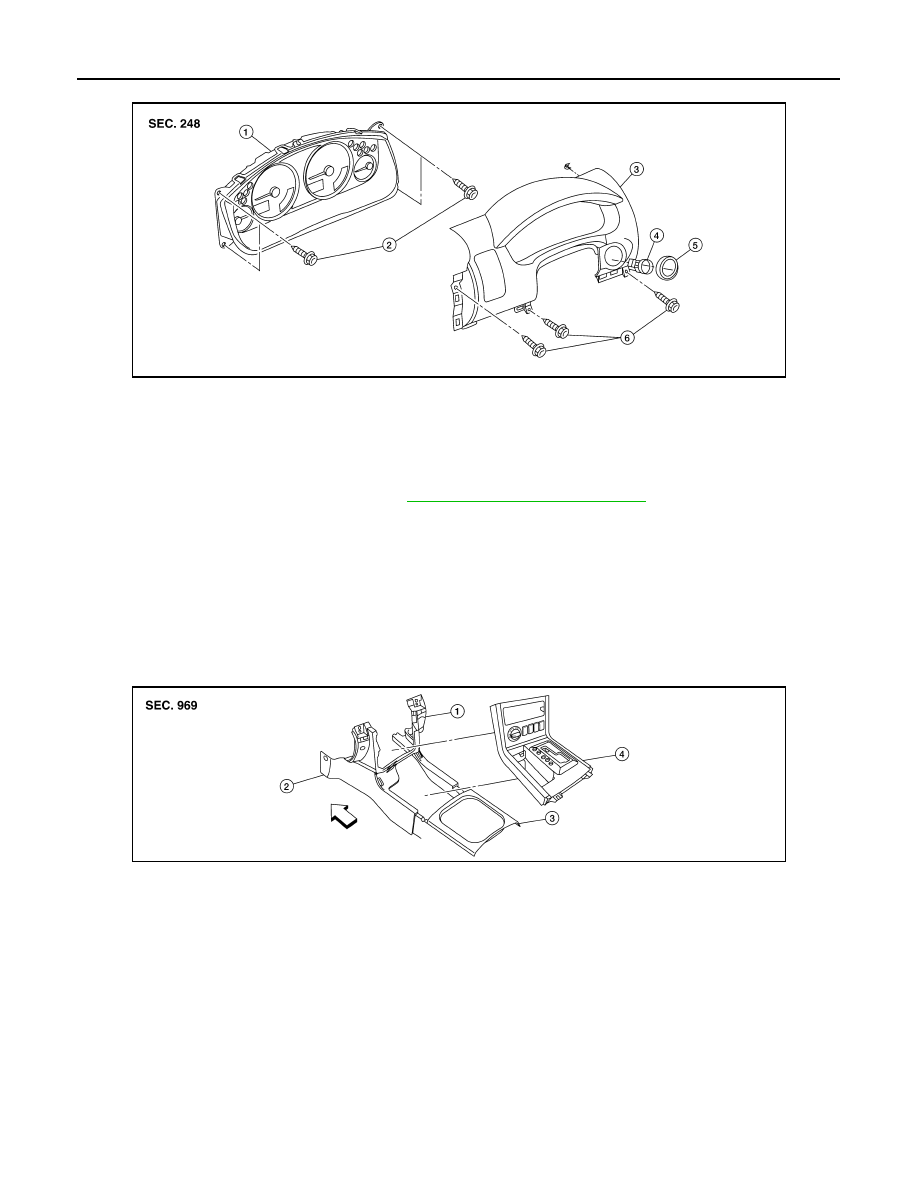

LOWER INSTRUMENT PANEL RH AND LOWER GLOVE BOX

Removal

WIIA1053E

1.

Combination meter

2.

Combination meter screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Cluster lid A screws

AWJIA0057ZZ

1.

Cluster lid D

2.

Center console front base

3.

Cup holder finisher

4.

A/T finisher

Front

2009 Pathfinder

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

1.

Disconnect the negative battery terminal.

2.

Remove front pillar lower finisher. Refer to

INT-17, "Removal and Installation"

.

3.

Remove lower instrument panel RH screws, using power tool.

4.

Remove lower instrument panel RH and lower glove box.

Installation

NOTE:
Install upper glove box before installing lower glove box.
Installation is in the reverse order of removal.

UPPER GLOVE BOX

Removal

1.

Remove lower instrument panel RH and lower glove box.

2.

Remove cluster lid C.

3.

Remove upper glove box screws, using power tool.

4.

Remove upper glove box.

Installation

Installation is in the reverse order of removal.

CENTER CONSOLE

Removal

1.

Remove lower instrument panel RH.

2.

Remove cup holder finisher.

3.

Remove A/T finisher.

4.

Remove center console screws.

5.

Disconnect electrical connectors and remove center console.

Installation

Installation is in the reverse order of removal.

WIIA1058E

2009 Pathfinder
