DOOR LOCK FUNCTION

DLK-217

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

REMOTE KEYLESS ENTRY : Component Parts Location

INFOID:0000000003938299

REMOTE KEYLESS ENTRY : Component Description

INFOID:0000000003938300

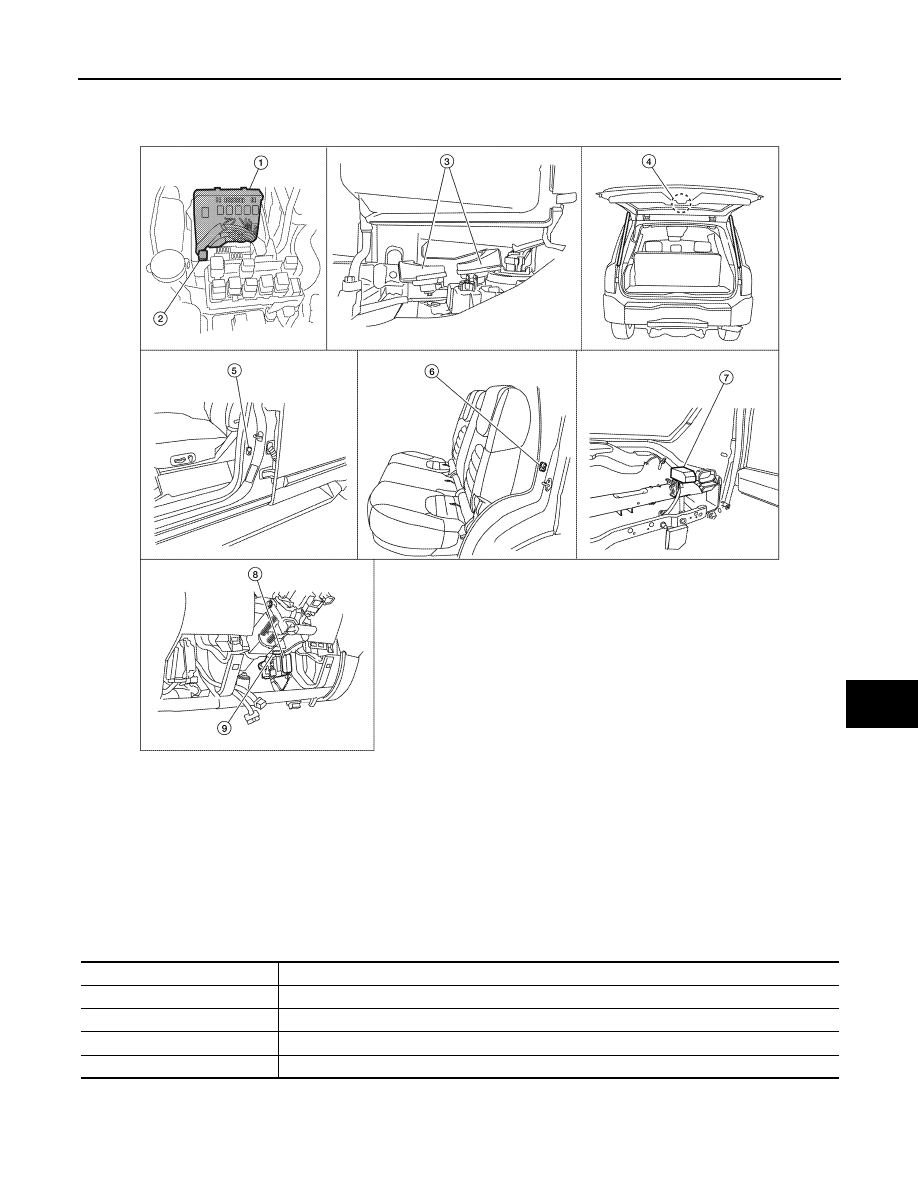

1. IPDM E/R E122, E124

2. Horn relay H-1

(view with cover removed)

3. Horn E3 (behind front combination

lamp LH)

4. Back door cinching latch unit (door ajar

switch) D502

5. Front door switch LH B8

RH B108

6. Rear door switch LH B18

RH B116

7. Remote keyless entry receiver M120

(view with instrument panel RH re-
moved)

8. BCM M18, M19, M20

(view with instrument panel LH removed)

9. Key switch M27

ALKIA1172ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door switch

Transmits door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the keyfob, and then transmits to BCM.

2009 Pathfinder

DLK-218

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOMELINK UNIVERSAL TRANSCEIVER

HOMELINK UNIVERSAL TRANSCEIVER

Component Description

INFOID:0000000003938305

Item

Function

Reference page

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate
the garage door, etc.

Refer to Owner's

Manual

2009 Pathfinder

DIAGNOSIS SYSTEM (BCM)

DLK-219

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000004427395

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system

2: With Intelligent Key

DOOR LOCK

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

Air conditioner

AIR CONDITONER

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Immobilizer

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Theft alarm

THEFT ALM

RAP (retained accessory power)

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

Vehicle security system

PANIC ALARM

2009 Pathfinder

DLK-220

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000004427396

WORK SUPPORT

DATA MONITOR

1: With remote keyless entry system

2: With Intelligent Key

ACTIVE TEST

MULTIREMOTE ENT

MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000004427397

WORK SUPPORT

Work Item

Description

DOOR LOCK-UNLOCK SET

• ON
• OFF

AUTOMATIC DOOR LOCK SELECT

• SHIFT OUT OF P
• VH SPD

AUTOMATIC DOOR UNLOCK SE-
LECT

• MODE1
• MODE2
• MODE3
• MODE4
• MODE5
• MODE6

AUTOMATIC LOCK/UNLOCK SE-
LECT

• ON
• OFF

Monitor Item

[Unit}

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

KEY ON SW [ON/OFF]

Indicates condition of key switch

CDL LOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH

DOOR SW-RR [ON/OFF]

Indicates condition of rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates condition of rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates condition of back door switch

KEY CYL LK-SW [ON/OFF]

Indicates condition of lock signal from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates condition of unlock signal from door key cylinder switch

KEYLESS LOCK

[ON/OFF]

Indicates condition of lock signal from keyfob

KEYLESS UNLOCK

[ON/OFF]

Indicates condition of unlock signal from keyfob

I-KEY LOCK

[ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK

[ON/OFF]

Indicates condition of unlock signal from Intelligent Key

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

2009 Pathfinder

DIAGNOSIS SYSTEM (BCM)

DLK-221

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

Hazard and horn reminder mode

Auto locking function mode

Panic alarm operation mode

Back door open operation mode

Keyless power window down operation mode

DATA MONITOR

Test Item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered.

REMO CONT ID ERASUR

Keyfob ID code can be erased.

REMO CONT ID CONFIR

It can be checked whether keyfob ID code is registered or not in this mode.

HORN CHIRP SET

Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

HAZARD LAMP SET

Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

MULTI ANSWER BACK SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-III screen is touched.

AUTO LOCK SET

Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PANIC ALRM SET

Panic alarm operation mode can be changed in this mode. The operation mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PW DOWN SET

Keyless power window down (open) operation mode can be changed in this mode. The operation
mode will be changed when "CHANG SETT" on CONSULT-III screen is touched.

MODE 1

(C mode)

MODE 2

(S mode)

MODE 3

MODE 4

MODE 5

MODE 6

Keyfob
operation

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Hazard warning
lamp flash

Twice

Once

Twice

—

Twice

Once

Twice

—

Once

Horn sound

Once

—

Once

—

Once

—

MODE 1

MODE 2

MODE 3

Auto locking function

5 minutes

Nothing

1 minute

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

0.5 seconds

Nothing

0.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

3 seconds

Nothing

5 seconds

Monitored Item

Description

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

2009 Pathfinder

DLK-222

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

TRUNK

TRUNK : CONSULT-III Function (BCM - TRUNK)

INFOID:0000000004427398

DATA MONITOR

ACTIVE TEST

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

KEY CYL UN-SW

Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from lock/unlock switch.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

RKE LCK-UNLCK

Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock signal from keyfob.

Monitored Item

Description

Test Item

Description

FLASHER

This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-III screen is touched and the left hazard lamp turns on when "LH" on CON-
SULT-III screen is touched.

POWER WINDOW DOWN

This test is able to check power window down operation. The windows are lowered when “ON” on
CONSULT-III screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

DOOR LOCK

This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-III screen touched.

Monitor Item

[Unit]

Contents

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

I-KEY TRUNK [ON/OFF]

Indicates condition of Intelligent Key back door opening operation

TRUNK OPNR SW [ON/OFF]

Indicates condition of back door opener switch.

VEHICLE SPEED [ON/OFF]

Indicates condition of vehicle speed signal from combination meter

Test Item

Description

TRUNK/BACK DOOR

This test is able to check back door open operation.
Back door open when “OPEN” on CONSULT-III screen is touched.

2009 Pathfinder

U1000 CAN COMM CIRCUIT

DLK-223

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000003938309

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-58, "CAN Communication Signal Chart"

DTC Logic

INFOID:0000000003938310

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000003938311

PERFORM SELF DIAGNOSTIC

Turn ignition switch ON and wait for 2 second or more.

Check “Self Diagnostic Result”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

DLK-223, "Diagnosis Procedure"

>> Refer to

GI-49, "Intermittent Incident"

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (ECM)
• Receiving (VDC/TCS/ABS)
• Receiving (METER/M&A)
• Receiving (TCM)

2009 Pathfinder

DLK-224

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000003938312

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000003938313

REPLACE BCM

When DTC [U1010] is detected, replace BCM. Refer to

BCS-59, "Removal and Installation"

>> Replace BCM.

Special Repair Requirement

INFOID:0000000003938314

REQUIRED WORK WHEN REPLACING BCM

The BCM must be initialized when replaced. Refer to

BCS-59, "Removal and Installation"

for BCM configura-

tion.
Initialize NVIS by CONSULT-III. For the details of initialization refer to CONSULT-III Operation Manual.

>> Work End.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

BCM detected internal CAN communication circuit malfunction.

BCM

2009 Pathfinder

Content .. 174 175 176 177 ..
