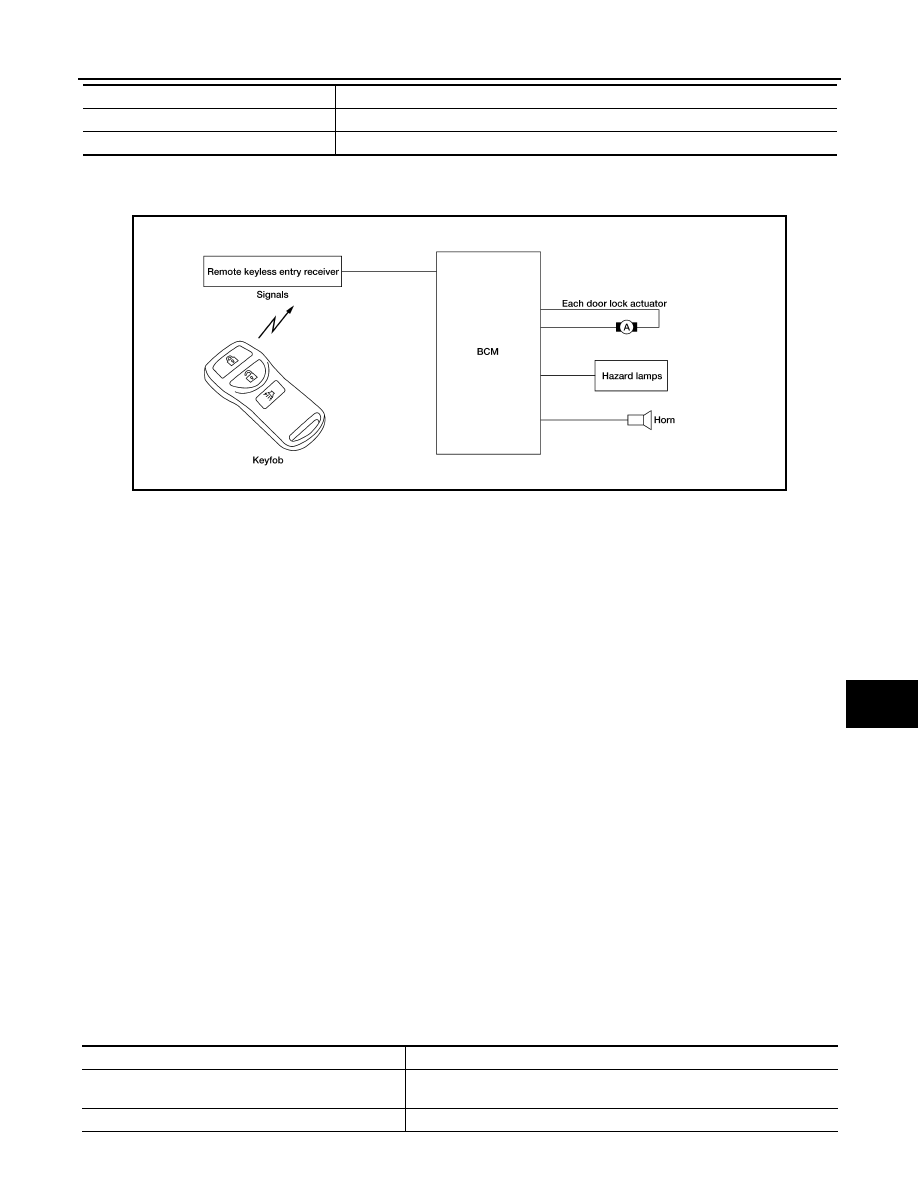

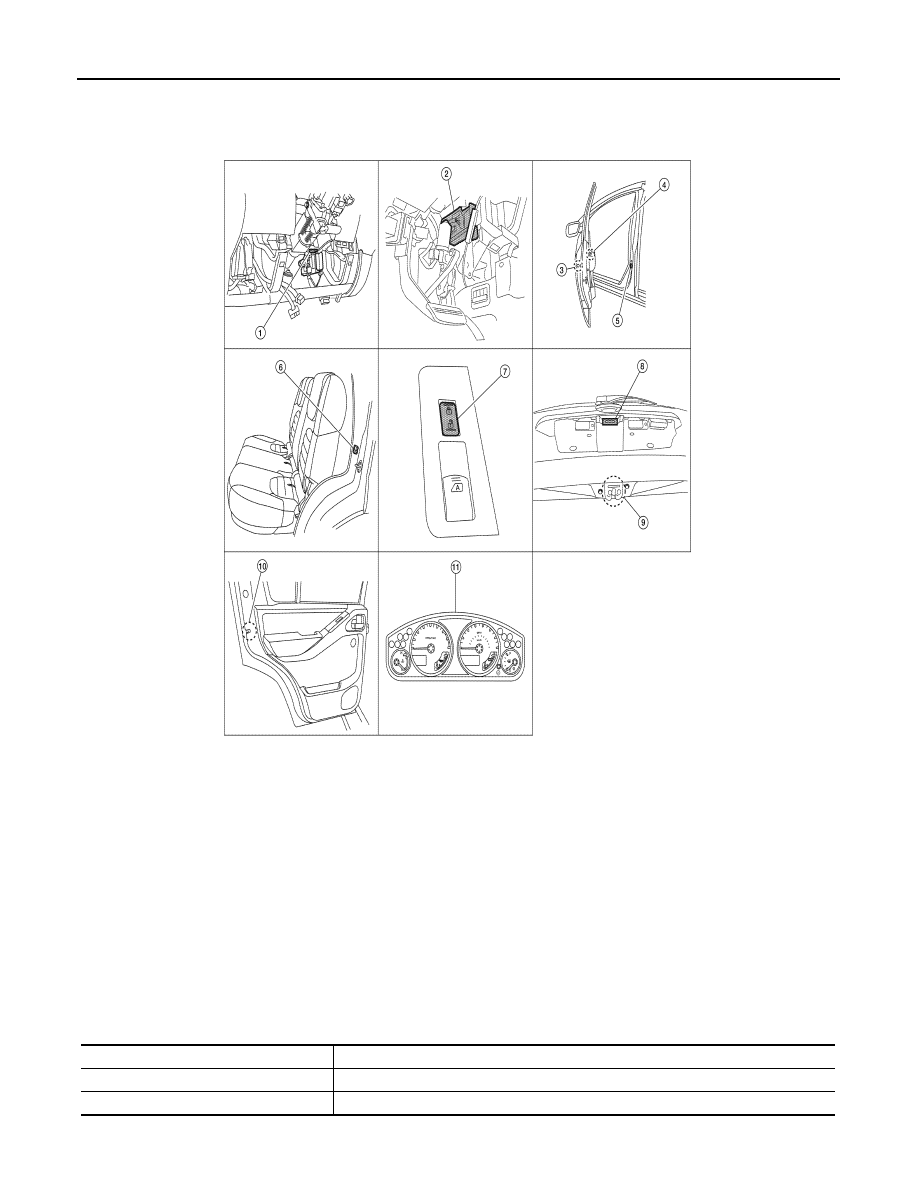

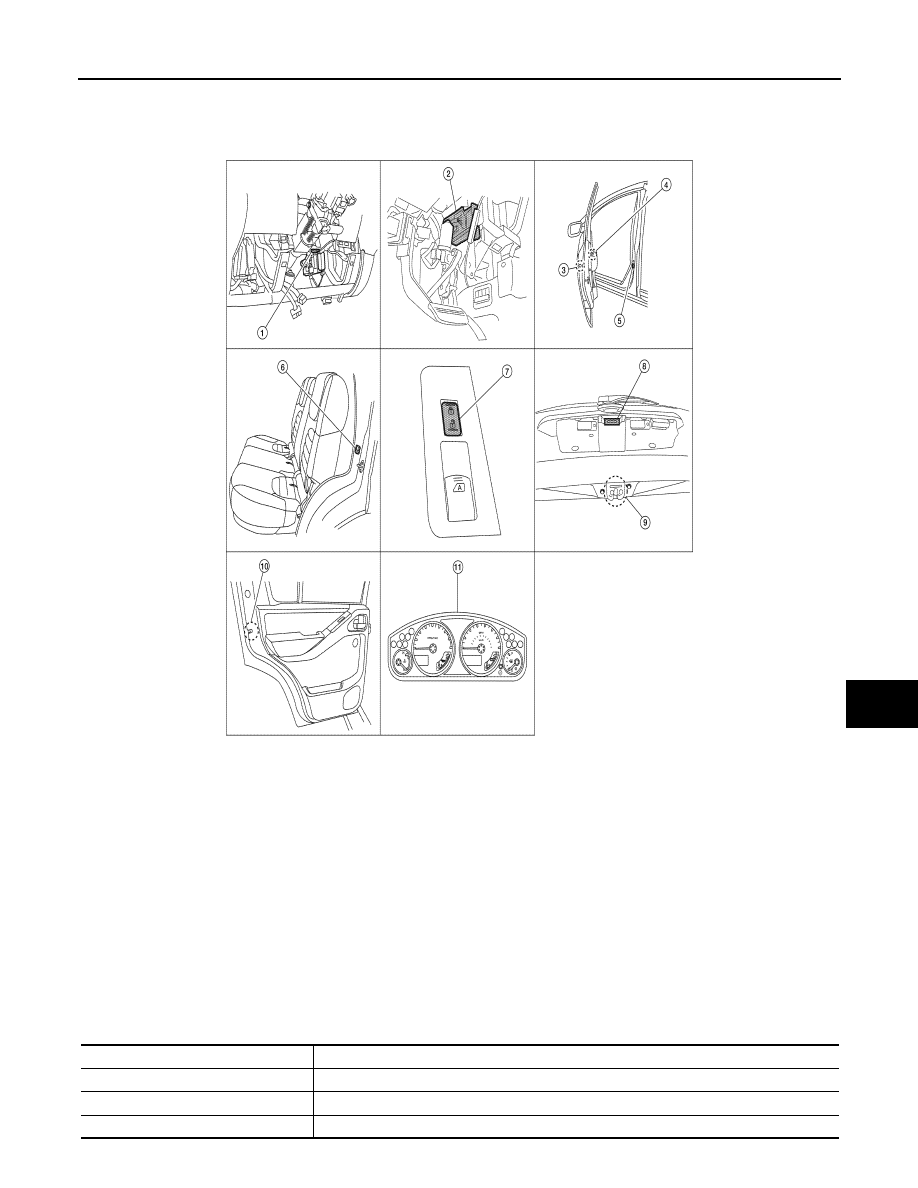

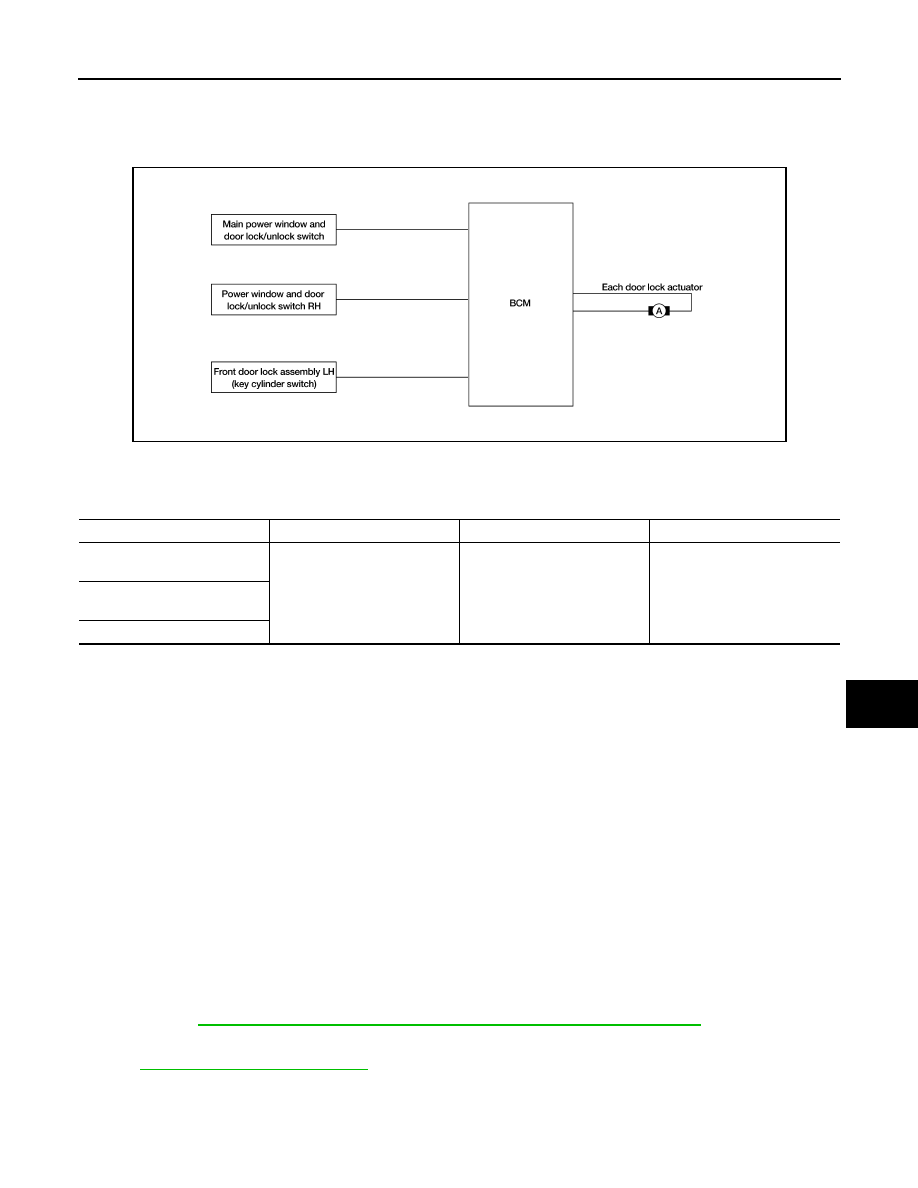

AUTOMATIC DOOR LOCKS DLK-209 < FUNCTION DIAGNOSIS > [WITHOUT INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P FUNCTION DIAGNOSIS AUTOMATIC DOOR LOCKS System Diagram INFOID:0000000004422081 System Description INFOID:0000000004422082 DOOR LOCK FUNCTION • The door lock and unlock switch (driver side) is built into power window main switch. locked. • Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are unlocked. Door Key Cylinder • With the door key inserted in the door key cylinder on driver side, turning it to “LOCK”, will lock door lock actuator of all doors. • With the door key inserted in the door key cylinder on driver side, turning it to “UNLOCK” once unlocks the driver side door lock actuator; turning it to “UNLOCK” again within 5 seconds after the first unlock operation Selective unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP- DLK-41, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)" AUTOMATIC DOOR LOCKS (LOCK OPERATION) The interlock door lock function is the function that locks all doors linked with the vehicle speed. Vehicle Speed Sensing Auto Door Lock*1 All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more. ALKIA1482GB Input Single Function Actuator Door lock/unlock switch Door lock/unlock signal Door lock function Each door lock actuator Door key cylinder switch Each door switch Door open/close signal Key reminder function Combination meter Warning buzzer signal Vehicle speed signal Automatic door lock/unlock TCM Shift position signal 2009 Pathfinder |
