SPIRAL CABLE

SRS-41

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

6.

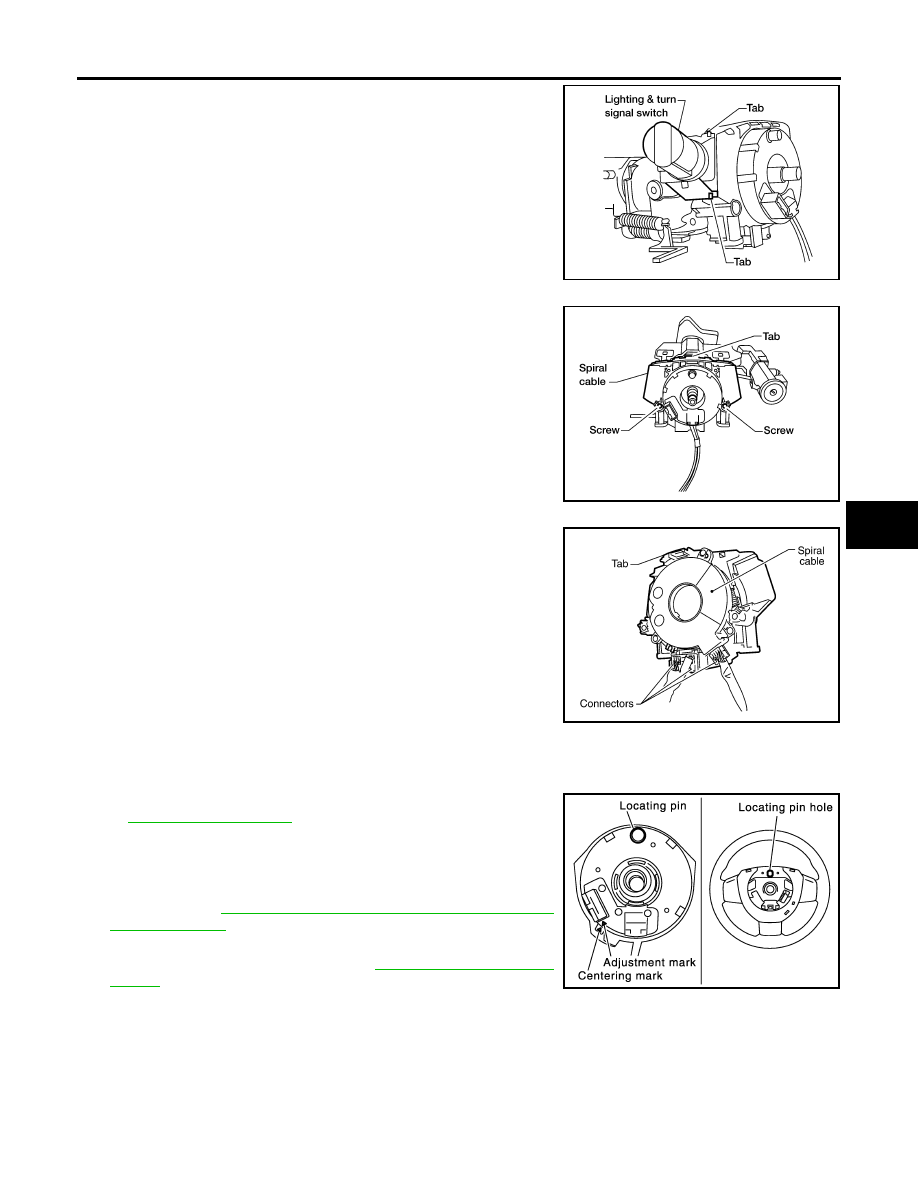

Disconnect lighting and turn signal switch connector. Then while
pressing tabs, pull lighting and turn signal switch toward driver
door to remove.

7.

Remove the screws. Then while pressing the tab, pull the spiral
cable away from steering column assembly.

CAUTION:

Do not disassemble spiral cable.

Do not apply lubricant to the spiral cable.

8.

Disconnect the spiral cable connectors.

CAUTION:

With the steering linkage disconnected, the spiral cable
may snap by turning the steering wheel beyond the limited
number of turns. The spiral cable can be turned counter-
clockwise about 2.5 turns from the neutral position.

INSTALLATION

Installation is in the reverse order of removal.

Align spiral cable correctly when installing steering wheel, refer
to

PS-9, "INSTALLATION"

 . Make sure that the spiral cable is in

the neutral position. The neutral position is detected by turning
left 2.6 revolutions from the right end position and ending with
the locating pin at the top.

Reset the steering angle sensor calibration after installing spiral
cable. Refer to

BRC-57, "Adjustment of Steering Angle Sensor

Neutral Position"

 .

After the work is completed, perform self-diagnosis to make sure
no malfunction is detected. Refer to

SRS-21, "SRS Operation

Check"

 .

CAUTION:

The spiral cable may snap due to steering operation if the cable is not installed in the correct posi-
tion.

With the steering linkage disconnected, the cable may snap by turning the steering wheel beyond
the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from
the neutral position.

LHIA0035E

LHIA0036E

LHIA0088E

PHIA0275E

SRS-42

FRONT PASSENGER AIR BAG MODULE

2007 Pathfinder

FRONT PASSENGER AIR BAG MODULE

PFP:K8515

Removal and Installation

EHS001M8

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.
Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger
air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-
ness must be modified to allow connection of the service replacement passenger air bag module. Refer to

SRS-44, "WIRING HARNESS MODIFICATION"

  for wiring harness modification procedure.

REMOVAL

CAUTION:

Do not attempt to repair or replace damaged direct-connect front passenger air bag module con-
nectors. If a direct-connect harness connector is damaged, the front passenger air bag must be
replaced and the wiring harness modified.

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

Always work from the side of or under front passenger air bag module.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove the glove box. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

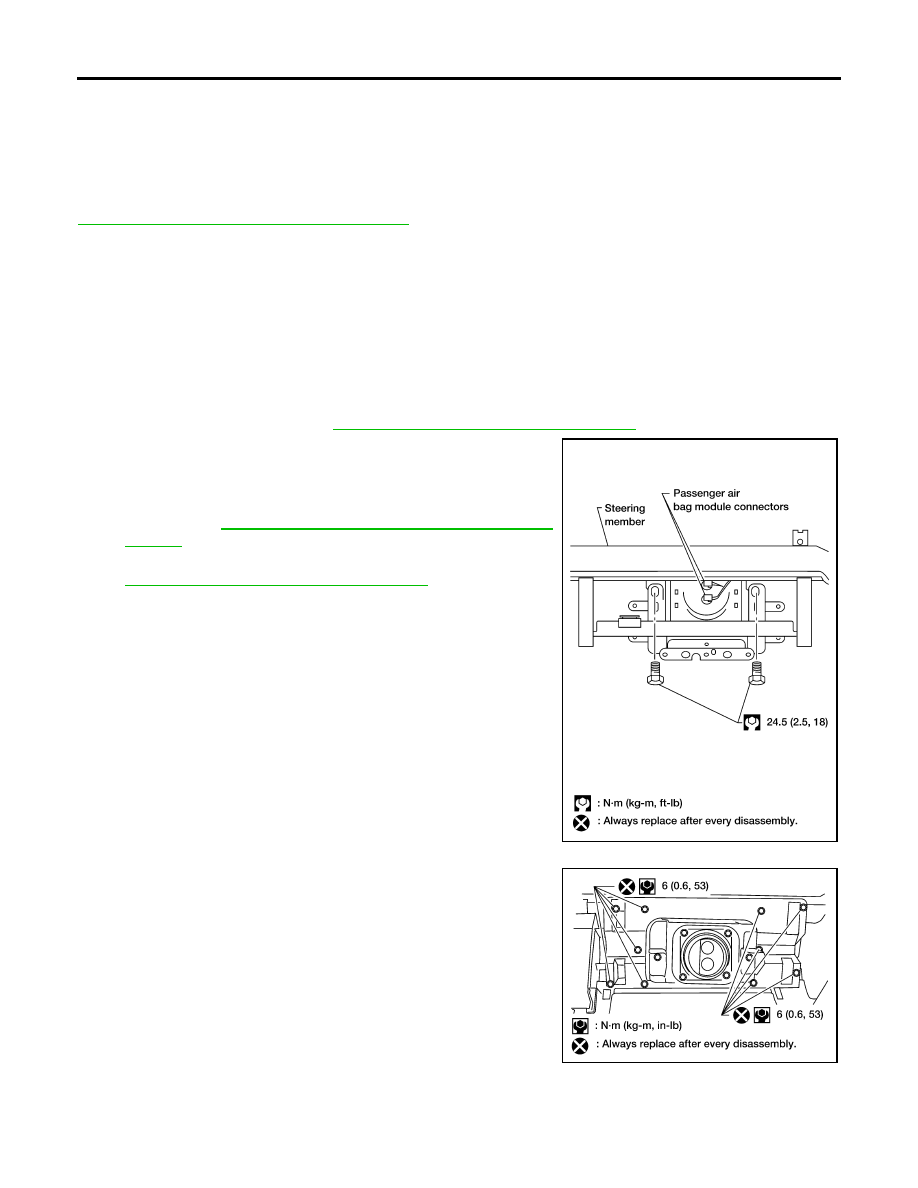

Remove 2 bolts (through glove box opening) retaining front pas-
senger air bag module to the steering member.

4.

Disconnect the passenger air bag module connectors.

For removal/installation of the direct-connect SRS connec-
tors, refer to

SRS-7, "Direct-connect SRS Component Con-

nectors"

 .

5.

Remove the instrument panel assembly from the vehicle. Refer
to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

6.

Remove front passenger air bag module screws then remove
passenger air bag module from instrument panel assembly.

LHIA0093E

WHIA0269E

FRONT PASSENGER AIR BAG MODULE

SRS-43

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

CAUTION:

When servicing the SRS, do not work from directly in front
of air bag module.

Always place front passenger air bag module with caution
label side facing upward.

Do not insert any foreign objects (screwdriver, etc.) into air
bag module or harness connectors.

Do not disassemble air bag module.

Do not use old nuts after removal; replace with new nuts.

Do not expose the front passenger air bag module to tem-
peratures exceeding 90

°

C (194

°

F).

Replace the air bag module if it has been dropped or sus-
tained an impact.

Do not allow oil, grease or water to come in contact with the
air bag module.

For removal/installation of the direct-connect SRS connec-
tors, refer to

SRS-7, "Direct-connect SRS Component Con-

nectors"

 .

INSTALLATION
Original Passenger Air Bag Module

Installation is in the reverse order of removal.

For removal/installation of the direct-connect SRS connectors, refer to

SRS-7, "Direct-connect SRS Com-

ponent Connectors"

 .

CAUTION:

Always work from the side of or under front passenger air bag module.

After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to

SRS-21, "SRS Operation Check"

 .

Service Replacement Passenger Air Bag Module

1.

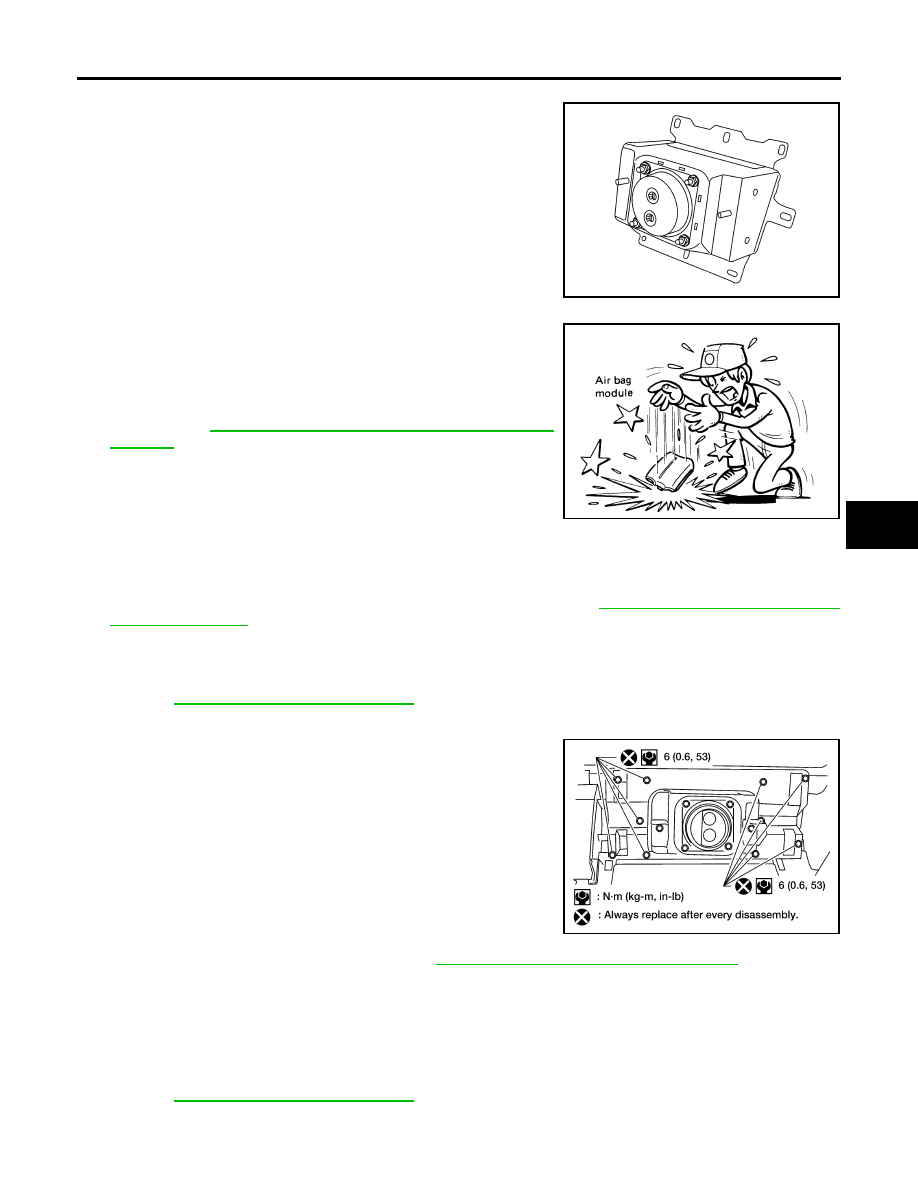

Install the front passenger air bag module to the instrument
panel pad assembly.

2.

Install the instrument panel assembly. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air
bag connector and fasten connector to mounting bracket.

CAUTION:

Always work from the side of or under front passenger air bag module.

After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to

SRS-21, "SRS Operation Check"

 .

WHIA0111E

SBF814E

WHIA0269E

SRS-44

FRONT PASSENGER AIR BAG MODULE

2007 Pathfinder

WIRING HARNESS MODIFICATION

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.
Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger
air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-
ness must be modified to allow connection of the service replacement passenger air bag module.

NOTE:
The wiring harness modification is to be performed only if the vehicle is equipped with the original passenger
air bag which uses direct-connect harness connectors. If the passenger air bag is to be replaced in a vehicle
that has already had the service replacement passenger air bag installed, the wiring harness modification is
not required.

CAUTION:

Do not attempt to repair or replace damaged direct-connect front passenger air bag module con-
nectors. If a direct-connect harness connector is damaged, the front passenger air bag must be
replaced and the wiring harness modified.

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

Always work from the side of or under front passenger air bag module.

After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to

SRS-21, "SRS Operation Check"

 .

1.

Locate the yellow and orange direct-connect passenger air bag module harness connectors.

2.

Use wire cutters to cut back both previously used direct-connect passenger air bag module harness con-
nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors.

3.

Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end.

4.

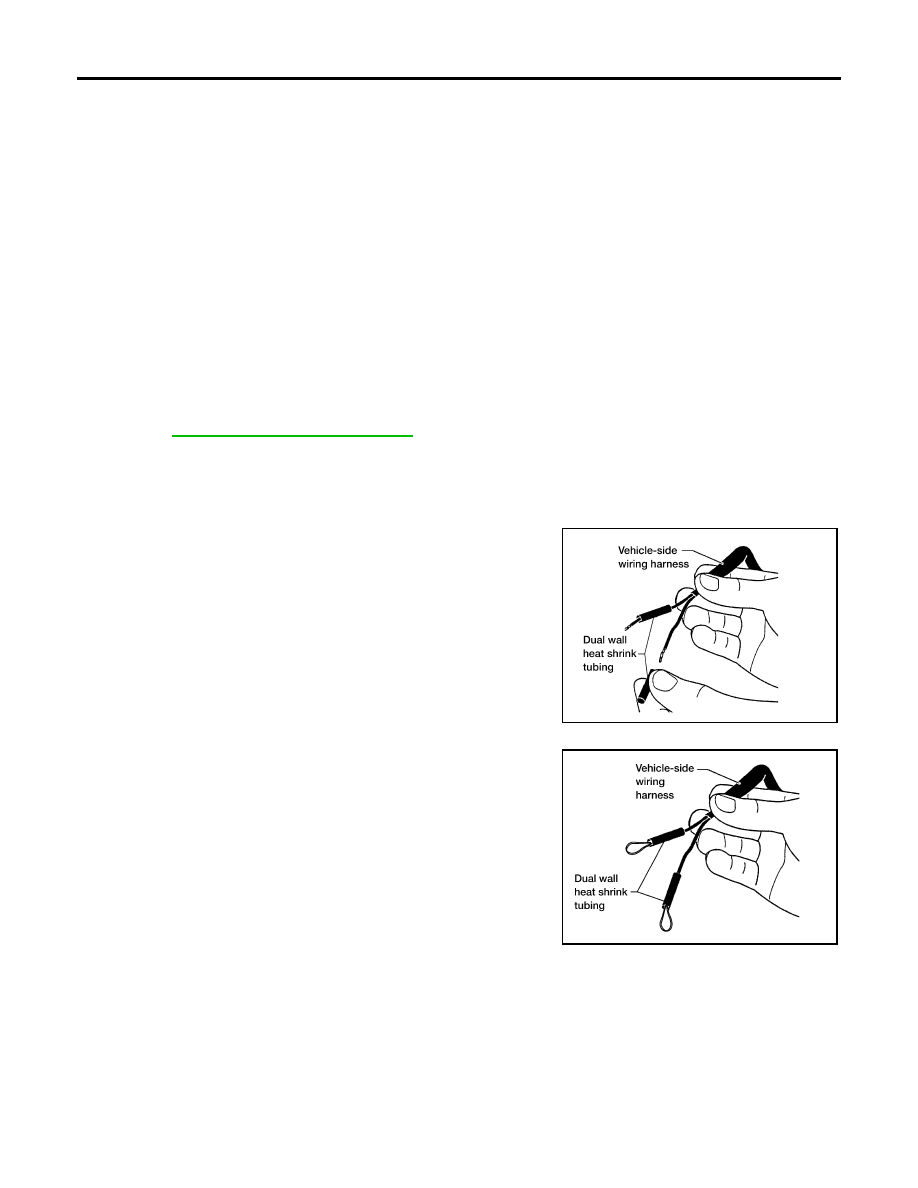

Slide a piece of dual-wall heat shrink tubing (provided in the pas-
senger air bag service kit) onto each wire of the previously used
vehicle wiring harness.

5.

Fold each wire back and insert into the end of the heat shrink
tubing so that the end of the wire is approximately centered in
the heat shrink tubing.

6.

Use a heat gun to shrink the heat shrink tubing and seal the wire.

7.

Use electrical tape to secure the modified circuits to the outside of the wiring harness.

LHIA0017E

WHIA0062E

FRONT PASSENGER AIR BAG MODULE

SRS-45

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

8.

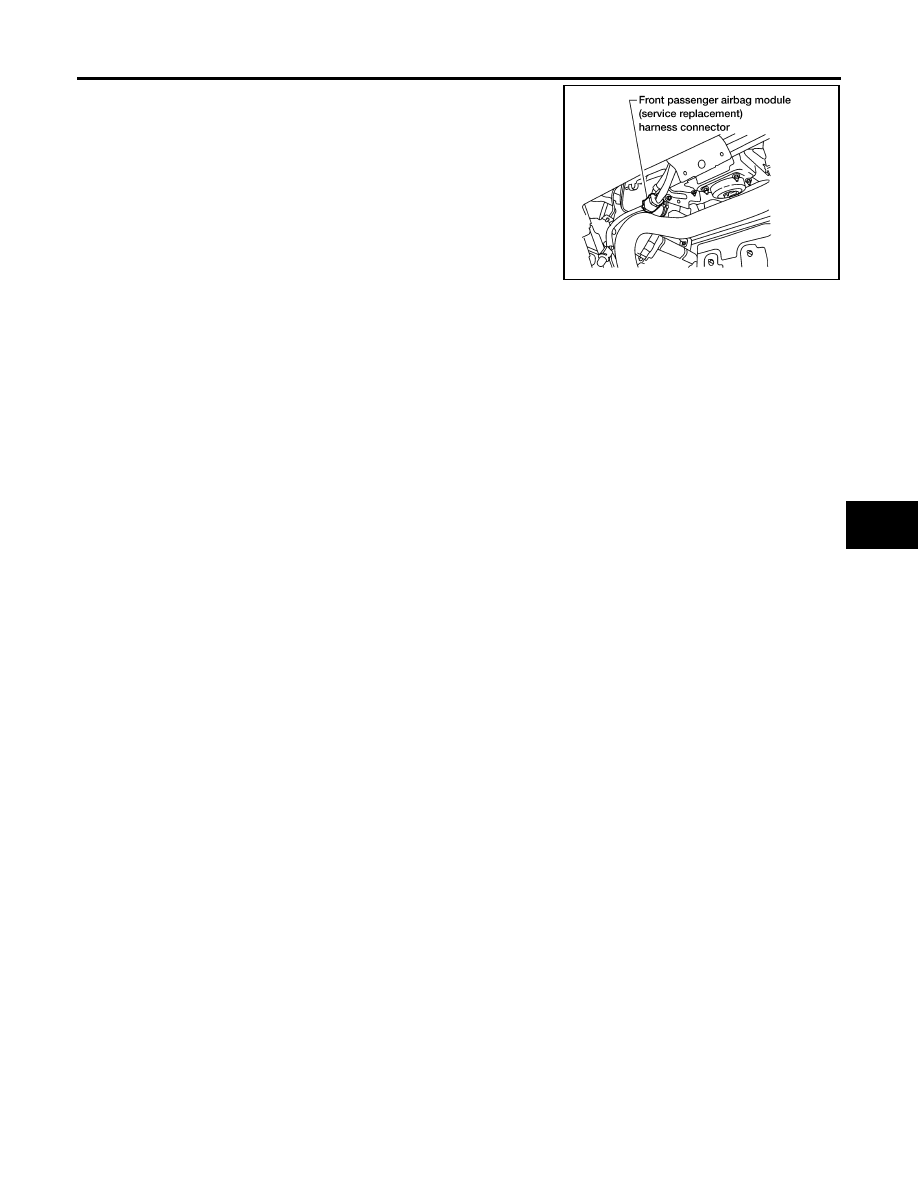

Locate the front passenger air bag service replacement connec-
tor that is taped back to the main harness. Unwrap the tape to
access the yellow service replacement connector and remove
the dust cover from the connector.

WHIA0118E

SRS-46

SIDE CURTAIN AIR BAG MODULE

2007 Pathfinder

SIDE CURTAIN AIR BAG MODULE

PFP:985P0

Removal and Installation

EHS001M9

REMOVAL

CAUTION:

Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a
direct-connect harness connector is damaged, the harness must be replaced.

Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.

When servicing the SRS, do not work from directly in front of air bag module.

1.

Remove headlining. Refer to

EI-31, "Removal and Installation"

 .

2.

Disconnect front and rear side curtain air bag module connectors.

For removal/installation of the direct-connect SRS connectors, refer to

SRS-7, "Direct-connect SRS

Component Connectors"

 .

3.

Remove the bolts in order starting at the front or rear, and remove the side curtain air bag module.

CAUTION:

When servicing the SRS, do not work from directly in front of air bag module.

Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.

Do not disassemble air bag module.

Do not expose the air bag module to temperatures exceeding 90

°

C (194

°

F).

Replace side curtain air bag module if it has been dropped
or sustained an impact.

Do not allow oil, grease or water to come in contact with the
air bag module.

INSTALLATION

Installation is in the reverse order of removal.

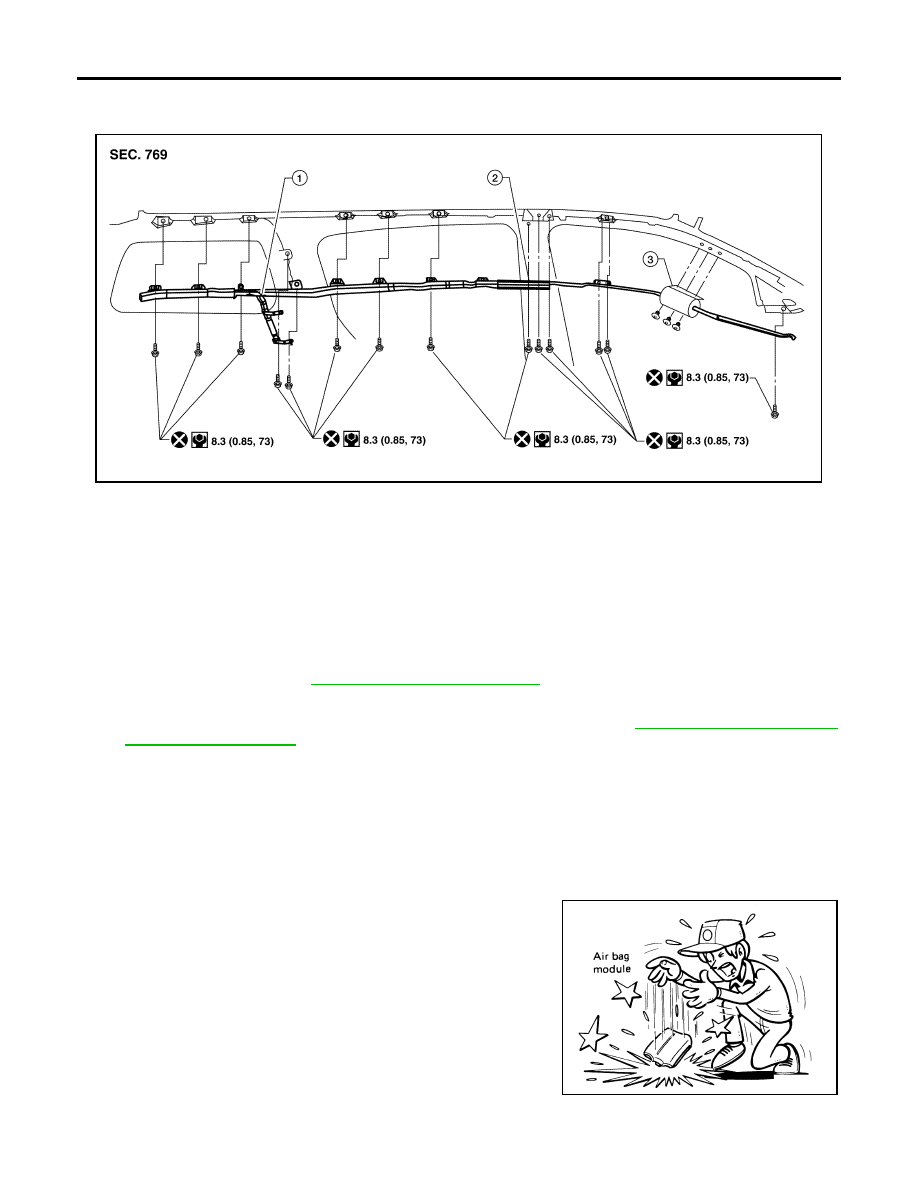

WHIA0299E

1.

Rear curtain air bag module connector

2.

Front curtain air bag module connector

3.

Sail panel extrusion

SBF814E

SIDE CURTAIN AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

For removal/installation of the direct-connect SRS connectors, refer to

SRS-7, "Direct-connect SRS Com-

ponent Connectors"

 .

After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is
detected. Refer to

SRS-21, "SRS Operation Check"

 .

SRS-48

CRASH ZONE SENSOR

2007 Pathfinder

CRASH ZONE SENSOR

PFP:98531

Removal and Installation

EHS001MA

REMOVAL

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove crash zone sensor nuts and shield from support mem-
ber.

3.

Disconnect the crash zone sensor harness connector.

4.

Remove crash zone sensor.

CAUTION:

Replace crash zone sensor if it has been dropped or sustained an impact.

Do not disassemble crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal.

After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer to

SRS-

21, "SRS Operation Check"

 .

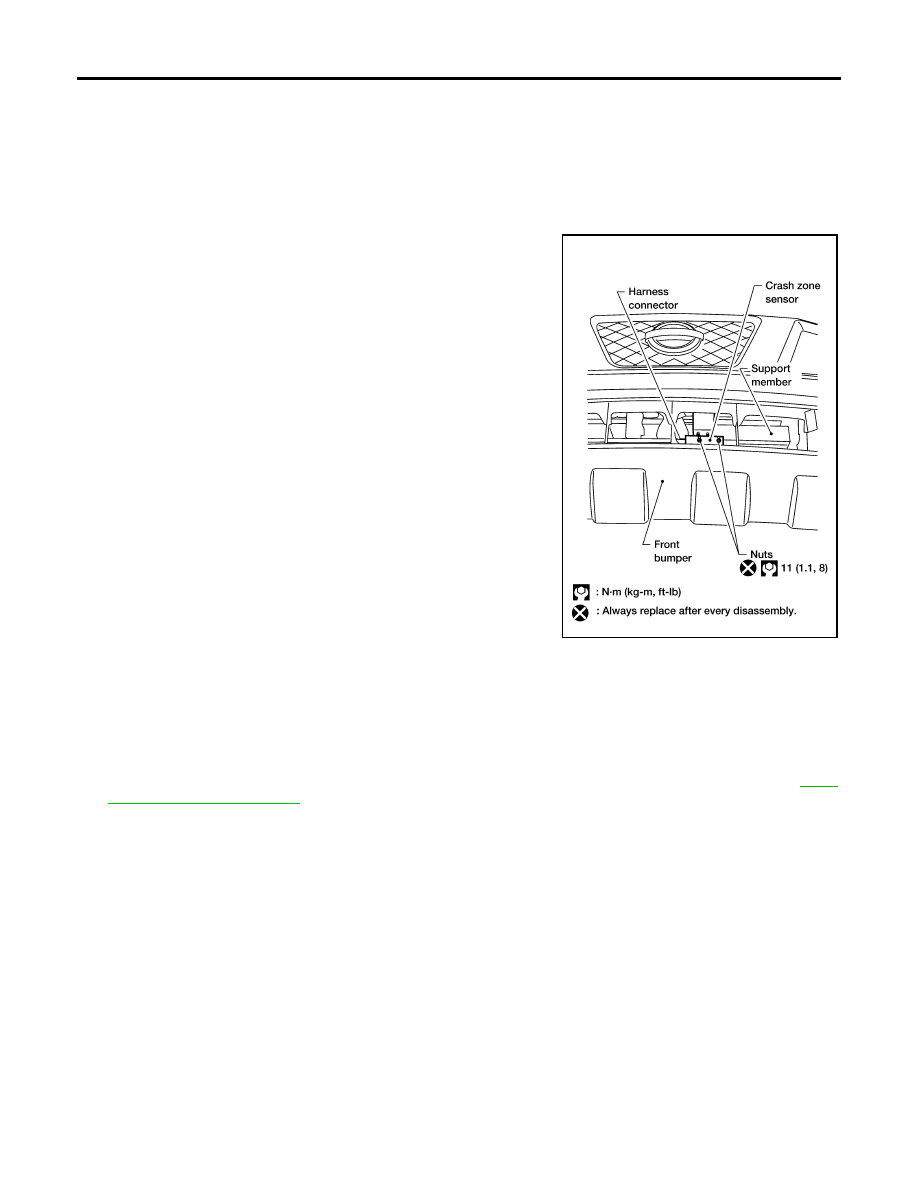

LHIA0090E
