TROUBLE DIAGNOSIS

SRS-25

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

SATELLITE SENS RH

[UNIT FAIL]

[B1113] or [B1114]

SATELLITE SENS RH

[COMM FAIL]

[B1115]

RH side air bag (satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the RH side air bag (satel-

lite) sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[OPEN]
[B1086]

The circuit for front LH seat belt pre-tensioner is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat belt pre-ten-

sioner.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[VB-SHORT]

[B1087]

The circuit for front LH seat belt pre-tensioner is shorted to
some power supply circuit.

PRE-TEN FRONT LH

[GND-SHORT]

[B1088]

The circuit for front LH seat belt pre-tensioner is shorted to
ground.

PRE-TEN FRONT LH

[SHORT]

[B1089]

The circuits for the front LH seat belt pre-tensioner are
shorted to each other.

PRE-TEN FRONT RH

[OPEN]
[B1081]

The circuit for front RH seat belt pre-tensioner is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front RH seat belt pre-ten-

sioner.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT RH

[VB-SHORT]

[B1082]

The circuit for front RH seat belt pre-tensioner is shorted to
some power supply circuit.

PRE-TEN FRONT RH

[GND-SHORT]

[B1083]

The circuit for front RH seat belt pre-tensioner is shorted to
ground.

PRE-TEN FRONT RH

[SHORT]

[B1084]

The circuits for the front RH seat belt pre-tensioner are
shorted to each other.

FR CURTN MODULE LH

[OPEN]
[B1198]

The LH side front curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace LH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FR CURTN MODULE LH

[VB-SHORT]

[B1199]

The LH side front curtain air bag module circuit is shorted to
some power supply circuits.

FR CURTN MODULE LH

[GND-SHORT]

[B1200]

The LH side front curtain air bag module circuit is shorted to
ground.

FR CURTN MODULE LH

[SHORT]

[B1201]

The circuits for the LH side front curtain air bag module are
shorted to each other.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

SRS-26

TROUBLE DIAGNOSIS

2007 Pathfinder

FR CURTN MODULE RH

[OPEN]
[B1193]

The RH side front curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FR CURTN MODULE RH

[VB-SHORT]

[B1194]

The RH side front curtain air bag module circuit is shorted to
some power supply circuits.

FR CURTN MODULE RH

[GND-SHORT]

[B1195]

The RH side front curtain air bag module circuit is shorted to
ground.

FR CURTN MODULE RH

[SHORT]

[B1196]

The circuits for the RH side front curtain air bag module are
shorted to each other.

CURTAIN MODULE LH

[OPEN]
[B1150]

The LH side rear curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace LH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

[B1151]

The LH side rear curtain air bag module circuit is shorted to
some power supply circuits.

CURTAIN MODULE LH

[GND-SHORT]

[B1152]

The LH side rear curtain air bag module circuit is shorted to
ground.

CURTAIN MODULE LH

[SHORT]

[B1153]

The circuits for the LH side rear curtain air bag module are
shorted to each other.

CURTAIN MODULE RH

[OPEN]
[B1145]

The RH side rear curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

[B1146]

The RH side rear curtain air bag module circuit is shorted to
some power supply circuits.

CURTAIN MODULE RH

[GND-SHORT]

[B1147]

The RH side rear curtain air bag module circuit is shorted to
ground.

CURTAIN MODULE RH

[SHORT]

[B1148]

The circuits for the RH side rear curtain air bag module are
shorted to each other.

CONTROL UNIT

[B1XXX]

Air bag diagnosis sensor unit is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the air bag diagnosis sen-

sor unit.

OCCUPANT SENS C/U

[UNIT FAIL]

[B1017], [B1020] or [B1021]

Occupant classification system is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

OCCUPANT SENS C/U

[COMM FAIL]

[B1022]

Communication between the occupant classification system
control unit and air bag diagnosis sensor unit is interrupted.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

OCCUPANT SENS

[UNIT FAIL]

[B1018]

Occupant classification sensor is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

TROUBLE DIAGNOSIS

SRS-27

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

DIAGNOSTIC PROCEDURE 3

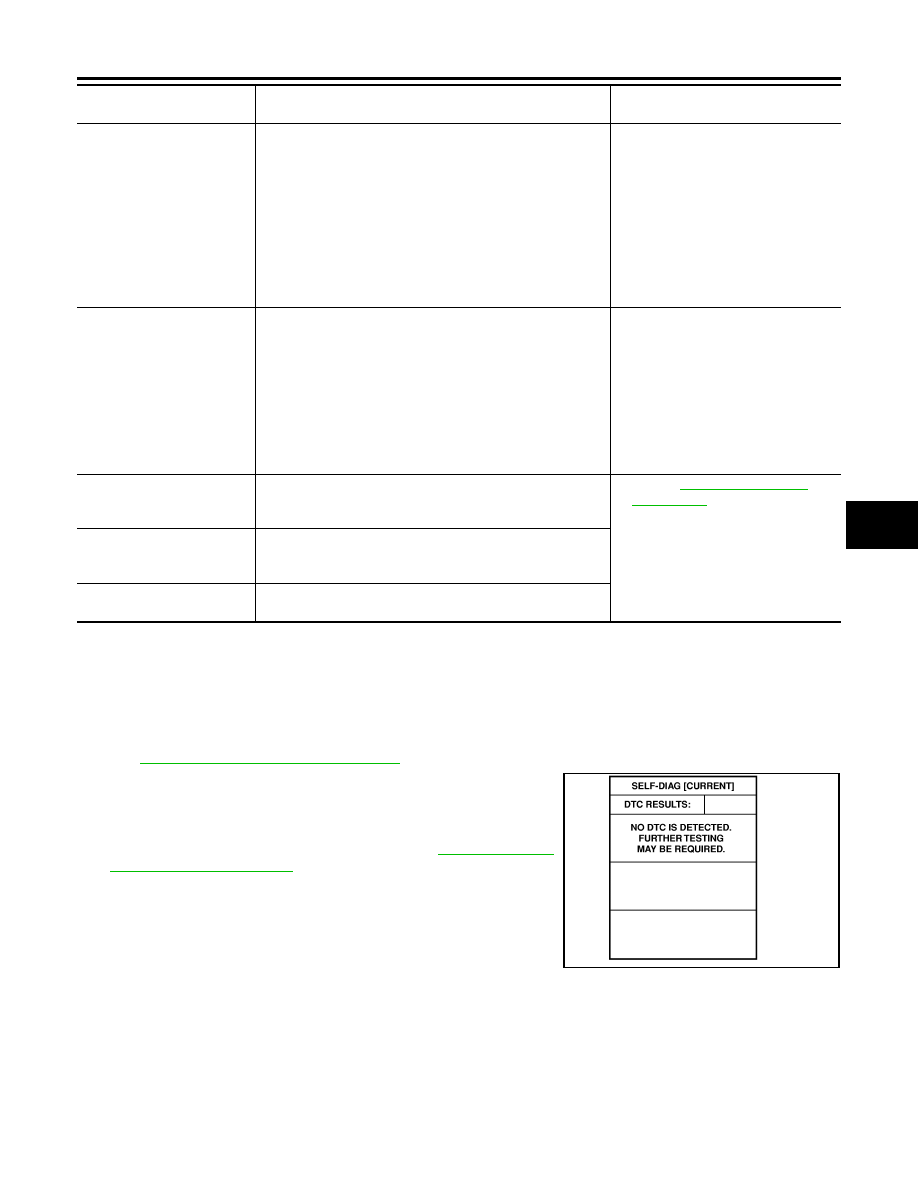

Final Check of SRS Using CONSULT-II—Diagnosis Mode

Refer to

GI-38, "CONSULT-II Start Procedure"

   .

1.

If no DTC is detected on “SELF-DIAG [CURRENT]”, repair of
SRS is completed. Go to step 2.
If any DTC is detected on “SELF-DIAG [CURRENT]”, the mal-
functioning part has not been repaired completely or another
malfunctioning part is being detected. Go to

SRS-23, "DIAG-

NOSTIC PROCEDURE 2"

   .

BELT TENSION SENS

[UNIT FAIL]

[B1019]

Belt tension sensor is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH front seat belt assem-

bly.

4. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

5. Replace the related harness.

PASS A/B INDCTR CKT

[B1023]

Front passenger air bag off indicator is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front passenger air bag off

indicator.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FRONTAL COLLISION

DETECTION

[B1209]

Driver and front passenger air bag modules are deployed.

1. Refer to

SRS-53, "COLLISION

DIAGNOSIS"

   .

SIDE COLLISION

DETECTION

[B1210]

Side or curtain air bag modules are deployed (with side air
bags only).

ROLLOVER DETECTION

[B1211]

Curtain air bag module and seat belt pre-tensioner are
deployed.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

SRS701

SRS-28

TROUBLE DIAGNOSIS

2007 Pathfinder

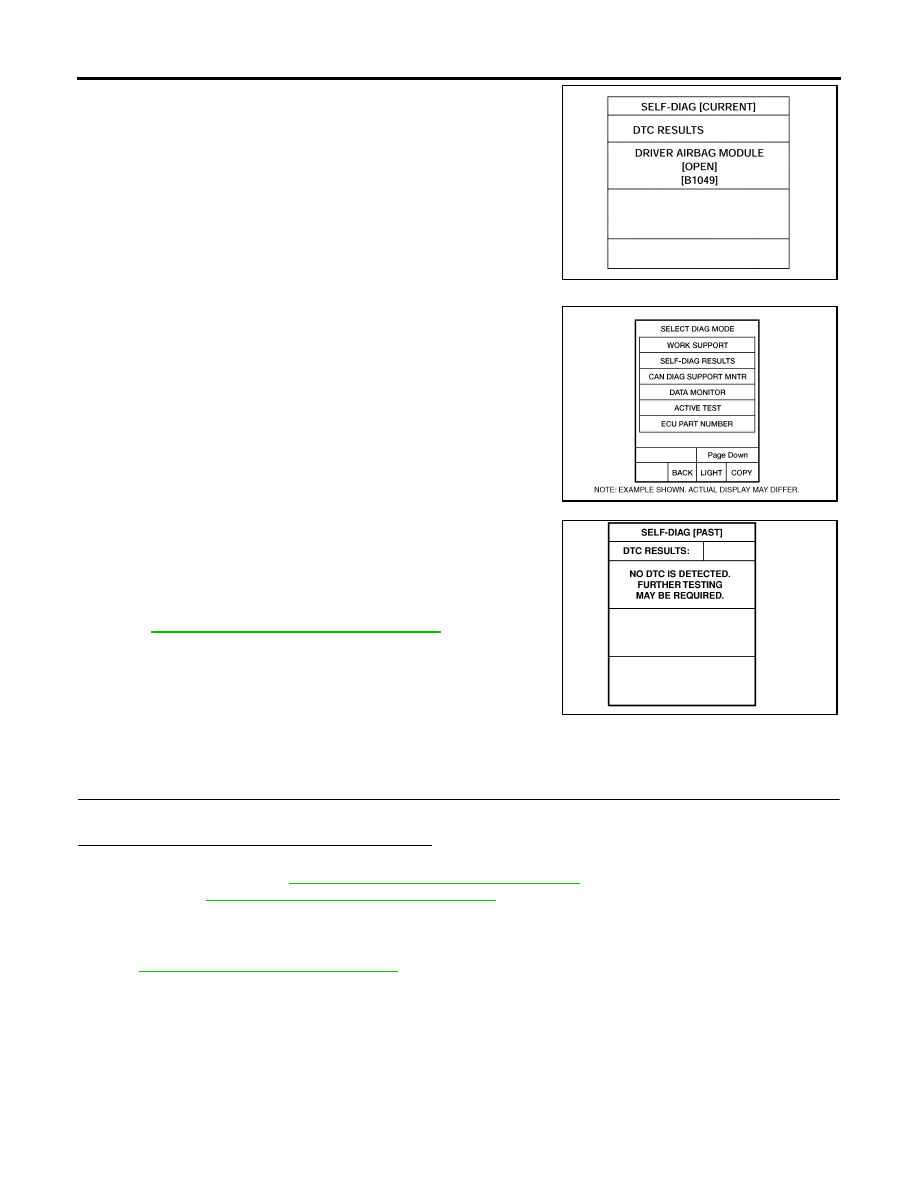

2.

Touch “ERASE”.

NOTE:
Touch “ERASE” to clear the memory of the malfunction
(“SELF-DIAG [PAST]”).
If the memory of the malfunction in “SELF-DIAG [PAST]” is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.

3.

Touch “BACK” key of CONSULT-II to “SELECT DIAG MODE”
screen. Touch “SELF-DIAG [PAST]”.

4.

Check that no malfunction is detected on “SELF-DIAG [PAST]”.

5.

Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears in order to return to User mode from Diagnosis mode.

6.

Turn ignition switch OFF then turn off and disconnect CON-
SULT-II.

7.

Go to

SRS-21, "DIAGNOSTIC PROCEDURE 1"

   .

DIAGNOSTIC PROCEDURE 4
Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.

Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Go to

SRS-27, "DIAGNOSTIC PROCEDURE 3"

   .

No

>> Go to

SRS-23, "DIAGNOSTIC PROCEDURE 2"

   .

DIAGNOSTIC PROCEDURE 5
Check SRS Intermittent Malfunction Using CONSULT-II—Diagnosis Mode

Refer to

GI-38, "CONSULT-II Start Procedure"

   .

WHIA0151E

BCIA0031E

SRS702

TROUBLE DIAGNOSIS

SRS-29

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

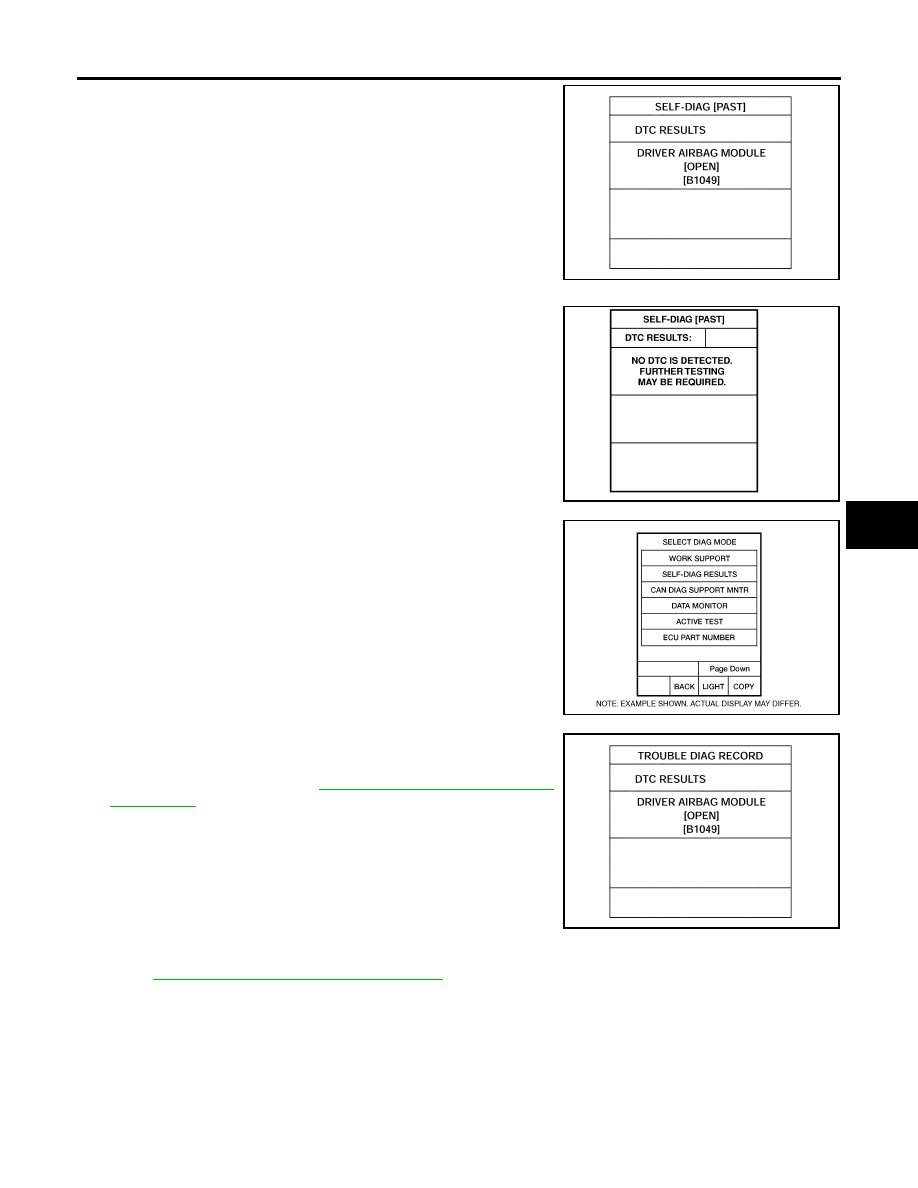

1.

If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to
step 4.

If no malfunction is detected on “SELF-DIAG [PAST]”, touch
“BACK” and go back to “SELECT DIAG MODE”.

2.

Touch “TROUBLE DIAG RECORD”.

NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previ-
ously erased by a reset operation can be displayed.

3.

Diagnostic code is displayed on “TROUBLE DIAG RECORD”.

4.

Touch “PRINT”.

5.

Compare diagnostic codes to

SRS-23, "CONSULT-II Diagnostic

Code Chart"

  .

6.

Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears.

7.

Turn ignition switch OFF, then turn off and disconnect CON-
SULT-II, and both battery cables.

8.

Repair the system as outlined by the “Repair order” in “Intermit-
tent Malfunction Diagnostic Code Chart”, that corresponds to the
self-diagnostic result. For replacement procedure of component
parts, refer to the Removal and Installation procedure for the appropriate component.

9.

Go to

SRS-27, "DIAGNOSTIC PROCEDURE 3"

   , for final checking.

WHIA0152E

SRS702

BCIA0031E

WHIA0153E

SRS-30

TROUBLE DIAGNOSIS

2007 Pathfinder

Trouble Diagnosis Without CONSULT-II

EHS001M3

DIAGNOSTIC PROCEDURE 6

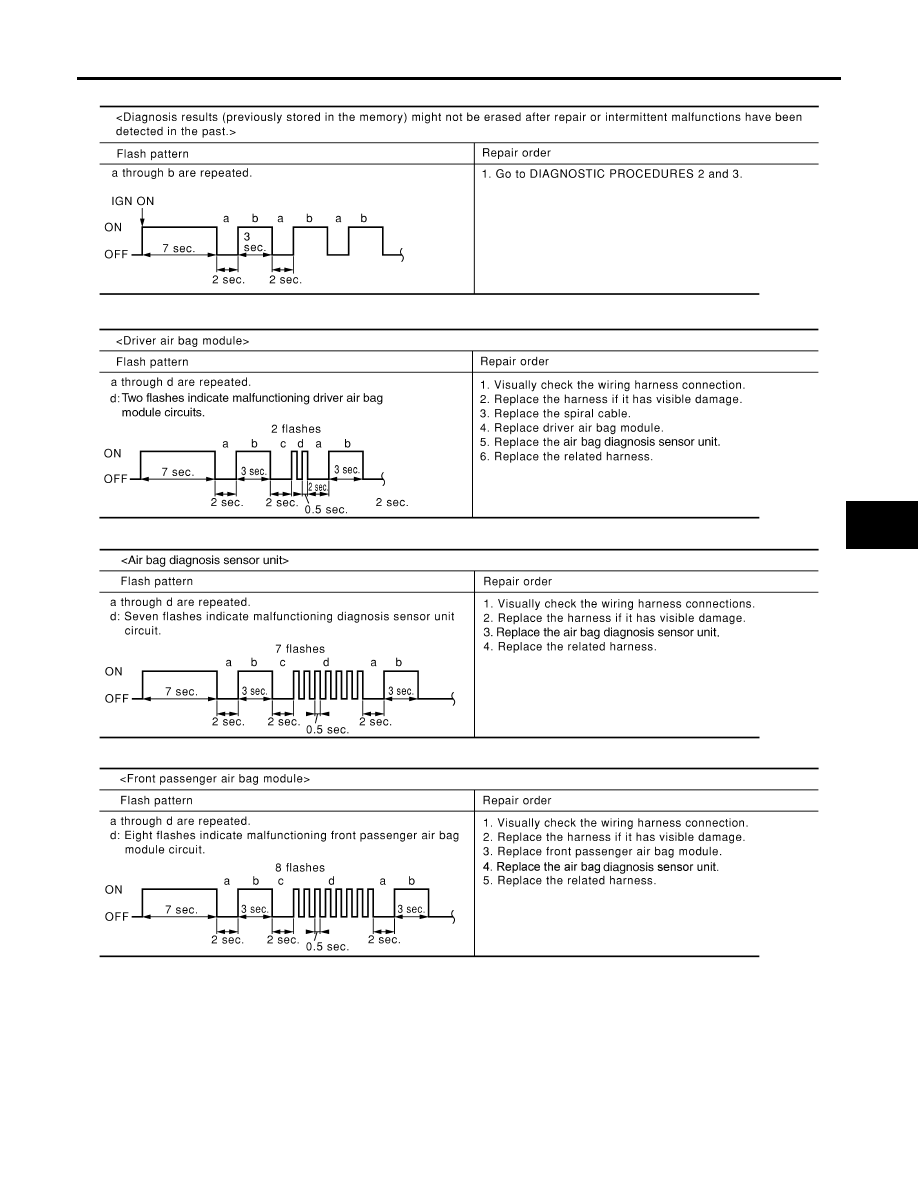

Inspect SRS Malfunction Using "AIR BAG" Warning Lamp—Diagnosis Mode

NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.

1.

Turn ignition switch ON.

2.

After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

3.

Wait more than 3 seconds.

4.

Repeat steps 1 to 3 two more times (3 times total).

5.

Turn ignition switch ON.

SRS is now in Diagnosis mode.
"AIR BAG" warning lamp operates in Diagnosis mode as follows:

TROUBLE DIAGNOSIS

SRS-31

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2007 Pathfinder

WARNING LAMP FLASH CODE CHART

SHIA0026E

WHIA0260E

WHIA0198E

WHIA0261E

SRS-32

TROUBLE DIAGNOSIS

2007 Pathfinder

WHIA0200E

WHIA0262E

WHIA0263E

WHIA0203E















Content      ..     384      385      386      387     ..
