SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Alignment

EES0023P

Camber
Degree minute (decimal degree)

Minimum

- 0

°

 32

′

 (- 0.53

°

)

Nominal

- 0

°

 2

′

 (- 0.03

°

)

Maximum

0

°

 28

′

 (0.47

°

)

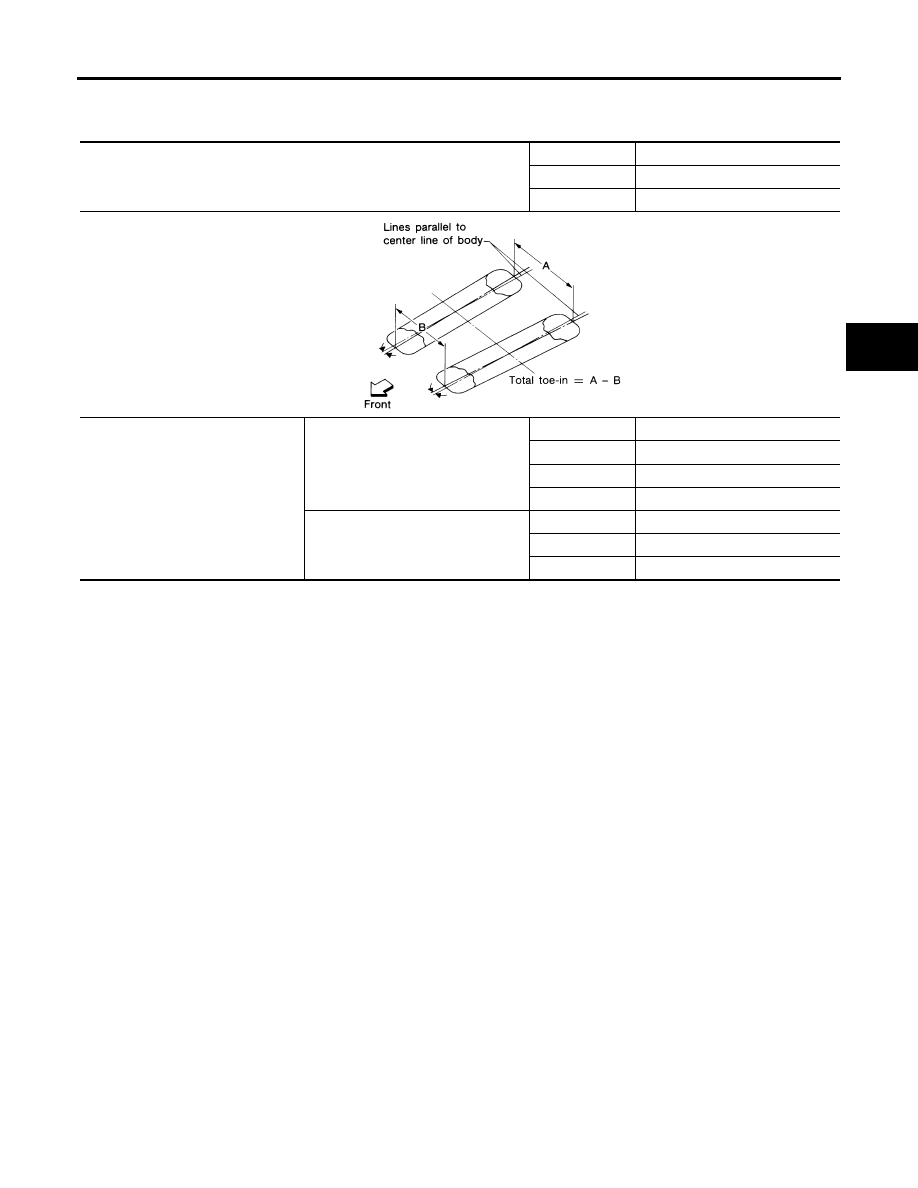

Total toe-in

Distance (A - B)

Minimum

- 1.4 mm (- 0.055 in)

Nominal

1.9 mm (0.075 in)

Maximum

5.2 mm (0.205 in)

Cross toe

0

±

 2 mm (0

±

 0.079 in)

Angle (left, right)
Degree minute (decimal degree)

Minimum

- 0

°

 3' (-0.05

°

)

Nominal

0

°

 4' (0.07

°

)

Maximum

0

°

 11' (0.18

°

)

SFA234AC

RSU-22

SERVICE DATA AND SPECIFICATIONS (SDS)

2007 Pathfinder

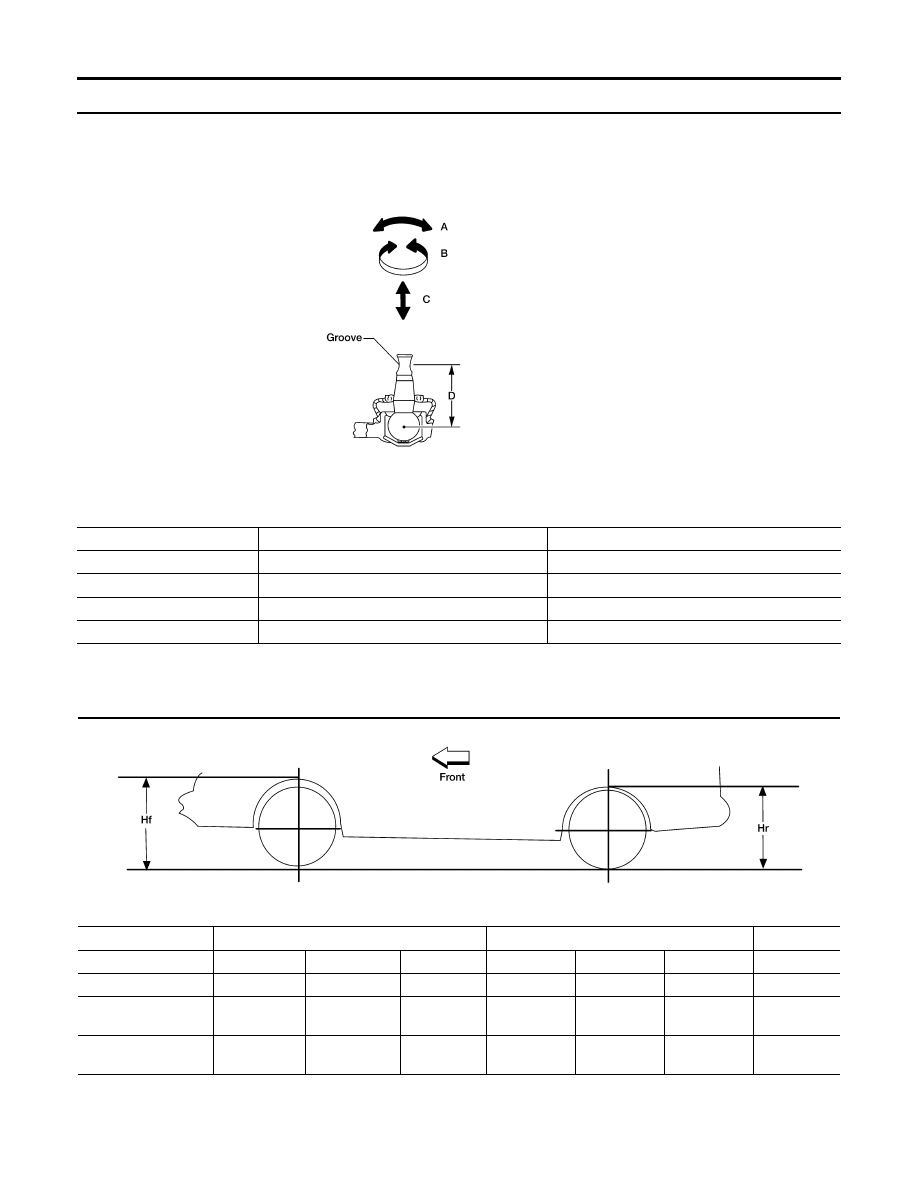

Ball Joint

EES0023Q

*: Measurement point is at the bolt groove of the ball stud.

Wheelarch Height (Unladen* )

EES0023R

Unit: mm (in)

*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Ball joint position

Upper

Lower

Swinging force* “A”

11.4 - 145.5 N (1.16 - 14.8 kg, 2.56 - 32.7 lb)

11.0 - 140.7 N (1.12 - 14.35 kg, 2.47 - 31.63 lb)

Turning torque “B”

0.5 - 6.4 N·m (0.06 - 0.65 kg-m, 5 - 56 in-lb)

0.5 - 6.4 N·m (0.06 - 0.65 kg-m, 5 - 56 in-lb)

Vertical end play “C”

0 mm (0 in)

0 mm (0 in)

Height “D”

44 mm (1.73 in)

45.5 mm (1.79 in)

WEIA0131E

Drive type

4X2

Part time 4X4

Full time 4X4

Applied model

XE

SE

LE

XE

SE

SE-OR

LE

Tire size

245/75R16

265/70R16

265/65R17

245/75R16

265/70R16

265/75R16

265/65R17

Front wheelarch
height (Hf)

866

(34.09)

867

(34.13)

868

(34.17)

874

(34.41)

876

(34.49)

888

(34.96)

878

(34.57)

Rear wheelarch
height (Hr)

875

(34.45)

876

(34.49)

877

(34.53)

885

(34.84)

886

(34.88)

898

(35.35)

887

(34.92)

LEIA0085E

SB-1

SEAT BELTS

H  RESTRAINTS

CONTENTS

C

D

E

F

G

I

J

K

L

M

SECTION

SB

A

B

SB

2007 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Seat Belt Service  ............................ 2

AFTER A COLLISION  ........................................... 2

SEAT BELTS  .............................................................. 3

Removal and Installation of Front Seat Belt  ............. 3

REMOVAL OF SEAT BELT RETRACTOR ............ 5
INSTALLATION OF SEAT BELT RETRACTOR ..... 5
REMOVAL OF SEAT BELT BUCKLE .................... 5
INSTALLATION OF SEAT BELT BUCKLE  ............ 5

Removal and Installation of Rear Seat Belt  ............. 6

REMOVAL OF SEAT BELT RETRACTOR - OUT-
BOARD ................................................................. 7
INSTALLATION OF SEAT BELT RETRACTOR -
OUTBOARD .......................................................... 7
REMOVAL OF SEAT BELT BUCKLE .................... 7
INSTALLATION OF SEAT BELT BUCKLE  ............ 7
REMOVAL OF SEAT BELT RETRACTOR - CEN-

TER SEAT  ............................................................. 7
INSTALLATION OF SEAT BELT RETRACTOR -
CENTER SEAT ...................................................... 7

Removal and Installation of Third Row Seat Belt ..... 8

REMOVAL OF SEAT BELT RETRACTOR AND
BUCKLE ................................................................ 8
INSTALLATION OF SEAT BELT RETRACTOR
AND BUCKLE  ....................................................... 9

Seat Belt Inspection ................................................ 10

AFTER A COLLISION  ......................................... 10
PRELIMINARY CHECKS  .................................... 10
SEAT BELT RETRACTOR ON-VEHICLE
CHECK ................................................................ 11
SEAT BELT RETRACTOR OFF-VEHICLE
CHECK ................................................................ 11

LATCH (LOWER ANCHORS AND TETHER FOR
CHILDREN) SYSTEM  ............................................... 13

Removal and Installation  ........................................ 13

TOP TETHER STRAP CHILD RESTRAINT  ............. 14

Removal and Installation  ........................................ 14

SB-2

PRECAUTIONS

2007 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EHS001LA

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Seat Belt Service

EHS001LB

CAUTION:

●

Before removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect
both battery cables and wait at least 3 minutes.

●

After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner assembly connector, ensure entire SRS operates properly. Refer to

SRS-21, "SRS Opera-

tion Check"

 .

●

Do not disassemble buckle or seat belt assembly.

●

Do not reuse seat belt anchor bolts after removal. Replace with new ones.

●

Replace anchor bolts if they are deformed or worn out.

●

Never oil tongue and buckle.

●

If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.

●

If webbing is cut, frayed, or damaged, replace seat belt assembly.

●

When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.

AFTER A COLLISION

WARNING:

●

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.

●

NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the
collision was minor and the belts show no damage and continue to operate properly. Failure to do
so could result in serious personal injury in an accident. Seat belt assemblies not in use during a
collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioner should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.

Replace any seat belt assembly (including anchor bolts) if:

●

The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).

●

The seat belt was damaged in an accident. (i.e., torn webbing, bent retractor or guide, etc.)

●

The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.

●

Anchor bolts are deformed or worn out.

●

The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.

SEAT BELTS

SB-3

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

SEAT BELTS

PFP:86884

Removal and Installation of Front Seat Belt

EHS001LC

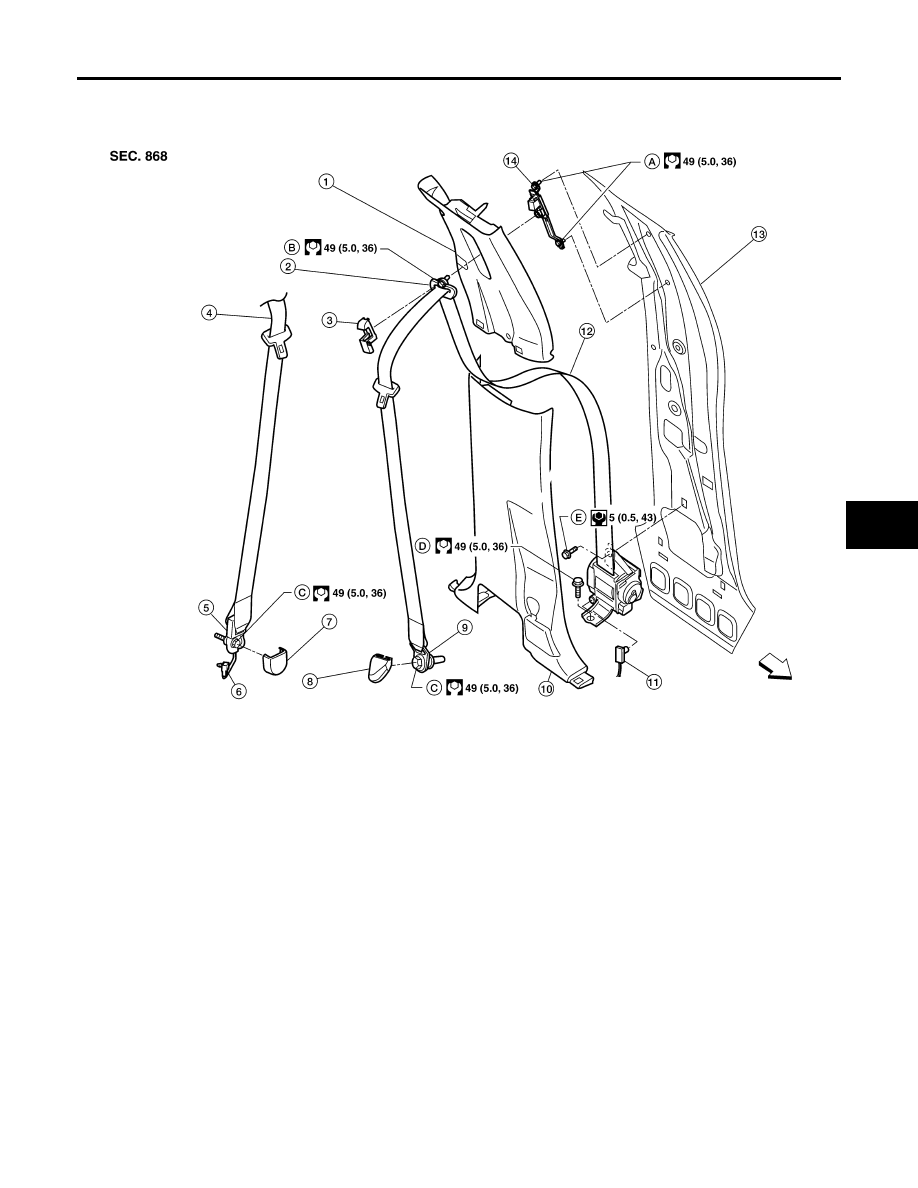

1.

Center pillar upper finisher

2.

 D-ring anchor

3.

 D-ring anchor bolt cover

4.

Seat belt retractor and belt assem-
bly RH

5.

Seat belt lower anchor RH
(seat belt tension sensor)

6.

Seat belt tension sensor connector

7.

Anchor cover RH

8.

Anchor cover LH

9.

Seat belt lower anchor LH

WHIA0344E

SB-4

SEAT BELTS

2007 Pathfinder

10. Center pillar lower finisher

11. Seat belt pre-tensioner

connector

12. Seat belt retractor and belt assembly LH

13. Center pillar

14. Seat belt height adjuster

A.

Height adjuster anchor bolt

B.

D-ring anchor bolt

C.

Seat belt lower anchor
bolt

D.

Retractor anchor bolt

E.

Retractor bolt upper

⇐

Vehicle front

SEAT BELTS

SB-5

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

REMOVAL OF SEAT BELT RETRACTOR

CAUTION:

●

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

1.

Remove the center pillar upper/lower finishers. Refer to

EI-28, "BODY SIDE TRIM"

 .

2.

Remove the retractor anchor bolt, retractor bolt upper, then remove the retractor and belt assembly.

●

On RH side, disconnect the seat belt tension sensor.

3.

Disconnect the seat belt pre-tensioner electrical connector.

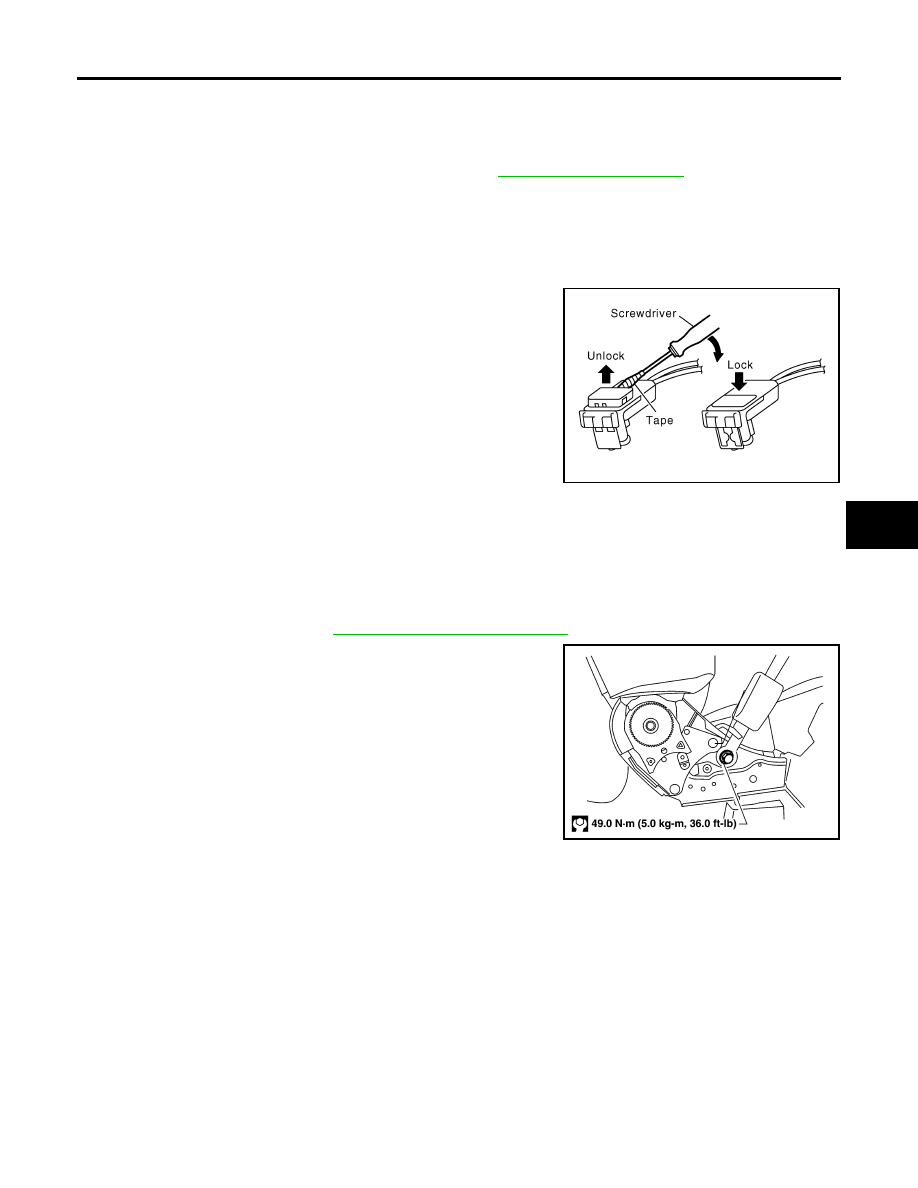

CAUTION:

●

For installing/removing seat belt pre-tensioner connector,
insert a thin screwdriver wrapped in tape into the notch, lift
the lock and remove the connector.

●

Install the connector with the lock raised, and push the lock
into the connector.

INSTALLATION OF SEAT BELT RETRACTOR

 Installation is in the reverse order of removal.

●

Install the seat belt retractor upper bolt first.

●

Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1.

Remove the front seat. Refer to

SE-91, "Removal and Installation"

 .

2.

Remove screw and seat cushion inner finisher.

3.

Remove the anchor bolt and buckle.

4.

Disconnect the buckle switch connector from the seat connector.

INSTALLATION OF SEAT BELT BUCKLE

 Installation is in the reverse order of removal.

PHIA0341E

WHIA0128E

SB-6

SEAT BELTS

2007 Pathfinder

Removal and Installation of Rear Seat Belt

EHS001LD

Second Row

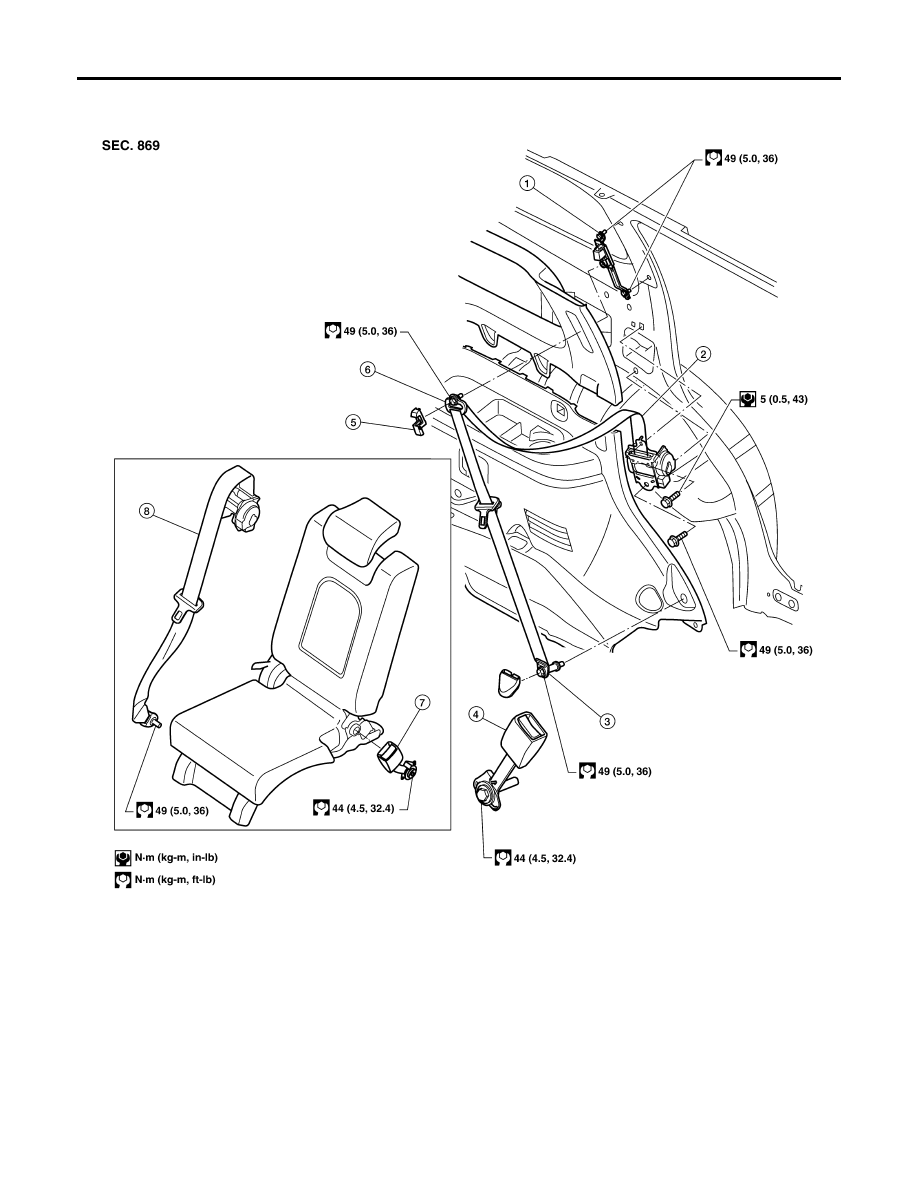

LHIA0082E

1.

Seat belt height adjuster

2.

Seat belt retractor and belt assembly
(Outboard)

3.

Seat belt lower anchor

4.

Seat belt buckle (Outboard)

5.

D-ring anchor bolt cover

6.

D-ring anchor

7.

Seat belt buckle (Center)

8.

Seat belt retractor and belt assembly
(Center)
