Nissan Pathfinder (2007 year). Manual - part 365





SEAT BELTS

SB-7

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

REMOVAL OF SEAT BELT RETRACTOR - OUTBOARD

1.

Remove seat belt lower anchor cover and bolt.

2.

Remove the D-ring anchor bolt cover and D-ring anchor bolt.

3.

Remove the upper and lower luggage area trim. Refer to

EI-28, "BODY SIDE TRIM"

 .

4.

Remove seat belt retractor anchor bolt and the seat belt assembly.

5.

Remove the seat belt height adjuster assembly.

INSTALLATION OF SEAT BELT RETRACTOR - OUTBOARD

 Installation is in the reverse order of removal.

Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1.

Remove the rear center seat. Refer to

SE-95, "Second Row

Center"

 .

2.

Remove the screw and seat cushion inner finisher. Refer to

SE-

95, "Removal and Installation"

 .

3.

Remove the anchor bolt and buckle.

4.

Remove the rear outboard seat. Refer to

SE-95, "Second Row Outboard"

 .

5.

Remove the seat cushion finisher.

6.

Remove the anchor bolt and buckle.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

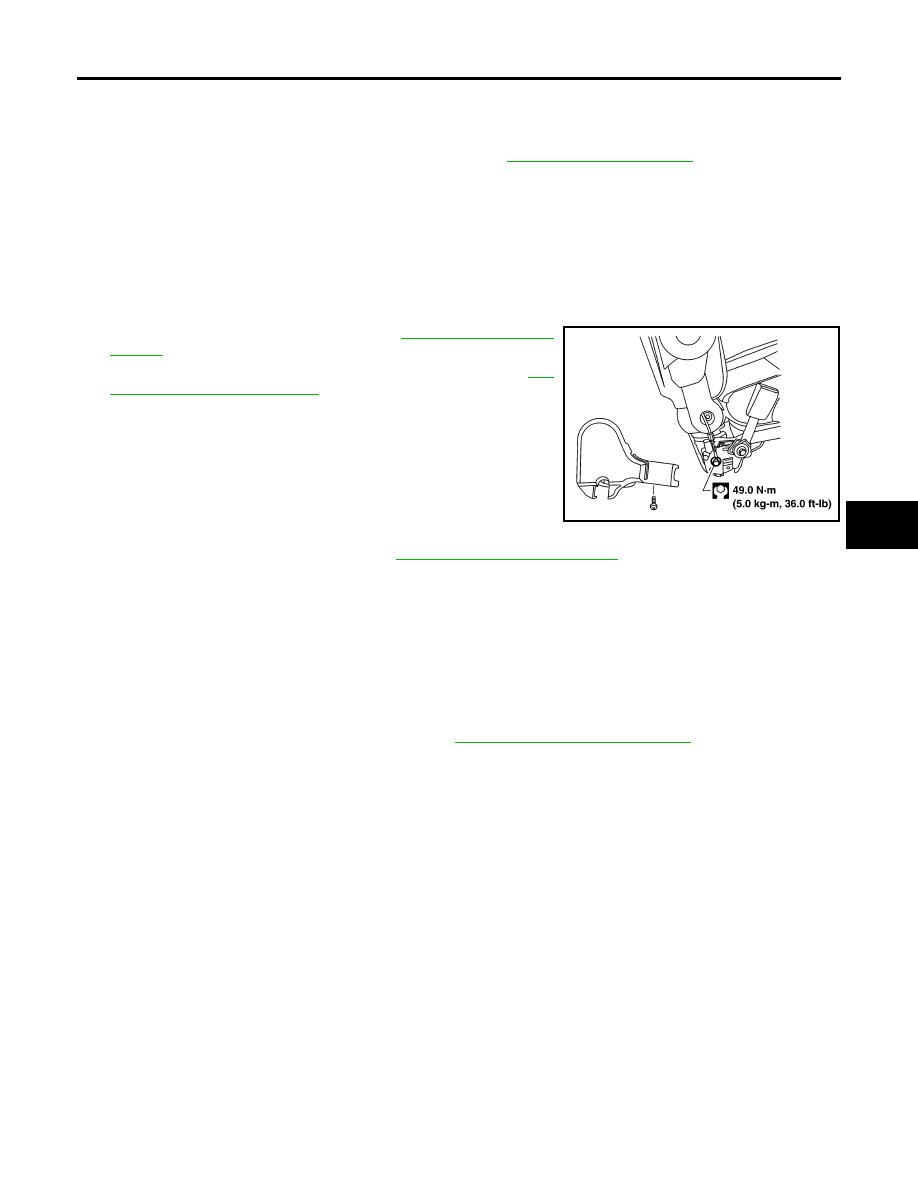

REMOVAL OF SEAT BELT RETRACTOR - CENTER SEAT

1.

Remove seat belt anchor.

2.

Remove seat belt bezel.

3.

Remove seat back upholstery and foam. Refer to

SE-95, "Removal and Installation"

 .

4.

Remove seat belt retractor cover.

5.

Remove bolt and remove seat belt retractor and seat belt assembly.

INSTALLATION OF SEAT BELT RETRACTOR - CENTER SEAT

Installation is in the reverse order of removal.

WHIA0130E

SB-8

SEAT BELTS

2007 Pathfinder

Removal and Installation of Third Row Seat Belt

EHS001LE

Third Row

REMOVAL OF SEAT BELT RETRACTOR AND BUCKLE

1.

Remove the D-ring anchor bolt cover and D-ring anchor bolt.

2.

Remove the lower anchor bolt cover and lower anchor bolt.

3.

Remove the upper and lower luggage side finishers. Refer to

EI-33, "LUGGAGE FLOOR TRIM"

 .

4.

Remove the seat belt retractor anchor bolt and retractor and belt assembly.

5.

Remove bolt from seat belt anchor base and remove seat belt buckles.

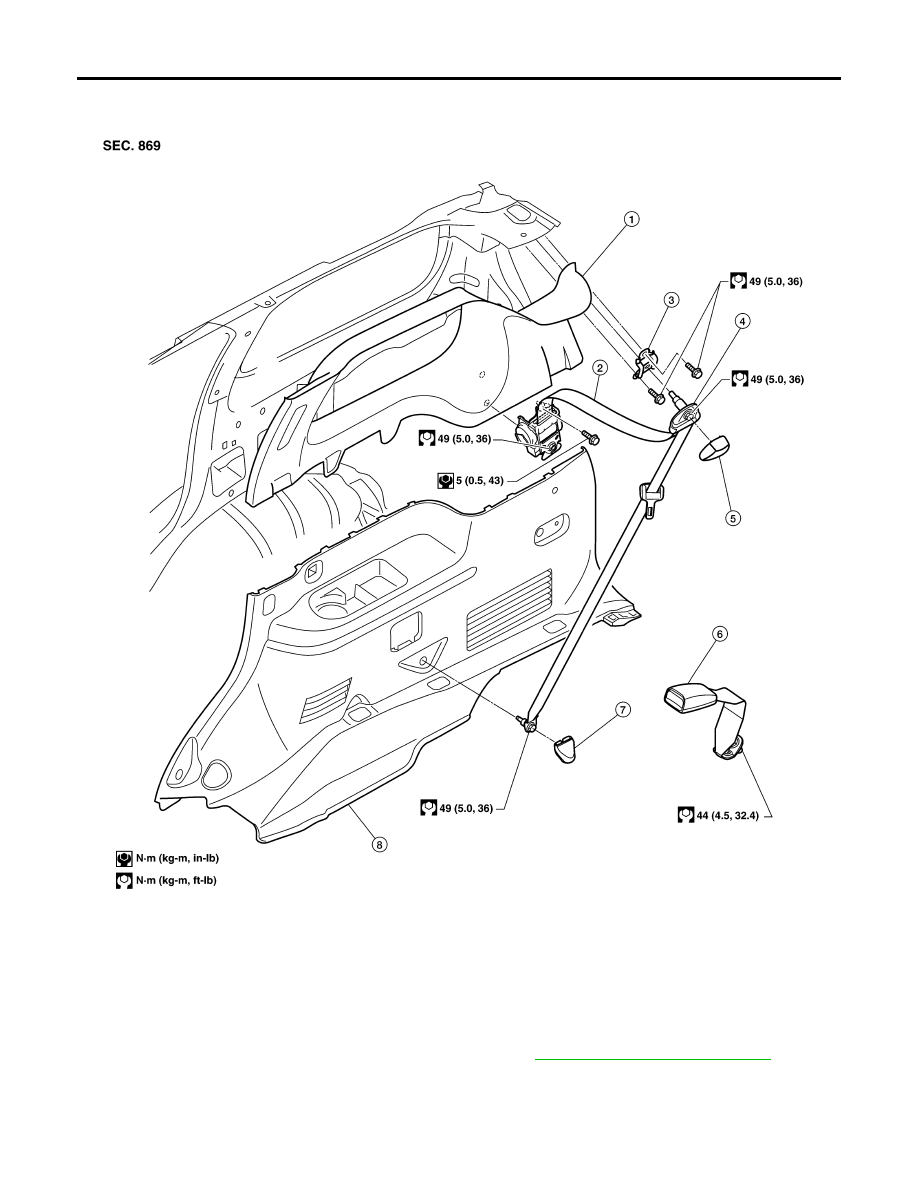

LHIA0083E

1.

Luggage side upper finisher RH

2.

Seat belt retractor and belt assembly

3.

Seat belt anchor

4.

D-ring anchor

5.

D-ring anchor bolt cover

6.

Seat belt buckle

7.

Lower anchor bolt cover

8.

Luggage side lower finisher RH

SEAT BELTS

SB-9

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

INSTALLATION OF SEAT BELT RETRACTOR AND BUCKLE

Installation is in the reverse order of removal.

NOTE:
Seat belt anchor base should be flat to the floor during installation and not on the anti-rotation bead.

SB-10

SEAT BELTS

2007 Pathfinder

Seat Belt Inspection

EHS001LF

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioners
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:

The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).

The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).

The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.

Anchor bolts are deformed or worn out.

The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Switch ignition ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime should
sound for about seven seconds.

b.

Fasten driver's seat belt. The seat belt warning lamp should go out and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-II, and air bag warning
lamp. Refer to

SRS-21, "SRS Operation Check"

 .

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Ensure guide swivels
freely and that belt lays flat and does not bind in guide. Ensure height adjuster operates properly and
holds securely.

5.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Ensure that belt returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth, because dirt built
up in the loops of the upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the belt does
not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE SET”
and perform the following steps.

Inspect the front seat belt through-anchor:

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Use a clip or other device to hold the seat belt at the center pillar belt opening.

3. Pass a thin wire through the through-anchor belt opening. Hold both ends of the wire and pull taut while

moving it up and down several times along the belt opening surface to remove dirt.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean

cloth.

5. Apply tape at the point where the belt contacts the through-anchor belt opening.

NOTE:
Apply the tape so that there is no looseness or wrinkling.

6. Remove the clip holding the seat belt and check that the belt returns smoothly.

7. Repeat steps above as necessary to check the other seat belts.

SEAT BELTS

SB-11

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

SEAT BELT RETRACTOR ON-VEHICLE CHECK
Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are of the Emergency Locking Retractors (ELR) type. In an emergency (sudden stop)
the retractor will lock and prevent the belt from extending any further. All 3-point type seat belt retractors
except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the belt is then retracted partially, the ALR mode automatically locks the seat belt in a
specific position so the belt cannot be extended any further. To cancel the ALR mode, allow the seat belt to
fully wind back into the retractor.
Check the seat belt retractors using the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder belt and pull forward quickly. The retractor should lock and prevent the belt from extending
further.

ALR Function Stationary Check

1.

Pull out entire length of seat belt from retractor until a click is heard.

2.

Retract the belt partially. A clicking noise should be heard as the belt retracts indicating that the retractor is
in the Automatic Locking Retractor (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The belt must lock and not extend any further. If neces-
sary replace the retractor assembly.

4.

Allow the entire length of the belt to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. DO NOT perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event the
retractor does not lock.

1.

Fasten drivers seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop.
The driver and passenger must be prepared to brace themselves in the event the retractor does not lock.
Apply brakes firmly and make a very hard stop.

During stop, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, per-
form the retractor off-vehicle check.

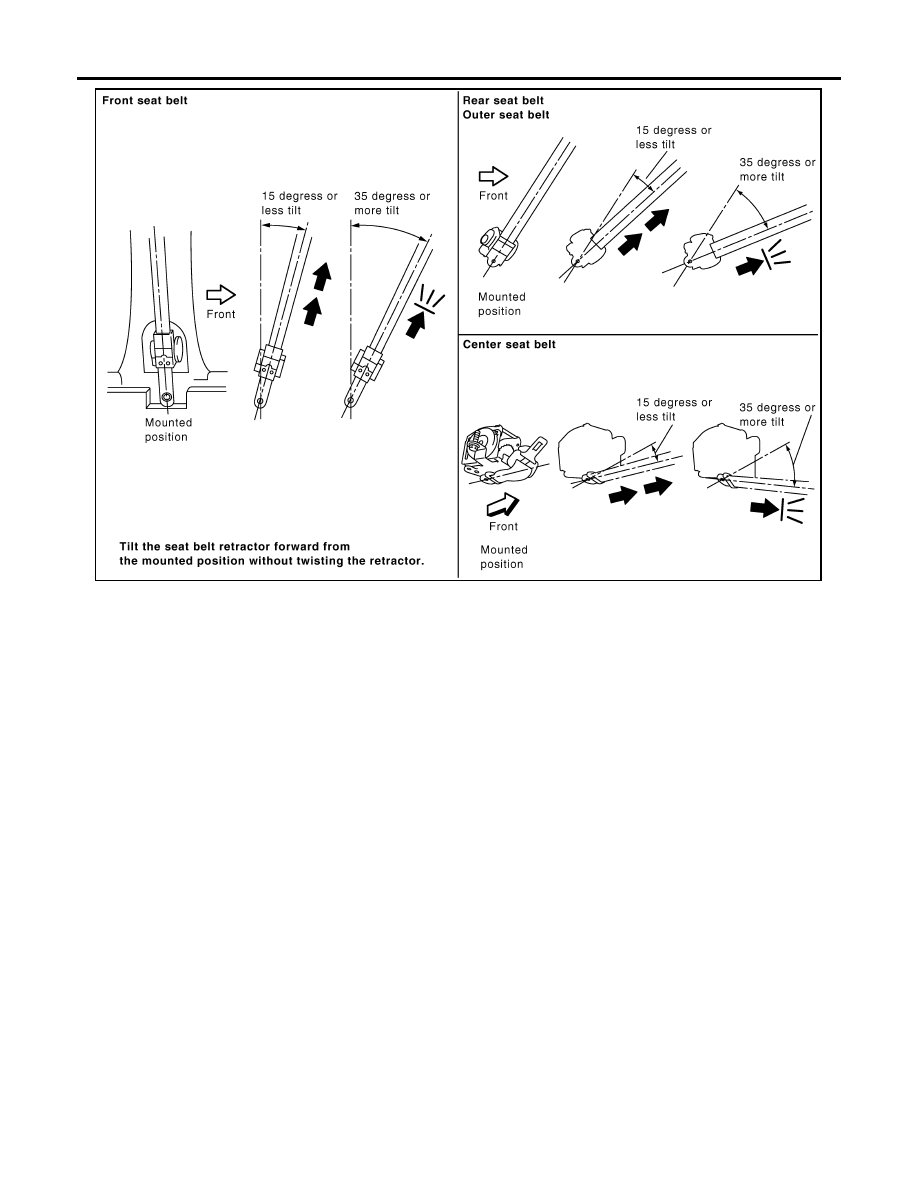

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the seat belt retractor assembly.

2.

Slowly pull out belt while tilting the retractor assembly forward from the mounted position without twisting
the retractor assembly as shown in the illustration.

SB-12

SEAT BELTS

2007 Pathfinder

If NG, replace the retractor assembly.

15 degrees or less tilt

: Belt can be pulled out.

35 degrees or more tilt

: Belt locks and cannot be pulled out.

PHIA0257E

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

SB-13

C

D

E

F

G

I

J

K

L

M

A

B

SB

2007 Pathfinder

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

PFP:75466

Removal and Installation

EHS001LG

NOTE:
The LATCH (Lower Anchors and Tether for Children) system is not serviceable.

SB-14

TOP TETHER STRAP CHILD RESTRAINT

2007 Pathfinder

TOP TETHER STRAP CHILD RESTRAINT

PFP:88000

Removal and Installation

EHS001LH

NOTE:
The Top Tether Strap Child Restraint system is not serviceable.
