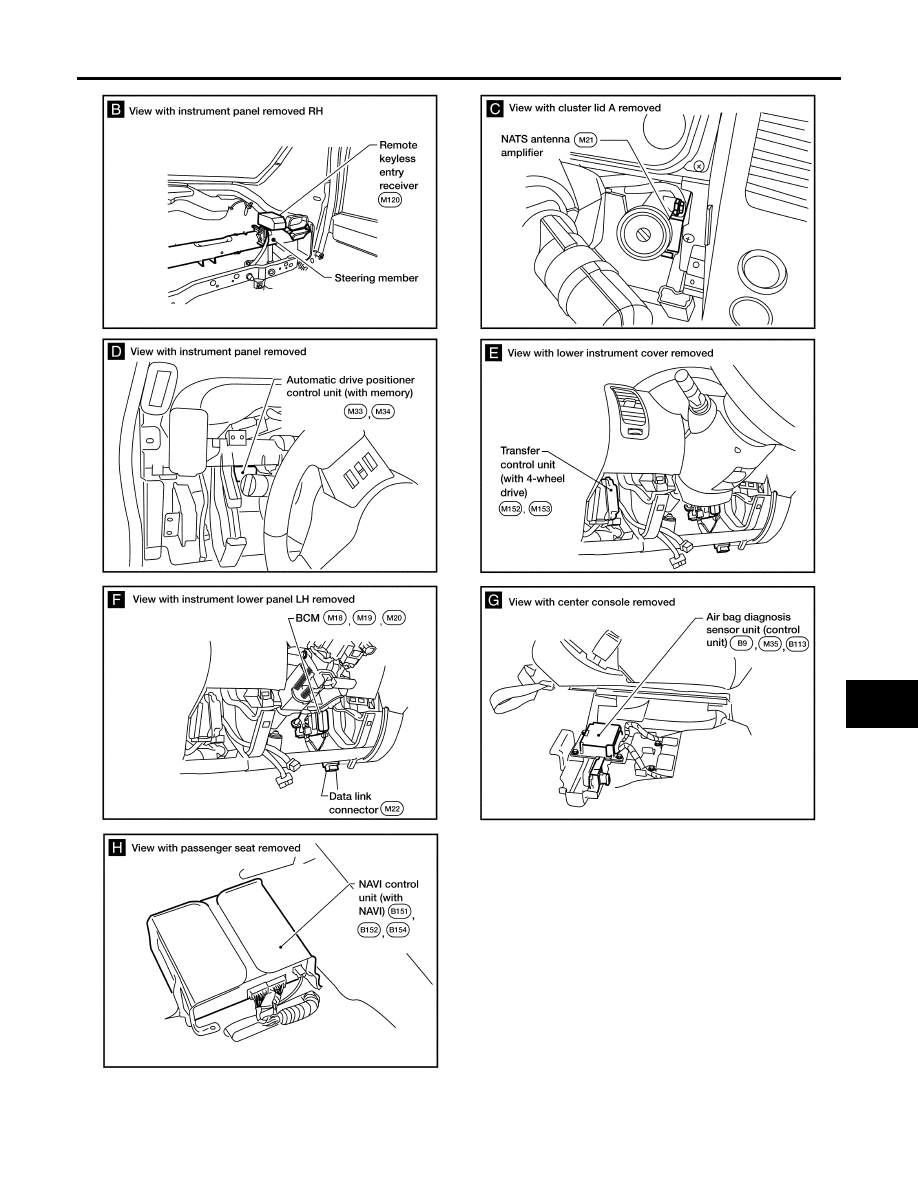

ELECTRICAL UNITS LOCATION

PG-75

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

WKIA5025E

PG-76

HARNESS CONNECTOR

2007 Pathfinder

HARNESS CONNECTOR

PFP:B4341

Description

EKS00G8V

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

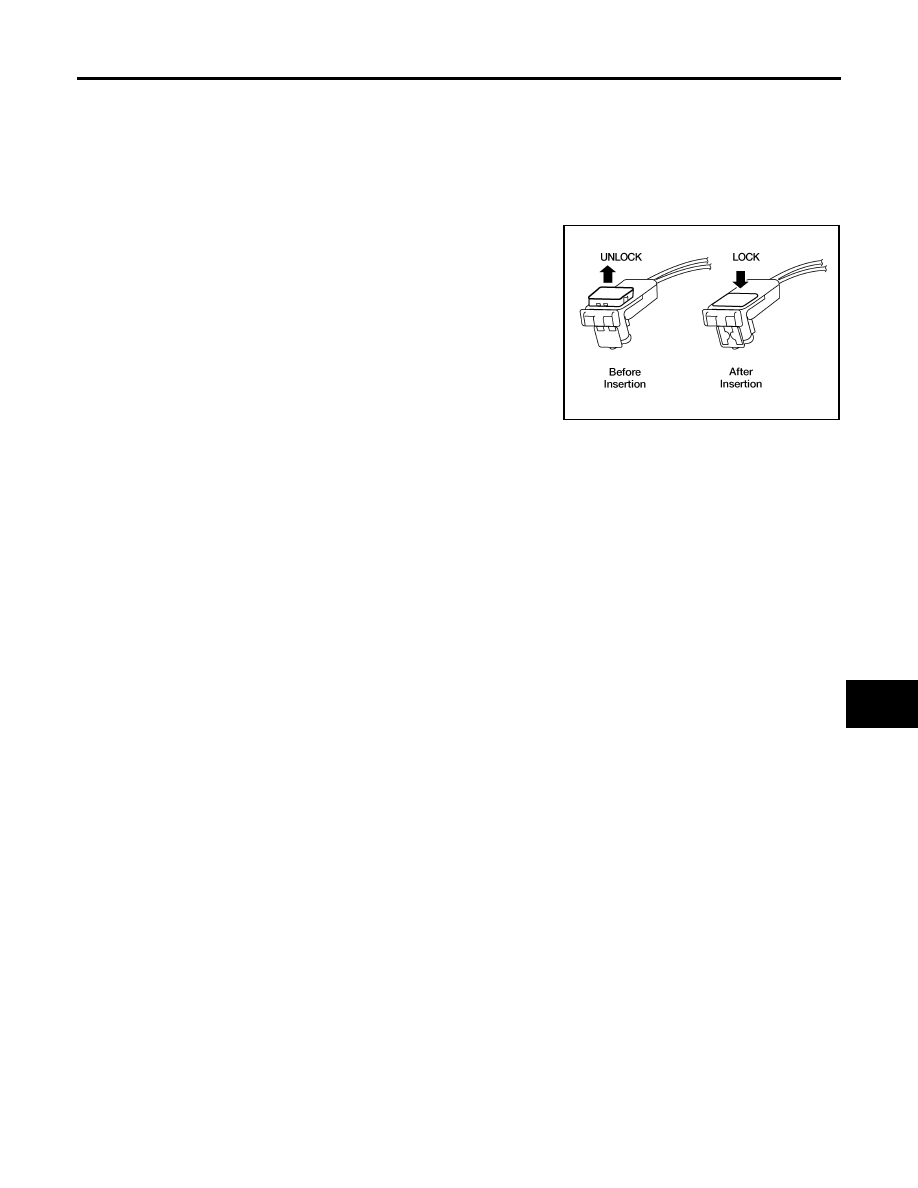

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

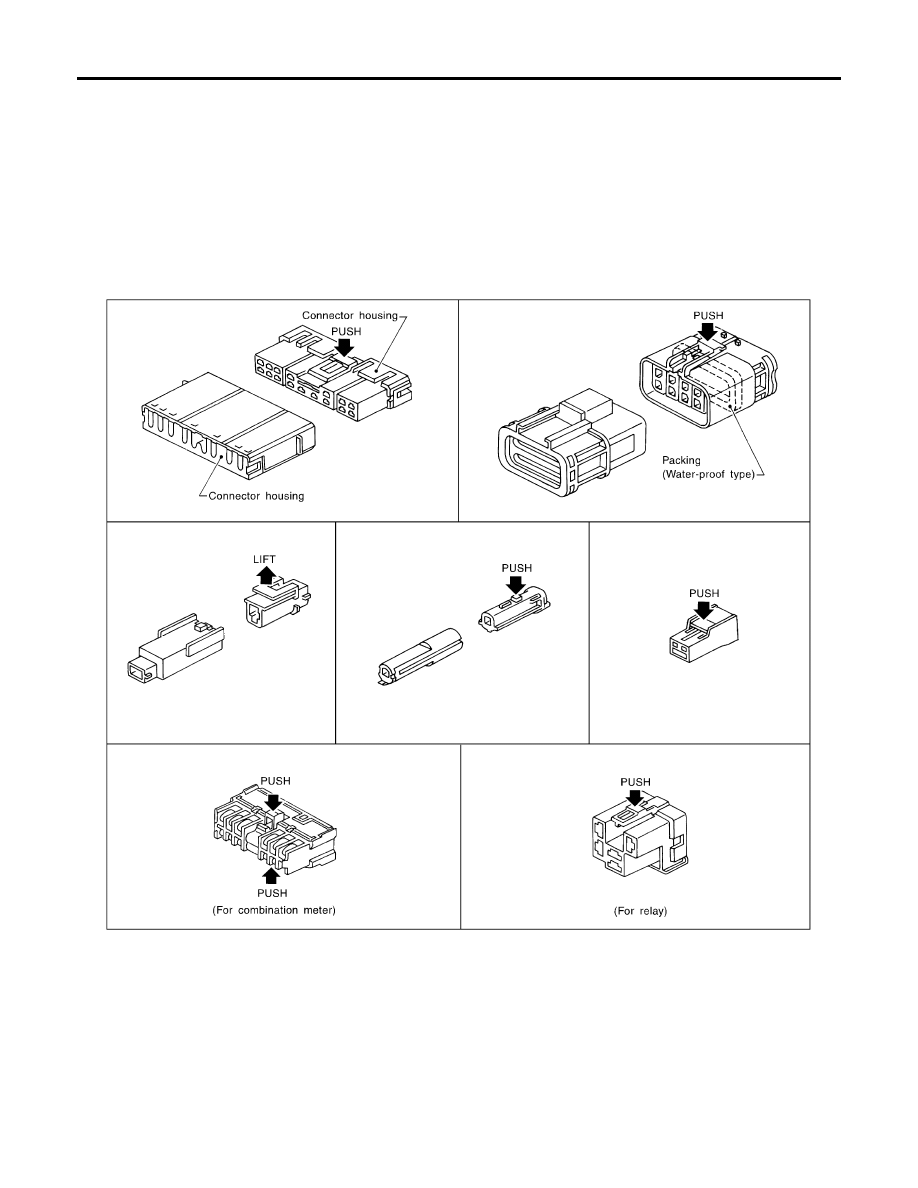

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.
[Example]

SEL769DA

HARNESS CONNECTOR

PG-77

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

●

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

●

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

●

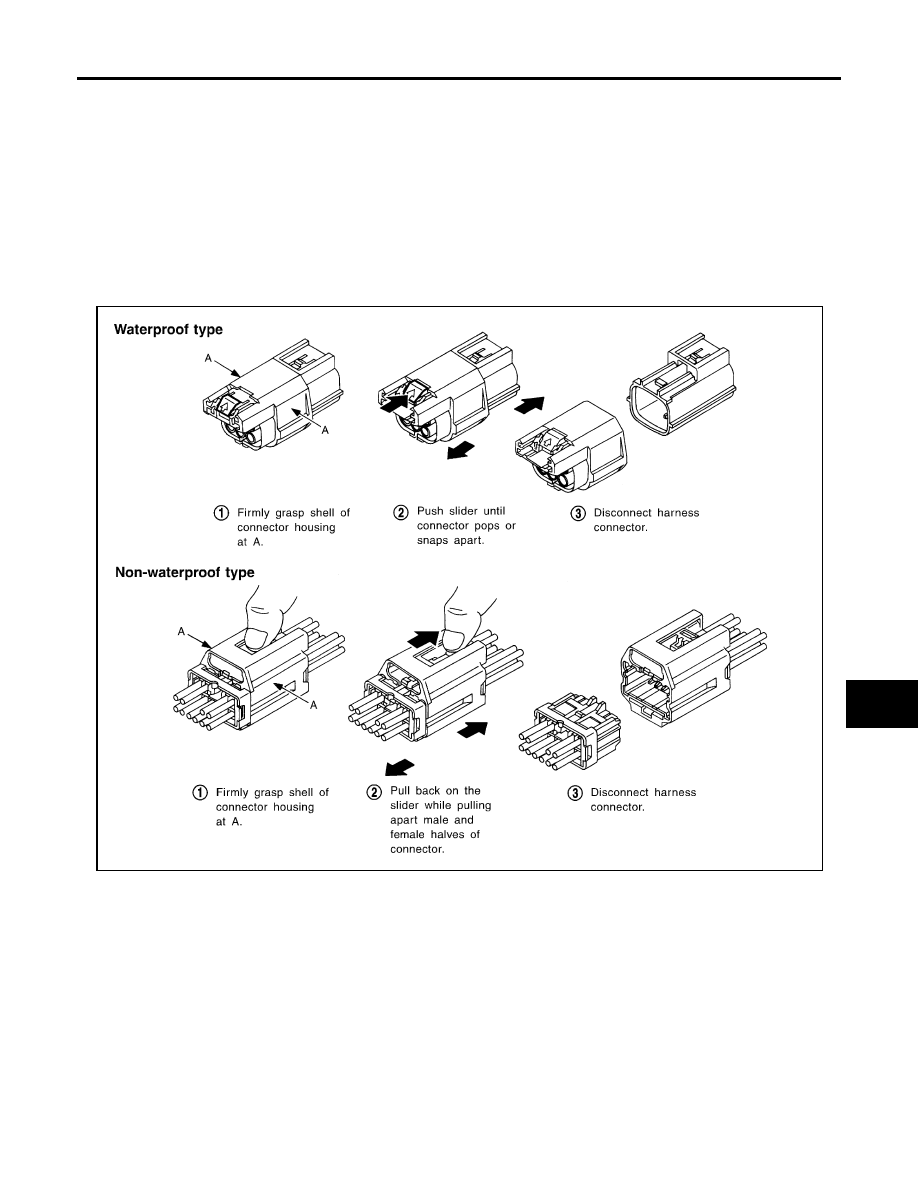

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.

CAUTION:

●

Do not pull the harness or wires when disconnecting the connector.

●

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

AEL299C

PG-78

HARNESS CONNECTOR

2007 Pathfinder

HARNESS CONNECTOR (LEVER LOCKING TYPE)

●

Lever locking type harness connectors are used on certain control units and control modules such as
ECM, ABS actuator and electric unit (control unit), etc.

●

Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.

●

Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full con-
nection.

CAUTION:

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

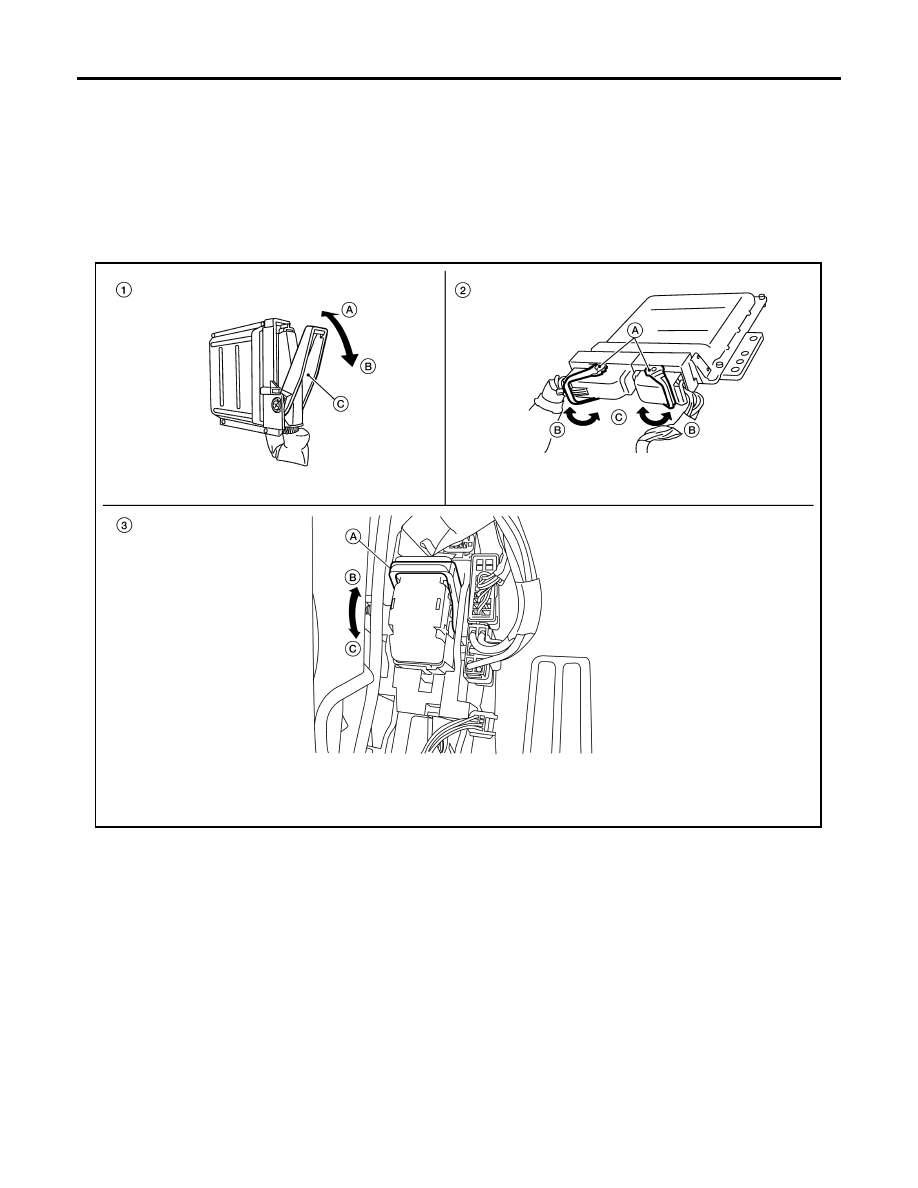

LKIA0670E

1.

Control unit with single lever
A. Fasten
B. Loosen
C. Lever

2.

Control unit with dual levers
A. Levers
B. Fasten
C. Loosen

3.

SMJ connector
A. Lever
B. Fasten
C. Loosen

HARNESS CONNECTOR

PG-79

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

●

SRS direct-connect type harness connectors are used on certain SRS components such as air bag mod-
ules and seat belt pre-tensioners.

●

Always pull up to release black locking tab prior to removing connector from SRS component.

●

Always push down to lock black locking tab after installing connector to SRS component. When locked,
the black locking tab is level with the connector housing.

CAUTION:

●

Do not pull the harness or wires when removing connectors
from SRS components.

WHIA0103E

PG-80

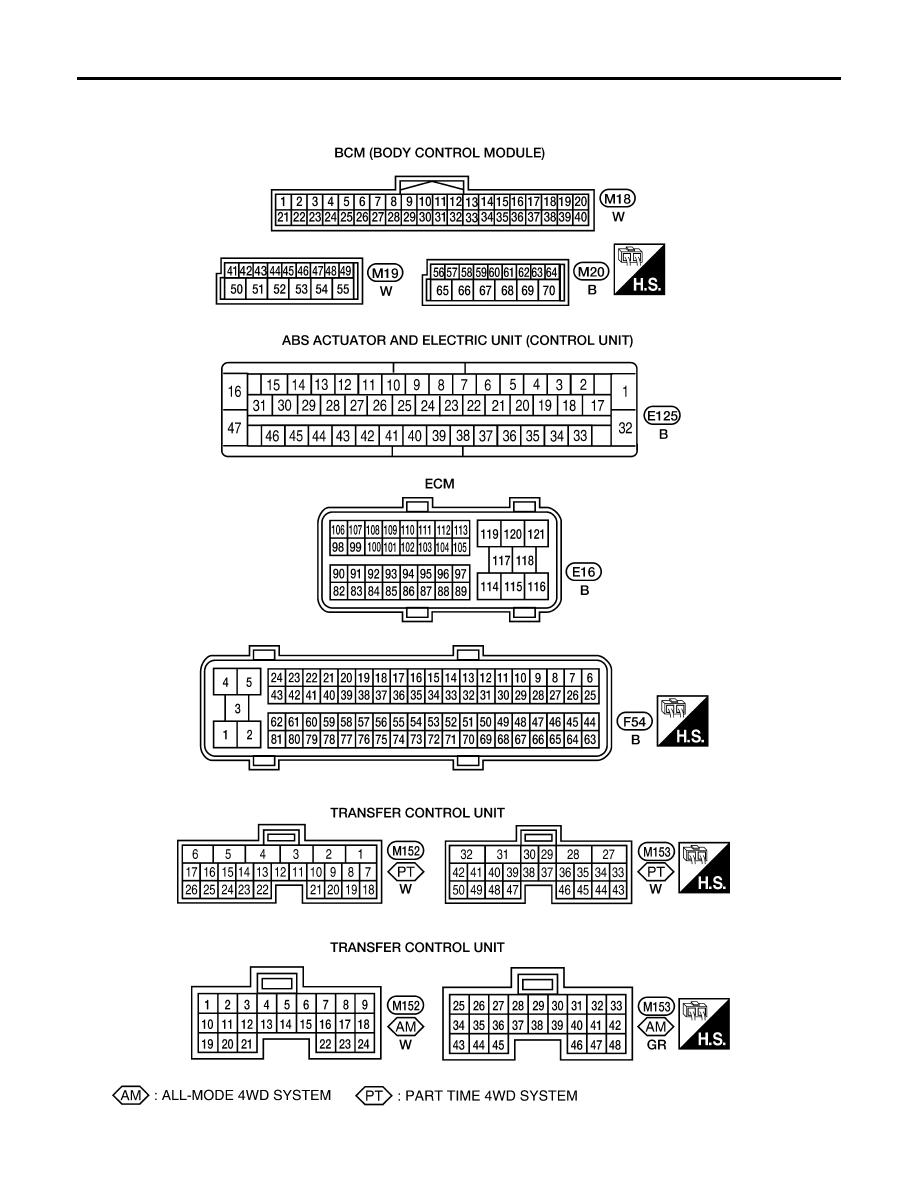

ELECTRICAL UNITS

2007 Pathfinder

ELECTRICAL UNITS

PFP:23710

Terminal Arrangement

EKS00G8W

WKIA5869E

STANDARDIZED RELAY

PG-81

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

STANDARDIZED RELAY

PFP:25230

Description

EKS00G8X

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

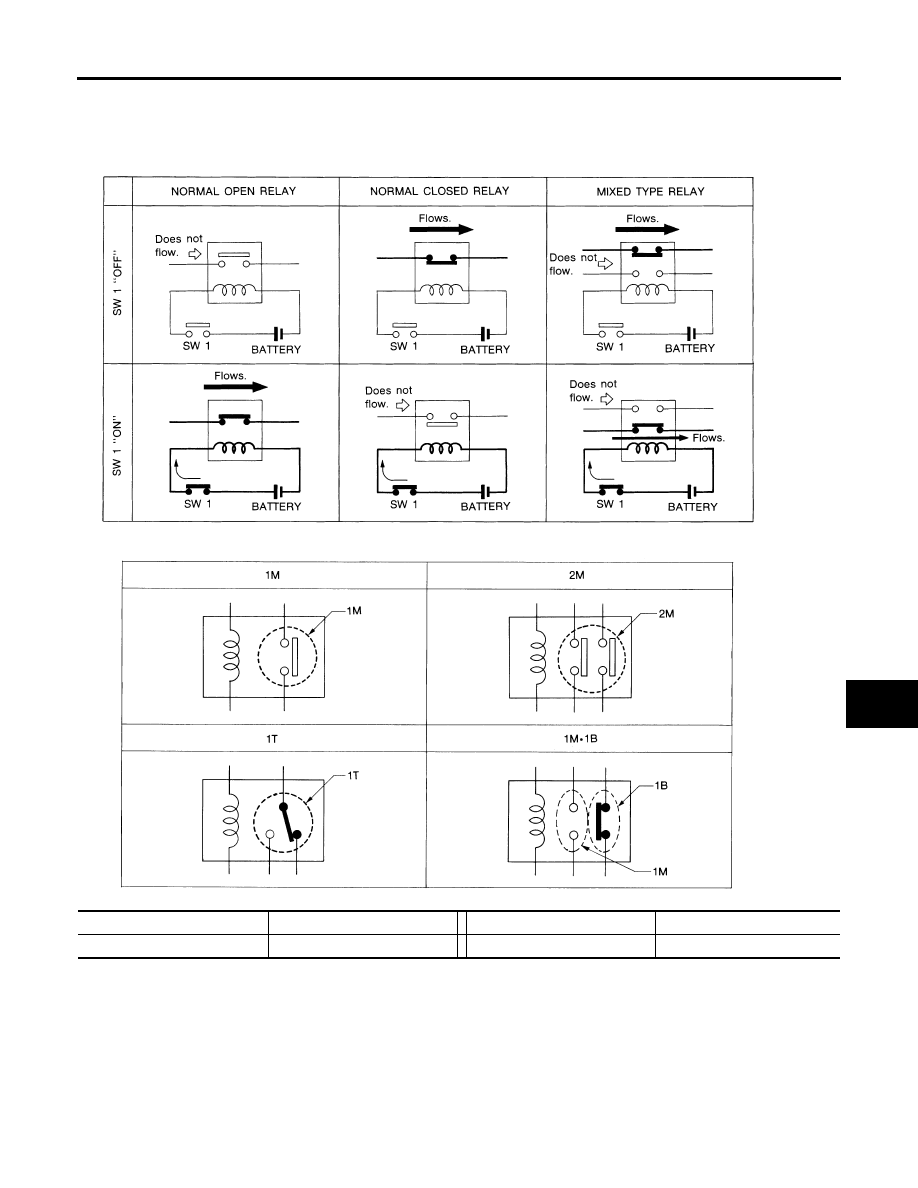

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

SEL882H

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break

PG-82

STANDARDIZED RELAY

2007 Pathfinder

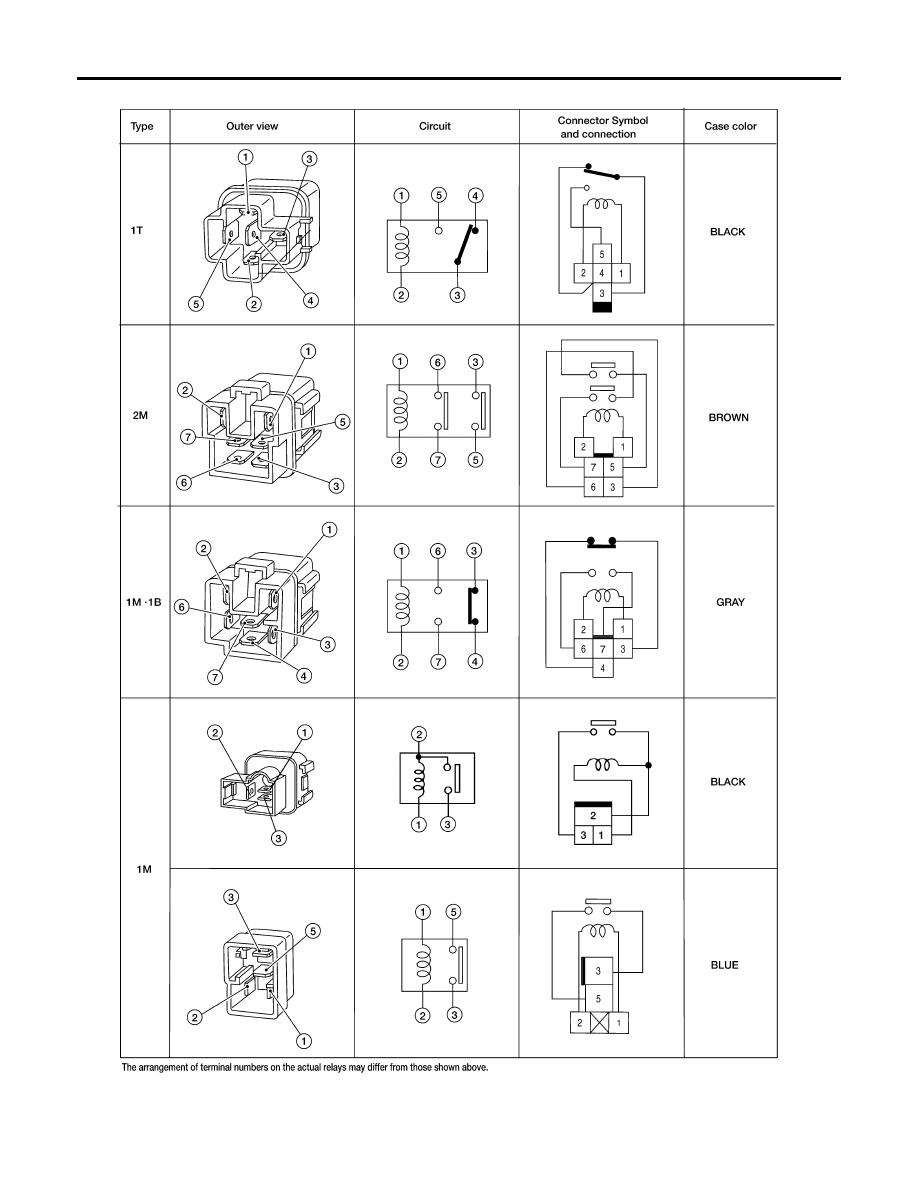

WKIA0253E
