Nissan Pathfinder (2007 year). Manual - part 343





HARNESS

PG-67

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

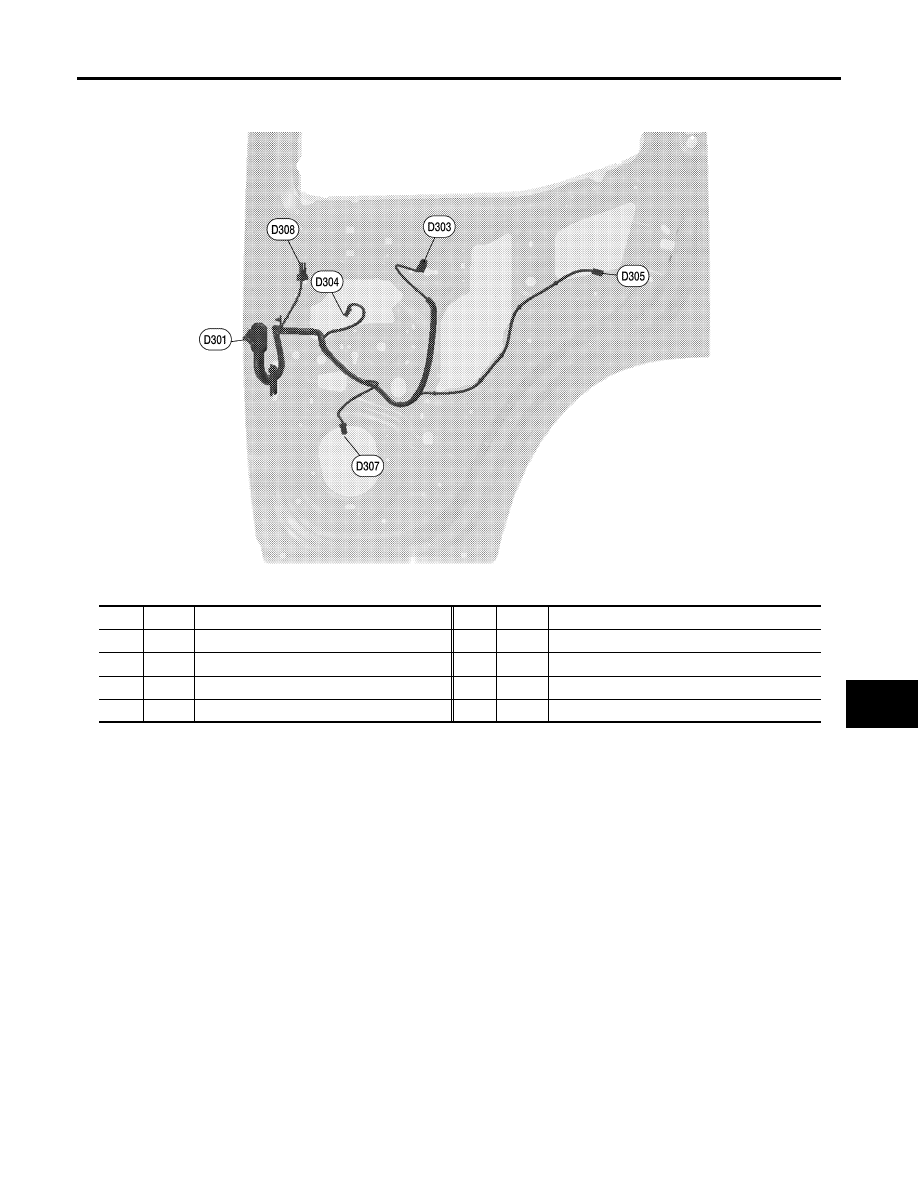

REAR DOOR RH HARNESS

LKIA0851E

D301

W/12

: To B106

D307

W/2

: Rear door speaker RH (without BOSE)

D303

W/8

: Rear power window switch RH

D307

BR/2

: Rear door speaker RH (with BOSE)

D304

B/2

: Rear power window motor RH

D308

BR/2

: Rear door tweeter RH

D305

W/2

: Rear door lock actuator RH

PG-68

HARNESS

2007 Pathfinder

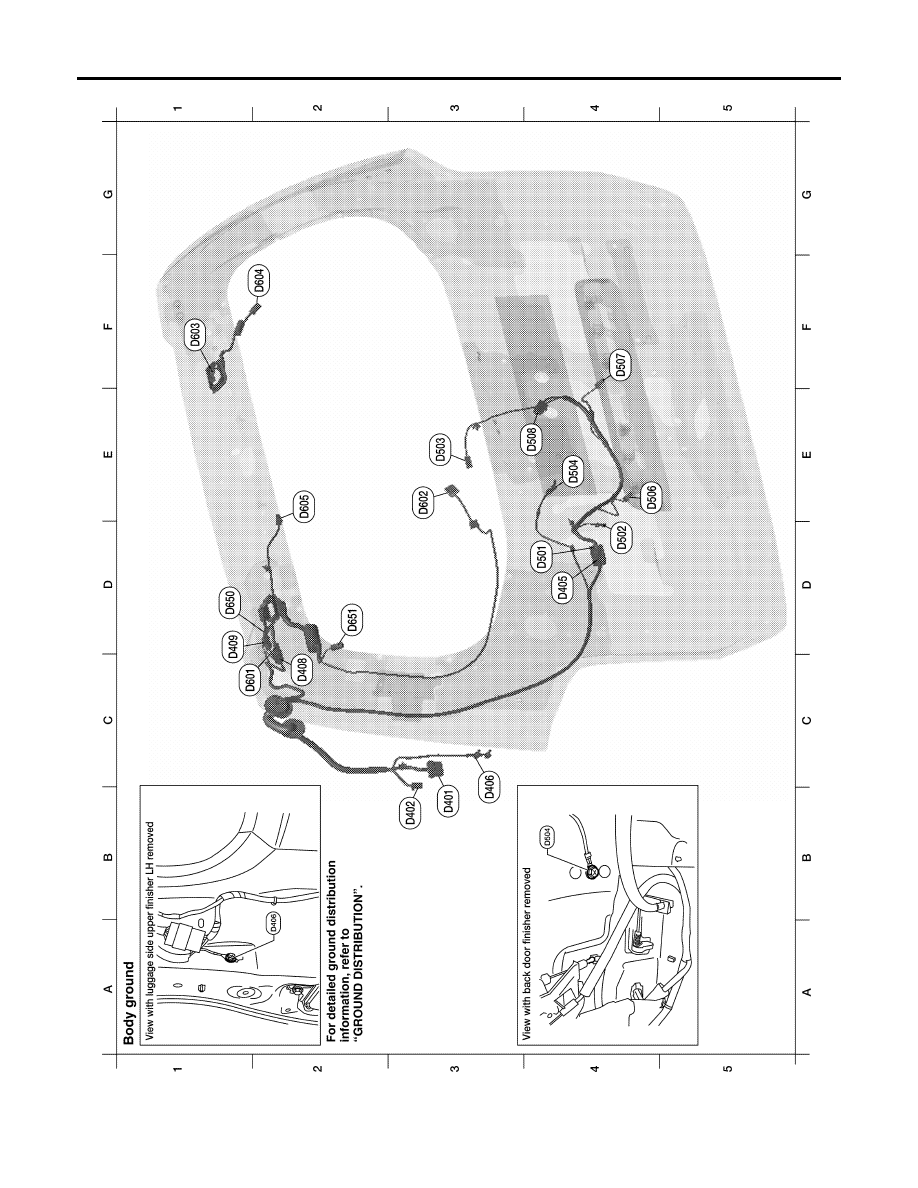

BACK DOOR HARNESS

LKIA0628E

HARNESS

PG-69

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

Back door No. 2 harness

B3

D401

W/8

: To B43

B3

D402

W/6

: To B48

D4

D405

W/8

: To D501

B3

D406

: Body ground

C2

D408

W/4

: To D601

D1

D409

W/1

: To D650

Back door harness

D4

D501

W/8

: To D405

D4

D502

W/3

: Back door switch

E3

D503

B/1

: Glass hatch ajar switch

E4

D504

: Body ground

E4

D506

W/2

: License plate lamp LH

F4

D507

W/2

: License plate lamp RH

E4

D508

W/4

: Back door lock actuator

Rear window sub-harness

C1

D601

W/4

: To D405

E3

D602

W/4

: Rear wiper motor

F1

D603

: Body ground (defogger)

F2

D604

B/1

: Rear window defogger

E2

D605

W/2

: High mounted stop lamp

Rear window defogger sub-harness

D1

D650

W/1

: To D409

D2

D651

B/1

: Rear window defogger

PG-70

HARNESS

2007 Pathfinder

Wiring Diagram Codes (Cell Codes)

EKS00G8Q

Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.

Code

Section

Wiring Diagram Name

A/C,A

ATC

 Auto Air Conditioner

A/C,M

MTC

 Manual Air Conditioner

AF1B1

EC

 Air Fuel Ratio (A/F) Sensor 1 Bank 1

AF1B2

EC

 Air Fuel Ratio (A/F) Sensor 1 Bank 2

AF1HB1

EC

 Air Fuel Ratio (A/F) Sensor 1 Heater Bank 1

AF1HB2

EC

 Air Fuel Ratio (A/F) Sensor 1 Heater Bank 2

APPS1

EC

 Accelerator Pedal Position Sensor

APPS2

EC

 Accelerator Pedal Position Sensor

APPS3

EC

 Accelerator Pedal Position Sensor

ASC/BS

EC

 ASCD Brake Switch

ASC/SW

EC

 ASCD Steering Switch

ASCBOF

EC

 ASCD Brake Switch

ASCIND

EC

 ASCD Indicator

AT/IND

DI

 A/T Indicator Lamp

AUDIO

AV

 Audio

AUT/DP

SE

 Automatic Drive Positioner

AUTO/L

LT

 Auto Light Control

B/COMP

DI

 Combination Meter Board Computer

BACK/L

LT

 Back-up Lamp

BRK/SW

EC

 Brake Switch

CAN

AT

 CAN Communication Line

CAN

EC

 CAN Communication Line

CAN

LAN

 CAN System

CHARGE

SC

 Charging System

CHIME

DI

 Warning Chime

COOL/F

EC

 Cooling Fan Control

COMBSW

LT

 Combination Switch

COMM

AV

 Audio Visual Communication System

COMPAS

DI

 Compass

CUR/SE

EC

 Battery Current Sensor

D/LOCK

BL

 Power Door Lock

DEF

GW

 Rear Window Defogger

DTRL

LT

 Headlamp - With Daytime Light System

DVD

AV

 DVD Entertainment System

ECM/PW

EC

 ECM Power Supply for Back-Up

ECTS

EC

 Engine Coolant Temperature Sensor

ETC1

EC

 Electric Throttle Control Function

ETC2

EC

 Throttle Control Motor Relay

ETC3

EC

 Throttle Control Motor

F/FOG

LT

 Front Fog Lamp

F/PUMP

EC

 Fuel Pump

FTS

AT

 A/T Fluid Temperature Sensor

FTTS

EC

 Fuel Tank Temperature Sensor

FUELB1

EC

 Fuel Injection System Bank 1

FUELB2

EC

 Fuel Injection System Bank 2

H/LAMP

LT

 Headlamp

HORN

WW

 Horn

HARNESS

PG-71

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

HSEAT

SE

 Heated Seat

I/MIRR

GW

 Inside Mirror (Auto Anti-Dazzling Mirror)

IATS

EC

 Intake Air Temperature Sensor

IGNSYS

EC

Ignition

System

 ILL

LT

 Illumination

 INJECT

EC

 Injectors

 INT/L

LT

 Room/Map, Vanity, Cargo, and Personal Lamps

 IVCB1

EC

 Intake Valve Timing Control Solenoid Valve Bank 1

 IVCB2

EC

 Intake Valve Timing Control Solenoid Valve Bank 2

 KEYLES

BL

 Remote Keyless Entry System

 KS

EC

 Knock Sensor

 MAFS

EC

 Mass Air Flow Sensor

 MAIN

AT

 Main Power Supply and Ground Circuit

 MAIN

EC

 Main Power Supply and Ground Circuit

 METER

DI

 Speedometer, Tachometer, Temp. and Fuel Gauges

 MIL/DL

EC

 Malfunction Indicator Lamp

 MIRROR

GW

 Door Mirror

 NATS

BL

 Nissan Anti-Theft System

 NAVI

AV

 Navigation System

 NONDTC

AT

 Non-Detective Items

 O2H2B1

EC

 Rear Heated Oxygen Sensor 2 Heater Bank 1

 O2H2B2

EC

 Rear Heated Oxygen Sensor 2 Heater Bank 2

 O2S2B1

EC

 Heated Oxygen Sensor 2 Bank 1

 O2S2B2

EC

 Heated Oxygen Sensor 2 Bank 2

 P/SCKT

WW

 Power Socket

 PEDAL

AP

 Adjustable Pedal System

 PGC/V

EC

 EVAP Canister Purge Volume Control Solenoid Valve

 PHSB1

EC

 Camshaft Position Sensor (PHASE) (Bank 1)

 PHSB2

EC

 Camshaft Position Sensor (PHASE) (Bank 1)

 PNP/SW

AT

 Park/Neutral Position Switch

 PNP/SW

EC

 Park/Neutral Position Switch

 POS

EC

 Crankshaft Position Sensor (POS)

 POWER

PG

 Power Supply Routing

 PRE/SE

EC

 EVAP Control System Pressure Sensor

 PS/SEN

EC

 Power Steering Pressure Sensor

 RP/SEN

EC

 Refrigerant Pressure Sensor

 SEAT

SE

 Power Seat

 SEN/PW

EC

 Sensor Power Supply

 SHIFT

AT

 A/T Shift Lock System

 SROOF

RF

 Sunroof

 SRS

SRS

 Supplemental Restraint System

 STSIG

AT

 Start Signal Circuit

 START

SC

 Starting System

 STOP/L

LT

 Stop Lamp

 T/TOW

LT

 Trailer Tow

 T/WARN

WT

 Low Tire Pressure Warning System

 TAIL/L

LT

 Parking, License and Tail Lamps

 T/F

TF

Transfer Case

 TPS1

EC

 Throttle Position Sensor

 TPS2

EC

 Throttle Position Sensor

 TPS3

EC

 Throttle Position Sensor

 TRNSCV

BL

 HOMELINK® Universal Transceiver

PG-72

HARNESS

2007 Pathfinder

 TURN

LT

 Turn Signal and Hazard Warning Lamps

 VDC

BRC

 Vehicle Dynamic Control System

 VEHSEC

BL

 Vehicle security (theft warning) system

 VENT/V

EC

 EVAP Canister Vent Control Valve

 VIAS

EC

 Variable Air Induction Control System

 VIAS/V

EC

 Variable Air Induction Control System Valve

 VSSA/T

AT

 Vehicle Speed Sensor A/T (Revolution Sensor)

 W/ANT

AV

 Audio Antenna

 WARN

DI

 Warning Lamps

 WINDOW

GW

 Power Window

 WIP/R

WW

 Rear Wiper and Washer

 WIPER

WW

 Front Wiper and Washer

ELECTRICAL UNITS LOCATION

PG-73

C

D

E

F

G

H

I

J

L

M

A

B

PG

2007 Pathfinder

ELECTRICAL UNITS LOCATION

PFP:25230

Electrical Units Location

EKS00G8R

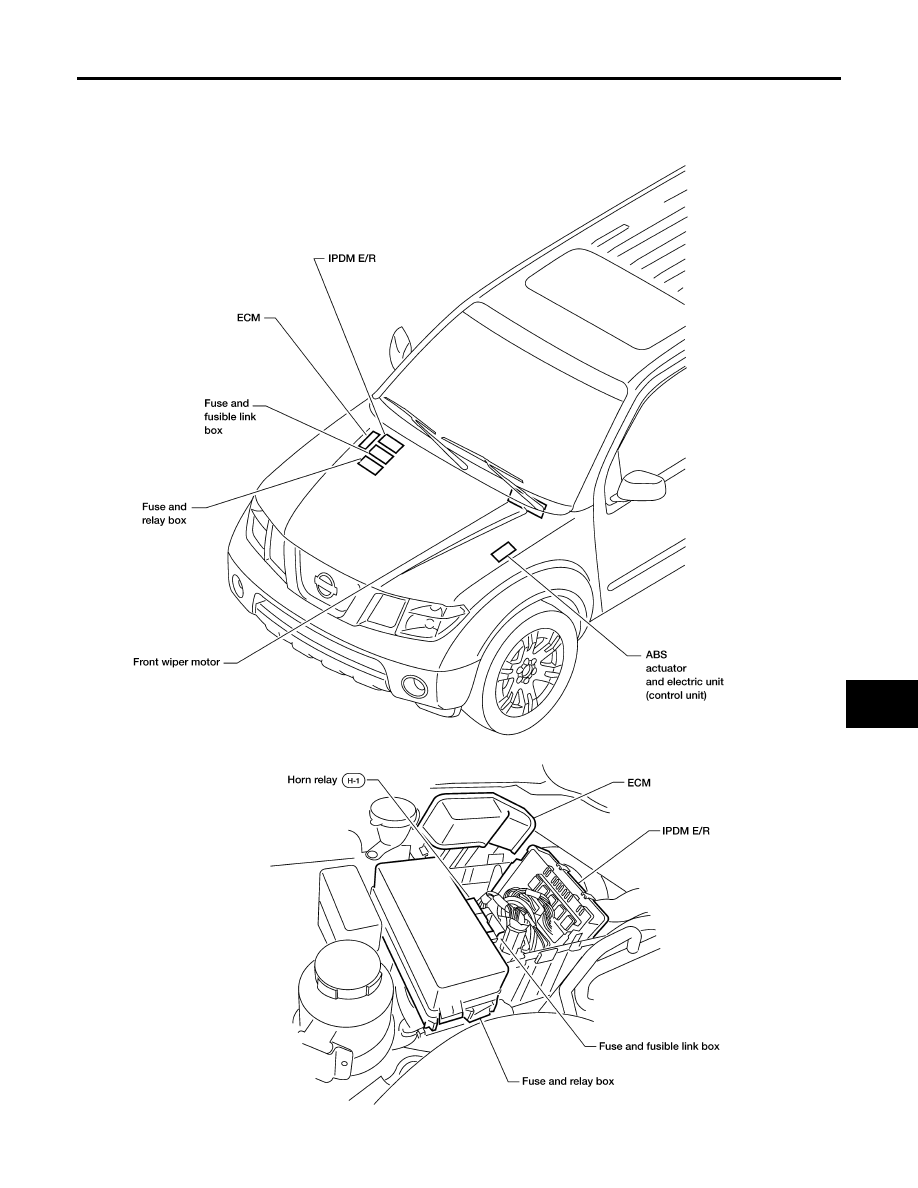

ENGINE COMPARTMENT

LKIA0629E

PG-74

ELECTRICAL UNITS LOCATION

2007 Pathfinder

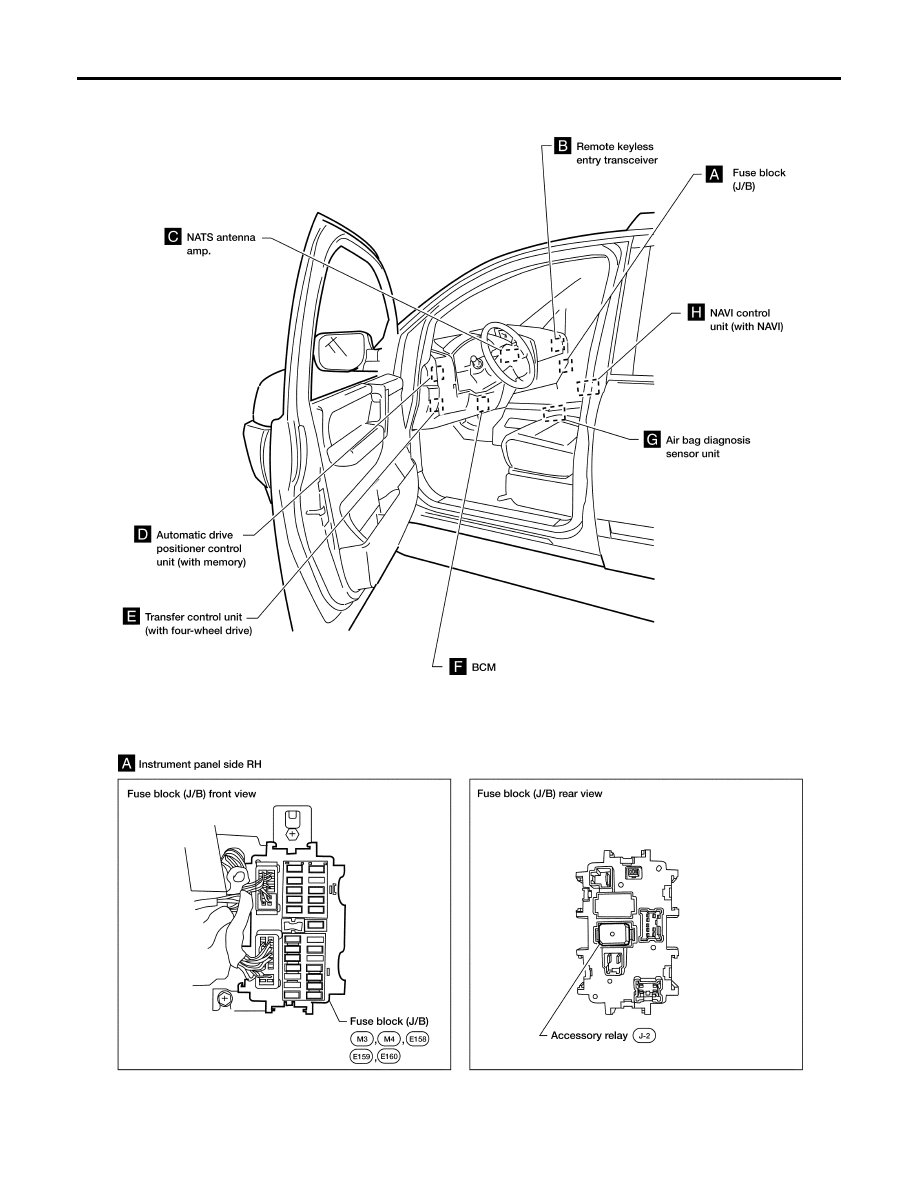

PASSENGER COMPARTMENT

WKIA5024E
