Nissan Pathfinder (2007 year). Manual - part 301





AUTO LIGHT SYSTEM

LT-49

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

3.

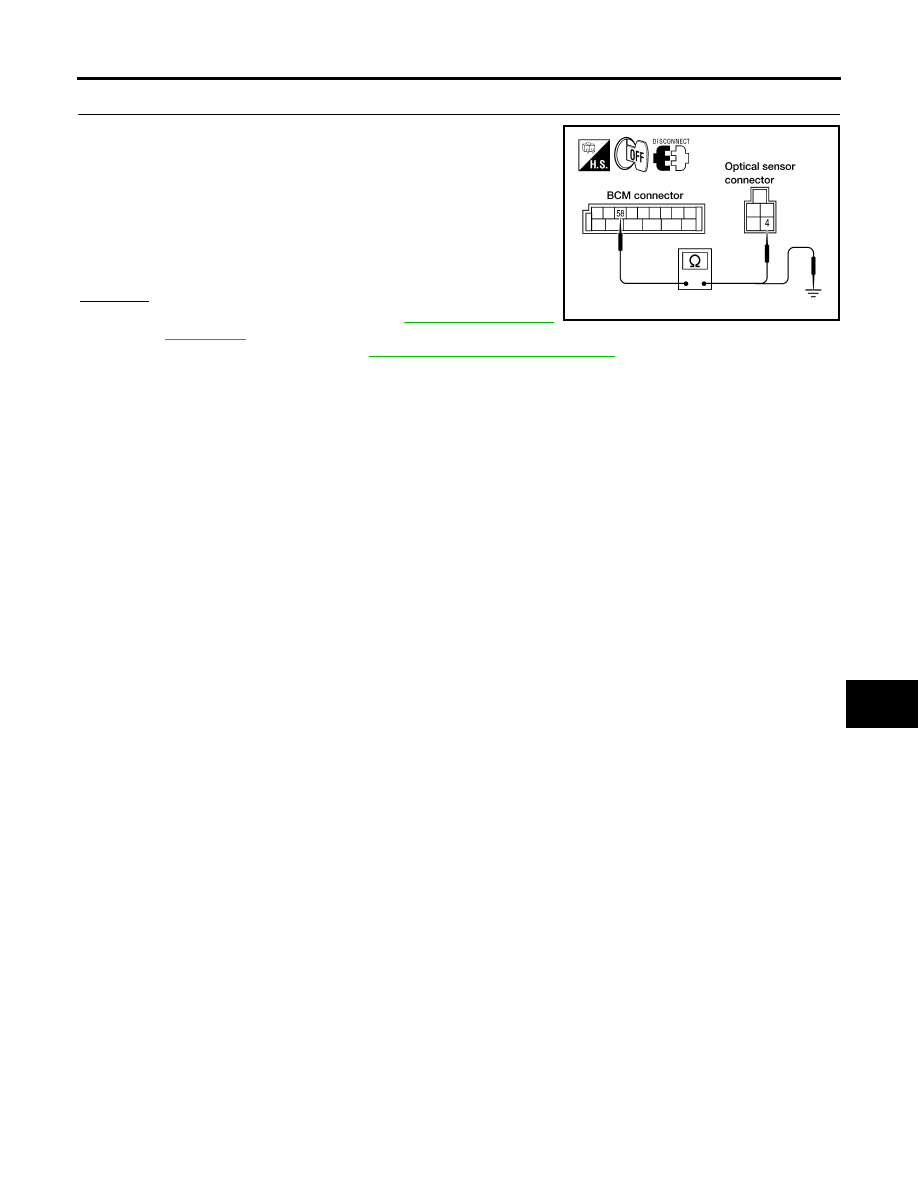

CHECK OPTICAL SENSOR SIGNAL CIRCUIT

1.

Check continuity (open circuit) between BCM harness connector
M20 terminal 58 and optical sensor harness connector M145
terminal 4.

2.

Check continuity (short circuit) between BCM harness connector
M20 terminal 58 and ground.

OK or NG

OK

>> Replace optical sensor. Refer to

LT-50, "Removal and

Installation"

 . Recheck sensor output with CONSULT-II.

If NG, replace BCM. Refer to

BCS-25, "Removal and Installation"

 .

NG

>> Repair harness or connector.

58 - 4

: Continuity should exist.

58 - Ground

: Continuity should not exist.

WKIA3329E

LT-50

AUTO LIGHT SYSTEM

2007 Pathfinder

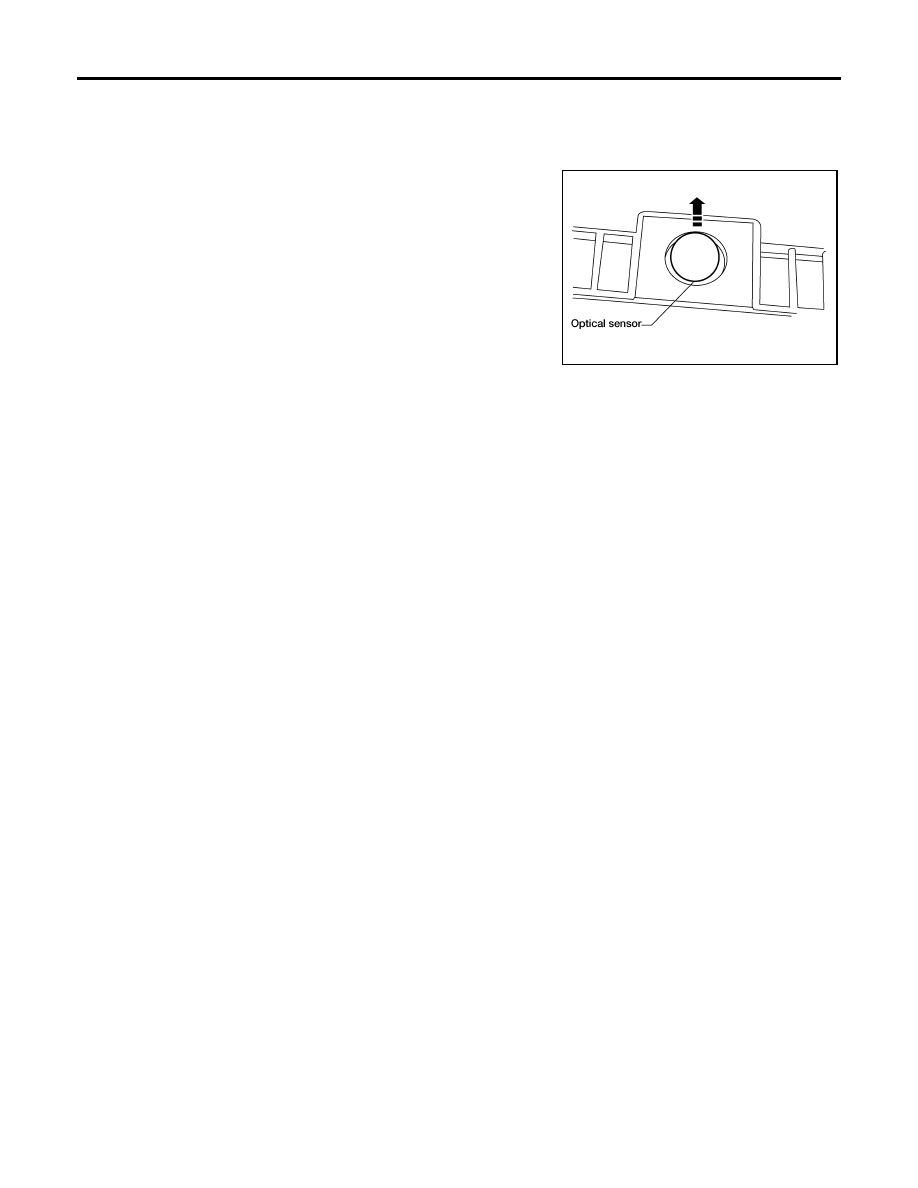

Removal and Installation

EKS00FVE

OPTICAL SENSOR
Removal

1.

Using a thin blade screwdriver, gently pry upward to release optical sensor from defrost grille.

2.

Disconnect optical sensor connector.

Installation

Installation is in the reverse order of removal.

LKIA0571E

FRONT FOG LAMP

LT-51

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

FRONT FOG LAMP

PFP:26150

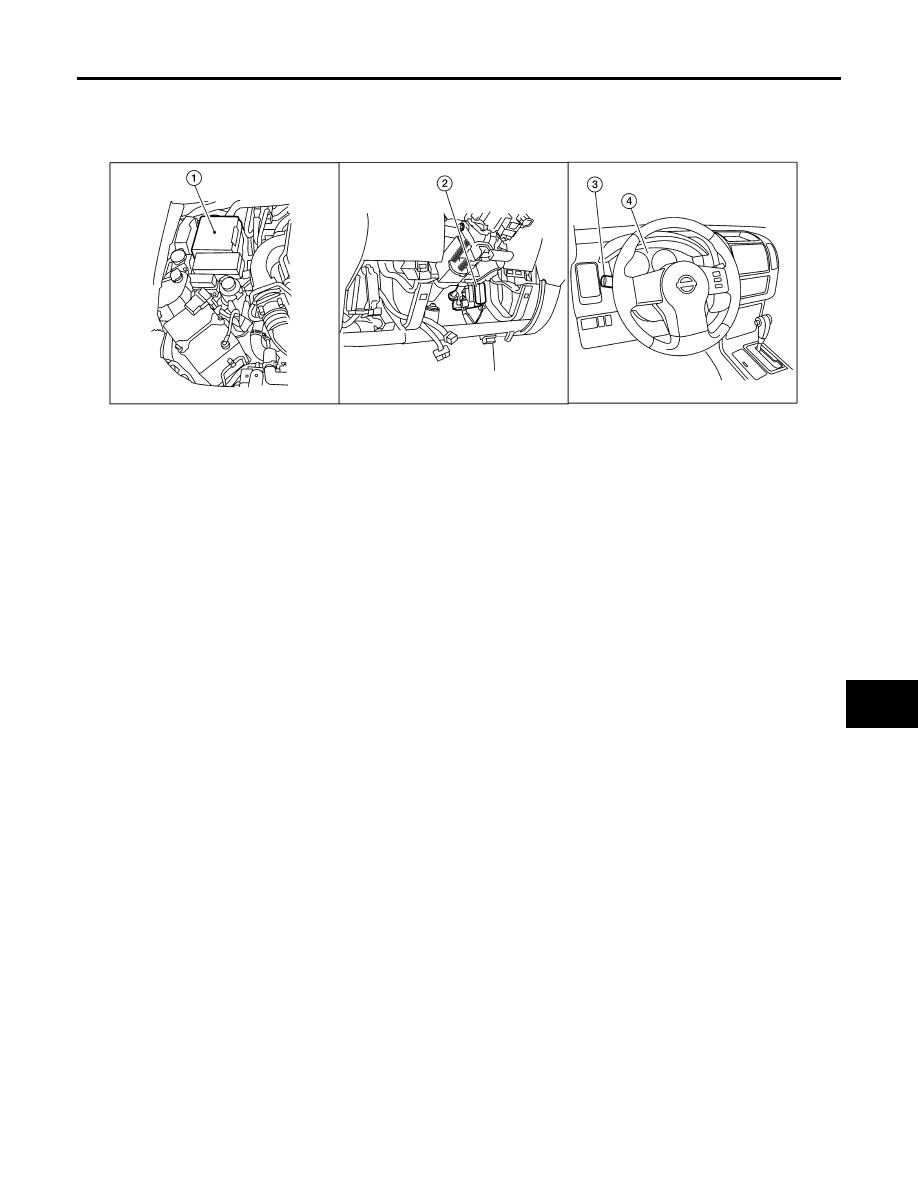

Component Parts and Harness Connector Location

EKS00FVF

System Description

EKS00FVG

Control of the fog lamps is dependent upon the position of the combination switch (lighting switch). The light-
ing switch must be in the 2ND position or AUTO position (LOW beam is ON) for front fog lamp operation.
When the lighting switch is placed in the fog lamp position, the BCM (body control module) receives input sig-
nal requesting the fog lamps to illuminate. When the headlamps are illuminated, this input signal is communi-
cated to the IPDM E/R (intelligent power distribution module engine room) across the CAN communication
lines. The CPU (central processing unit) of the IPDM E/R controls the front fog lamp relay coil. When acti-
vated, this relay directs power to the front fog lamps.

OUTLINE

Power is supplied at all times

to ignition relay, located in the IPDM E/R, and

to front fog lamp relay, located in the IPDM E/R, and

through 20A fuse (No. 53, located in the IPDM E/R)

to CPU of the IPDM E/R, and

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70.

When the ignition switch is in ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

Ground is supplied

to BCM terminal 67

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

through grounds E9, E15 and E24.

FOG LAMP OPERATION

The fog lamp switch is built into the combination switch. The lighting switch must be in the 2ND position or
AUTO position (LOW beam is ON) and the fog lamp switch must be ON for fog lamp operation.

WKIA4960E

1.

IPDM E/R
E118, E119, E120, E121,
E122, E123, E124

2.

BCM
M18, M19, M20
(view with instrument lower panel RH removed)

3.

Combination switch (lighting switch)
M28

4.

Combination meter
M24

LT-52

FRONT FOG LAMP

2007 Pathfinder

With the fog lamp switch in the ON position, the CPU of the IPDM E/R grounds the coil side of the fog lamp
relay. The fog lamp relay then directs power

through 20A fuse (No. 56, located in the IPDM E/R)

through IPDM E/R terminal 50

to front fog lamp LH terminal 1, and

through IPDM E/R terminal 51

to front fog lamp RH terminal 1.

Ground is supplied

to front fog lamp LH and RH terminal 2

through grounds E9, E15 and E24.

With power and ground supplied, the front fog lamps illuminate.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

EXTERIOR LAMP BATTERY SAVER CONTROL

When the combination switch (lighting switch) is in the 2ND position (ON), the fog lamp switch is ON, and the
ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the fog lamps (and headlamps) remain illuminated for 5 minutes, then the fog lamps (and
headlamps) are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.

CAN Communication System Description

EKS00FVH

Refer to

LAN-4, "CAN Communication System"

 .

FRONT FOG LAMP

LT-53

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

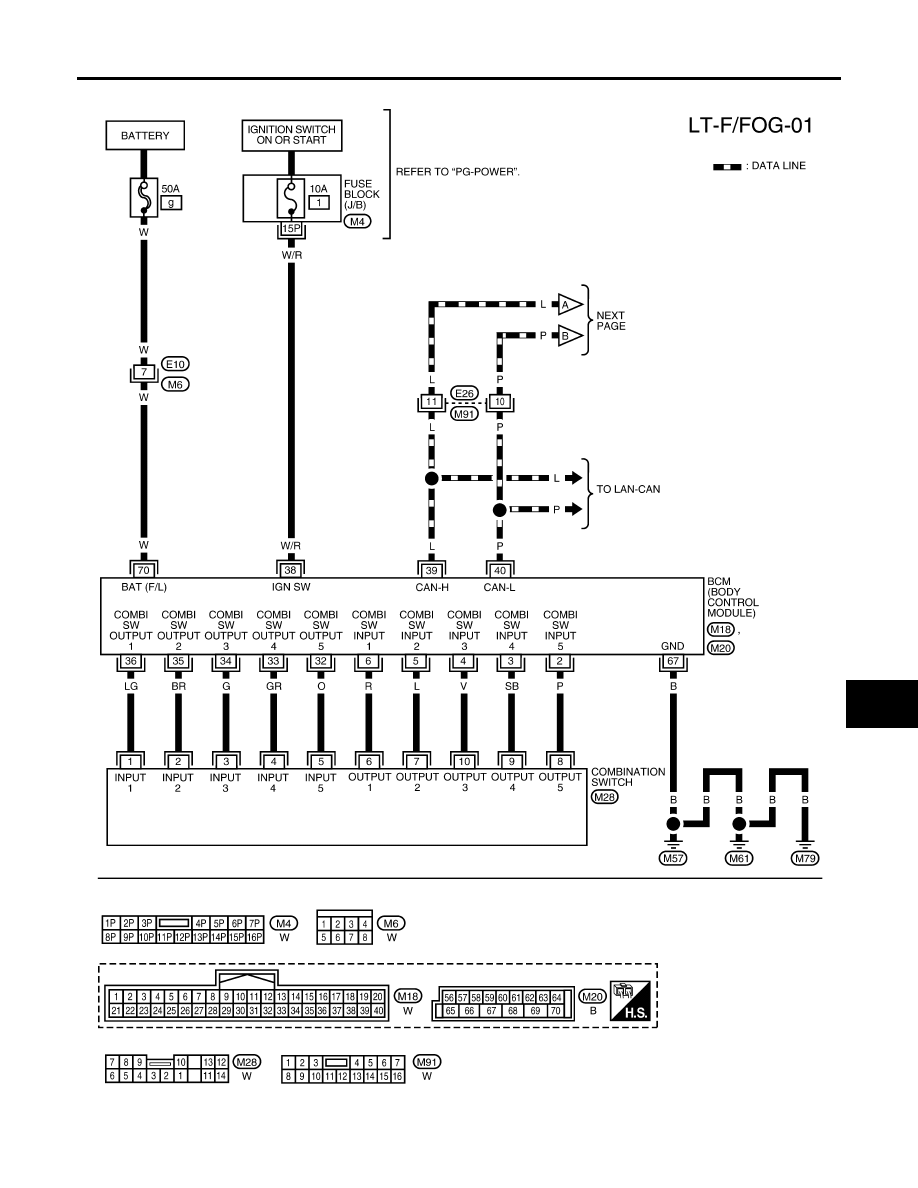

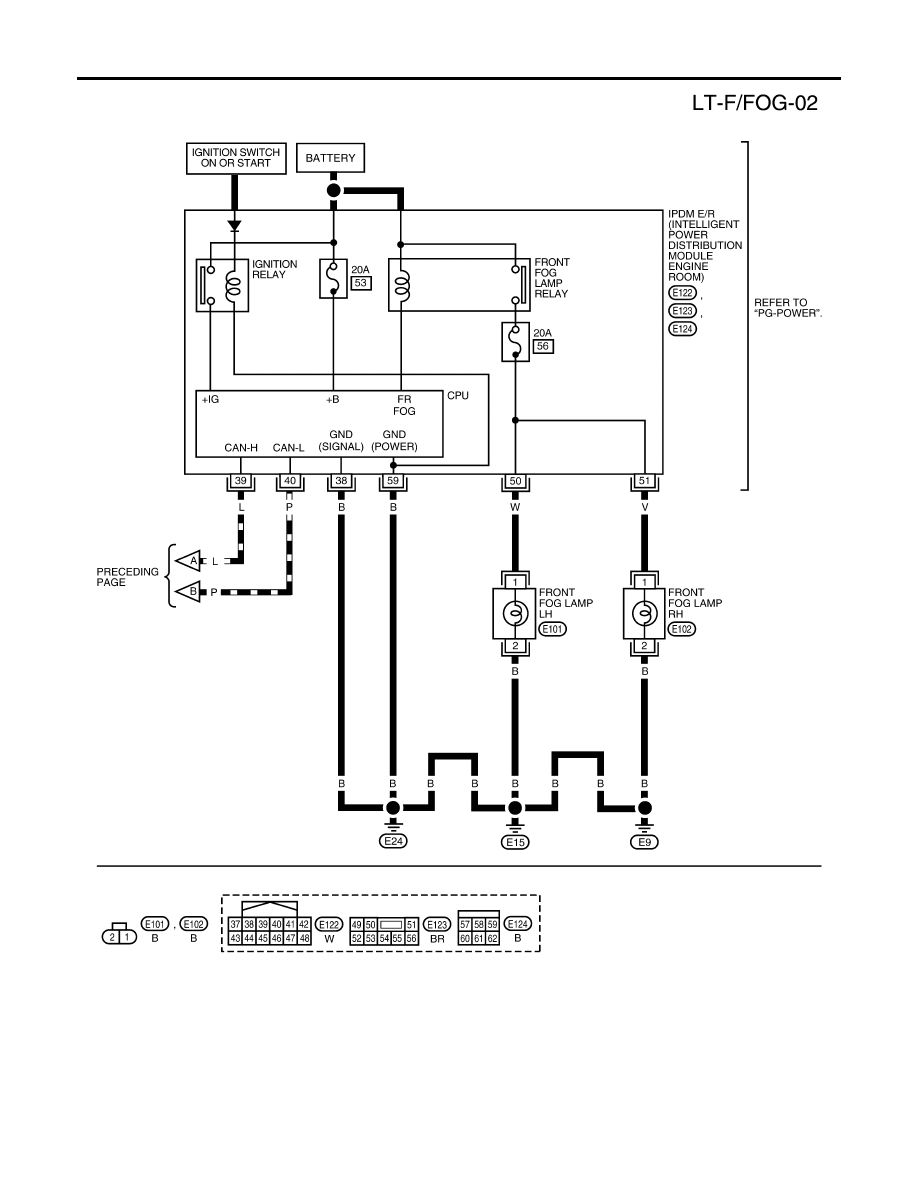

Wiring Diagram — F/FOG —

EKS00FVI

WKWA5440E

LT-54

FRONT FOG LAMP

2007 Pathfinder

WKWA3082E

FRONT FOG LAMP

LT-55

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

Terminals and Reference Values for BCM

EKS00FVJ

Refer to

LT-12, "Terminals and Reference Values for BCM"

 .

Terminals and Reference Values for IPDM E/R

EKS00FVK

Refer to

PG-27, "Terminals and Reference Values for IPDM E/R"

 .

How to Proceed With Trouble Diagnosis

EKS00FVL

1.

Confirm the symptom or customer complaint.

2.

Understand operation description and function description. Refer to

LT-51, "System Description"

 .

3.

Perform the Preliminary Check. Refer to

LT-55, "Preliminary Check"

 .

4.

Check symptom and repair or replace the cause of malfunction.

5.

Does the front fog lamp operate normally? If YES: GO TO 6. If NO: GO TO 4.

6.

Inspection End.

Preliminary Check

EKS00FVM

CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

 .

CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R

Refer to

PG-29, "IPDM E/R Power/Ground Circuit Inspection"

 .

CONSULT-II Function (BCM)

EKS00FVN

Refer to

LT-12, "CONSULT-II Function (BCM)"

 .

CONSULT-II Function (IPDM E/R)

EKS00KE0

Refer to

LT-13, "CONSULT-II Function (IPDM E/R)"

 .

Front Fog Lamps Do Not Illuminate (Both Sides)

EKS00FVO

1.

INSPECT FOG LAMP FUSE

Inspect fog lamp 20A fuse (No. 56, located in IPDM E/R).

OK or NG

OK

>> GO TO 2.

NG

>> Repair fog lamp power supply circuit.

2.

CHECK COMBINATION SWITCH INPUT SIGNAL

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "FR FOG SW" turns ON-OFF linked with operation of
lighting switch.

OK or NG

OK

>> GO TO 3.

NG

>> Check lighting switch. Refer to

LT-75, "Combination

Switch Inspection"

 .

When lighting switch is in
FOG position

: FR FOG SW ON

SKIA5897E

LT-56

FRONT FOG LAMP

2007 Pathfinder

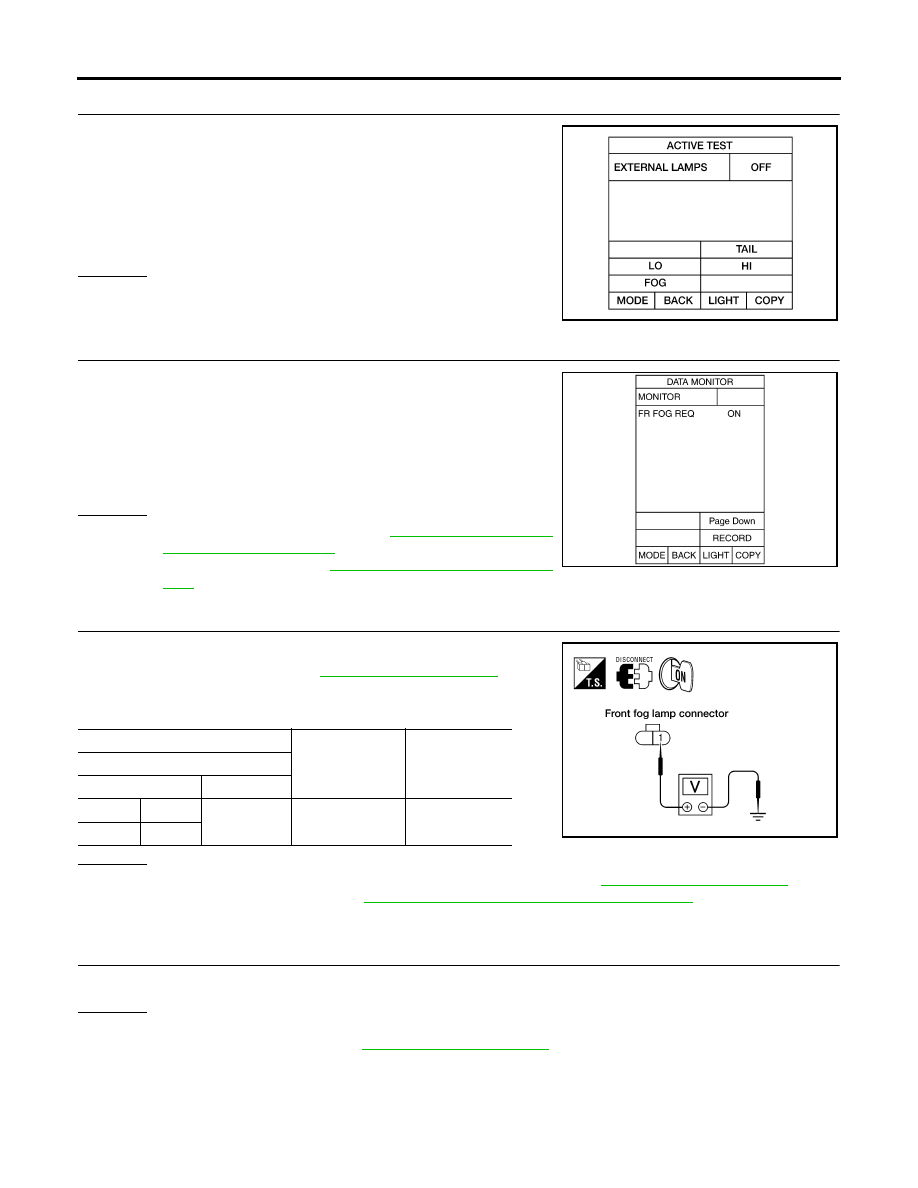

3.

FOG LAMP ACTIVE TEST

1.

Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST"
on "SELECT DIAG MODE" screen.

2.

Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.

3.

Touch "FOG" on "ACTIVE TEST" screen.

4.

Make sure fog lamps operate.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 5.

4.

CHECK IPDM E/R

1.

Select "IPDM E/R" on CONSULT-II, and select "DATA MONI-
TOR" on "SELECT DIAG MODE" screen.

2.

Make sure "FR FOG REQ" turns ON when lighting switch is in
FOG position.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-32, "Removal and

Installation of IPDM E/R"

 .

NG

>> Replace BCM. Refer to

BCS-25, "Removal and Installa-

tion"

 .

5.

IPDM E/R INSPECTION

1.

Disconnect fog lamp LH and RH.

2.

Start auto active test. Refer to

PG-23, "Auto Active Test"

 . When

front fog lamp relay is operating, check voltage between left/right
front fog lamp connector terminals and ground.

OK or NG

OK

>> Check front fog lamp bulbs and replace as necessary. Refer to

LT-59, "Bulb Replacement"

 .

NG

>> Replace IPDM E/R. Refer to

PG-32, "Removal and Installation of IPDM E/R"

 .

Front Fog Lamp Does Not Illuminate (One Side)

EKS00FVP

1.

BULB INSPECTION

Inspect bulb of lamp which does not illuminate.

OK or NG

OK

>> GO TO 2.

NG

>> Replace lamp bulb. Refer to

LT-59, "Bulb Replacement"

 .

Fog lamps should operate.

WKIA1438E

When lighting switch is in
FOG position

: FR FOG REQ ON

SKIA5898E

Front fog lamp

(–)

Voltage

(Approx.)

 (+)

Connector

Terminal

LH

E101

1

Ground Battery

voltage

RH

E102

WKIA3306E
