Nissan Pathfinder (2007 year). Manual - part 295





LT-1

LIGHTING SYSTEM

K  ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

LT

A

B

LT

2007 Pathfinder

PRECAUTIONS .......................................................... 4

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
General precautions for service operations  ............. 4

HEADLAMP (FOR USA)  ............................................ 5

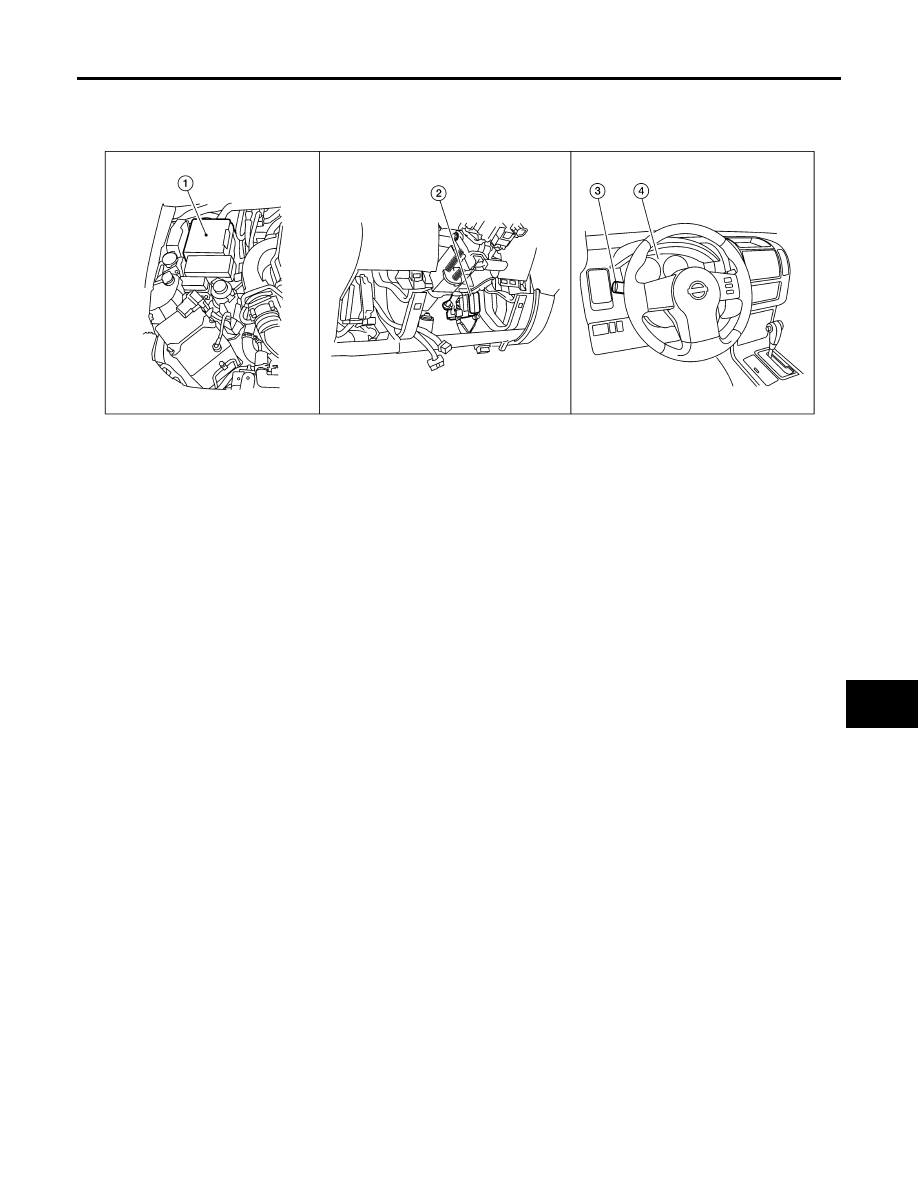

Component Parts and Harness Connector Location

..... 5

System Description  .................................................. 5

OUTLINE ............................................................... 5
BATTERY SAVER CONTROL  .............................. 6
AUTO LIGHT OPERATION ................................... 6
VEHICLE SECURITY SYSTEM (PANIC ALARM)

..... 6

CAN Communication System Description ................ 6

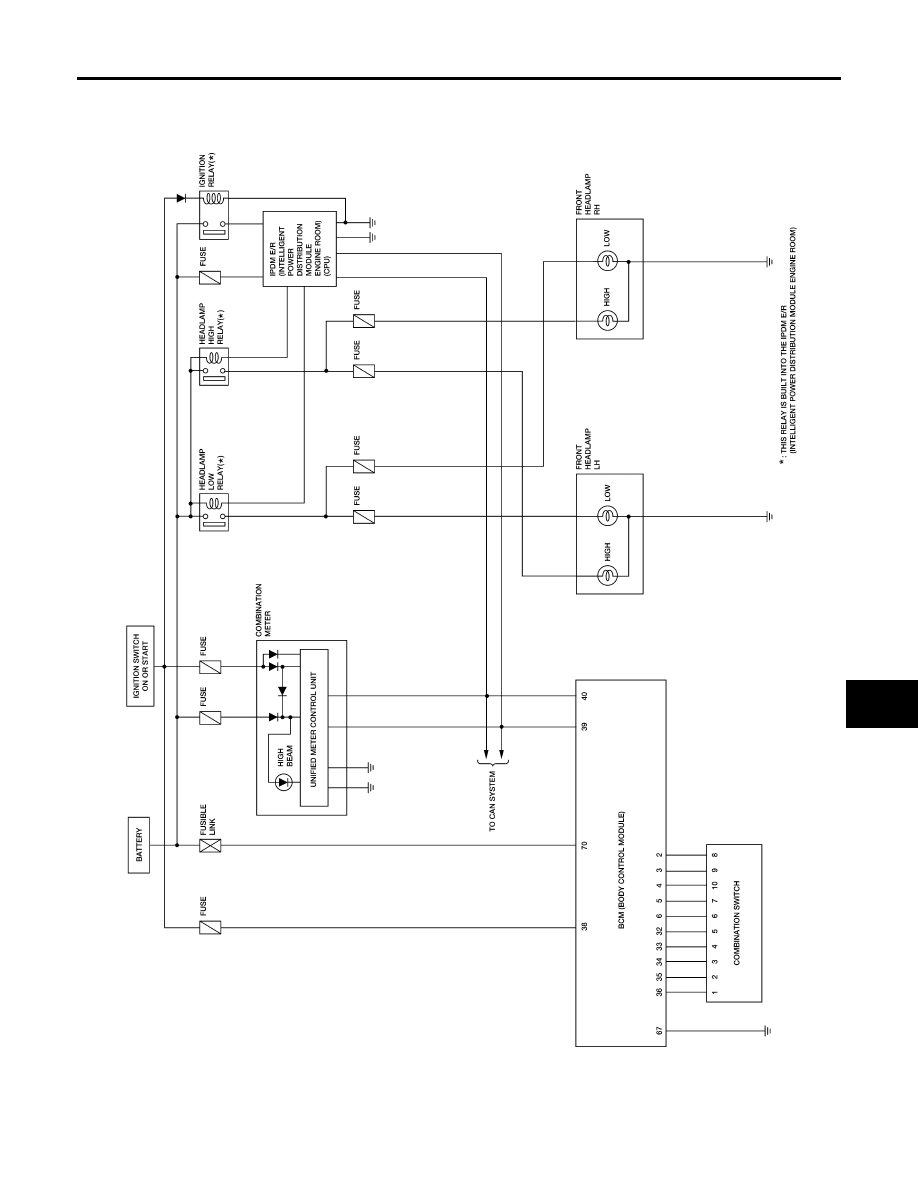

Schematic ................................................................ 7

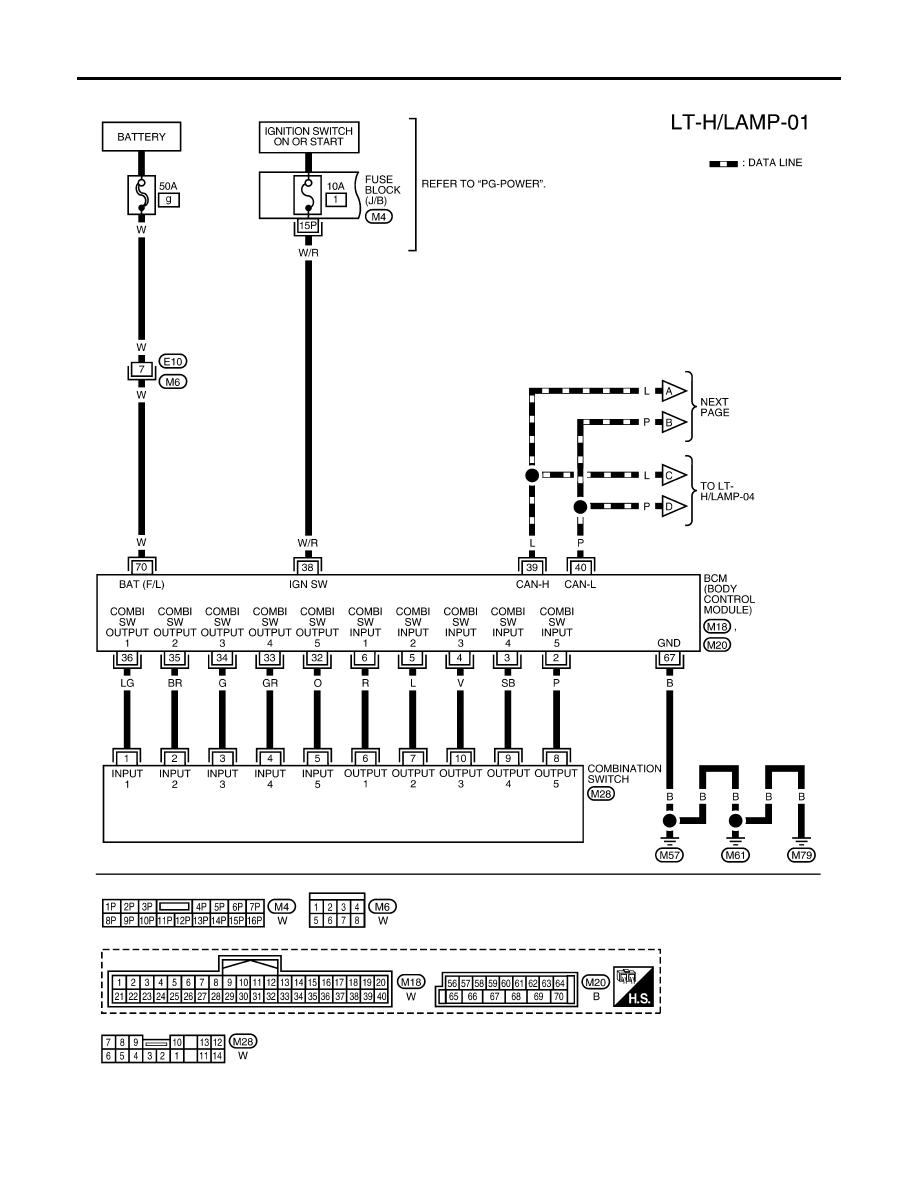

Wiring Diagram — H/LAMP —  ................................. 8
Terminals and Reference Values for BCM  ............. 12
Terminals and Reference Values for IPDM E/R  ..... 12
How to Proceed With Trouble Diagnosis ................ 12
Preliminary Check  .................................................. 12

CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM  .................................................. 12
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR IPDM E/R  .......................................... 12

CONSULT-II Function (BCM)  ................................. 12

CONSULT-II START PROCEDURE .................... 12
WORK SUPPORT ............................................... 12
DATA MONITOR  ................................................. 12
ACTIVE TEST  ..................................................... 13
SELF-DIAGNOSTIC RESULTS  .......................... 13

CONSULT-II Function (IPDM E/R)  ......................... 13

CONSULT-II START PROCEDURE .................... 14
DATA MONITOR  ................................................. 14
ACTIVE TEST  ..................................................... 14

Headlamp HI Does Not Illuminate (Both Sides)  ..... 14
Headlamp HI Does Not Illuminate (One Side)  ....... 17
High Beam Indicator Lamp Does Not Illuminate  .... 18
Headlamp LO Does Not Illuminate (Both Sides)  .... 18
Headlamp LO Does Not Illuminate (One Side)  ...... 20
Headlamps Do Not Turn OFF  ................................ 22
Aiming Adjustment  ................................................. 23

LOW BEAM AND HIGH BEAM  ........................... 24

Bulb Replacement  .................................................. 25

HEADLAMP BULB  .............................................. 25
FRONT TURN SIGNAL/PARKING LAMP  ........... 25
FRONT SIDE MARKER LAMP  ........................... 25

Removal and Installation  ........................................ 25

FRONT COMBINATION LAMP  ........................... 25

Disassembly and Assembly .................................... 26

FRONT COMBINATION LAMP  ........................... 26

HEADLAMP (FOR CANADA) - DAYTIME LIGHT
SYSTEM - .................................................................. 27

Component Parts and Harness Connector Location ... 27
System Description ................................................. 27

OUTLINE ............................................................. 28
DAYTIME LIGHT OPERATION  ........................... 29
COMBINATION SWITCH READING FUNCTION

... 29

AUTO LIGHT OPERATION  ................................. 29

CAN Communication System Description  .............. 29
Schematic ............................................................... 30
Wiring Diagram — DTRL —  ................................... 31
Terminals and Reference Values for BCM .............. 35
Terminals and Reference Values for IPDM E/R ...... 35
How to Proceed With Trouble Diagnosis  ................ 35
Preliminary Check  .................................................. 35

CHECK BCM CONFIGURATION  ........................ 35
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM  .................................................. 35
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR IPDM E/R  .......................................... 35
INSPECTION PARKING BRAKE SWITCH CIR-
CUIT .................................................................... 35

CONSULT-II Function (BCM)  ................................. 36
CONSULT-II Function (IPDM E/R)  ......................... 36
Daytime Light Control Does Not Operate Properly
(Normal Headlamps Operate Properly)  .................. 36
Aiming Adjustment .................................................. 37
Bulb Replacement  .................................................. 37
Removal and Installation  ........................................ 37
Disassembly and Assembly .................................... 37

AUTO LIGHT SYSTEM  ............................................. 38

LT-2

2007 Pathfinder

Component Parts and Harness Connector Location ... 38
System Description ................................................. 39

OUTLINE ............................................................. 39
COMBINATION SWITCH READING FUNCTION ... 39
EXTERIOR LAMP BATTERY SAVER CONTROL ... 39
DELAY TIMER FUNCTION  ................................. 39

CAN Communication System Description  .............. 39
Major Components and Functions .......................... 40
Schematic ............................................................... 41
Wiring Diagram — AUTO/L — ................................ 42
Terminals and Reference Values for BCM .............. 45
Terminals and Reference Values for IPDM E/R ...... 45
How to Proceed With Trouble Diagnosis  ................ 45
Preliminary Check  .................................................. 45

SETTING CHANGE FUNCTIONS ....................... 45
CHECK BCM CONFIGURATION  ........................ 45
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM ................................................... 45
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR IPDM E/R ........................................... 45

CONSULT-II Function (BCM) .................................. 45

CONSULT-II START PROCEDURE  .................... 45
WORK SUPPORT  ............................................... 45
DATA MONITOR .................................................. 46
ACTIVE TEST  ..................................................... 46

CONSULT-II Function (IPDM E/R) .......................... 46

CONSULT-II START PROCEDURE  .................... 46
DATA MONITOR .................................................. 47
ACTIVE TEST  ..................................................... 47

Trouble Diagnosis Chart by Symptom  .................... 47
Lighting Switch Inspection  ...................................... 48
Optical Sensor System Inspection .......................... 48
Removal and Installation  ........................................ 50

OPTICAL SENSOR  ............................................. 50

FRONT FOG LAMP  .................................................. 51

Component Parts and Harness Connector Location ... 51
System Description ................................................. 51

OUTLINE ............................................................. 51
COMBINATION SWITCH READING FUNCTION ... 52
EXTERIOR LAMP BATTERY SAVER CONTROL ... 52

CAN Communication System Description  .............. 52
Wiring Diagram — F/FOG — .................................. 53
Terminals and Reference Values for BCM .............. 55
Terminals and Reference Values for IPDM E/R ...... 55
How to Proceed With Trouble Diagnosis  ................ 55
Preliminary Check  .................................................. 55

CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM ................................................... 55
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR IPDM E/R ........................................... 55

CONSULT-II Function (BCM) .................................. 55
CONSULT-II Function (IPDM E/R) .......................... 55
Front Fog Lamps Do Not Illuminate (Both Sides) ... 55
Front Fog Lamp Does Not Illuminate (One Side) ... 56
Aiming Adjustment .................................................. 58
Bulb Replacement  .................................................. 59
Removal and Installation  ........................................ 59

FRONT FOG LAMP ............................................. 59

TURN SIGNAL AND HAZARD WARNING LAMPS ... 60

Component Parts and Harness Connector Location ...60
System Description  .................................................60

OUTLINE .............................................................60
TURN SIGNAL OPERATION  ...............................60
HAZARD LAMP OPERATION  .............................61
REMOTE KEYLESS ENTRY SYSTEM OPERA-
TION ....................................................................61
COMBINATION SWITCH READING FUNCTION ...62

CAN Communication System Description  ..............62
Wiring Diagram — TURN —  ...................................63
Terminals and Reference Values for BCM  ..............65
How to Proceed With Trouble Diagnosis  ................65
Preliminary Check ...................................................65

CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM  ...................................................65

CONSULT-II Function (BCM)  ..................................65

CONSULT-II START PROCEDURE .....................65
DATA MONITOR  ..................................................65
ACTIVE TEST ......................................................65

Turn Signal Lamps Do Not Operate ........................65
Front Turn Signal Lamps Do Not Operate  ..............66
Rear Turn Signal Lamp Does Not Operate  .............66
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamps Operate  ............................................67
Turn Signal Indicator Lamp Does Not Operate  .......69
Bulb Replacement ...................................................70

FRONT TURN SIGNAL LAMP .............................70
REAR TURN SIGNAL LAMP  ...............................70

Removal and Installation .........................................70

FRONT TURN SIGNAL LAMP .............................70
REAR TURN SIGNAL LAMP  ...............................70

LIGHTING AND TURN SIGNAL SWITCH  ................71

Removal and Installation .........................................71

REMOVAL ............................................................71
INSTALLATION ....................................................71

HAZARD SWITCH .....................................................72

Removal and Installation .........................................72

REMOVAL ............................................................72
INSTALLATION ....................................................72

COMBINATION SWITCH  ..........................................73

Wiring Diagram — COMBSW —  ............................73
Combination Switch Reading Function  ...................74
CONSULT-II Function (BCM)  ..................................74

CONSULT-II START PROCEDURE .....................74
DATA MONITOR  ..................................................74

Combination Switch Inspection  ...............................75
Removal and Installation .........................................77
Switch Circuit Inspection  .........................................77

STOP LAMP  ..............................................................78

System Description  .................................................78
Wiring Diagram — STOP/L —  ................................79
High-Mounted Stop Lamp  .......................................80

BULB REPLACEMENT ........................................80
REMOVAL AND INSTALLATION  .........................80

Stop Lamp ...............................................................80

BULB REPLACEMENT ........................................80
REMOVAL AND INSTALLATION  .........................80

BACK-UP LAMP  .......................................................81

Wiring Diagram — BACK/L —  ................................81

LT-3

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

Bulb Replacement  .................................................. 82
Removal and Installation  ........................................ 82

PARKING, LICENSE PLATE AND TAIL LAMPS  ..... 83

Component Parts and Harness Connector Location

... 83

System Description  ................................................ 83

OPERATION BY LIGHTING SWITCH  ................ 83
COMBINATION SWITCH READING FUNCTION

... 84

EXTERIOR LAMP BATTERY SAVER CONTROL

... 84

CAN Communication System Description .............. 84
Schematic .............................................................. 85
Wiring Diagram — TAIL/L —  .................................. 86
Terminals and Reference Values for BCM  ............. 90
Terminals and Reference Values for IPDM E/R  ..... 90
How to Proceed With Trouble Diagnosis ................ 90
Preliminary Check  .................................................. 90

CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM  .................................................. 90
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR IPDM E/R  .......................................... 90

CONSULT-II Function (BCM)  ................................. 90
CONSULT-II Function (IPDM E/R)  ......................... 90
Parking, Side Marker, License Plate and/or Tail
Lamps Do Not Illuminate  ........................................ 90
Parking, Side Marker, License Plate and Tail Lamps
Do Not Turn OFF (After Approx. 10 Minutes) ......... 97
Bulb Replacement  .................................................. 97

FRONT PARKING LAMP  .................................... 97
TAIL LAMP  .......................................................... 97
LICENSE PLATE LAMP ...................................... 97

Removal and Installation  ........................................ 97

LICENSE PLATE LAMP ...................................... 97

REAR COMBINATION LAMP  .................................. 98

Bulb Replacement  .................................................. 98

REMOVAL ........................................................... 98
INSTALLATION ................................................... 98

Removal and Installation  ........................................ 98

REMOVAL ........................................................... 98
INSTALLATION ................................................... 98

TRAILER TOW  ......................................................... 99

Component Parts and Harness Connector Location

... 99

System Description  ................................................ 99

TRAILER TAIL LAMP OPERATION  .................. 100
TRAILER STOP, TURN SIGNAL AND HAZARD
LAMP OPERATION  .......................................... 100

TRAILER POWER SUPPLY OPERATION  ........ 100

Schematic ............................................................. 102
Wiring Diagram — T/TOW —  ............................... 103

INTERIOR ROOM LAMP  ........................................ 108

Component Parts and Harness Connector Location .108
System Description ............................................... 109

POWER SUPPLY AND GROUND  .................... 109
SWITCH OPERATION  ...................................... 110
ROOM LAMP TIMER OPERATION  .................. 110
INTERIOR LAMP BATTERY SAVER CONTROL ..111

Schematic ............................................................. 112
Wiring Diagram — INT/L —  .................................. 114
Terminals and Reference Values for BCM ............ 119
How to Proceed With Trouble Diagnosis  .............. 119
Preliminary Check  ................................................ 119

INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT FOR BCM  ......................... 119

CONSULT-II Function (BCM)  ............................... 119

CONSULT-II START PROCEDURE  .................. 119
WORK SUPPORT  ............................................. 119
DATA MONITOR  ............................................... 119
ACTIVE TEST  ................................................... 120

Room/Map Lamp Control Does Not Operate  ....... 120
Personal Lamp Control Does Not Operate (Room/
Map Lamps Operate) ............................................ 122
All Interior Room Lamps Do Not Operate  ............. 123
Ignition Keyhole Illumination Control Does Not
Operate ................................................................. 123

ILLUMINATION ....................................................... 126

Component Parts and Harness Connector Location .126
System Description ............................................... 126

ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................ 127
EXTERIOR LAMP BATTERY SAVER CONTROL

. 128

CAN Communication System Description  ............ 128
Schematic ............................................................. 129
Wiring Diagram — ILL — ...................................... 132
Removal and Installation  ...................................... 141

ILLUMINATION CONTROL SWITCH ................ 141

BULB SPECIFICATIONS ........................................ 142

Headlamp ............................................................. 142
Exterior Lamp  ....................................................... 142
Interior Lamp/Illumination  ..................................... 142

LT-4

PRECAUTIONS

2007 Pathfinder

PRECAUTIONS

PFP:00011

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS00FTW

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

General precautions for service operations

EKS00FTX

Never work with wet hands.

Turn the lighting switch OFF before disconnecting and connecting the connector.

When checking the headlamp on/off operation, check it on vehicle and with the power connected to the
vehicle-side connector.

Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not
touch the headlamp bulb just after the headlamp is turned off, because it is very hot.

When the bulb has burned out, wrap it in a thick vinyl bag and discard. Do not break the bulb.

Leaving the bulb removed from the headlamp housing for a long period of time can deteriorate the perfor-
mance of the lens and reflector (dirt, clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

Do not use organic solvent (paint thinner or gasoline) to clean lamps and to remove old sealant.

HEADLAMP (FOR USA)

LT-5

C

D

E

F

G

H

I

J

L

M

A

B

LT

2007 Pathfinder

HEADLAMP (FOR USA)

PFP:26010

Component Parts and Harness Connector Location

EKS00FTZ

System Description

EKS00FU0

Control of the front headlamp system operation is dependent upon the position of the combination switch
(lighting switch). When the lighting switch is placed in the 2ND position, the BCM (body control module)
receives input requesting the headlamps (and tail lamps) illuminate. This input is communicated to the IPDM
E/R (intelligent power distribution module engine room) across the CAN communication lines. The CPU (cen-
tral processing unit) of the IPDM E/R controls the front headlamp high and front headlamp low relay coils.
When energized, these relays direct power to the respective headlamps, which then illuminate.

OUTLINE

Power is supplied at all times

to ignition relay, located in the IPDM E/R,

to headlamp high relay, located in the IPDM E/R,

to headlamp low relay, located in the IPDM E/R,

through 20A fuse (No. 53, located in the IPDM E/R)

to CPU of the IPDM E/R, and

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70.

With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in the IPDM E/R, and

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

Ground is supplied

to BCM terminal 67

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

through grounds E9, E15 and E24.

WKIA4957E

1.

IPDM E/R
E118, E119, E120, E121,
E122, E123, E124

2.

BCM
M18, M19, M20
(view with instrument lower panel LH removed

3.

Combination Switch (lighting switch)
M28

4.

Combination meter
M24

LT-6

HEADLAMP (FOR USA)

2007 Pathfinder

Low Beam Operation

With the lighting switch in 2ND position, the BCM receives input requesting the headlamps to illuminate. This
input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R con-
trols the headlamp low relay coil. When energized, this relay directs power

through 15A fuse (No. 41, located in the IPDM E/R)

through IPDM E/R terminal 54

to front headlamp RH terminal 3, and

through 15A fuse (No. 40, located in the IPDM E/R)

through IPDM E/R terminal 52

to front headlamp LH terminal 3.

Ground is supplied

to front headlamp LH and RH terminal 2

through grounds E9, E15 and E24.

With power and ground supplied, low beam headlamps illuminate.

High Beam Operation/Flash-to-Pass Operation

With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input request-
ing the headlamp high beams to illuminate. This input is communicated to the IPDM E/R across the CAN com-
munication lines. The CPU of the combination meter controls the ON/OFF status of the HIGH BEAM indicator.
The CPU of the IPDM E/R controls the headlamp high relay coil. When energized, this relay directs power

through 10A fuse (No. 34, located in the IPDM E/R)

through IPDM E/R terminal 56

to front headlamp RH terminal 1, and

through 10A fuse (No. 35, located in the IPDM E/R)

through IPDM E/R terminal 55

to front headlamp LH terminal 1.

Ground is supplied

to front headlamp LH and RH terminal 2

through grounds E9, E15 and E24.

With power and ground supplied, the high beam headlamps illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, unless the combination switch (lighting
switch) position is changed. If the combination switch (lighting switch) position is changed, then the headlamps
are turned off.

AUTO LIGHT OPERATION

Refer to

LT-39, "System Description"

 .

VEHICLE SECURITY SYSTEM (PANIC ALARM)

The vehicle security system (panic alarm) will flash the high beams if the system is triggered. Refer to

BL-42,

"Panic Alarm Operation"

 .

CAN Communication System Description

EKS00FU1

Refer to

LAN-4, "CAN Communication System"

 .
