SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-7

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:

1.

Trunk lid bumpers out of adjustment

2.

Trunk lid striker out of adjustment

3.

The trunk lid torsion bars knocking together

4.

A loose license plate or bracket

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:

1.

Sunroof lid, rail, linkage or seals making a rattle or light knocking noise

2.

Sun visor shaft shaking in the holder

3.

Front or rear windshield touching headliner and squeaking

Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.

OVERHEAD CONSOLE (FRONT AND REAR)

Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:

1.

Loose harness or harness connectors.

2.

Front console map/reading lamp lens loose.

3.

Loose screws at console attachment points.

SEATS

When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:

1.

Headrest rods and holder

2.

A squeak between the seat pad cushion and frame

3.

The rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:

1.

Any component mounted to the engine wall

2.

Components that pass through the engine wall

3.

Engine wall mounts and connectors

4.

Loose radiator mounting pins

5.

Hood bumpers out of adjustment

6.

Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

IP-8

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2007 Pathfinder

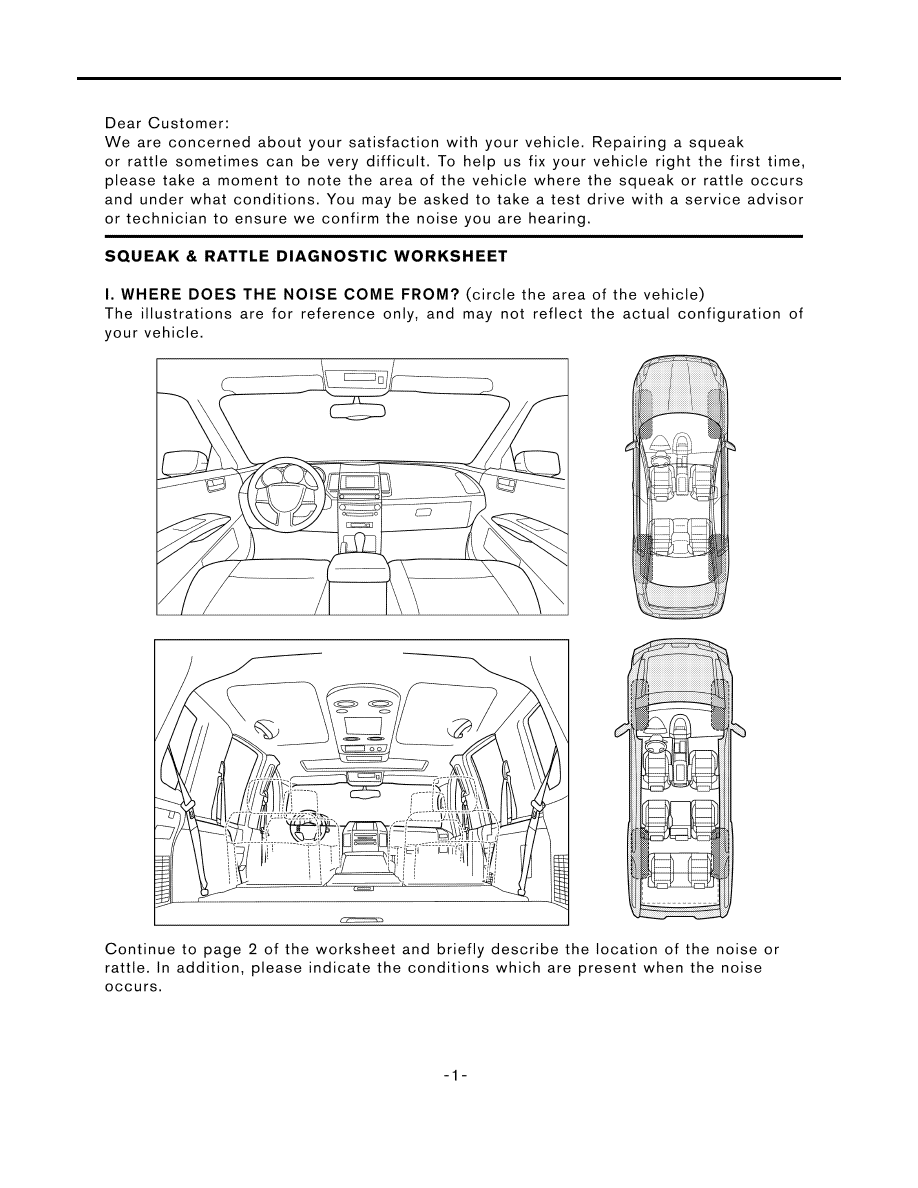

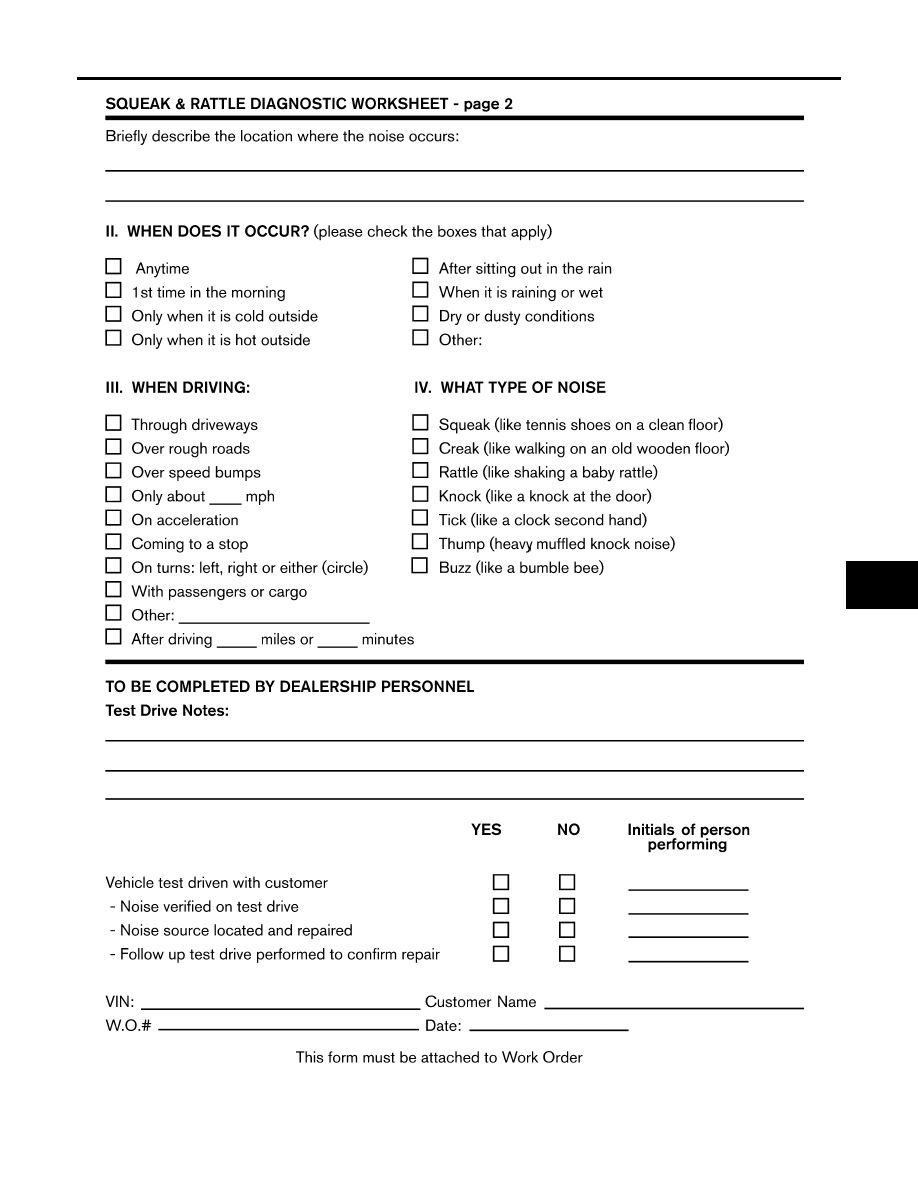

Diagnostic Worksheet

EIS007UG

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

LAIA0071E

IP-10

INSTRUMENT PANEL ASSEMBLY

2007 Pathfinder

INSTRUMENT PANEL ASSEMBLY

PFP:68200

Removal and Installation

EIS007UH

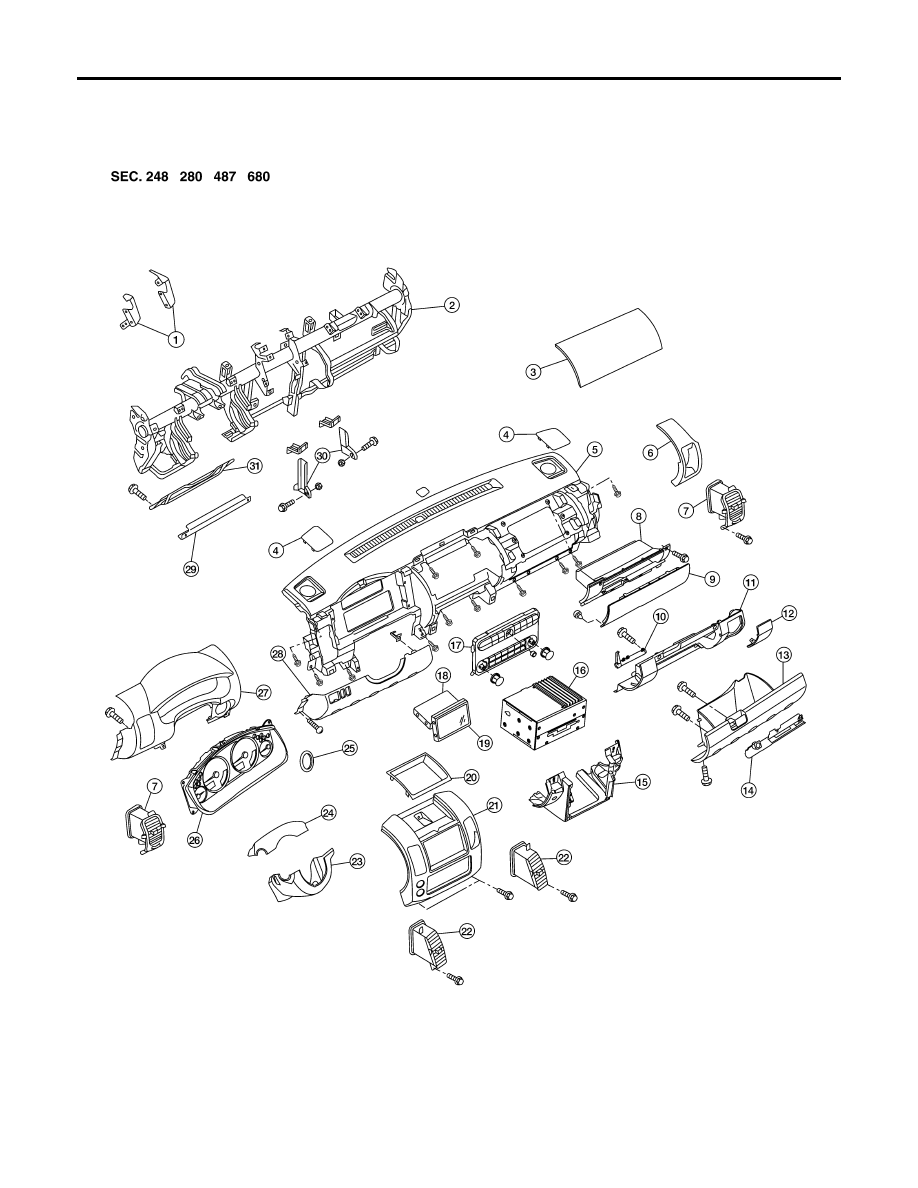

INSTRUMENT PANEL

1.

Display unit bracket RH/LH

2.

Steering member assembly

3.

Passenger air bag module

4.

Speaker grille RH/LH

5.

Instrument panel and pad assembly 6.

Instrument side finisher

7.

Side ventilator grille RH/LH

8.

Upper glove box

9.

Upper glove box door

10.

Lower glove box damper assembly

11.

Lower instrument panel RH

12.

Fuse block cover

LIIA1740E

INSTRUMENT PANEL ASSEMBLY

IP-11

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at lease 3 min-
utes.

1.

Disconnect battery negative terminal.

2.

Disconnect battery positive terminal.

3.

Remove the center console. Refer to

IP-16, "CENTER CONSOLE"

 .

4.

Remove the combination meter. Refer to

IP-14, "COMBINATION METER"

 .

5.

Remove front pillar upper finisher. Refer to

EI-28, "BODY SIDE TRIM"

 .

6.

Remove optical sensor. Refer to

LT-50, "Removal and Installation"

 .

7.

Remove audio unit. Refer to

AV-61, "Removal and Installation"

 .

8.

Remove display control unit, if equipped. Refer to

AV-153, "DISPLAY CONTROL UNIT"

 .

9.

Remove cluster lid D. Refer to

IP-13, "CLUSTER LID D"

 .

10. Disconnect GPS antenna.

11. Remove the passenger air bag module. Refer to

SRS-42, "FRONT PASSENGER AIR BAG MODULE"

 .

12. Remove the instrument stay RH/LH bolts.

13. Remove instrument panel.

Disconnect all remaining harnesses.

Installation

Installation is in the reverse order of removal.

CLUSTER LID C -WITHOUT NAVIGATION SYSTEM

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at lease 3 min-
utes.

13.

Lower glove box

14.

Lower glove box latch assembly

15.

Cluster lid D

16.

Audio unit

17.

AV switch

18.

Display control unit

19.

Display unit

20.

Storage tray

21.

Cluster lid C

22.

Center ventilator grill RH/LH

23.

Column cover lower

24.

Column cover upper

25.

Steering lock escutcheon

26.

Combination meter

27.

Cluster lid A

28.

Lower instrument panel LH

29.

Knee protector brace

30.

Instrument stay RH/LH

31.

Knee protector

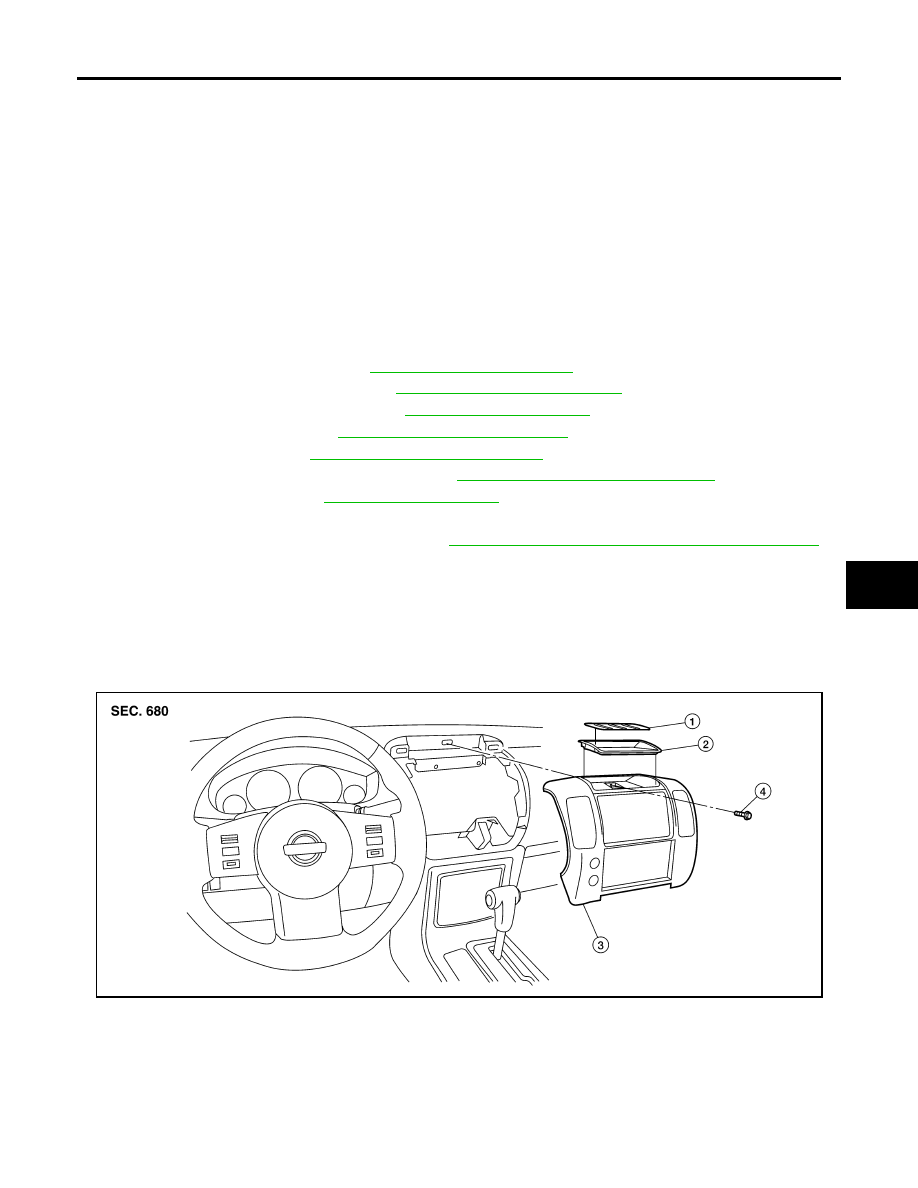

WIIA1050E

1.

Liner

2.

Storage tray

3.

Cluster lid C

4.

Cluster lid C screw

IP-12

INSTRUMENT PANEL ASSEMBLY

2007 Pathfinder

1.

Disconnect battery negative terminal.

2.

Disconnect battery positive terminal.

3.

Remove A/T finisher. Refer to

IP-15, "A/T FINISHER"

 .

4.

Remove storage tray and storage tray liner, then remove cluster lid C screw.

5.

Pull cluster lid C rearward to release clips.

6.

Disconnect electrical connectors and remove cluster lid C.

Installation

Installation is in the reverse order of removal.

CLUSTER LID C - WITH NAVIGATION SYSTEM

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at lease 3 min-
utes.

1.

Disconnect battery negative terminal.

2.

Disconnect battery positive terminal.

3.

Remove A/T finisher. Refer to

IP-15, "A/T FINISHER"

 .

4.

Pull cluster lid C rearward to release clips.

5.

Disconnect electrical connectors and remove cluster lid C.

Installation

Installation is in the reverse order of removal.

WIIA1051E

1.

Instrument panel

2.

Cluster lid C

INSTRUMENT PANEL ASSEMBLY

IP-13

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

CLUSTER LID D

Removal

1.

Remove A/T finisher. Refer to

IP-15, "A/T FINISHER"

 .

2.

Remove lower instrument panel LH. Refer to

IP-14, "LOWER INSTRUMENT PANEL LH"

 .

3.

Remove lower instrument panel RH. Refer to

IP-15, "LOWER INSTRUMENT PANEL RH AND LOWER

GLOVE BOX"

 .

4.

Remove cluster lid C. Refer to

IP-11, "CLUSTER LID C -WITHOUT NAVIGATION SYSTEM"

 .

5.

Disconnect the electrical connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.

WIIA1052E

1.

Cluster lid D

2.

Cluster lid D screws

IP-14

INSTRUMENT PANEL ASSEMBLY

2007 Pathfinder

LOWER INSTRUMENT PANEL LH
Removal

1.

Remove front pillar lower finisher. Refer to

EI-29, "FRONT PILLAR LOWER FINISHER"

 .

2.

Remove lower instrument panel LH, using power tool.

3.

Pull rearward to release lower instrument panel LH.

4.

Disconnect lower instrument panel LH harness connectors.

Installation

Installation is in the reverse order of removal.

COMBINATION METER

Removal

1.

Disconnect the negative battery cable.

2.

Remove front pillar upper finisher. Refer to

EI-29, "FRONT PILLAR UPPER FINISHER"

 .

3.

Remove lower instrument panel LH. Refer to

IP-14, "LOWER INSTRUMENT PANEL LH"

 .

4.

Remove steering lock escutcheon.

5.

Remove cluster lid A, using power tool.

6.

Remove combination meter, using power tool.

7.

Disconnect combination meter electrical connectors.

Installation

Installation is in the reverse order of removal.

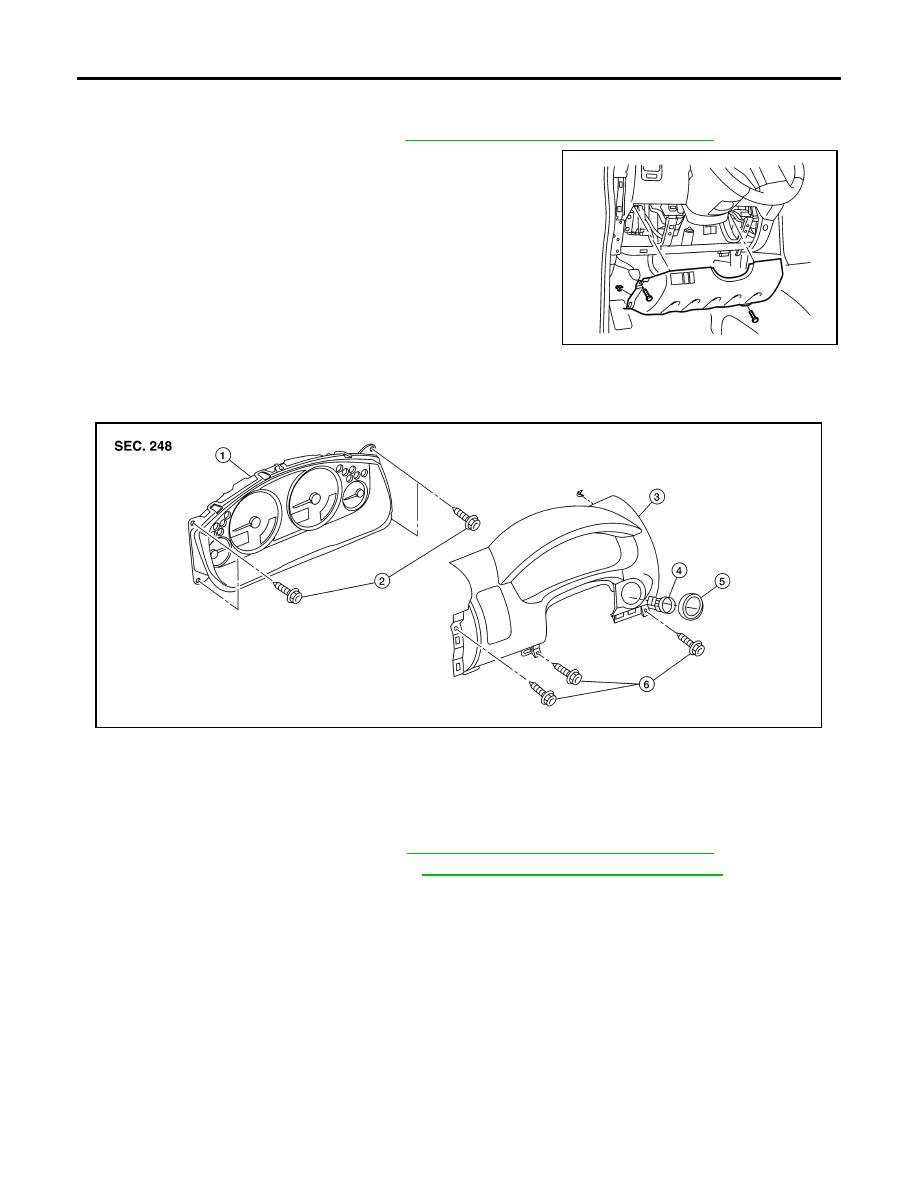

LIIA1744E

WIIA1053E

1.

Combination meter

2.

Combination meter screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Cluster lid A screws
