ALPHABETICAL INDEX

R

Radiator .............................................................

CO-14

Radio - See Audio  ...............................................

AV-6

Rear axle  ...........................................................

RAX-5

Rear bumper  .......................................................

EI-15

Rear case (Transfer)

TF-148

TF-181

TF-278

TF-280

TF-286

Rear combination lamp removal and installation

LT-98

Rear door  .............................................

BL-84

GW-65

Rear seat ...........................................................

SE-95

Rear seat belt  ......................................................

SB-6

Rear suspension  ...............................................

RSU-5

Rear washer  ....................................................

WW-28

Rear window defogger  .....................................

GW-74

Rear wiper  .......................................................

WW-28

Refrigerant connection precaution  .......

ATC-6

MTC-5

Refrigerant discharging evacuating charging

ATC-158

MTC-99

Refrigerant general precaution .............

ATC-6

MTC-5

Refrigerant lines

ATC-158

ATC-166

ATC-167

MTC-

99

MTC-106

MTC-107

Refrigerant pressure sensor .

EC-656

ATC-169

MTC-

107

Relay box  ..........................................................

PG-87

Remote keyless entry system  ............................

BL-39

Removal and installation (A/T)  ...........

AT-240

AT-243

Removal and installation (Transfer)  ...

TF-145

TF-277

Revolution sensor (A/T)  ...................................

AT-111

Road wheel size .................................................

GI-51

Rocker cover  .....................................................

EM-41

Room lamp .......................................................

LT-108

Room lamp - See Interior lamp  ........................

LT-108

ROOM/L - Wiring diagram ................................

LT-114

RP/SEN - Wiring diagram  ...............................

EC-657

S

SAE J1979 - Service $01 - 09  ...........................

EC-47

SEAT - Wiring diagram  .........................

SE-77

SE-78

Seat belt inspection ...............................

SB-10

MA-35

Seat belt pre-tensioner ....................................

SRS-50

Seat belt, front .....................................................

SB-3

Seat belt, rear ......................................................

SB-6

Seat, front ..........................................................

SE-84

Seat, rear  ..........................................................

SE-95

Self-diagnosis (Transfer)  ......................

TF-52

TF-217

SEN/PW - Wiring diagram ...............................

EC-476

SHIFT - Wiring diagram  ...................................

AT-218

Shift control (Transfer)  ..

TF-149

TF-176

TF-278

TF-

280

TF-286

TF-301

Shift lock system  ..............................................

AT-217

Shock absorber (front)  ....................................

FSU-10

Shock absorber (rear)  .....................................

RSU-13

Side air bag (satellite) sensor ..........................

SRS-49

Side curtain air bag  .........................................

SRS-46

Side trim  ..............................................................

EI-28

SMJ (super multiple junction)  ............................

PG-83

Spare tire size  ....................................................

GI-51

Spark plug replacement ........................

EM-33

MA-19

Specification value ...........................................

EC-135

Speedometer ........................................................

DI-4

Spiral cable ......................................................

SRS-40

SROOF - Wiring diagram  ..................................

RF-13

SRS - See Supplemental Restraint System  ......

SRS-5

SRS - Wiring diagram  ......................................

SRS-13

SRS Trouble diagnoses .....................................

SRS-9

Stabilizer bar (front)  .........................................

FSU-12

Stabilizer bar (rear)  .........................................

RSU-20

Stall test (A/T) ....................................................

AT-52

Standardized relay .............................................

PG-81

START - Wiring diagram  ...................................

SC-11

Starting system  ..................................................

SC-10

Steering gear, linkage and transfer gear inspection  .....

MA-32

Steering linkage .................................................

PS-15

Steering wheel and column  .................................

PS-8

Step lamp  .........................................................

LT-109

Stop lamp  ...........................................................

LT-78

Stop lamp switch  .............................................

EC-555

STOP/L - Wiring diagram  ...................................

LT-79

Strut (front)  ......................................................

FSU-10

STSIG - Wiring diagram  ..................................

AT-101

Sub-oil pump (Transfer) ....................................

TF-167

Sun gear (Transfer)

TF-149

TF-176

TF-278

TF-280

TF-286

Sun roof, electric ................................................

RF-10

Sunload sensor ..............................................

ATC-127

Sunroof ..............................................................

RF-23

Supplemental Restraint System  ........................

SRS-5

Symbols and abbreviations  .....................

GI-10

GI-22

Symptom matrix chart ........................................

EC-91

System readiness test (SRT) code  ....................

EC-53

T

T/TOW - Wiring diagram ...................................

LT-103

Tachometer ..........................................................

DI-4

Tail lamp  .............................................................

LT-83

TAIL/L - Wiring diagram ......................................

LT-86

TCM circuit diagram  ..........................................

AT-51

TCM inspection table .........................................

AT-85

TCS - Wiring diagram  .......................

BRC-17

BRC-79

TCS (traction control system)  .............

BRC-8

BRC-69

TCS component parts and connector location

BRC-15

BRC-77

TCS wheel sensors  ..........................

BRC-15

BRC-77

Theft warning system - See Vehicle security (Theft warn-
ing) system  .........................................................

BL-64

Thermometer ......................................................

DI-24

Thermostat ........................................................

CO-24

Three way catalyst .............................................

EM-22

Three way catalyst function (Bank 1)  ..............

EC-371

Three way catalyst function (Bank 2)  ..............

EC-371

Three way catalyst precautions  ............................

GI-5

Throttle control motor  ......................................

EC-572

Throttle control motor relay ..............................

EC-560

Throttle position sensor (TPS) ...

EC-213

EC-335

EC-

IDX-8

ALPHABETICAL INDEX

498

EC-500

EC-592

Tie-rod ...............................................................

PS-15

Timing chain  .....................................................

EM-55

Tire rotation .......................................................

MA-31

Tire size  ..............................................................

GI-51

Torque converter installation  .............

AT-242

AT-245

Torque convertor clutch solenoid valve  ...

AT-118

AT-

120

Towing point  .......................................................

GI-45

TPS1 - Wiring diagram  ....................................

EC-337

TPS2 - Wiring diagram  ....................................

EC-215

TPS3 - Wiring diagram  ....................................

EC-594

Traction control system - Wiring diagram  ......

BRC-17

BRC-79

Transfer control device

TF-78

TF-82

TF-138

TF-244

TF-273

Transfer control unit inspection table ....

TF-37

TF-211

Transfer dropping resistor ..................................

TF-91

Transfer fluid temperature sensor .......

TF-105

TF-167

Transfer motor  ....................................

TF-103

TF-142

Transfer motor relay  ........................................

TF-103

Transfer oil replacement  ...................................

MA-26

Transfer serial number ........................................

GI-50

Transmission serial number ................................

GI-50

Tread-FR&RR (Dimensions) ...............................

GI-51

Trim .....................................................................

EI-28

TRNSCV - Wiring diagram ...............................

BL-113

Trouble diagnoses  ..............................................

GI-11

Turbine revolution sensor  ................................

AT-109

TURN - Wiring diagram  ......................................

LT-63

Turn signal lamp  .................................................

LT-60

Two trip detection logic  ......................................

EC-47

Two-pole lift  ........................................................

GI-43

V

Vacuum hose (brake system)  ............................

BR-21

Vacuum hose drawing (Engine control) ...........

EC-102

Valve clearance  ................................................

EM-84

Valve guide  .........................................

EM-99

EM-100

Valve lifter  .........................................................

EM-79

Valve seat  .......................................................

EM-101

Valve spring  ......................................

EM-102

EM-103

Vanity mirror lamp .............................................

LT-108

Variable induction air control system (VIAS)  ..

EC-550

EC-661

VDC (vehicle dynamics control) .........

BRC-8

BRC-69

VDC -Wiring diagram .......................

BRC-17

BRC-79

Vehicle identification number  ..............................

GI-49

Vehicle recovery (freeing a stuck vehicle)  ..........

GI-45

Vehicle security (theft warning) system  .............

BL-64

Vehicle speed sensor (VSS) ..............

EC-457

EC-549

VEHSEC - Wiring diagram .................................

BL-68

VENT/V - Wiring diagram  ..................

EC-407

EC-414

VIAS - Wiring diagram  .....................................

EC-663

VIAS/V - Wiring diagram ..................................

EC-551

VIN registration  ..................................................

EC-76

Viscosity number (SAE) ....................................

MA-12

VSS A/T - Wiring diagram ................................

AT-113

W

W/ANT - Wiring diagram  ....................................

AV-67

Wait detection switch  ............................

TF-71

TF-237

WARN - Wiring diagram ......................................

DI-31

Warning chime  ....................................................

DI-41

Warning lamps  ....................................................

DI-30

Washer, front  .....................................................

WW-4

Washer, rear  ....................................................

WW-28

Water pump  ......................................................

CO-19

Water temperature gauge  .....................................

DI-4

Wheel alignment (front) .....................................

FSU-6

Wheel alignment (rear)  .....................................

RSU-6

Wheel balance  ..................................................

MA-29

Wheel bearing (front)  ........................................

FAX-5

Wheel bearing (rear)  .........................................

RAX-5

Wheel hub (rear)  ...............................................

RAX-5

Wheel size  ..........................................................

GI-51

Wheelbase (Dimensions)  ....................................

GI-51

Width (Dimensions) .............................................

GI-51

WINDOW - Wiring diagram  ..............................

GW-21

Window antenna  ................................................

AV-66

Window, door  ......................................

GW-61

GW-65

Windshield .......................................................

GW-11

WIP/R - Wiring diagram  ...................................

WW-30

WIPER - Wiring diagram  ....................................

WW-8

Wiper, front  ........................................................

WW-4

Wiper, rear  .......................................................

WW-28

Wiring Diagram (Cell code) list  .........................

PG-70

Wiring diagrams  ..................................................

GI-15

WT-T/WARN - Wiring diagram ..........................

WT-11

IP-1

INSTRUMENT PANEL

I  BODY

CONTENTS

C

D

E

F

G

H

J

K

L

M

SECTION

IP

A

B

IP

2007 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 3

SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 4

Work Flow  ................................................................ 4

CUSTOMER INTERVIEW ..................................... 4
DUPLICATE THE NOISE AND TEST DRIVE  ....... 5
CHECK RELATED SERVICE BULLETINS  ........... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE  ...................................................... 5
REPAIR THE CAUSE  ........................................... 5
CONFIRM THE REPAIR  ....................................... 6

Generic Squeak and Rattle Troubleshooting  ........... 6

INSTRUMENT PANEL  .......................................... 6
CENTER CONSOLE  ............................................. 6
DOORS ................................................................. 6
TRUNK .................................................................. 7
SUNROOF/HEADLINING ..................................... 7

OVERHEAD CONSOLE (FRONT AND REAR) ..... 7
SEATS ................................................................... 7
UNDERHOOD ....................................................... 7

Diagnostic Worksheet ............................................... 8

INSTRUMENT PANEL ASSEMBLY  ......................... 10

Removal and Installation  ........................................ 10

INSTRUMENT PANEL  ........................................ 10
CLUSTER LID C -WITHOUT NAVIGATION SYS-
TEM ..................................................................... 11
CLUSTER LID C - WITH NAVIGATION SYSTEM ... 12
CLUSTER LID D  ................................................. 13
LOWER INSTRUMENT PANEL LH ..................... 14
COMBINATION METER  ...................................... 14
A/T FINISHER  ..................................................... 15
LOWER INSTRUMENT PANEL RH AND
LOWER GLOVE BOX  ......................................... 15
UPPER GLOVE BOX  .......................................... 15
CENTER CONSOLE  ........................................... 16

Disassembly and Assembly .................................... 17

LOWER GLOVE BOX  ......................................... 17
UPPER GLOVE BOX  .......................................... 17
CENTER CONSOLE  ........................................... 18

IP-2

PRECAUTIONS

2007 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EIS007UB

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PREPARATION

IP-3

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

PREPARATION

PFP:00002

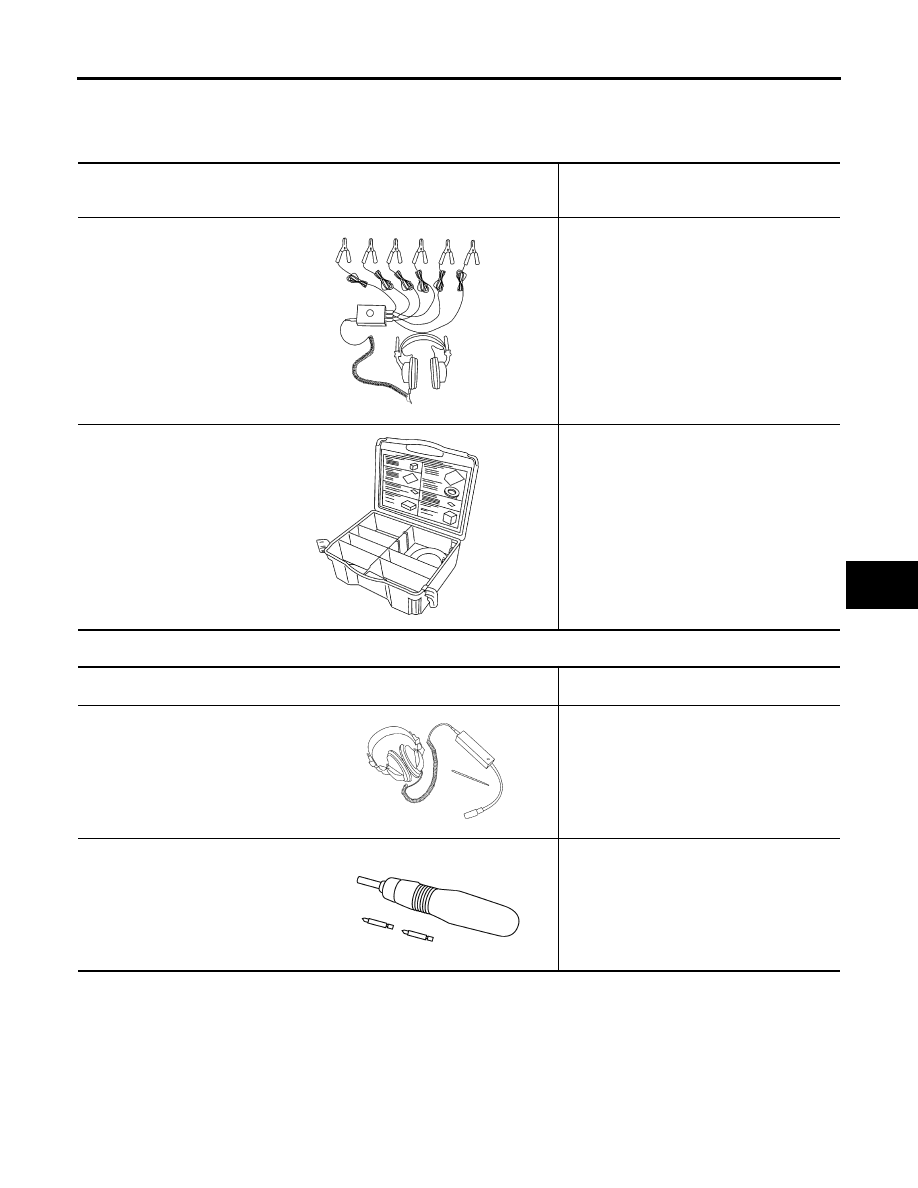

Special Service Tools

EIS007UC

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

EIS007UD

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Locating the noise

(J-43980)
NISSAN Squeak and Rattle kit

Repairing the cause of noise

SBT839

SBT840

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

Power Tool

Loosening bolts and nuts

SIIA0995E

PBIC0191E

IP-4

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2007 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PFP:00000

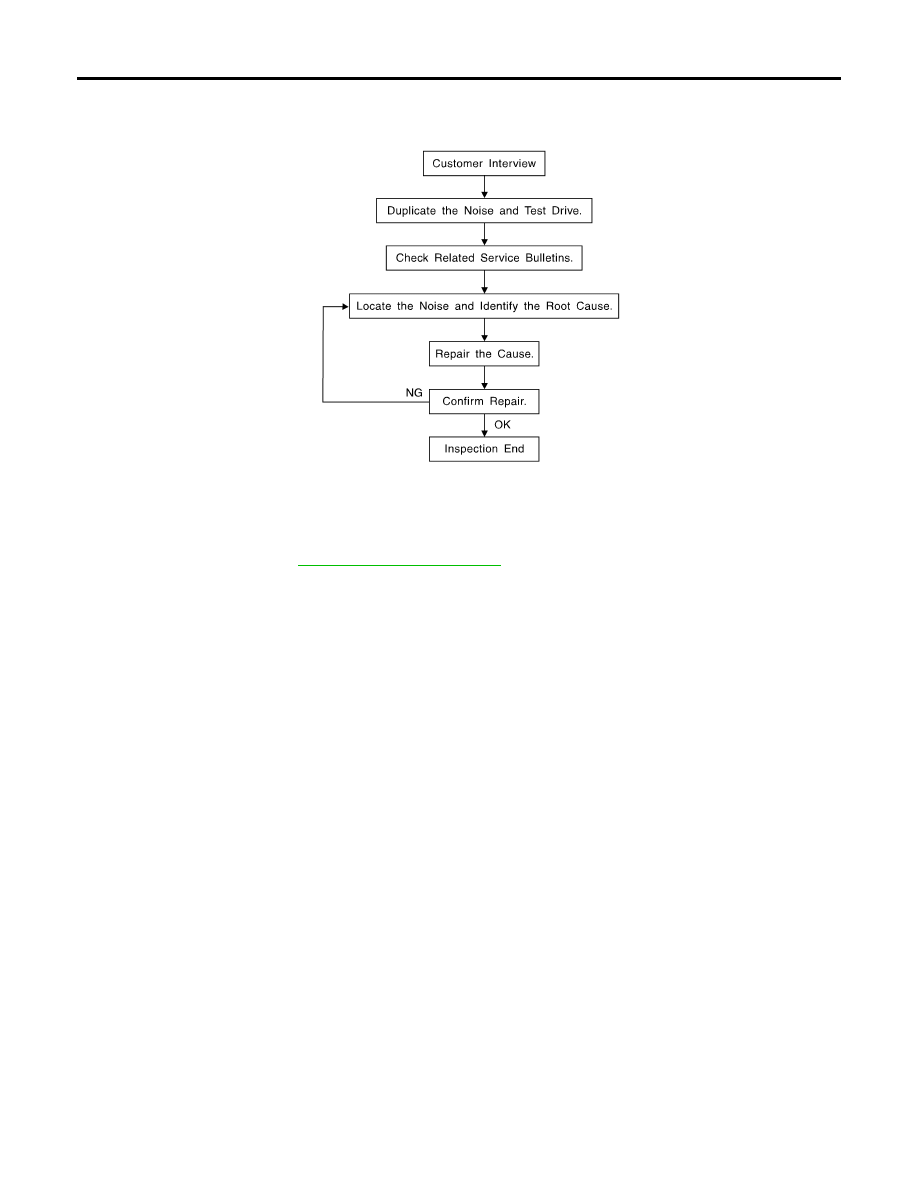

Work Flow

EIS007UE

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to

IP-8, "Diagnostic Worksheet"

 . This information is necessary to duplicate the

conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.

SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-5

C

D

E

F

G

H

J

K

L

M

A

B

IP

2007 Pathfinder

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

1.

Narrow down the noise to a general area.To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear: J-39565 and mechanic's stethoscope).

2.

Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners can be bro-
ken or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to

IP-6, "Generic Squeak and Rattle Troubleshooting"

 .

REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:

separate components by repositioning or loosening and retightening the component, if possible.

insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100

×

135 mm (3.94

×

5.31 in)/76884-71L01: 60

×

85 mm (2.36

×

3.35 in)/76884-71L02: 15

×

25

mm (0.59

×

0.98 in)

INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50

×

50 mm (1.97

×

1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,

50

×

50 mm (1.97

×

1.97 in)

INSULATOR (Light foam block)

IP-6

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2007 Pathfinder

80845-71L00: 30 mm (1.18 in) thick, 30

×

50 mm (1.18

×

1.97 in)

FELT CLOTH TAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15

×

25 mm (0.59

×

0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll. The following

materials not found in the kit can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used instead of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Generic Squeak and Rattle Troubleshooting

EIS007UF

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:

1.

The cluster lid A and instrument panel

2.

Acrylic lens and combination meter housing

3.

Instrument panel to front pillar garnish

4.

Instrument panel to windshield

5.

Instrument panel mounting pins

6.

Wiring harnesses behind the combination meter

7.

A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.

CAUTION:

Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.

CENTER CONSOLE

Components to pay attention to include:

1.

Shifter assembly cover to finisher

2.

A/C control unit and cluster lid C

3.

Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the:

1.

Finisher and inner panel making a slapping noise

2.

Inside handle escutcheon to door finisher

3.

Wiring harnesses tapping

4.

Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.
