CHECK DOOR MIRROR DEFOGGER

Check continuity between each door mirror LH or RH terminals 1
and 6.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace malfunctioning door mirror LH or RH. Refer to

GW-92, "Door Mirror Assembly"

 .

Door Mirror LH Defogger Circuit Check

EIS007SM

1.

CHECK DOOR MIRROR LH DEFOGGER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect door mirror LH.

3.

Turn ignition switch ON.

4.

Check voltage between door mirror LH connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness.

2.

CHECK DOOR MIRROR LH DEFOGGER GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between door mirror LH connector D4 terminal
6 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

1 - 6

: Continuity should exist.

LIIA2038E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

D4

1

Ground

Rear window defogger
switch ON

 Battery voltage

Rear window defogger
switch OFF

0

LIIA2050E

6 - Ground

: Continuity should exist.

LIIA2037E

GW-86

REAR WINDOW DEFOGGER

2007 Pathfinder

3.

CHECK DOOR MIRROR LH DEFOGGER

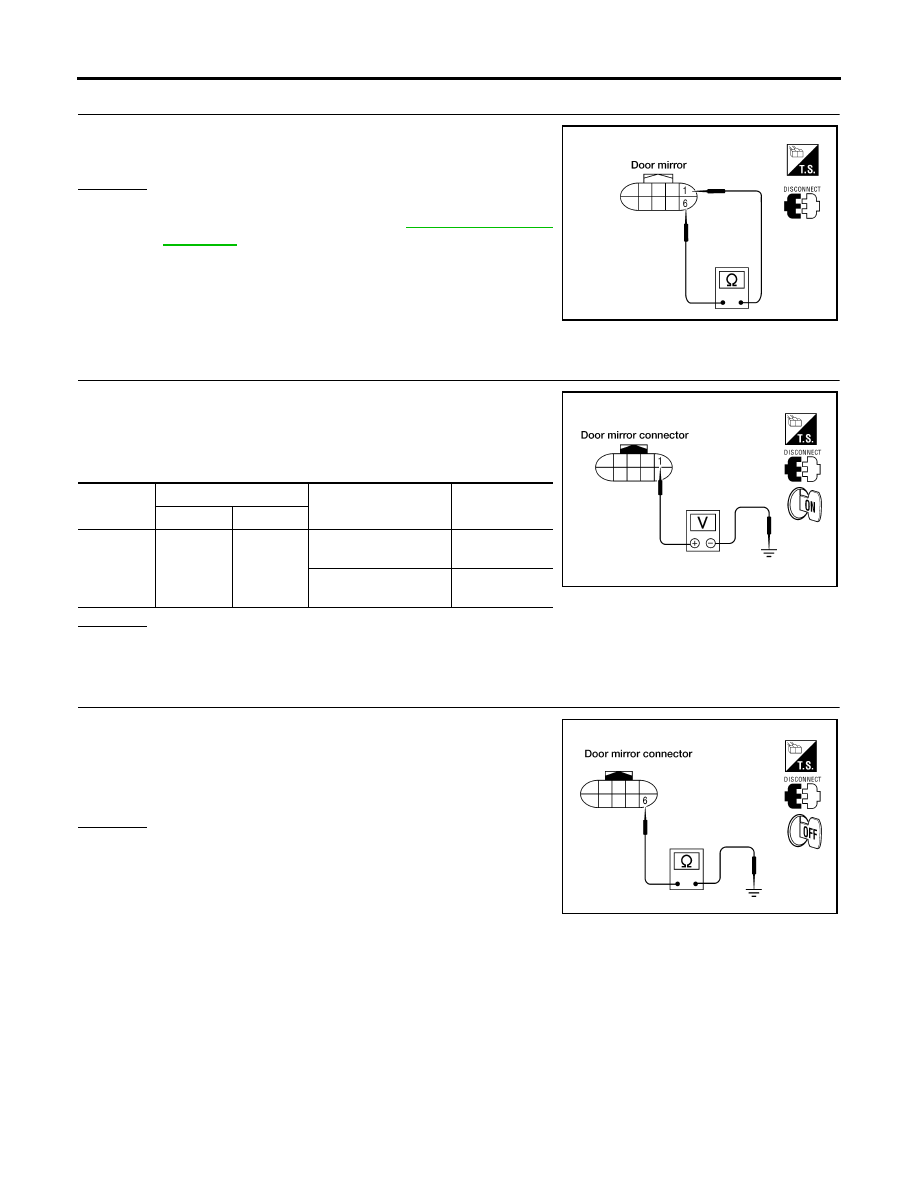

Check continuity between door mirror LH terminals 1 and 6.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace door mirror LH. Refer to

GW-92, "Door Mirror

Assembly"

 .

Door Mirror RH Defogger Circuit Check

EIS007SN

1.

CHECK DOOR MIRROR RH DEFOGGER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect door mirror RH.

3.

Turn ignition switch ON.

4.

Check voltage between door mirror RH connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness.

2.

CHECK DOOR MIRROR RH DEFOGGER GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between door mirror RH connector D107 termi-
nal 6 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

1 - 6

: Continuity should exist.

LIIA2038E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

D107

1

Ground

Rear window defogger
switch ON

 Battery voltage

Rear window defogger
switch OFF

0

LIIA2050E

6 - Ground

: Continuity should exist.

LIIA2037E

REAR WINDOW DEFOGGER

GW-87

C

D

E

F

G

H

J

K

L

M

A

B

GW

2007 Pathfinder

3.

CHECK DOOR MIRROR RH DEFOGGER

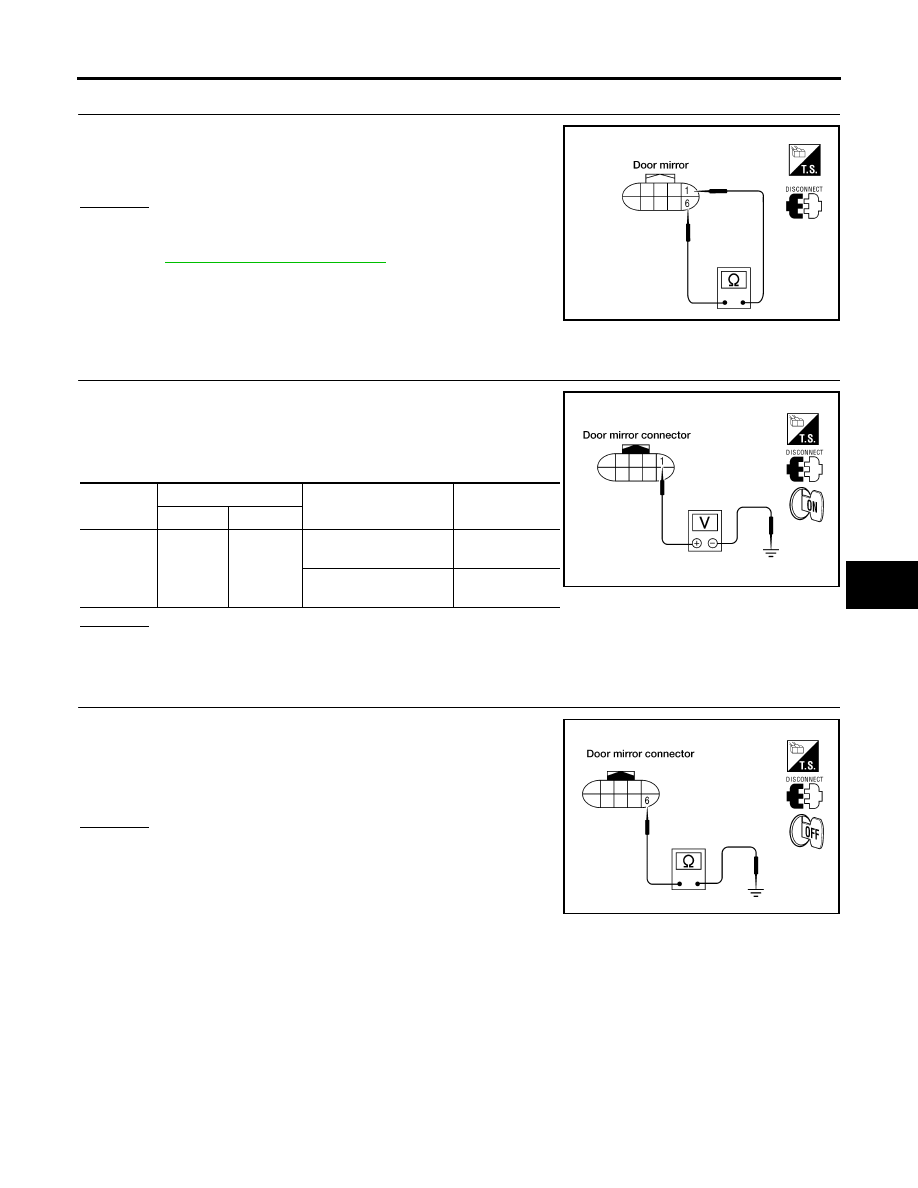

Check continuity between each door mirror RH terminals 1 and 6.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace door mirror RH. Refer to

GW-92, "Door Mirror

Assembly"

 .

Rear Window Defogger Signal Check (With NAVI)

EIS007SO

1.

CHECK AV COMMUNICATION LINE

AV communication line check is executed.  Refer to

AV-130, "CAN Communication Line Check"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Replace display control unit. Refer to

AV-152, "DISPLAY UNIT"

 .

2.

CHECK CAN COMMUNICATION LINE

CAN communication line check is executed. Refer to

AV-130, "CAN Communication Line Check"

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> In addition, it is necessary to check CAN communication line. Refer to

LAN-7, "TROUBLE DIAG-

NOSIS"

 .

Filament Check

EIS007SP

1.

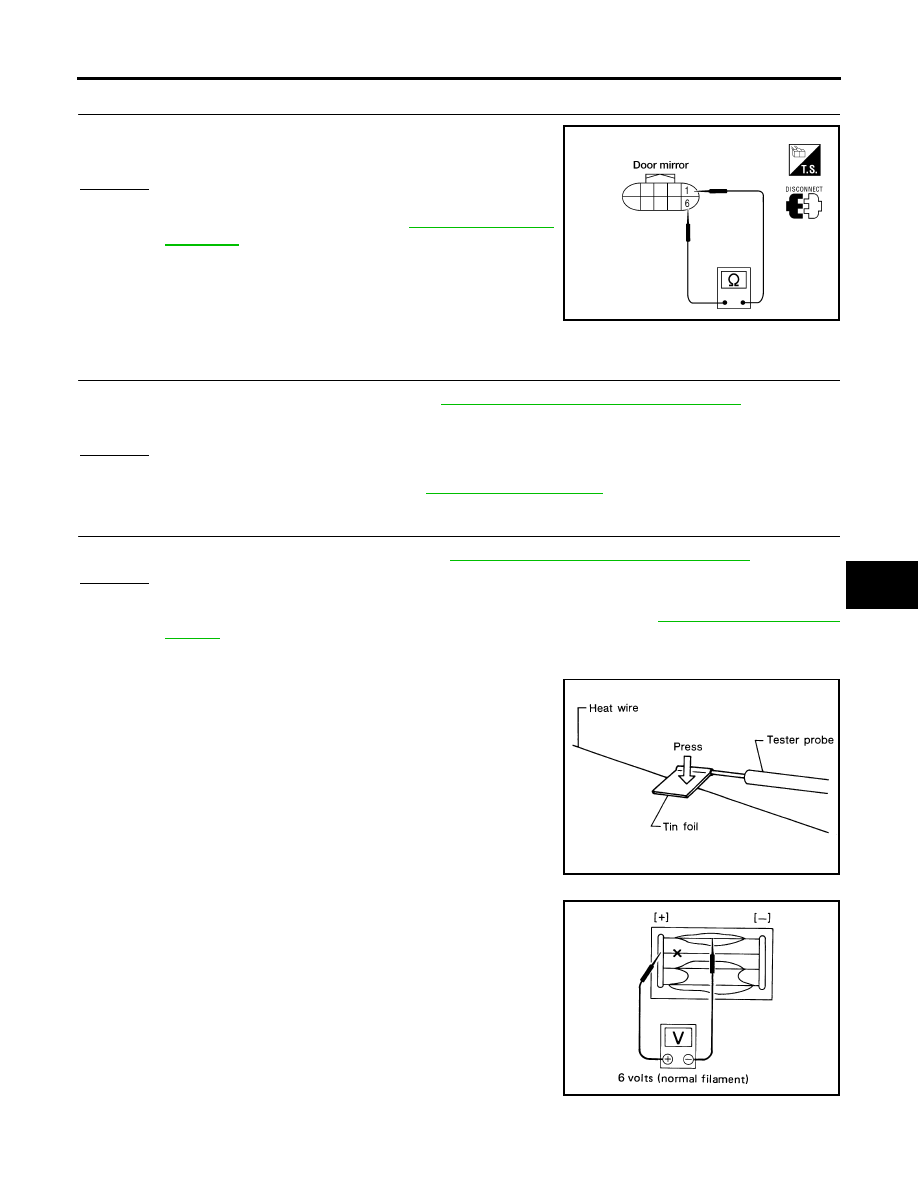

When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.

2.

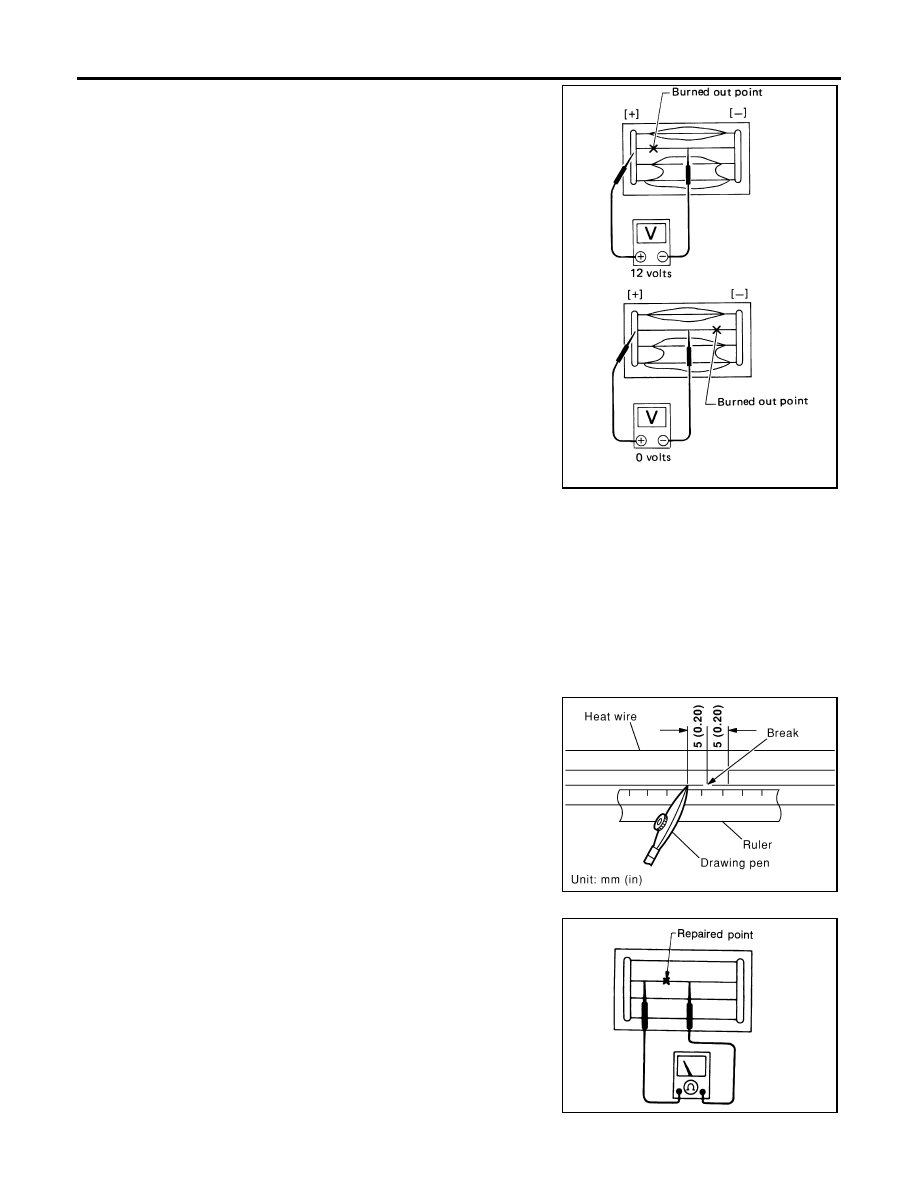

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

1 - 6

: Continuity should exist.

LIIA2038E

Is rear window defogger displayed on the display?

SEL122R

SEL263

GW-88

REAR WINDOW DEFOGGER

2007 Pathfinder

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

Filament Repair

EIS007SQ

REPAIR EQUIPMENT

●

Conductive silver composition (DuPont No. 4817 or equivalent)

●

Ruler 30 cm (11.8 in) long

●

Drawing pen

●

Heat gun

●

Alcohol

●

Cloth

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

SEL265

PIIA0215E

SEL012D

REAR WINDOW DEFOGGER

GW-89

C

D

E

F

G

H

J

K

L

M

A

B

GW

2007 Pathfinder

5.

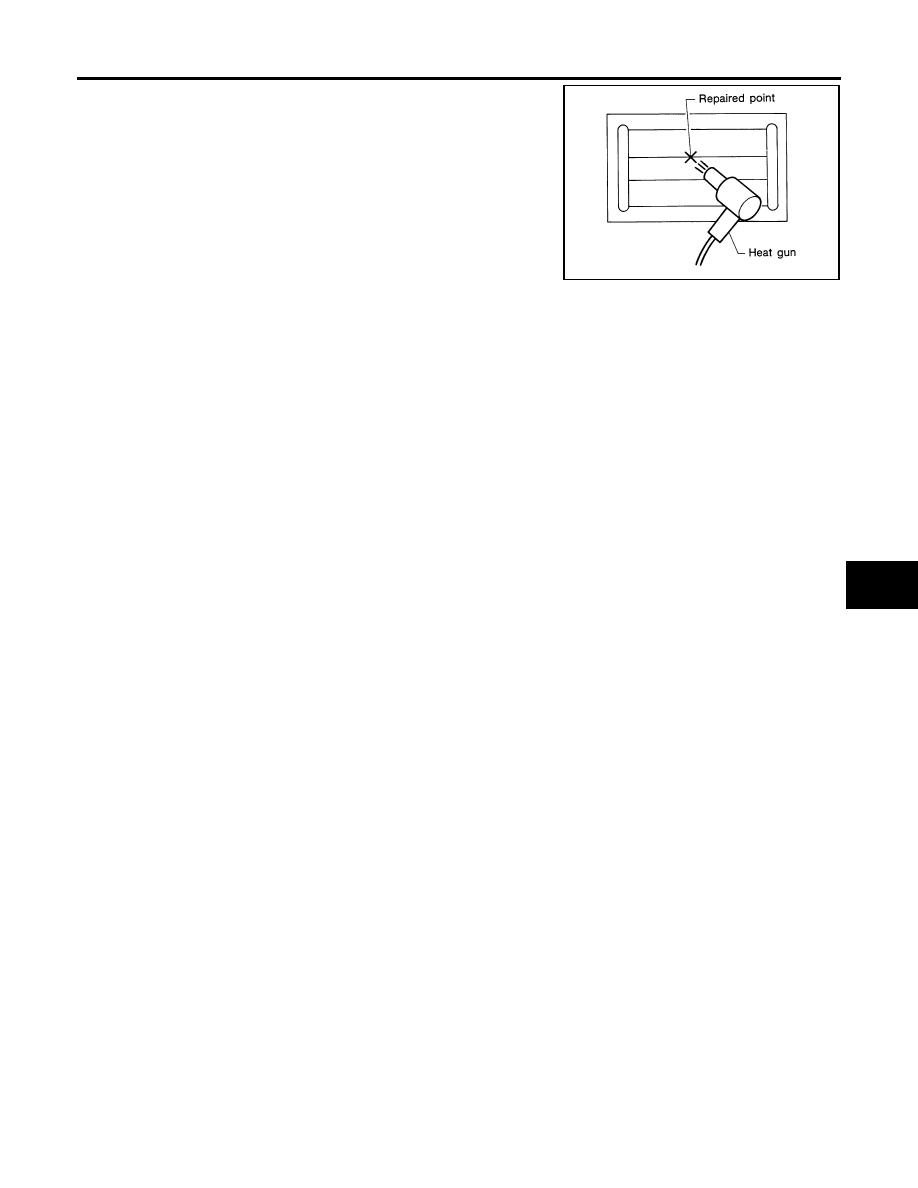

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

SEL013D

GW-90

DOOR MIRROR

2007 Pathfinder

DOOR MIRROR

PFP:96301

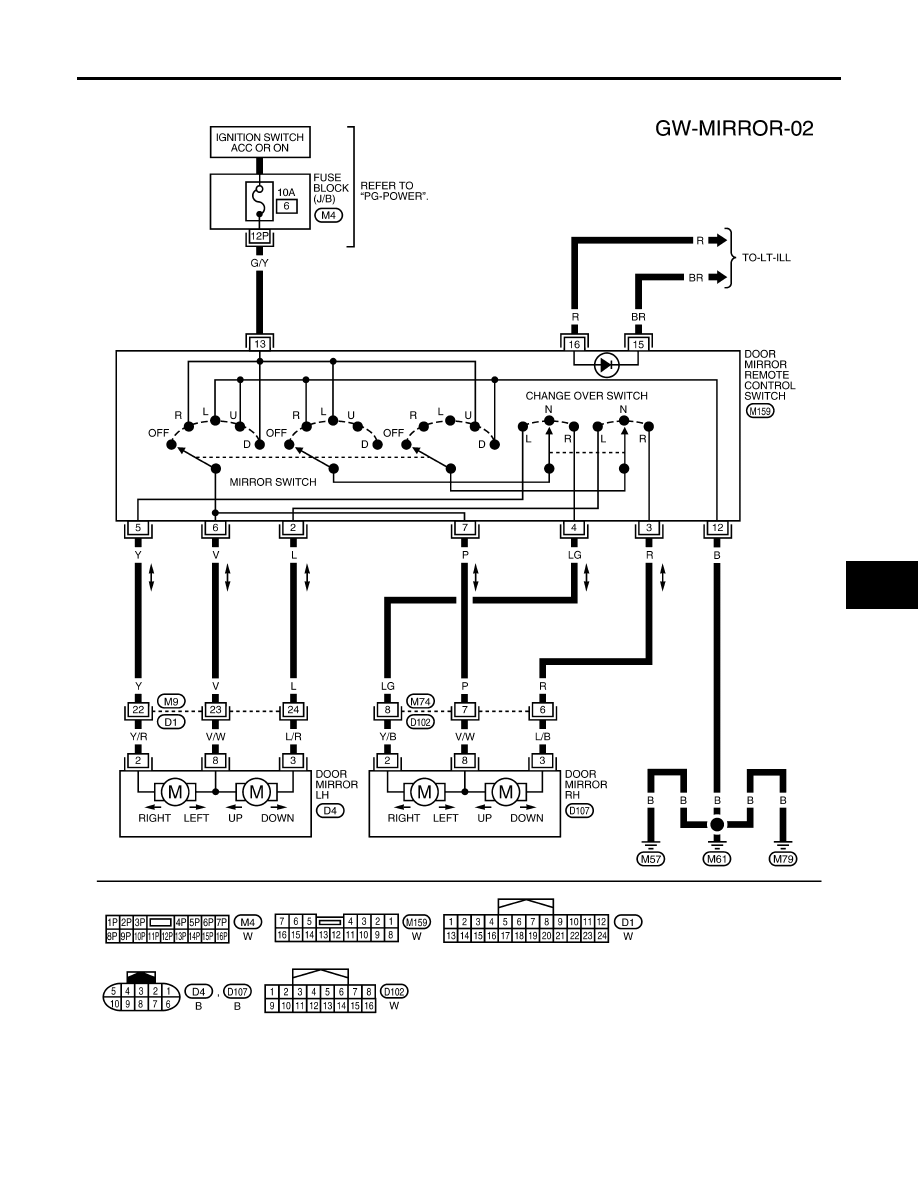

Wiring Diagram — MIRROR —

EIS007SR

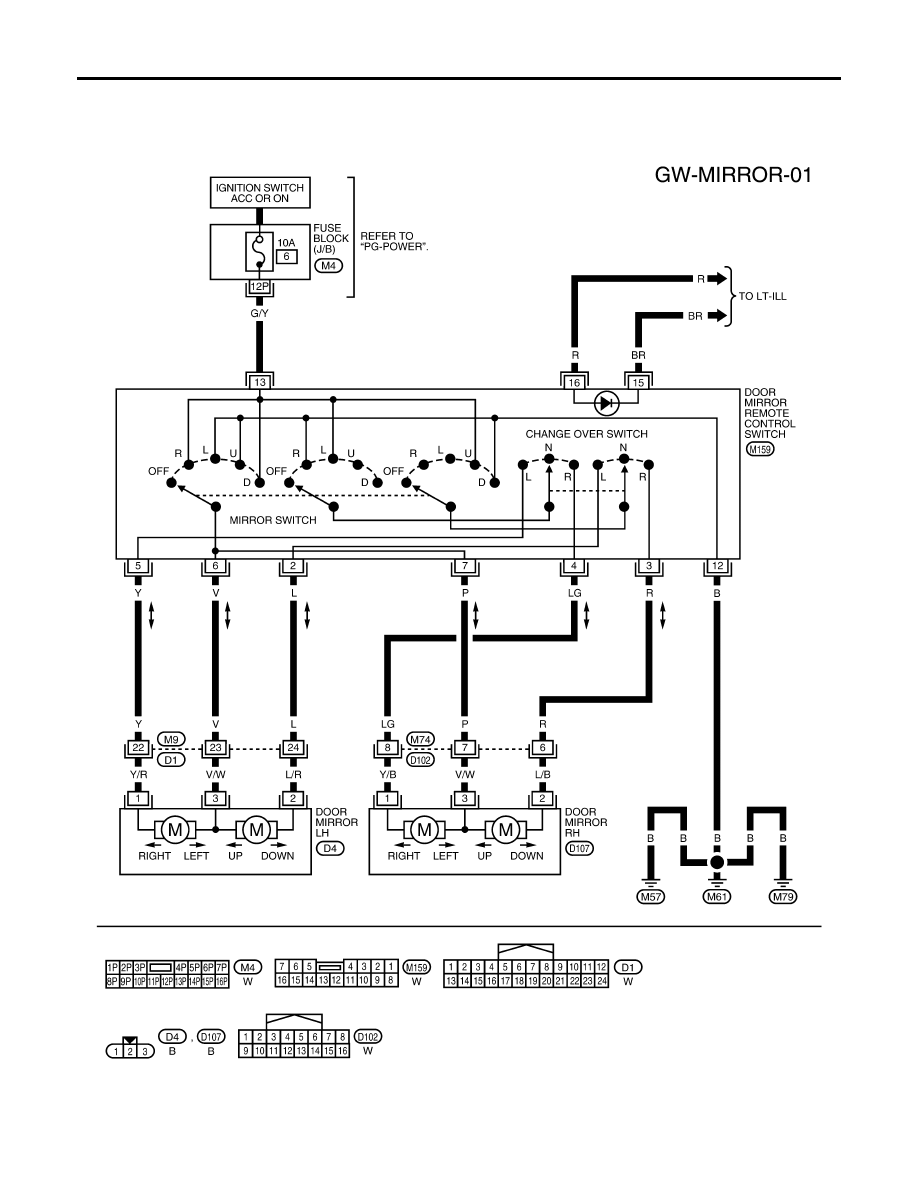

WITHOUT HEATED MIRRORS

WIWA2116E

DOOR MIRROR

GW-91

C

D

E

F

G

H

J

K

L

M

A

B

GW

2007 Pathfinder

WITH HEATED MIRRORS

WIWA2117E

GW-92

DOOR MIRROR

2007 Pathfinder

Door Mirror Assembly

EIS007SS

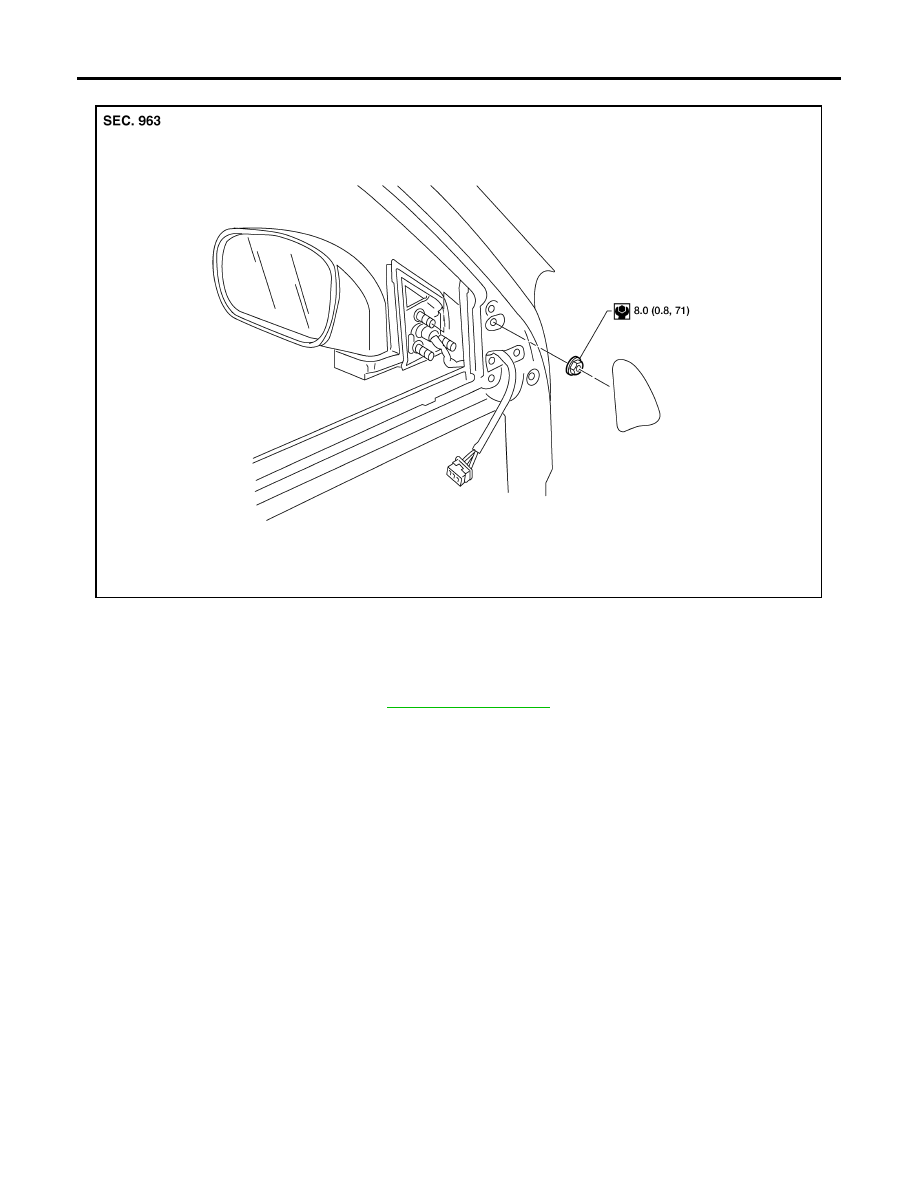

REMOVAL

NOTE:
Be careful not to damage the mirror bodies.

1.

Remove the adhesive front door sash cover.

2.

Remove the front door finisher. Refer to

EI-26, "FRONT DOOR"

 .

3.

Position the front door seal aside.

4.

Disconnect the door mirror harness connector.

5.

Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

WIIA1036E
