BASIC SERVICE PROCEDURE

EC-75

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

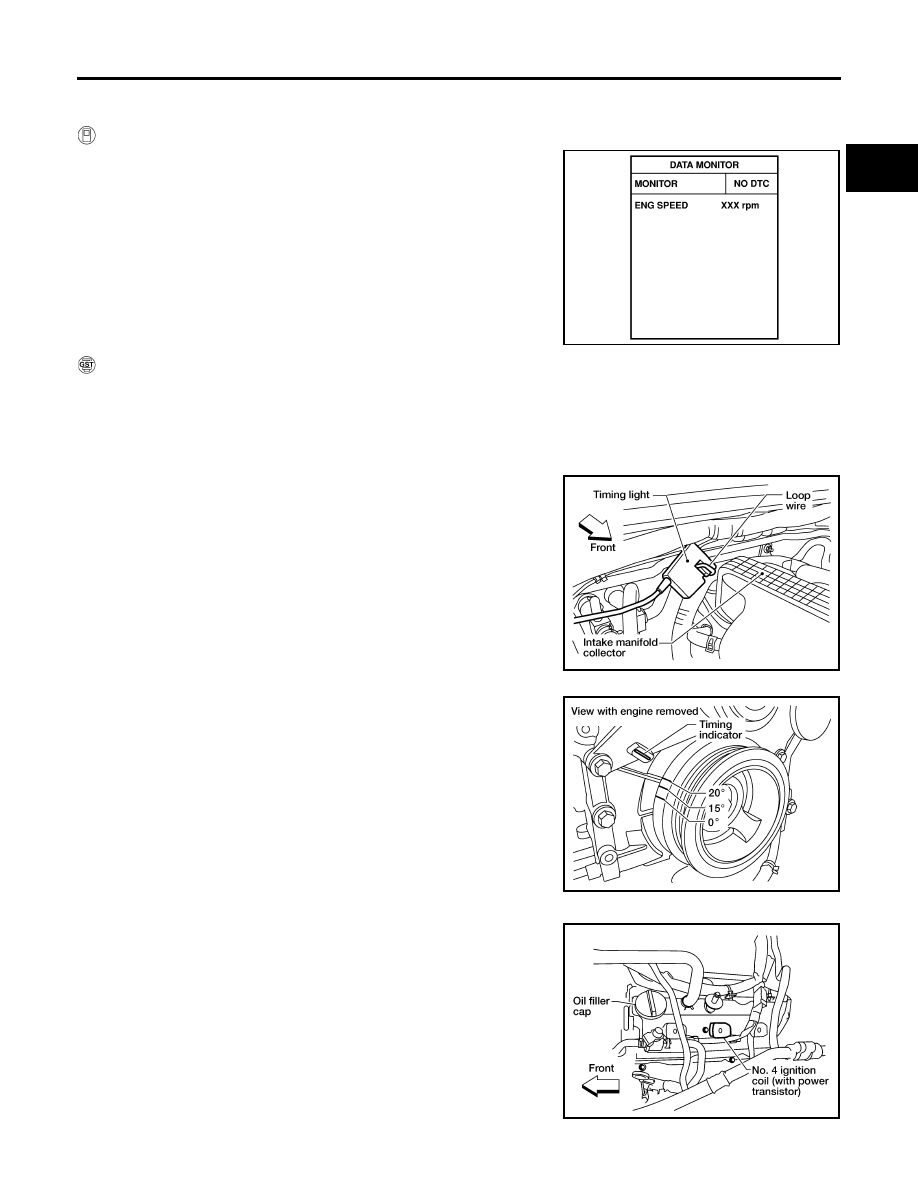

Idle Speed and Ignition Timing Check

UBS00K3W

IDLE SPEED

With CONSULT-II

Check idle speed in “DATA MONITOR” mode with CONSULT-II.

With GST

Check idle speed with GST.

IGNITION TIMING

Any of following two methods may be used.

Method A

1.

Attach timing light to loop wire as shown.

2.

Check ignition timing.

Method B

1.

Remove No. 4 ignition coil.

SEF058Y

BBIA0530E

BBIA0531E

BBIA0586E

EC-76

BASIC SERVICE PROCEDURE

2007 Pathfinder

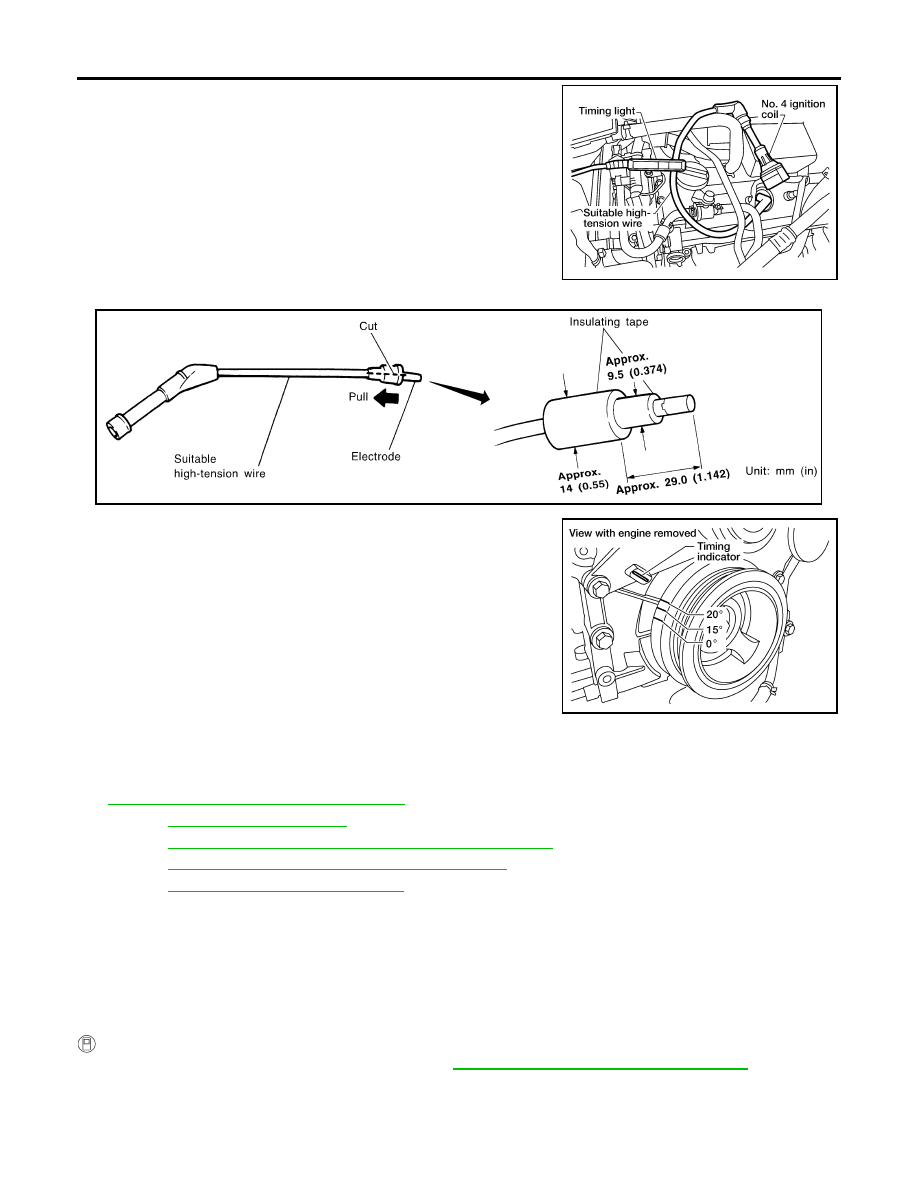

2.

Connect No. 4 ignition coil and No. 4 spark plug with suitable
high-tension wire as shown, and attach timing light clamp to this
wire.

3.

Check ignition timing.

Procedure After Replacing ECM

UBS00S5E

When replacing ECM, the following procedure must be performed.

1.

Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to

BL-96, "ECM Re-communicating Function"

 .

2.

Perform

EC-76, "VIN Registration"

 .

3.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

 .

4.

Perform

EC-77, "Throttle Valve Closed Position Learning"

 .

5.

Perform

EC-77, "Idle Air Volume Learning"

 .

VIN Registration

UBS00S5F

DESCRIPTION

VIN Registration is an operation to registering VIN in ECM. It must be performed each time ECM is replaced.

NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).

OPERATION PROCEDURE

 With CONSULT-II

1.

Check the VIN of the vehicle and note it. Refer to

GI-48, "IDENTIFICATION INFORMATION"

 .

2.

Turn ignition switch ON and engine stopped.

BBIA0533E

SEF166Y

BBIA0531E

BASIC SERVICE PROCEDURE

EC-77

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

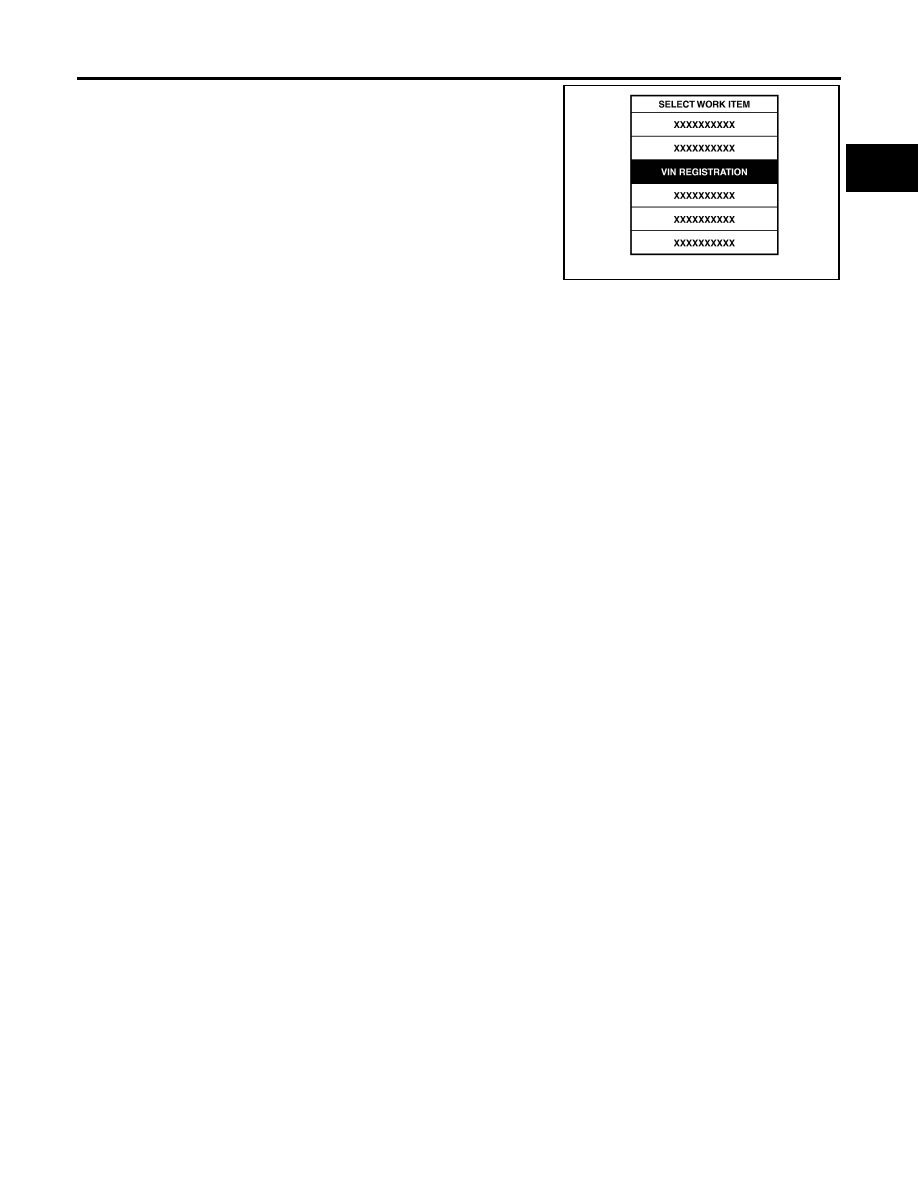

3.

Select “VIN REGISTRATION” in “WORK SUPPORT” mode.

4.

Follow the instruction of CONSULT-II display.

Accelerator Pedal Released Position Learning

UBS00S5G

DESCRIPTION

Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.

OPERATION PROCEDURE

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON and wait at least 2 seconds.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON and wait at least 2 seconds.

5.

Turn ignition switch OFF and wait at least 10 seconds.

Throttle Valve Closed Position Learning

UBS00S5H

DESCRIPTION

Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.

OPERATION PROCEDURE

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.

Idle Air Volume Learning

UBS00S5I

DESCRIPTION

Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

●

Each time electric throttle control actuator or ECM is replaced.

●

Idle speed or ignition timing is out of specification.

PREPARATION

Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

●

Battery voltage: More than 12.9V (At idle)

●

Engine coolant temperature: 70 - 100

°

C (158 - 212

°

F)

●

PNP switch: ON

●

Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine
is started the headlamp will not be illuminated.

●

Steering wheel: Neutral (Straight-ahead position)

●

Vehicle speed: Stopped

●

Transmission: Warmed-up

PBIB2242E

EC-78

BASIC SERVICE PROCEDURE

2007 Pathfinder

–

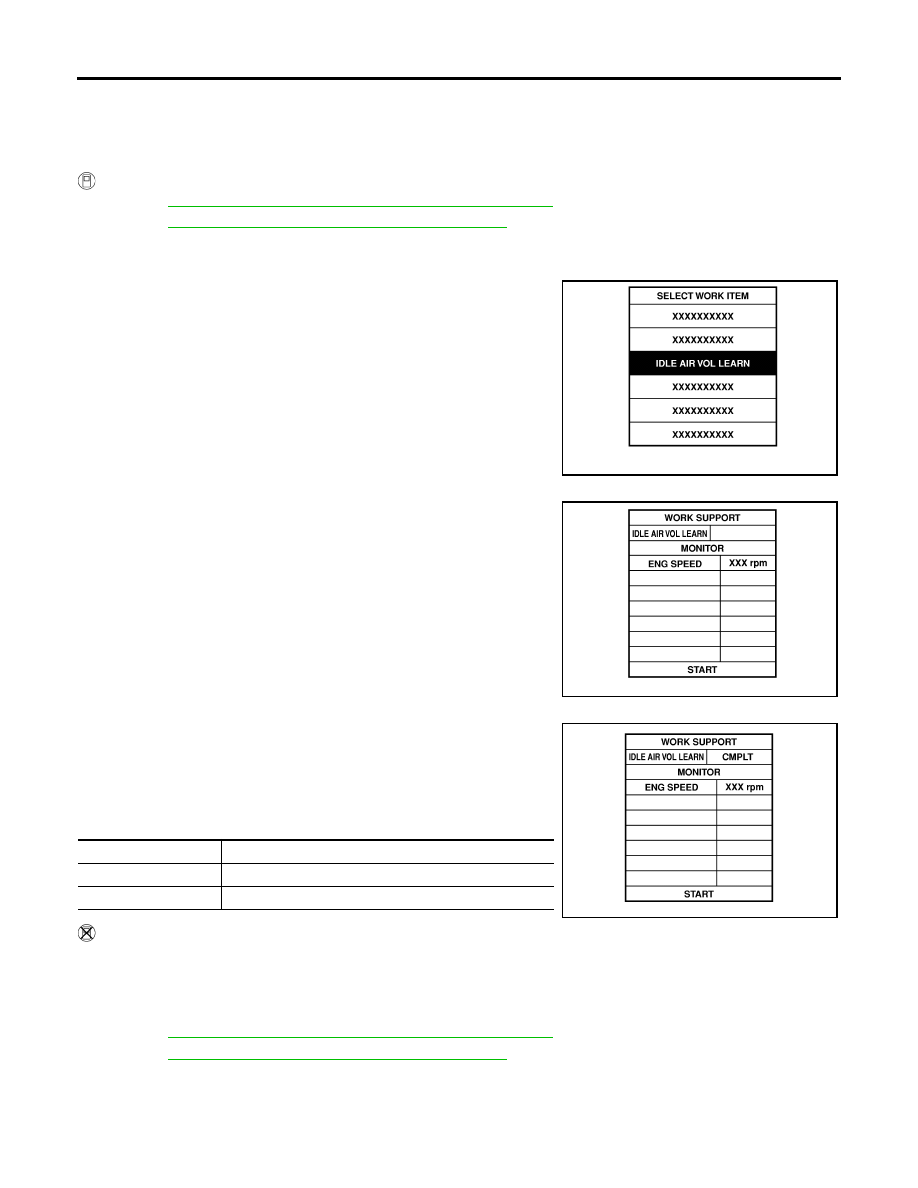

With CONSULT-II: Drive vehicle until “ATF TEMP SE” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.

–

Without CONSULT-II: Drive vehicle for 10 minutes.

OPERATION PROCEDURE

 With CONSULT-II

1.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

 .

2.

Perform

EC-77, "Throttle Valve Closed Position Learning"

 .

3.

Start engine and warm it up to normal operating temperature.

4.

Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

5.

Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

6.

Touch “START” and wait 20 seconds.

7.

Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the Diagnostic Procedure below.

8.

Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.

 Without CONSULT-II

NOTE:

●

It is better to count the time accurately with a clock.

●

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

1.

Perform

EC-77, "Accelerator Pedal Released Position Learning"

 .

2.

Perform

EC-77, "Throttle Valve Closed Position Learning"

 .

3.

Start engine and warm it up to normal operating temperature.

4.

Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

5.

Turn ignition switch OFF and wait at least 10 seconds.

SEF217Z

SEF454Y

ITEM

SPECIFICATION

Idle speed

625

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

MBIB0238E

BASIC SERVICE PROCEDURE

EC-79

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

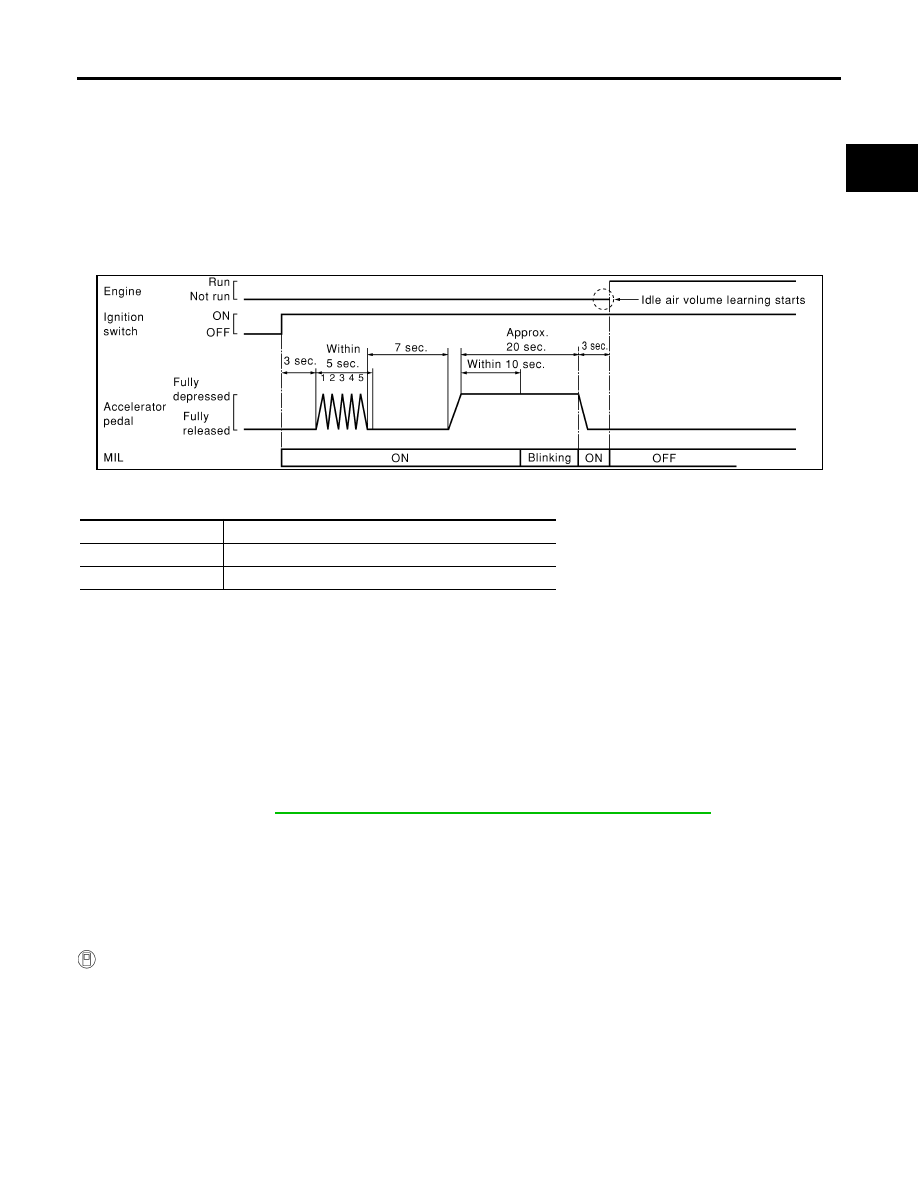

6.

Confirm that accelerator pedal is fully released, then turn ignition switch ON and wait 3 seconds.

7.

Repeat the following procedure quickly five times within 5 seconds.

a.

Fully depress the accelerator pedal.

b.

Fully release the accelerator pedal.

8.

Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops
blinking and turned ON.

9.

Fully release the accelerator pedal within 3 seconds after the MIL turned ON.

10. Start engine and let it idle.

11. Wait 20 seconds.

12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the

specifications.

13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried

out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCE-
DURE below.

DIAGNOSTIC PROCEDURE

If idle air volume learning cannot be performed successfully, proceed as follows:

1.

Check that throttle valve is fully closed.

2.

Check PCV valve operation.

3.

Check that downstream of throttle valve is free from air leakage.

4.

When the above three items check out OK, engine component parts and their installation condi-
tion are questionable. Check and eliminate the cause of the incident.
It is useful to perform

EC-135, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

5.

If any of the following conditions occur after the engine has started, eliminate the cause of the
incident and perform Idle Air Volume Learning all over again:

●

Engine stalls.

●

Erroneous idle.

Fuel Pressure Check

UBS00S5J

FUEL PRESSURE RELEASE

 With CONSULT-II

1.

Turn ignition switch ON.

ITEM

SPECIFICATION

Idle speed

625

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

SEC897C

EC-80

BASIC SERVICE PROCEDURE

2007 Pathfinder

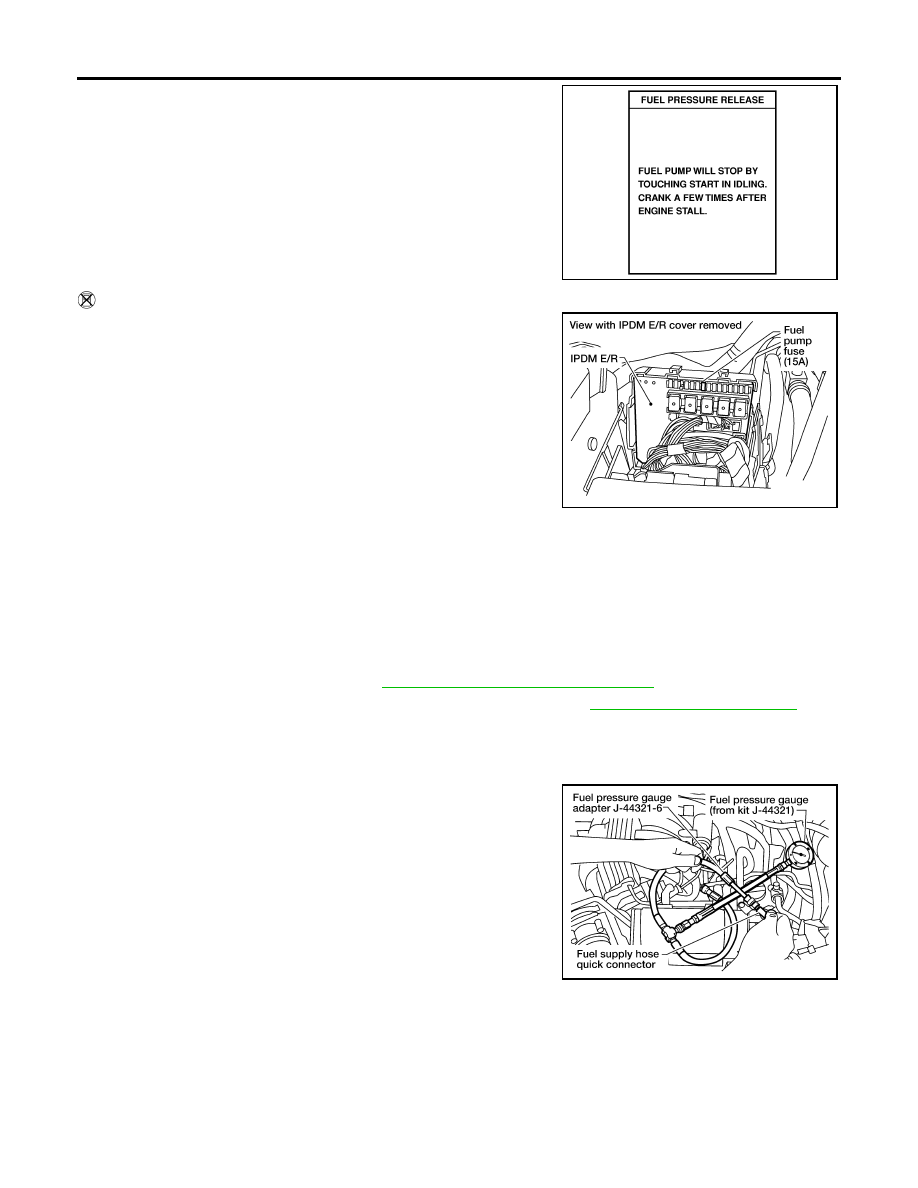

2.

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode with CONSULT-II.

3.

Start engine.

4.

After engine stalls, crank it two or three times to release all fuel
pressure.

5.

Turn ignition switch OFF.

 Without CONSULT-II

1.

Remove fuel pump fuse located in IPDM E/R.

2.

Start engine.

3.

After engine stalls, crank it two or three times to release all fuel
pressure.

4.

Turn ignition switch OFF.

5.

Reinstall fuel pump fuse after servicing fuel system.

FUEL PRESSURE CHECK

CAUTION:

Be careful not to scratch or get the fuel hose connection area dirty when servicing, so that the quick
connector o-ring maintains sealability.

NOTE:

●

Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel
pressure cannot be completely released because R51 models do not have fuel return system.

●

Use Fuel Pressure Gauge Kit J-44321 and Fuel Pressure Adapter J-44321-6 to check fuel pressure.

1.

Release fuel pressure to zero. Refer to

EC-79, "FUEL PRESSURE RELEASE"

 .

2.

Remove fuel hose using Quick Connector Release J-45488. Refer to

EM-20, "INTAKE MANIFOLD"

 .

●

Do not twist or kink fuel hose because it is plastic hose.

●

Do not remove fuel hose from quick connector.

●

Keep fuel hose connections clean.

3.

Install Fuel Pressure Adapter J-44321-6 and Fuel Pressure
Gauge (from kit J-44321) as shown in figure.

●

Do not distort or bend fuel rail tube when installing fuel pres-
sure gauge adapter.

●

When reconnecting fuel hose, check the original fuel hose for
damage and abnormality.

4.

Turn ignition switch ON (reactivate fuel pump), and check for
fuel leakage.

5.

Start engine and check for fuel leakage.

6.

Read the indication of fuel pressure gauge.

●

During fuel pressure check, check for fuel leakage from fuel
connection every 3 minutes.

7.

If result is unsatisfactory, go to next step.

8.

Check the following.

●

Fuel hoses and fuel tubes for clogging

●

Fuel filter for clogging

SEF214Y

BBIA0534E

At idling:

Approximately 350 kPa (3.57 kg/cm

2

 , 51 psi)

BBIA0535E

BASIC SERVICE PROCEDURE

EC-81

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

●

Fuel pump

●

Fuel pressure regulator for clogging

If OK, replace fuel pressure regulator.
If NG, repair or replace.

9.

Before disconnecting Fuel Pressure Gauge and Fuel Pressure Adapter J-44321-6, release fuel pressure
to zero. Refer to

EC-79, "FUEL PRESSURE RELEASE"

 .

EC-82

TROUBLE DIAGNOSIS

2007 Pathfinder

TROUBLE DIAGNOSIS

PFP:00004

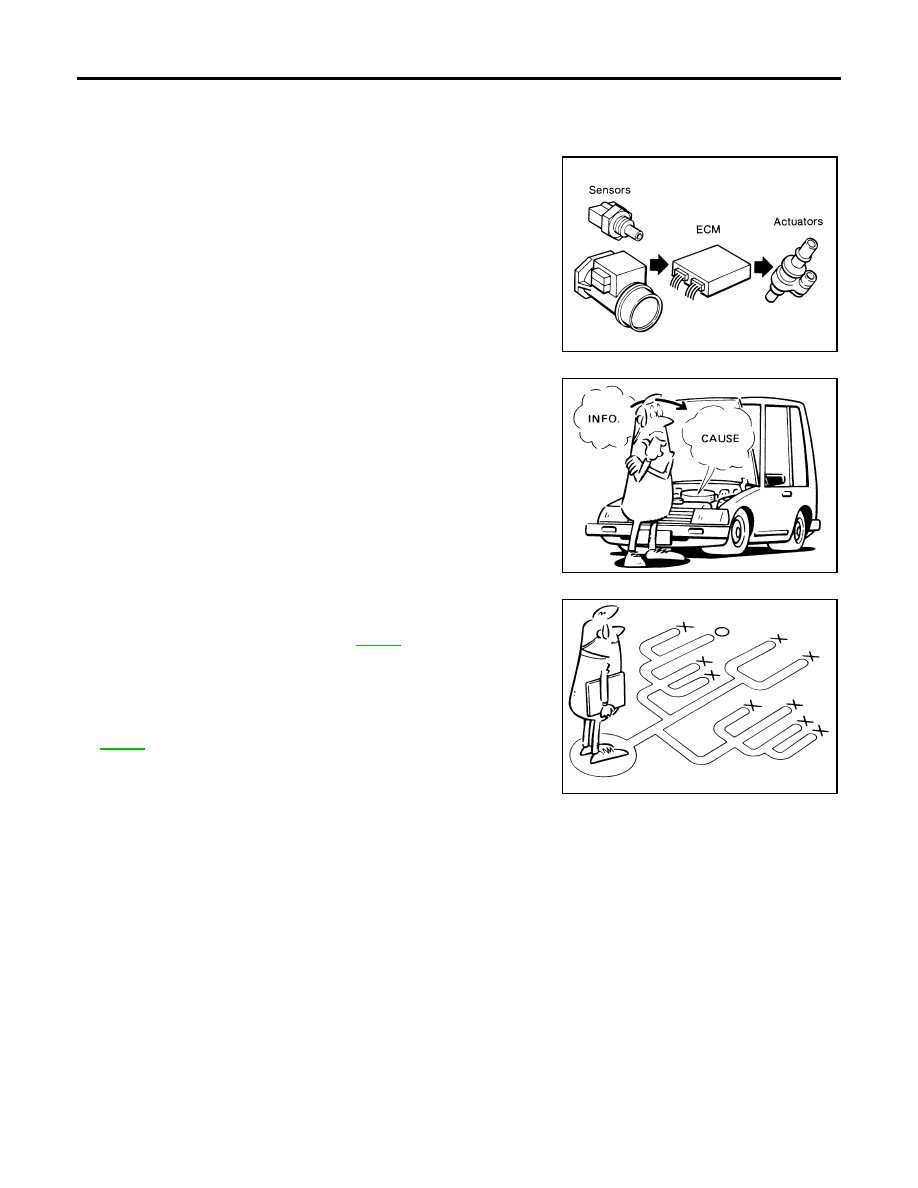

Trouble Diagnosis Introduction

UBS00K43

INTRODUCTION

The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no malfunctions such as vac-
uum leaks, fouled spark plugs, or other malfunctions with the engine.

It is much more difficult to diagnose an incident that occurs intermit-
tently rather than continuously. Most intermittent incidents are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.

A visual check only may not find the cause of the incidents. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the Work Flow on

EC-83

  .

Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A Diagnostic Worksheet like the example
on

EC-87

     should be used.

Start your diagnosis by looking for conventional malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.

MEF036D

SEF233G

SEF234G
