TROUBLE DIAGNOSES FOR SYMPTOMS

BRC-125

[HDC/HSA/VDC/TCS/ABS]

BRC

2007 Pathfinder

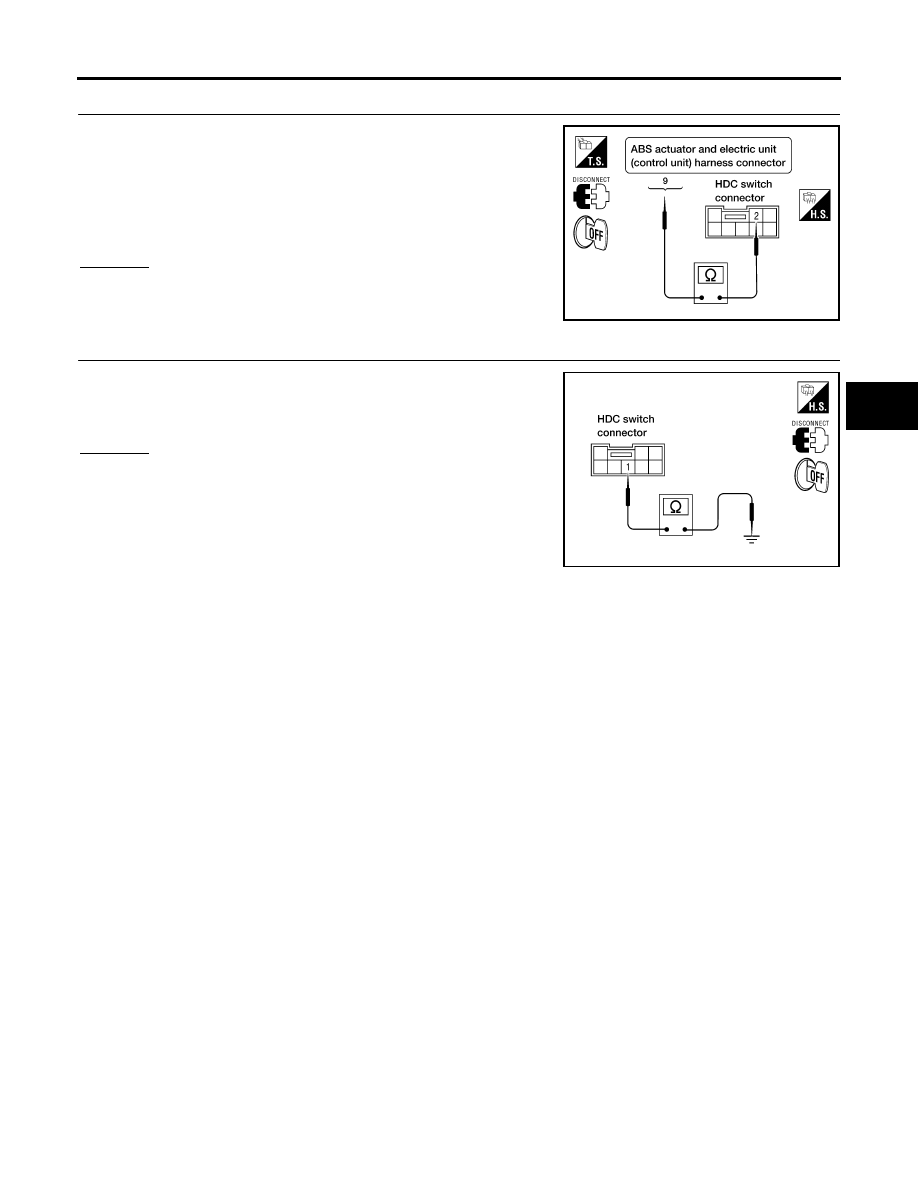

CHECK HDC SWITCH CIRCUIT

Disconnect ABS actuator and electric unit (control unit) connec-
tor E125.

Check continuity between ABS actuator and electric unit (control
unit) connector E125 terminal 9 and HDC switch connector
M155 terminal 2.

OK or NG

>> GO TO 3.

>> Repair or replace harness or connector.

CHECK HDC SWITCH GROUND

Check continuity between HDC switch connector M155 terminal 1
and body ground.

OK or NG

>> Replace HDC switch.

>> Repair or replace harness or connector.

Continuity should exist.

WFIA0354E

Continuity should exist.

WFIA0355E

BRC-126

[HDC/HSA/VDC/TCS/ABS]

ON-VEHICLE SERVICE

2007 Pathfinder

ON-VEHICLE SERVICE

PFP:00000

Adjustment of Steering Angle Sensor Neutral Position

EFS0067L

After removing/installing or replacing ABS actuator and electric unit (control unit), steering angle sensor, steer-
ing and suspension components which affect wheel alignment or after adjusting wheel alignment, be sure to
adjust neutral position of steering angle sensor before running vehicle.

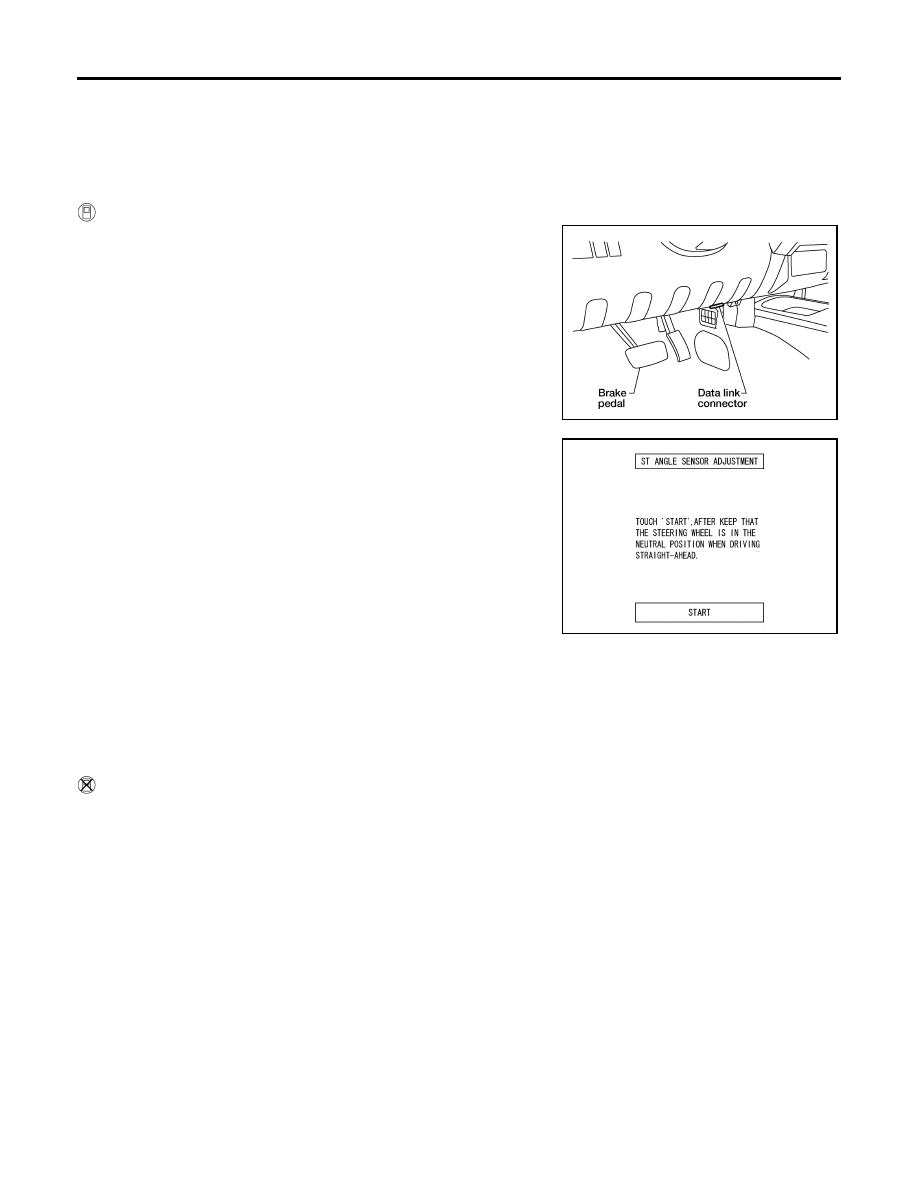

WITH CONSULT-II

Stop vehicle with front wheels in straight-ahead position.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector on vehicle, and turn ignition switch ON (do not
start engine).

Touch “START (NISSAN BASED VHCL)”, “ABS”, “WORK SUP-
PORT” and “ST ANGLE SENSOR ADJUSTMENT” on CON-
SULT-II screen in this order.

Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle
sensor.

After approximately 10 seconds, touch “END”. (After approxi-
mately 60 seconds, it ends automatically.)

Turn ignition switch OFF, then turn it ON again.

CAUTION:

Do not touch steering wheel while adjusting steering angle
sensor.

Run vehicle with front wheels in straight-ahead position, then
stop.

Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen.
Then check that “STR ANGLE SIG” is within 0

3.5 deg. If value is more than specification, repeat steps 3

to 7.

Erase memory of ABS actuator and electric unit (control unit) and ECM.

10. Turn ignition switch to OFF.

WITHOUT CONSULT-II

Set the steering wheel in a straight forward position and drive the vehicle at 10 mph (15 km/h) or more for 10
minutes. When the procedure is complete, the SLIP indicator lamp and VDC OFF indicator lamp will turn off.

Calibration of Decel G Sensor

EFS0067M

After removing/installing or replacing ABS actuator and electric unit (control unit), yaw rate/side/decel G sen-
sor, steering and suspension components which affect wheel alignment or after adjusting wheel alignment, be
sure to calibrate the decel G sensor before running vehicle.

NOTE:
Calibration of decel G sensor requires CONSULT-II.

Stop vehicle with front wheels in straight-ahead position.

CAUTION:

●

The work should be done on a level area with an unloaded vehicle.

●

Keep all the tires inflated to the correct pressures. Adjust the tire pressure to the specified pres-
sure value.

Connect CONSULT-II with CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition
switch ON (do not start engine).

BBIA0538E

WFIA0239E

ON-VEHICLE SERVICE

BRC-127

[HDC/HSA/VDC/TCS/ABS]

BRC

2007 Pathfinder

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

Touch “START (NISSAN BASED VHCL)”, "ABS", "WORK SUPPORT" and "DECEL G SEN CALIBRA-
TION" on CONSULT-II screen in this order. Refer to

BRC-92, "CONSULT-II START PROCEDURE"

Touch "START".

CAUTION:

Set vehicle as shown in the display.

After approximately 10 seconds, touch "END". (After approxi-
mately 60 seconds, it ends automatically.)

Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to carry out above operation.

Run vehicle with front wheels in straight-ahead position, then
stop.

Select "DATA MONITOR", "SELECTION FROM MENU", and
"DECEL G SEN" on CONSULT-II screen. Then check that "DECEL G SEN" is within

0.08G. If value is

more than specification, repeat steps 3 to 7.

Erase memory of ABS actuator and electric unit (control unit) and ECM.

10. Turn ignition switch to OFF.

SFIA1162E

BRC-128

[HDC/HSA/VDC/TCS/ABS]

WHEEL SENSORS

2007 Pathfinder

WHEEL SENSORS

PFP:47910

Removal and Installation

EFS0067N

REMOVAL

Remove wheel and tire using power tool.

Remove wheel sensor mounting screw.

NOTE:

●

When removing the front wheel sensor, first remove the disc rotor to gain access to the front wheel sen-
sor mounting bolt. Refer to

BR-25, "Removal and Installation of Brake Caliper and Disc Rotor"

●

When removing rear wheel sensor, first remove spare tire.

Pull out the wheel sensor, being careful to turn it as little as possible.

CAUTION:

●

Be careful not to damage sensor edge and sensor rotor teeth.

●

Do not pull on the sensor harness.

Disconnect wheel sensor harness electrical connector, then remove harness from mounts.

INSTALLATION

Installation is in the reverse order of removal. When installing wheel and tire, refer to

WT-7, "Rotation"

CAUTION:

●

Inspect wheel sensor O-ring, replace sensor assembly if damaged.

●

Clean wheel sensor hole and mounting surface with brake cleaner and a lint-free shop rag. Be
careful that dirt and debris do not enter the axle.

NOTE:

●

Apply a coat of suitable grease to the wheel sensor O-ring and mounting hole.

●

Tighten wheel sensor bolt to specification.

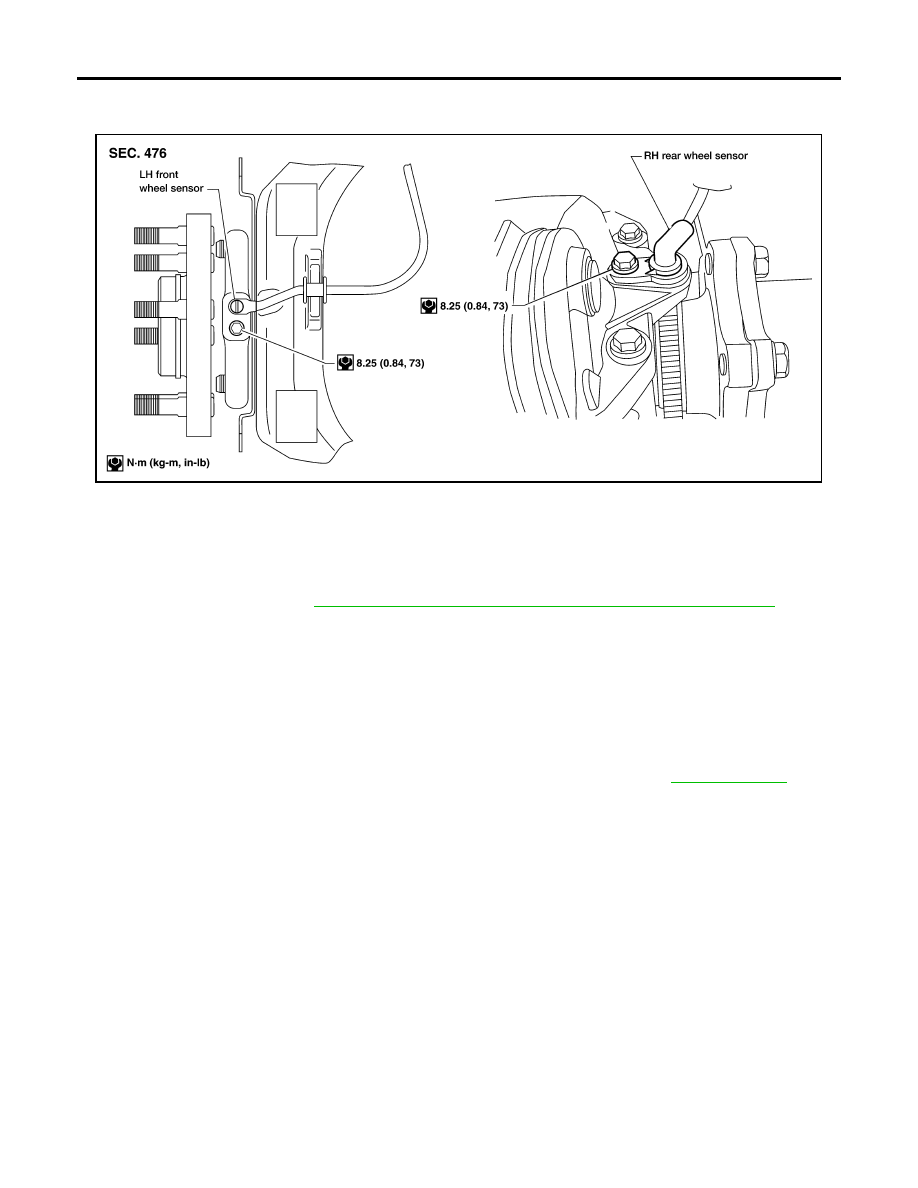

WFIA0333E

SENSOR ROTOR

BRC-129

[HDC/HSA/VDC/TCS/ABS]

BRC

2007 Pathfinder

SENSOR ROTOR

PFP:47970

Removal and Installation

EFS0067O

FRONT

The wheel sensor rotors are built into the wheel hubs and are not removable. If damaged, replace wheel hub
and bearing assembly. Refer to

FAX-5, "Removal and Installation"

REAR
Removal

Remove side flange from final drive assembly. Refer to

RFD-12, "Removal and Installation"

CAUTION:

Discard side oil seal.

Using tool and a suitable puller, remove sensor rotor from side flange.

Installation

Install new sensor rotor on side flange using Tools and a press.
Make sure sensor rotor is fully seated.

CAUTION:

Do not reuse the old sensor rotor.

Install side flange to final drive assembly. Refer to

RFD-12,

"Removal and Installation"

CAUTION:

Do not reuse the side oil seal. The side oil seal must be replaced every time the side flange is
removed from the final drive assembly.

Tool number

: ST30031000 (

—

)

Tool numbers

A: ST30720000 (J-25405)

B: ST27863000 (

—

)

C: KV40104710 (

—

)

WFIA0334E

BRC-130

[HDC/HSA/VDC/TCS/ABS]

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

2007 Pathfinder

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

PFP:47660

Removal and Installation

EFS0067P

REMOVAL

Disconnect the battery negative terminal.

Drain the brake fluid. Refer to

BR-11, "Drain and Refill"

Disconnect the actuator harness from the ABS actuator and electric unit (control unit).

CAUTION:

●

To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from
being damaged.

●

Be careful not to splash brake fluid on painted areas.

Disconnect the brake tubes.

Remove the three bolts and remove the ABS actuator and electric unit (control unit).

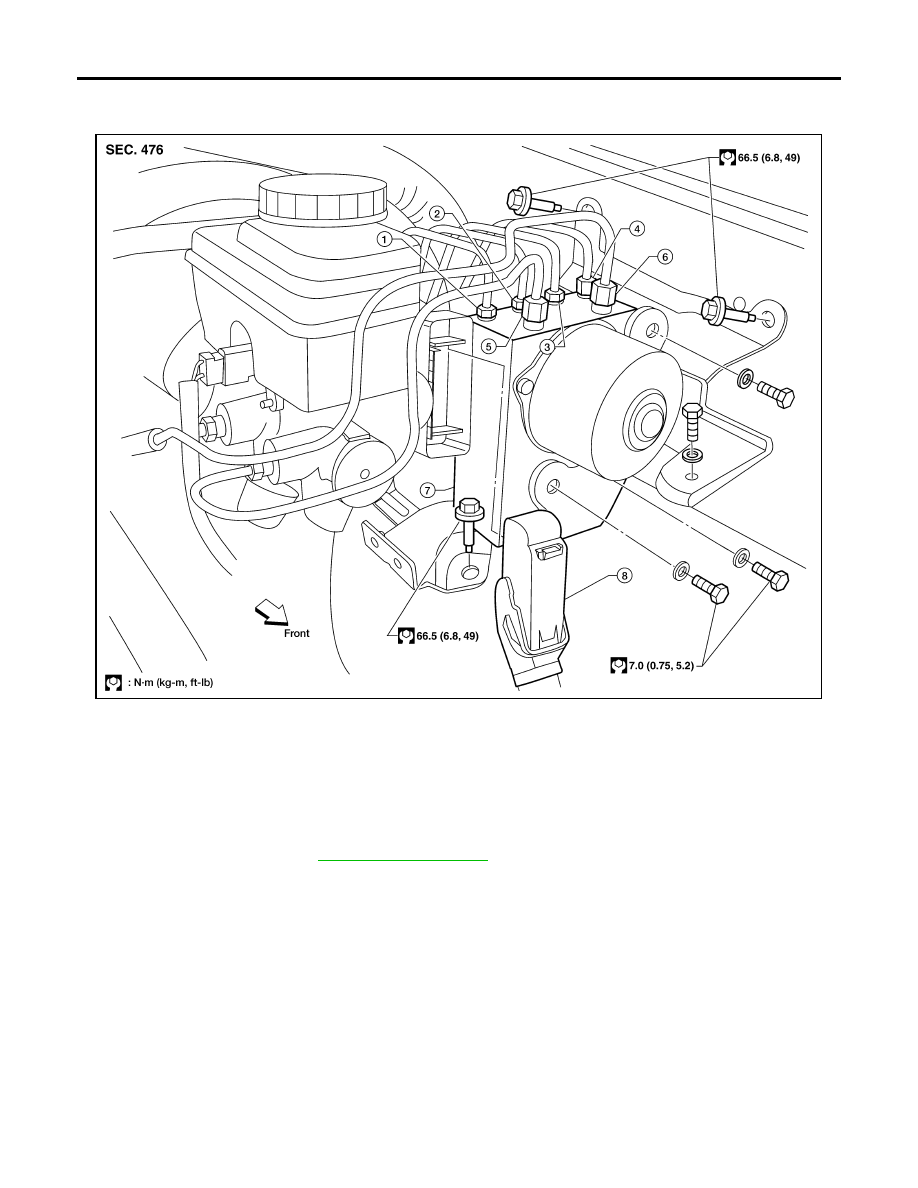

LFIA0244E

1. To rear left disc brake

2. To rear right disc brake

3. To front left disc brake

4. To front right disc brake

5. From the master cylinder secondary side 6. From the master cylinder primary side

7. ABS actuator and electric unit (control
unit)

8. Harness connector

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-131

[HDC/HSA/VDC/TCS/ABS]

BRC

2007 Pathfinder

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install, use a flare nut wrench (commercial service tool).

●

Always tighten brake tubes to specification when installing. Refer to

BR-13, "Hydraulic Circuit"

●

Never reuse drained brake fluid.

●

After installation of the ABS actuator and electric unit (control unit), refill brake system with new
brake fluid. Then bleed the air from the system. Refer to

BR-12, "Bleeding Brake System"

NOTE:
In the case that ABS actuator and electric unit (control unit) is replaced, make sure to adjust position of steer-
ing angle sensor. Refer to

BRC-126, "Adjustment of Steering Angle Sensor Neutral Position"

BRC-132

[HDC/HSA/VDC/TCS/ABS]

STEERING ANGLE SENSOR

2007 Pathfinder

STEERING ANGLE SENSOR

PFP:25554

Removal and Installation

EFS0067Q

The steering angle sensor is an integral part of the spiral cable. Refer to

SRS-40, "Removal and Installation"

CAUTION:

In the case that the ABS actuator and electronic unit (control unit) is replaced, make sure to adjust
position of steering angle sensor. Refer to

BRC-126, "Adjustment of Steering Angle Sensor Neutral

Position"
