Nissan Pathfinder (2006 year). Manual - part 400





TROUBLE DIAGNOSIS FOR SYMPTOMS

WT-35

C

D

F

G

H

I

J

K

L

M

A

B

WT

2006 Pathfinder

Inspection 6: ID Registration Cannot Be Completed

EES0024J

DIAGNOSTIC PROCEDURE

1.

ID REGISTRATION (ALL)

Carry out ID registration of all transmitters. Refer to

WT-14, "ID Registration Procedure"

 .

Can ID registration of all transmitters be completed?

YES

>> Inspection End.

NO

>> GO TO

WT-26, "Inspection 1: Transmitter or Control Unit (BCM)"

 .

WT-36

REMOVAL AND INSTALLATION

2006 Pathfinder

REMOVAL AND INSTALLATION

PFP:00000

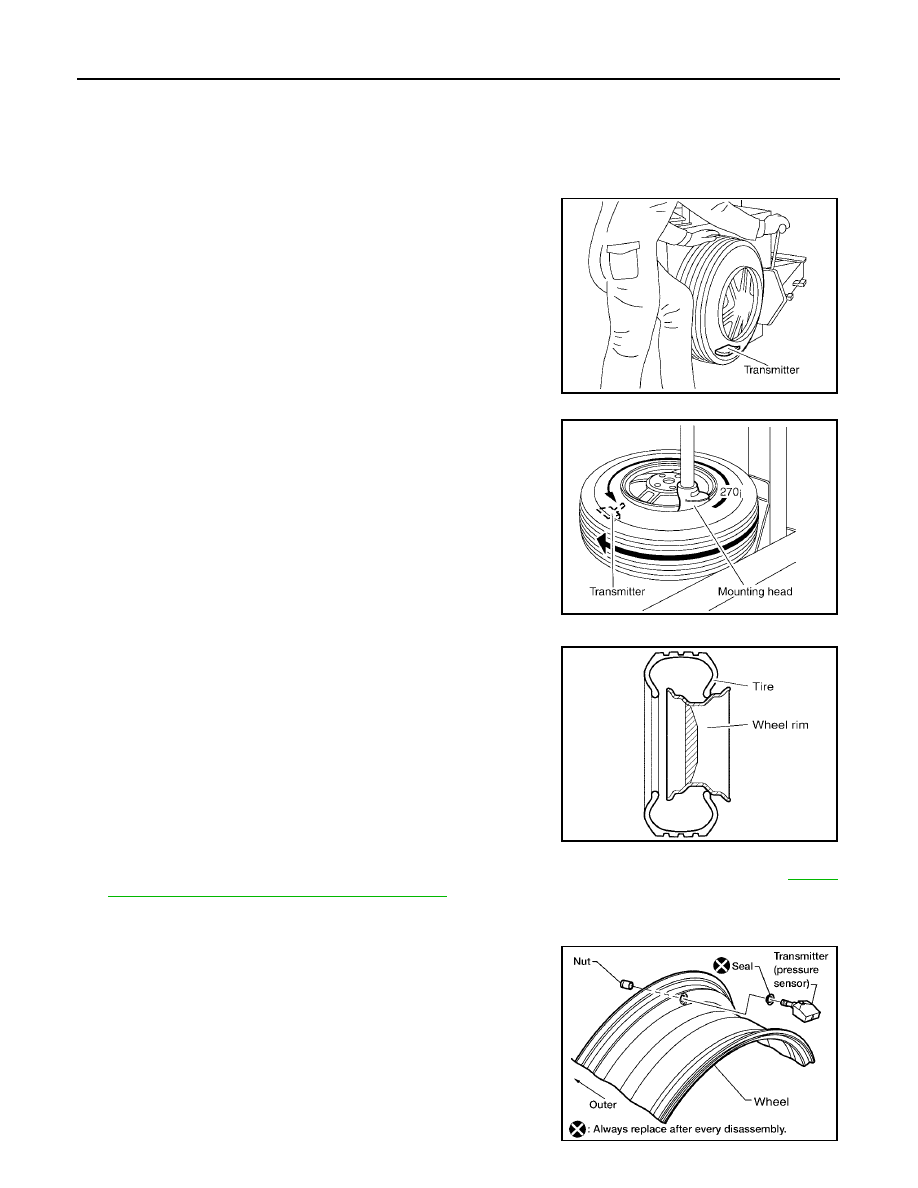

Transmitter (Pressure Sensor)

EES0024K

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

3.

Gently bounce tire so that transmitter falls to bottom of tire.
Place wheel and tire assembly on tire changing machine and
break both tire beads. Ensure that the transmitter remains at the
bottom of the tire while breaking the bead.

4.

Turn tire so that valve hole is at bottom, and gently bounce the
tire to ensure transmitter is near valve hole. Carefully lift tire onto
turntable and position valve hole (and transmitter) 270 degrees
from mounting/dismounting head.

5.

Lubricate tire well, and remove top side of tire. Reach inside the
tire and remove the transmitter.

6.

Remove the second side of the tire as normal.

INSTALLATION

1.

Place first side of tire onto rim.

2.

Apply suitable silicone lubricant to new transmitter seal then install seal on transmitter. Refer to

MA-11,

"RECOMMENDED FLUIDS AND LUBRICANTS"

 .

NOTE:
Always replace the seal after every disassembly.

3.

Mount transmitter on rim and tighten nut.
NOTE:
Make sure no burrs exist in the valve stem hole of the wheel.

SEIA0047E

SEIA0048E

SEIA0049E

Transmitter nut
tightening torque

: 5.5 N·m (0.56 kg-m, 49 in-lb)

WEIA0137E

REMOVAL AND INSTALLATION

WT-37

C

D

F

G

H

I

J

K

L

M

A

B

WT

2006 Pathfinder

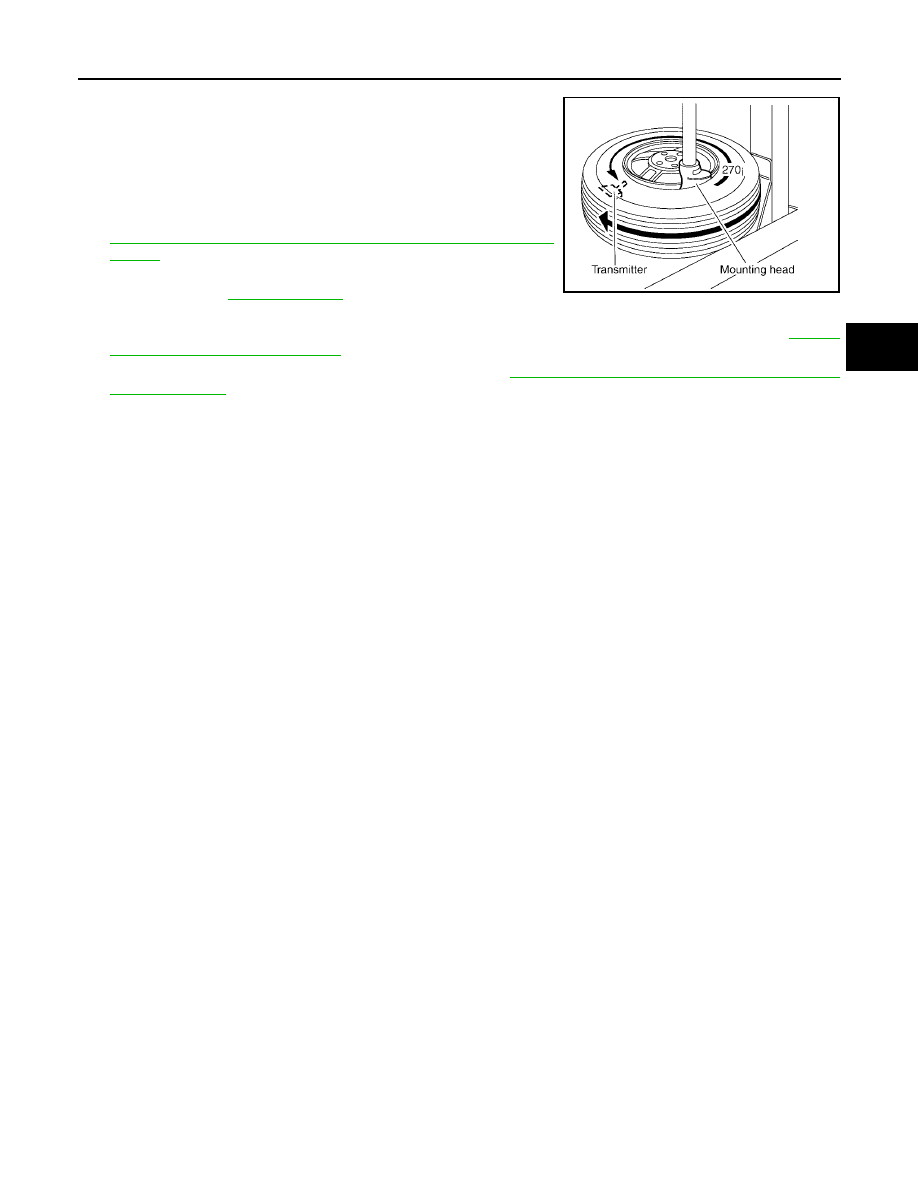

4.

Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degrees from mounting/dismounting head.

NOTE:
Do not touch transmitter with mounting head.

5.

Lubricate tire well, and install second side of tire as normal.
Ensure that tire does not rotate relative to rim.

6.

Inflate tire and balance the wheel and tire assembly. Refer to

WT-6, "WHEEL BALANCE INSTALLATION AND ADJUST-
MENT"

 .

7.

Install wheel and tire assembly in appropriate wheel position on
vehicle. Refer to

WT-7, "Rotation"

 .

NOTE:
If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-18,

"Transmitter Wake Up Operation"

 .

8.

Adjust neutral position of steering angle sensor. Refer to

BRC-58, "Adjustment of Steering Angle Sensor

Neutral Position"

 .

SEIA0048E

WT-38

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Road Wheel

EES0024L

Tire

EES0024M

Unit: kPa (kg/cm

2

 , psi)

Wheel type

Aluminum

Maximum radial runout limit

Lateral mm (in)

0.3 (0.012) or less

Radial mm (in)

0.3 (0.012) or less

Maximum residual imbalance

Dynamic
(at rim flange)

Less than 5 g (0.18 oz) (per side)

Static (at rim flange)

Less than 10 g (0.35 oz)

Tire size

Air pressure

Conventional tire

Spare tire

Full size spare tire

240 (2.4, 35)

P245/75R16

240 (2.4, 35)

P265/70R16

240 (2.4, 35)

P265/75R16

240 (2.4, 35)

P265/65R17

240 (2.4, 35)

WW-1

WIPER, WASHER & HORN

K  ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

A

B

WW

2006 Pathfinder

PRECAUTION ............................................................ 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3

FRONT WIPER AND WASHER SYSTEM .................. 4

Components Parts and Harness Connector Loca-
tion ........................................................................... 4
System Description  .................................................. 4

LOW SPEED WIPER OPERATION  ...................... 5
HI SPEED WIPER OPERATION ........................... 5
INTERMITTENT OPERATION  .............................. 5
AUTO STOP OPERATION .................................... 5
FRONT WASHER OPERATION  ........................... 6
MIST OPERATION ................................................ 6
FAIL-SAFE FUNCTION ......................................... 6
COMBINATION SWITCH READING FUNCTION

..... 6

CAN Communication System Description ................ 6
Schematic ................................................................ 7
Wiring Diagram — WIPER —  .................................. 8
Terminals and Reference Values for BCM  ..............11
Terminals and Reference Values for IPDM E/R  ......11
Work Flow  ...............................................................11
Preliminary Inspection .............................................11
CONSULT-II Function (BCM)  ..................................11

CONSULT-II OPERATION  ...................................11
WORK SUPPORT ............................................... 12
DATA MONITOR  ................................................. 13
ACTIVE TEST  ..................................................... 13

CONSULT-II Function (IPDM E/R)  ......................... 13

CONSULT-II OPERATION  .................................. 14
DATA MONITOR  ................................................. 14
ACTIVE TEST  ..................................................... 15

Trouble Diagnosis  .................................................. 15

FRONT WIPER DOES NOT OPERATE  ............. 15
FRONT WIPER STOP POSITION IS INCOR-
RECT .................................................................. 19
ONLY FRONT WIPER LOW DOES NOT OPER-
ATE ..................................................................... 20
ONLY FRONT WIPER HI DOES NOT OPERATE

... 22

ONLY FRONT WIPER INT DOES NOT OPER-

ATE ...................................................................... 23
FRONT WIPER INTERMITTENT OPERATION
SWITCH POSITION CANNOT BE ADJUSTED ... 24
WIPERS DO NOT WIPE WHEN FRONT
WASHER OPERATES  ........................................ 24
FRONT WIPERS OPERATE FOR 10 SECONDS,
STOP FOR 20 SECONDS, AND AFTER
REPEATING THIS OPERATION FIVE TIMES,
THEY BECOME INOPERATIVE  ......................... 24

Removal and Installation  ........................................ 26

FRONT WIPER ARMS  ........................................ 26
WIPER MOTOR AND LINKAGE  ......................... 27
WASHER HOSE LAYOUT  .................................. 28
WASHER NOZZLES  ........................................... 28
WIPER AND WASHER SWITCH  ........................ 28
WASHER FLUID RESERVOIR  ........................... 29
WASHER MOTOR  .............................................. 30
WASHER FLUID LEVEL SENSOR  ..................... 30

Washer Nozzle Adjustment  .................................... 30

REAR WIPER AND WASHER SYSTEM  .................. 31

Components Parts and Harness Connector Loca-
tion .......................................................................... 31
System Description ................................................. 31

REAR WIPER OPERATION ................................ 31
INTERMITTENT OPERATION  ............................ 32
AUTO STOP OPERATION  .................................. 32
REAR WASHER OPERATION  ............................ 32
BCM WIPER SWITCH READING FUNCTION .... 32

Wiring Diagram — WIP/R —  .................................. 33
Terminals and Reference Values for BCM .............. 35
How to Proceed With Trouble Diagnosis  ................ 35
Preliminary Check  .................................................. 35
CONSULT-II Function (BCM)  ................................. 35

CONSULT-II OPERATION ................................... 35
DATA MONITOR  ................................................. 36
ACTIVE TEST  ..................................................... 37

Rear Wiper Does Not Operate  ............................... 37
Rear Wiper Stop Position Is Incorrect ..................... 39
Only Rear Wiper Does Not Operate  ....................... 41
Only Rear Wiper Intermittent Does Not Operate  .... 41

PRECAUTION

WW-3

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

PRECAUTION

PFP:00011

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS00FZA

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

WW-4

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

FRONT WIPER AND WASHER SYSTEM

PFP:28810

Components Parts and Harness Connector Location

EKS00FZC

System Description

EKS00FZD

Both front wiper relays are located in the IPDM E/R (intelligent power distribution module engine room).

The wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input ter-
minals. Terminal combination status is read by the BCM (body control module) when the wiper switch is
turned ON.

BCM controls front wiper LO, HI, and INT (intermittent) operation.

IPDM E/R operates the wiper motor according to CAN communication signals from the BCM.

Power is supplied at all times

to ignition relay, located in the IPDM E/R, and

through 50A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70, and

through 30A fuse (No. 39, located in the IPDM E/R)

to front wiper relay (located in the IPDM E/R).

With the ignition switch in ON or START position, power is supplied

through 10A fuse [No. 15, located in the fuse block (J/B)]

to combination switch terminal 2, and

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

Ground is supplied

to BCM terminal 67 and

to combination switch terminal 9

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59 and

to front wiper motor terminal 2

through grounds E9, E15 and E24.

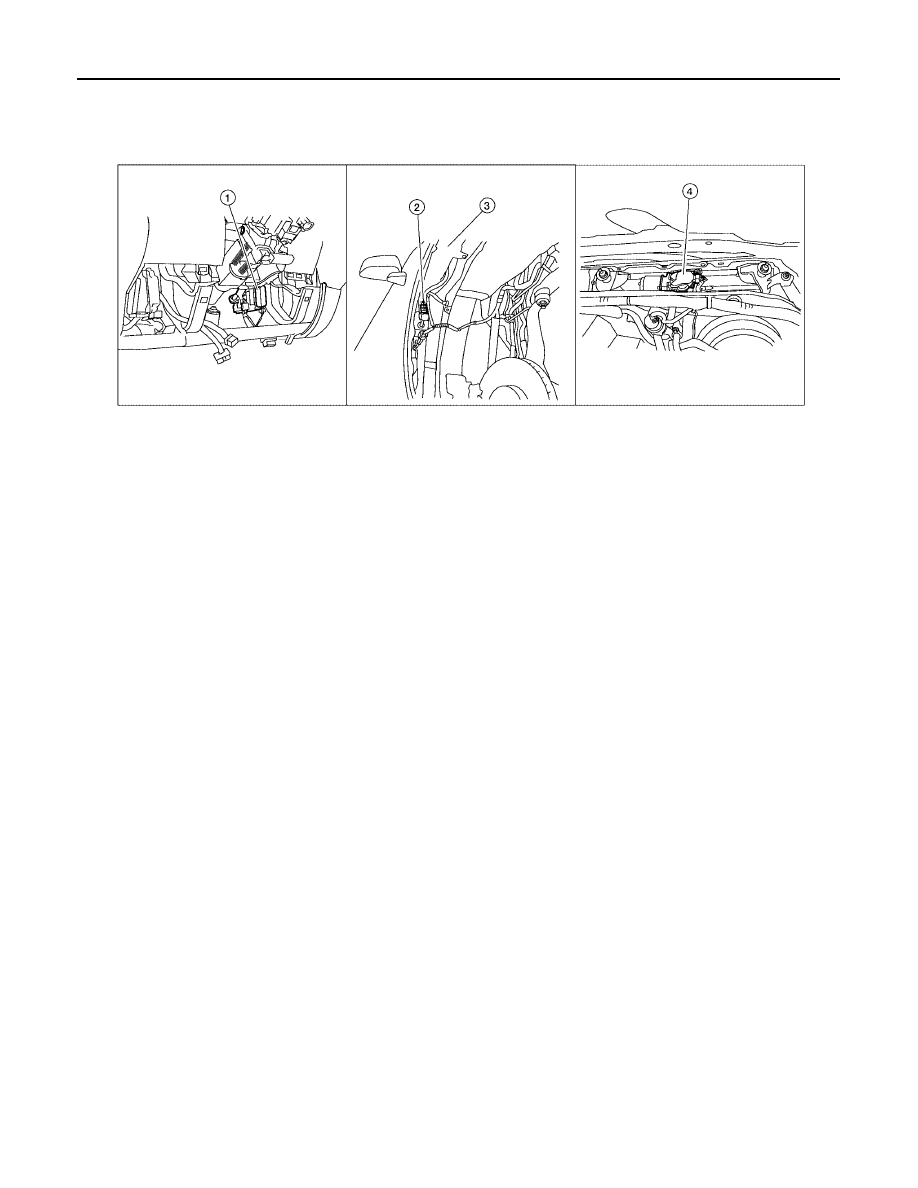

WKIA4896E

1.

BCM
M18, M19, M20
(view with instrument lower panel LH removed)

2.

Front and rear washer motor connector
E105
(view with right front fender protector removed)

3.

Washer fluid reservoir

4.

Front wiper motor
E23















Content      ..     398      399      400      401     ..
