Nissan Pathfinder (2006 year). Manual - part 398

TROUBLE DIAGNOSES

WT-19

2006 Pathfinder

CONSULT-II Function (BCM)

EES00245

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

BCM

diagnostic test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmit-
ted to the BCM for setting the status suitable for required opera-
tion, input/output signals are received from the BCM and received
data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive sig-
nal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication
can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

WT-20

TROUBLE DIAGNOSES

2006 Pathfinder

Self-Diagnosis

EES00246

DESCRIPTION

During driving, the low tire pressure warning system receives the signal transmitted from the transmitter
installed in each wheel, and gives alarms when the tire pressure becomes low. The control unit (BCM) for this
system has pressure judgement and trouble diagnosis functions.

FUNCTION

When the low tire pressure warning system detects low inflation pressure or another unusual symptom, the
warning lamp in the combination meter comes on. To start the self-diagnostic results mode, ground the tire
pressure warning check terminal. The malfunction location is indicated by the warning lamp flashing and the
buzzer sounds.

CONSULT-II Application to Low Tire Pressure Warning System

: Applicable

– : Not applicable

Self-Diagnostic Results Mode

ITEM

SELF-DIAGNOSTIC RESULTS

DATA MONITOR

Front - Left transmitter

Front - Right transmitter

Rear - Left transmitter

Rear - Right transmitter

Warning lamp

—

Vehicle speed

Buzzer (in combination meter)

—

CAN Communication

Diagnostic item

Diagnostic item is detected when ···

Reference page

FLAT - TIRE - FL
FLAT - TIRE - FR
FLAT - TIRE - RR
FLAT - TIRE - RL

Front-left tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

Front-right tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or

less

Rear-right tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or

less

Rear-left tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

—

[NO-DATA] - FL
[NO-DATA] - FR
[NO-DATA] - RR
[NO-DATA] - RL

Data from front-left transmitter cannot be received.
Data from front-right transmitter cannot be received.
Data from rear-right transmitter cannot be received.
Data from rear-left transmitter cannot be received.

WT-26, "Inspection 1: Trans-
mitter or Control Unit (BCM)"

[CHECKSUM- ERR] - FL
[CHECKSUM- ERR] - FR
[CHECKSUM- ERR] - RR
[CHECKSUM- ERR] - RL

Checksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.

WT-26, "Inspection 2: Trans-
mitter - 1"

[PRESSDATA- ERR] - FL
[PRESSDATA- ERR] - FR
[PRESSDATA- ERR] - RR
[PRESSDATA- ERR] - RL

Air pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.

WT-27, "Inspection 3: Trans-
mitter - 2"

[CODE- ERR] - FL
[CODE- ERR] - FR
[CODE- ERR] - RR
[CODE- ERR] - RL

Function code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-right transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.

WT-26, "Inspection 2: Trans-
mitter - 1"

[BATT - VOLT - LOW] - FL
[BATT - VOLT - LOW] - FR
[BATT - VOLT - LOW] - RR
[BATT - VOLT - LOW] - RL

Battery voltage of front-left transmitter drops.
Battery voltage of front-right transmitter drops.
Battery voltage of rear-right transmitter drops.
Battery voltage of rear-left transmitter drops.

WT-26, "Inspection 2: Trans-
mitter - 1"

VHCL_SPEED_SIG_ERR

Vehicle speed signal is in error.

WT-28, "Inspection 4: Vehicle
Speed Signal"

TROUBLE DIAGNOSES

WT-21

2006 Pathfinder

NOTE:
Before performing the self-diagnosis, be sure to register the ID or the actual malfunction location may be different from that displayed on
CONSULT-II.

Data Monitor Mode

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or the actual malfunction location may be different from that displayed on
CONSULT-II.

MONITOR

CONDITION

SPECIFICATION

VHCL SPEED

Drive vehicle.

Vehicle speed (km/h or MPH)

AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL

●

Drive vehicle for a few minutes.

Tire pressure (kPa or psi)

●

Ignition switch ON and activation tool
is transmitting activation signals.

ID REGST FL1
ID REGST FR1
ID REGST RR1
ID REGST RL1

Ignition switch ON

Registration ID: DONE
No registration ID: YET

WARNING LAMP

Low tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF

BUZZER

Buzzer in combination meter on: ON
Buzzer in combination meter off: OFF

WT-22

TROUBLE DIAGNOSES

2006 Pathfinder

How to Perform Trouble Diagnosis for Quick and Accurate Repair

EES00247

INTRODUCTION

●

Before troubleshooting, verify customer complaints.

●

If a vehicle malfunction is difficult to reproduce, harnesses, harness connectors or terminals may be mal-
functioning. Hold and shake these parts to make sure they are securely connected.

●

When using a circuit tester to measure voltage or resistance of each circuit, be careful not to damage or
deform connector terminals.

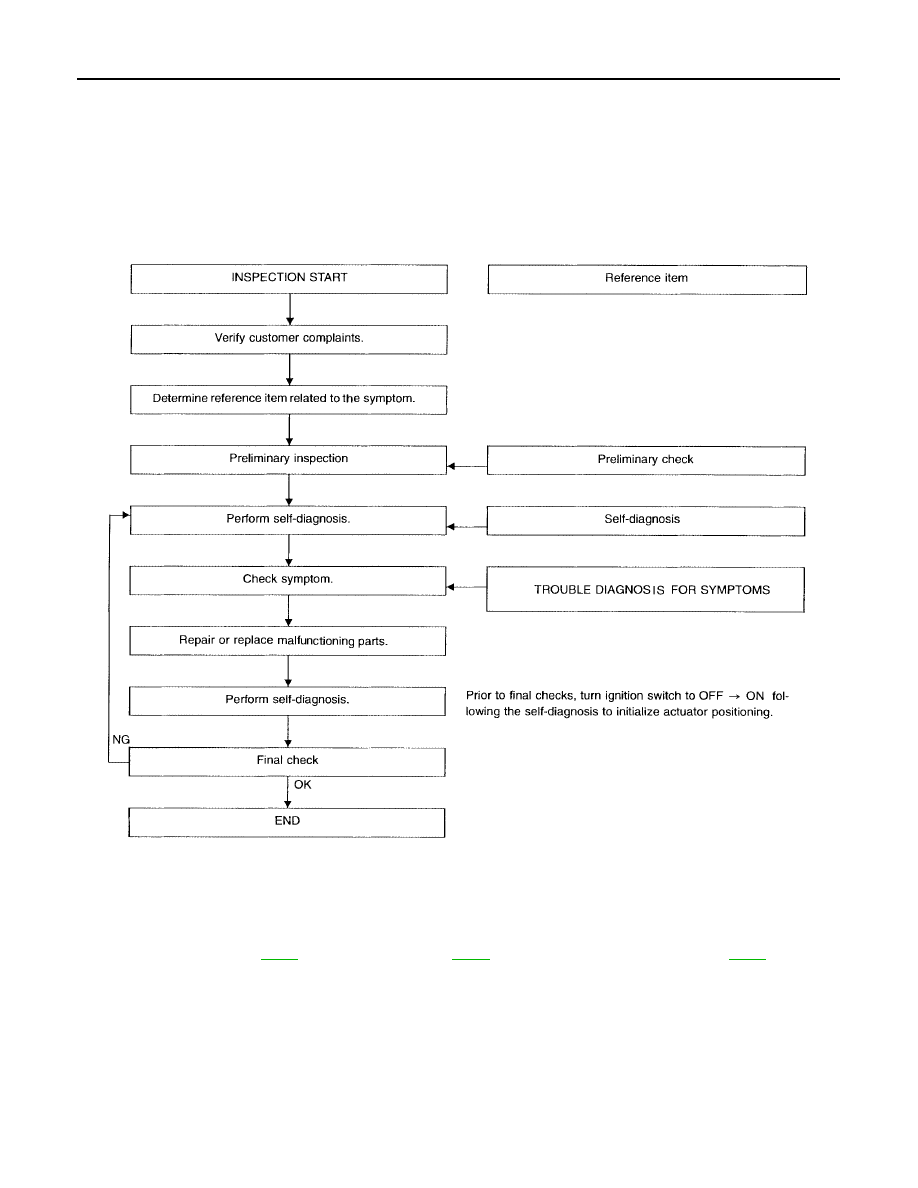

WORK FLOW

Preliminary check :

WT-23

Self-diagnosis :

WT-20

Trouble diagnosis for symptoms :

WT-29

SEIA0100E

TROUBLE DIAGNOSES

WT-23

2006 Pathfinder

Preliminary Check

EES00248

BASIC INSPECTION

CHECK ALL TIRE PRESSURES

Check all tire pressures. Refer to

WT-38, "SERVICE DATA AND SPECIFICATIONS (SDS)"

OK or NG

>> GO TO 2.

>> Adjust tire pressure to specified value.

CHECK LOW TIRE PRESSURE WARNING LAMP ACTIVATION

Check low tire pressure warning lamp activation.

Does warning lamp activate for 1 second when ignition switch is turned ON?

YES

>> GO TO 3.

>> Check fuse and combination meter.

CHECK CONNECTOR

Disconnect BCM harness connector.

Check terminals for damage or loose connection.

Reconnect harness connector.

OK or NG

>> GO TO 4.

>> Repair or replace damaged parts.

CHECK TRANSMITTER ACTIVATION TOOL

Check transmitter activation tool battery.

OK or NG

>> Carry out self-diagnosis.

>> Replace transmitter activation tool battery.

WT-24

TROUBLE DIAGNOSES

2006 Pathfinder

Malfunction Code/Symptom Chart

EES00249

Code/Symptom

Malfunction part

Reference

page

15
16
17
18

Front-left tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

Front-right tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

Rear-right tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

Rear-left tire pressure drops to 193 kPa (2.0 kg/cm

, 28 psi) or less

—

21
22
23
24

Transmitter no data (front - left)
Transmitter no data (front - right)
Transmitter no data (rear - right)
Transmitter no data (rear - left)

31
32
33
34

Transmitter checksum error (front - left)
Transmitter checksum error (front - right)
Transmitter checksum error (rear - right)
Transmitter checksum error (rear - left)

WT-26,

"Inspection 2:

Transmitter -

35
36
37
38

Transmitter pressure data error (front - left)
Transmitter pressure data error (front - right)
Transmitter pressure data error (rear - right)
Transmitter pressure data error (rear - left)

WT-27,

"Inspection 3:

Transmitter -

41
42
43
44

Transmitter function code error (front - left)
Transmitter function code error (front - right)
Transmitter function code error (rear - right)
Transmitter function code error (rear - left)

WT-26,

"Inspection 2:

Transmitter -

45
46
47
48

Transmitter battery voltage low (front - left)
Transmitter battery voltage low (front - right)
Transmitter battery voltage low (rear - right)
Transmitter battery voltage low (rear - left)

Vehicle speed signal

Low tire pressure warning lamp does
not come on when ignition switch is
turned on.

●

Fuse or combination meter

●

BCM connector or circuit

●

BCM

Not Come On
When Ignition

Switch Is

Turned On"

Low tire pressure warning lamp stays
on when ignition switch is turned on.

●

Combination meter

●

BCM connector or circuit

●

BCM

Low tire pressure warning lamp
flashes when ignition switch is turned
on.

●

BCM harness connector or circuit

●

BCM

●

Transmitter's mode off

●

ID registration not completed yet

TROUBLE DIAGNOSES

WT-25

2006 Pathfinder

Hazard warning lamp flashes when
ignition switch is turned on.

●

BCM harness connector or circuit

●

BCM

“TIRE PRESSURE” information in dis-
play does not exist (with NAVI).

●

Fuse

●

Display unit

●

BCM

ID registration cannot be completed.

●

Transmitter

●

Remote keyless entry receiver harness connector or circuit

●

Remote keyless entry receiver

●

BCM harness connector or circuit

●

BCM

Code/Symptom

Malfunction part

Reference

page

WT-26

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

2006 Pathfinder

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

PFP:00000

Inspection 1: Transmitter or Control Unit (BCM)

EES0024A

MALFUNCTION CODE NO. 21, 22, 23 OR 24

CHECK CONTROL UNIT

Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM”.
Are all tire pressures displayed as 0 kPa?

YES

>> GO TO 2.

>> GO TO 3.

CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR

Check remote keyless entry receiver connector for damage or loose connections.
OK or NG

>> Replace BCM, then GO TO 3. Refer to

BCS-27, "Removal and Installation"

>> Repair or replace remote keyless entry receiver connector.

ID REGISTRATION

Carry out ID registration of all transmitters. Refer to

WT-14, "ID Registration Procedure"

Is there a tire that cannot register ID?

YES

>> Replace transmitter of the tire, then GO TO 5. Refer to

WT-36, "Transmitter (Pressure Sensor)"

>> GO TO 4.

VEHICLE DRIVING

Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.

Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).

Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

>> GO TO 5.

ID REGISTRATION AND VEHICLE DRIVING

Carry out ID registration of all transmitters. Refer to

WT-14, "ID Registration Procedure"

Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.

Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.

Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

>> GO TO the inspection applicable to DTC.

Inspection 2: Transmitter - 1

EES0024B

MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48

ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)

Carry out ID registration of all transmitters. Refer to

WT-14, "ID Registration Procedure"

Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.

>> GO TO 2.

Content .. 396 397 398 399 ..
