FRONT WIPER AND WASHER SYSTEM

WW-5

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

LOW SPEED WIPER OPERATION

When the ignition switch is in the ON or START position, and the front wiper switch is turned to the low posi-
tion, the BCM detects a low speed wiper ON request through the combination switch (wiper switch) reading
function.
The BCM then sends a front wiper (low) request signal over CAN communication lines

from BCM terminals 39 and 40

to IPDM E/R terminals 39 and 40.

When IPDM E/R receives front wiper (low) request signal, it supplies ground to energize the front wiper relay.
With the front wiper relay energized, power is supplied

through front wiper relay

to front wiper high relay

through IPDM E/R terminal 32

to front wiper motor terminal 1.

With power and ground supplied, the front wiper motor operates at low speed.

HI SPEED WIPER OPERATION

When the ignition switch is in the ON or START position, and the front wiper switch is turned to the high posi-
tion, the BCM detects a high speed wiper ON request through the combination switch (wiper switch) reading
function.
The BCM then sends a front wiper (high) request signal over CAN communication lines

from BCM terminals 39 and 40

to IPDM E/R terminals 39 and 40.

When the IPDM E/R receives a front wiper (high) request signal, it supplies ground to energize the front wiper
and the front wiper high relays.
With the front wiper and the front wiper high relays energized, power is supplied

through front wiper relay

to front wiper high relay

through IPDM E/R terminal 35

to front wiper motor terminal 4.

With power and ground supplied, the front wiper motor operates at high speed.

INTERMITTENT OPERATION

Wiper intermittent operation delay interval is determined from the combination of the intermittent wiper dial
position inputs and vehicle speed. During each intermittent operation delay interval, the BCM sends a front
wiper request signal to the IPDM E/R to operate the wipers.
When the ignition switch is in the ON or START position, and the front wiper switch is turned to an intermittent
position, the BCM detects a front wiper (intermittent) ON request through the combination switch (wiper
switch) reading function.
The BCM then sends a front wiper (intermittent) request signal over CAN communication lines

from BCM terminals 39 and 40

to IPDM E/R terminals 39 and 40.

When the BCM determines that combination switch status is front wiper intermittent ON, it performs the follow-
ing operations.

BCM detects ON/OFF status of intermittent wiper dial position.

BCM calculates operation interval from wiper dial position and vehicle speed signal received through CAN
communications.

BCM sends front wiper request signal (INT) to IPDM E/R at calculated operation interval.

When the IPDM E/R receives a front wiper request signal (INT), it supplies ground to energize the front wiper
relay. It then sends an auto-stop signal to the BCM, and conducts intermittent front wiper motor operation.

AUTO STOP OPERATION

When the wiper arms are not located at the base of the windshield, and the wiper switch is turned OFF, the
wiper motor will continue to operate until the wiper arms reach the windshield base. When the wiper arms
reach the base of windshield, front wiper motor terminals 5 and 2 are connected.
Ground is supplied

WW-6

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

to IPDM E/R terminal 43

through front wiper motor terminal 5

through front wiper motor terminal 2

through grounds E9, E15 and E24.

The IPDM E/R sends an auto stop operation signal to the BCM through CAN communication lines.
When the BCM receives an auto stop operation signal, the BCM sends wiper stop signal to the IPDM E/R over
CAN communication lines. The IPDM E/R then de-energizes the front wiper relay.
The wiper motor will then stop the wiper arms at the STOP position.

FRONT WASHER OPERATION

When the ignition switch is in the ON or START position, and the front and rear washer switches are OFF, the
front and rear washer motor is supplied power

through 10A fuse [No. 15, located in the fuse block (J/B)]

through combination switch (wiper switch) terminal 2

through combination switch (wiper switch) terminal 4

to front and rear washer motor terminal 1.

When the front wiper switch is in the front washer position, the BCM detects a front washer signal request
through the combination switch (wiper switch) reading function.
Combination switch ground is supplied

to front and rear washer motor terminal 2

through combination switch (wiper switch) terminal 3

through combination switch (wiper switch) terminal 9

through grounds M57, M61 and M79.

With ground supplied, the front and rear washer motor is operated in the front direction.
When the BCM detects that front washer motor has operated for 0.4 seconds or longer, the BCM uses CAN
communication and sends a wiper request signal to the IPDM E/R for low speed operation of wipers.
When the BCM detects that the washer switch is OFF, low speed operation cycles approximately 3 times and
then stops.

MIST OPERATION

When the wiper switch is temporarily placed in the mist position, wiper low speed operation cycles once and
then stops.
For additional information about wiper operation under this condition, refer to

WW-5, "LOW SPEED WIPER

OPERATION"

 .

If the switch is held in the mist position, low speed operation continues.

FAIL-SAFE FUNCTION

The BCM includes fail-safe function to prevent malfunction of electrical components controlled by CAN com-
munications if a malfunction in CAN communications occurs.
The BCM uses CAN communications to stop output of electrical components it controls.
Until the ignition switch is turned OFF, the front wiper system remains in same status as just before fail-safe
control was initiated. (If wiper was in low speed operation just before fail-safe, it continues low speed operation
until ignition switch is turned OFF.)
When fail-safe status is initiated, the BCM remains in standby until normal signals are received.
When normal signals are received, fail-safe status is canceled.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

CAN Communication System Description

EKS00FZE

Refer to

LAN-25, "CAN COMMUNICATION"

 .

FRONT WIPER AND WASHER SYSTEM

WW-7

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

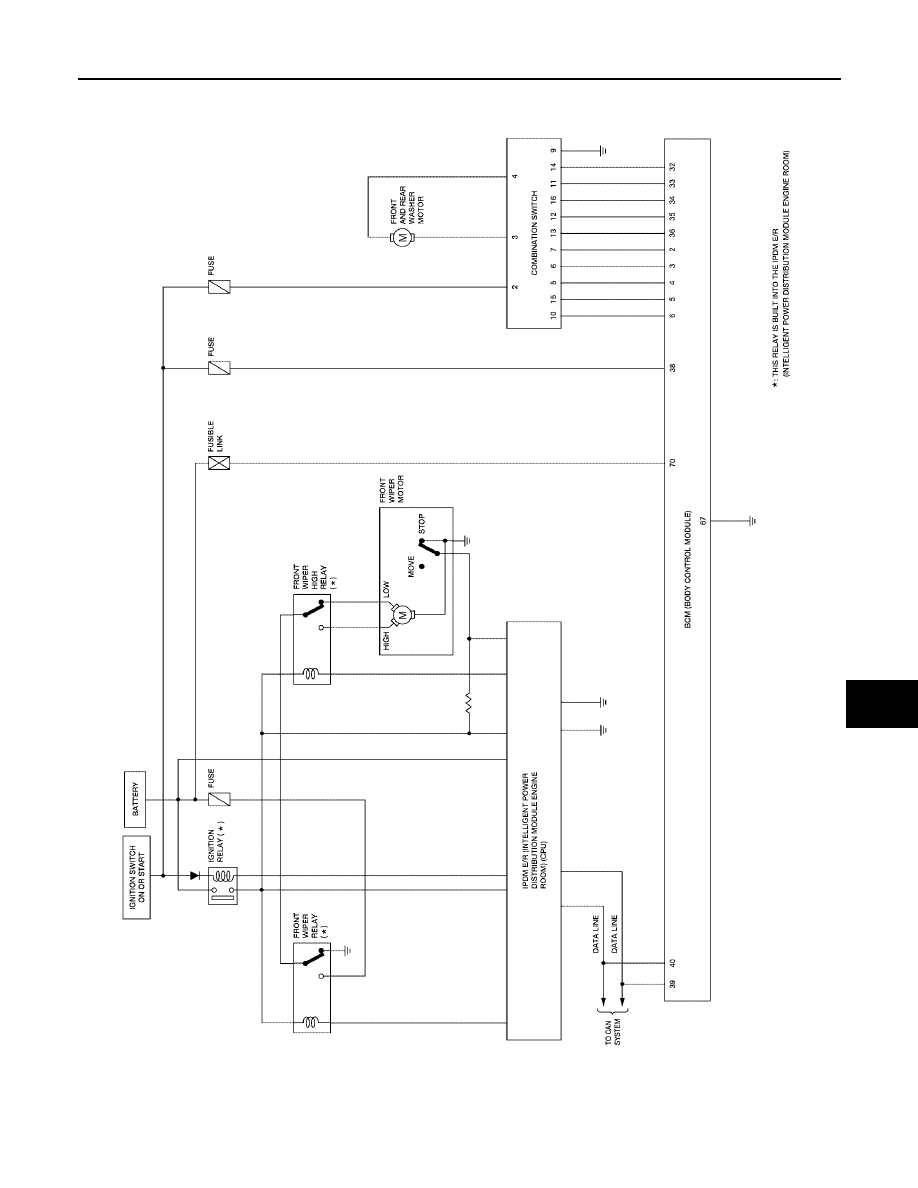

Schematic

EKS00FZF

WKWA2985E

WW-8

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

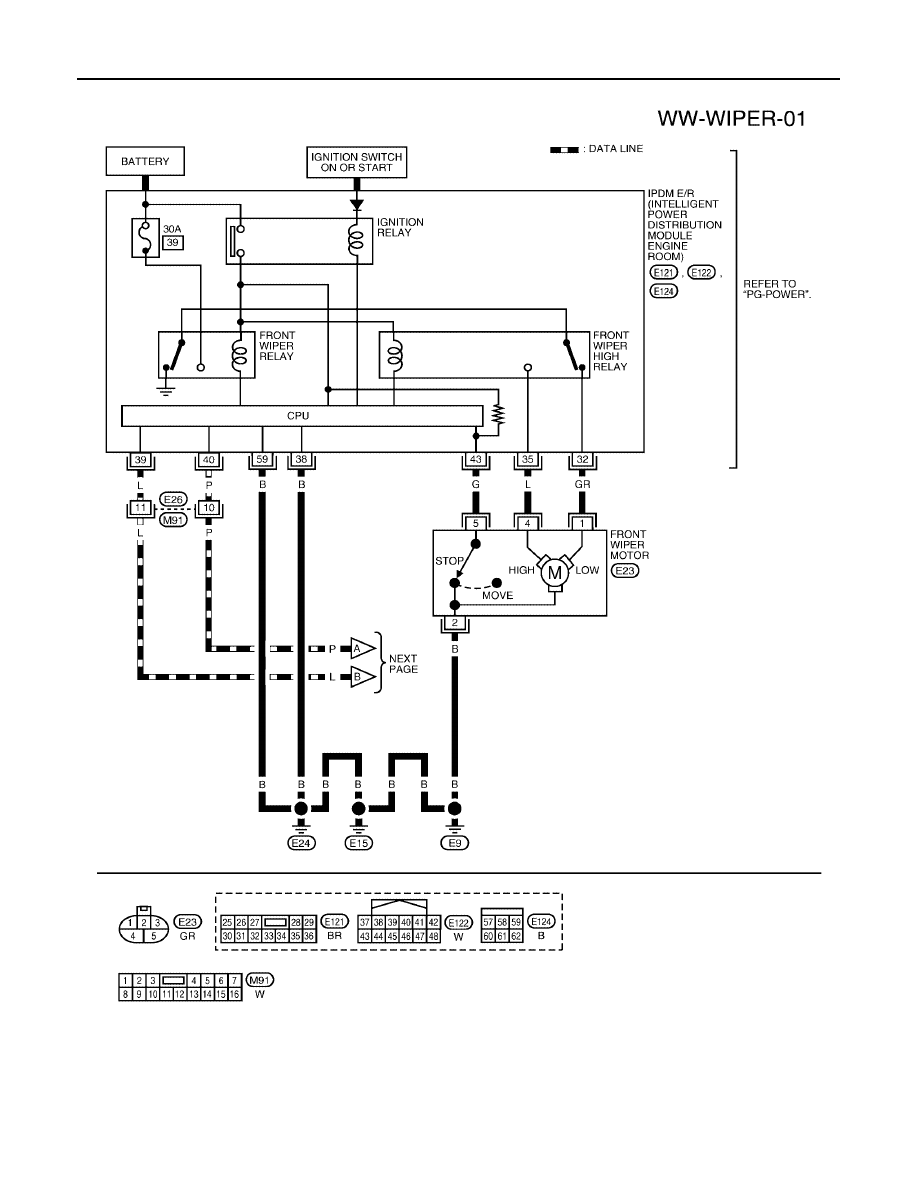

Wiring Diagram — WIPER —

EKS00FZG

WKWA2986E

FRONT WIPER AND WASHER SYSTEM

WW-9

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

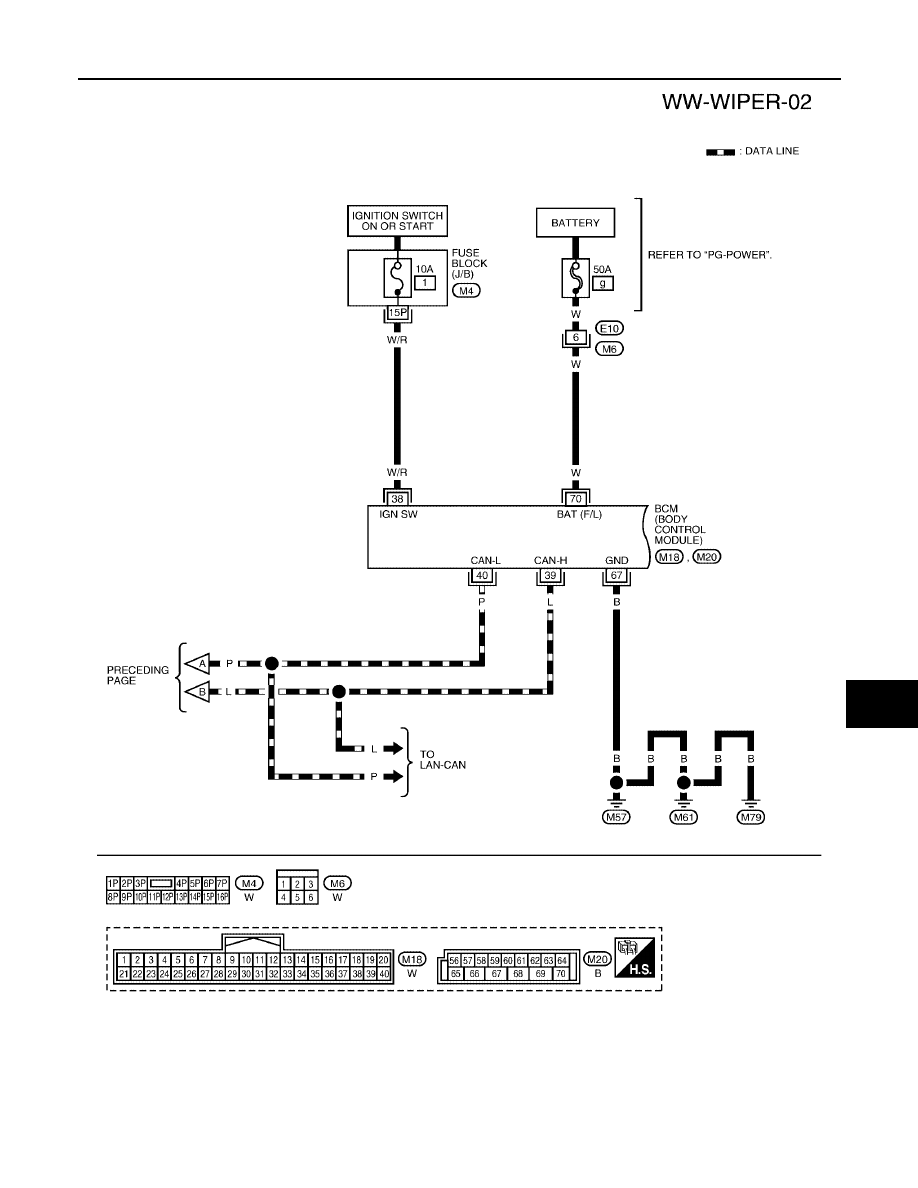

WKWA2987E

WW-10

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

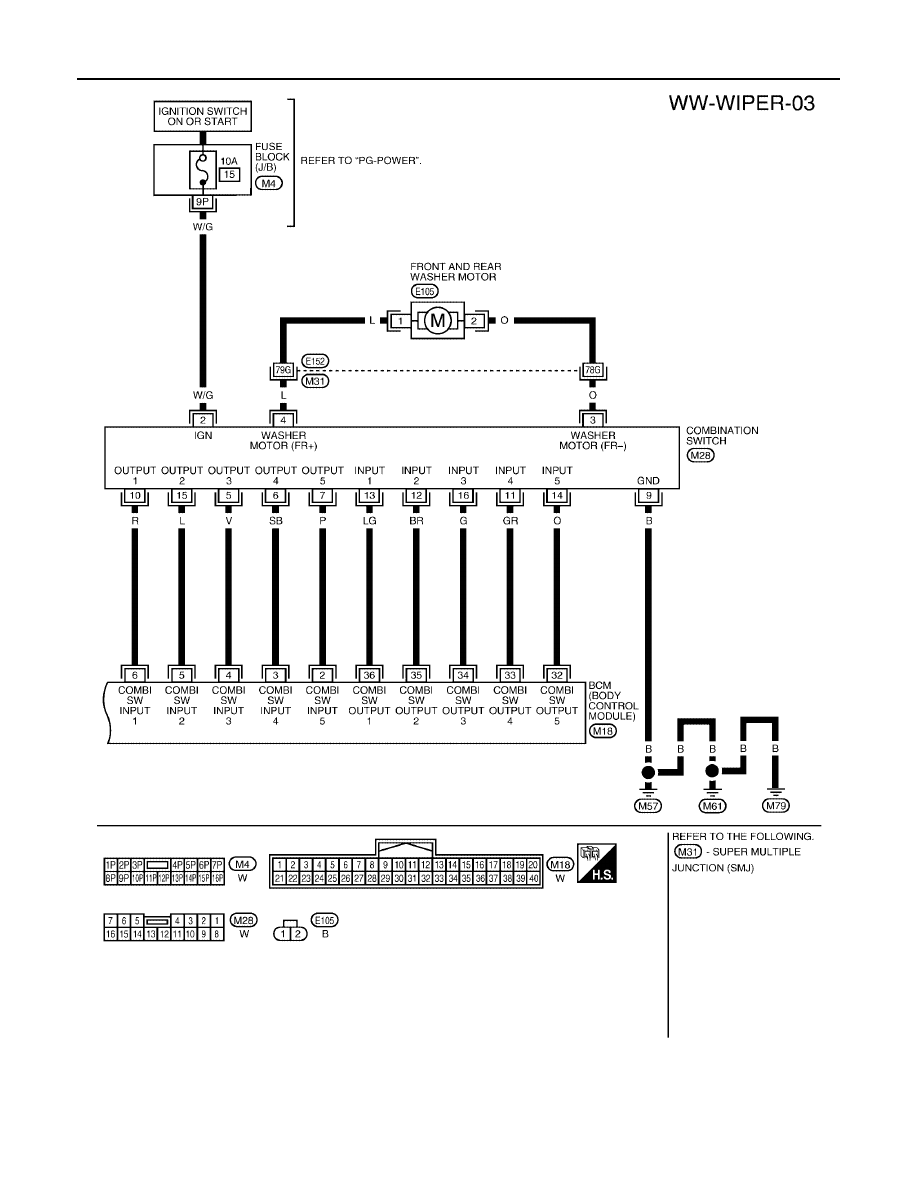

WKWA1966E

FRONT WIPER AND WASHER SYSTEM

WW-11

C

D

E

F

G

H

I

J

L

M

A

B

WW

2006 Pathfinder

Terminals and Reference Values for BCM

EKS00FZH

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

Terminals and Reference Values for IPDM E/R

EKS00FZI

Refer to

PG-28, "Terminals and Reference Values for IPDM E/R"

 .

Work Flow

EKS00FZJ

1.

Confirm the symptom or customer complaint.

2.

Understand the system description, refer to

WW-4, "System Description"

 .

3.

Perform preliminary inspection, refer to

WW-11, "Preliminary Inspection"

 .

4.

Check symptom and repair or replace the cause of malfunction.

5.

Does wiper function operate normally? If it operates normally, GO TO 6. If not, GO TO 4.

6.

Inspection End.

Preliminary Inspection

EKS00FZK

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

 .

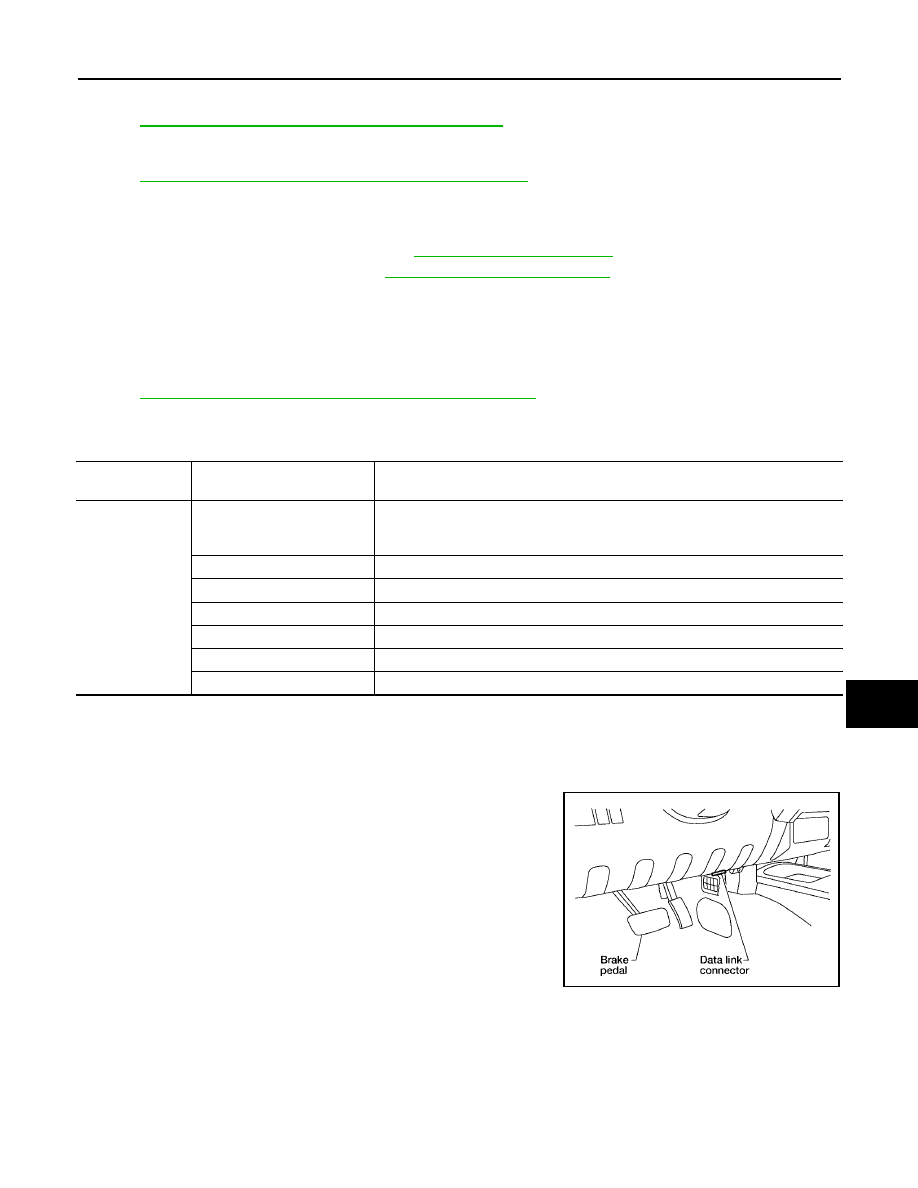

CONSULT-II Function (BCM)

EKS00FZL

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II OPERATION

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

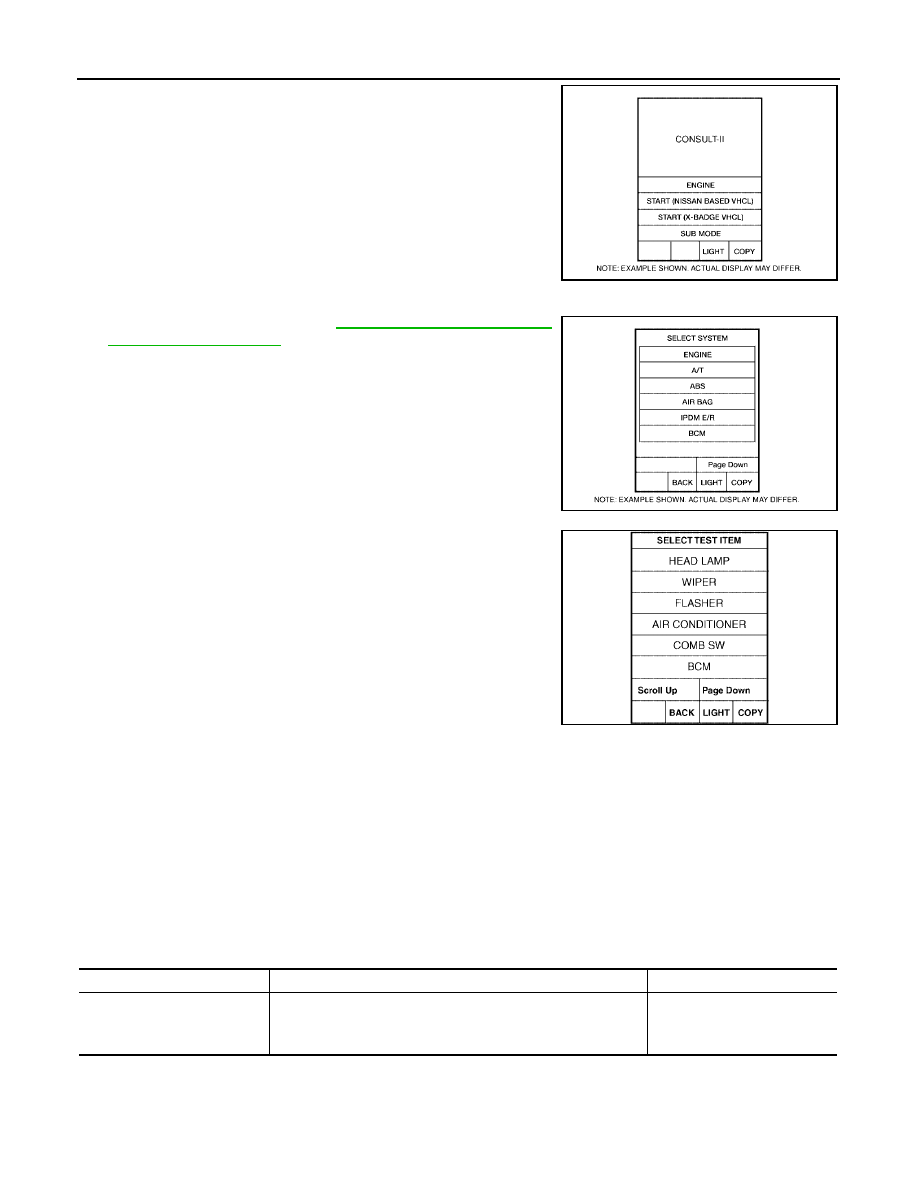

1.

With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

WW-12

FRONT WIPER AND WASHER SYSTEM

2006 Pathfinder

2.

Touch "START (NISSAN BASED VHCL)".

3.

Touch "BCM" on the "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

4.

Select the desired part to be diagnosed on the "SELECT TEST
ITEM" screen.

WORK SUPPORT
Operation Procedure

1.

Touch "WIPER" on the "SELECT TEST ITEM" screen.

2.

Touch "WORK SUPPORT" on the "SELECT DIAG MODE" screen.

3.

Touch "WIPER SPEED SETTING" on the "SELECT WORK ITEM" screen.

4.

Touch "START".

5.

Touch "CHANGE SETT".

6.

The setting will be changed and "CURRENT SETTING" will be displayed.

7.

Touch "END".

Work Support Setting Item

NOTE:
Factory setting

BCIA0029E

BCIA0030E

LKIA0183E

Item

Description

CONSULT-II

WIPER SPEED SETTING

When wiper switch is at INTERMITTENT, front wiper intermittent
time can be selected according to vehicle speed.

ON (Operated)/OFF

NOTE

  (Not operated)

ON/OFF
