2006 Pathfinder

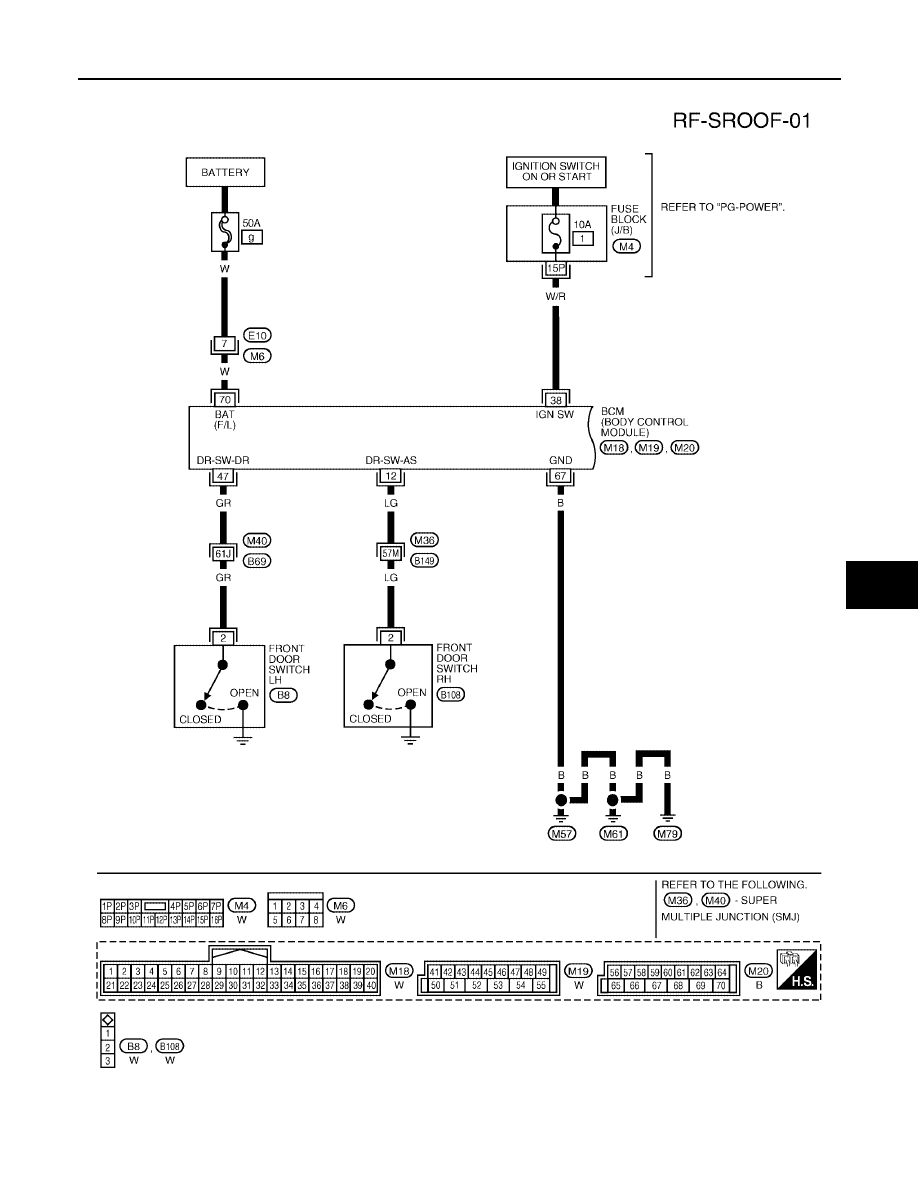

Wiring Diagram — SROOF —

EIS007T4

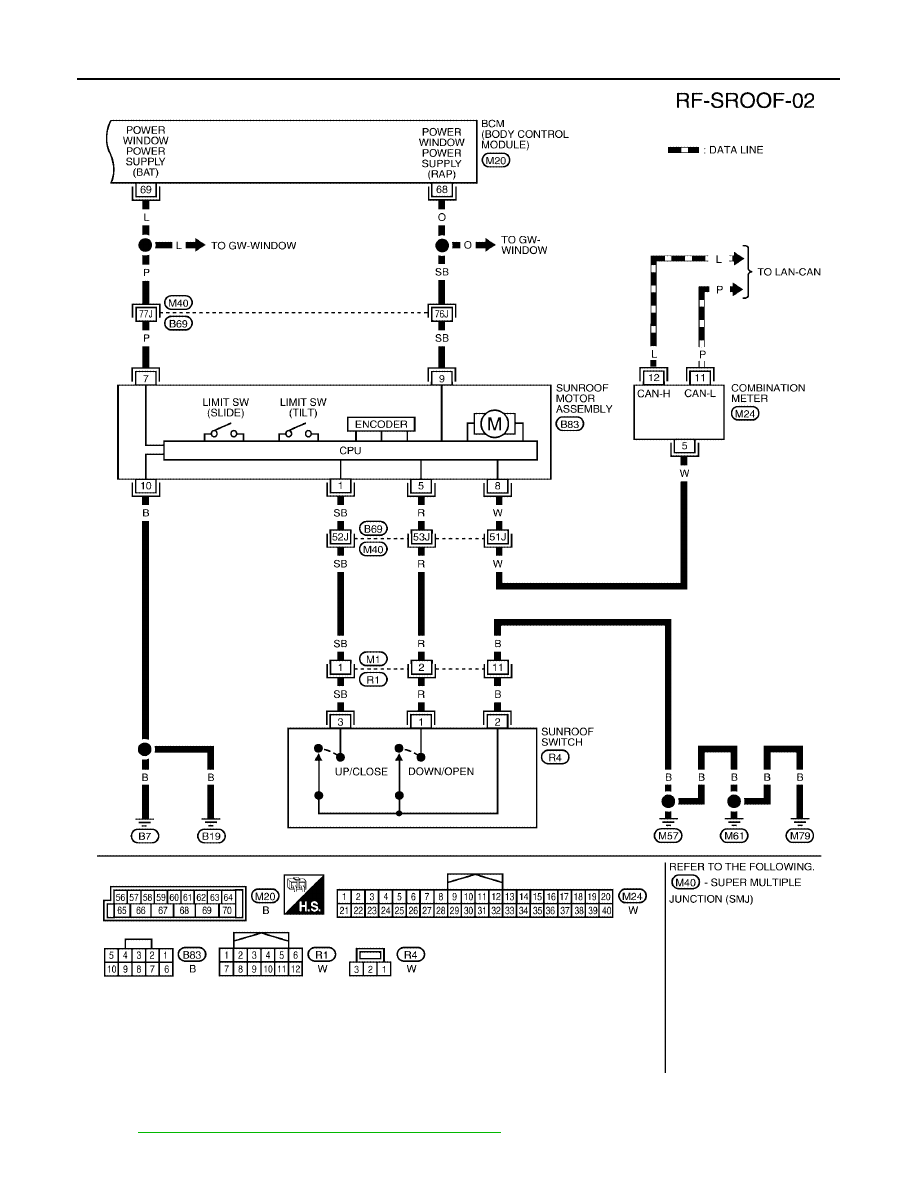

WIWA1594E

RF-14

SUNROOF

2006 Pathfinder

Terminals and Reference Values for BCM

EIS007T5

Refer to

BCS-12, "Terminals and Reference Values for BCM"

 .

WIWA0521E

SUNROOF

RF-15

C

D

E

F

G

H

J

K

L

M

A

B

RF

2006 Pathfinder

Terminals and Reference Values for Sunroof Motor Assembly

EIS007T6

Work Flow

EIS007T7

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

RF-10, "System Description"

 .

3.

According to the trouble diagnosis chart, repair or replace the cause or replace of the malfunction.
Refer to

RF-18, "Trouble Diagnosis Chart by Symptom"

 .

4.

Does sunroof system operate normally? If Yes, GO TO 5, If No, GO TO 3.

5.

Inspection End.

Terminal

Wire

color

Item

Condition

Voltage

(Approx.)

1

SB

Sunroof switch (UP/CLOSE) signal

Ignition switch ON and sunroof
switch in UP/CLOSE position

0

Ignition switch ON and sunroof
switch in OFF position

Battery voltage

5

R

Sunroof switch (DOWN/OPEN) signal

Ignition switch ON and sunroof
switch in DOWN/OPEN position

0

Ignition switch ON and sunroof
switch in OFF position

Battery voltage

7

P

BAT power supply

—

Battery voltage

8

W

Vehicle speed signal

Speedometer operated [when

vehicle speed is approx. 40 km/h

(25 MPH)]

9

SB

RAP signal

Ignition switch ON

Battery voltage

Within 45 seconds after ignition

switch is turned OFF

Battery voltage

When front door LH or RH is

opened while retained power is

operating

0

10

B

Ground

—

0

ELF1080D

RF-16

SUNROOF

2006 Pathfinder

CONSULT-II Function (BCM)

EIS007T8

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II OPERATION

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

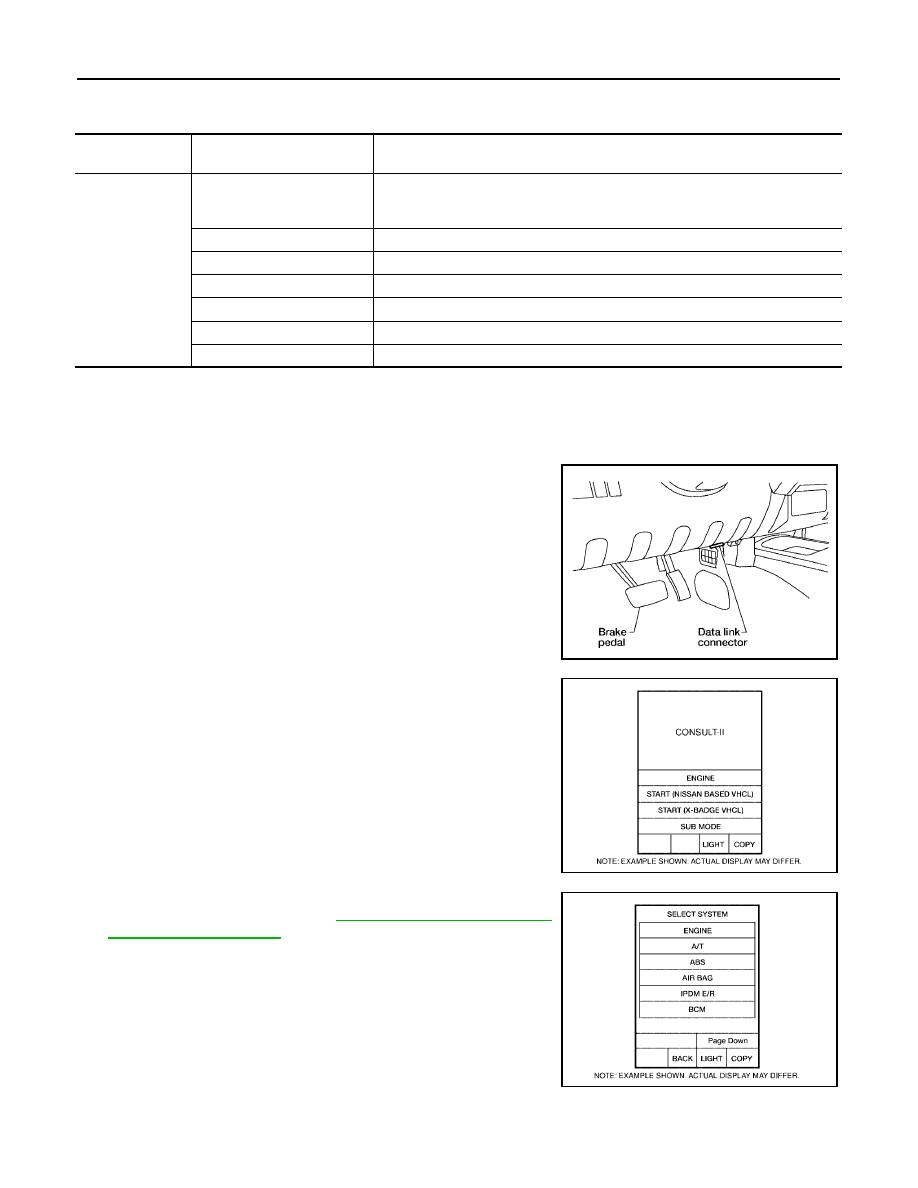

1.

With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.

2.

Touch "START (NISSAN BASED VHCL)".

3.

Touch "BCM".
If "BCM" is not indicated, go to

GI-40, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

BCIA0029E

BCIA0030E

SUNROOF

RF-17

C

D

E

F

G

H

J

K

L

M

A

B

RF

2006 Pathfinder

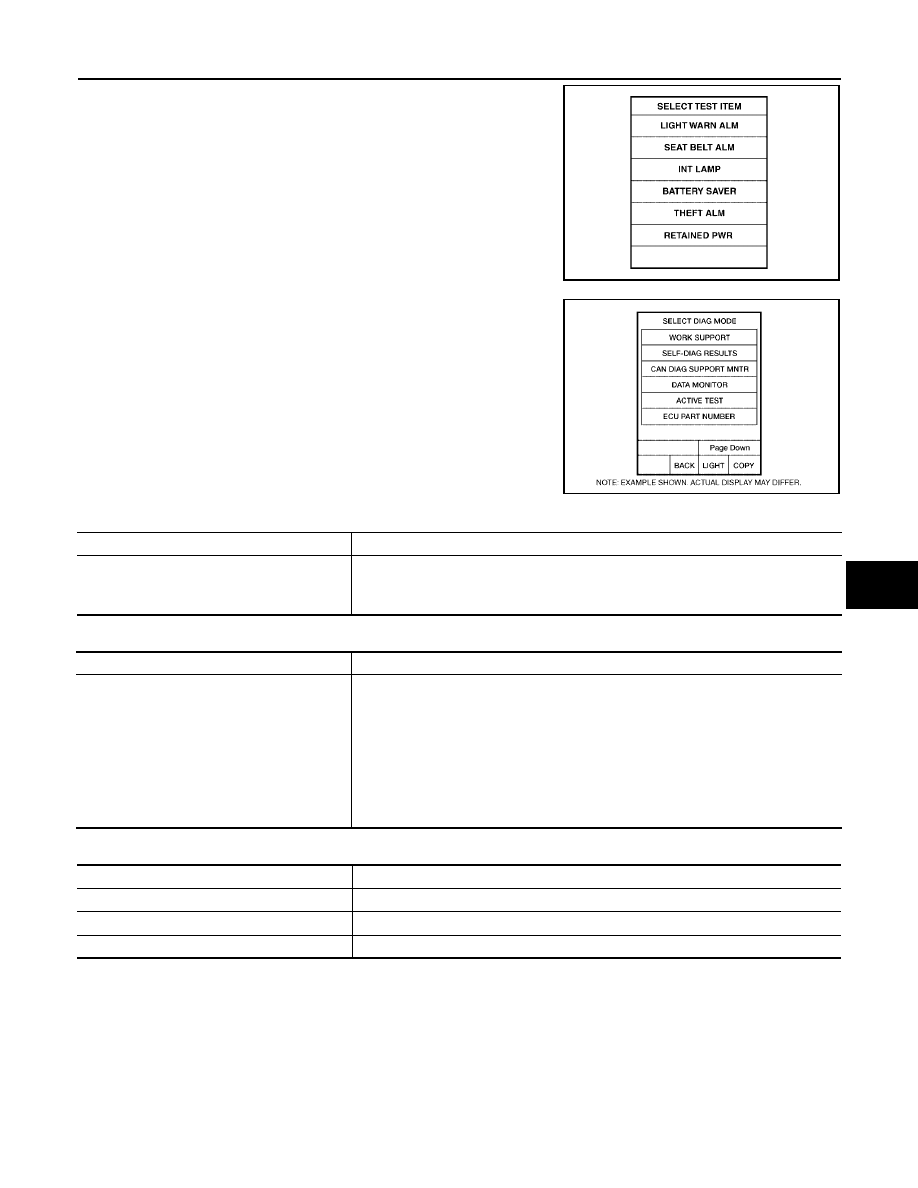

4.

Touch "RETAINED PWR".

5.

Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and
"WORK SUPPORT" are available.

Work Support

EIS007T9

Active Test

EIS007TA

Data Monitor

EIS007TB

LIIA0163E

BCIA0031E

Work item

Description

RETAINED PWR SET

RAP signal’s power supply period can be changed by mode setting. Selects RAP sig-
nal’s power supply period between the following three steps.

●

MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.)

Test item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM to power window system,
power sunroof system. Those systems can be operated when turning on "RETAINED
PWR" on CONSULT-II screen even if the ignition switch is turned OFF.

NOTE:
During this test, CONSULT-II can be operated with ignition switch in "OFF"
position. "RETAINED PWR" should be turned "ON" or "OFF" on CONSULT-II
screen when ignition switch ON. Then turn ignition switch OFF for checking
retained power operation. CONSULT-II might be stuck if "RETAINED PWR" is
turned "ON" or "OFF" on CONSULT-II screen when ignition switch is OFF.

Monitored item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

RF-18

SUNROOF

2006 Pathfinder

Trouble Diagnosis Chart by Symptom

EIS007TC

BCM Power Supply and Ground Circuit Check

EIS007TD

Refer to

BCS-16, "BCM Power Supply and Ground Circuit Check"

 .

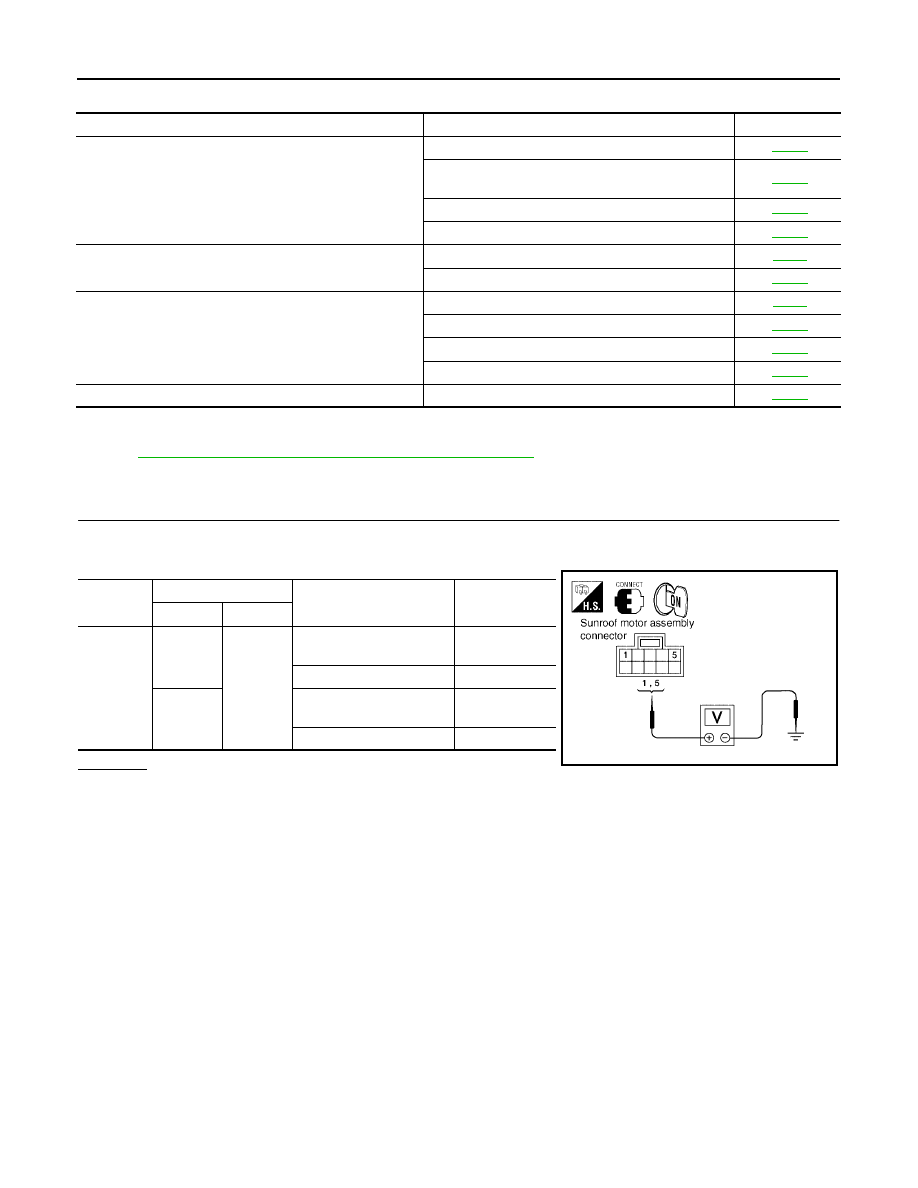

Sunroof Switch System Check

EIS007TE

1.

SUNROOF SWITCH INPUT SIGNAL CHECK

1.

Turn ignition switch ON.

2.

Check voltage between sunroof motor assembly connector and ground.

OK or NG

OK

>> Sunroof switch input signal circuits are OK.

NG

>> GO TO 2.

Symptom

Diagnostic procedure and repair order

Refer to page

Sunroof does not operate.

1. BCM power supply and ground circuit check

RF-18

2. Sunroof motor assembly power supply and ground
circuit check

RF-20

3. Sunroof switch system check

RF-18

4. Replace sunroof motor assembly

RF-26

Motor does not stop at the sunroof fully-open or fully-closed
position.

1. Initialization procedure check

RF-11

2. Replace sunroof motor assembly

RF-26

Retained power operation does not operate properly.

1. Check the retained power operation mode setting

RF-11

2. BCM power supply and ground circuit check

RF-18

3. Door switch check

RF-21

4. Replace sunroof motor assembly

RF-26

Sunroof does not do the interruption detection.

1. Replace sunroof motor assembly

RF-26

Connector

Terminal

Condition

Voltage

(Approx.)

(+)

(–)

B83

1

Ground

Sunroof switch is operated
to UP/CLOSE

0

Other than above

Battery voltage

5

Sunroof switch is operated
to DOWN/OPEN

0

Other than above

Battery voltage

WIIA0436E

SUNROOF

RF-19

C

D

E

F

G

H

J

K

L

M

A

B

RF

2006 Pathfinder

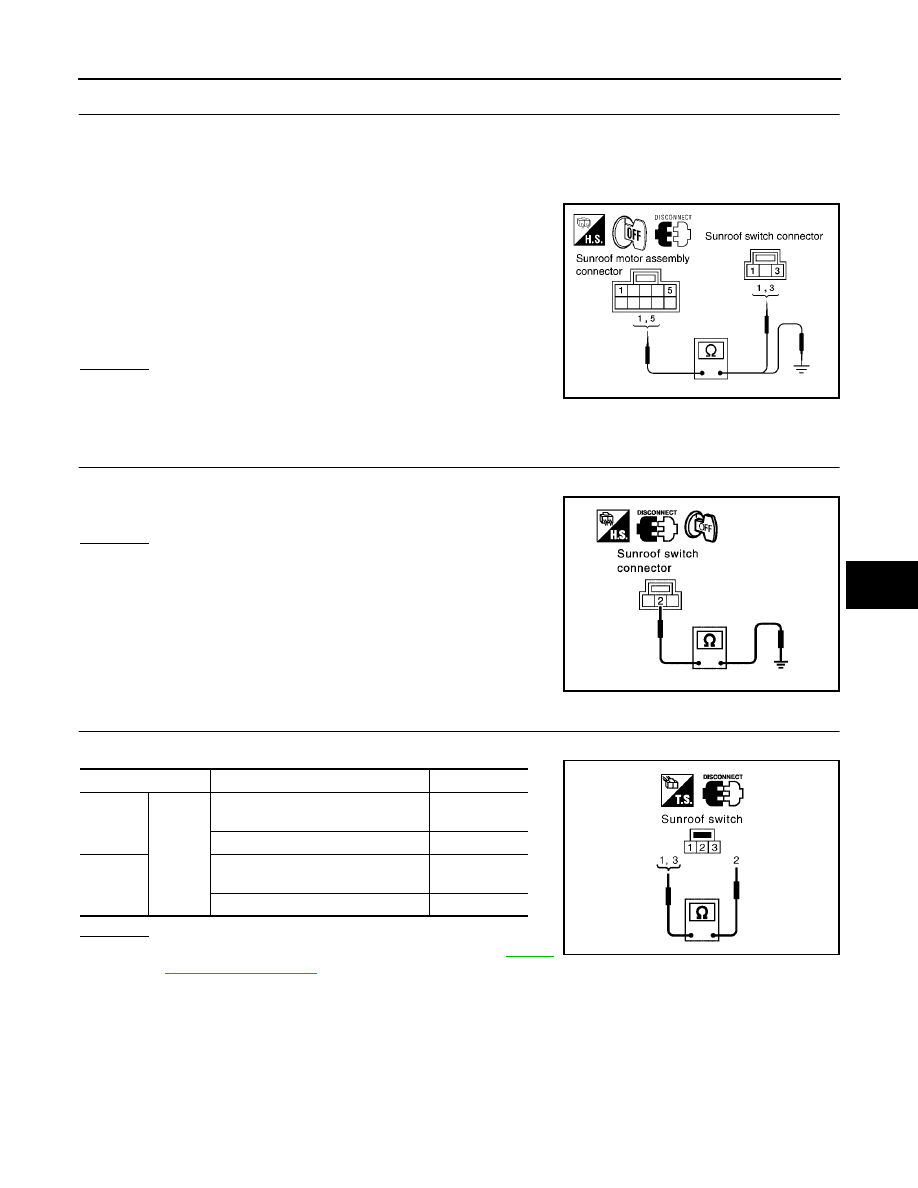

2.

SUNROOF SWITCH CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect sunroof motor assembly and sunroof switch connectors.

3.

Check continuity between sunroof motor assembly connector B83 terminals 1, 5 and sunroof switch con-
nector R4 terminals 1, 3.

4.

Check continuity between sunroof motor assembly connector
B83 terminals 1, 5 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between sunroof motor

assembly and sunroof switch.

3.

SUNROOF SWITCH GROUND CIRCUIT CHECK

Check continuity between sunroof switch connector R4 terminal 2 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

SUNROOF SWITCH CHECK

Check continuity between sunroof switch terminals 1, 3 and 2.

OK or NG

OK

>> Replace sunroof motor assembly. Refer to

RF-26,

"SUNROOF MOTOR"

 .

NG

>> Replace sunroof switch.

1 - 3

: Continuity should exist.

5 - 1

: Continuity should exist.

1 - Ground

: Continuity should not exist.

5 - Ground

: Continuity should not exist.

WIIA0437E

2 - Ground

: Continuity should exist.

PIIA3627E

Terminals

Condition

Continuity

1

2

Sunroof switch is operated to
DOWN/OPEN

Yes

Other than above

No

3

Sunroof switch is operated to
UP/CLOSE

Yes

Other than above

No

PIIA6157E

RF-20

SUNROOF

2006 Pathfinder

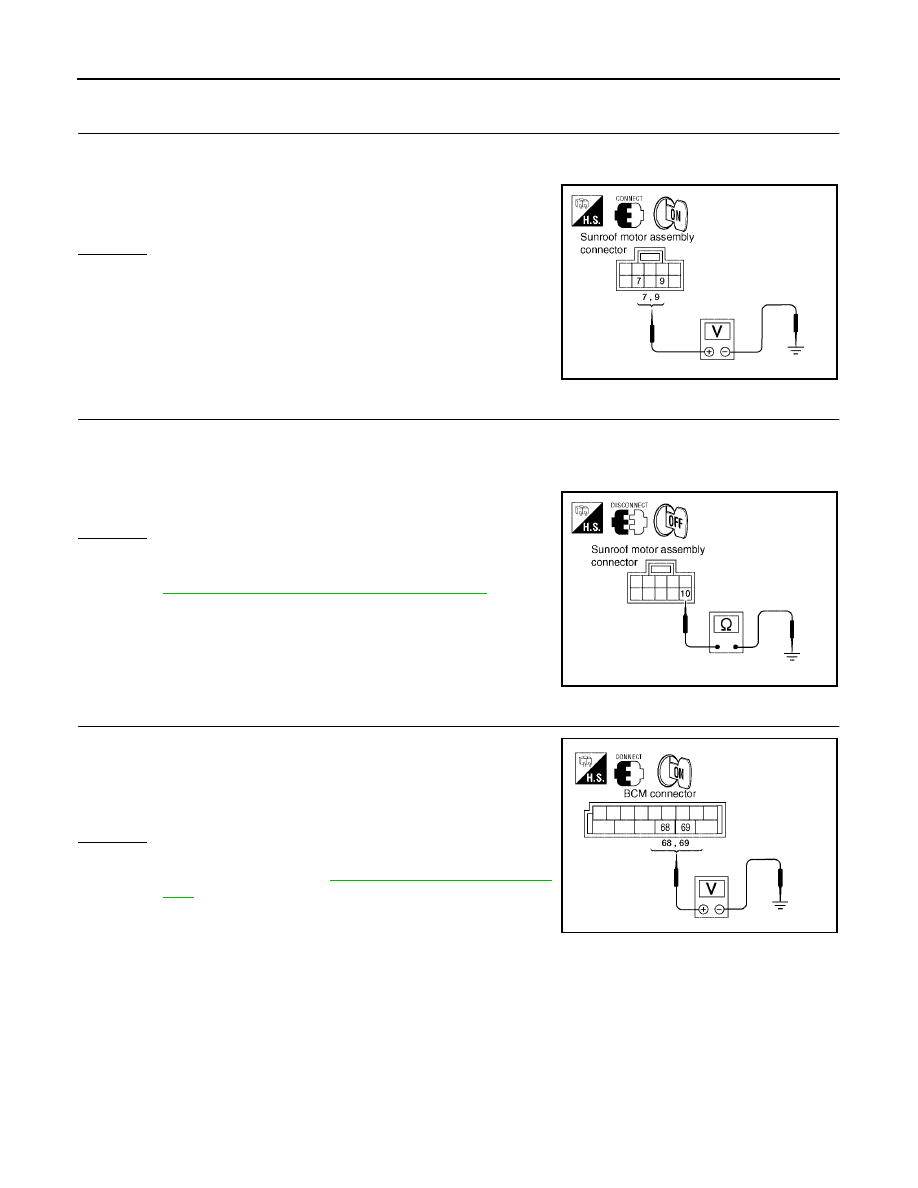

Sunroof Motor Assembly Power Supply and Ground Circuit Check

EIS007TF

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between sunroof motor assembly connector B83 terminals 7, 9 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sunroof motor assembly connector.

3.

Check continuity between sunroof motor assembly connector B83 terminal 10 and ground.

OK or NG

OK

>> Sunroof motor assembly power supply and ground cir-

cuits are OK. Further inspection is necessary. Refer to

RF-18, "Trouble Diagnosis Chart by Symptom"

 .

NG

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

Check voltage between BCM connector M20 terminals 68, 69 and
ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

 .

7 - Ground

: Battery voltage

9 - Ground

: Battery voltage

WIIA0438E

10 - Ground

: Continuity should exist.

WIIA0439E

68 - Ground

: Battery voltage

69 - Ground

: Battery voltage

WIIA0425E
