REAR DRIVE SHAFT

RAX-11

C

E

F

G

H

I

J

K

L

M

A

B

RAX

2006 Pathfinder

5.

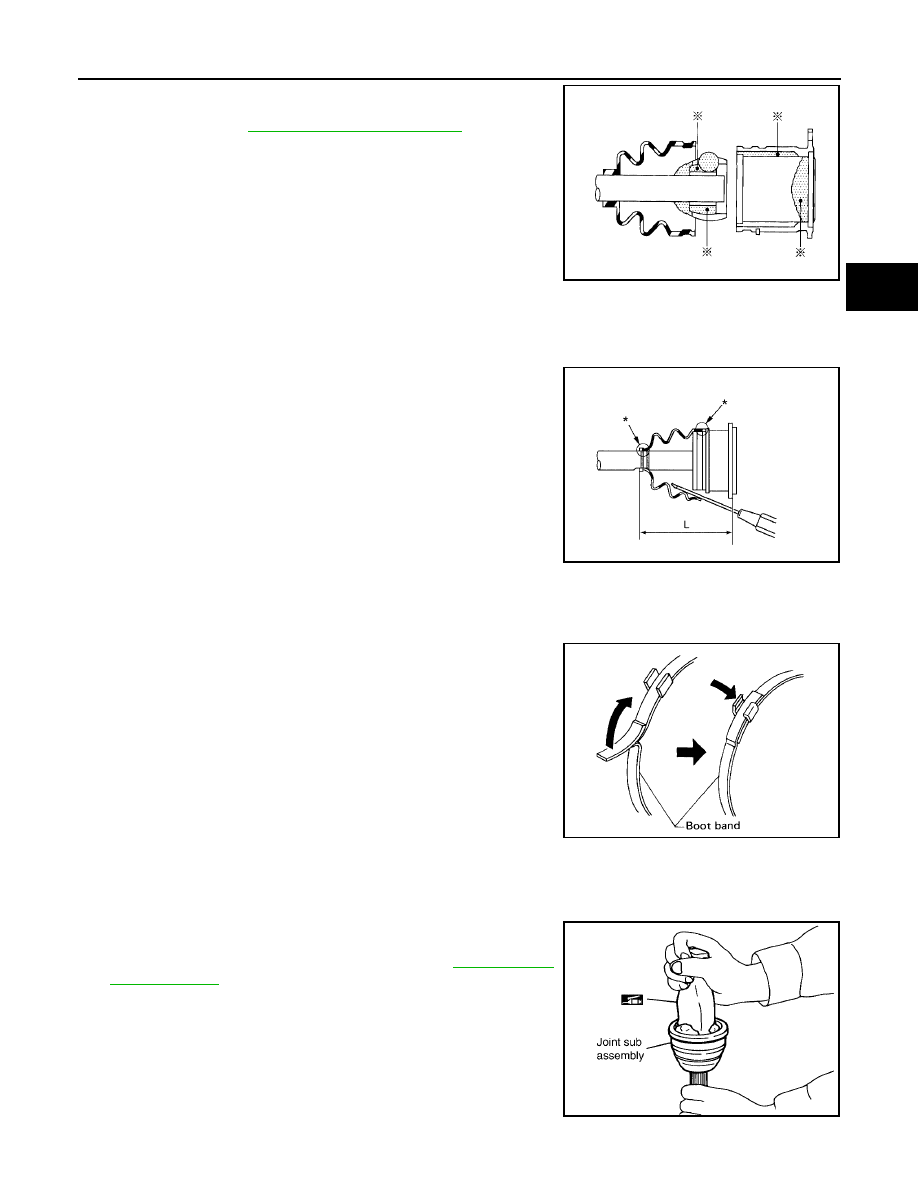

Insert the specified quantity of Genuine NISSAN Grease or
equivalent, onto the housing (indicated by * marks), and install it
onto shaft. Refer to

MA-11, "Fluids and Lubricants"

 .

6.

Install the stopper ring onto the housing.

7.

After installation, pull on the shaft to check engagement between the joint sub-assembly and the stopper
ring.

8.

Install the boot securely into the grooves (indicated by * marks)
as shown.

CAUTION:

If there is grease on boot mounting surfaces (indicated by*
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

9.

Check that the boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into larger
side of boot. Bleed the air from the boot to prevent any boot
deformation.

CAUTION:

The boot may break if the boot installation length is less than the specified value.

Do not to touch the tip of the screwdriver to the inside of the boot.

10. Secure the large and small ends of the boot with the new boot

bands as shown.

NOTE:
Discard the old boot bands and use new ones for assembly.

11. After installing the housing and shaft, rotate the boot to check that the boot is positioned correctly. If the

boot is not positioned correctly, reposition the boot and secure the boot using a new boot band.

Wheel Side

1.

Insert the Genuine NISSAN Grease or equivalent, into the joint
sub-assembly serration hole until the grease begins to ooze
from the ball groove and serration hole. Refer to

MA-11, "Fluids

and Lubricants"

 . After inserting the grease, use a shop cloth to

wipe off the grease that has oozed out.

Grease capacity

: 155

 175 g (5.47

 6.17 oz)

RAC0678D

Boot installation length “L ”

: 148.7 mm (5.85 in)

WDIA0287E

SFA395

SDIA1127E

RAX-12

REAR DRIVE SHAFT

2006 Pathfinder

2.

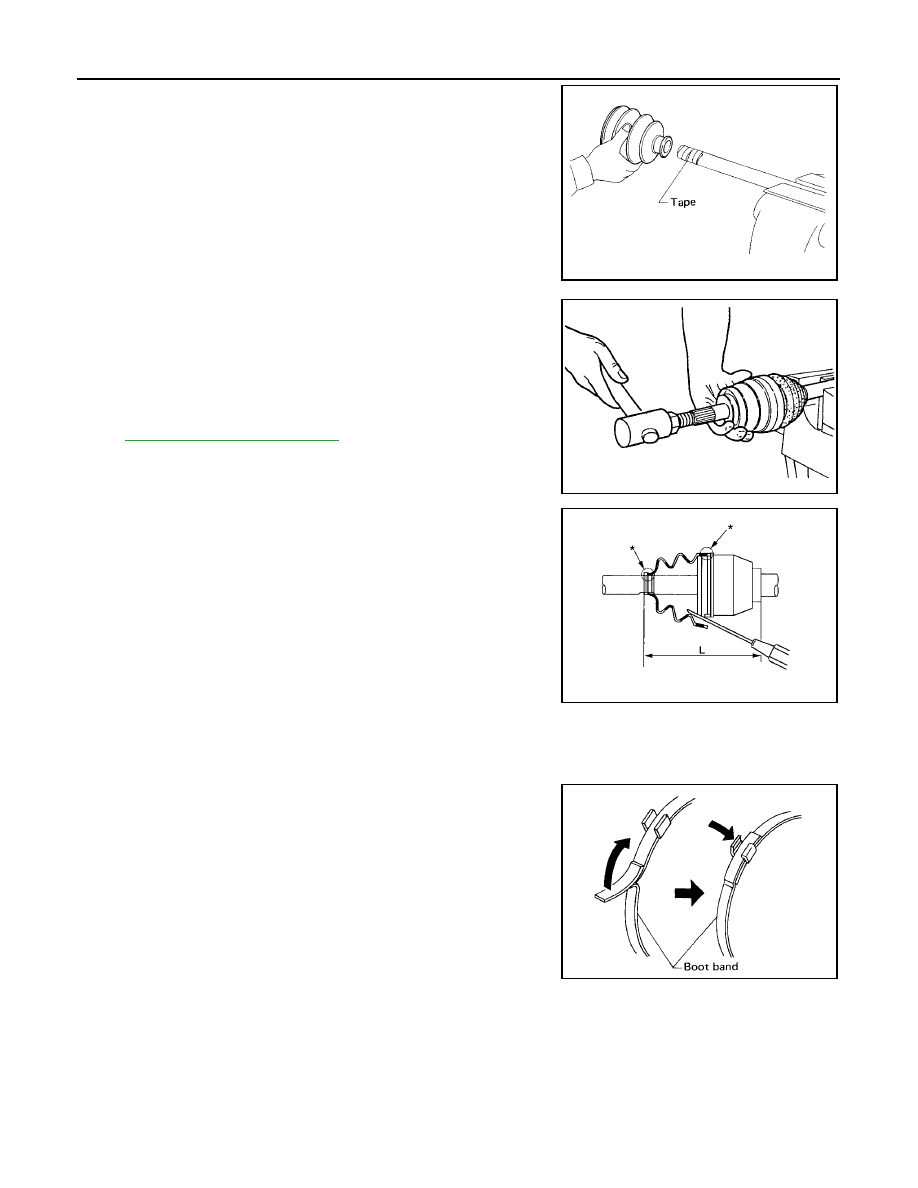

Wind the serrated part of the shaft with tape. Install the boot
band and boot onto the shaft. Do not damage the boot.

NOTE:
Discard the old boot band and boot and use a new one for
assembly.

3.

Remove the protective tape wound around the serrated part of
the shaft.

4.

Attach the circlip to the shaft. The circlip must fit securely into
the shaft groove. Attach the nut to the joint sub-assembly.
Use a soft hammer to press-fit the circlip.

NOTE:
Discard the old circlip and use a new one for assembly.

5.

Insert the specified quantity of Genuine NISSAN Grease or
equivalent, into the housing from the large end of the boot. Refer
to

MA-11, "Fluids and Lubricants"

 .

6.

Install the boot securely into the grooves (indicated by the *
marks) as shown.

CAUTION:

If there is grease on the boot mounting surfaces (indicated
by the * marks) of the shaft and housing, the boot may
come off. Remove all grease from the shaft surfaces.

7.

Check that the boot installation length “L” is the specified length.
Insert a flat-bladed screwdriver or similar tool into the larger side
of the boot. Bleed the air from the boot to prevent boot deforma-
tion.

CAUTION:

The boot may break if the boot installation length is less than the specified length.

Do not contact inside surface of boot with the tip of the screwdriver.

8.

Secure the large and small ends of the boot using new boot
bands as shown.

NOTE:
Discard the old boot bands and use new ones for assembly.

9.

After installing the joint sub-assembly and shaft, rotate the boot to check that it is positioned correctly. If
the boot is not positioned correctly, reposition the boot and secure the boot using a new boot band.

SFA800

Grease capacity

: 155

 175 g (5.47

 6.17 oz)

RAC0049D

Boot installation length “L”

: 143 mm (5.63 in)

WDIA0288E

SFA395

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-13

C

E

F

G

H

I

J

K

L

M

A

B

RAX

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Bearing

EDS003AR

Drive Shaft

EDS003AS

Measurement of spring scale

Less than 26.6 N (2.7 kg, 5.95 lb)

Axial end play

0 mm (0 in)

Joint

Wheel side

Final drive side

Grease capacity

155

 175 g

(5.47

 6.17 oz)

155

 175 g

(5.47

 6.17 oz)

Boot installed length

143 mm (5.63 in)

148.7 mm (5.85 in)

RAX-14

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

RF-1

ROOF

I  BODY

CONTENTS

C

D

E

F

G

H

J

K

L

M

SECTION

A

B

RF

2006 Pathfinder

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2

PREPARATION ........................................................... 3

Special service tool  .................................................. 3
Commercial Service Tool  ......................................... 3

SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 4

Work Flow  ................................................................ 4

CUSTOMER INTERVIEW ..................................... 4
DUPLICATE THE NOISE AND TEST DRIVE  ....... 5
CHECK RELATED SERVICE BULLETINS  ........... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE  ...................................................... 5
REPAIR THE CAUSE  ........................................... 5
CONFIRM THE REPAIR  ....................................... 6

Generic Squeak and Rattle Troubleshooting  ........... 6

INSTRUMENT PANEL  .......................................... 6
CENTER CONSOLE ............................................. 6
DOORS ................................................................. 6
TRUNK .................................................................. 7
SUNROOF/HEADLINING ..................................... 7
OVERHEAD CONSOLE (FRONT AND REAR) ..... 7
SEATS ................................................................... 7
UNDERHOOD ....................................................... 7

Diagnostic Worksheet  .............................................. 8

SUNROOF ................................................................ 10

Component Parts and Harness Connector Location

... 10

System Description  ................................................ 10

OUTLINE ............................................................. 10

OPERATION ........................................................ 10

CAN Communication System Description  .............. 12
Wiring Diagram — SROOF — ................................ 13
Terminals and Reference Values for BCM .............. 14
Terminals and Reference Values for Sunroof Motor
Assembly ................................................................ 15
Work Flow ............................................................... 15
CONSULT-II Function (BCM)  ................................. 16

CONSULT-II OPERATION ................................... 16

Work Support .......................................................... 17
Active Test  .............................................................. 17
Data Monitor  ........................................................... 17
Trouble Diagnosis Chart by Symptom  .................... 18
BCM Power Supply and Ground Circuit Check  ...... 18
Sunroof Switch System Check  ............................... 18
Sunroof Motor Assembly Power Supply and Ground
Circuit Check  .......................................................... 20
Door Switch Check  ................................................. 21
Adjustment .............................................................. 23

GAP ADJUSTMENT ............................................ 23
HEIGHT DIFFERENCE ADJUSTMENT .............. 23

Removal and Installation  ........................................ 24

SUNROOF UNIT  ................................................. 25
GLASS LID  .......................................................... 25
WIND DEFLECTOR  ............................................ 26
SUNSHADE ........................................................ 26
SUNROOF MOTOR  ............................................ 26
DRAIN HOSES .................................................... 27
WEATHERSTRIP ................................................ 28
LINK AND WIRE ASSEMBLY  ............................. 28

RF-2

PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EIS007SU

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions

EIS007SV

Disconnect both battery cables in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.

When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may
get in the way with cloth.

When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.

Keep removed parts protected with cloth.

If a clip is deformed or damaged, replace it.

If an unreusable part is removed, replace it with a new one.

Tighten bolts and nuts firmly to the specified torque.

After re-assembly has been completed, make sure each part functions correctly.

Remove stains in the following way.

Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.

Do not use any organic solvent, such as thinner or benzine.

PREPARATION

RF-3

C

D

E

F

G

H

J

K

L

M

A

B

RF

2006 Pathfinder

PREPARATION

PFP:00002

Special service tool

EIS007SW

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

EIS007SX

Tool number
(Kent-Moore No.)
Tool name

Description

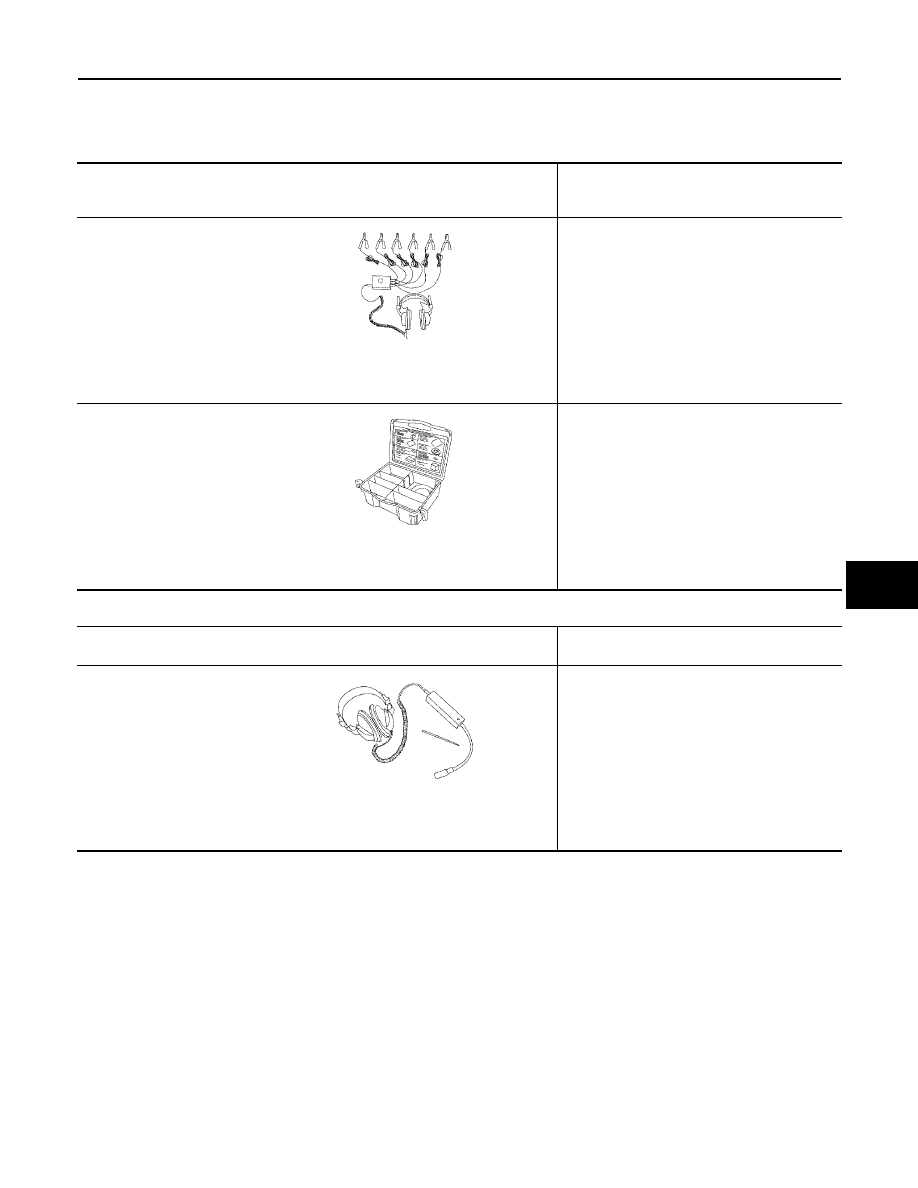

(J-39570)
Chassis ear

Locating the noise

(J-43980)
NISSAN Squeak and
Rattle Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

RF-4

SQUEAK AND RATTLE TROUBLE DIAGNOSES

2006 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PFP:00000

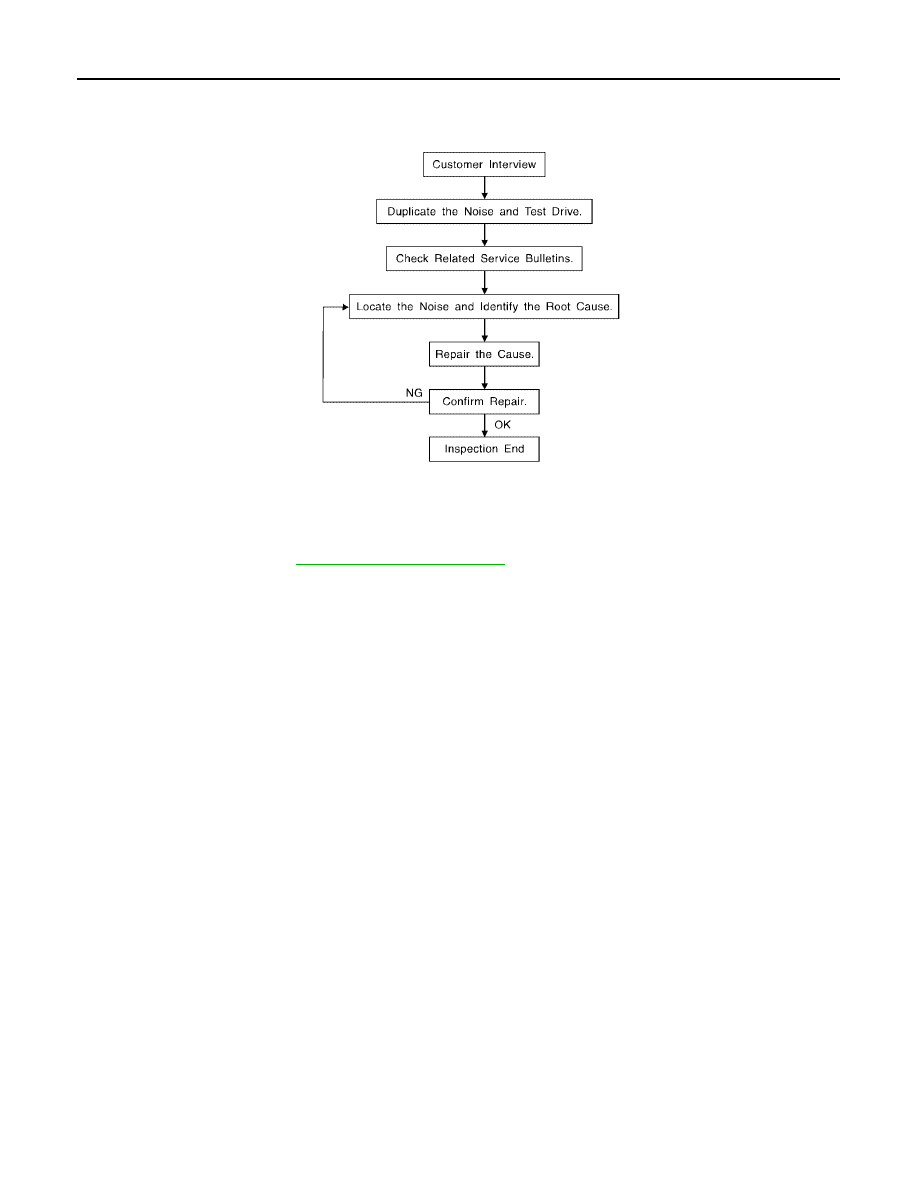

Work Flow

EIS007SY

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to

RF-8, "Diagnostic Worksheet"

 . This information is necessary to duplicate the

conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.

SBT842















Content      ..     360      361      362      363     ..
