POWER STEERING OIL PUMP

PS-23

C

D

E

F

H

I

J

K

L

M

A

B

PS

2006 Pathfinder

CAUTION:

●

Do not reuse the copper gaskets

●

Do not reuse the O-ring. Apply a coat of Genuine Nissan PSF or equivalent to the O-ring. Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

PS-24

HYDRAULIC LINE

2006 Pathfinder

HYDRAULIC LINE

PFP:49721

Removal and Installation

EGS0011P

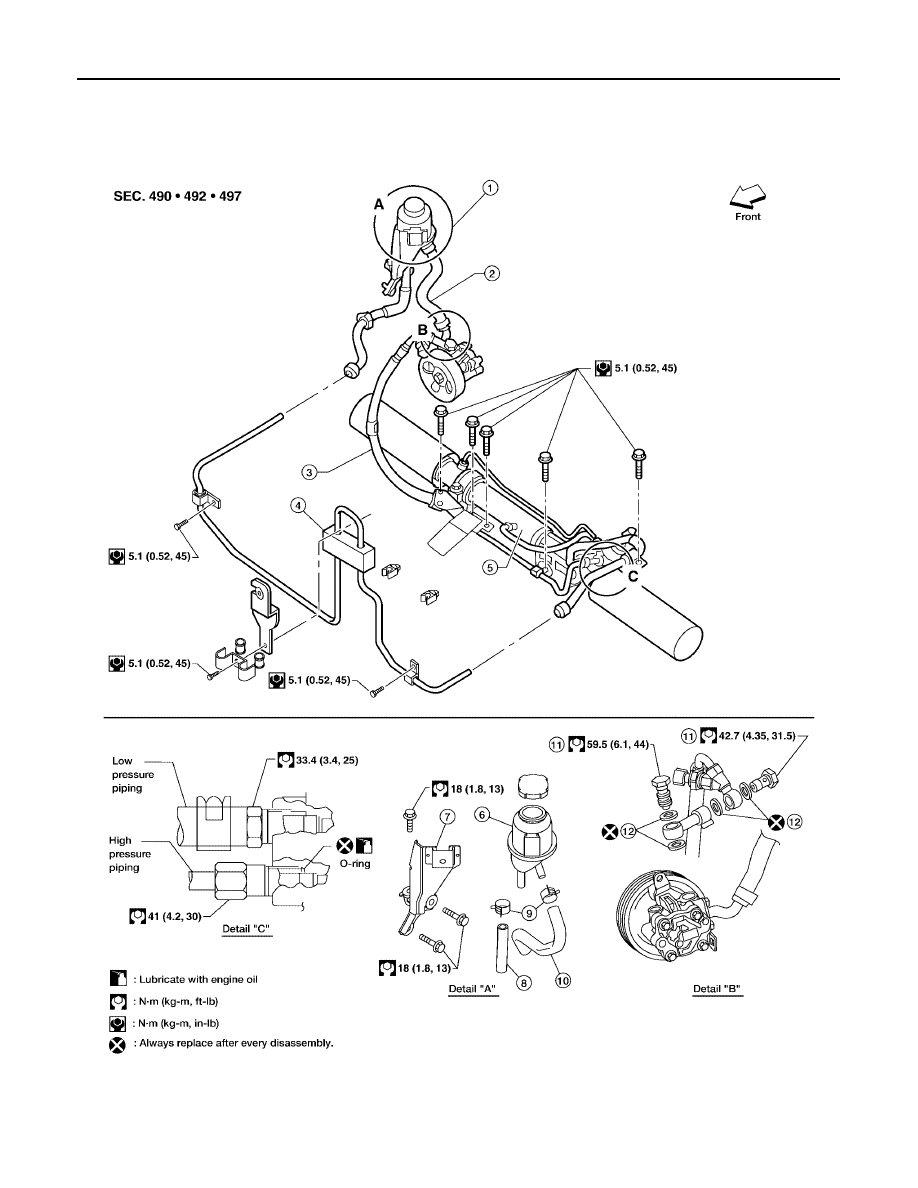

Refer to the following illustration for hydraulic line removal and installation.

1.

Reservoir tank

2.

Suction hose

3.

High pressure hose

4.

Oil cooler

5.

Steering gear assembly

6.

Reservoir tank

LGIA0035E

HYDRAULIC LINE

PS-25

C

D

E

F

H

I

J

K

L

M

A

B

PS

2006 Pathfinder

7.

Reservoir tank bracket

8.

Return hose

9.

Hose clamps

10. Suction hose

11.

Connector bolts

12. Copper washers

PS-26

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

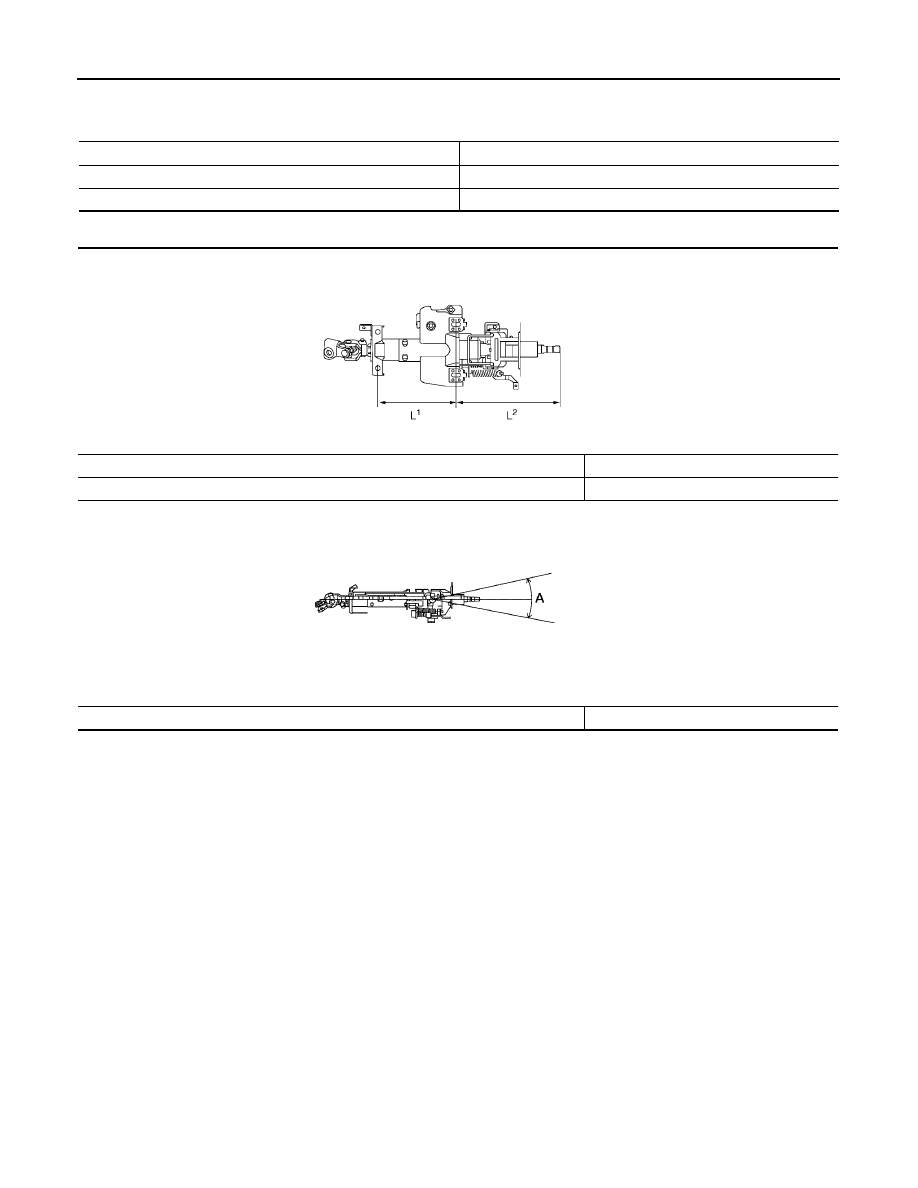

Steering Wheel

EGS0011Q

Steering Column

EGS0011R

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Steering wheel play on the outer circumference

0

−

 35 mm (0

−

 1.38 in)

Steering column length “L1”

165.1 mm (6.500 in)

Steering column length “L2”

258.0 mm (10.16 in)

Tilt range "A"

73.8 mm (2.906 in)

SGIA0475E

WGIA0083E

SERVICE DATA AND SPECIFICATIONS (SDS)

PS-27

C

D

E

F

H

I

J

K

L

M

A

B

PS

2006 Pathfinder

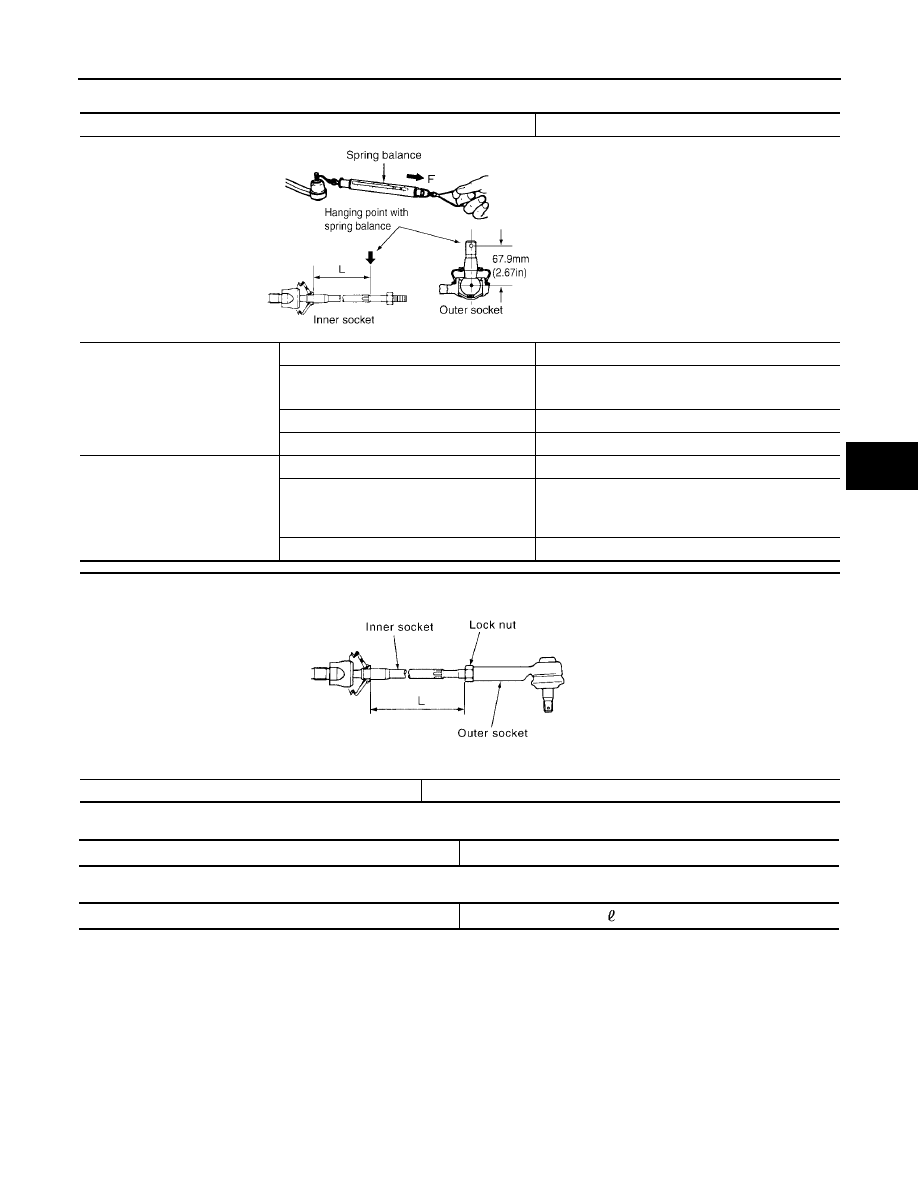

Steering Outer Socket and Inner Socket

EGS0011S

Oil Pump

EGS0011T

Steering Fluid

EGS0011U

Steering gear type

PR26AM

Outer socket

Swinging torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Measurement on spring balance

●

Measuring point: cotter pin hole of stud

4.84

−

 46.7 N (0.50

−

 4.7 kg, 4

−

 34 lb)

Rotating torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket

Swinging torque

1.0

−

 7.8 N·m (0.11

−

 0.79 kg-m, 9

−

 69 in-lb)

Measurement on spring balance

●

Measuring point: L mark see above,
L=83.2 mm (3.276 in).

12.1

−

 93.7 N (1.3

−

 9.5 kg, 9

−

 69 lb)

Axial end play

0.2 mm (0.08 in) or less

Tie-rod maximum length “L”

84.0 mm (3.31 in)

SGIA0358E

SGIA0167E

Oil pump relief hydraulic pressure

8.0

−

 8.8 mPa (81.60

−

 89.76 kg/cm

2

 , 1160.0

−

 1276.0 psi)

Fluid capacity

Approx. 1.0

 (2 1/8 US pt, 1 3/4 Imp pt)

PS-28

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

RAX-1

REAR AXLE

D  DRIVELINE/AXLE

CONTENTS

C

E

F

G

H

I

J

K

L

M

SECTION

A

B

RAX

2006 Pathfinder

PRECAUTIONS .......................................................... 2

Caution ..................................................................... 2

PREPARATION ........................................................... 3

Special Service Tools (SST) ..................................... 3
Commercial Service Tools ........................................ 3

NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4

NVH Troubleshooting Chart  ..................................... 4

WHEEL HUB  .............................................................. 5

On-Vehicle Inspection and Service  .......................... 5

WHEEL BEARING INSPECTION  ......................... 5

Components ............................................................. 5
Removal and Installation  .......................................... 5

REMOVAL ............................................................. 5
INSTALLATION ..................................................... 6

REAR DRIVE SHAFT  ................................................. 7

Components ............................................................. 7
Removal and Installation  .......................................... 7

REMOVAL ............................................................. 7
INSPECTION AFTER REMOVAL  ......................... 8
INSTALLATION ..................................................... 8

Disassembly and Assembly ...................................... 8

DISASSEMBLY ..................................................... 8
INSPECTION AFTER DISASSEMBLY .................. 9
ASSEMBLY ......................................................... 10

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 13

Wheel Bearing  ........................................................ 13
Drive Shaft .............................................................. 13

RAX-2

PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Caution

EDS003AH

Observe the following precautions when disassembling and servicing drive shaft.

●

Perform work in a location which is as dust-free as possible.

●

Before disassembling and servicing, clean the outside of parts.

●

Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.

●

Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.

●

Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.

●

Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
