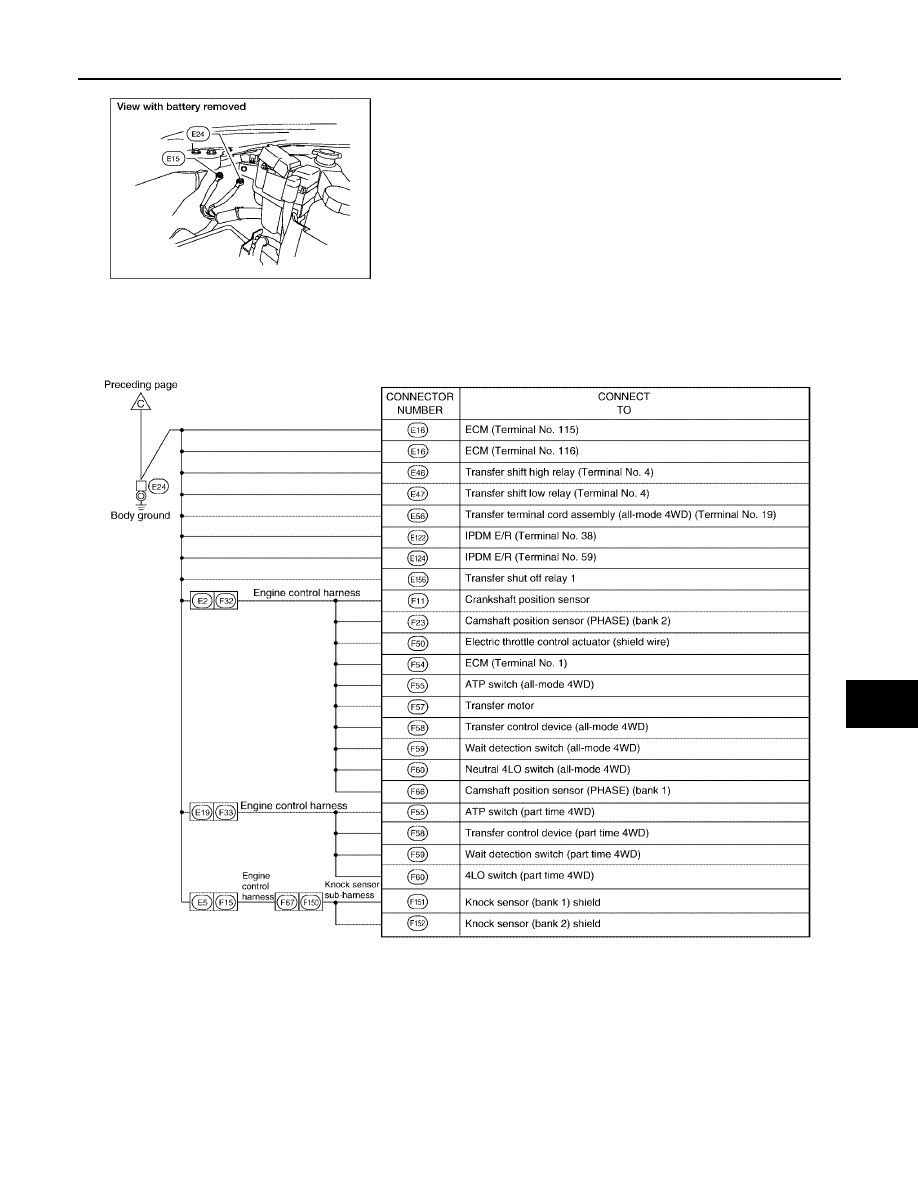

GROUND CIRCUIT

PG-37

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

WKIA4995E

PG-38

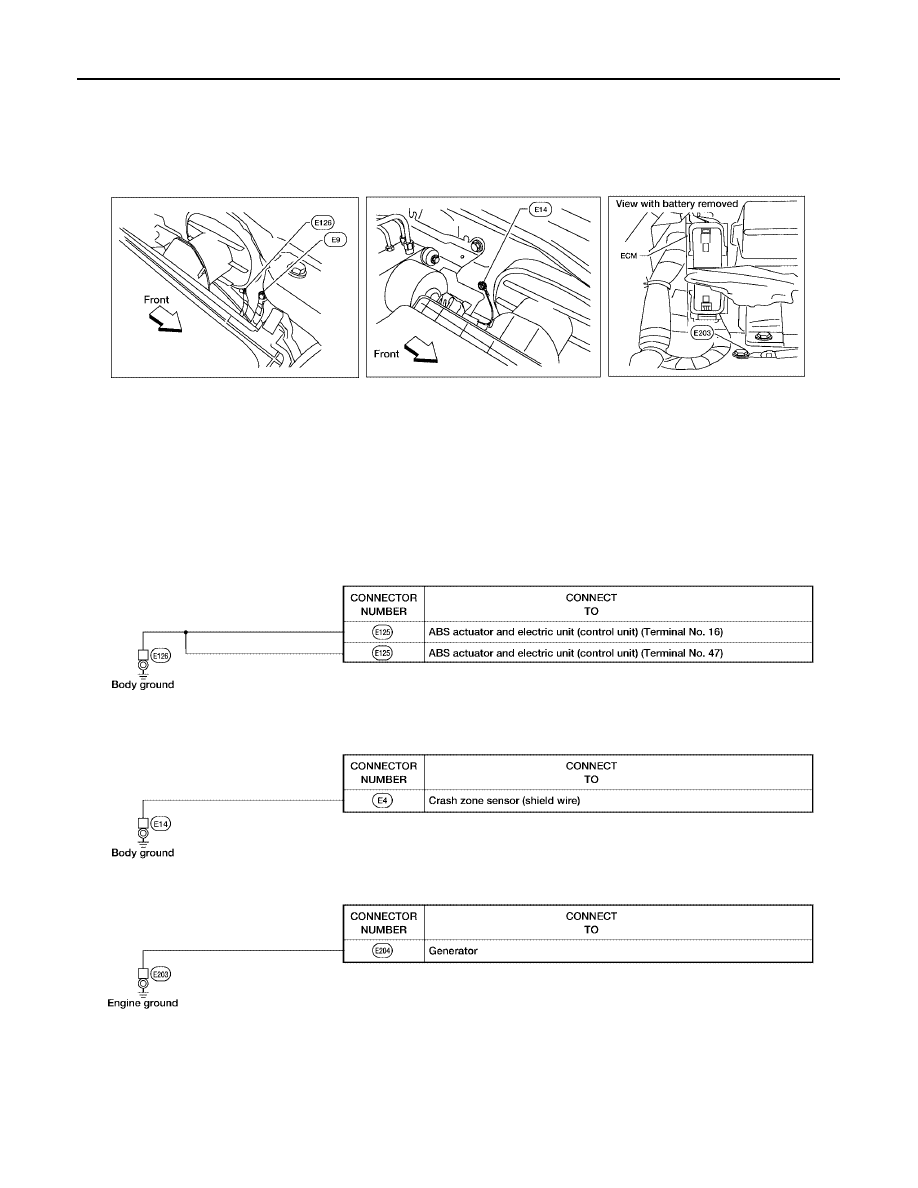

GROUND CIRCUIT

2006 Pathfinder

WKIA4996E

GROUND CIRCUIT

PG-39

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

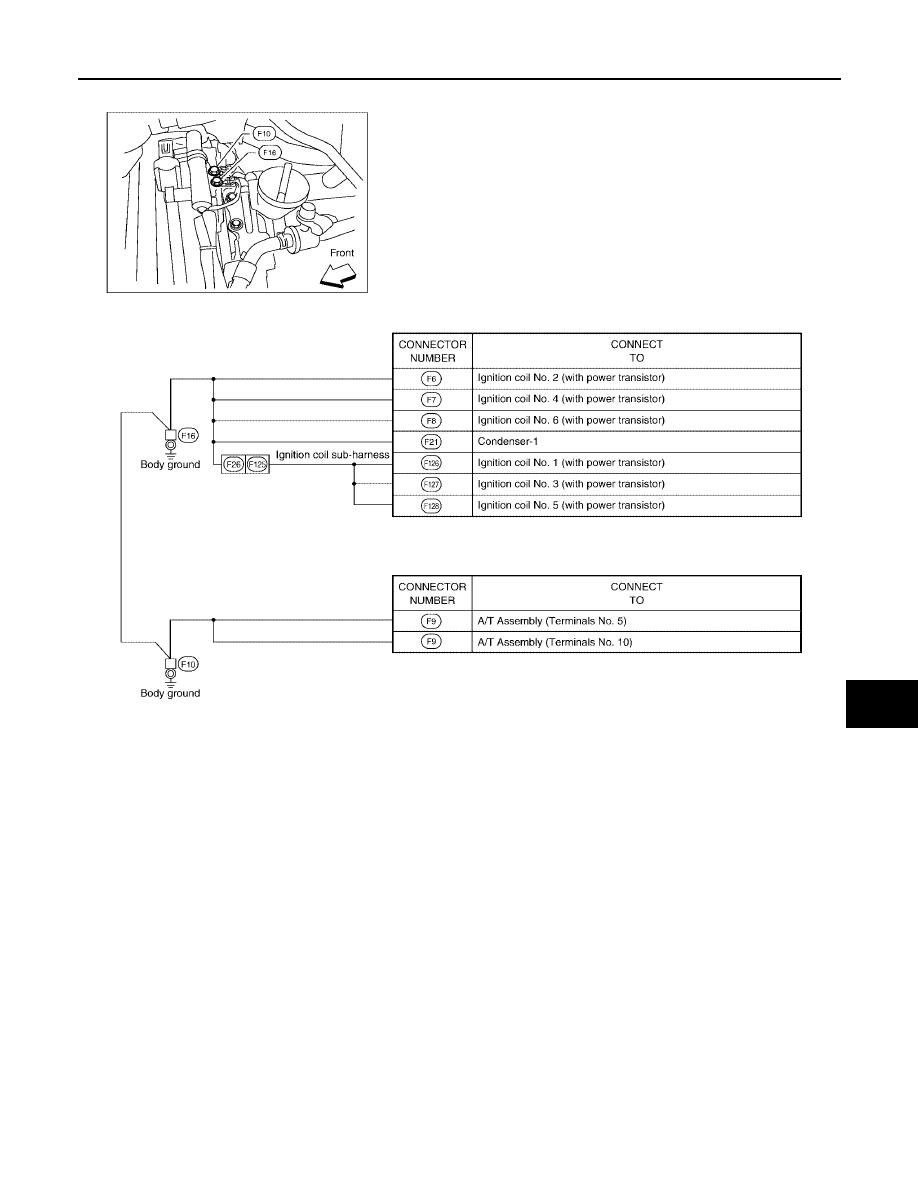

ENGINE CONTROL HARNESS

WKIA4174E

PG-40

GROUND CIRCUIT

2006 Pathfinder

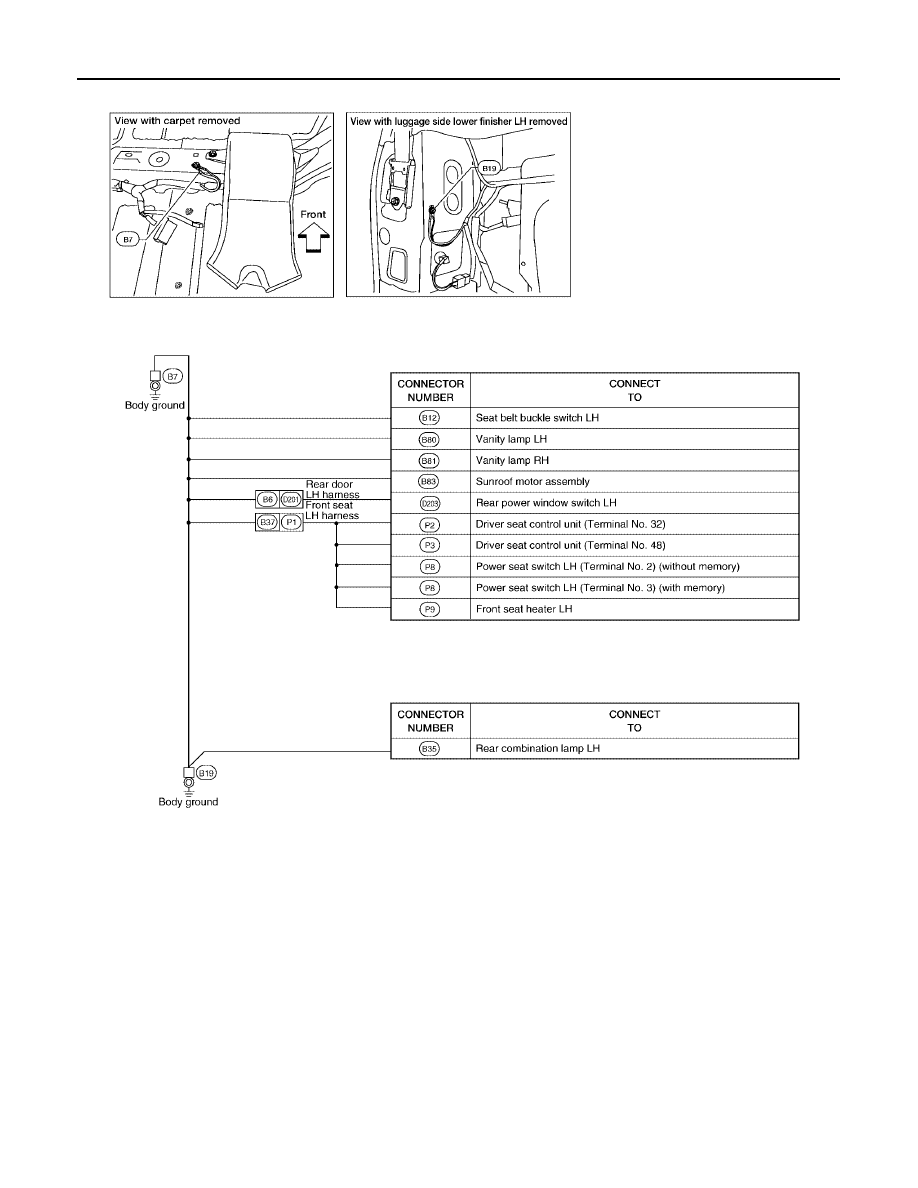

BODY HARNESS

WKIA4997E

GROUND CIRCUIT

PG-41

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

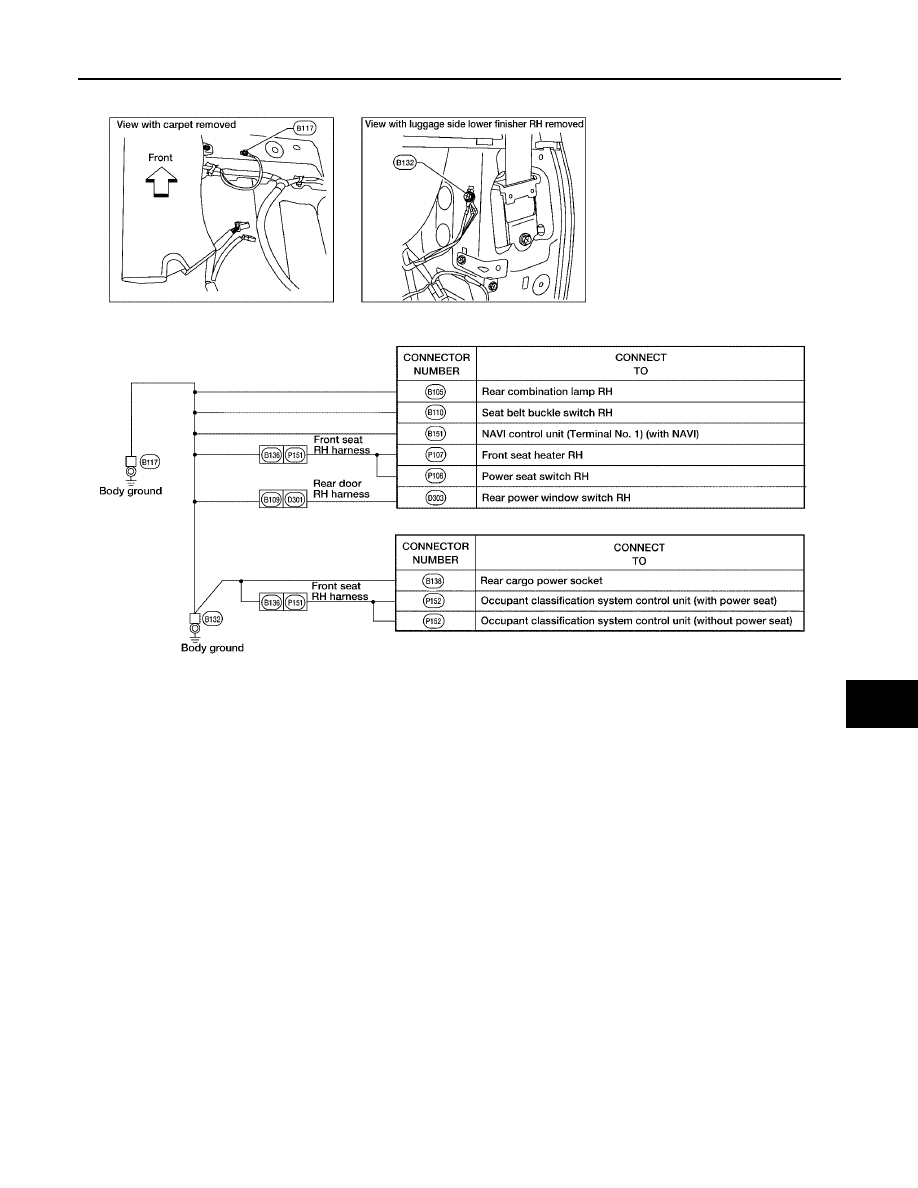

BODY NO. 2 HARNESS

WKIA4998E

PG-42

GROUND CIRCUIT

2006 Pathfinder

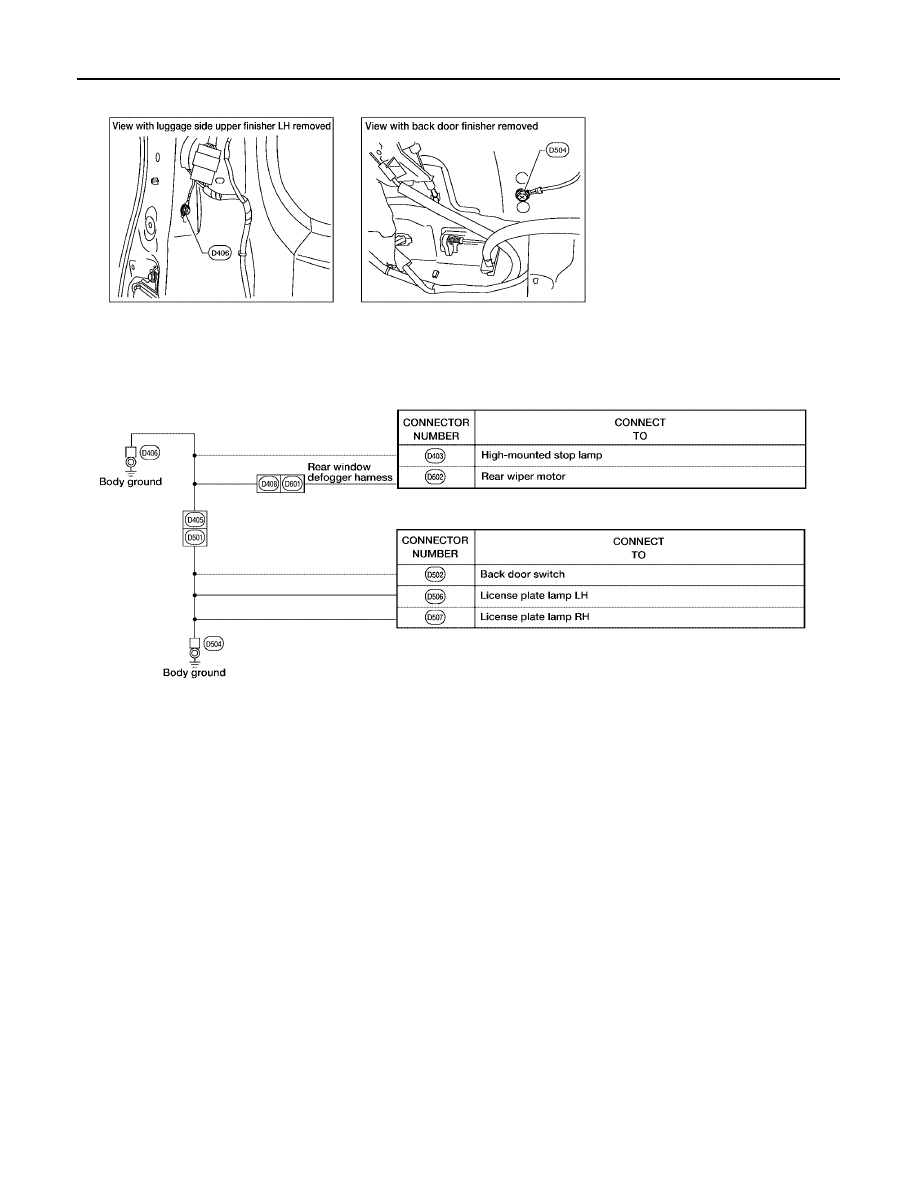

BACK DOOR NO. 2 AND BACK DOOR HARNESS

WKIA3575E

HARNESS

PG-43

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

HARNESS

PFP:24010

Harness Layout

EKS00G8P

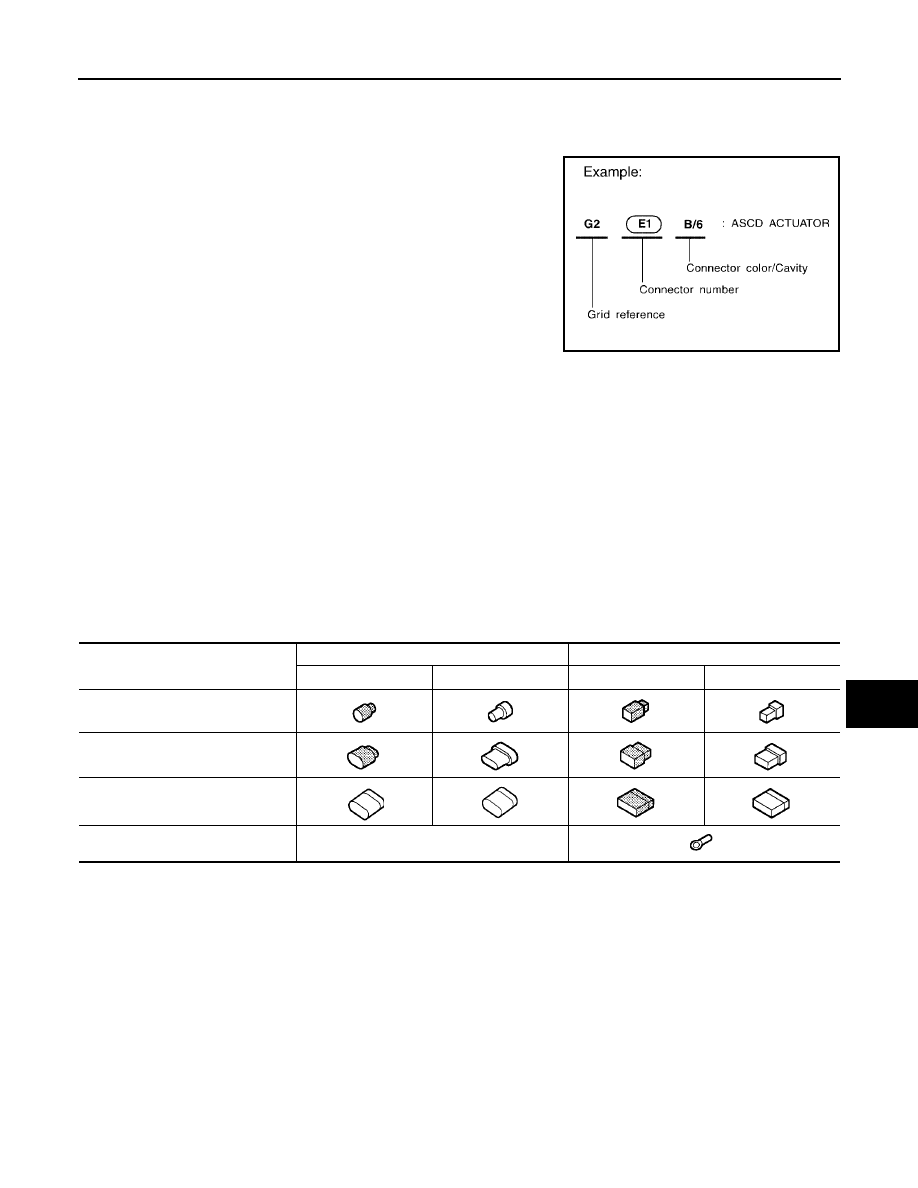

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

●

Main Harness and Console Sub-harness

●

Engine Room Harness RH View (Engine Compartment) and
Generator Sub-harness

●

Engine Room Harness (Passenger Compartment)

●

Engine Room Harness LH View (Engine Compartment)

●

Engine Control Harness, Injector Sub-harness, Ignition Coil
Sub-harness, and Knock Sensor Sub-harness

●

Chassis Harness and Trailer Sub-harness

●

Body Harness

●

Body No. 2 Harness and Rear Blower Motor Sub-harness

●

Room Lamp Harness

●

Back Door Harness, Back Door No. 2 Harness, Rear Window Sub-harness, and Rear Window Defogger
Sub-harness

To use the grid reference

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

CONNECTOR SYMBOL

Main symbols of connector (in Harness Layout) are indicated below.

SEL252V

Connector type

Water proof type

Standard type

Male

Female

Male

Female

●

Cavity: 4 or Less

●

Relay connector

●

Cavity: From 5 to 8

●

Cavity: 9 or More

●

Ground terminal etc.

—

PG-44

HARNESS

2006 Pathfinder

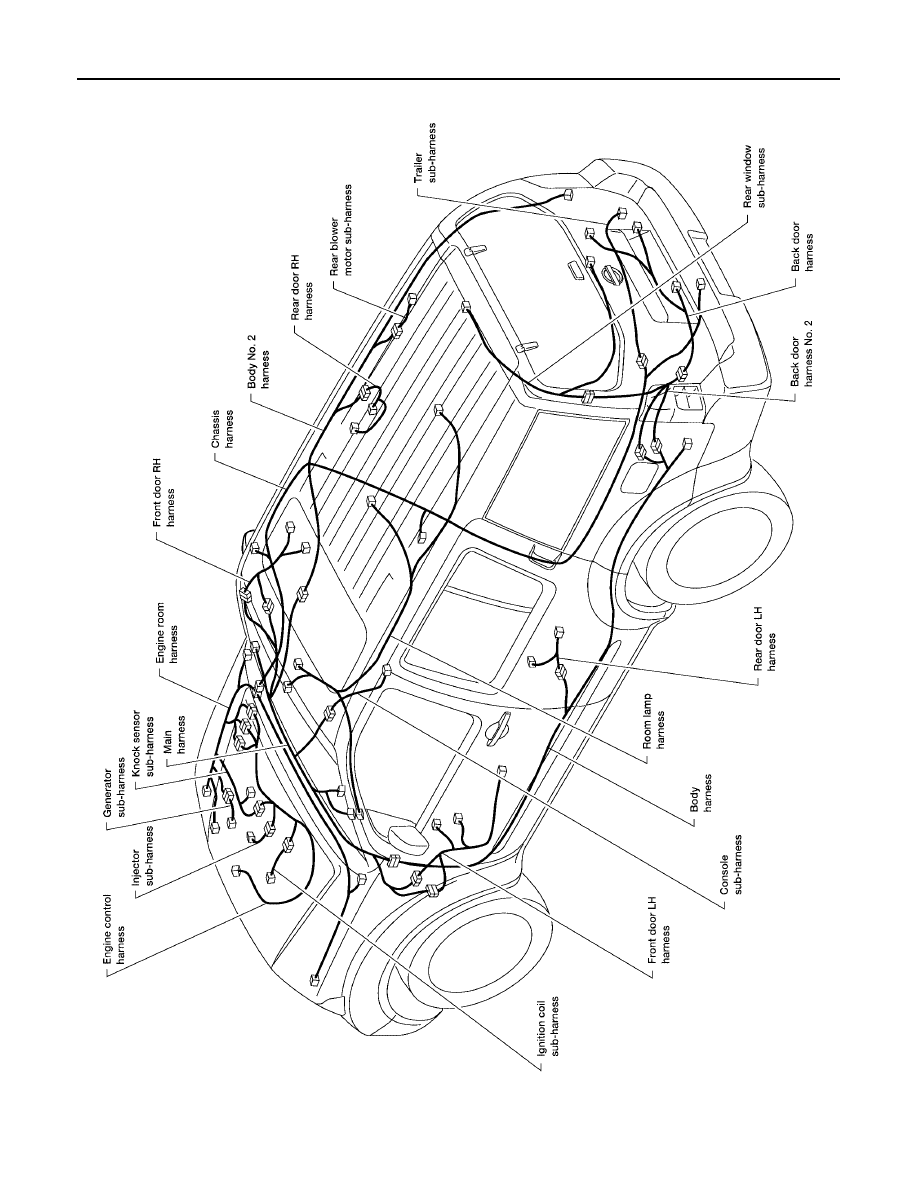

OUTLINE

WKIA4999E
