IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-21

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

4.

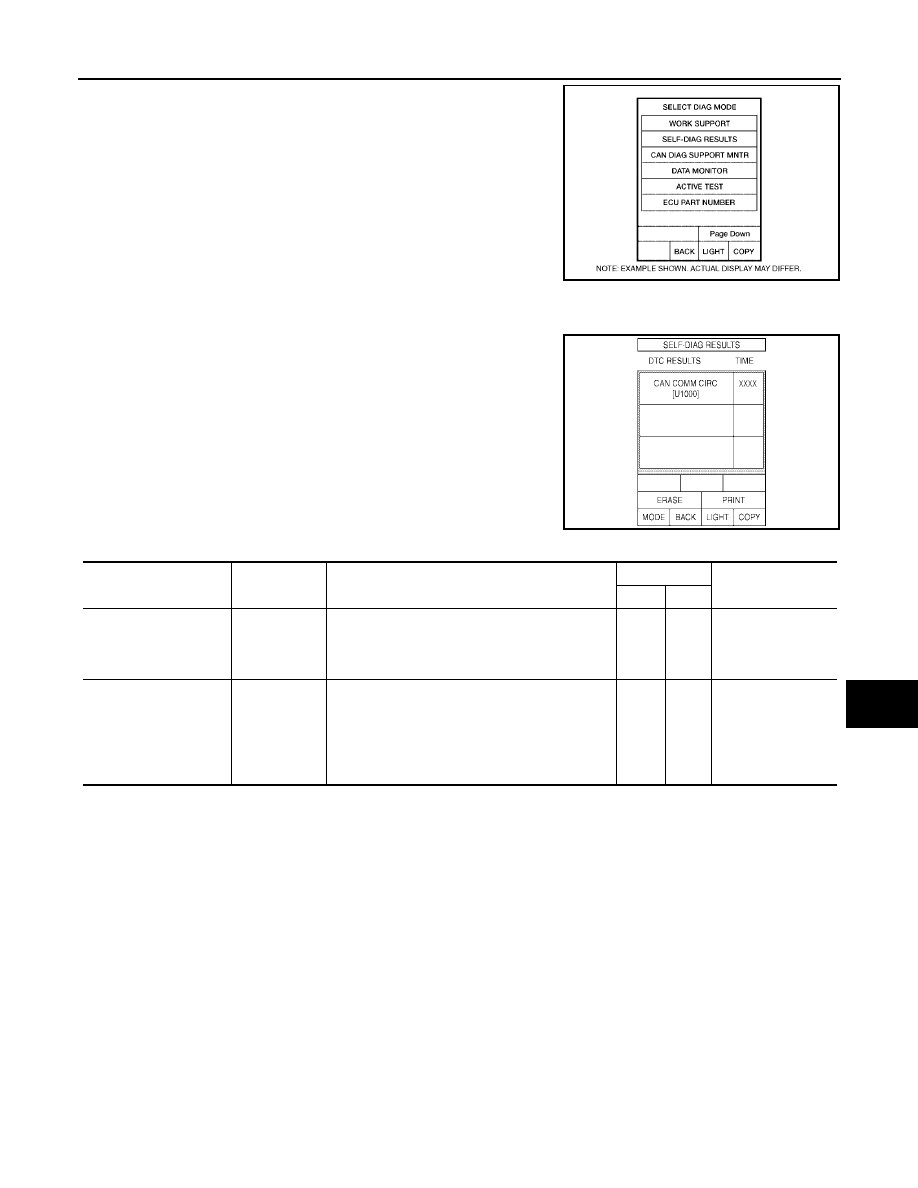

Select the desired part to be diagnosed on the “SELECT DIAG
MODE” screen.

SELF-DIAGNOSTIC RESULTS
Operation Procedure

1.

Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.

2.

Self-diagnosis results are displayed.

Display Item List

NOTE:
The details for display of the period are as follows:

●

CRNT: Error currently detected with IPDM E/R.

●

PAST: Error detected in the past and placed in IPDM E/R memory.

BCIA0031E

WKIA1264E

Display items

CONSULT-II
display code

Malfunction detection

TIME

Possible causes

CRNT

PAST

NO DTC IS
DETECTED. FURTHER
TESTING MAY BE
REQUIRED.

—

—

—

—

—

CAN COMM CIRC

U1000

●

If CAN communication reception/transmission
data has a malfunction, or if any of the control
units fail, data reception/transmission cannot
be confirmed.

●

When the data in CAN communication is not
received before the specified time.

X

X

Any of items listed
below have errors:

●

TRANSMIT DIAG

●

ECM

●

BCM/SEC

PG-22

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

DATA MONITOR
Operation Procedure

1.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

2.

Touch "ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR”
screen.

3.

Touch “START”.

4.

When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the items will be monitored. When "MAIN SIGNALS" is selected, predetermined items are
monitored.

5.

Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording,
touch “STOP”.

All Signals, Main Signals, Selection From Menu

ALL SIGNALS

All signals will be monitored.

MAIN SIGNALS

Monitors the predetermined item(s).

SELECTION FROM MENU

Selects and monitors individual signal(s).

Item name

CONSULT-II

screen display

Display or unit

Monitor item selection

Description

ALL

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

Motor fan request

MOTOR FAN
REQ

1/2/3/4

X

X

X

Signal status input from ECM

Compressor
request

AC COMP REQ

ON/OFF

X

X

X

Signal status input from BCM

Parking, license
plate, and tail
lamp request

TAIL & CLR REQ

ON/OFF

X

X

X

Signal status input from BCM

Headlamp low
beam request

HL LO REQ

ON/OFF

X

X

X

Signal status input from BCM

Headlamp high
beam request

HL HI REQ

ON/OFF

X

X

X

Signal status input from BCM

Front fog lamps
request

FR FOG REQ

ON/OFF

X

X

X

Signal status input from BCM

Front wiper
request

FR WIP REQ

STOP/1LO/LO/HI

X

X

X

Signal status input from BCM

Wiper auto stop

WIP AUTO
STOP

ACT P/STOP P

X

X

X

Output status of IPDM E/R

Wiper protection

WIP PROT

OFF/LS/HS/
BLOCK

X

X

X

Control status of IPDM E/R

Starter request

ST RLY REQ

ON/OFF

X

X

Signal status input from BCM

Ignition relay
status

IGN RLY

ON/OFF

X

X

X

Ignition relay status monitored
with IPDM E/R

Rear defogger
request

RR DEF REQ

ON/OFF

X

X

X

Signal status input from BCM

Hood switch

HOOD SW (*1)

OFF

X

Signal status input from IPDM
E/R

Theft warning
horn request

THFT HRN REQ

ON/OFF

X

X

Signal status input from BCM

Horn chirp

HORN CHIRP

ON/OFF

X

X

Output status of IPDM E/R

Daytime lights
request

DTRL REQ

ON/OFF

X

X

Signal status input from BCM

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-23

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

NOTE:

●

Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is in ACC posi-
tion, display may not be correct.

●

(*1) This item is displayed, but does not function.

ACTIVE TEST
Operation Procedure

1.

Touch “ACTIVE TEST” on “SELECT DIAG-MODE” screen.

2.

Touch item to be tested, and check operation.

3.

Touch “START”.

4.

Touch "STOP" while testing to stop the operation.

Test name

CONSULT-II screen display

Description

Rear defogger output

REAR DEFOGGER

With a certain ON-OFF operation, the rear defogger relay can be oper-
ated.

Front wiper (HI, LO) output

FRONT WIPER

With a certain operation (OFF, HI ON, LO ON), the front wiper relay
(Lo, Hi) can be operated.

Cooling fan output

MOTOR FAN

With a certain operation (1, 2, 3, 4), the cooling fan can be operated.

Headlamp relay (HIGH,
LOW) output

EXTERNAL LAMPS

With a certain operation (OFF, HI ON, LO ON, TAIL ON, FOG ON), the
lamp relay (Low, High, Tail, Fog) can be operated.

Front fog lamp relay (FOG)
output

EXTERNAL LAMPS

With a certain operation (OFF, HI ON, LO ON, TAIL ON, FOG ON), the
lamp relay (Low, High, Tail, Fog) can be operated.

Tail lamp relay output

EXTERNAL LAMPS

With a certain operation (OFF, HI ON, LO ON, TAIL ON, FOG ON), the
lamp relay (Low, High, Tail, Fog) can be operated.

Horn output

HORN

With a certain ON-OFF operation, the horn relay can be operated.

PG-24

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

Auto Active Test

EKS00G8I

DESCRIPTION

●

In auto active test mode, operation inspection can be performed when IPDM E/R sends a drive signal to
the following systems:

–

Rear window defogger

–

Front wipers

–

Tail, license plate, front fog, and parking lamps

–

Headlamps (High, Low)

–

A/C compressor (magnetic clutch)

OPERATION PROCEDURE

1.

Close hood and front door RH, and lift wiper arms away from windshield (to prevent glass damage by
wiper operation).

NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn ignition switch OFF.

3.

Turn ignition switch ON and, within 20 seconds, press front door switch LH 10 times. Then turn ignition
switch OFF.

4.

Turn ignition switch ON within 10 seconds after ignition switch OFF.

5.

When auto active test mode is actuated, horn chirps once.

6.

After a series of operations is repeated three times, auto active test is completed.

NOTE:
When auto active test mode has to be cancelled halfway, turn ignition switch OFF.

CAUTION:

Be sure to perform

BL-29, "Door Switch Check"

  when the auto active test cannot be performed.

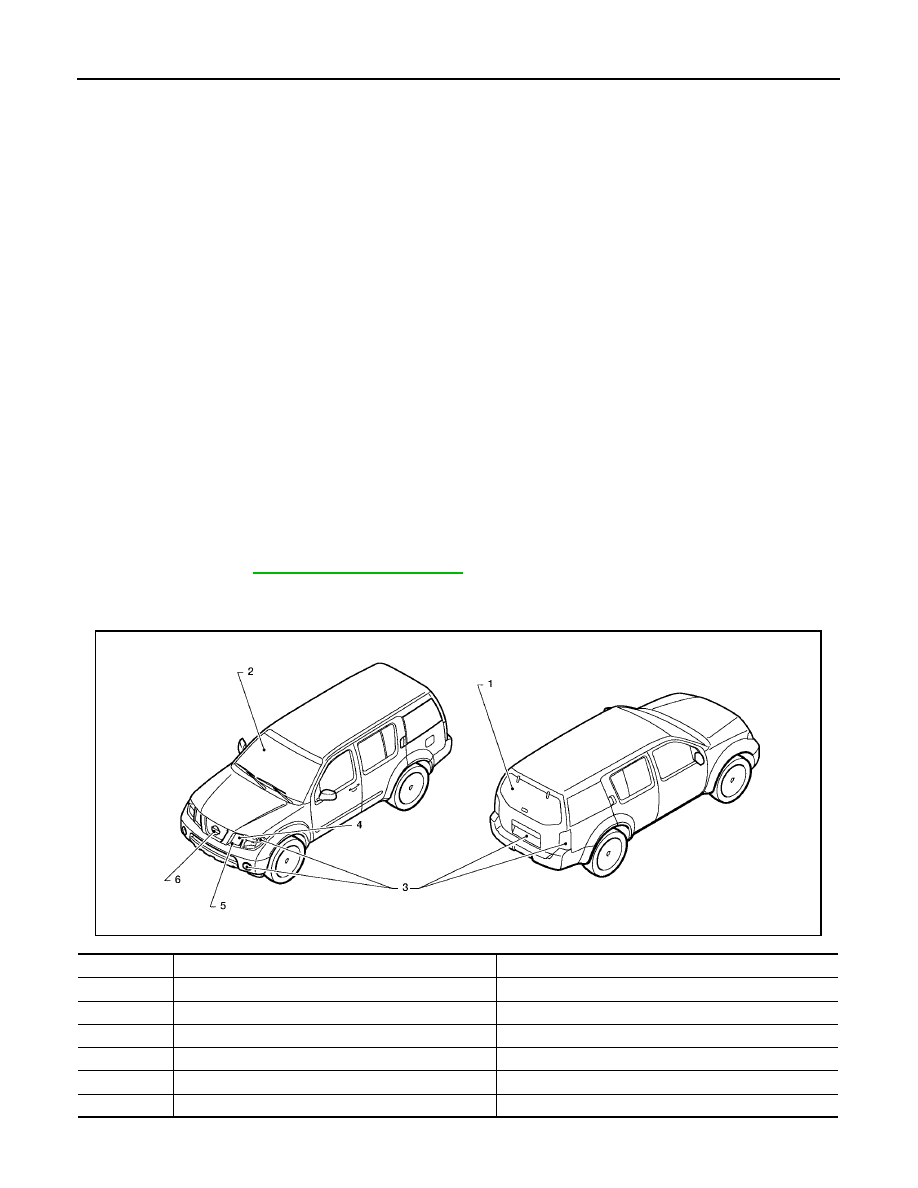

INSPECTION IN AUTO ACTIVE TEST MODE

When auto active test mode is actuated, the following five steps are repeated three times.

WKIA4991E

Item Number

Test Item

Operation Time/Frequency

1

Rear window defogger

10 seconds

2

Front wipers

LOW 5 seconds then HIGH 5 seconds

3

Tail, license plate, front fog and parking lamps

10 seconds

4

Headlamps

Low ON for 10 seconds. then High ON-OFF five times.

5

A/C compressor (magnetic clutch)

ON-OFF 5 times

6

Cooling fan

LOW 5 seconds, then HIGH 5 seconds

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-25

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

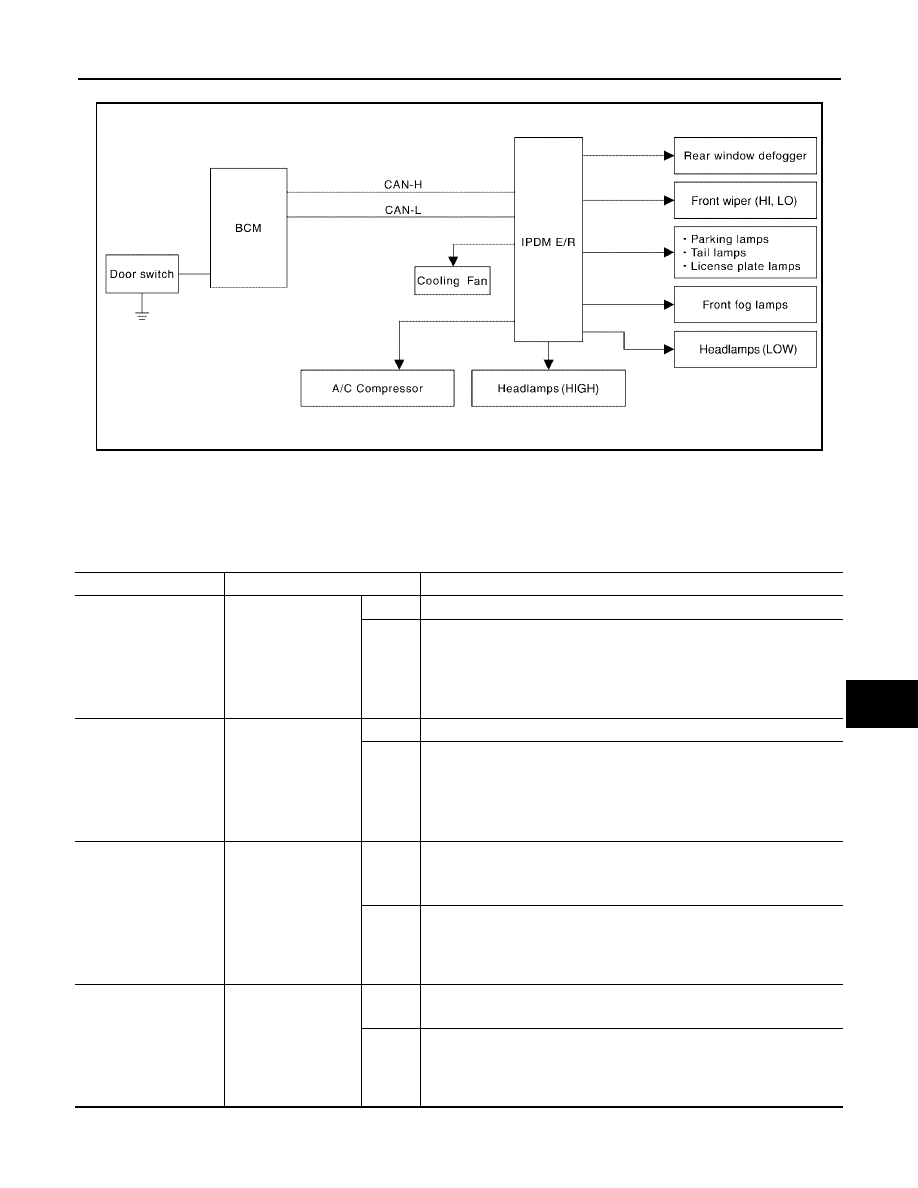

Concept of Auto Active Test

●

IPDM E/R actuates auto active test mode when it receives door switch signal from BCM via CAN commu-
nication line. Therefore, when auto active test mode is activated successfully, CAN communication
between IPDM E/R and BCM is normal.

●

If any of the systems controlled by IPDM E/R cannot be operated, possible cause can be easily diagnosed
using auto active test.

Diagnosis chart in auto active test mode

WKIA4992E

Symptom

Inspection contents

Possible cause

Rear window defogger
does not operate.

Perform auto active
test. Does rear win-
dow defogger oper-
ate?

YES

●

BCM signal input circuit

NO

●

Rear window defogger relay

●

Open circuit of rear window defogger

●

IPDM E/R malfunction

●

Harness or connector malfunction between IPDM E/R and rear window
defogger

Any of front wipers, tail
and parking lamps, front
fog lamps, and head-
lamps (High, Low) do
not operate.

Perform auto active
test. Does system in
question operate?

YES

●

BCM signal input system

NO

●

Lamp/wiper motor malfunction

●

Lamp/wiper motor ground circuit malfunction

●

Harness/connector malfunction between IPDM E/R and system in
question

●

IPDM E/R (integrated relay) malfunction

A/C compressor does
not operate.

Perform auto active
test. Does magnetic
clutch operate?

YES

●

BCM signal input circuit

●

CAN communication signal between BCM and ECM

●

CAN communication signal between ECM and IPDM E/R

NO

●

Magnetic clutch malfunction

●

Harness/connector malfunction between IPDM E/R and magnetic
clutch

●

IPDM E/R (integrated relay) malfunction

Cooling fan does not
operate.

Perform auto active
test. Does cooling fan
operate?

YES

●

ECM signal input circuit

●

CAN communication signal between ECM and IPDM E/R

NO

●

Cooling fan motor malfunction

●

Harness/connector malfunction between IPDM E/R and cooling fan
motor

●

IPDM E/R (integrated relay) malfunction

PG-26

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

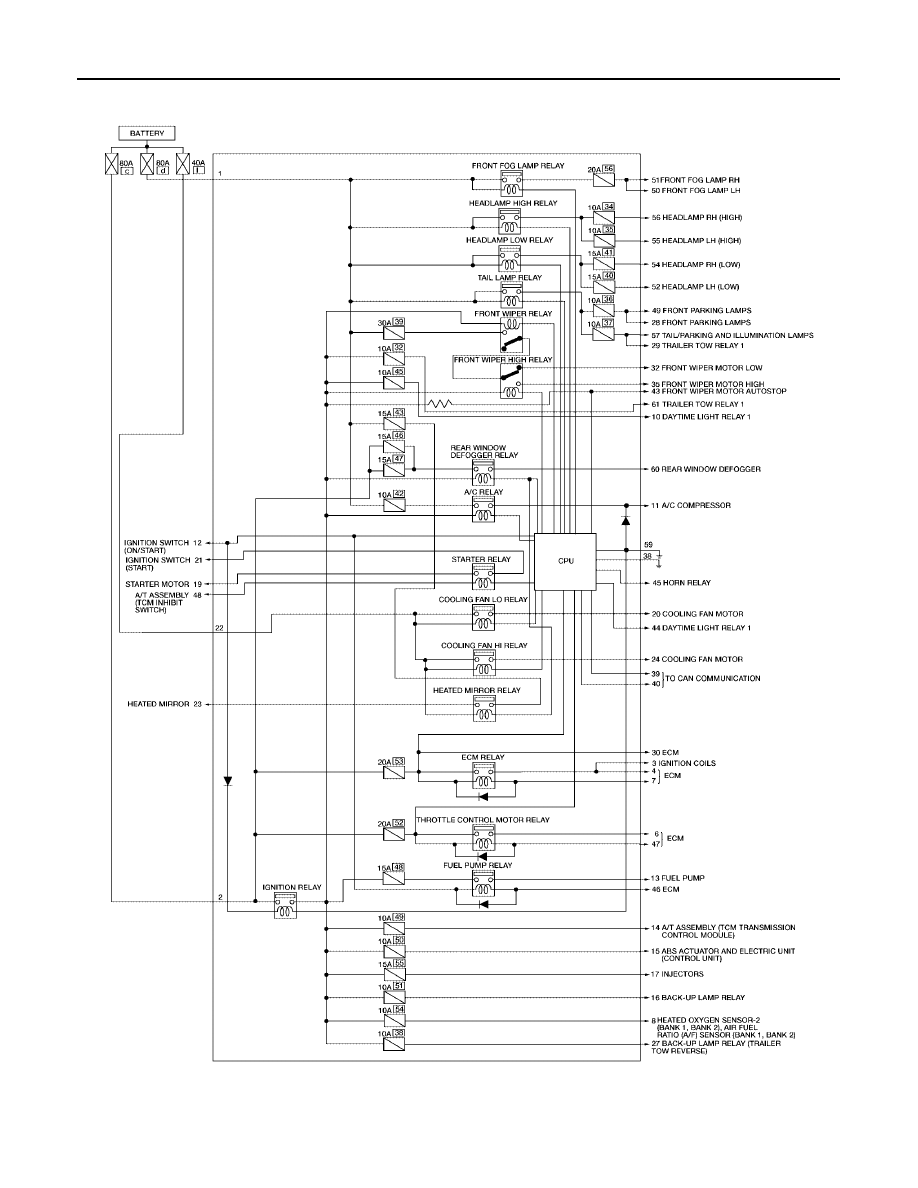

Schematic

EKS00G8J

WKIA4993E

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-27

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

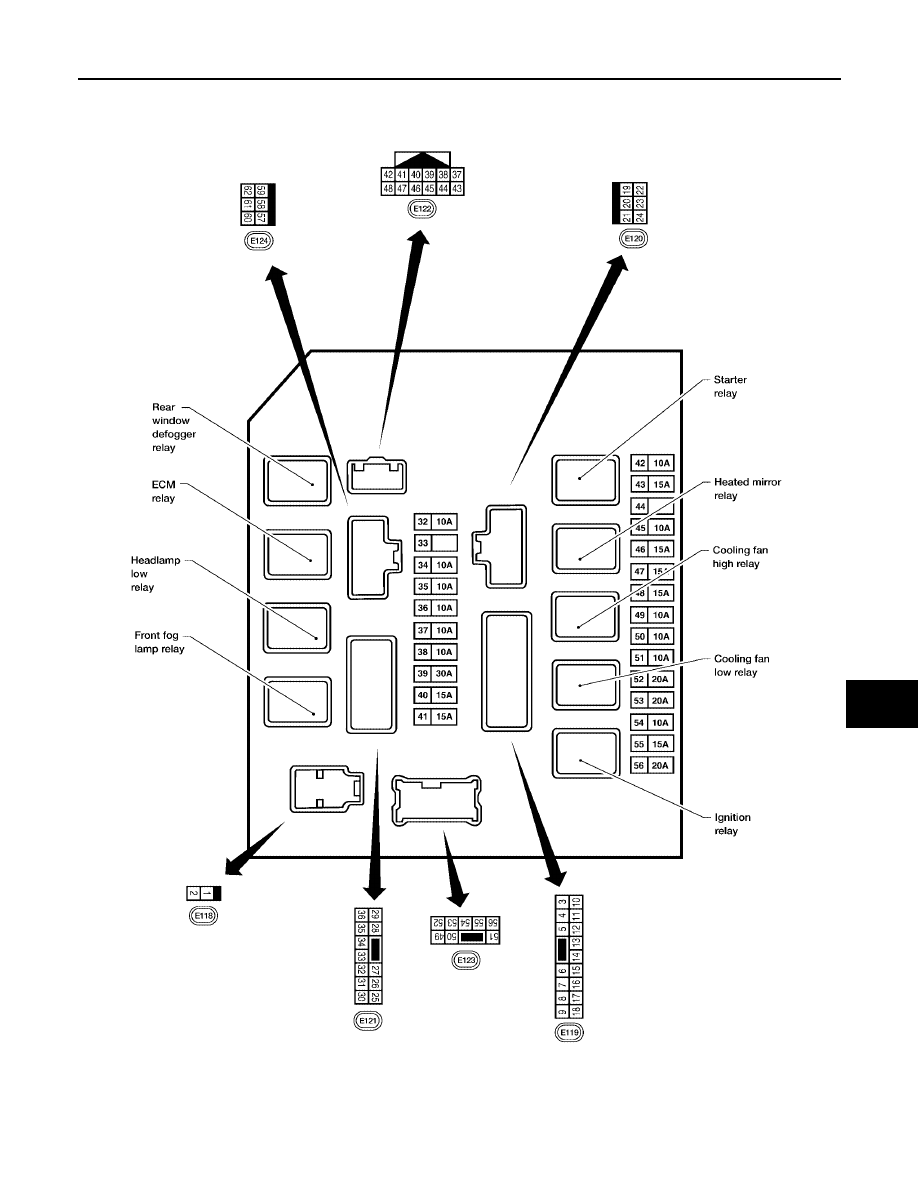

IPDM E/R Terminal Arrangement

EKS00G8K

WKIA1695E

PG-28

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

2006 Pathfinder

Terminals and Reference Values for IPDM E/R

EKS00HLS

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

1

W

Battery power supply

Input

OFF

—

Battery voltage

2

R

Battery power supply

Input

OFF

—

Battery voltage

3

G

Ignition coil

Output

ON or

START

—

Battery voltage

4

P

ECM relay

Output

ON or

START

—

Battery voltage

6

V

Throttle control relay

Output

ON or

START

—

Battery voltage

7

BR

ECM relay control

Input

ON or

START

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

8

W/R

O2 and A/F sensor
ignition supply

Output

ON or

START

—

Battery voltage

10

R/B

Battery power supply
(daytime light relay)

Output

OFF

—

Battery voltage

11

Y

A/C compressor

Output

ON

A/C switch or auto A/C
request ON

Battery voltage

12

W/G

Ignition switch

Input

—

OFF or ACC

0V

ON or START

Battery voltage

14

W/G

A/T ignition supply

Output

ON or

START

—

Battery voltage

15

W/R

ABS ignition supply

Output

ON or

START

—

Battery voltage

16

W/G

Reverse lamp

Output

ON or

START

—

Battery voltage

17

W/G

Injector

Output

ON or

START

—

Battery voltage

19

W

Starter motor

Output

START

—

Battery voltage

20

BR

Cooling fan motor
(low)

Output

ON or

START

—

Battery voltage

21

GR

Ignition switch

Input

—

OFF or ACC or ON

0V

START

Battery voltage

22

G

Battery power supply
(cooling fan relays)

Input

OFF

—

Battery voltage

23

LG

Heated mirror relay

Output

ON or

START

Rear window defogger switch
is ON

Battery voltage

Rear window defogger switch
is OFF

0

24

P

Cooling fan motor
(high)

Output

ON or

START

—

Battery voltage

27

WG

Trailer tow relay

Output

ON or

START

—

Battery voltage

28

R

LH front parking and
front side marker lamp

Output

ON

Lighting
switch 1ST
position

OFF

0V

ON

Battery voltage

29

G

Trailer tow relay

Output

ON

Lighting
switch 1ST
position

OFF

0V

ON

Battery voltage
