DTC P2A00, P2A03 A/F SENSOR 1

EC-611

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

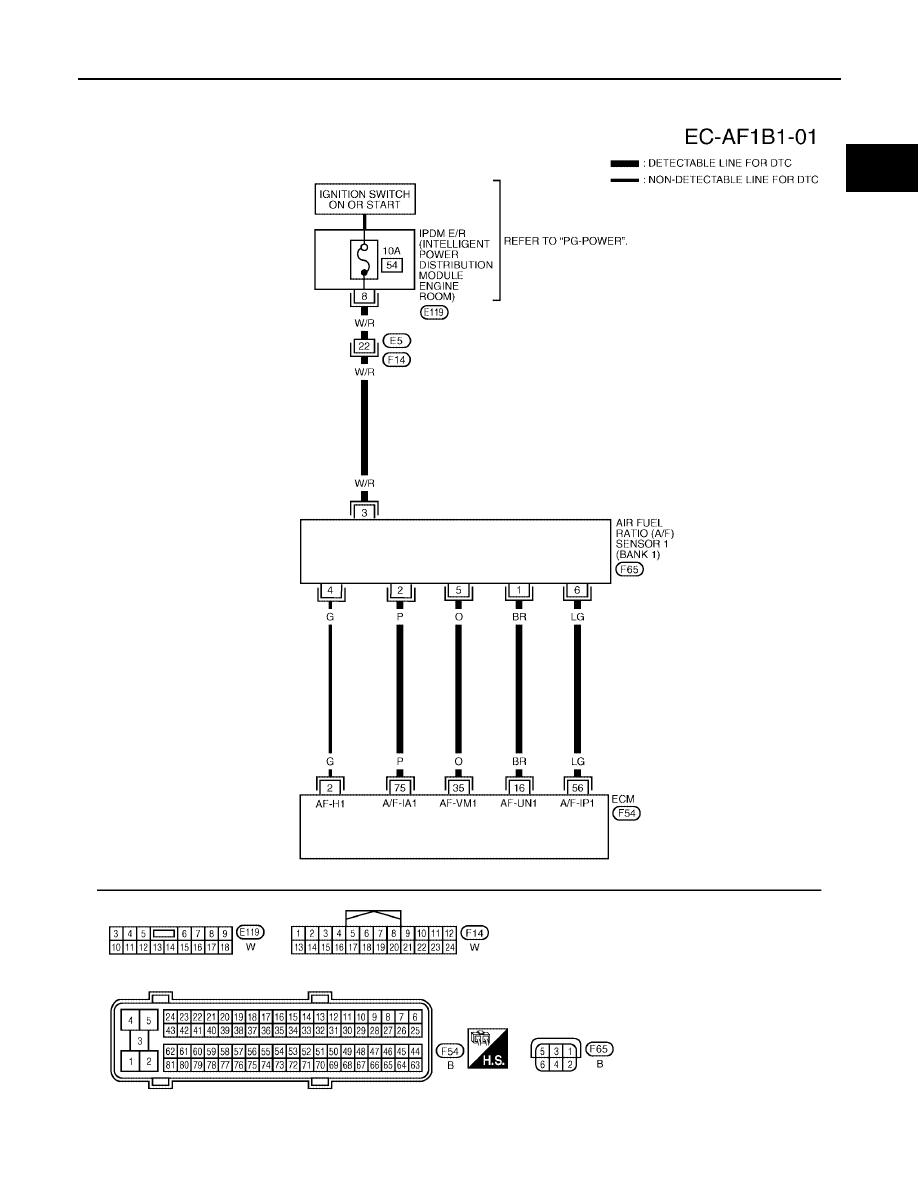

Wiring Diagram

UBS00KEK

BANK 1

BBWA2360E

EC-612

DTC P2A00, P2A03 A/F SENSOR 1

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

G

A/F sensor 1 heater
(Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

16

BR

A/F sensor 1 (Bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 3.1V

35

O

Approximately 2.6V

56

LG

Approximately 2.3V

75

P

Approximately 2.3V

PBIB1584E

DTC P2A00, P2A03 A/F SENSOR 1

EC-613

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

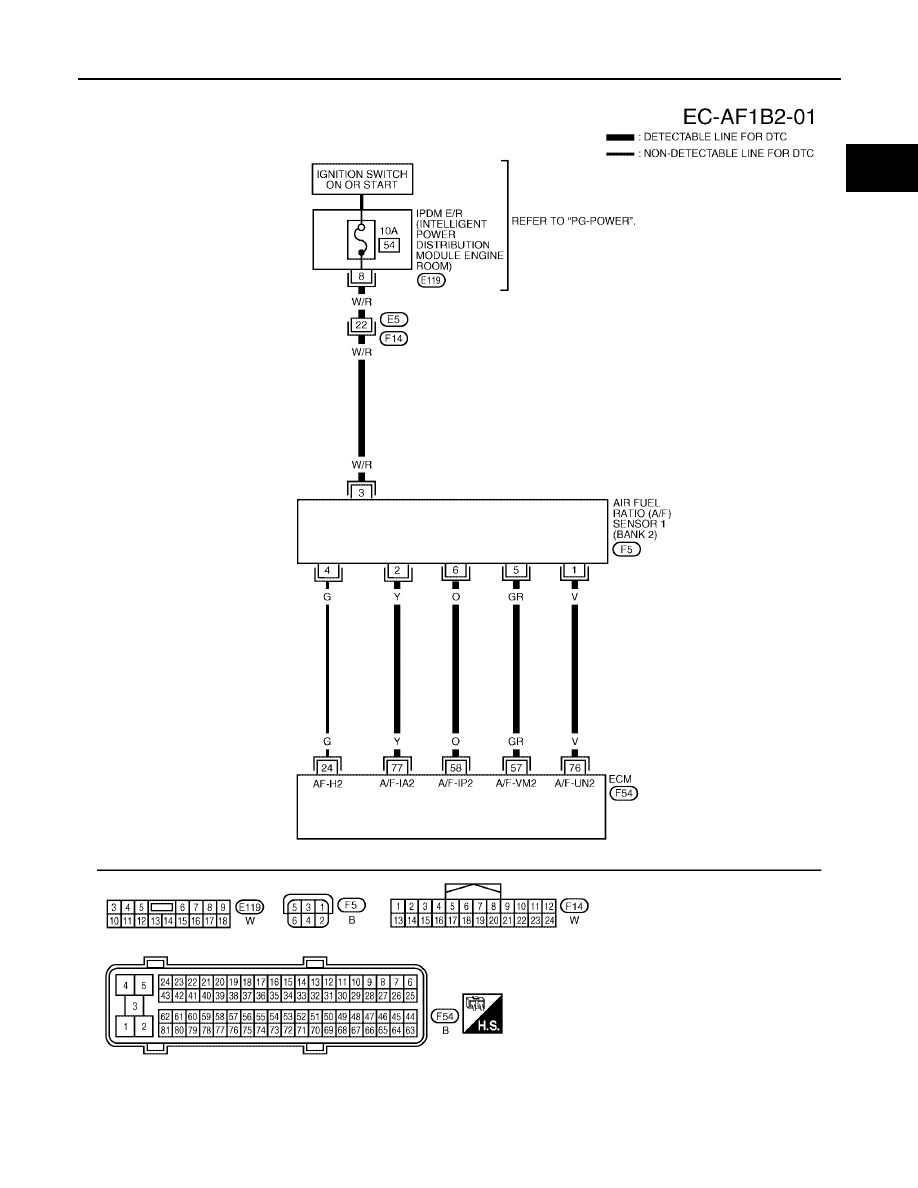

BANK 2

BBWA2361E

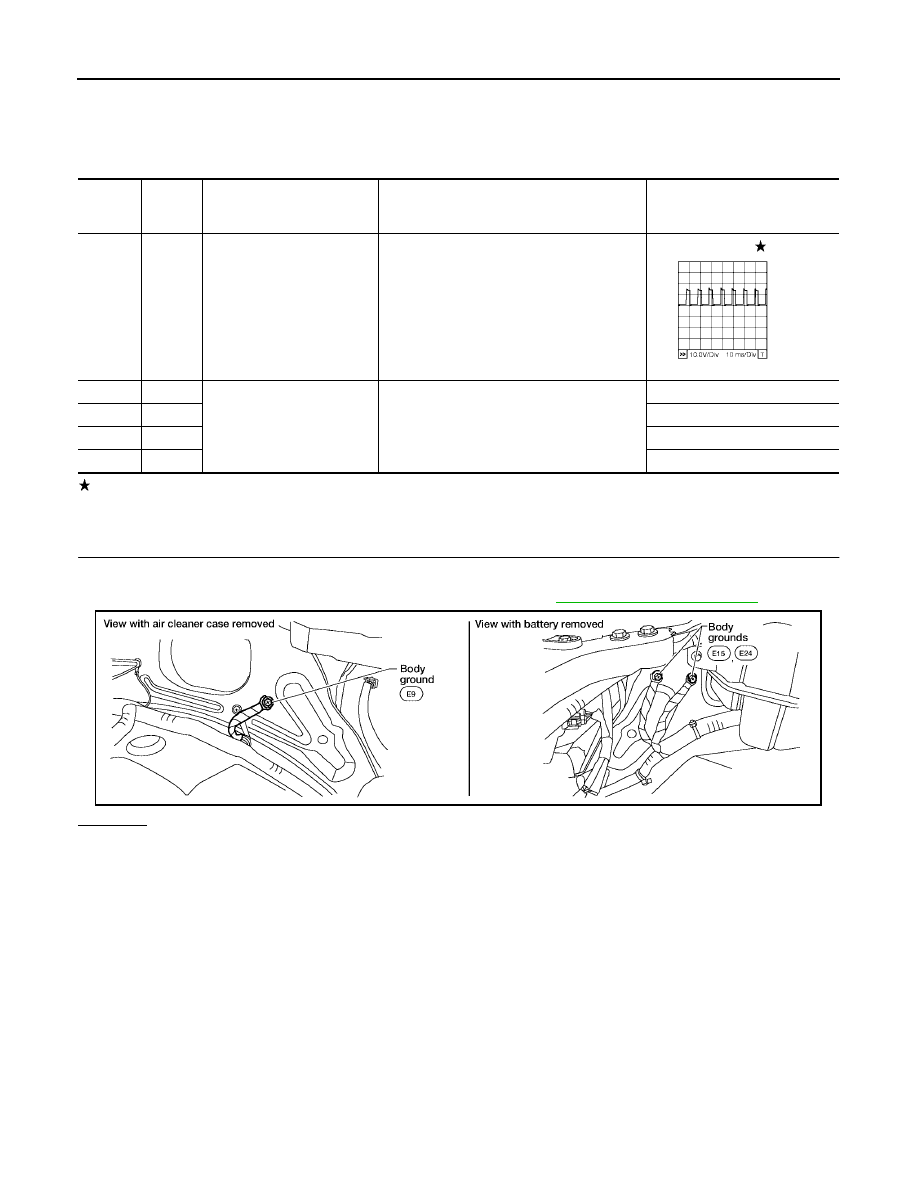

EC-614

DTC P2A00, P2A03 A/F SENSOR 1

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

UBS00KEL

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-151, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

24

G

A/F sensor 1 heater
 (Bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

57

GR

A/F sensor 1 (Bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 2.6V

58

O

Approximately 2.3V

76

V

Approximately 3.1V

77

Y

Approximately 2.3V

PBIB1584E

BBIA0539E

DTC P2A00, P2A03 A/F SENSOR 1

EC-615

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

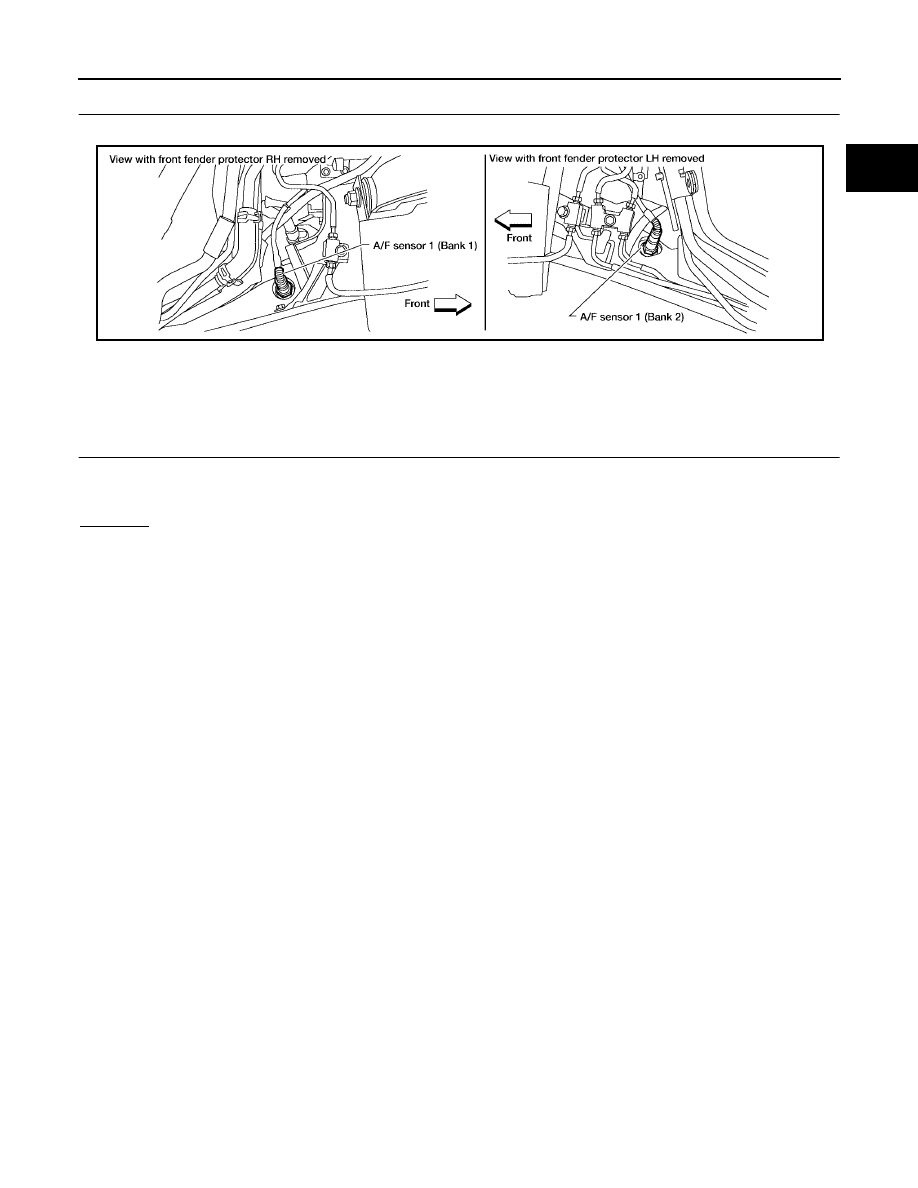

2.

RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

Loosen and retighten the air fuel ratio (A/F) sensor 1.

>> GO TO 3.

3.

CHECK FOR INTAKE AIR LEAK

1.

Start engine and run it at idle.

2.

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

BBIA0557E

EC-616

DTC P2A00, P2A03 A/F SENSOR 1

2006 Pathfinder

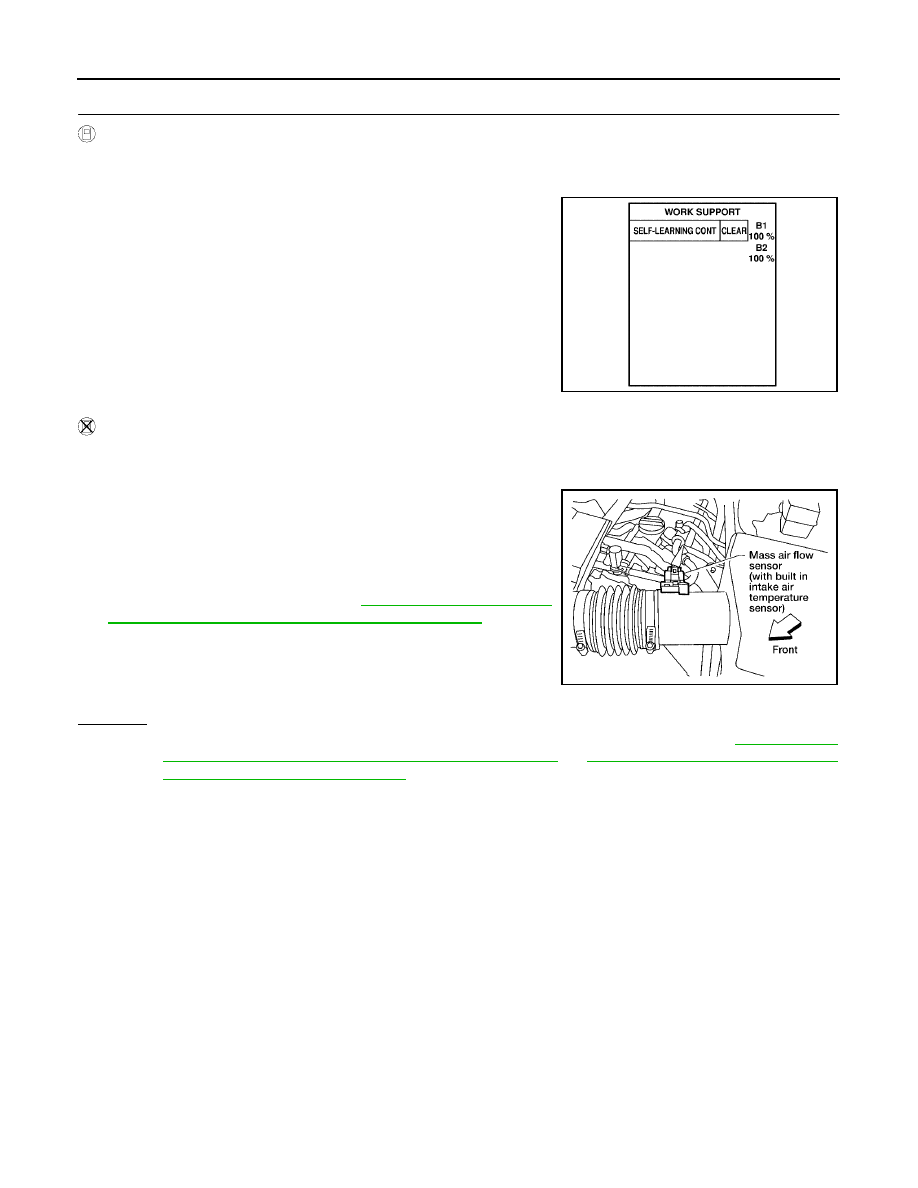

4.

CLEAR THE SELF-LEARNING DATA.

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 3 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-60, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

8.

Make sure DTC P0000 is displayed.

9.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172 or P0174, P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-305, "DTC

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION"

  or

EC-317, "DTC P0172, P0175 FUEL

INJECTION SYSTEM FUNCTION"

 .

No

>> GO TO 5.

SEF968Y

BBIA0541E

DTC P2A00, P2A03 A/F SENSOR 1

EC-617

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

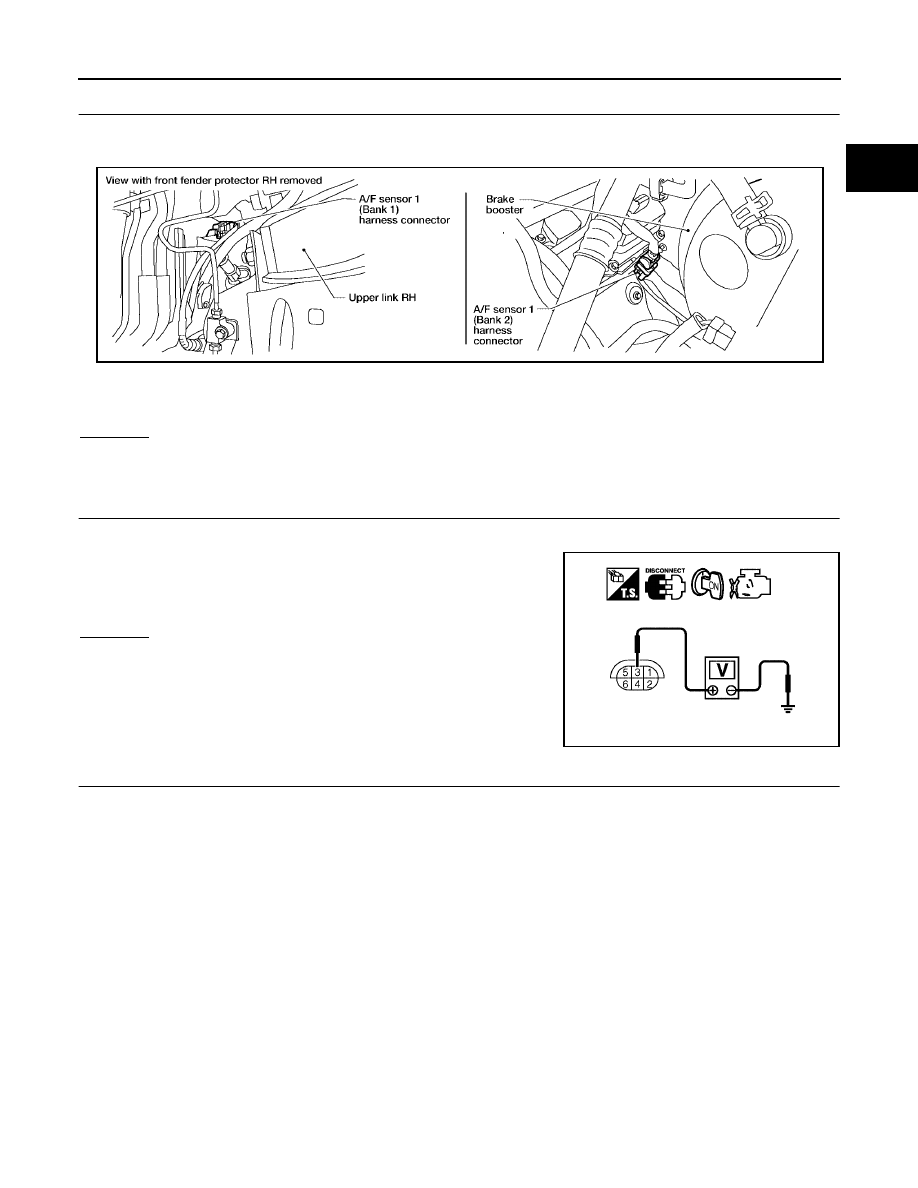

5.

CHECK HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Check harness connector for water.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness connector.

6.

CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

IPDM E/R connector E119

●

10A fuse

●

Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

Water should not exit.

BBIA0544E

Voltage: Battery voltage

PBIB1683E

EC-618

DTC P2A00, P2A03 A/F SENSOR 1

2006 Pathfinder

8.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

4.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-169, "Component Inspection"

 .

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Perform

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

 OK

>> GO TO 11.

NG

>> Repair or replace.

A/F sensor 1 terminal

ECM terminal

Bank1

1

16

2

75

5

35

6

56

Bank 2

1

76

2

77

5

57

6

58

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

16

1

76

2

75

2

77

5

35

5

57

6

56

6

58

Continuity should not exist.
