Nissan Pathfinder (2006 year). Manual - part 188





DTC P0335 CKP SENSOR (POS)

EC-363

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

2.

CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT

1.

Disconnect crankshaft position (CKP) sensor (POS) harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between CKP sensor (POS) terminal 1 and
ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F32, E2

Harness for open or short between crankshaft position sensor (POS) and ECM

Harness for open or short between crankshaft position sensor (POS) and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Check harness continuity between CKP sensor (POS) terminal 3 and ground. Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F32, E2

Harness for open or short between crankshaft position sensor (POS) and ground

>> Repair open circuit or short to power in harness or connectors.

BBIA0548E

Voltage: Battery voltage

PBIB0664E

Continuity should exist.

EC-364

DTC P0335 CKP SENSOR (POS)

2006 Pathfinder

6.

CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Refer to

EC-365, "Component Inspection"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Replace crankshaft position sensor (POS).

8.

CHECK GEAR TOOTH

Visually check for chipping signal plate gear tooth.
OK or NG

OK

>> GO TO 9.

NG

>> Replace the signal plate.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Continuity should exist.

DTC P0335 CKP SENSOR (POS)

EC-365

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Component Inspection

UBS00K8K

CRANKSHAFT POSITION SENSOR (POS)

1.

Loosen the fixing bolt of the sensor.

2.

Disconnect crankshaft position sensor (POS) harness connector.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

Removal and Installation

UBS00K8L

CRANKSHAFT POSITION SENSOR (POS)

Refer to

AT-246, "TRANSMISSION ASSEMBLY"

 .

PBIB0563E

Terminal No. (Polarity)

Resistance

 [at 25

°

C (77

°

F)]

1 (+) - 2 (-)

Except 0 or

1 (+) - 3 (-)

2 (+) - 3 (-)

PBIB0564E

EC-366

DTC P0340, P0345 CMP SENSOR (PHASE)

2006 Pathfinder

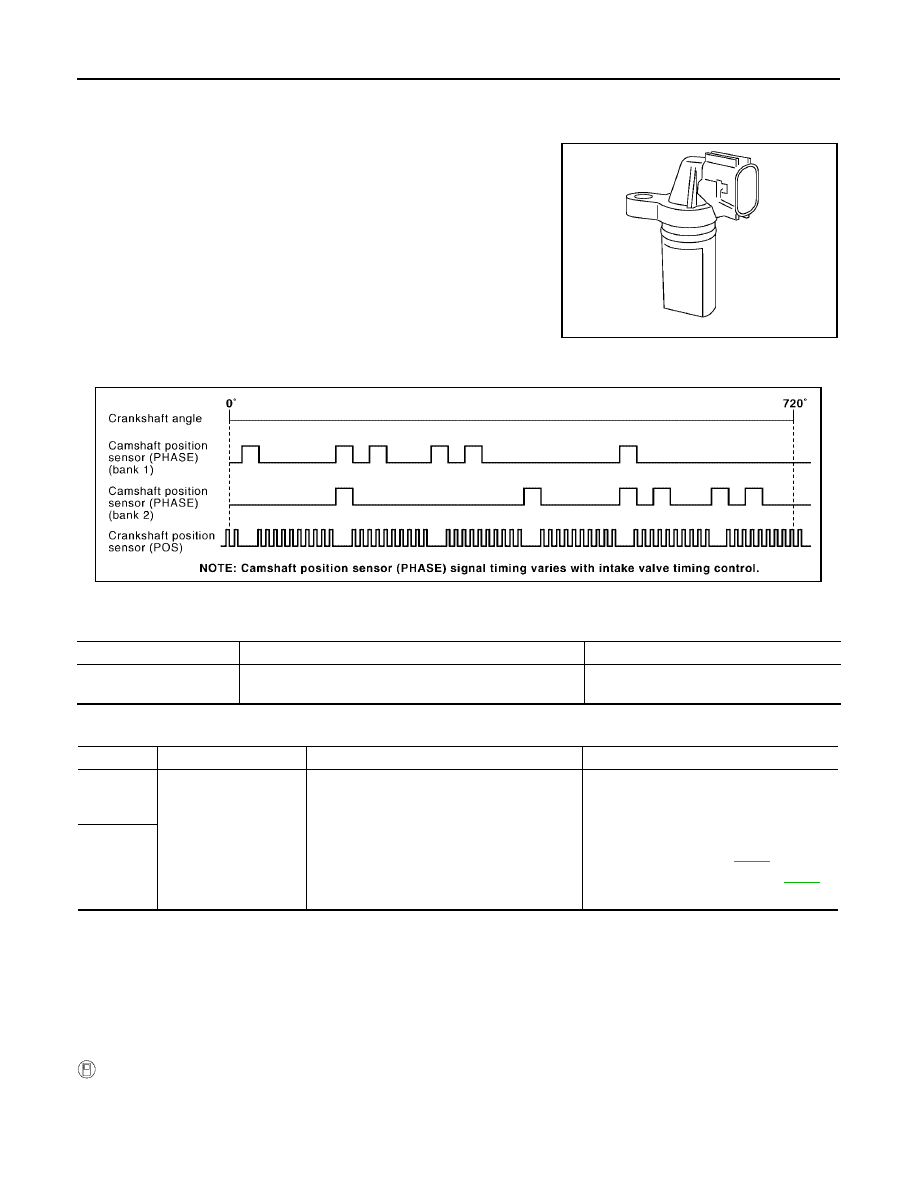

DTC P0340, P0345 CMP SENSOR (PHASE)

PFP:23731

Component Description

UBS00K8M

The camshaft position sensor (PHASE) senses the retraction of
intake valve camshaft to identify a particular cylinder. The camshaft
position sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.

CONSULT-II Reference Value in Data Monitor Mode

UBS00K8N

Specification data are reference values.

On Board Diagnosis Logic

UBS00K8O

DTC Confirmation Procedure

UBS00K8P

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.

 WITH CONSULT-II

1.

Turn ignition switch ON.

PBIB0562E

PBIB2744E

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

Run engine and compare CONSULT-II value with the
tachometer indication.

Almost the same speed as the tachometer
indication.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0340
0340
(Bank 1)

Camshaft position sen-
sor (PHASE) circuit

The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.

The cylinder No. signal is not sent to ECM
during engine running.

The cylinder No. signal is not in the normal
pattern during engine running.

Harness or connectors
(The sensor circuit is open or shorted)

Camshaft position sensor (PHASE)

Camshaft (Intake)

Starter motor (Refer to

SC-10

 .)

Starting system circuit (Refer to

SC-10

 .)

Dead (Weak) battery

P0345
0345
(Bank 2)

DTC P0340, P0345 CMP SENSOR (PHASE)

EC-367

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.

4.

If 1st trip DTC is detected, go to

EC-371, "Diagnostic Procedure"

.
If 1st trip DTC is not detected, go to next step.

5.

Maintaining engine speed at more than 800 rpm for at least 5
seconds.

6.

If 1st trip DTC is detected, go to

EC-371, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-368

DTC P0340, P0345 CMP SENSOR (PHASE)

2006 Pathfinder

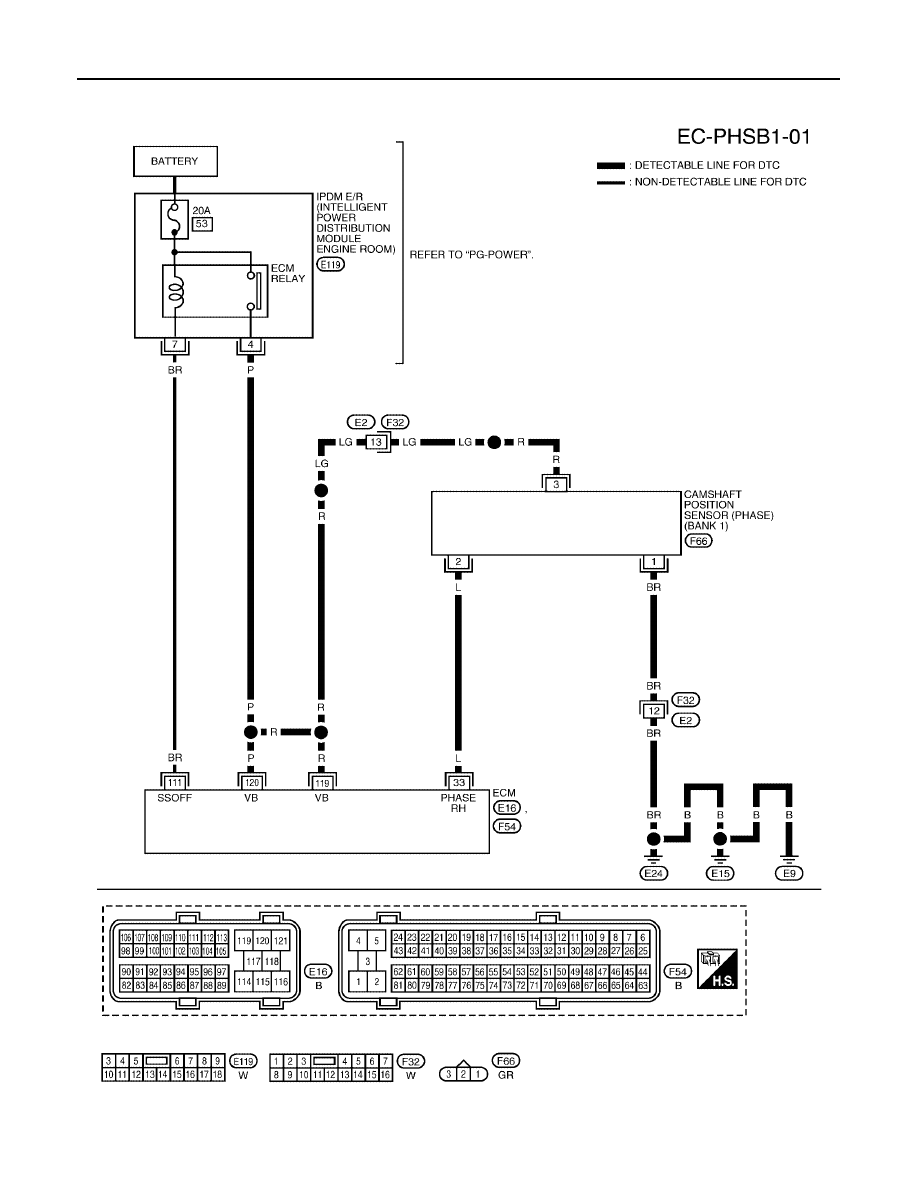

Wiring Diagram

UBS00K8Q

BANK 1

BBWA1753E

DTC P0340, P0345 CMP SENSOR (PHASE)

EC-369

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

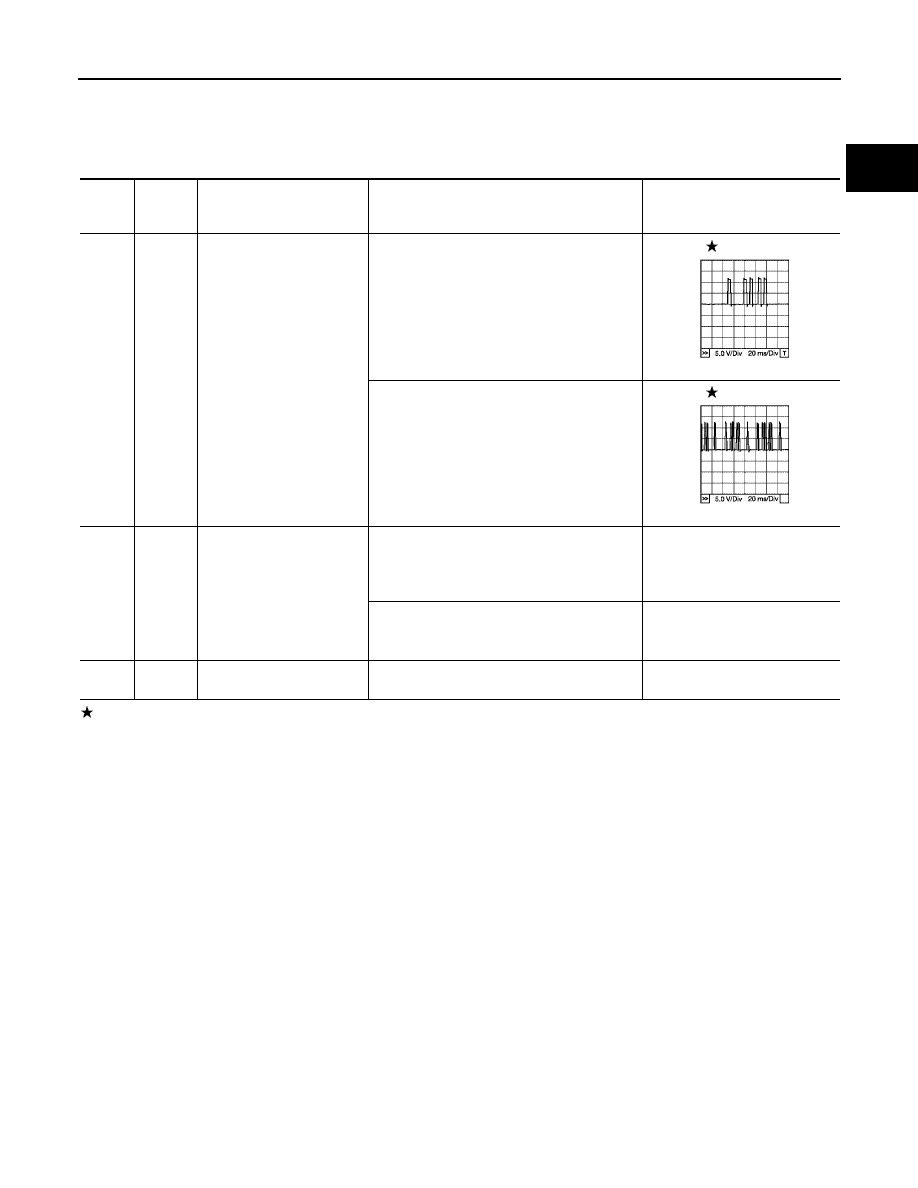

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

33

L

Camshaft position sensor
(PHASE) (Bank 1)

[Engine is running]

Warm-up condition

Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

1.0 - 4.0V

[Engine is running]

Engine speed: 2,000 rpm

1.0 - 4.0V

111

BR

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
P

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1039E

PBIB1040E

EC-370

DTC P0340, P0345 CMP SENSOR (PHASE)

2006 Pathfinder

BANK 2

BBWA1754E
