TROUBLE DIAGNOSIS

BRC-13

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

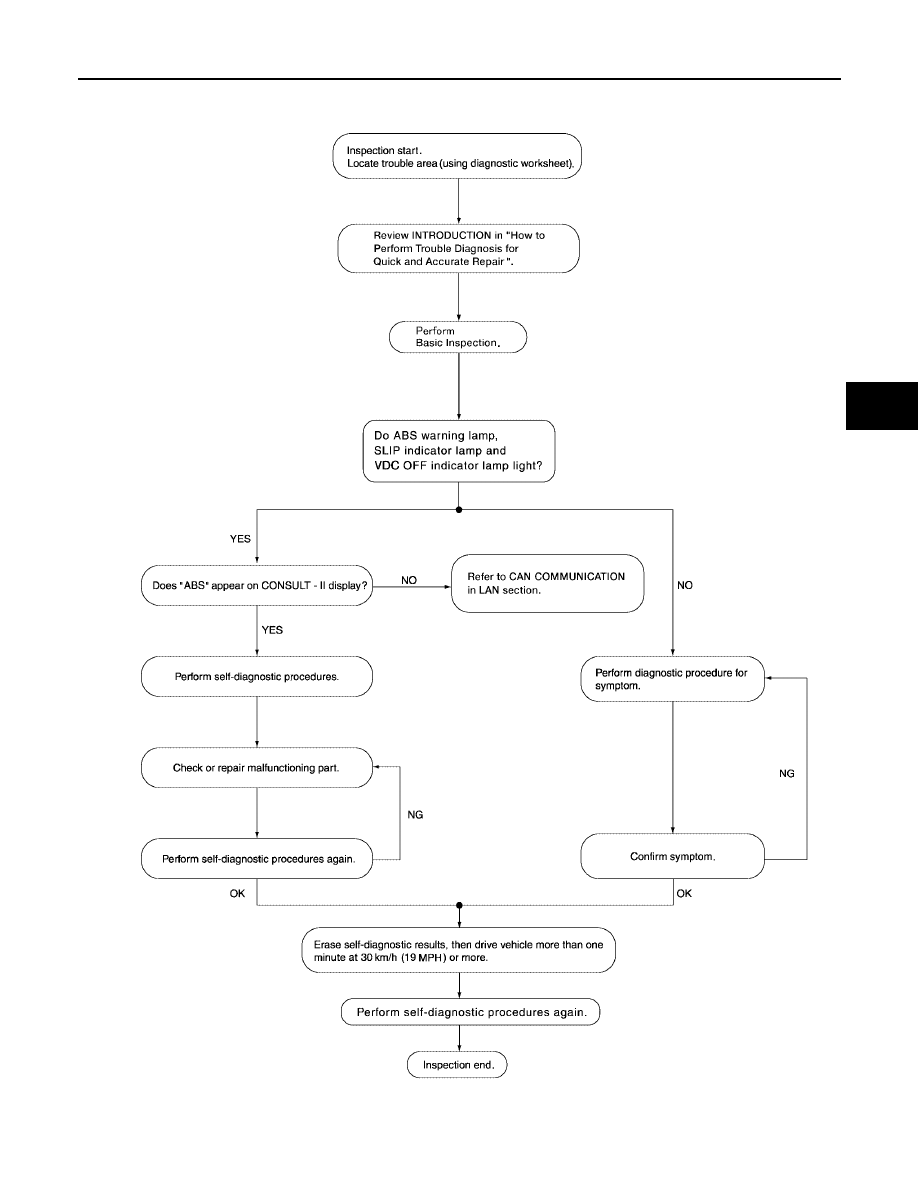

WORK FLOW

WFIA0358E

BRC-14

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

CLARIFY CONCERN

●

A customer's description of a vehicle concern may vary depend-
ing on the individual. It is important to clarify the customer's con-
cern.

●

Ask the customer about what symptoms are present under what
conditions. Use this information to reproduce the symptom while
driving.

●

It is also important to use the diagnosis sheet to understand
what type of trouble the customer is having.

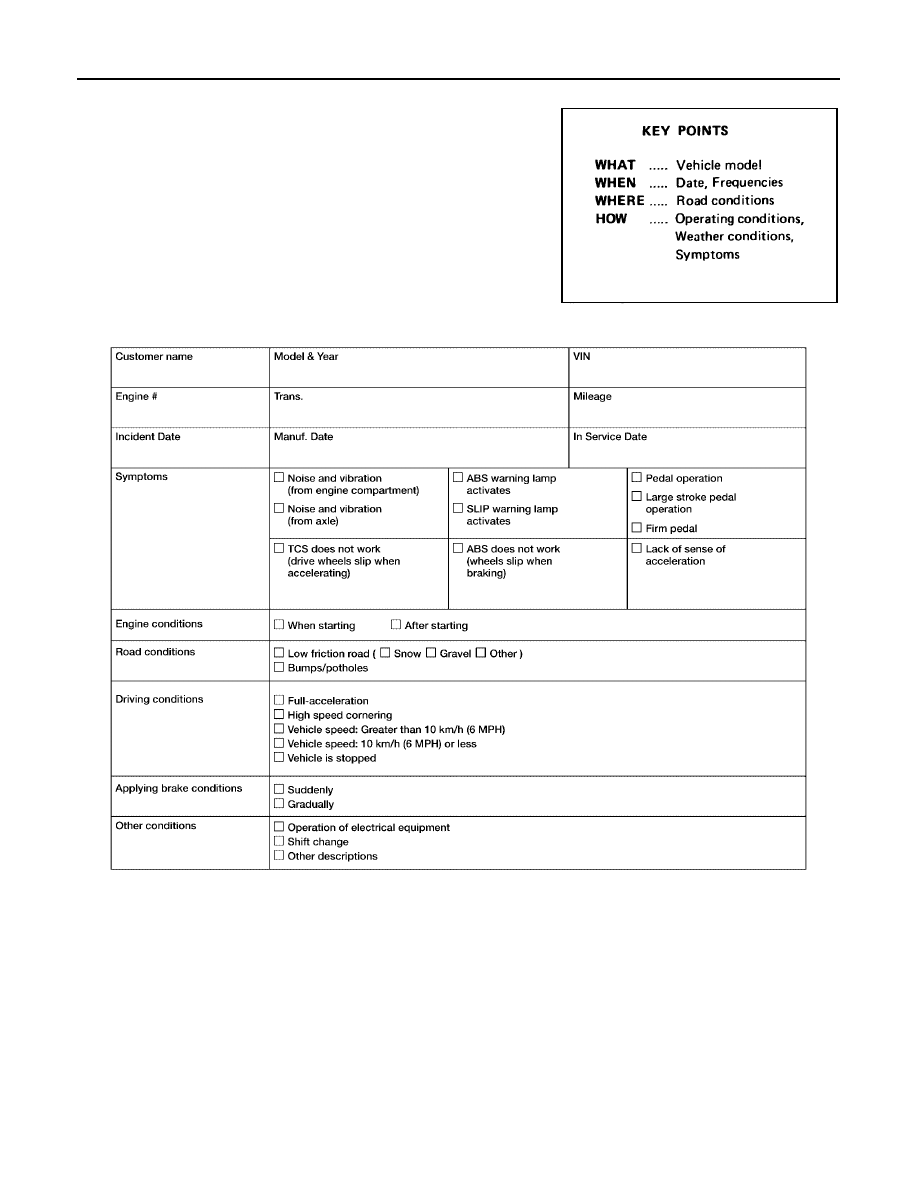

EXAMPLE OF DIAGNOSIS SHEET

SBR339B

WFIA0097E

TROUBLE DIAGNOSIS

BRC-15

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

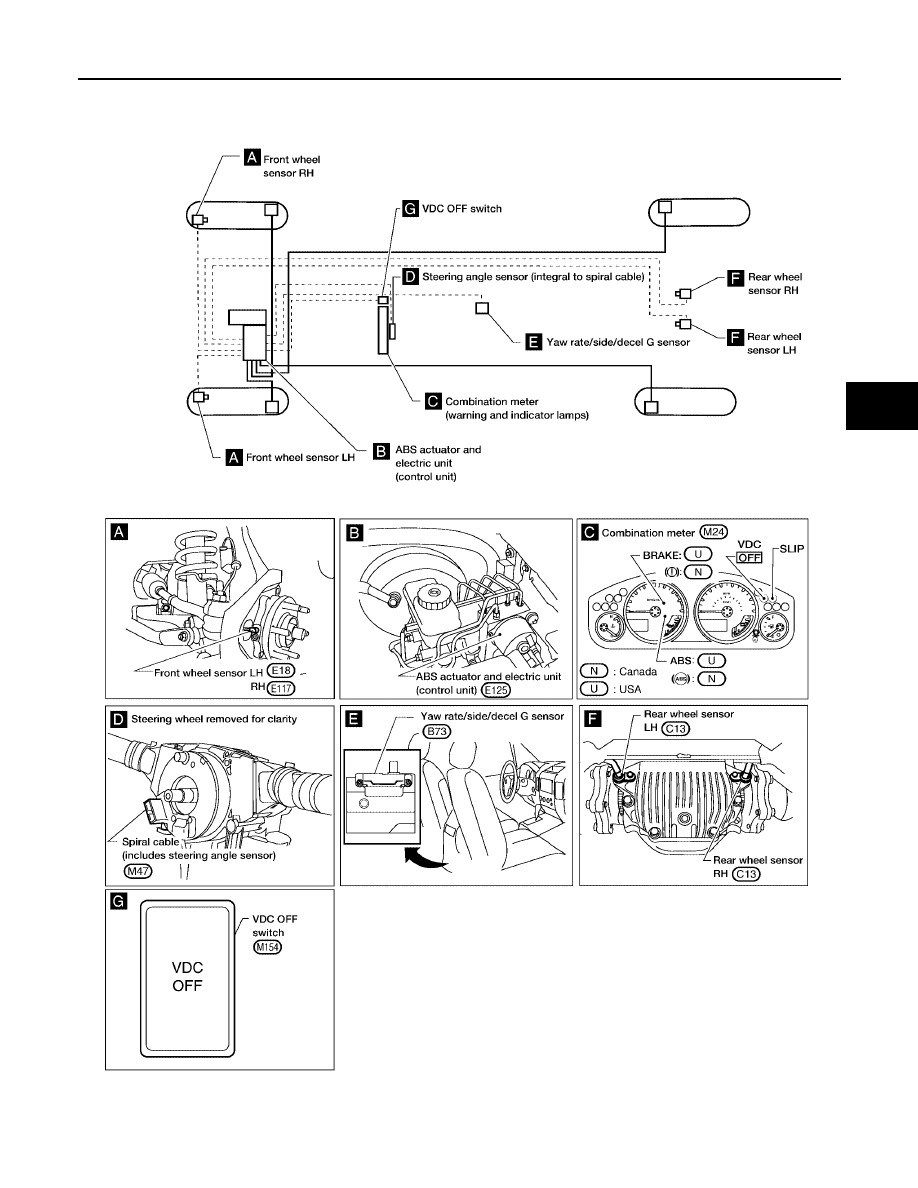

Component Parts and Harness Connector Location

EFS0064Y

WFIA0359E

BRC-16

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

Schematic

EFS0064Z

WFWA0361E

TROUBLE DIAGNOSIS

BRC-17

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

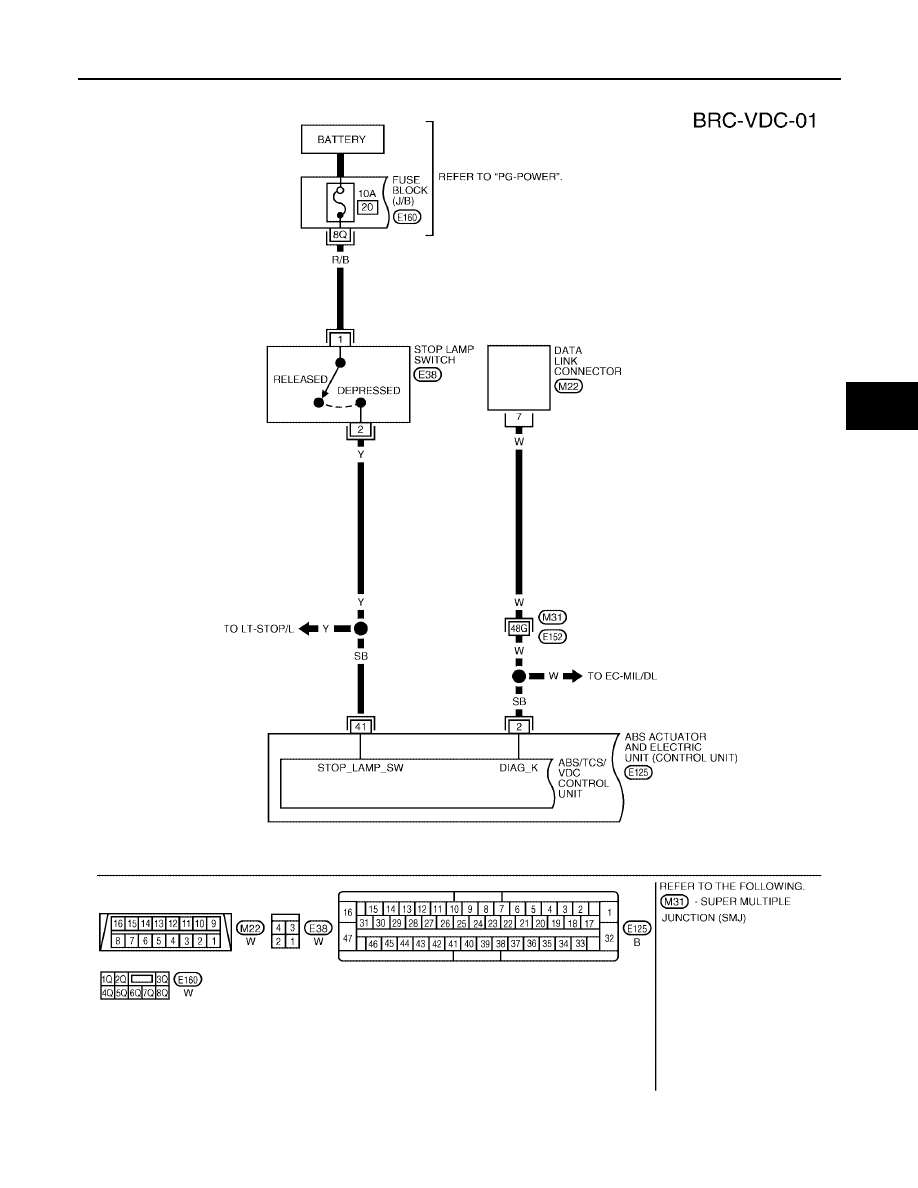

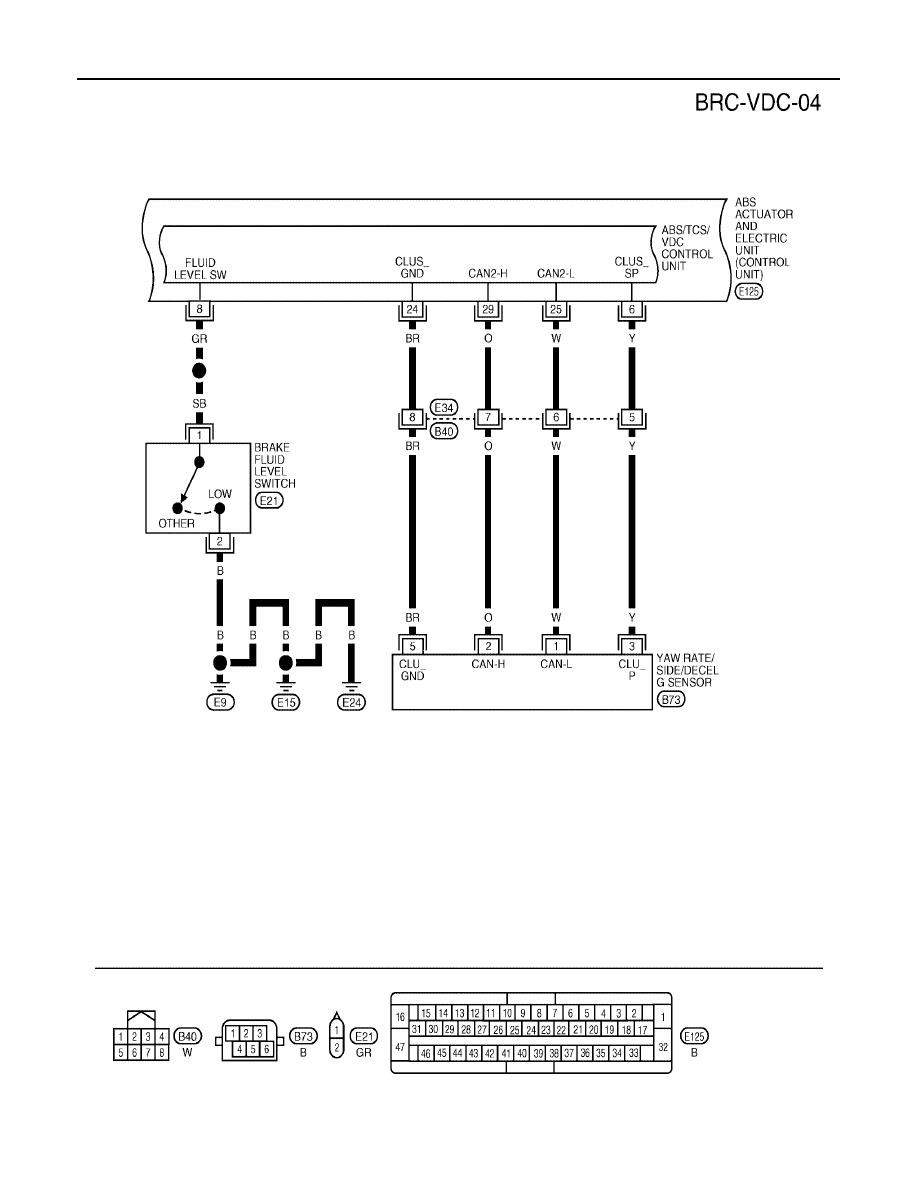

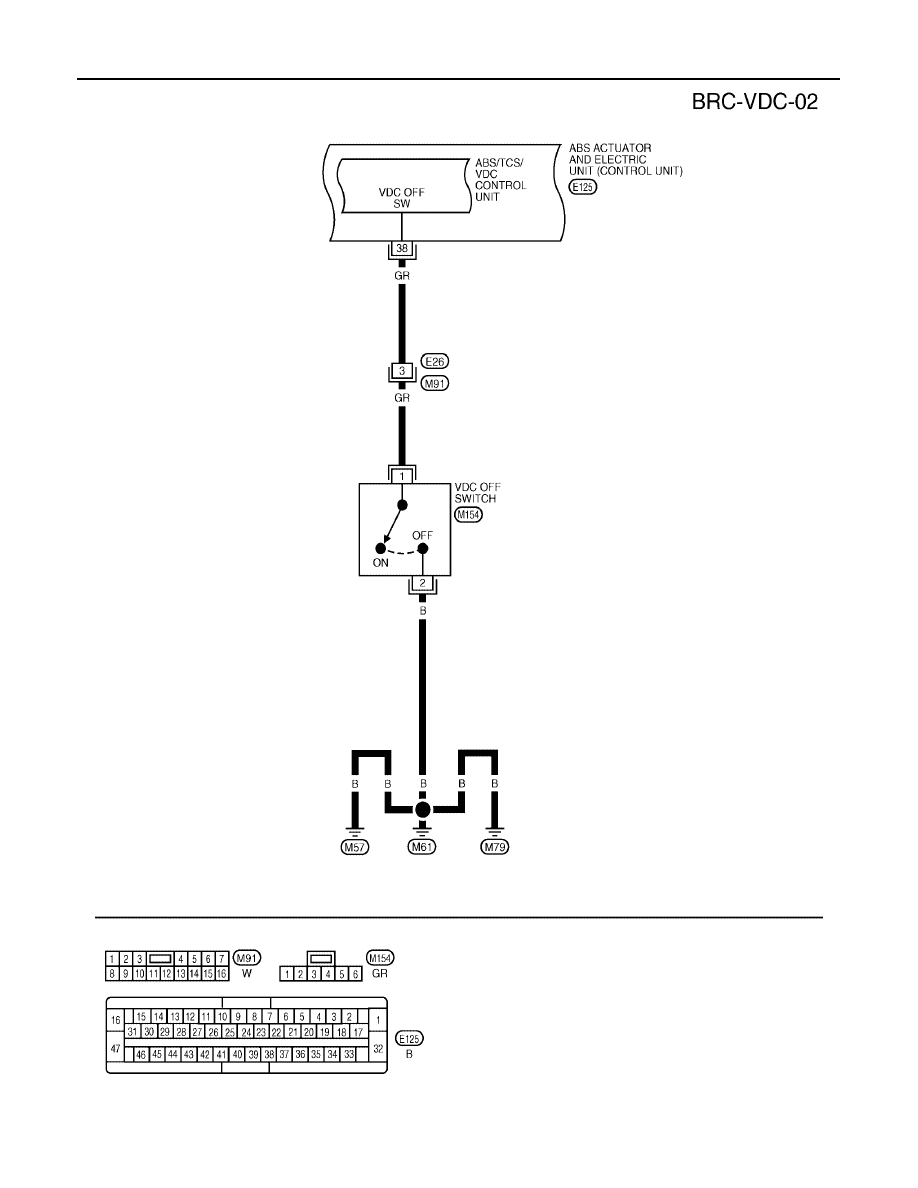

Wiring Diagram — VDC —

EFS00650

WFWA0362E

BRC-18

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

WFWA0363E

TROUBLE DIAGNOSIS

BRC-19

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

WFWA0364E

BRC-20

[VDC/TCS/ABS]

TROUBLE DIAGNOSIS

2006 Pathfinder

WFWA0365E
