Nissan Pathfinder (2006 year). Manual - part 109

BODY REPAIR

BL-173

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

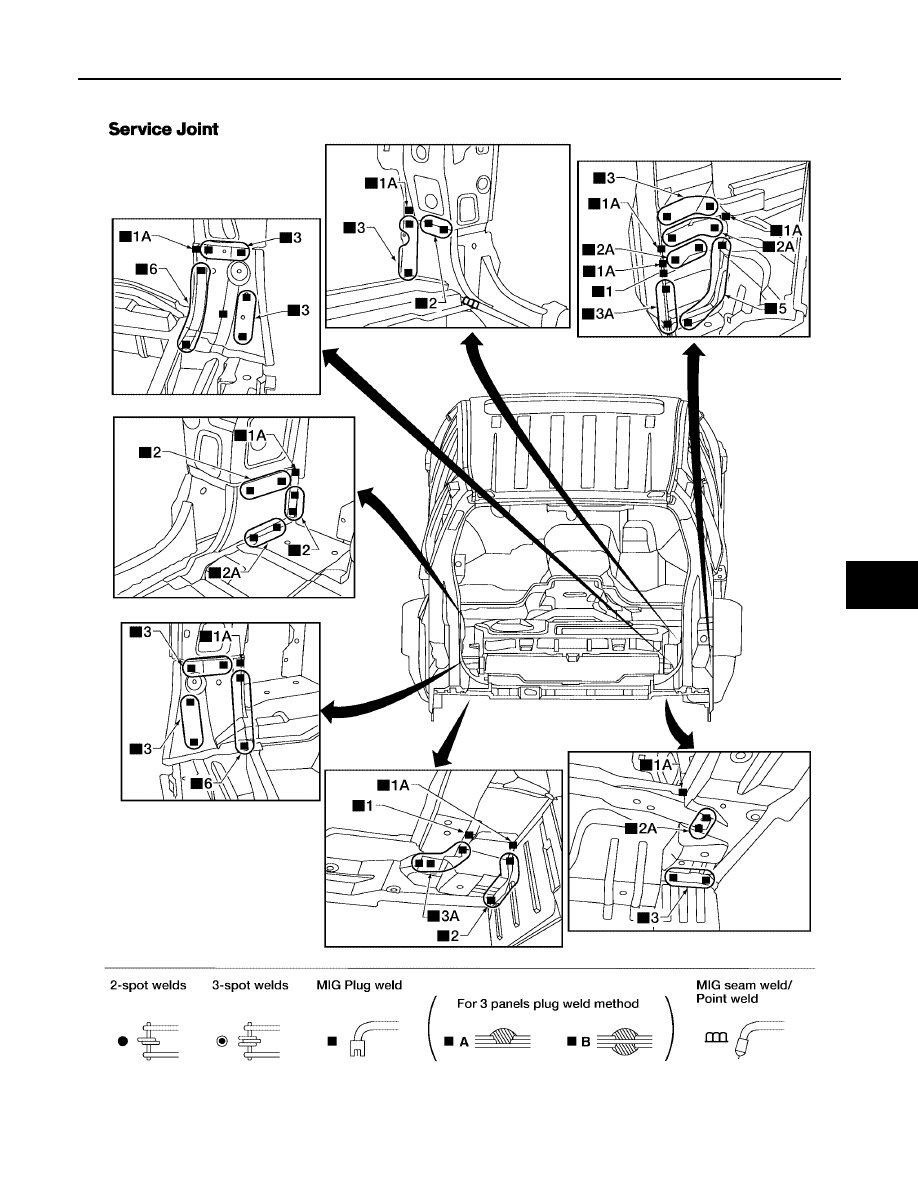

REAR FENDER REINFORCEMENT

LIIA1820E

BL-174

BODY REPAIR

2006 Pathfinder

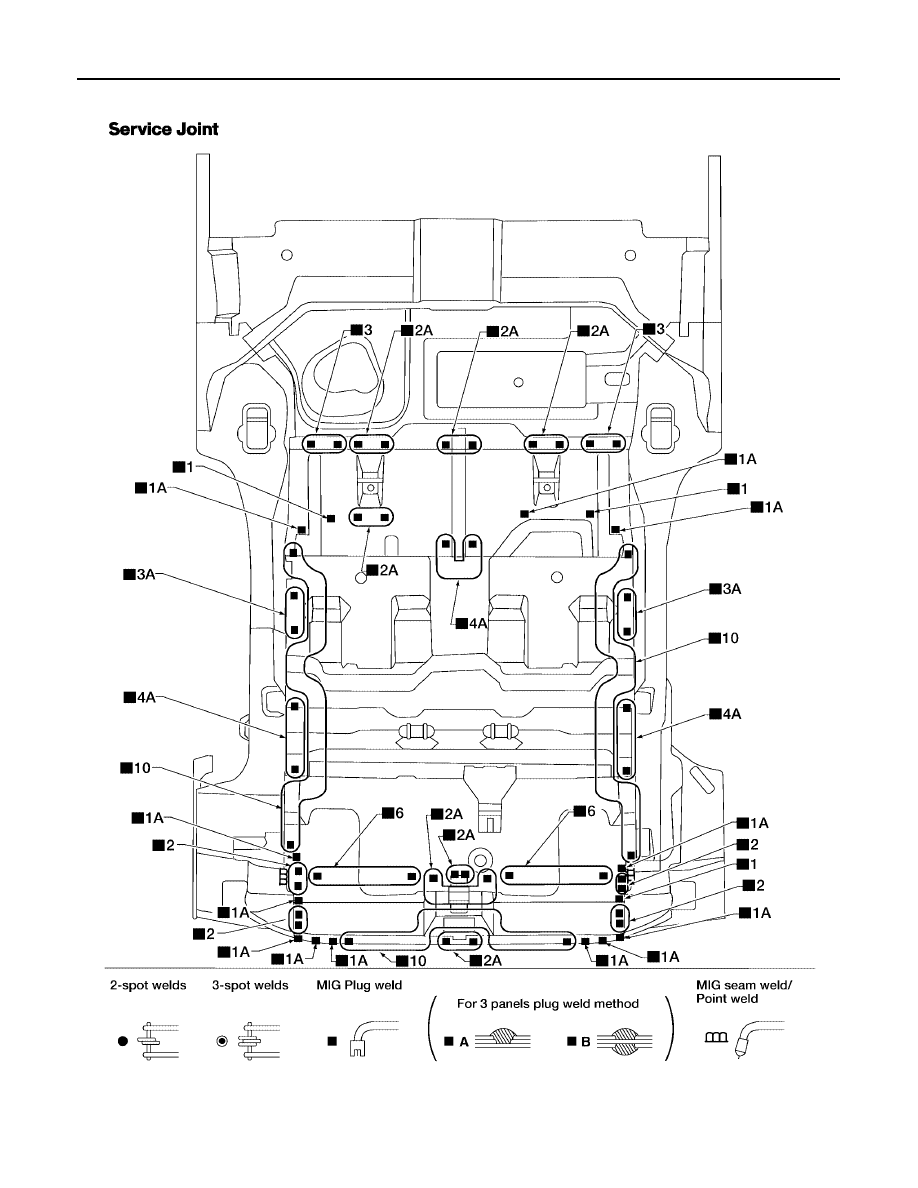

REAR FLOOR REAR

LIIA1815E

BODY REPAIR

BL-175

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

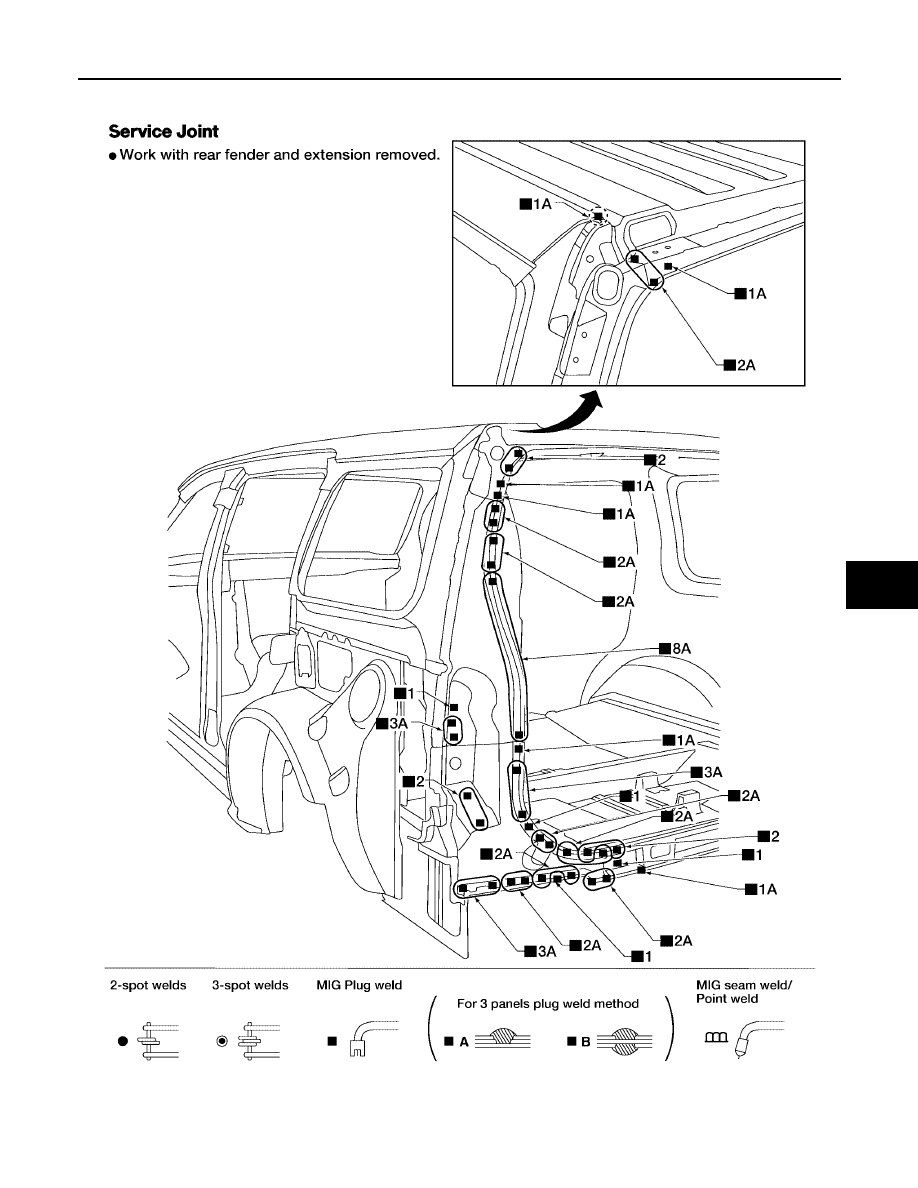

REAR CROSSMEMBER

LIIA1816E

BL-176

BODY REPAIR

2006 Pathfinder

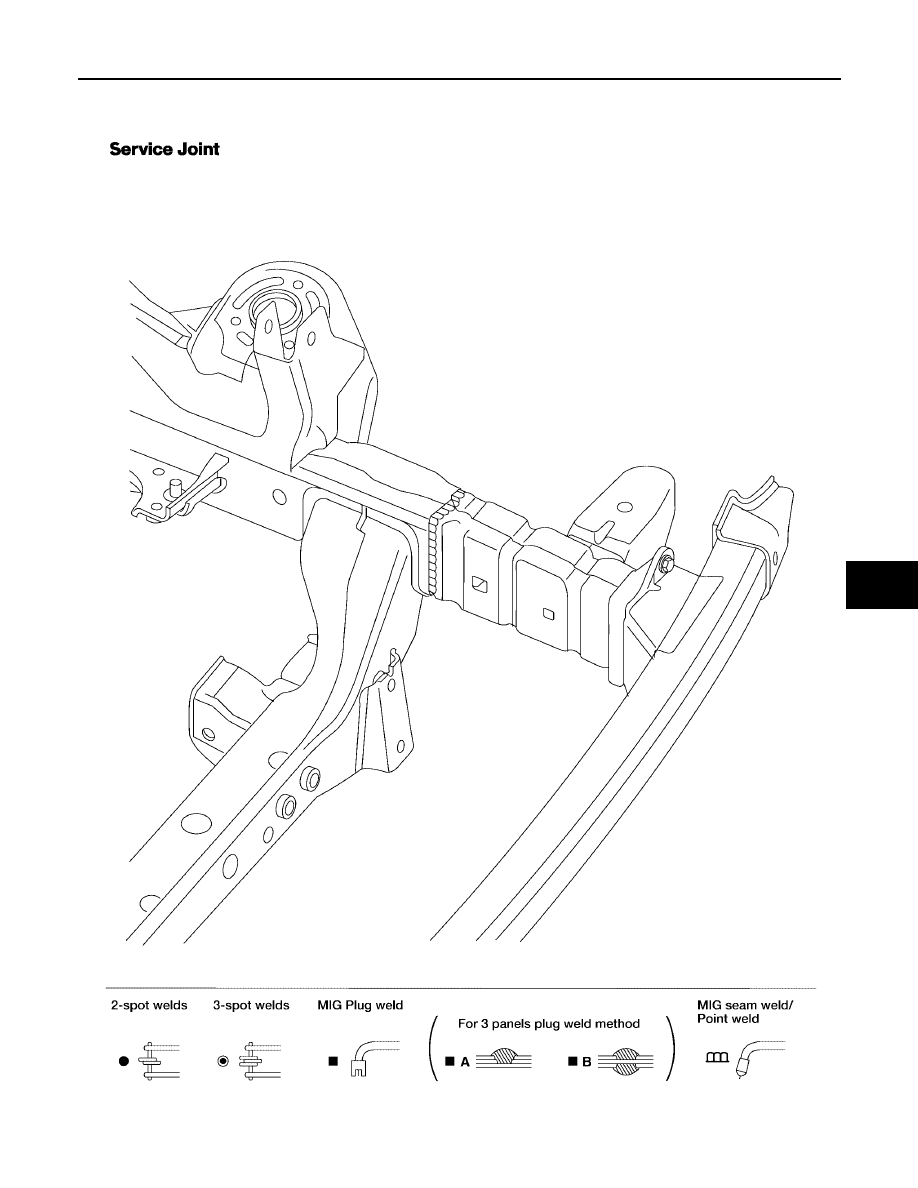

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,
such as cutting and butt-joint welding the crush horn.

BODY REPAIR

BL-177

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body
mounting bracket.

LIIA2148E

BL-178

BODY REPAIR

2006 Pathfinder
