BODY REPAIR

BL-165

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

RH

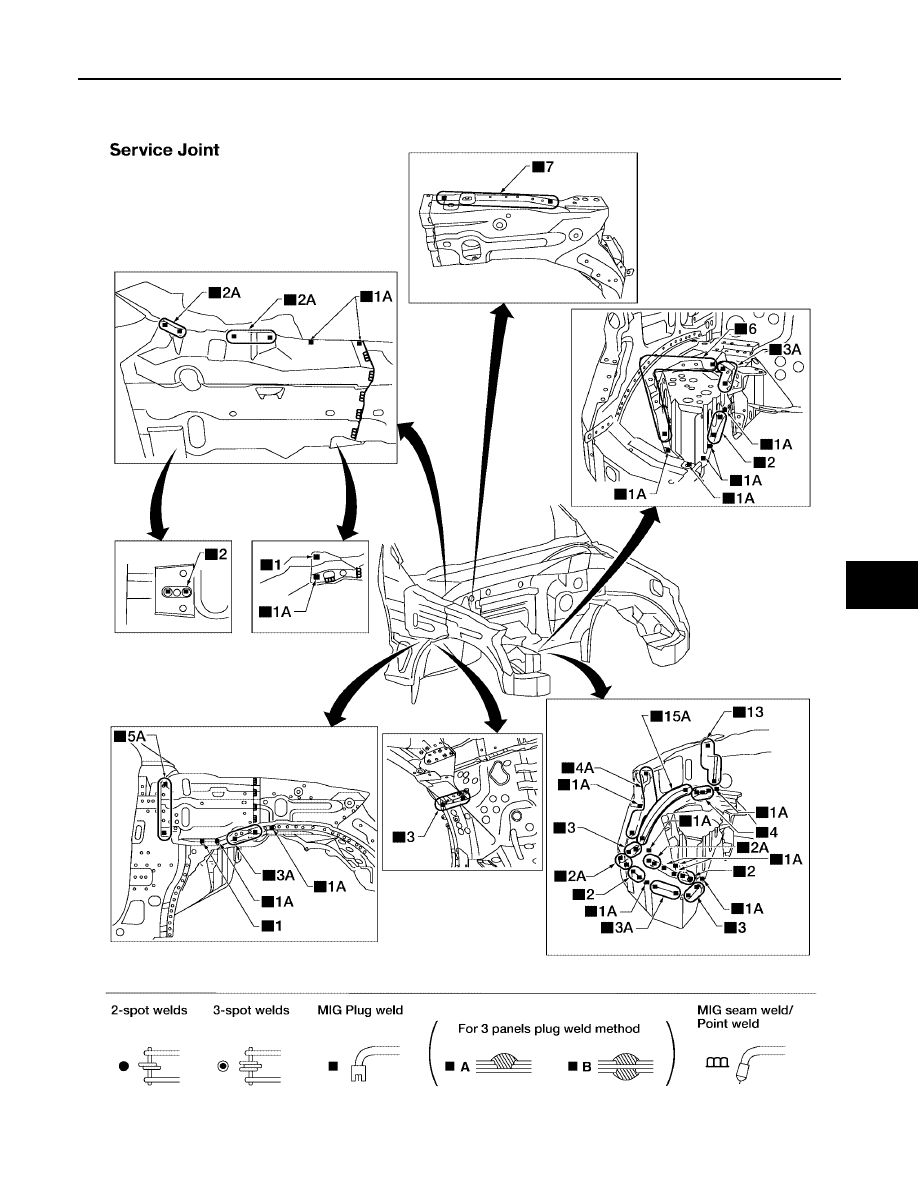

Work after radiator core support has been removed.

LIIA1809E

BL-166

BODY REPAIR

2006 Pathfinder

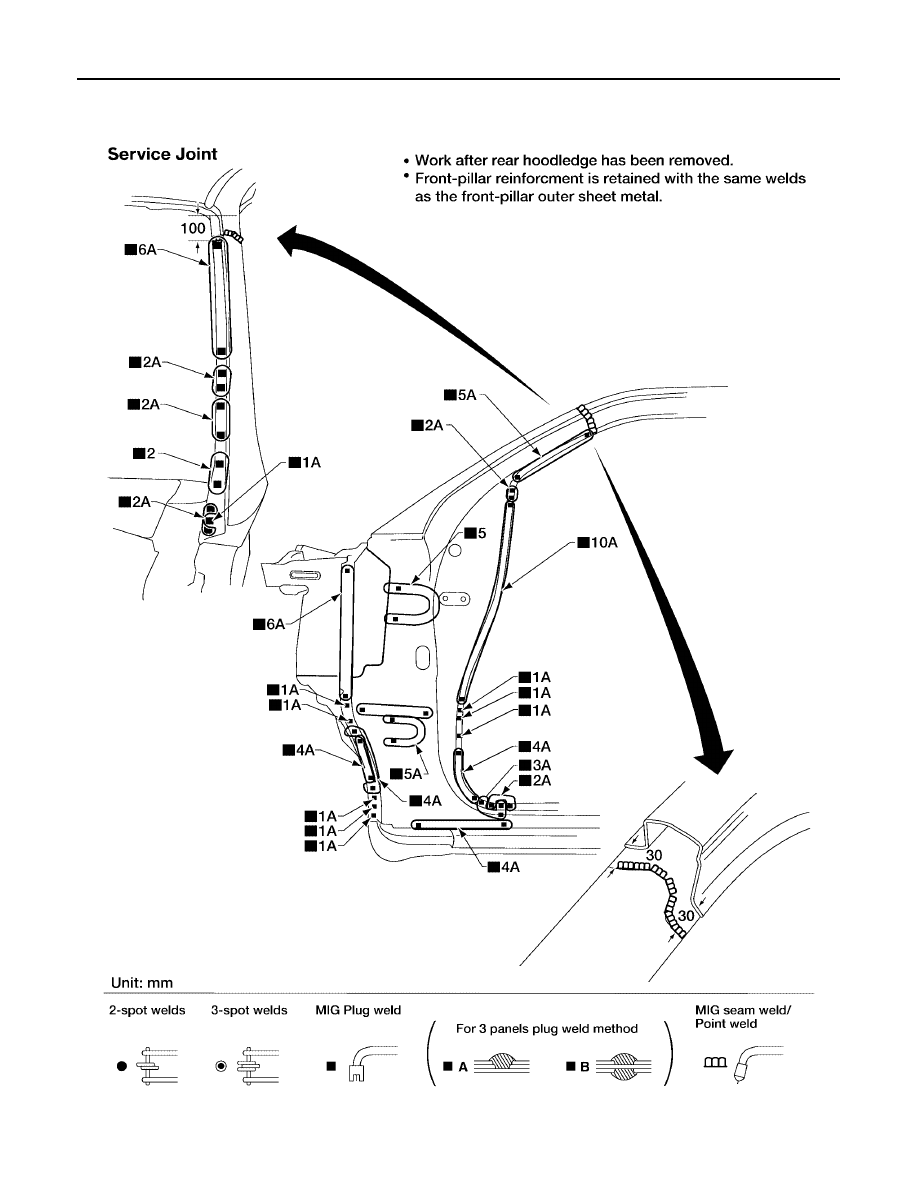

FRONT PILLAR

Work after rear hoodledge reinforcement has been removed.

LIIA1810E

BODY REPAIR

BL-167

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

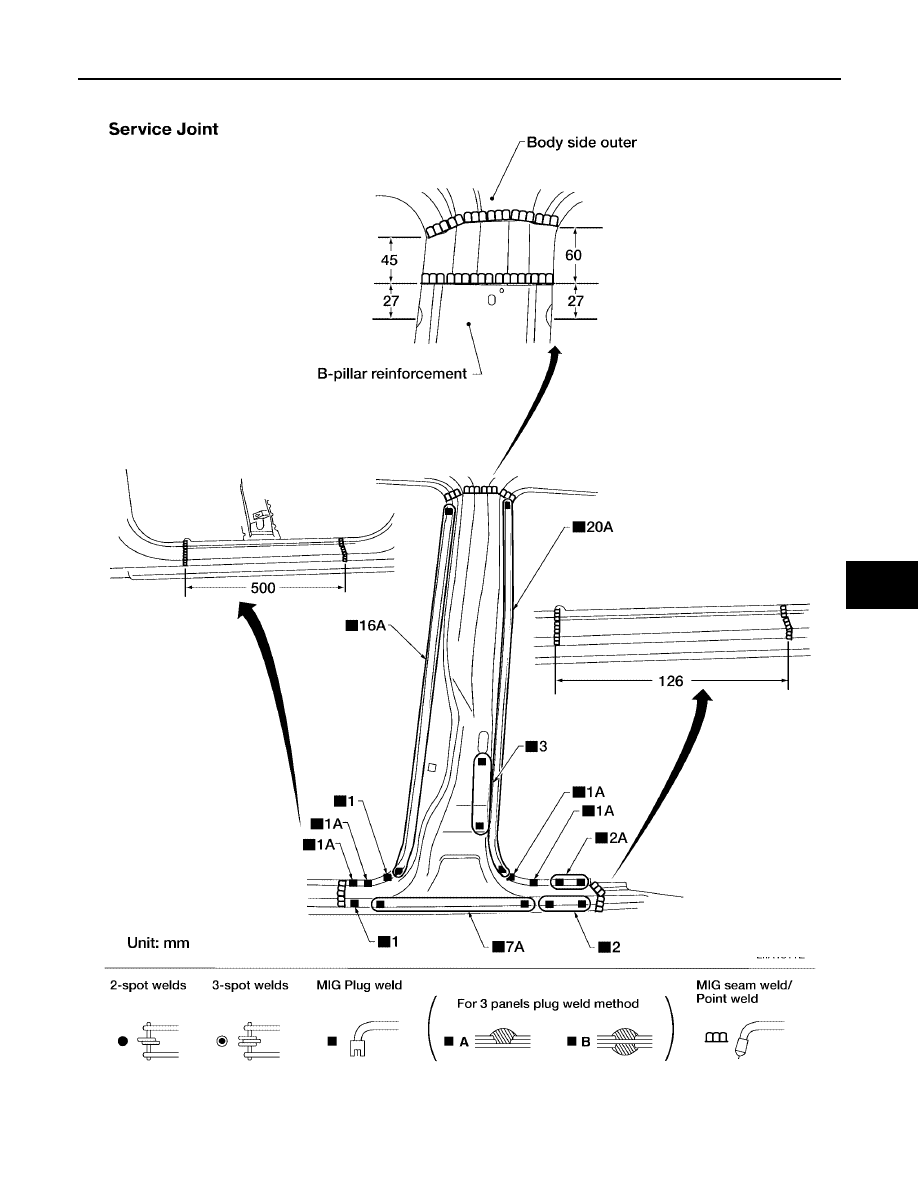

CENTER PILLAR

LIIA1811E

BL-168

BODY REPAIR

2006 Pathfinder

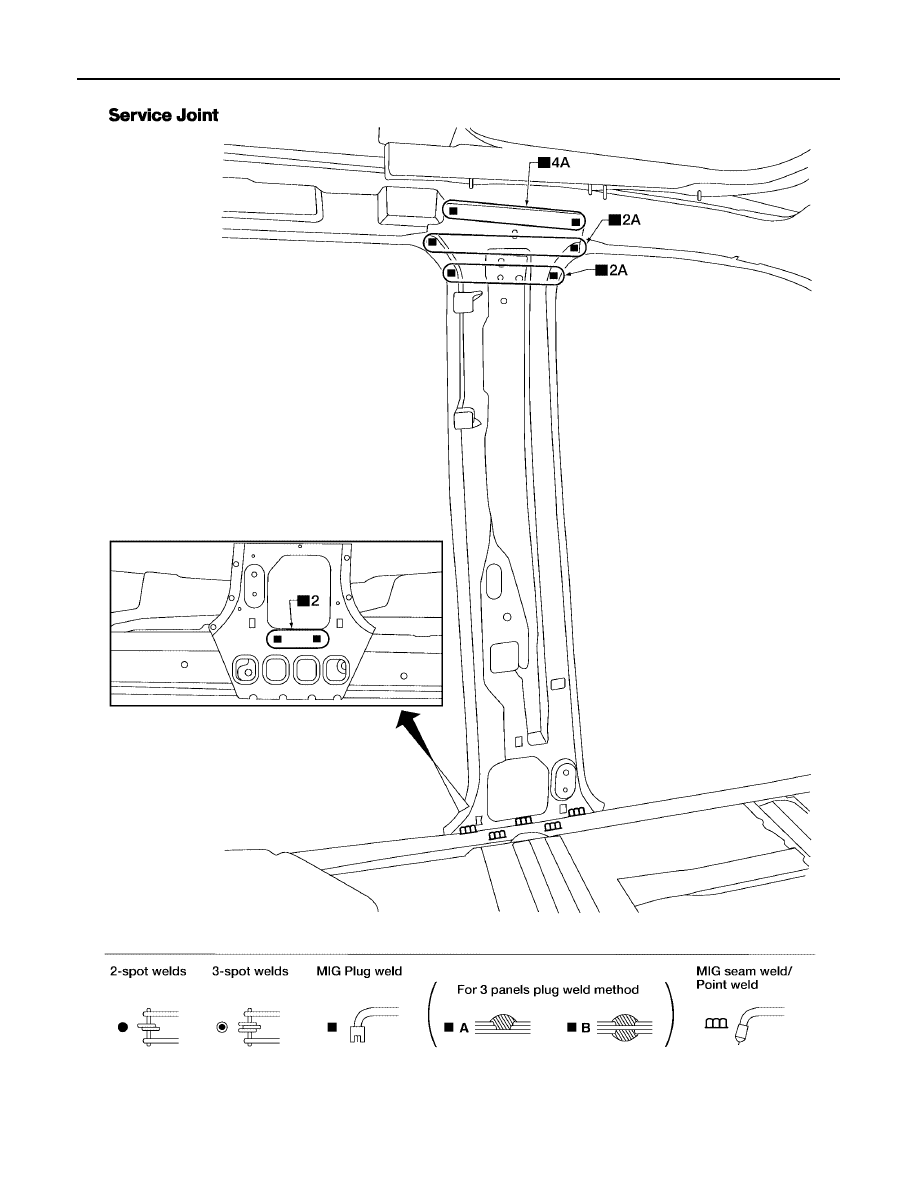

LIIA1812E

BODY REPAIR

BL-169

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

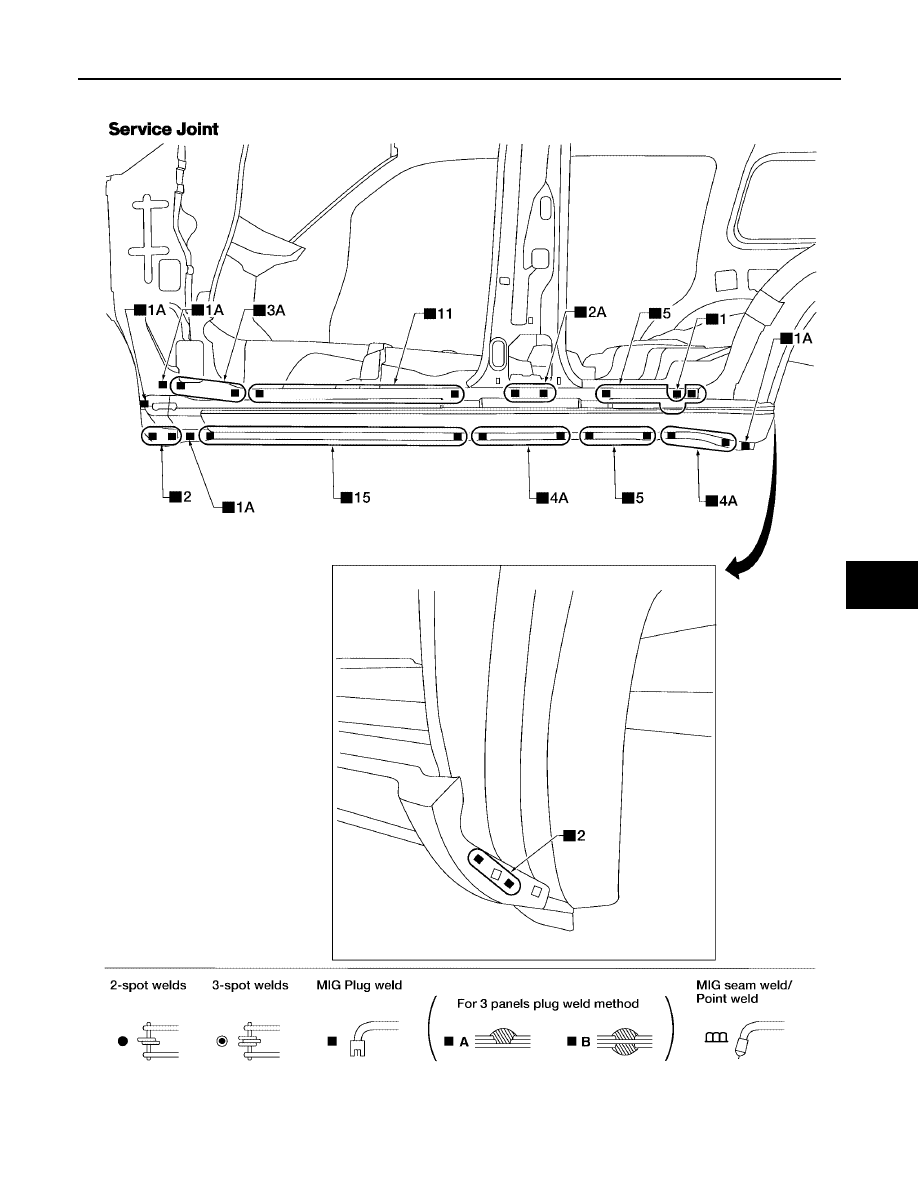

OUTER SILL

LIIA1813E

BL-170

BODY REPAIR

2006 Pathfinder

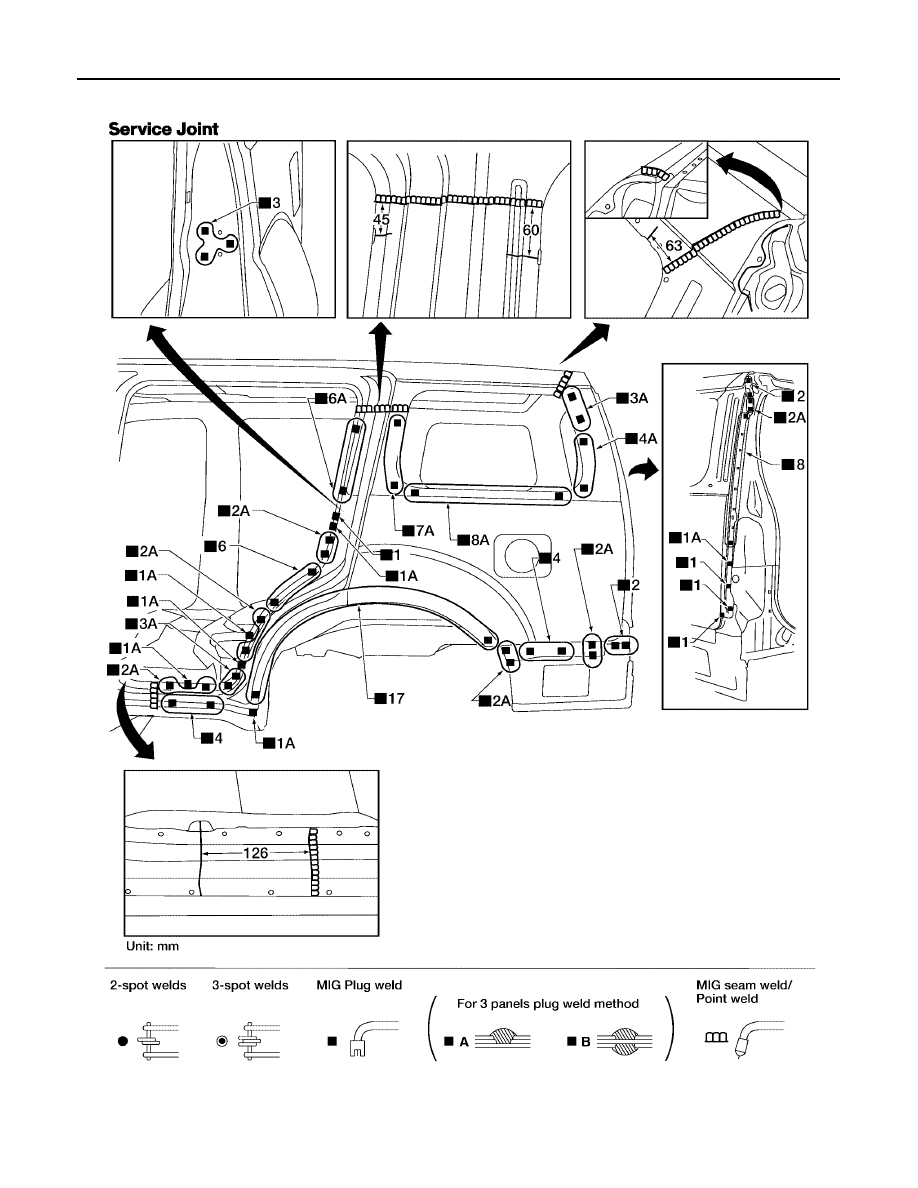

REAR FENDER

LIIA1814E

BODY REPAIR

BL-171

C

D

E

F

G

H

J

K

L

M

A

B

BL

2006 Pathfinder

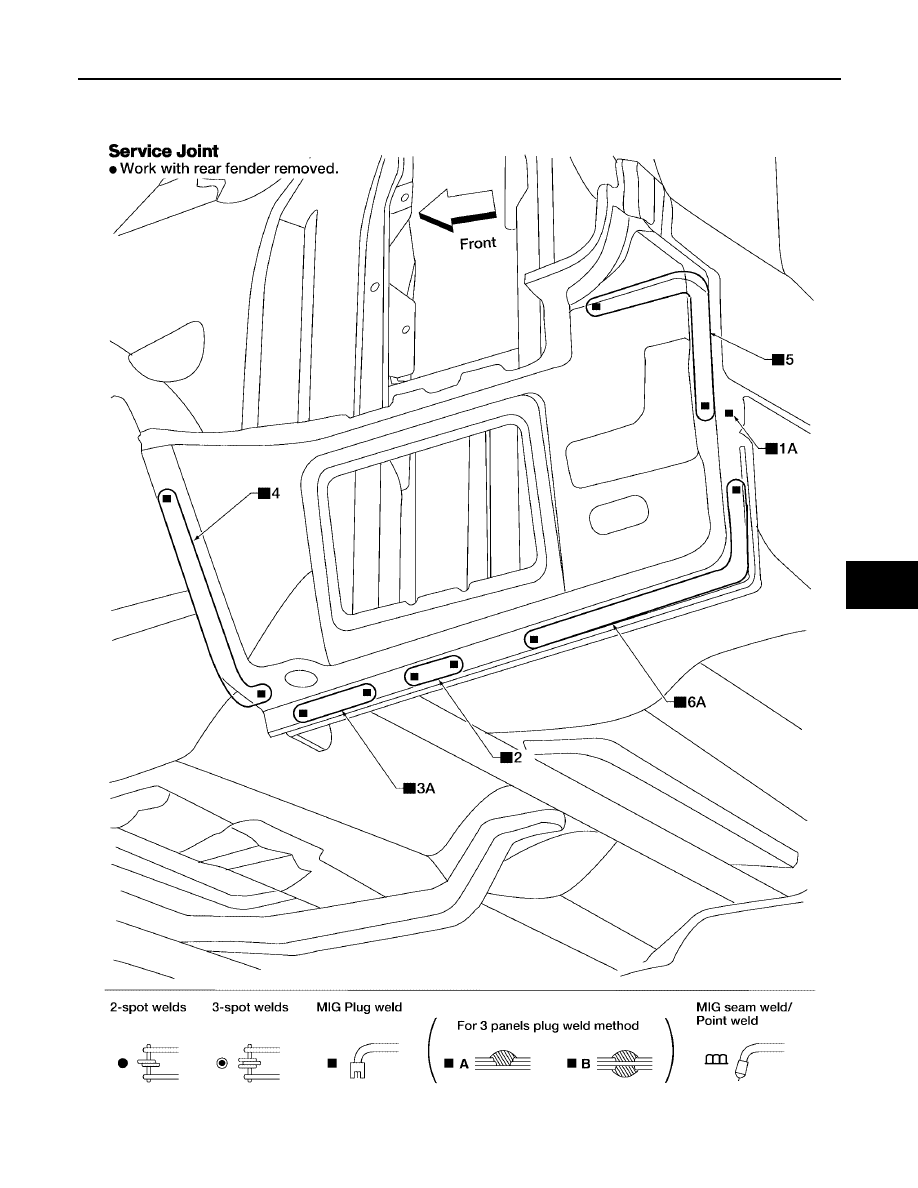

REAR FENDER EXTENSION
LH

LIIA1818E

BL-172

BODY REPAIR

2006 Pathfinder

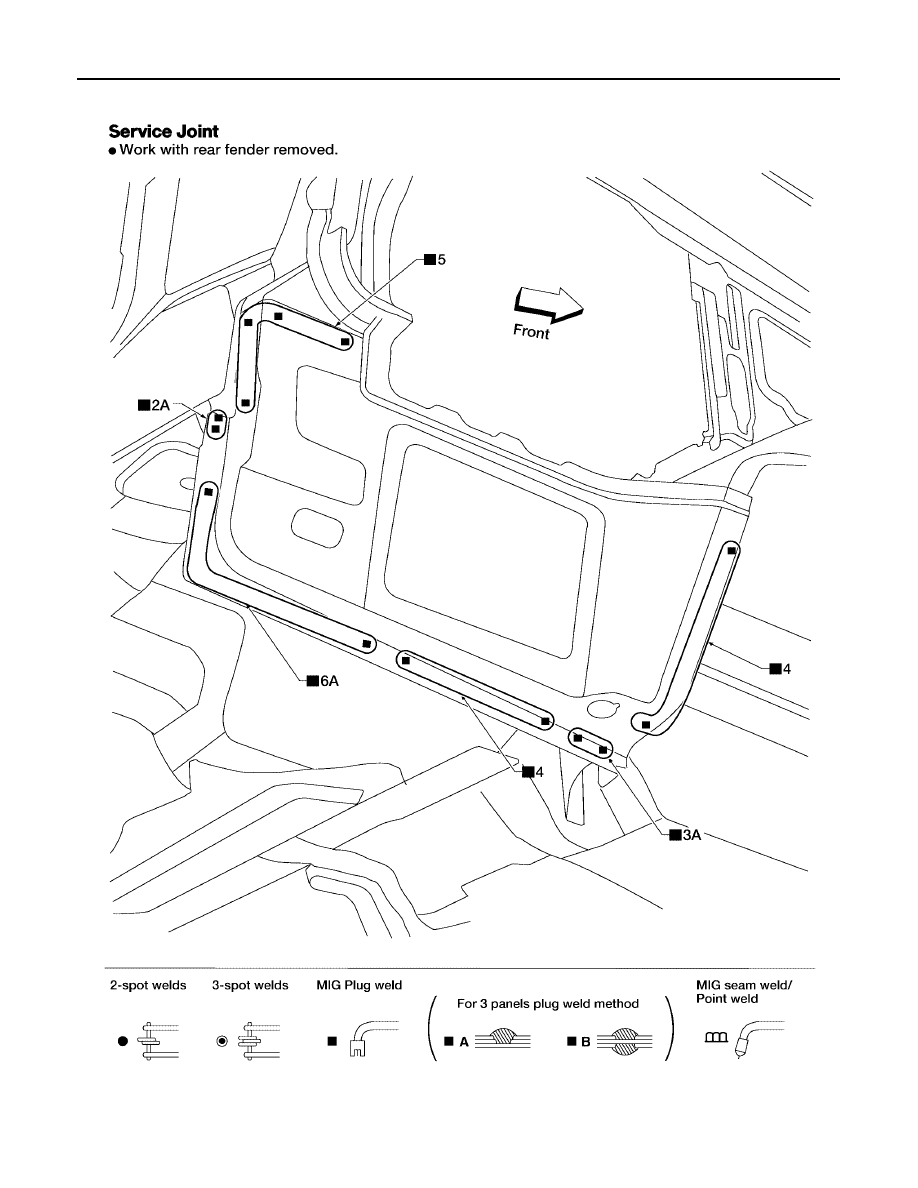

RH

LIIA1819E
