REFRIGERANT LINES
ATC-161
C
D
E
F
G
H
I
K
L
M
A
B
ATC
2006 Pathfinder
2.

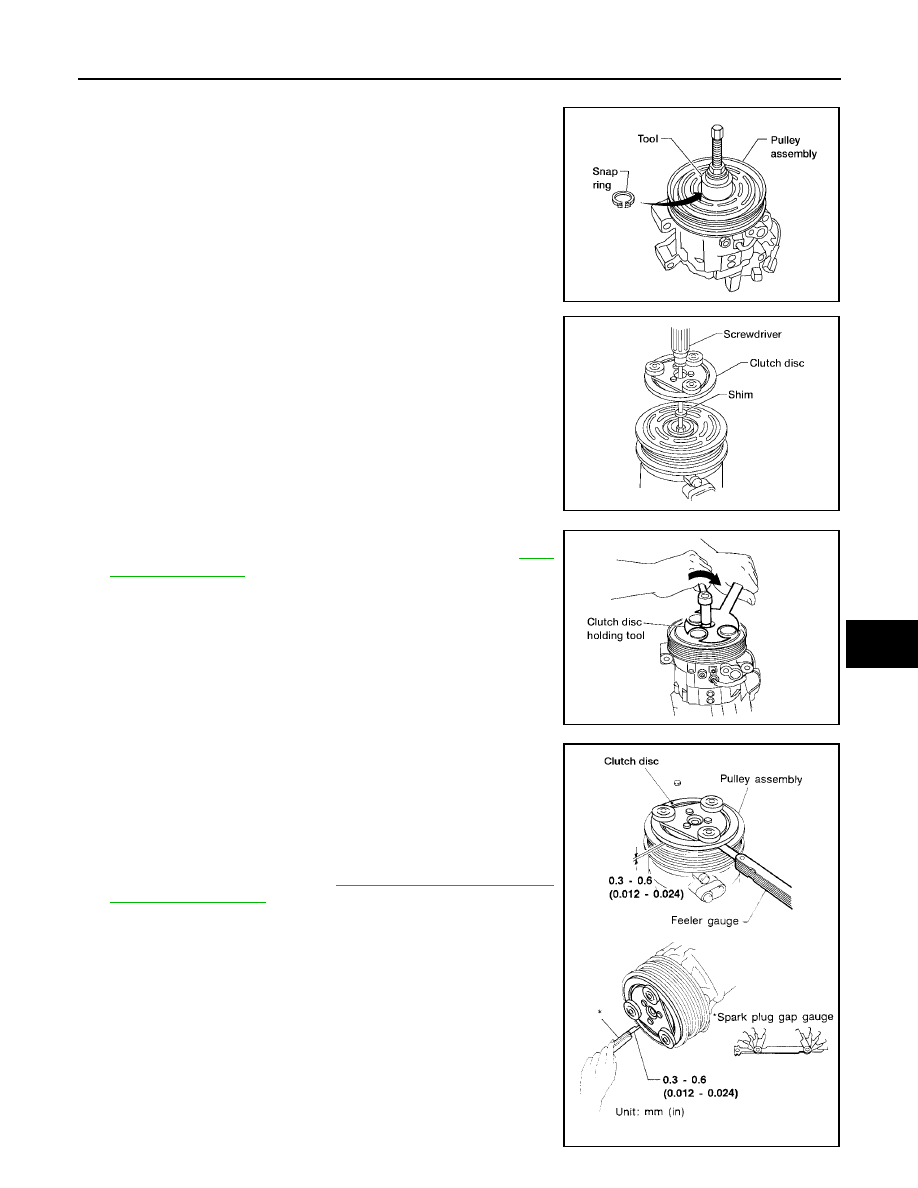

Install the magnet coil harness clip using a screwdriver.
3.
Install the pulley assembly using Tool and a wrench, then install
the snap ring using snap ring pliers.
4.
Install the clutch disc on the compressor shaft, together with the
original shim(s). Press the clutch disc down by hand.
5.
Install the clutch pulley bolt using Tool, to prevent the clutch disc
from turning and tighten the bolt to specification. Refer to
ATC-
156, "Components"
.
CAUTION:
After tightening the clutch pulley bolt, check that the clutch
pulley rotates smoothly.
6.
Check the pulley clearance all the way around the clutch disc as
shown.
7.
If the specified clearance is not obtained, replace the adjusting
spacer to readjust.
8.
Install the compressor. Refer to
ATC-158, "Removal and Instal-
lation for Compressor"
.
Tool number
:
—
(J-38873-A)
WJIA1016E
WHA184
Tool number
: J-44614
WHA229
Clutch disc-to-pulley clearance
: 0.3 - 0.6 mm
(0.012 - 0.024 in)
WHA194
