Nissan Pathfinder (2006 year). Manual - part 60





AIR MIX DOOR MOTOR

ATC-145

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

AIR MIX DOOR MOTOR

PFP:27732

Components

EJS004Q0

Air Mix Door Motors - Front Heater and Cooling Unit Assembly

Removal and Installation

EJS004Q1

FRONT AIR MIX DOOR MOTOR (DRIVER)
Removal

1.

Remove the instrument panel side finisher. Refer to

EI-27, "Components"

 .

2.

Remove the lower instrument panel RH. Refer to

IP-15, "LOWER INSTRUMENT PANEL RH AND

LOWER GLOVE BOX"

 .

3.

Disconnect the air mix door motor electrical connector.

4.

Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR (PASSENGER)
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the steering member from the front heater and cooling unit assembly.

3.

Disconnect the air mix door motor electrical connector.

4.

Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

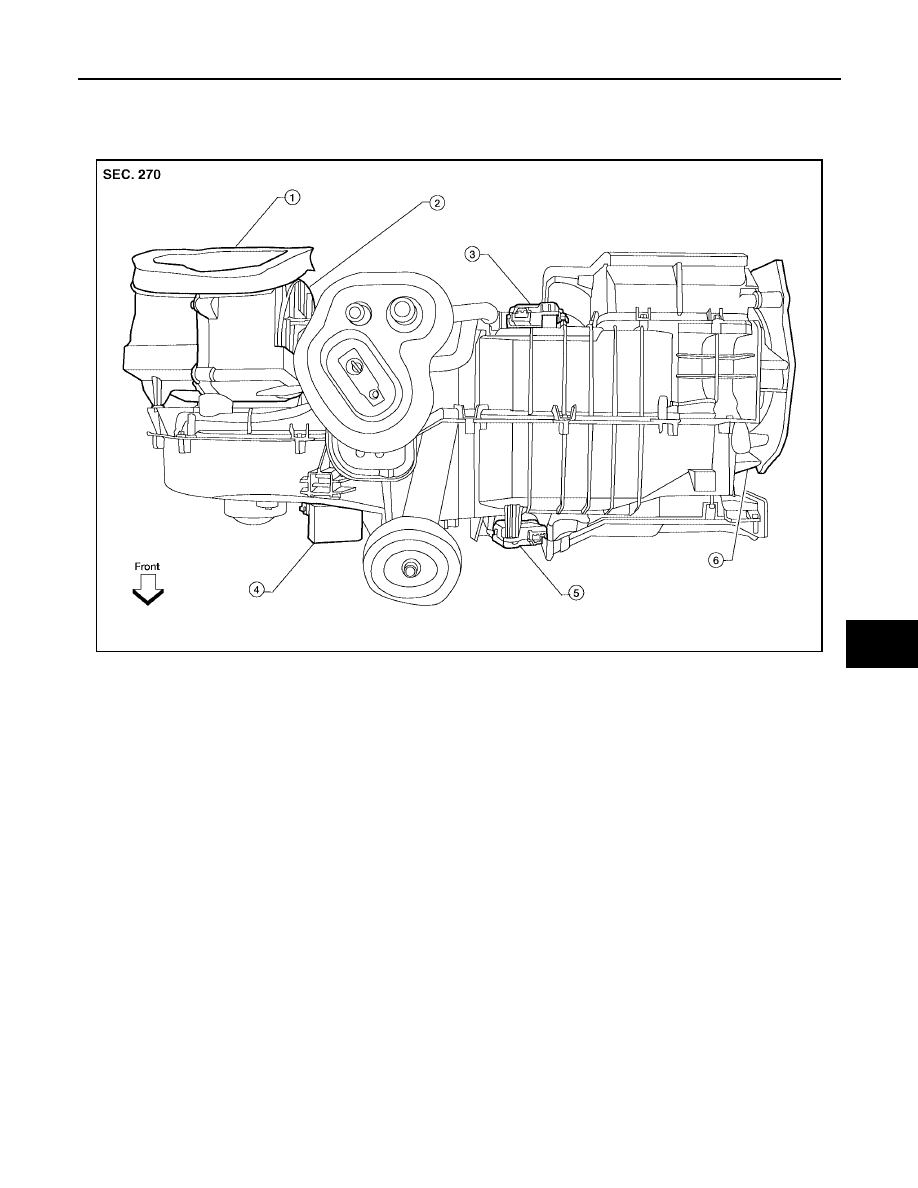

LBIA0415E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (passenger)

4.

Variable blower control

5.

Air mix door motor (driver)

6.

Mode door motor

ATC-146

AIR MIX DOOR MOTOR

2006 Pathfinder

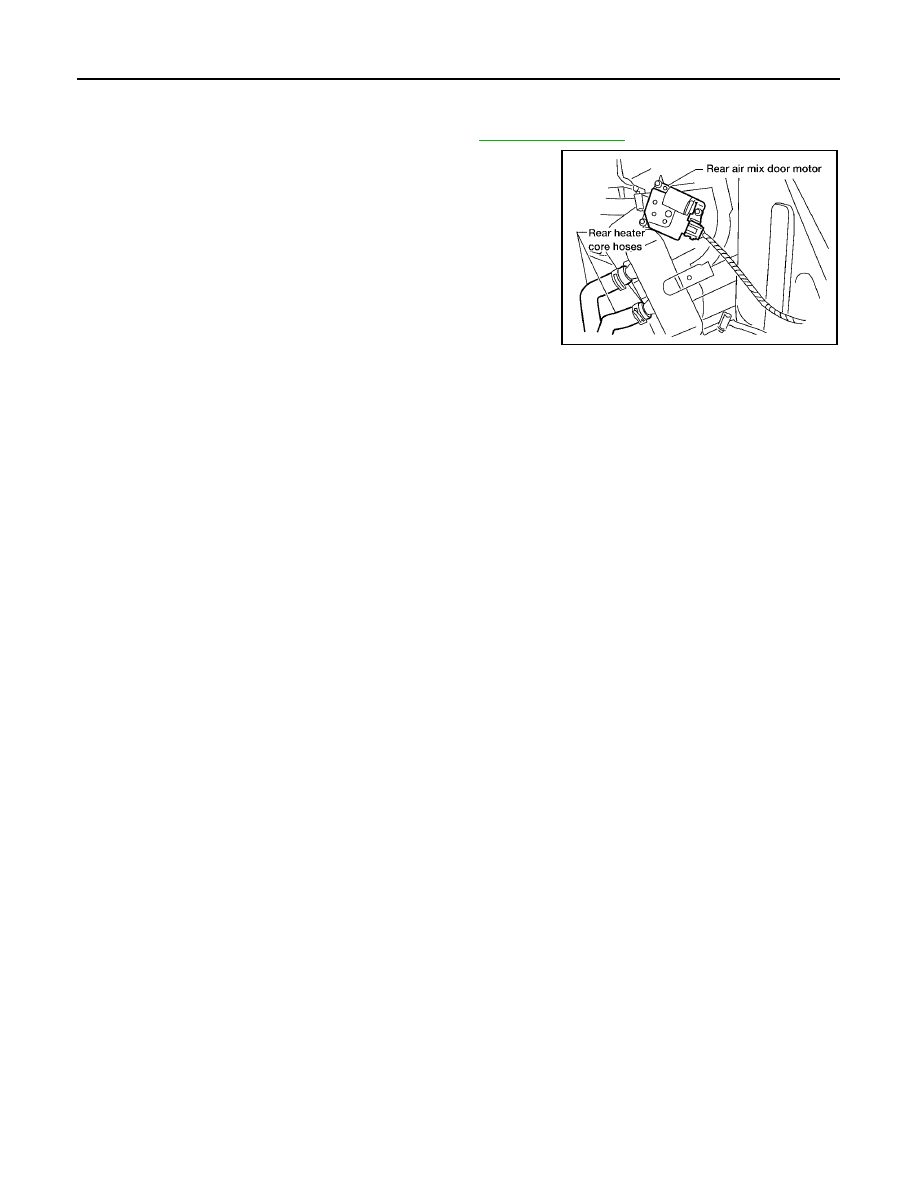

REAR AIR MIX DOOR MOTOR
Removal

1.

Remove the luggage side lower finisher RH. Refer to

EI-27, "Components"

 .

2.

Disconnect the rear air mix door motor electrical connector.

3.

Remove the three screws and remove the rear air mix door
motor.

Installation

Installation is in the reverse order of removal.

WJIA1134E

VARIABLE BLOWER CONTROL

ATC-147

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

VARIABLE BLOWER CONTROL

PFP:27200

Removal and Installation

EJS004Q2

Variable Blower Control - Front Heater and Cooling Unit Assembly

REMOVAL

1.

Disconnect the variable blower control electrical connector.

2.

Remove the two screws and remove the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

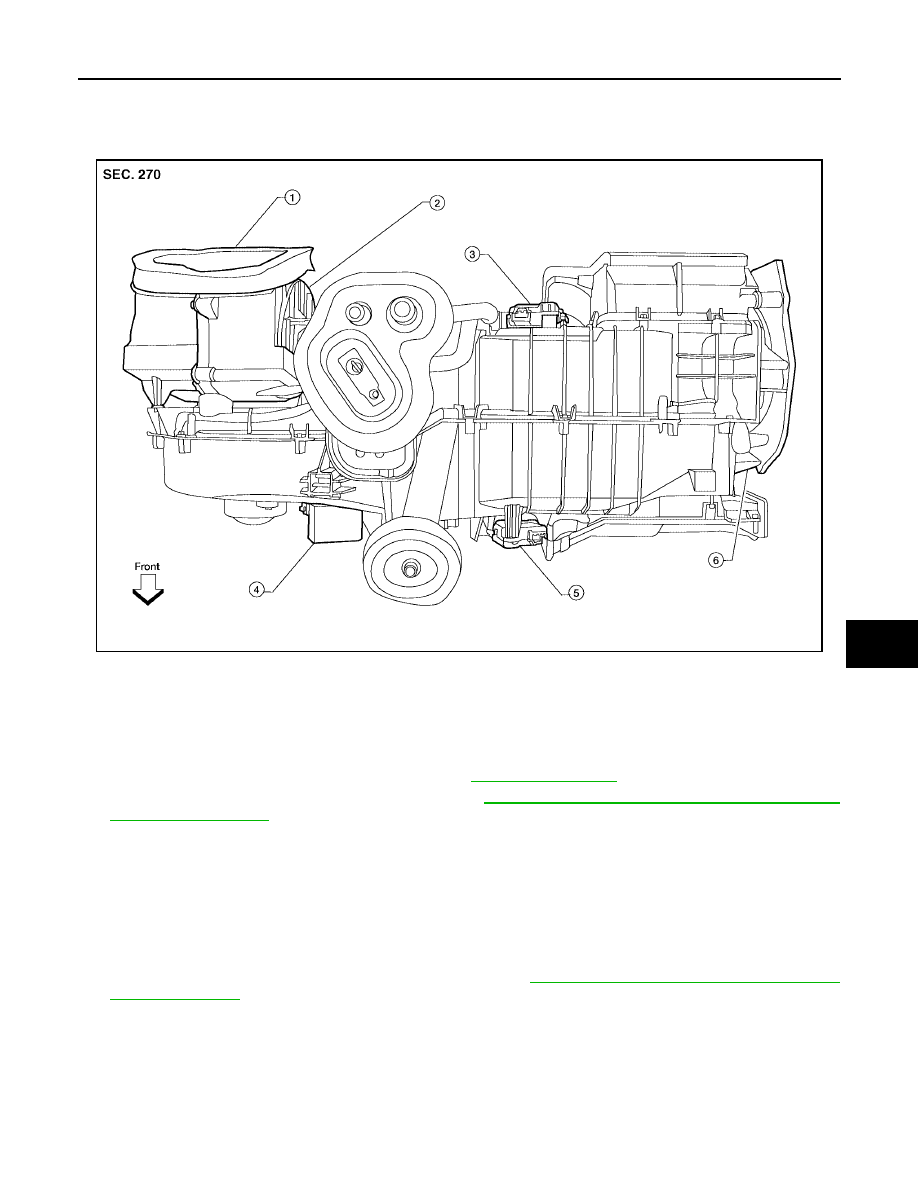

LBIA0415E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (passenger)

4.

Variable blower control

5.

Air mix door motor (driver)

6.

Mode door motor

ATC-148

REAR BLOWER MOTOR RESISTOR

2006 Pathfinder

REAR BLOWER MOTOR RESISTOR

PFP:27150

Removal and Installation

EJS004Q3

Rear Blower Motor Resistor

REMOVAL

1.

Remove the luggage side lower finisher RH. Refer to

EI-27, "Components"

 .

2.

Disconnect the rear blower motor resistor electrical connector.

3.

Remove the two screws and remove the rear blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

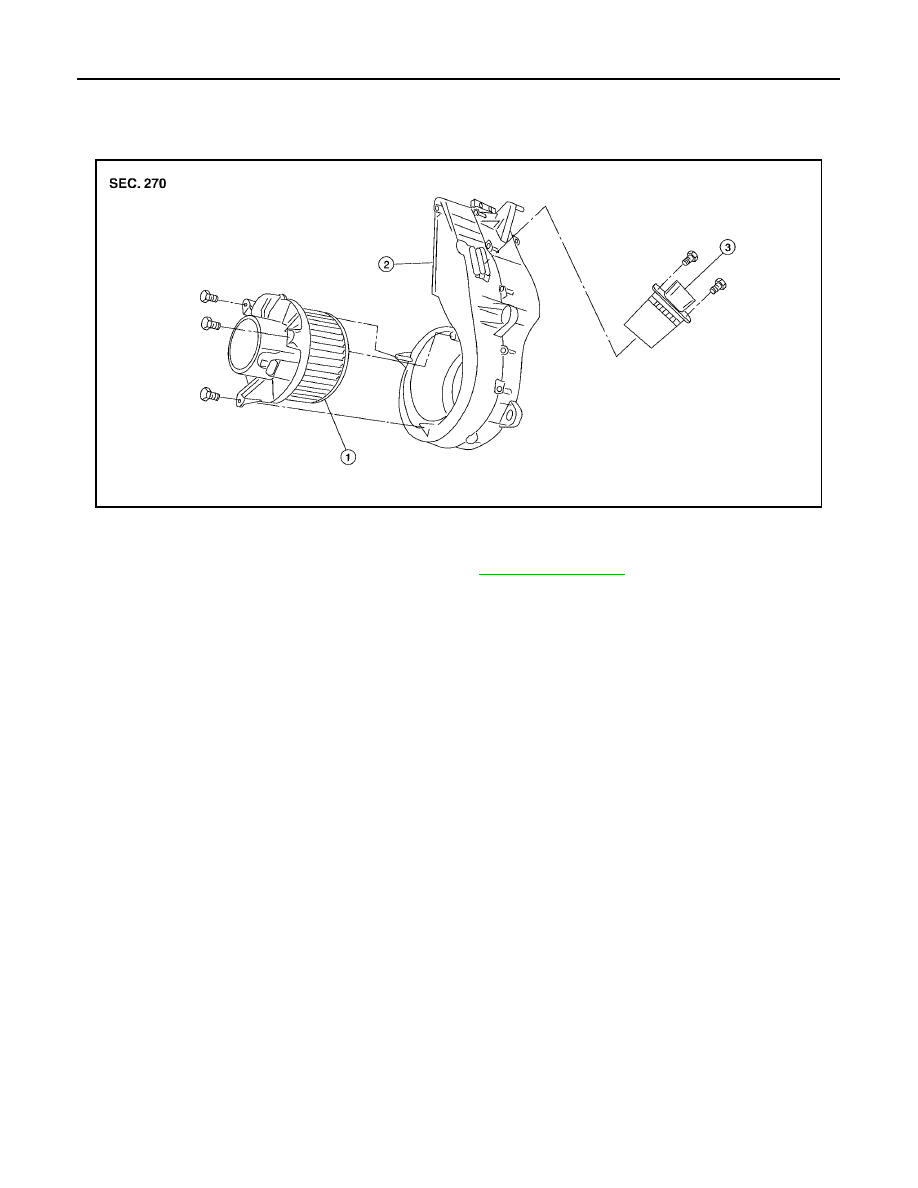

LJIA0055E

1.

Rear blower motor

2.

Rear blower motor case

3.

Rear blower motor resistor

DUCTS AND GRILLES

ATC-149

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

DUCTS AND GRILLES

PFP:27860

Components

EJS004Q4

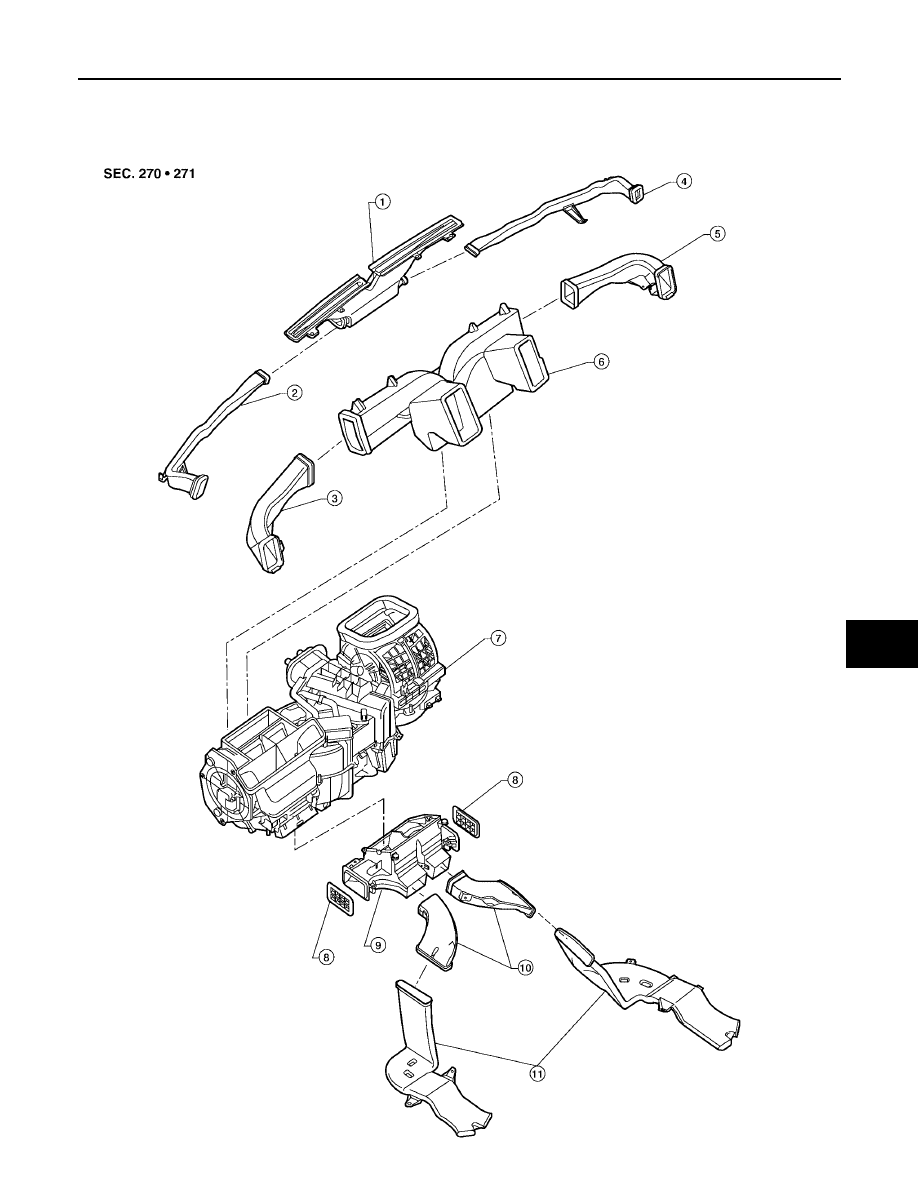

Ducts - Front Heater and Cooling Unit Assembly

WJIA1260E

ATC-150

DUCTS AND GRILLES

2006 Pathfinder

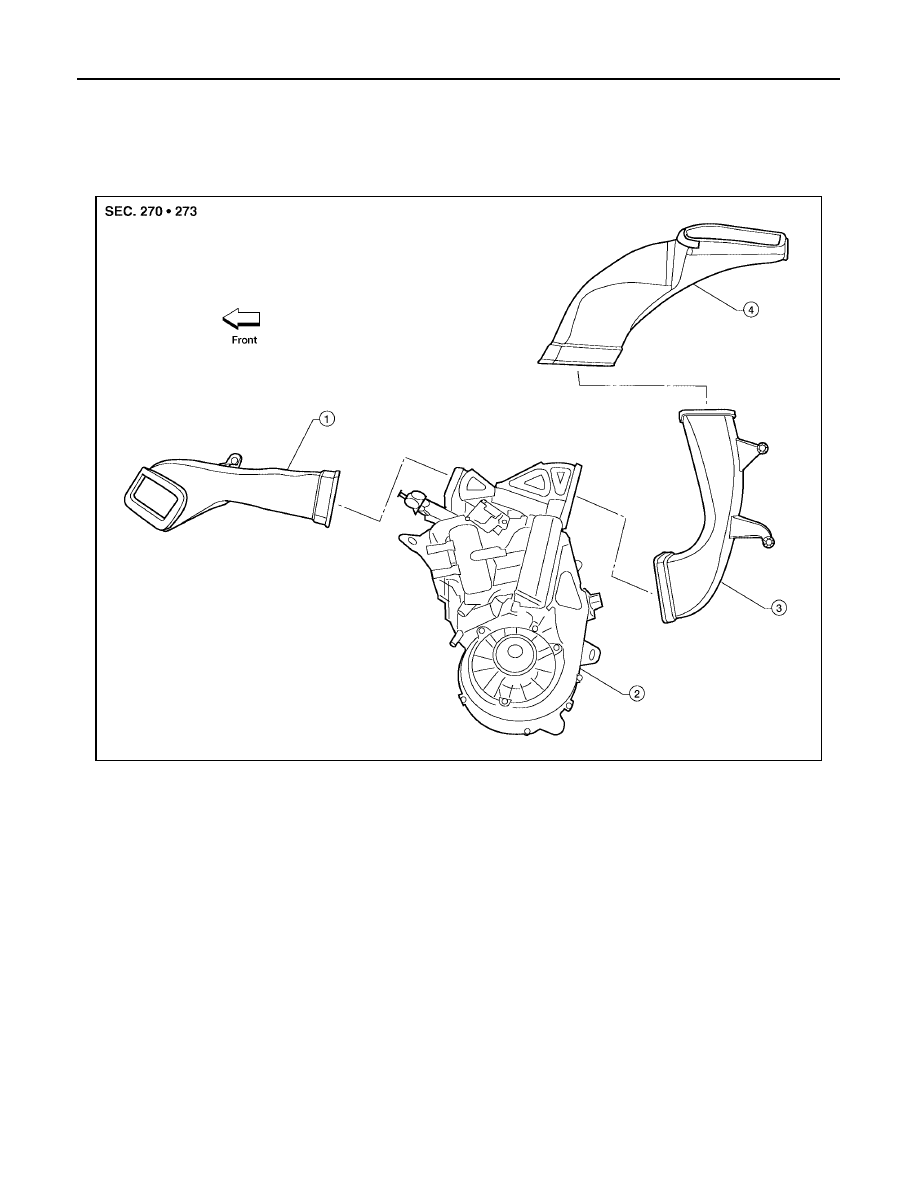

Ducts - Rear Heater and Cooling Unit Assembly

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct

7.

Front heater and cooling unit assembly

8.

Floor connector duct grilles

9.

Floor connector duct

10. Front floor ducts

11.

Rear floor ducts

LJIA0156E

1.

Side rear floor duct

2.

Rear heater and cooling unit assembly

3.

Rear lower overhead duct

4.

Rear upper overhead duct

DUCTS AND GRILLES

ATC-151

C

D

E

F

G

H

I

K

L

M

A

B

ATC

2006 Pathfinder

Grilles

Removal and Installation

EJS004Q5

DEFROSTER NOZZLE
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCT
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the center console. Refer to

IP-18, "Center Console"

 .

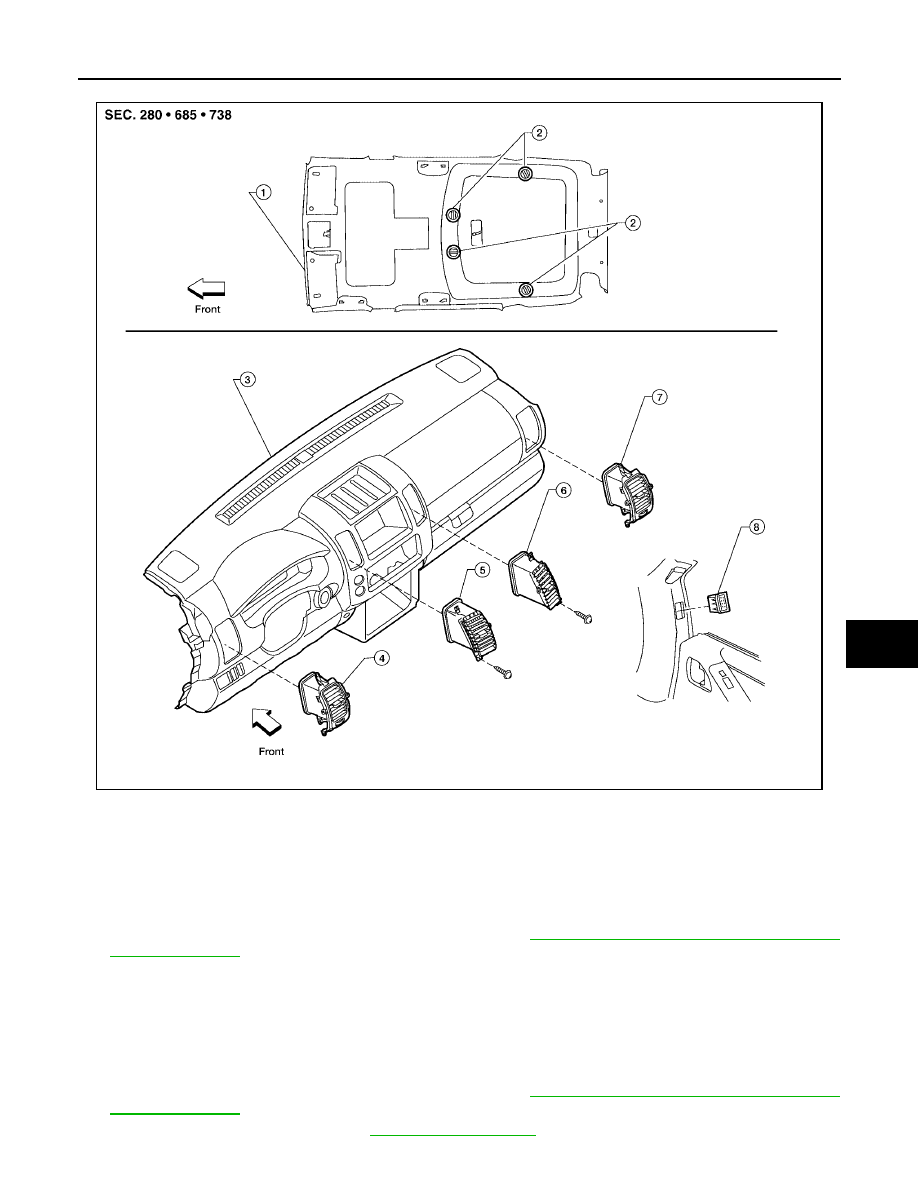

WJIA1404E

1.

Headliner

2.

Overhead grilles

3.

Instrument panel and pad assembly

4.

LH side ventilator grille

5.

LH ventilator grille

6.

RH ventilator grille

7.

RH side ventilator grille

8.

RH side demister grille

ATC-152

DUCTS AND GRILLES

2006 Pathfinder

3.

Remove the RH or LH side demister duct.

Installation

Installation is in the reverse order of removal.

RH AND LH VENTILATOR DUCT
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the center console. Refer to

IP-18, "Center Console"

 .

3.

Remove the RH or LH ventilator duct.

Installation

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the center console. Refer to

IP-18, "Center Console"

 .

3.

Remove the defroster nozzle.

4.

Remove the RH and LH ventilator ducts.

5.

Remove the RH and LH side demister ducts.

6.

Remove the center ventilator duct.

Installation

Installation is in the reverse order of removal.

FLOOR CONNECTOR DUCT
Removal

1.

Remove the front heater and cooling unit assembly. Refer to

ATC-137, "FRONT HEATER AND COOLING

UNIT ASSEMBLY"

 .

2.

Remove the center console. Refer to

IP-18, "Center Console"

 .

3.

Remove the floor connector duct.

Installation

Installation is in the reverse order of removal.

FRONT AND REAR FLOOR DUCTS
Removal

1.

Remove the center console. Refer to

IP-18, "Center Console"

 .

2.

Remove the floor carpet. Refer to

EI-29, "Removal and Installation"

 .

3.

Remove the clips and remove the front and rear floor ducts.

Installation

Installation is in the reverse order of removal.

REAR OVERHEAD DUCTS
Removal

1.

Remove the luggage side lower finisher RH. Refer to

EI-27, "Components"

 .

2.

Remove the headliner. Refer to

EI-30, "HEADLINING"

 .

NOTE:
The rear headliner duct (connected to the rear upper overhead duct) is part of the headliner and is
replaced as an assembly.

3.

Remove the clips and remove the rear upper and lower overhead ducts.

Installation

Installation is in the reverse order of removal.
