ASSEMBLY

AT-319

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

g.

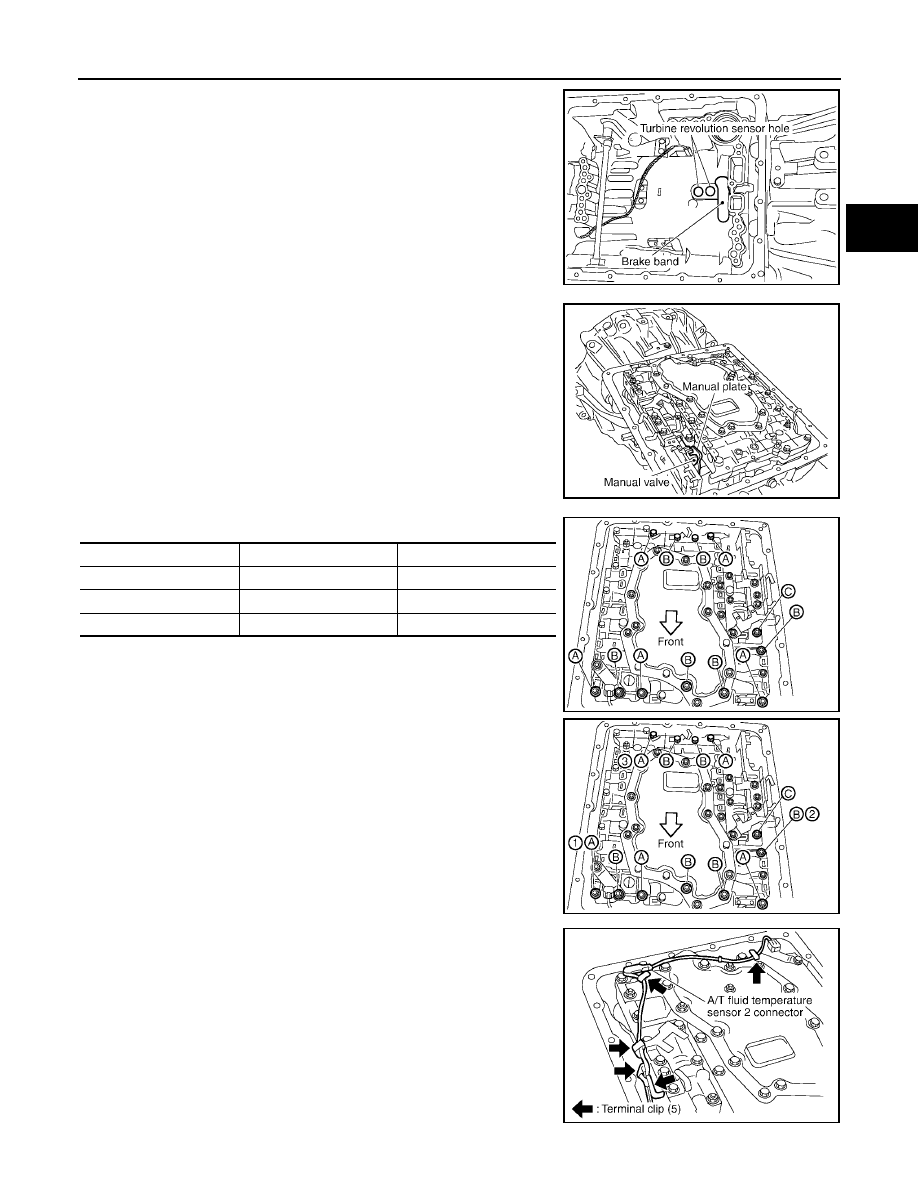

Install control valve with TCM in transmission case.

CAUTION:

●

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

●

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

●

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

●

Assemble it so that manual valve cutout is engaged with
manual plate projection.

h.

Install bolts A, B and C to control valve with TCM.

i.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

→

 2

→

 3), and then tighten other

bolts.

10. Connect A/T fluid temperature sensor 2 connector.

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

SCIA5034E

SCIA5035E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

Bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5025E

SCIA5037E

SCIA5446E

AT-320

ASSEMBLY

2006 Pathfinder

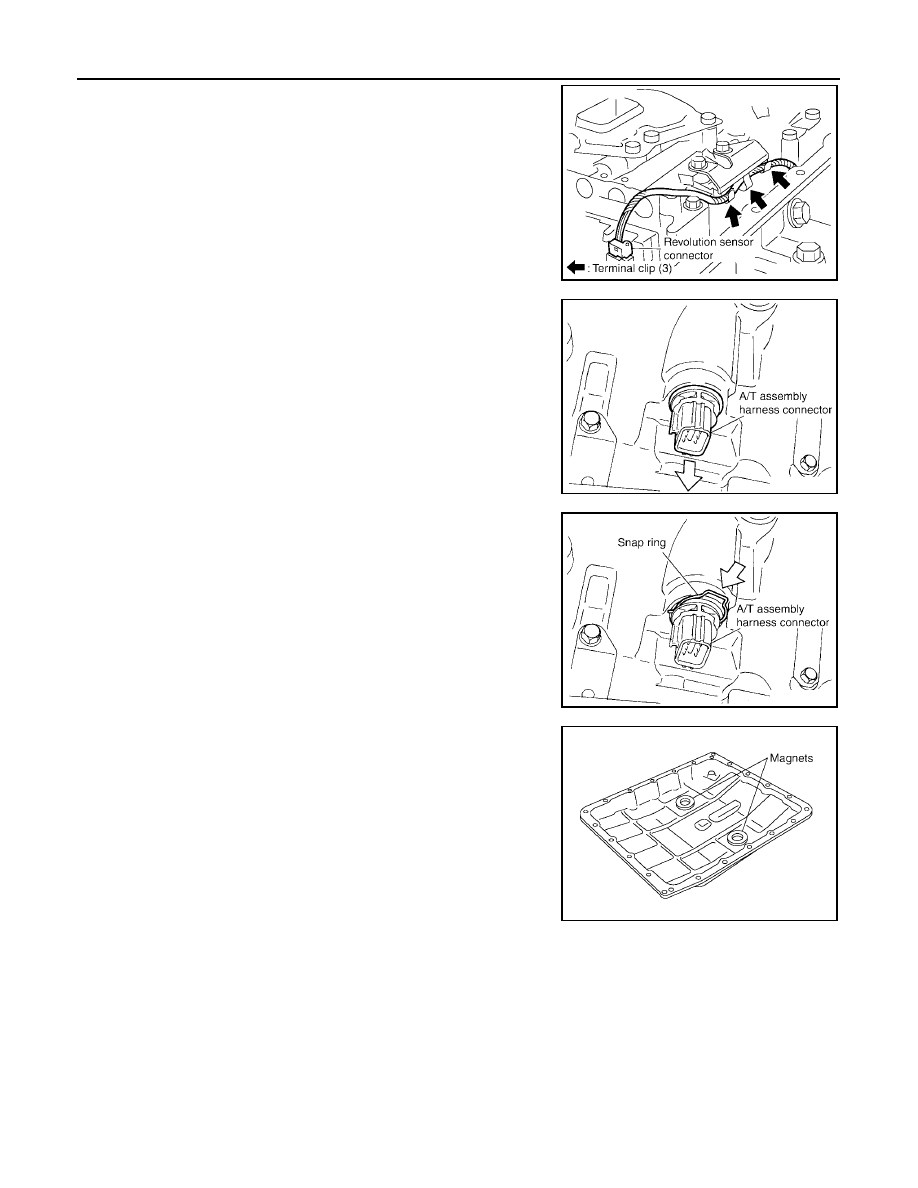

12. Connect revolution sensor connector.
13. Securely fasten revolution sensor harness with terminal clips.

14. Pull down A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

15. Install snap ring to A/T assembly harness connector.

16. Install magnets in oil pan.

17. Install oil pan to transmission case.

a.

Install oil pan gasket to transmission case.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Completely remove all moisture, oil, old gasket and any foreign material from oil pan gasket
mating surface.

SCIA7023E

SCIA5299E

SCIA5300E

SCIA5200E

ASSEMBLY

AT-321

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

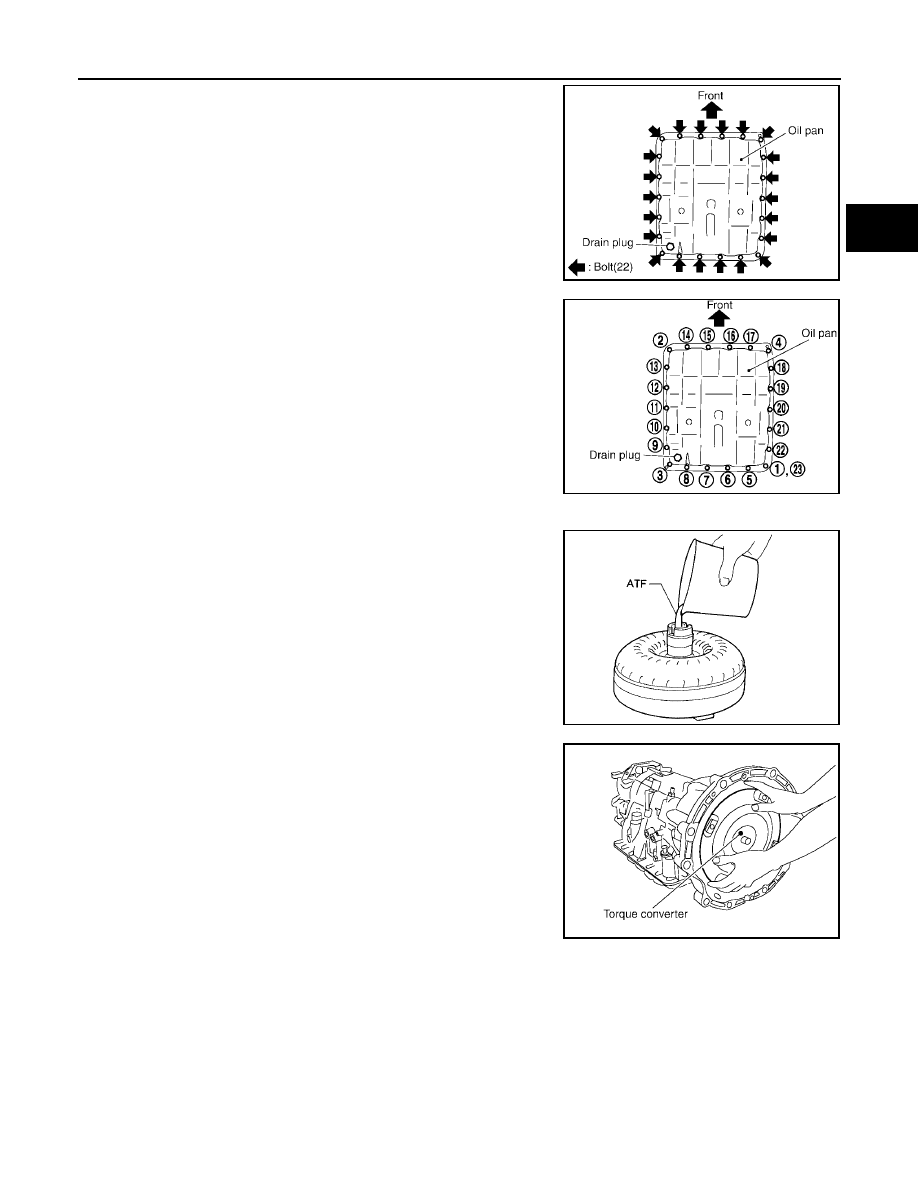

b.

Install oil pan to transmission case.

CAUTION:

●

Install it so that drain plug comes to the position as
shown.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil, old gasket and any
foreign material from oil pan gasket mating surface.

c.

Tighten oil pan bolts to the specified torque in numerical order
shown after temporarily tightening them.

CAUTION:

Do not reuse oil pan bolts.

18. Install drain plug to oil pan.

CAUTION:

Do not reuse drain plug gasket.

19. Install torque converter.

a.

Pour ATF into torque converter.

●

Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is
required for a new torque converter.

●

When reusing old torque converter, add the same amount
of fluid as was drained.

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA2308E

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

Drain plug

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

SAT428DA

SCIA5010E

AT-322

ASSEMBLY

2006 Pathfinder

c.

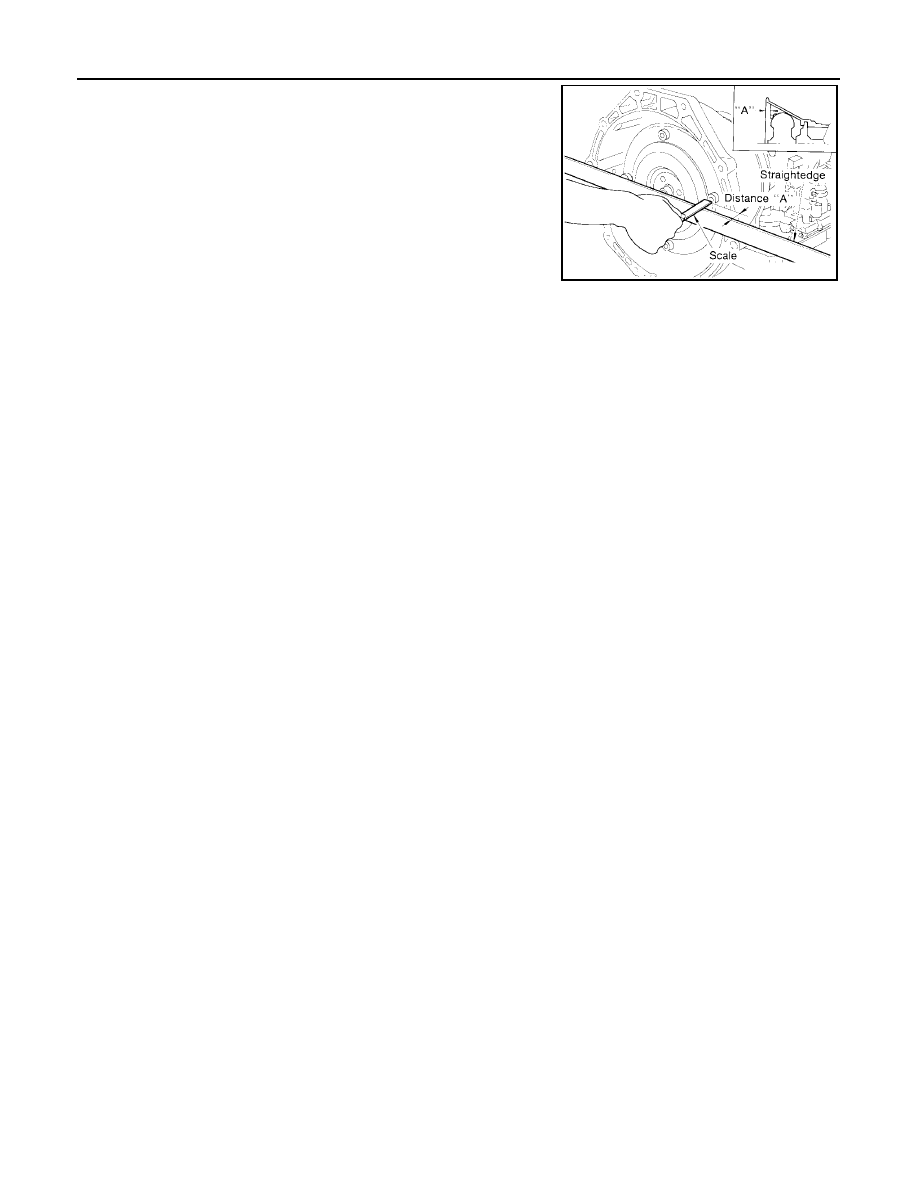

Measure distance “A” to make sure that torque converter is in
proper position.

Distance “A”:

25.0 mm (0.98 in) or more

SCIA5694E

SERVICE DATA AND SPECIFICATIONS (SDS)

AT-323

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

ECS00EMC

*1: Refer to

MA-11, "Fluids and Lubricants"

 .

Vehicle Speed at Which Gear Shifting Occurs

ECS00EMD

2WD MODELS

●

At half throttle, the accelerator opening is 4/8 of the full opening.

4WD MODELS

●

At half throttle, the accelerator opening is 4/8 of the full opening.

Applied model

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

97X4A

97X4B

Stall torque ratio

1.76: 1

Transmission gear ratio

1st

3.842

2nd

2.353

3rd

1.529

4th

1.000

5th

0.389

Reverse

2.765

Recommended fluid

NISSAN Matic Fluid J*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

CAUTION:

●

Use only Genuine NISSAN ATF Matic Fluid J. Do not mix with other fluid.

●

Using automatic transmission fluid other than Genuine NISSAN an ATF Matic Fluid J will deteriorate in driveability and
automatic transmission durability, and may damage the automatic transmission, which is not covered by the warranty.

Final
gear
ratio

Tire size

Throttle
position

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

3.133

P265/75R16

Full

throttle

60 - 74

(37 - 47)

99 - 119

(61 - 75)

153 - 183
(95 - 115)

234 - 267

(146 - 167)

230 - 264

(143 - 165)

142 - 171

(88 - 107)

87 - 104

(54 - 65)

41 - 48

(25 - 30)

Half

throttle

49 - 59

(30 - 37)

80 - 96

(50 - 60)

123 - 149

(76 - 94)

152 - 178
(95 - 112)

115 - 138

(71 - 87)

71 - 86

(44 - 54)

51 - 61

(31 - 39)

12 - 14

(7 - 9)

P245/75R16
P265/70R16
P265/65R17

Full

throttle

60 - 68

(37 - 43)

99 - 110

(61 - 69)

153 - 170

(95 - 107)

234 - 259

(146 - 162)

230 - 255

 (143 - 160)

142 - 158

(88 - 99)

87 - 97

(54 - 61)

41 - 47

(25 - 30)

Half

throttle

49 - 55

(30 - 35)

80 - 90

(50 - 57)

123 - 137

(76 - 86)

152 - 168

 (95 - 105)

115 - 128

(71 - 80)

71 - 79

(44 - 50)

51 - 57

(31 - 36)

12 - 14

(7 - 9)

Final
gear
ratio

Tire size

Throt-

tle posi-

tion

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

3.357

P245/75R16
P265/70R16
P265/65R17

Full

throttle

58 - 65

(36 - 41)

94 - 104

(58 - 65)

144 - 160

(90 - 100)

221 - 245

(138 - 154)

218 - 241

(136 - 151)

135 - 150

(84 - 94)

82 - 92

(51 - 58)

40 - 45

(25 - 29)

Half

throttle

46 - 52

(28 - 33)

76 - 84

(47 - 53)

117 - 130

(73 - 82)

143 - 159

(89 - 100)

109 - 121

(68 - 76)

67 - 75

(41 - 47)

48 - 54

(30 - 34)

12 - 14

(7 - 9)

P265/75R16

Full

throttle

60 - 68

(37 - 43)

99 - 110

(61 - 69)

153 - 170

(95 - 107)

234 - 259

(146 - 162)

230 - 255

 (143 - 160)

142 - 158

(88 - 99)

87 - 97

(54 - 61)

41 - 47

(25 - 30)

Half

throttle

49 - 55

(30 - 35)

80 - 90

(50 - 57)

123 - 137

(76 - 86)

152 - 168

 (95 - 105)

115 - 128

(71 - 80)

71 - 79

(44 - 50)

51 - 57

(31 - 36)

12 - 14

(7 - 9)

AT-324

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

Vehicle Speed at Which Lock-up Occurs/Releases

ECS00EME

2WD MODELS

●

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

●

At half throttle, the accelerator opening is 4/8 of the full opening.

4WD MODELS

●

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

●

At half throttle, the accelerator opening is 4/8 of the full opening.

Stall Speed

ECS00EMF

Line Pressure

ECS00EMG

A/T Fluid Temperature Sensor

ECS00EMH

Final

gear
ratio

Tire size

Throttle
position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

3.133

P265/75R16

Closed
throttle

78 - 93 (48 - 59)

68 - 82 (42 - 52)

Half throttle

188 - 218 (117 - 137)

147 - 175 (91 - 110)

P245/75R16
P265/70R16
P265/65R17

Closed
throttle

78 - 87 (48 - 55)

68 - 76 (42 - 48)

Half throttle

188 - 208 (117 - 130)

147 - 163 (91 - 102)

Final

gear
ratio

Tire size

Throttle
position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

3.357

P245/75R16
P265/70R16
P265/65R17

Closed
throttle

73 - 81 (45 - 51)

64 - 72 (40 - 45)

Half throttle

179 - 198 (111 - 124)

140 - 155 (87 - 97)

P265/75R16

Closed
throttle

78 - 87 (48 - 55)

68 - 76 (42 - 48)

Half throttle

188 - 208 (117 - 130)

147 - 163 (91 - 102)

Stall speed

2,200 - 2,500 rpm

Engine speed

Line pressure [kPa (kg/cm

2

 , psi)]

“R” position

“D” position

At idle speed

392 - 441 (4.0 - 4.5, 57 - 64)

373 - 422 (3.8 - 4.3, 54 - 61)

At stall speed

1,700 - 1,890 (17.3 - 19.3, 247 - 274)

1,310 - 1,500 (13.3 - 15.3, 190 - 218)

Name

Condition

CONSULT-II “DATA MONITOR” (Approx.) (V)

Resistance (Approx.) (k

Ω

)

A/T fluid temperature sensor 1

0

°

C (32

°

F)

3.3

15

20

°

C (68

°

F)

2.7

6.5

80

°

C (176

°

F)

0.9

0.9

A/T fluid temperature sensor 2

0

°

C (32

°

F)

3.3

10

20

°

C (68

°

F)

2.5

4

80

°

C (176

°

F)

0.7

0.5

SERVICE DATA AND SPECIFICATIONS (SDS)

AT-325

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

Turbine Revolution Sensor

ECS00EMI

Vehicle Speed Sensor A/T (Revolution Sensor)

ECS00EMJ

Reverse brake

ECS00EMK

*: Always check with the Parts Department for the latest parts information.

Total End Play

ECS00EML

BEARING RACE FOR ADJUSTING TOTAL END PLAY

*: Always check with the Parts Department for the latest parts information.

Name

Condition

Data

(Approx.)

Turbine revolution
sensor 1

When running at 50 km/h (31 MPH) in 4th speed with the closed throttle position switch “OFF”.

 1.3 (kHz)

Turbine revolution
sensor 2

When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle position switch “OFF”.

Name

Condition

Data (Approx.)

Revolution sensor

When moving at 20 km/h (12 MPH).

185 (Hz)

Thickness of retaining plates

Thickness

mm (in)

Part number*

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

31667 90X14
31667 90X15
31667 90X16
31667 90X17
31667 90X18
31667 90X19

Total end play

mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

Thickness

mm (in)

Part number*

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

31435 95X00
31435 95X01
31435 95X02
31435 95X03
31435 95X04
31435 95X05

AT-326
