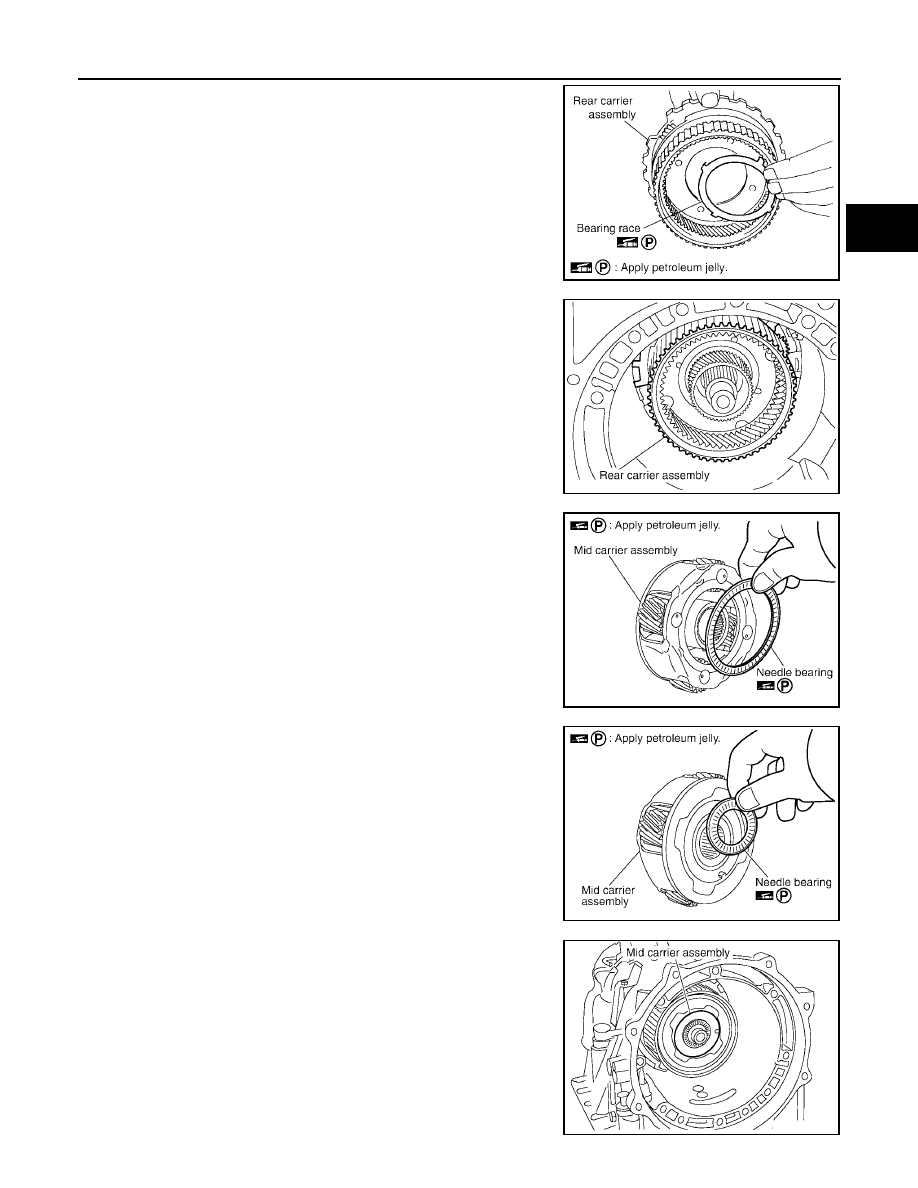

40. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

41. Install rear carrier assembly in direct clutch drum.

42. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

43. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install mid carrier assembly in rear carrier assembly.

SCIA5175E

SCIA2462E

SCIA2804E

SCIA2805E

SCIA5017E

AT-312

ASSEMBLY

2006 Pathfinder

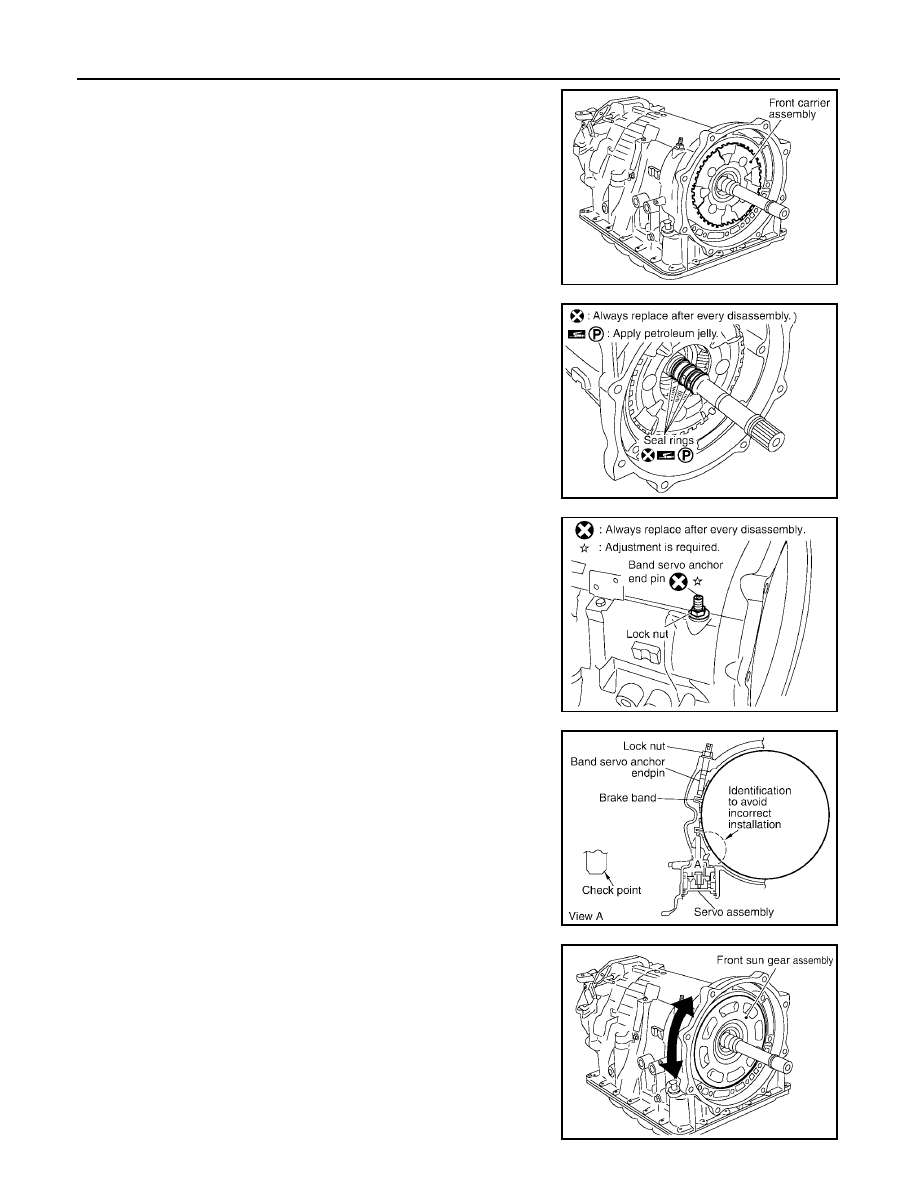

45. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

46. Install seal rings in input clutch assembly.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

47. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

48. Install brake band in transmission case.

CAUTION:

Assemble it so that identification to avoid incorrect installa-
tion faces servo side.

49. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.

SCIA5015E

SCIA2470E

SCIA6512E

SCIA5498E

SCIA5014E

ASSEMBLY

AT-313

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

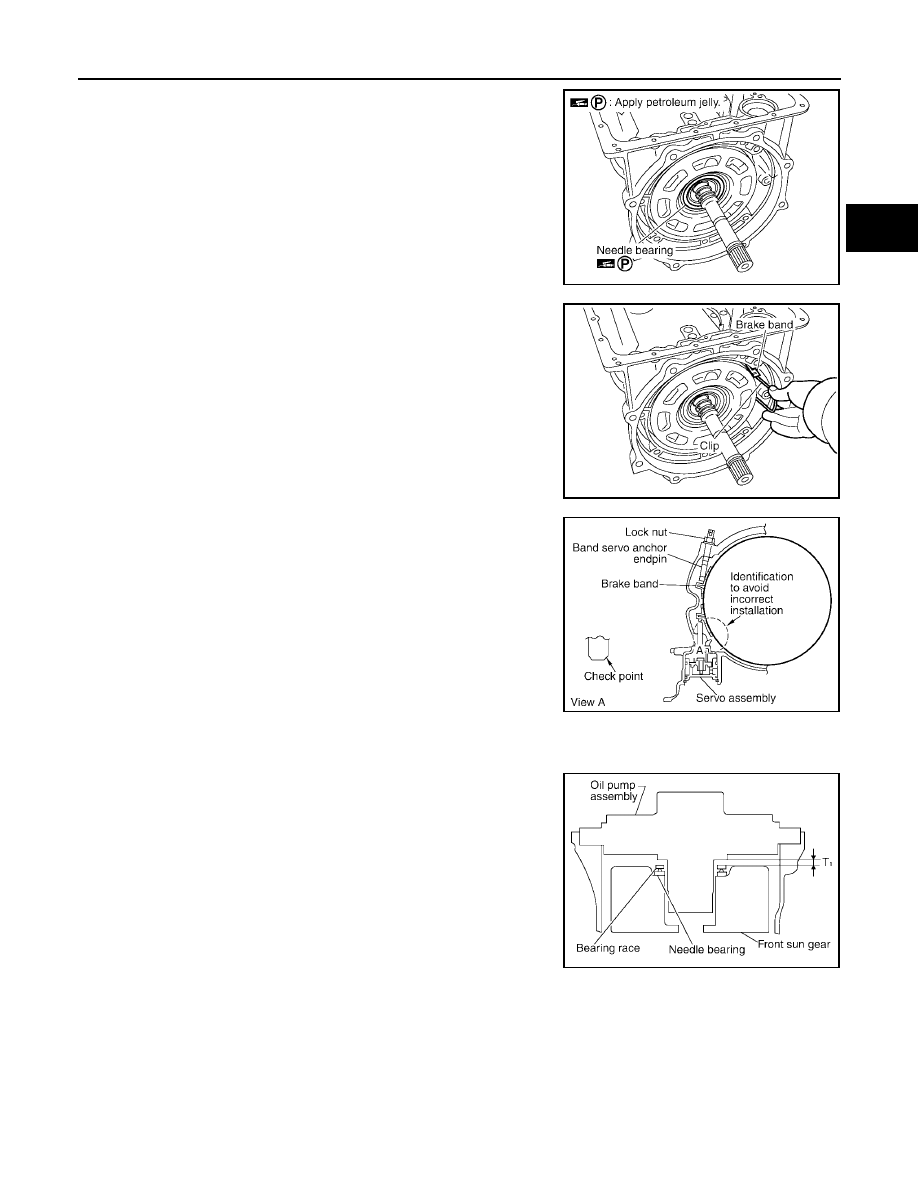

50. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

51. Adjust brake band tilting using a clips so that brake band con-

tacts front sun gear drum evenly.

52. Adjust brake band.

a.

Loosen lock nut.

b.

Tighten band servo anchor end pin to specified torque.

c.

Back of band servo anchor end pin three turns.

d.

Holding band servo anchor end pin, tighten lock nut to specified
torque.

Adjustment

ECS00EMA

TOTAL END PLAY

●

Measure clearance between front sun gear and bearing race for
oil pump cover.

●

Select proper thickness of bearing race so that end play is within
specifications.

SCIA2808E

SCIA5033E

Anchor end pin

: 5.0 N·m (0.51 kg-m, 44 in-lb)

Lock nut

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

SCIA2810E

AT-314

ASSEMBLY

2006 Pathfinder

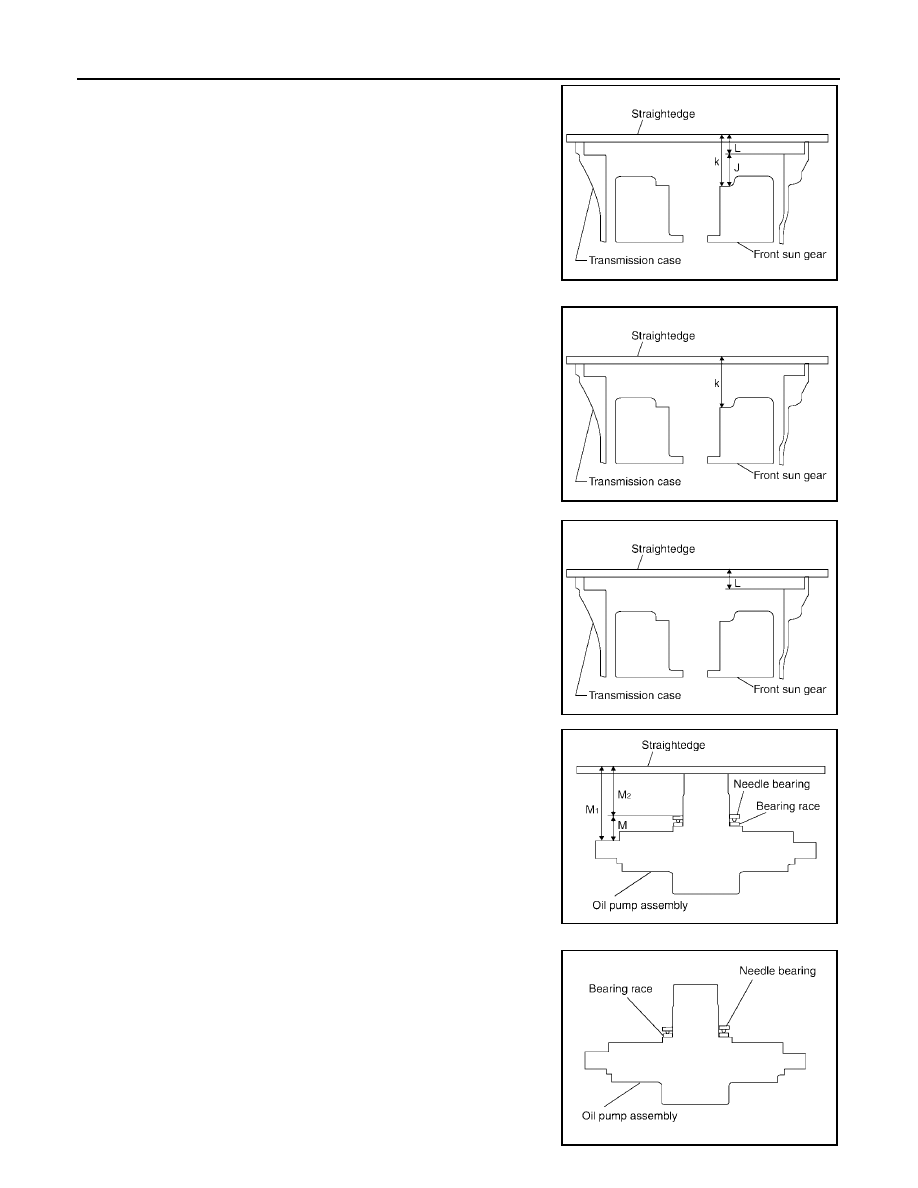

1.

Measure dimensions “K” and “L” and then calculate dimension
“J”.

a.

Measure dimension “K”.

b.

Measure dimension “L”.

c.

Calculate dimension “J”.

2.

Measure dimensions “M

1

 ” and “M

2

 ” and then calculate dimen-

sion “M”.

a.

Place bearing race and needle bearing on oil pump assembly.

SCIA5350E

SCIA5351E

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

ASSEMBLY

AT-315

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

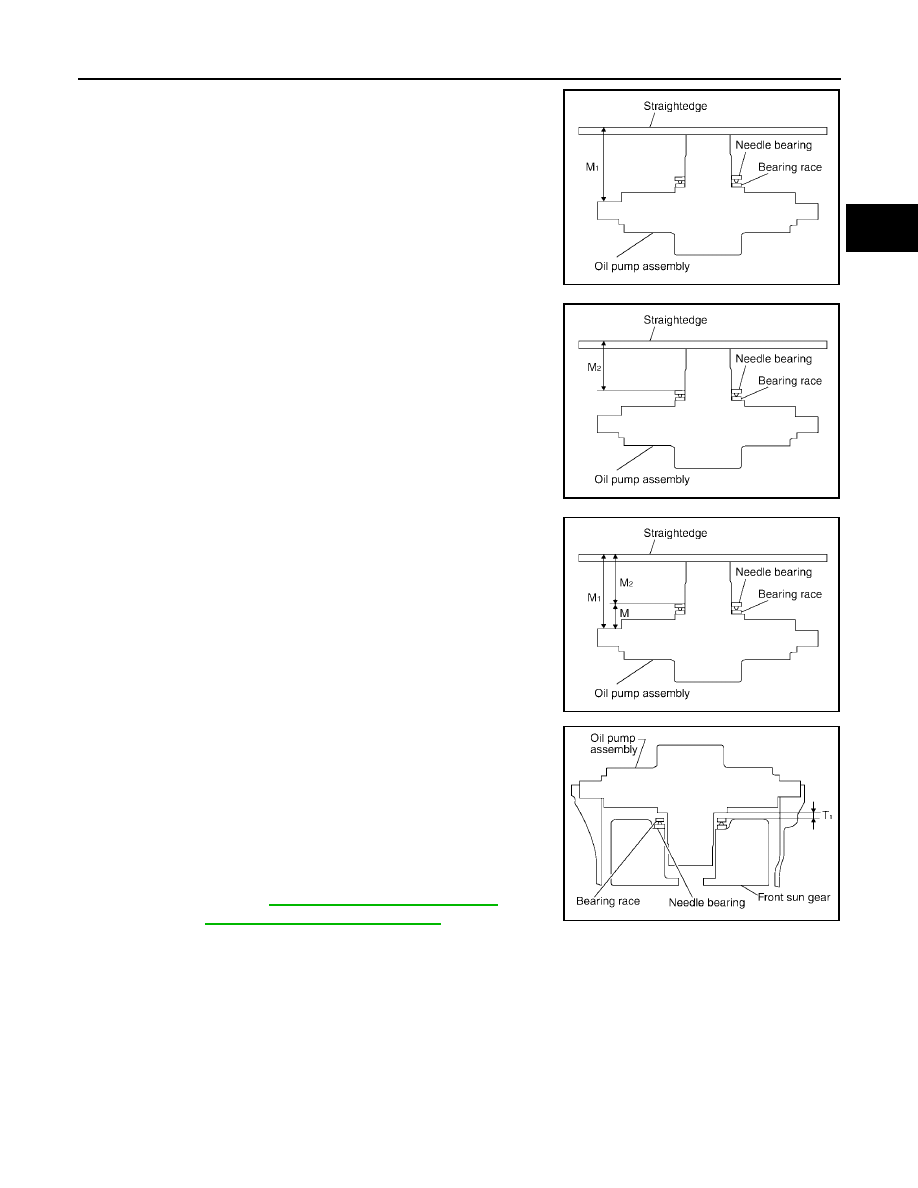

b.

Measure dimension “M

1

 ”.

c.

Measure dimension “M

2

 ”.

d.

Calculate dimension “M”.

3.

Adjust total end play “T

1

 ”.

●

Select proper thickness of bearing race so that total end play
is within specifications.

SCIA3126E

SCIA3127E

“M”: Distance between transmission case fitting sur-
face of oil pump and needle bearing on oil pump.

M = M

1

  – M

2

SCIA3125E

T

1

  = J – M

Total end play “T

1

 ”:

0.25 - 0.55 mm (0.0098 - 0.0217 in)

Bearing races:

Refer to

AT-325, "BEARING RACE FOR

ADJUSTING TOTAL END PLAY"

 .

SCIA2810E

AT-316

ASSEMBLY

2006 Pathfinder

Assembly (2)

ECS00EMB

1.

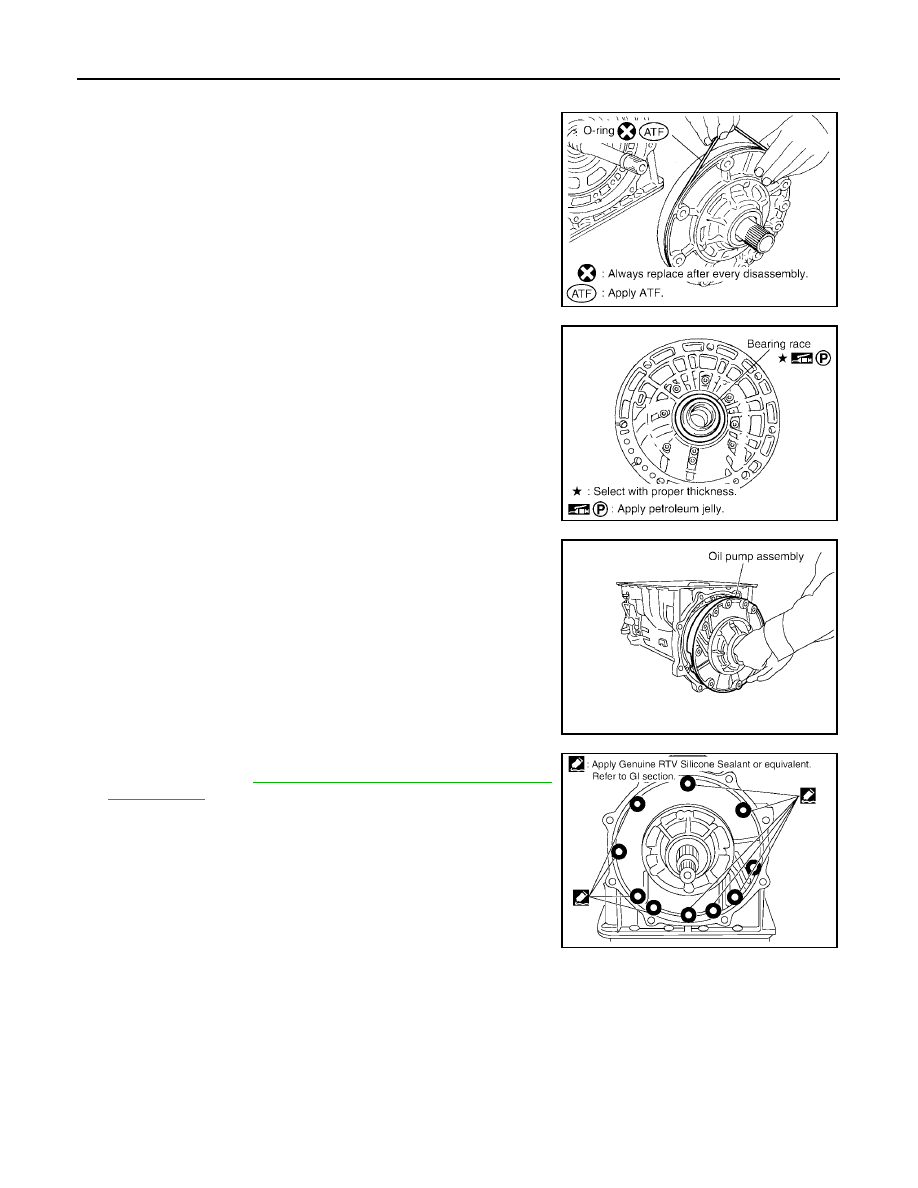

Install O-ring to oil pump assembly.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

2.

Install bearing race to oil pump assembly.

CAUTION:

Apply petroleum jelly to bearing race.

3.

Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump baring.

4.

Apply recommended sealant (Genuine RTV Silicone Sealant or
equivalent. Refer to

GI-47, "Recommended Chemical Products

and Sealants"

 .) to oil pump assembly as shown.

CAUTION:

Completely remove all moisture, oil, old sealant and any
foreign material from the oil pump bolts and oil pump bolt
mating surfaces.

SCIA5172E

SCIA6529E

SCIA2811E

SCIA5321E

ASSEMBLY

AT-317

D

E

F

G

H

I

J

K

L

M

A

B

AT

2006 Pathfinder

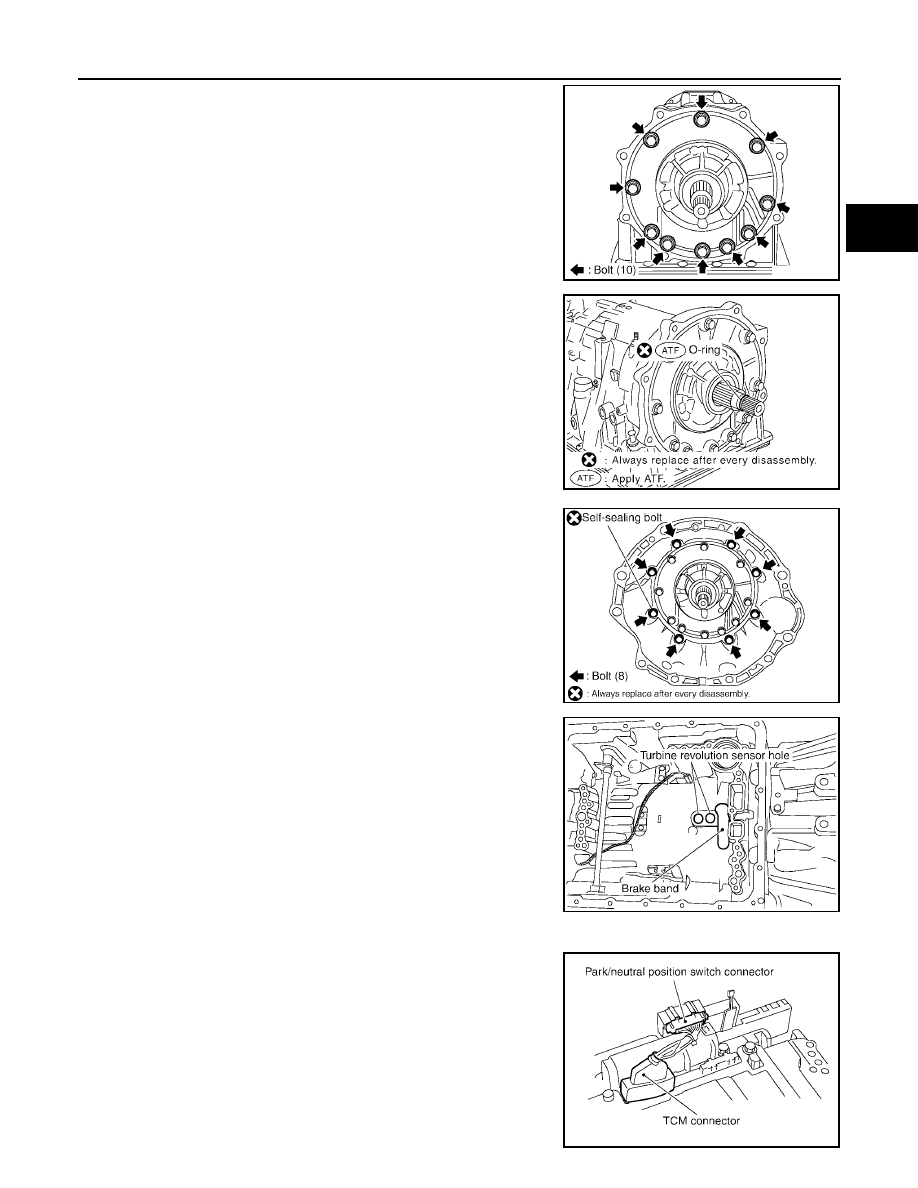

5.

Tighten oil pump bolts to specified torque.

CAUTION:

Apply ATF to oil pump bushing.

6.

Install O-ring to input clutch assembly.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

7.

Install converter housing to transmission case and tighten bolts
to specified torque.

CAUTION:

Do not reuse self-sealing bolt.

8.

Make sure that brake band does not close turbine revolution
sensor hole.

9.

Install control valve with TCM.

a.

Connect TCM connector and park/neutral position switch con-
nector.

Oil pump bolts

: 48 N·m (4.9 kg-m, 35 ft-lb)

SCIA2300E

SCIA5011E

Converter housing bolt:

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA4634E

SCIA5034E

SCIA5449E

AT-318

ASSEMBLY

2006 Pathfinder

b.

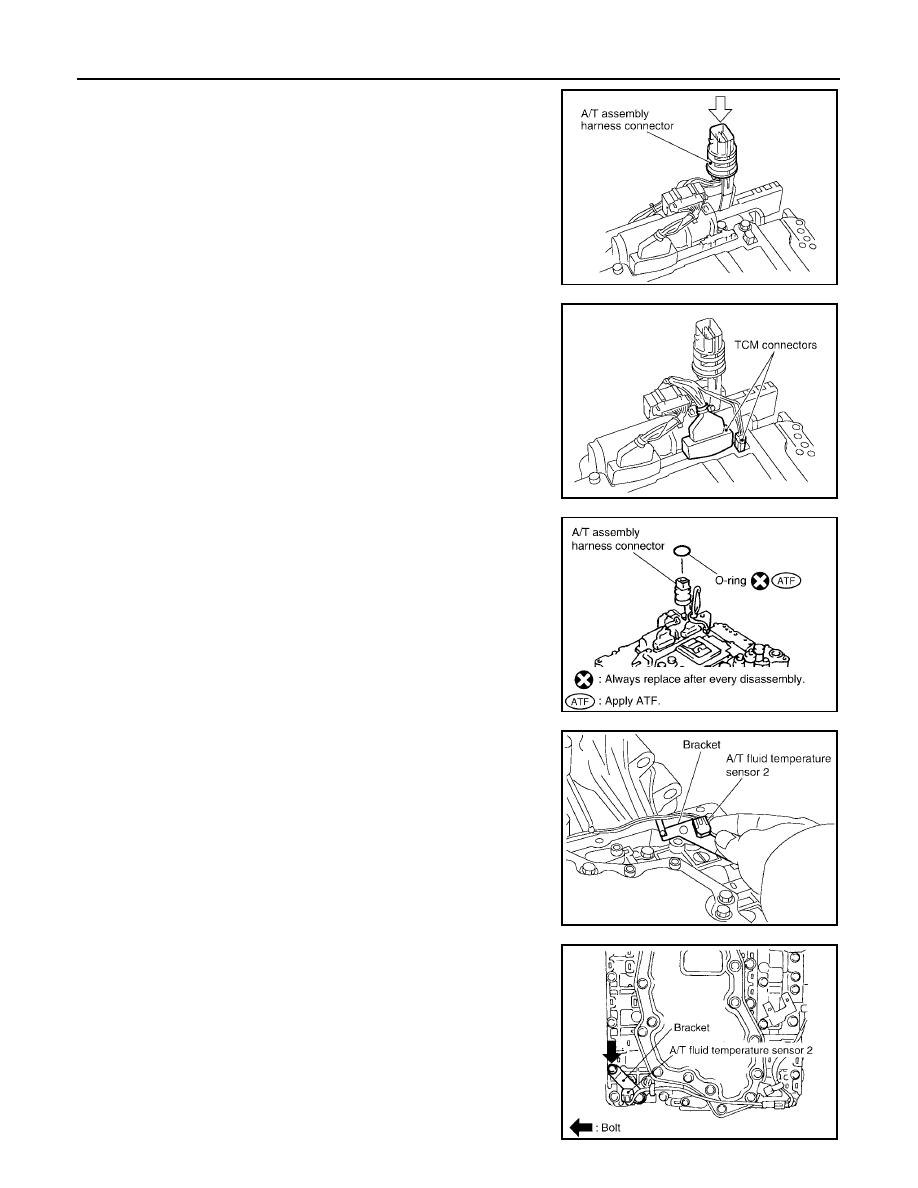

Install A/T assembly harness connector to control valve with
TCM.

c.

Connect TCM connectors.

d.

Install O-ring to A/T assembly harness connector.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

e.

Install A/T fluid temperature sensor 2 to bracket.

f.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM and tighten bolt to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

SCIA5450E

SCIA5447E

SCIA5155E

SCIA5264E

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)
