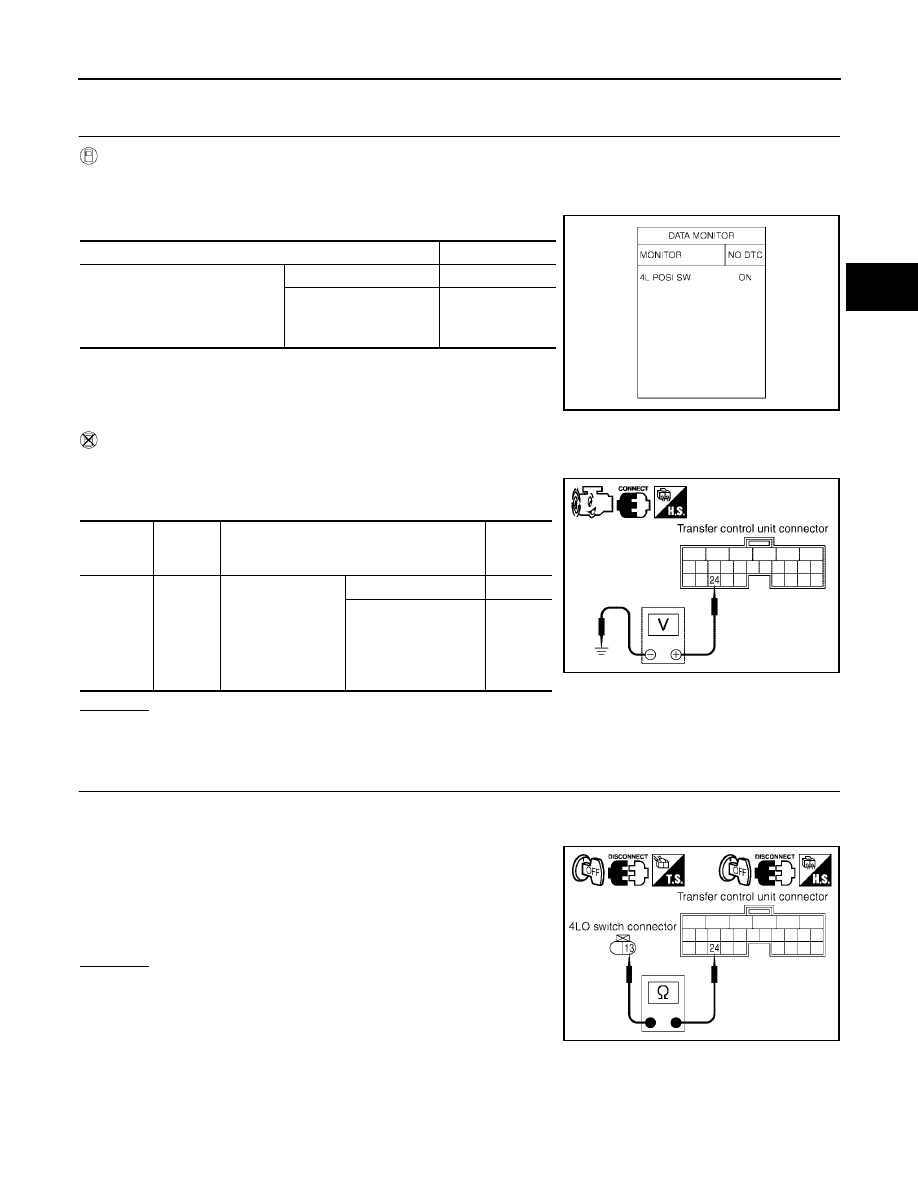

TROUBLE DIAGNOSIS FOR SYSTEM

TF-227

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

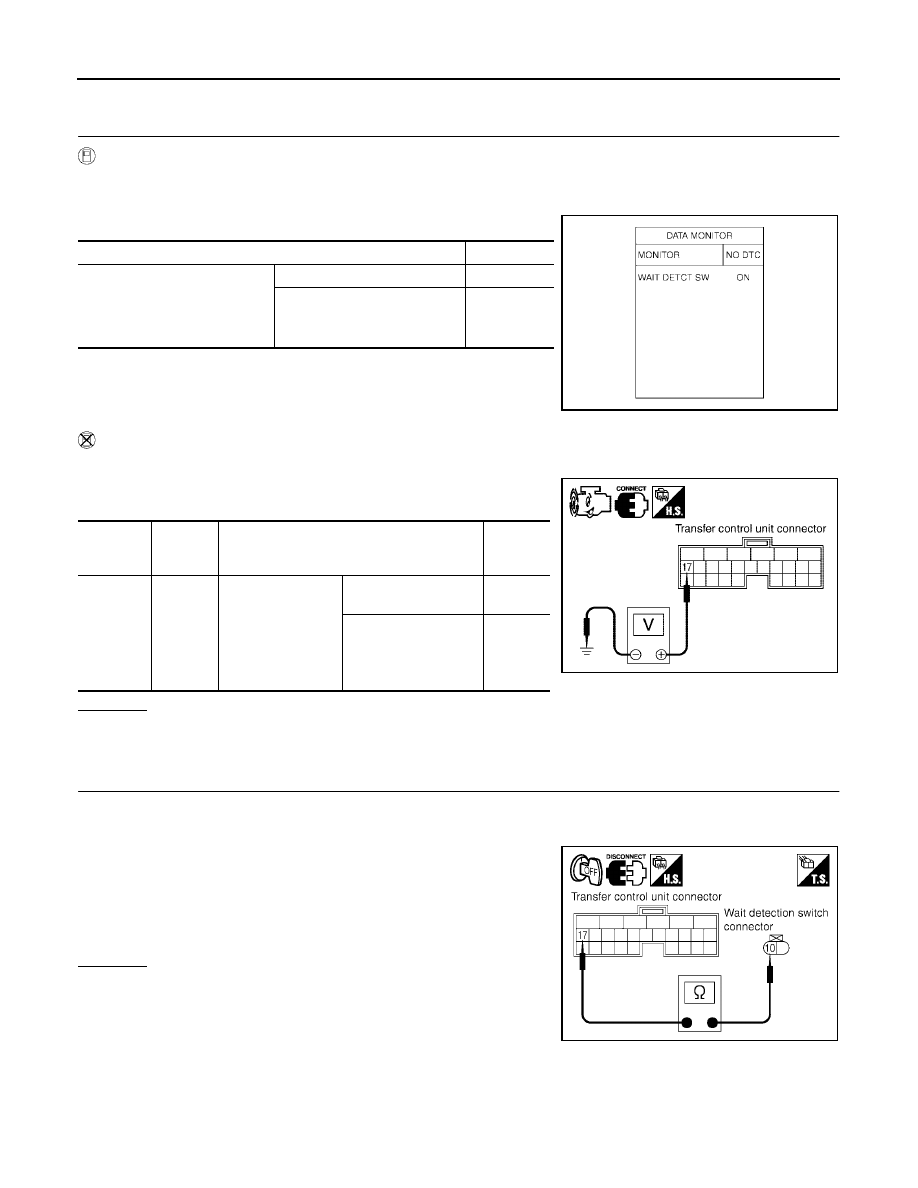

DIAGNOSTIC PROCEDURE

1.

CHECK 4LO POSITION SWITCH SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.

3.

Read out the value of “4L POSI SW”.

Without CONSULT-II

1.

Start engine.

2.

Check voltage between transfer control unit harness connector
terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND 4LO SWITCH

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the 4LO switch harness connector.

3.

Check continuity between transfer control unit harness connec-
tor M152 terminal 24 and 4LO switch harness connector F60
terminal 13.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

Condition

Display value

Vehicle stopped

Engine running

A/T selector lever “N” position

Brake pedal depressed

4WD shift switch: 4LO

ON

Except the above

OFF

PDIA0220E

Connector

Terminal

(Wire

color)

Condition

Voltage

(Approx.)

E142

24 -

Ground

Vehicle stopped

Engine running

A/T selector lever
“N” position

Brake pedal
depressed

4WD shift switch: 4LO

0V

Except the above

Battery
voltage

PDIA0201E

Continuity should exist.

PDIA0202E

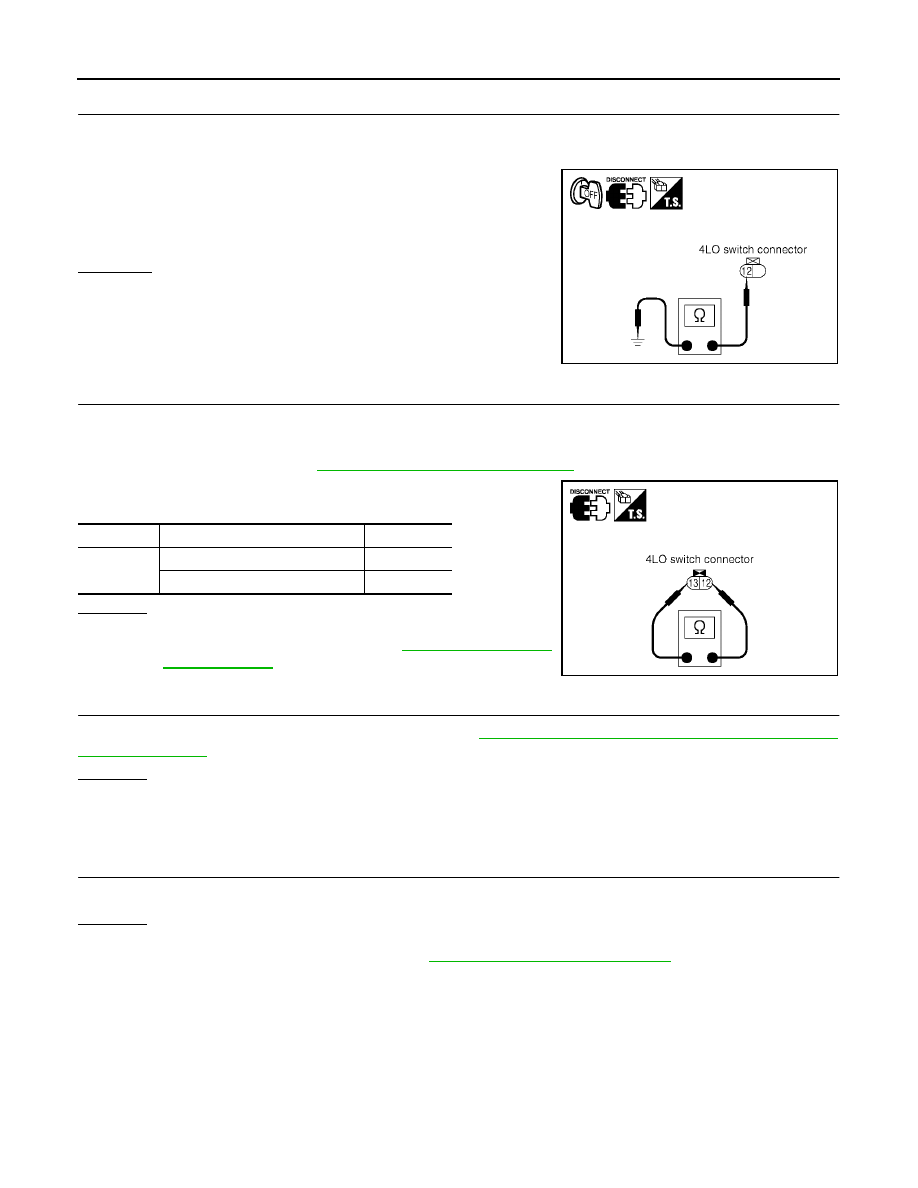

TF-228

[TX15B]

TROUBLE DIAGNOSIS FOR SYSTEM

2005 Pathfinder

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect 4LO switch harness connector.

3.

Check continuity between 4LO switch harness connector F60
terminal 12 and ground.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

4.

CHECK 4LO SWITCH

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect 4LO switch harness connector.

3.

Remove 4LO switch. Refer to

TF-202, "Location of Electrical Parts"

.

4.

Push and release 4LO switch and check continuity between
4LO switch terminals 12 and 13.

OK or NG

OK

>> GO TO 5.

NG

>> Replace 4LO switch.

Refer to

TF-202, "Location of

Electrical Parts"

.

5.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

TF-210, "Transfer Control Unit Input/Output Signal

Reference Values"

.

OK or NG

OK

>> GO TO 6.

NG

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

6.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.

OK or NG

OK

>> Inspection End.

NG

>> Replace transfer control unit. Refer to

TF-267, "Removal and Installation"

.

Continuity should exist.

PDIA0203E

Terminal

Condition

Continuity

12 - 13

Push 4LO switch

Yes

Release 4LO switch

No

PDIA0204E

TROUBLE DIAGNOSIS FOR SYSTEM

TF-229

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

COMPONENT INSPECTION

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect 4LO switch harness connector.

3.

Remove 4LO switch. Refer to

TF-202, "Location of Electrical Parts"

.

4.

Push and release 4LO switch and check continuity between
4LO switch terminals 12 and 13.

5.

If NG, replace the 4LO switch.

4WD Shift Switch

EDS001LB

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Data are reference value.

TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE

Data are reference value and are measured between each terminal and ground.

CAUTION:

When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.

Terminal

Condition

Continuity

12 - 13

Push 4LO switch

Yes

Release 4LO switch

No

PDIA0204E

Monitored item [Unit]

Content

Condition

Display value

2WD SWITCH [ON/
OFF]

Input condition from 4WD
shift switch

4WD shift switch: 2WD

ON

4WD shift switch: 4H and 4LO

OFF

4H SWITCH [ON/OFF]

Input condition from 4WD
shift switch

4WD shift switch: 4H

ON

4WD shift switch: 2WD and 4LO

OFF

4L SWITCH [ON/OFF]

Input condition from 4WD
shift switch

4WD shift switch: 4LO

ON

4WD shift switch: 2WD and 4H

OFF

4WD MODE [2H/4H/4L]

Control status of 4WD
(Output condition of 4WD
shift indicator lamp and
4LO indicator lamp)

4WD shift switch
(Engine running)

2WD

2H

4H

4H

4LO

4L

Terminal

Wire

color

Item

Condition

Data (Approx.)

14

G

4WD shift switch (2WD)

Ignition switch: ON

4WD shift switch: 2WD

Battery voltage

4WD shift switch: 4H and 4LO

0V

15

O

4WD shift switch (4H)

4WD shift switch: 4H

Battery voltage

4WD shift switch: 2WD and 4LO

0V

16

W

4WD shift switch (4LO)

4WD shift switch: 4LO

Battery voltage

4WD shift switch: 2WD and 4H

0V

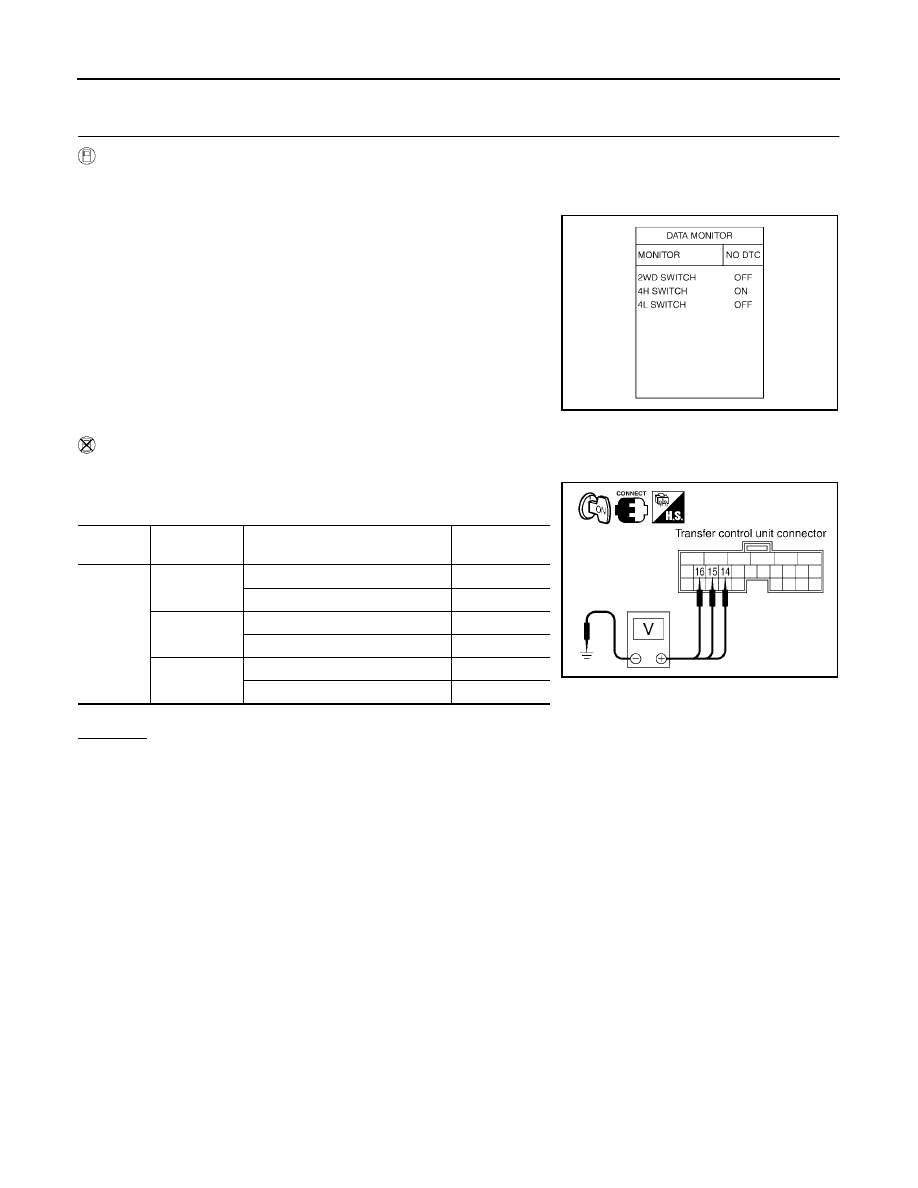

TF-230

[TX15B]

TROUBLE DIAGNOSIS FOR SYSTEM

2005 Pathfinder

DIAGNOSTIC PROCEDURE

1.

CHECK 4WD SHIFT SWITCH SIGNAL

With CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.

3.

Read out ON/OFF switching action of the “2WD SWITCH”, “4H
SWITCH”, “4L SWITCH” with operating 4WD shift switch.

Without CONSULT-II

1.

Turn ignition switch “ON”.

2.

Check voltage between transfer control unit harness connector
terminals and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

SDIA2382E

Connector

Terminal

(Wire color)

Condition

Voltage

(Approx.)

M152

14 - Ground

4WD shift switch: 2WD

Battery voltage

4WD shift switch: 4H and 4LO

0V

15 - Ground

4WD shift switch: 4H

Battery voltage

4WD shift switch: 2WD and 4LO

0V

16 - Ground

4WD shift switch: 4LO

Battery voltage

4WD shift switch: 2WD and 4H

0V

PDIA0209E

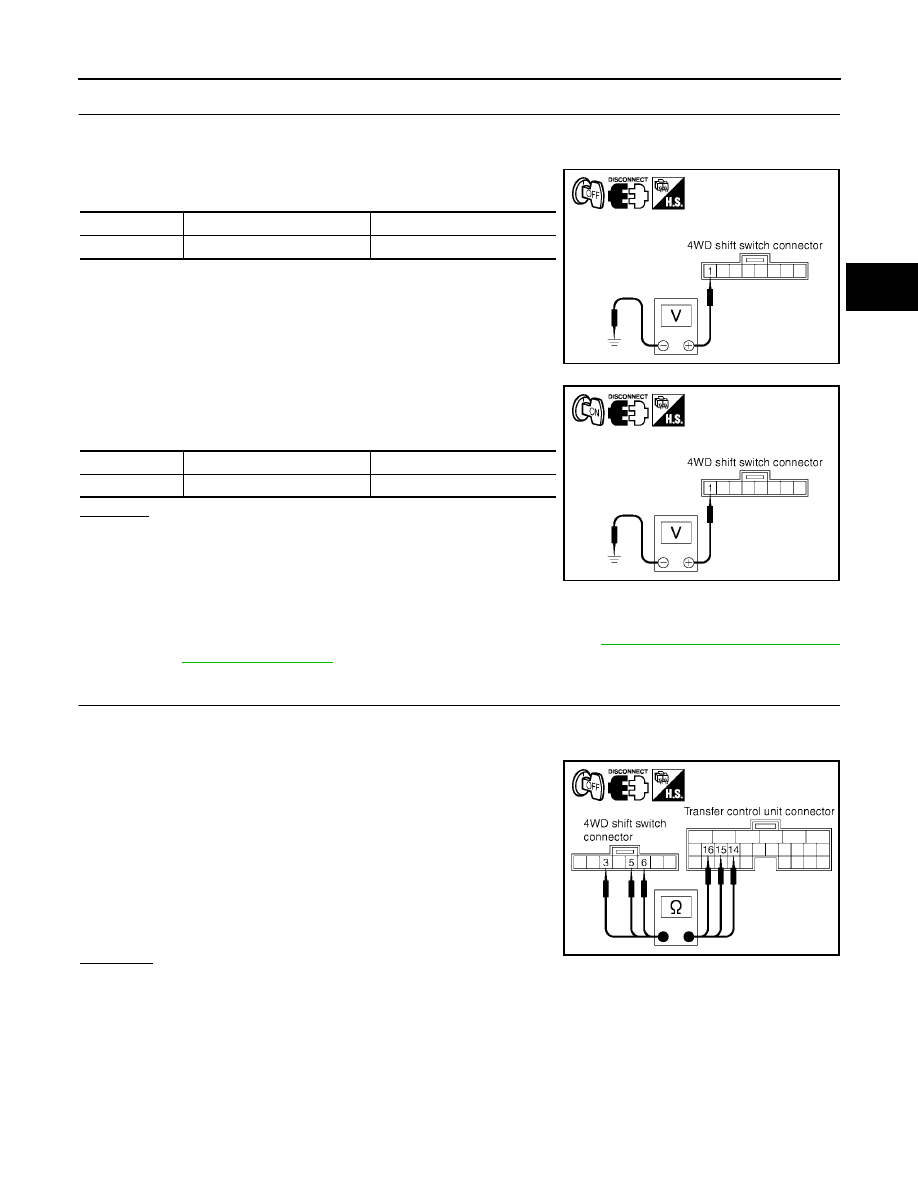

TROUBLE DIAGNOSIS FOR SYSTEM

TF-231

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

2.

CHECK 4WD SHIFT SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect 4WD shift switch harness connector.

3.

Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.

4.

Turn ignition switch “ON”. (Do not start engine.)

5.

Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> 1. Check harness for short or open between 4WD shift

switch harness connector terminal 1 and transfer shut
off relay 2 harness connector E157 terminal 5 and
10A fuse (No. 61 located in the fuse block). If any items are damaged, repair or replace dam-
aged parts.

2. Perform trouble diagnosis for power supply circuit. Refer to

TF-221, "Power Supply Circuit For

Transfer Control Unit"

.

3.

CHECK HARNESS BETWEEN 4WD SHIFT SWITCH AND TRANSFER CONTROL UNIT

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the 4WD shift switch harness connector.

3.

Check continuity between the following terminals.

Transfer control unit harness connector M152 terminal 14 and
4WD shift switch harness connector M141 terminal 3.

Transfer control unit harness connector M152 terminal 15 and
4WD shift switch harness connector M141 terminal 5.

Transfer control unit harness connector M152 terminal 16 and
4WD shift switch harness connector M141 terminal 6.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

Connector

Terminal (Wire color)

Voltage (Approx.)

M141

1 - Ground

0V

SDIA2803E

Connector

Terminal (Wire color)

Voltage (Approx.)

M141

1 - Ground

Battery voltage

SDIA2802E

Continuity should exist.

SDIA2804E

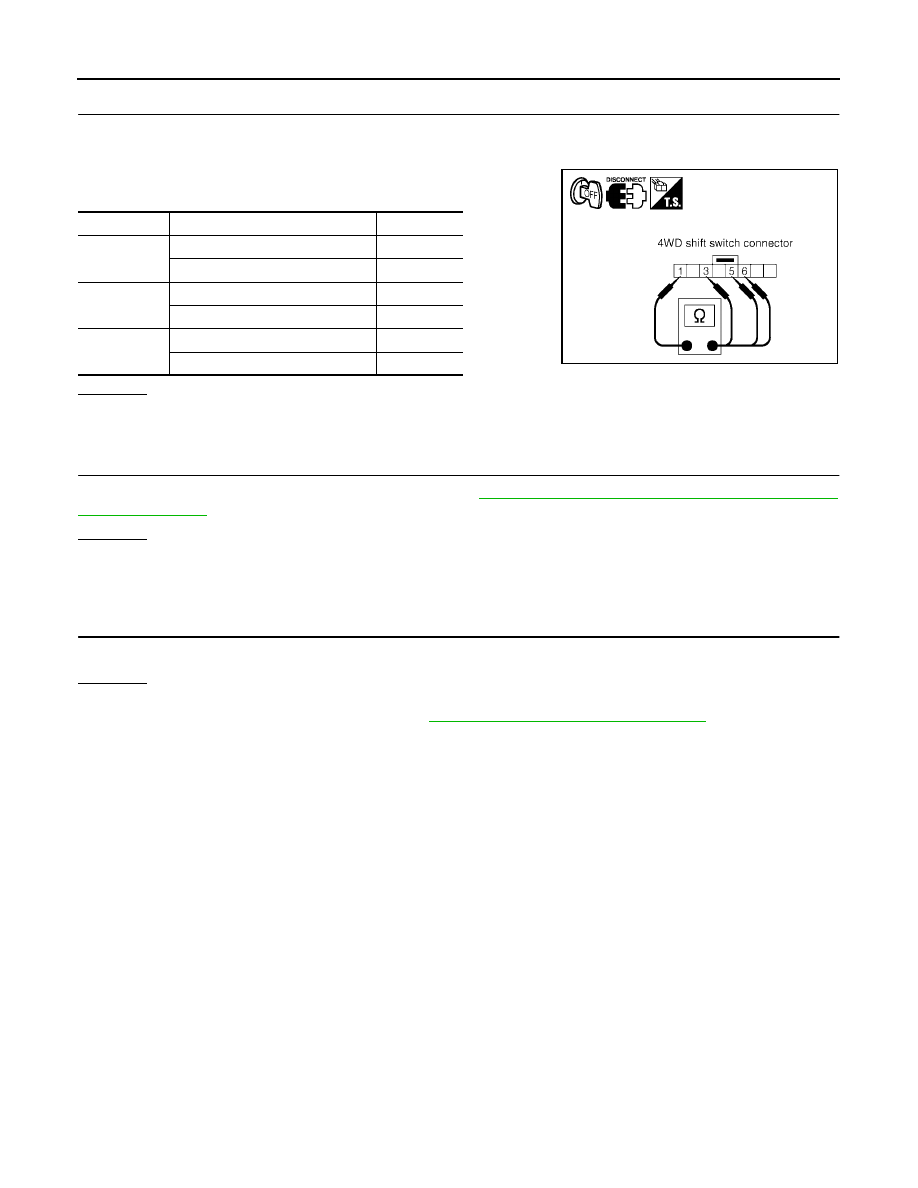

TF-232

[TX15B]

TROUBLE DIAGNOSIS FOR SYSTEM

2005 Pathfinder

4.

CHECK 4WD SHIFT SWITCH

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Remove 4WD shift switch harness connector.

3.

Operate 4WD shift switch and check continuity between 4WD
shift switch terminals.

OK or NG

OK

>> GO TO 5.

NG

>> Replace 4WD shift switch.

5.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

TF-210, "Transfer Control Unit Input/Output Signal

Reference Values"

.

OK or NG

OK

>> GO TO 6.

NG

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

6.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.

OK or NG

OK

>> Inspection End.

NG

>> Replace transfer control unit. Refer to

TF-267, "TRANSFER CONTROL UNIT"

.

Terminal

Condition

Continuity

1 - 3

4WD shift switch: 2WD

Yes

4WD shift switch: 4H and 4LO

No

1 - 5

4WD shift switch: 4H

Yes

4WD shift switch: 2WD and 4LO

No

1 - 6

4WD shift switch: 4LO

Yes

4WD shift switch: 2WD and 4H

No

SDIA2805E

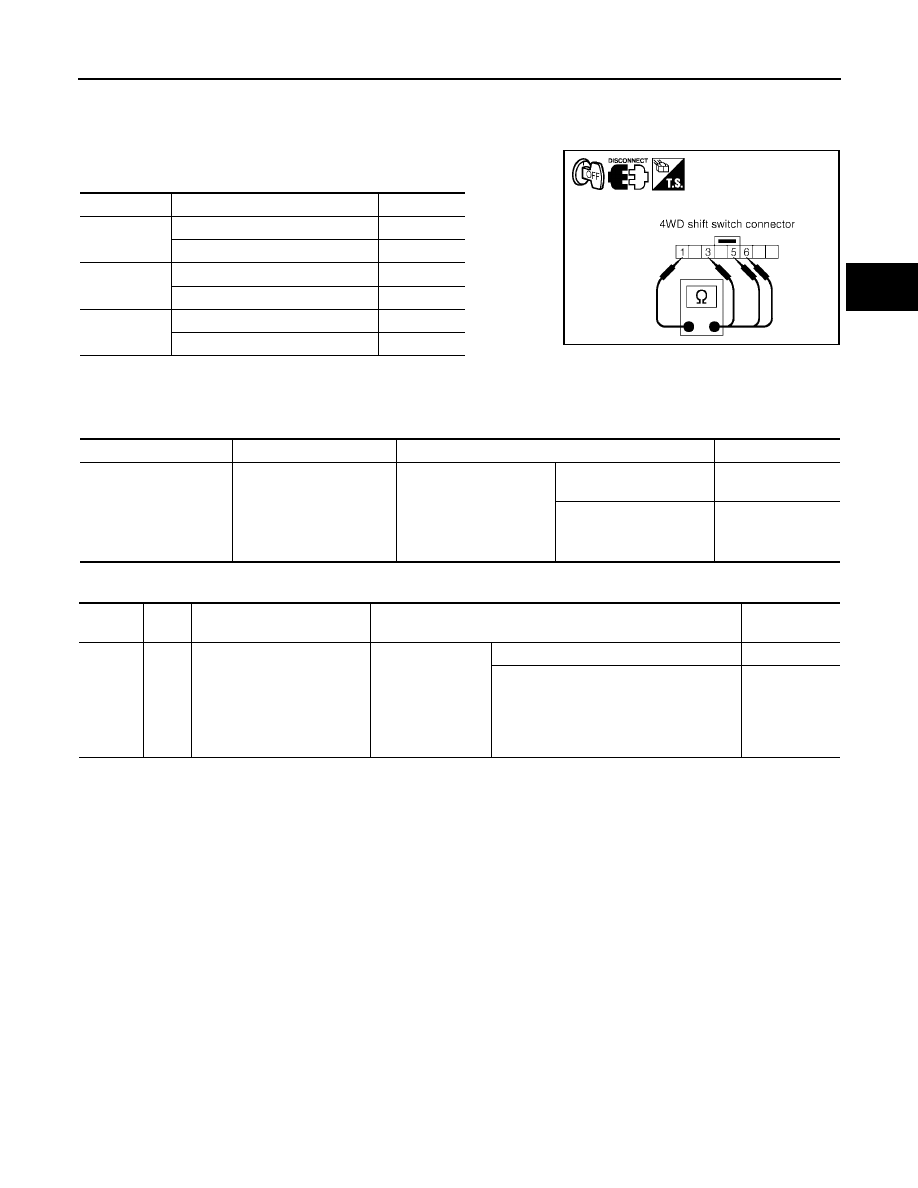

TROUBLE DIAGNOSIS FOR SYSTEM

TF-233

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

COMPONENT INSPECTION

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Remove 4WD shift switch harness connector.

3.

Operate 4WD shift switch and check continuity between 4WD
shift switch terminals.

4.

If NG, replace the 4WD shift switch.

Wait Detection Switch

EDS001LC

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Data are reference value.

TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE

Data are reference value and are measured between each terminal and ground.

CAUTION:

When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.

Terminal

Condition

Continuity

1 - 3

4WD shift switch: 2WD

Yes

4WD shift switch: 4H and 4LO

No

1 - 5

4WD shift switch: 4H

Yes

4WD shift switch: 2WD and 4LO

No

1 - 6

4WD shift switch: 4LO

Yes

4WD shift switch: 2WD and 4H

No

SDIA2805E

Monitored item

Content

Condition

Display value

WAIT DETCT SW [ON/
OFF]

Condition of wait detection
switch

Vehicle stopped

Engine running

A/T selector lever “N”
position

Brake pedal depressed

4WD shift switch
: 4H and 4LO

ON

4WD shift switch: 2WD

OFF

Terminal

Wire

color

Item

Condition

Data (Approx.)

17

O

Wait detection switch

Vehicle stopped

Engine running

A/T selector
lever “N” position

Brake pedal
depressed

4WD shift switch: 4H and 4LO

0V

4WD shift switch: 2WD

Battery voltage

TF-234

[TX15B]

TROUBLE DIAGNOSIS FOR SYSTEM

2005 Pathfinder

DIAGNOSTIC PROCEDURE

1.

CHECK WAIT DETECTION SWITCH SIGNAL

With CONSULT-II

1.

Start engine.

2.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.

3.

Read out the value of “WAIT DETCT SW”.

Without CONSULT-II

1.

Start engine.

2.

Check voltage between transfer control unit harness connector
terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND WAIT DETECTION SWITCH

1.

Turn ignition switch “OFF”. (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the wait detection switch harness connector.

3.

Check continuity between transfer control unit harness connec-
tor M152 terminal 17 and wait detection switch harness connec-
tor F59 terminal 10.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

Condition

Display value

Vehicle stopped

Engine running

A/T selector lever “N” position

Brake pedal depressed

4WD shift switch: 4H and 4LO

ON

4WD shift switch: 2WD

OFF

PDIA0221E

Connector

Terminal

(Wire

color)

Condition

Voltage

(Approx.)

E142

17 -

Ground

Vehicle stopped

Engine running

A/T selector lever
“N” position

Brake pedal
depressed

4WD shift switch
: 4H and 4LO

0V

4WD shift switch: 2WD

Battery
voltage

PDIA0205E

Continuity should exist.

PDIA0206E















Content      ..     449      450      451      452     ..
