Nissan Pathfinder (2005 year). Manual - part 417

TROUBLE DIAGNOSIS

SRS-27

SRS

2005 Pathfinder

FR CURTN MODULE RH

[OPEN]
[B1193]

●

The circuit for RH side front curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

FR CURTN MODULE RH

[VB-SHORT]

[B1194]

●

The circuit for RH side front curtain air bag module is
shorted to some power supply circuits.

FR CURTN MODULE RH

[GND-SHORT]

[B1195]

●

The circuit for RH side front curtain air bag module is
shorted to ground.

FR CURTN MODULE RH

[SHORT]

[B1196]

●

The circuits for the RH side front curtain air bag module are
shorted to each other.

CURTAIN MODULE LH

[OPEN]
[B1150]

●

The circuit for LH side rear curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace LH side curtain air bag

module.
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE LH

[VB-SHORT]

[B1151]

●

The circuit for LH side rear curtain air bag module is
shorted to some power supply circuits.

CURTAIN MODULE LH

[GND-SHORT]

[B1152]

●

The circuit for LH side rear curtain air bag module is
shorted to ground.

CURTAIN MODULE LH

[SHORT]

[B1153]

●

The circuits for the LH side rear curtain air bag module are
shorted to each other.

CURTAIN MODULE RH

[OPEN]
[B1145]

●

The circuit for RH side rear curtain air bag module is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH side curtain air bag

module.
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

[B1146]

●

The circuit for RH side rear curtain air bag module is
shorted to some power supply circuits.

CURTAIN MODULE RH

[GND-SHORT]

[B1147]

●

The circuit for RH side rear curtain air bag module is
shorted to ground.

CURTAIN MODULE RH

[SHORT]

[B1148]

●

The circuits for the RH side rear curtain air bag module are
shorted to each other.

CONTROL UNIT

[B1XXX]

●

Air bag diagnosis sensor unit is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the air bag diagnosis sen-

sor unit.

OCCUPANT SENS C/U

[UNIT FAIL]

[B1017], [B1020] or [B1021]

●

Occupant classification system is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

OCCUPANT SENS C/U

[COMM FAIL]

[B1022]

●

Communication between the occupant classification sys-
tem control unit and air bag diagnosis sensor unit is inter-
rupted.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

OCCUPANT SENS

[UNIT FAIL]

[B1018]

●

Occupant classification sensor is malfunctioning.

1. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

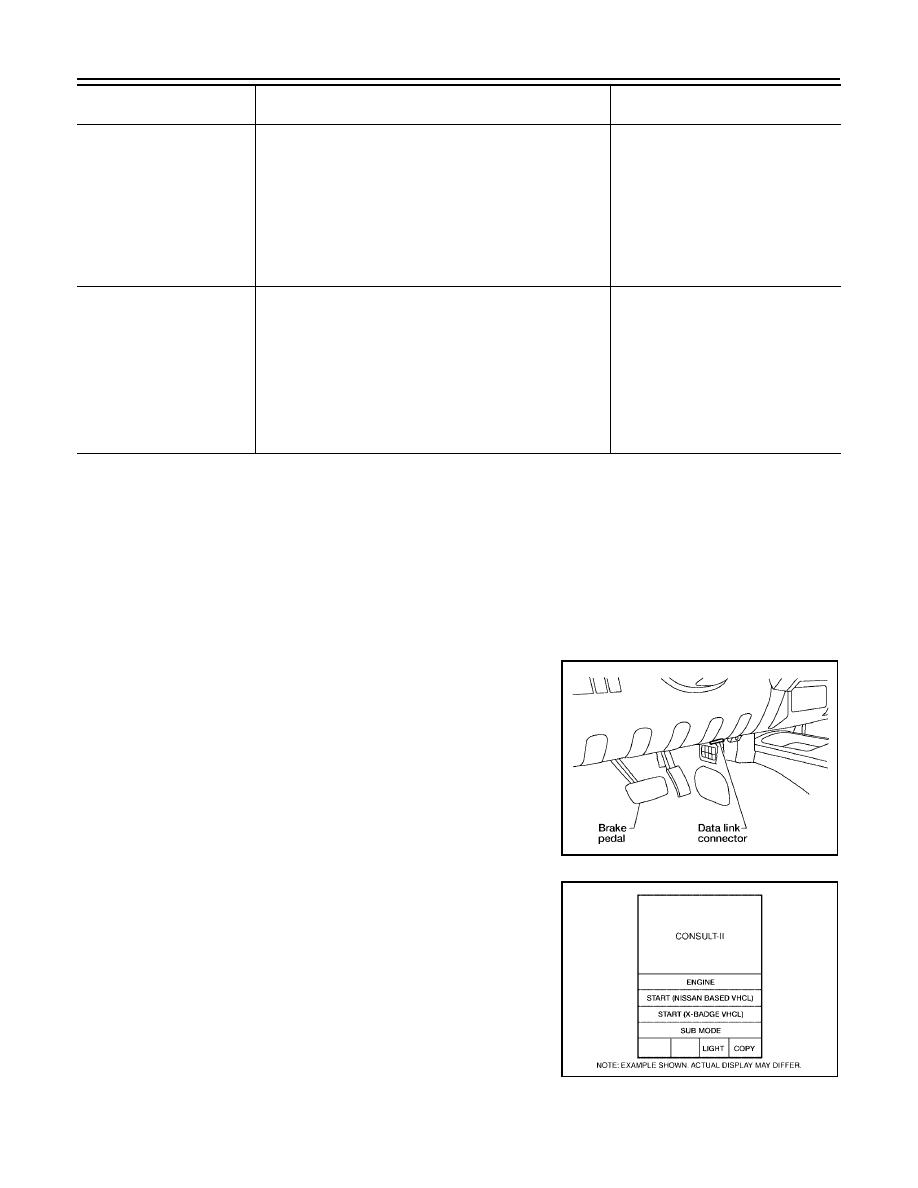

SRS-28

TROUBLE DIAGNOSIS

2005 Pathfinder

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

DIAGNOSTIC PROCEDURE 3
Final Check of SRS Using CONSULT-II—Diagnosis Mode

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected
in self-diagnosis depending on control unit which carry out CAN communication.

After repairing SRS, connect both battery cables.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

Turn ignition switch ON.

Touch “START (NISSAN BASED VHCL)”.

Touch “AIR BAG”.

BELT TENSION SENS

[UNIT FAIL]

[B1019]

●

Belt tension sensor is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace RH front seat belt assem-

bly.

4. Replace RH front seat cushion/

occupant classification system con-
trol unit assembly.

PASS A/B INDCTR CKT

[B1023]

●

Front passenger air bag off indicator is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front passenger air bag off

indicator.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

BBIA0538E

BCIA0029E

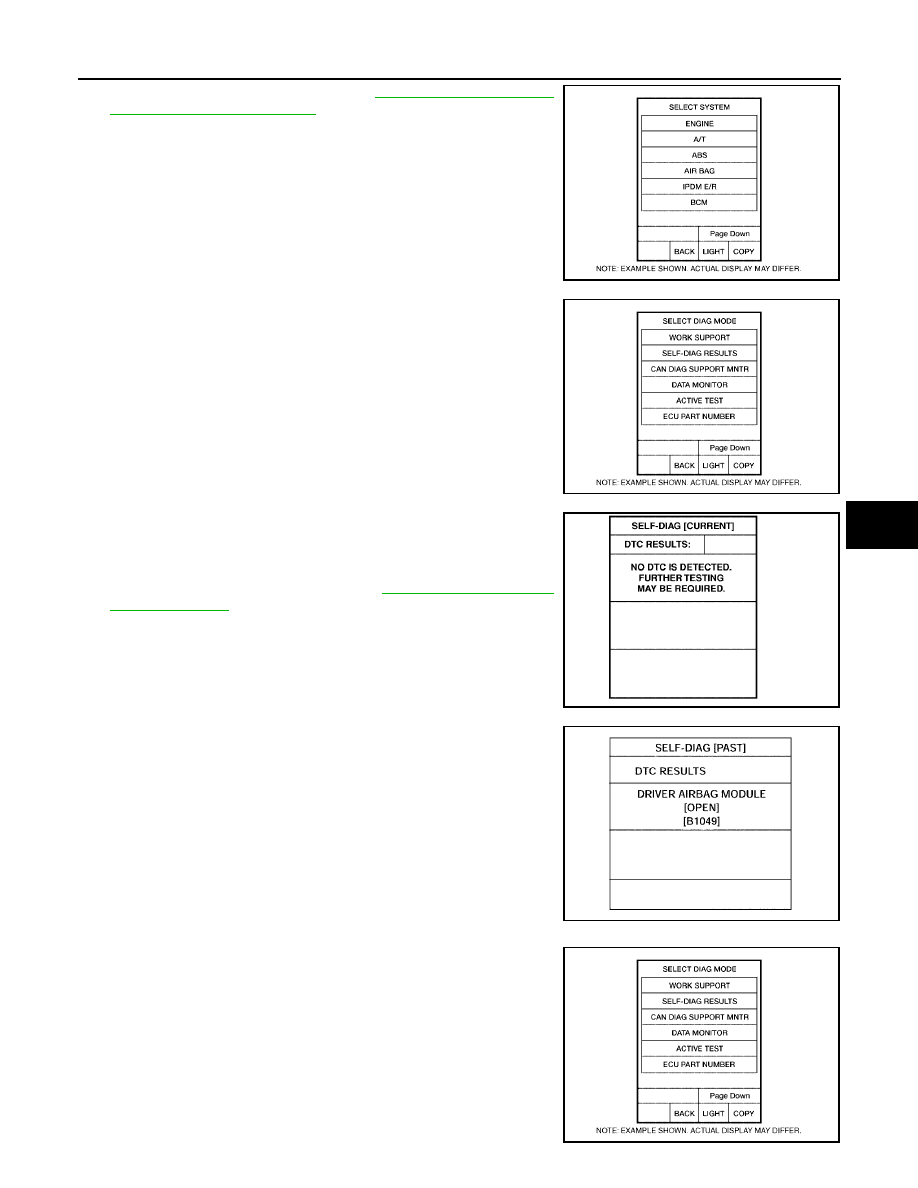

TROUBLE DIAGNOSIS

SRS-29

SRS

2005 Pathfinder

If "AIR BAG" is not indicated, refer to

GI-38, "CONSULT-II Data

Link Connector (DLC) Circuit"

Touch “SELF-DIAG [CURRENT]”.

If no malfunction is detected on “SELF-DIAG [CURRENT]”,
repair of SRS is completed. Go to step 8.
If any malfunction is detected on “SELF-DIAG [CURRENT]”, the
malfunctioning part is not repaired completely or another mal-
functioning part is detected. Go to

SRS-23, "DIAGNOSTIC

PROCEDURE 2"

, and repair malfunctioning part completely.

Touch “ERASE”.

NOTE:
Touch “ERASE” to clear the memory of the malfunction
(“SELF-DIAG [PAST]”).
If the memory of the malfunction in “SELF-DIAG [PAST]” is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.

Touch “BACK” key of CONSULT-II to “SELECT DIAG MODE”
screen. Touch “SELF-DIAG [PAST]”.

BCIA0030E

BCIA0031E

SRS701

WHIA0152E

BCIA0031E

SRS-30

TROUBLE DIAGNOSIS

2005 Pathfinder

10. Check that no malfunction is detected on “SELF-DIAG [PAST]”.
11. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears in order to return to User mode from Diagnosis mode.

12. Turn ignition switch OFF then turn off and disconnect CON-

SULT-II.

13. Go to

SRS-21, "Checking SRS Operation Using “AIR BAG”

Warning Lamp—User Mode"

SRS702

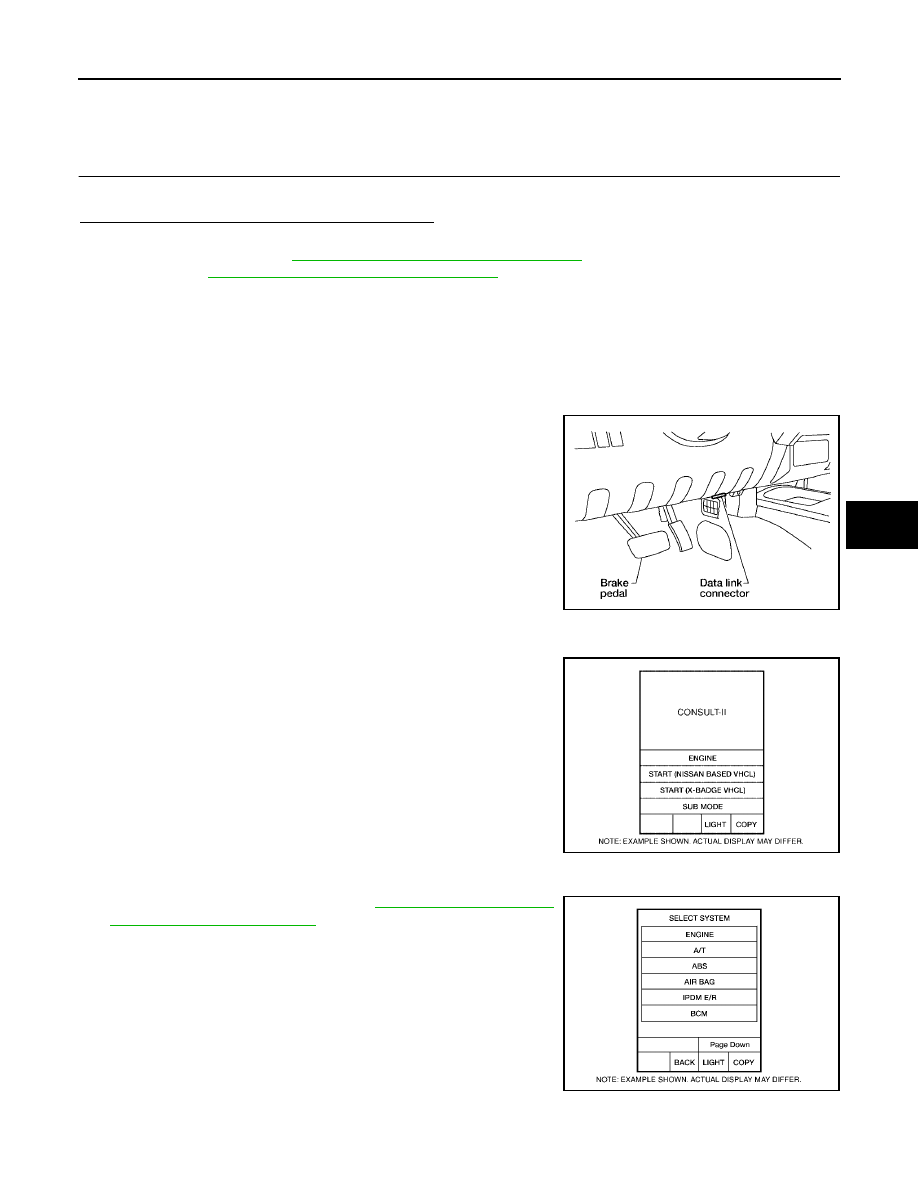

TROUBLE DIAGNOSIS

SRS-31

SRS

2005 Pathfinder

DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)
Check SRS Repair History

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.

Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Go to

SRS-28, "DIAGNOSTIC PROCEDURE 3"

>> Go to

SRS-23, "DIAGNOSTIC PROCEDURE 2"

DIAGNOSTIC PROCEDURE 5
Check SRS Intermittent Malfunction Using CONSULT-II—Diagnosis Mode

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected
in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

Turn ignition switch ON.

Touch “START (NISSAN BASED VHCL)”.

Touch “AIR BAG”.
If "AIR BAG" is not indicated, refer to

GI-38, "CONSULT-II Data

Link Connector (DLC) Circuit"

BBIA0538E

BCIA0029E

BCIA0030E

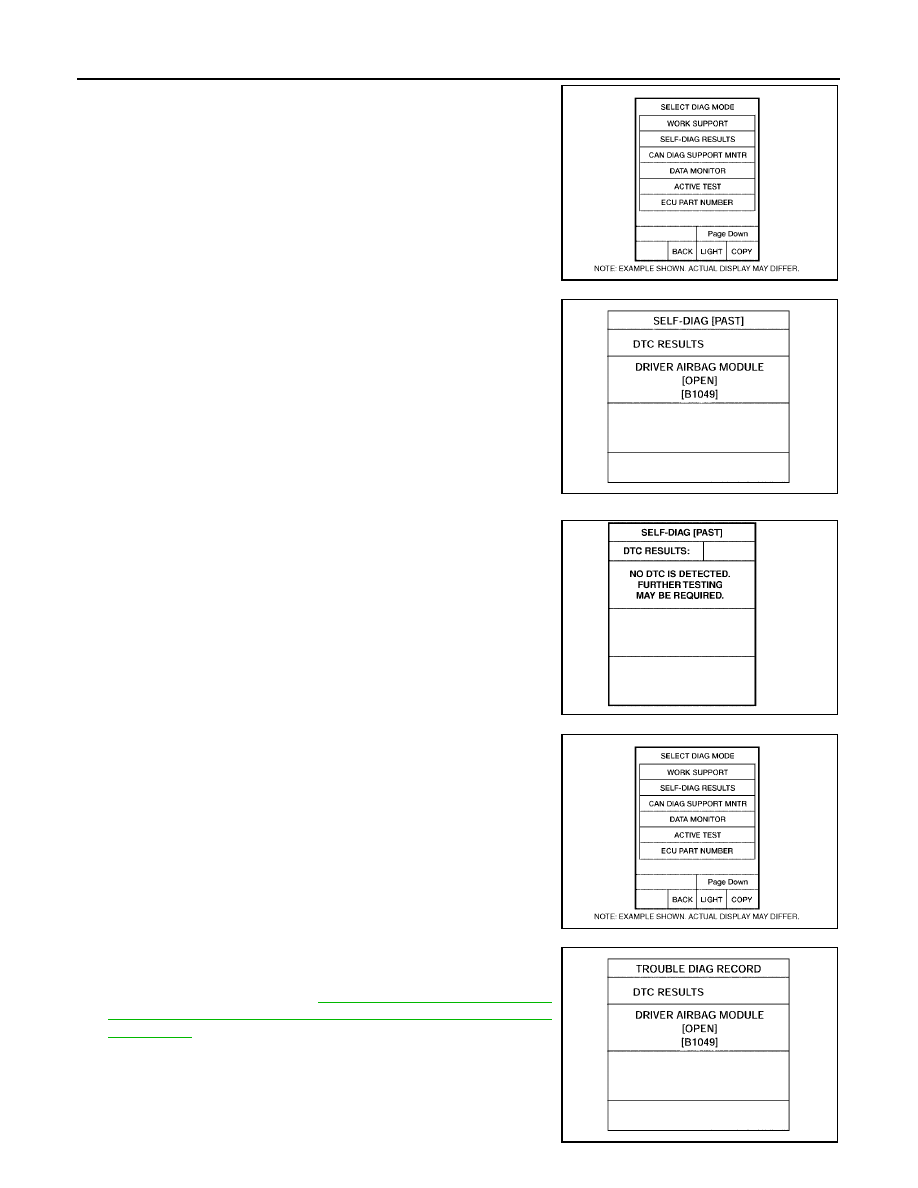

SRS-32

TROUBLE DIAGNOSIS

2005 Pathfinder

Touch “SELF-DIAG [PAST]”.

If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go to
step 10.

If no malfunction is detected on “SELF-DIAG [PAST]”, touch
“BACK” and go back to “SELECT DIAG MODE”.

Touch “TROUBLE DIAG RECORD”.
NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previ-
ously erased by a reset operation can be displayed.

Diagnostic code is displayed on “TROUBLE DIAG RECORD”.

10. Touch “PRINT”.

11. Compare diagnostic codes to

SRS-33, "CONSULT-II Diagnostic

12. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears.

13. Turn ignition switch OFF, then turn off and disconnect CON-

SULT-II, and both battery cables.

BCIA0031E

WHIA0152E

SRS702

BCIA0031E

WHIA0153E

TROUBLE DIAGNOSIS

SRS-33

SRS

2005 Pathfinder

14. Repair the system as outlined by the “Repair order” in “Intermittent Malfunction Diagnostic Code Chart”,

that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the
Removal and Installation procedure for the appropriate component.

15. Go to

SRS-28, "DIAGNOSTIC PROCEDURE 3"

, for final checking.

CONSULT-II Diagnostic Code Chart ("SELF-DIAG [PAST]" or "TROUBLE DIAG RECORD")

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

NO DTC IS DETECTED

When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.

●

Low battery voltage (Less than
9V)

●

Go to

SRS-28, "DIAGNOSTIC PRO-

CEDURE 3"

●

Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased
after repair.

●

Intermittent malfunction has been
detected in the past.

●

Go to

SRS-31, "DIAGNOSTIC PRO-

CEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)"

●

Go to

SRS-31, "DIAGNOSTIC PRO-

CEDURE 5"

●

No malfunction is detected.

—

DRIVER AIRBAG MODULE

[OPEN]

[B1049] or [B1054]

●

Driver air bag module circuit is open (including the spiral
cable).

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace driver air bag module.

(Before disposal, it must be
deployed.)

4. Replace the spiral cable.

5. Replace the air bag diagnosis sen-

sor unit.

6. Replace the related harness.

DRIVER AIRBAG MODULE

[VB-SHORT]

[B1050] or [B1055]

●

Driver air bag module circuit is shorted to some power sup-
ply circuit (including the spiral cable).

DRIVER AIRBAG MODULE

[GND-SHORT]

[B1051] or [B1056]

●

Driver air bag module circuit is shorted to ground (including
the spiral cable).

DRIVER AIRBAG MODULE

[SHORT]

[B1052] or [B1057]

●

Driver air bag module circuits are shorted to each other.

ASSIST A/B MODULE

[OPEN]

[B1065] or [B1070]

●

Front passenger air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front passenger air bag

module. (Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

ASSIST A/B MODULE

[VB-SHORT]

[B1066] or [B1071]

●

Front passenger air bag module circuit is shorted to some
power supply circuit.

ASSIST A/B MODULE

[GND-SHORT]

[B1067] or [B1072]

●

Front passenger air bag module circuit is shorted to
ground.

ASSIST A/B MODULE

[SHORT]

[B1068] or [B1073]

●

Front passenger air bag module circuits are shorted to
each other.

CRASH ZONE SEN

[UNIT FAIL]

[B1033] or [B1034]

CRASH ZONE SEN

[COMM FAIL]

[B1035]

●

Crash zone sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the crash zone sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SRS-34

TROUBLE DIAGNOSIS

2005 Pathfinder

SIDE MODULE LH

[OPEN]
[B1134]

●

Front LH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat back assem-

bly (front LH side air bag module).
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SIDE MODULE LH

[VB-SHORT]

[B1135]

●

Front LH side air bag module circuit is shorted to some
power supply circuit.

SIDE MODULE LH

[GND-SHORT]

[B1136]

●

Front LH side air bag module circuit is shorted to ground.

SIDE MODULE LH

[SHORT]

[B1137]

●

Front LH side air bag module circuits are shorted to each
other.

SIDE MODULE RH

[OPEN]
[B1129]

●

Front RH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front RH seat back assem-

bly (front RH side air bag module).
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SIDE MODULE RH

[VB-SHORT]

[B1130]

●

Front RH side air bag module circuit is shorted to some
power supply circuit.

SIDE MODULE RH

[GND-SHORT]

[B1131]

●

Front RH side air bag module circuit is shorted to ground.

SIDE MODULE RH

[SHORT]

[B1132]

●

Front RH side air bag module circuits are shorted to each
other.

SATELLITE SENS LH

[UNIT FAIL]

[B1118] or [B1119]

SATELLITE SENS LH

[COMM FAIL]

[B1120]

●

LH side air bag (satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the LH side air bag (satel-

lite) sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

SATELLITE SENS RH

[UNIT FAIL]

[B1113] or [B1114]

SATELLITE SENS RH

[COMM FAIL]

[B1115]

●

RH side air bag (satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the RH side air bag (satel-

lite) sensor.

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[OPEN]
[B1086]

●

The circuit for front LH seat belt pre-tensioner is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat belt pre-ten-

sioner.
(Before disposal, it must be
deployed.)

4. Replace the air bag diagnosis sen-

sor unit.

5. Replace the related harness.

PRE-TEN FRONT LH

[VB-SHORT]

[B1087]

●

The circuit for front LH seat belt pre-tensioner is shorted to
some power supply circuit.

PRE-TEN FRONT LH

[GND-SHORT]

[B1088]

●

The circuit for front LH seat belt pre-tensioner is shorted to
ground.

PRE-TEN FRONT LH

[SHORT]

[B1089]

●

The circuits for the front LH seat belt pre-tensioner are
shorted to each other.

Diagnostic item

Explanation

Repair order

Recheck SRS at each replacement

Content .. 415 416 417 418 ..
