TROUBLE DIAGNOSIS
SRS-11
C
D
E
F
G
I
J
K
L
M
A
B
SRS
2005 Pathfinder

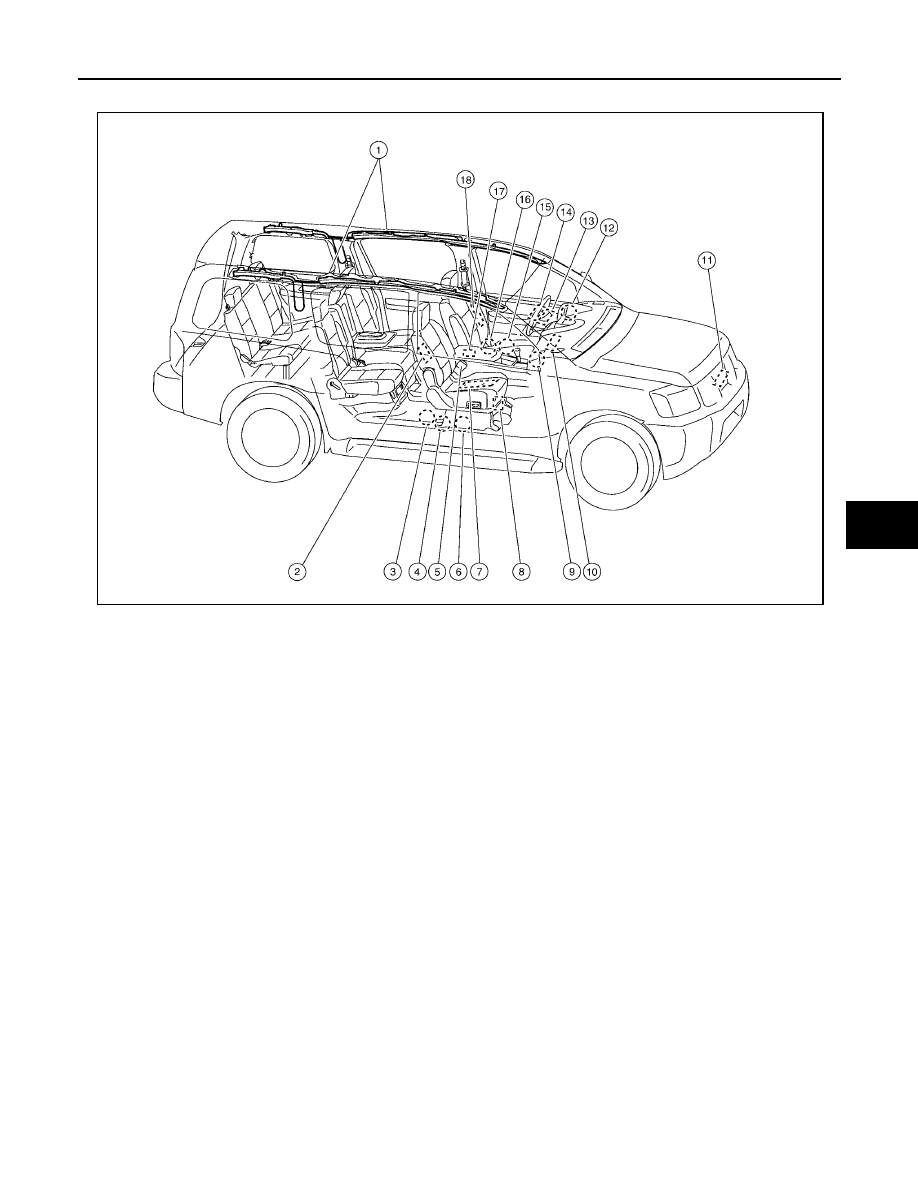

SRS Components Parts Location
EHS0012P
1.
Side curtain air bag modules
(If equipped)
2.
Front RH side air bag module
(If equipped)
3.
Front RH seat belt pre-tensioner
4.
Belt tension sensor
5.
Seat belt buckle switch RH
6.
RH side air bag (satellite) sensor
(If equipped)
7.
Occupant classification system sen-
sor
8.
Occupant classification sys-
tem control unit
9.
Front passenger air bag off indicator
10. Front passenger air bag module
11.
Crash zone sensor
12. Air bag warning lamp
13. Spiral cable
14. Driver air bag module
15. LH side air bag (satellite) sensor
(If equipped)
16. Front LH seat belt pre-tensioner
17. Air bag diagnosis sensor unit
18. Front LH side air bag module
(If equipped)
WHIA0196E
